Arducam 1080P Day/Night Vision USB Camera

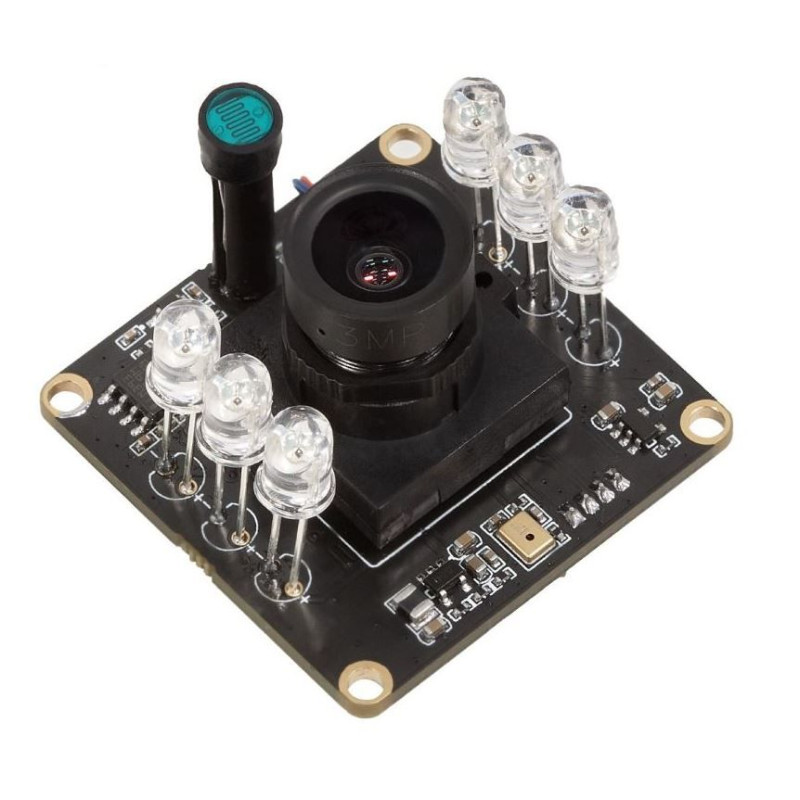

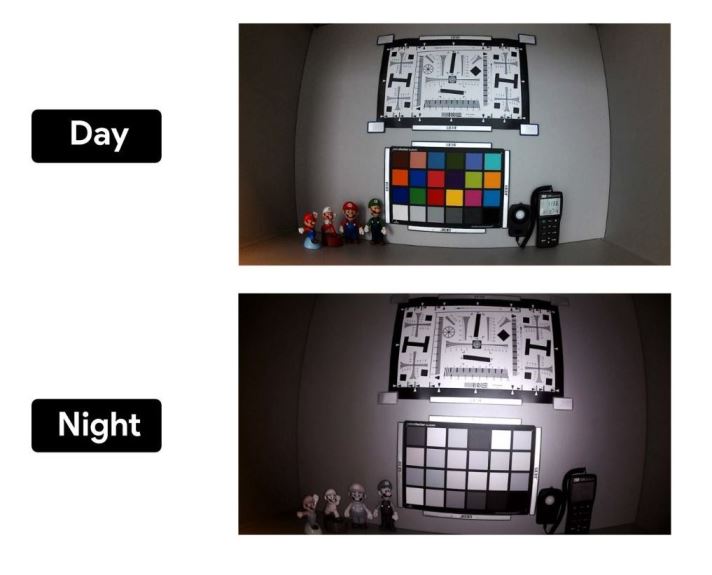

TheArducam 1080P Day/Night Vision USB Camera is a high-quality USB camera that supports Full HD 1080P video, adapted for use in both day and night. Equipped with an infrared LED and photoresistor to automatically switch between day and night modes, this camera delivers clear images in all lighting conditions. Ideal for video surveillance systems, DVR, AI projects, and industrial and educational applications.

Key features:

• Equipped with a built-in infrared LED and photoresistor for automatic switching between day and night modes. High image quality in any lighting conditions.

• The wide-angle lens with F1.6 aperture and 105° viewing angle allows you to capture the smallest details.

• Equipped with USB port for easy connection to a computer, Raspberry Pi or other devices and quick setup
• Compatible with popular operating systems and video recording software.
• Reliable operation in a wide temperature range.
• Rugged camera design combined with light weight and compact size for long-lasting and convenient use in any project.

Specifications:

• Sensor: OV2710;
• Resolution: 2 megapixels;
• Type of light filter: color;
• Shutter type: roller shutter;
• Image sensor: 1/2.7 inch sensor;
• Image format: MJPG/YUY2;
• Pixel size: 3 microns x 3 microns;
• Sensor active area size: 1920(H)×1080(V);
• Data transmission rate (frames/s):

MJPG - 30fps@320x240, 352x288, 640x480, 800x600, 1024x768, 1280x720, 1280x960, 1280x1024, 1920x1080;

YUY2 - 30fps@320x240,352x288; 15fps@640x480; 20fps@800x600; 10fps@1024x768, 1280x720;

5fps@1280x960,1280x1024,1920x1080;

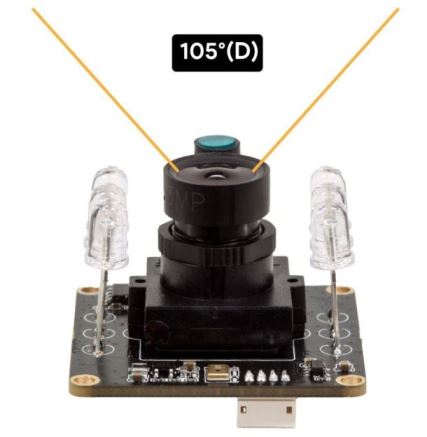

• Field of view (FoV): 105°(D) × 92°(H) × 76°(V);
• Lens mount: M12 (mount type S);
• Aperture (F.NO): F1,6±10%;
• Equivalent focal length: 4.3±5%;
• IR sensitivity: Built-in IR filter (sensitive to visible light only during the day, sensitive to IR light at night with 850 IR LEDs on);
• Focusing range : 2m-∞;
• Interface: USB 2.0;
• Connector: B4B-ZR;
• UVC compatible: no additional drivers required;
• Operating voltage: 5 V +/- 5%;
• Operating temperature: 32°F-158°F (0°C to 70°C);
• Power requirements: 2.0 W;
• Sound: one microphone;
• Supported OS: Windows, Linux, Android and MAC OS;

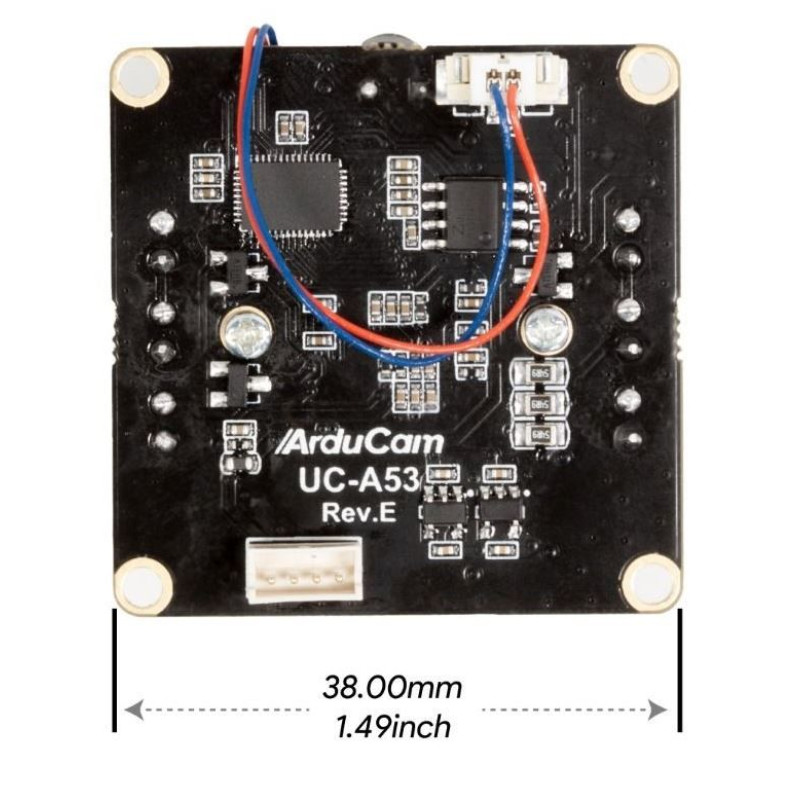

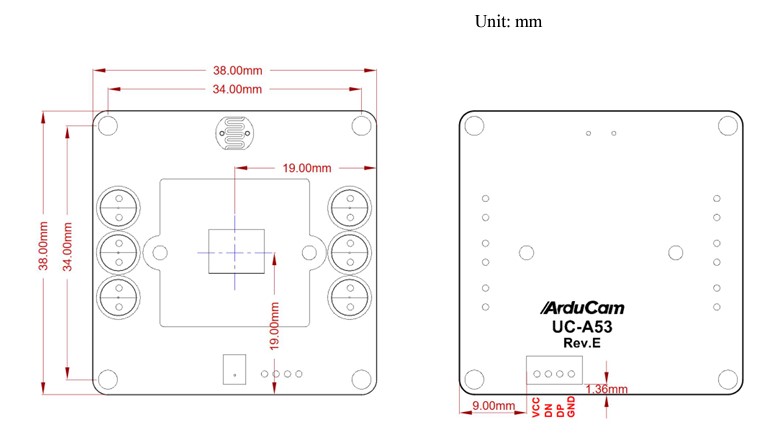

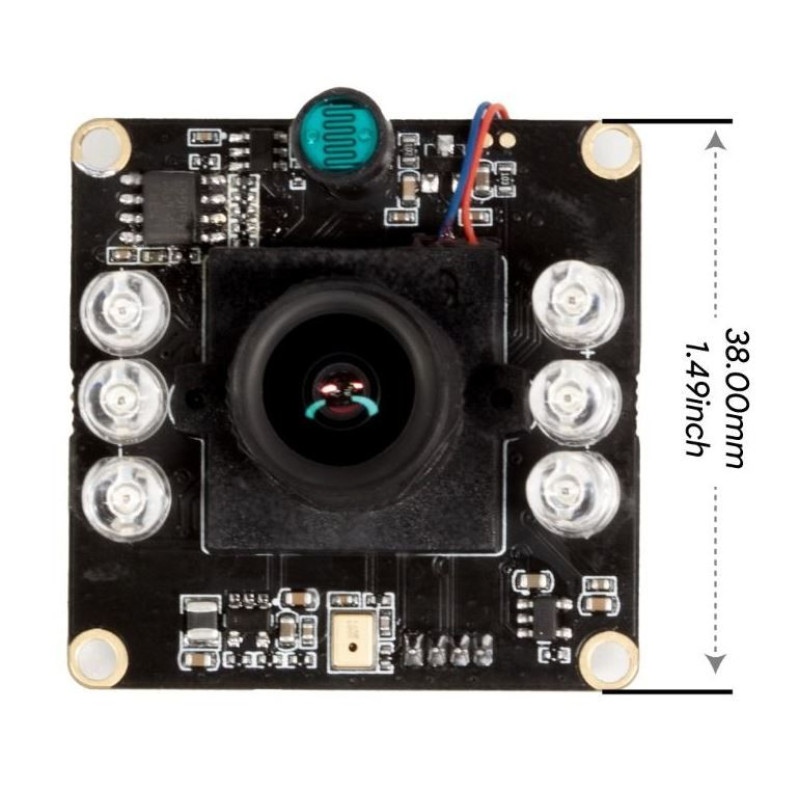

Overall dimensions: 38 mm x 38 mm

Package contents:

1. OV2710 USB2.0 camera x 1;
2. USB 2.0 cable 1 m x 1.
