Raspberry Pi Li-Ion Battery HAT expansion board (15141)

Attention: This board is not an uninterruptible power supply!!!

Expansion boards with UPS (Uninterruptible Power Supply) function:

Raspberry Pi UPS HAT Pogo Pins Connector (20568)

Raspberry Pi UPS HAT expansion board (18306)

Raspberry Pi Zero UPS HAT expansion board (19739)

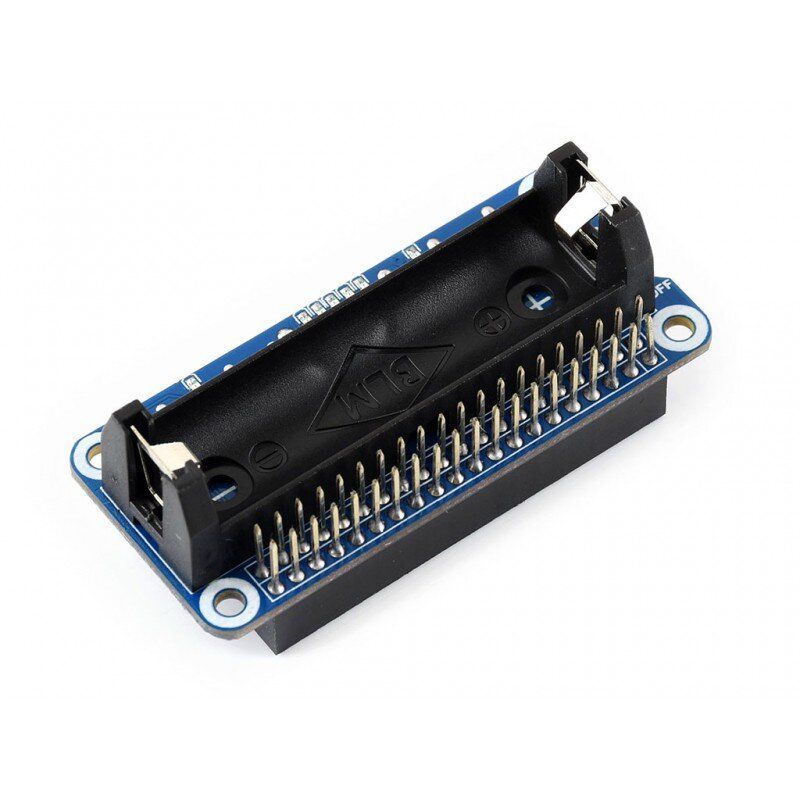

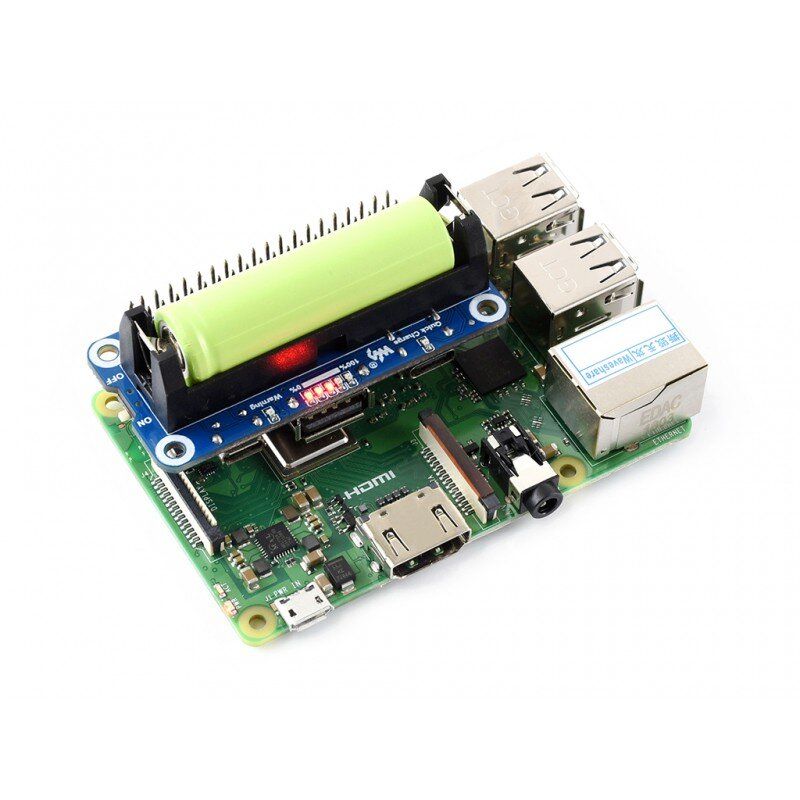

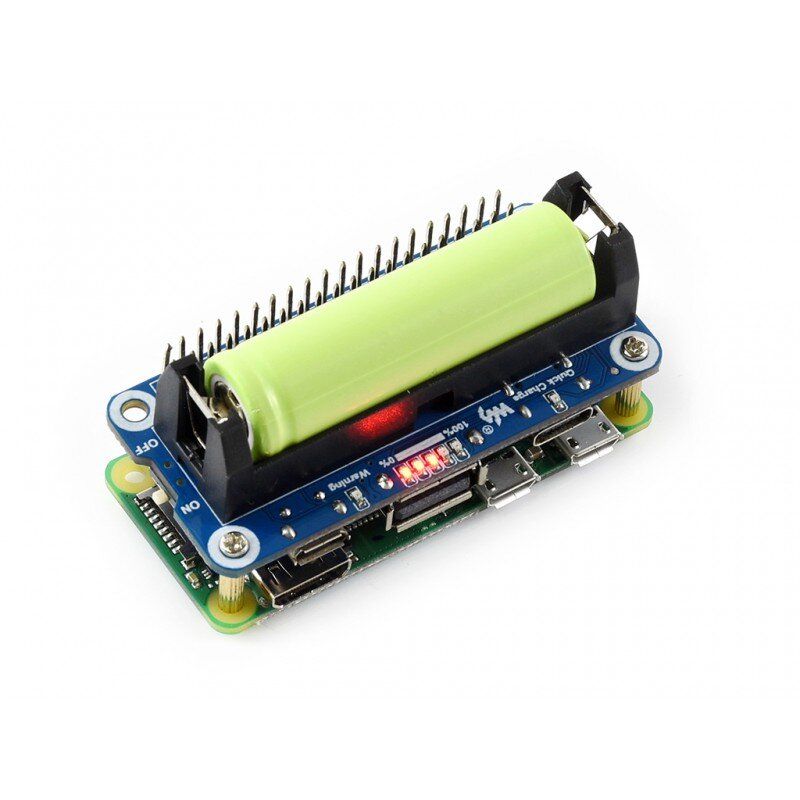

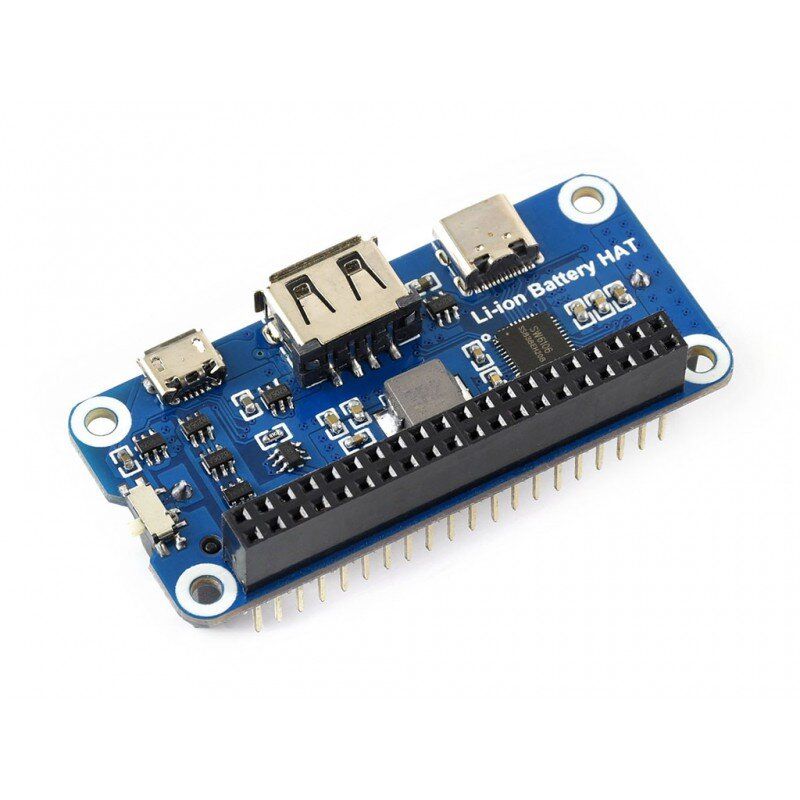

The Raspberry Pi Li-Ion Battery HAT (15141 ) is designed to provide power to the Raspberry Pi microcomputer and other 5V devices. It provides stable 5V power to the device and two-way fast charging. When powered from an external source, the batteries are automatically recharged.

The design of this expansion board is fully compatible with the mounting holes of the Raspberry Pi board, and communication is via a single 40-pin GPIO connector.

Main features:

• SW6106 chip provides bi-directional fast battery charging, supports fast charging protocols such as PD/QC/FCP/PE/SFCP
• standard 40PIN GPIO connector for connecting Raspberry Pi expansion boards;
• battery protection circuits (overcharge/discharge protection; overcurrent protection; short circuit protection and reverse protection);
• 5V USB interface for powering external devices
• battery polarity indicator - signals when batteries are installed in the wrong polarity.

Specifications:

Output voltage: 5V

Supported battery type: 3.7V type 14500 lithium battery / 4.2V when fully charged (NOT INCLUDED IN THE SHIPPING PACKAGE)

Overall dimensions: 65x30mm

Diameter of mounting holes: 3.0mm

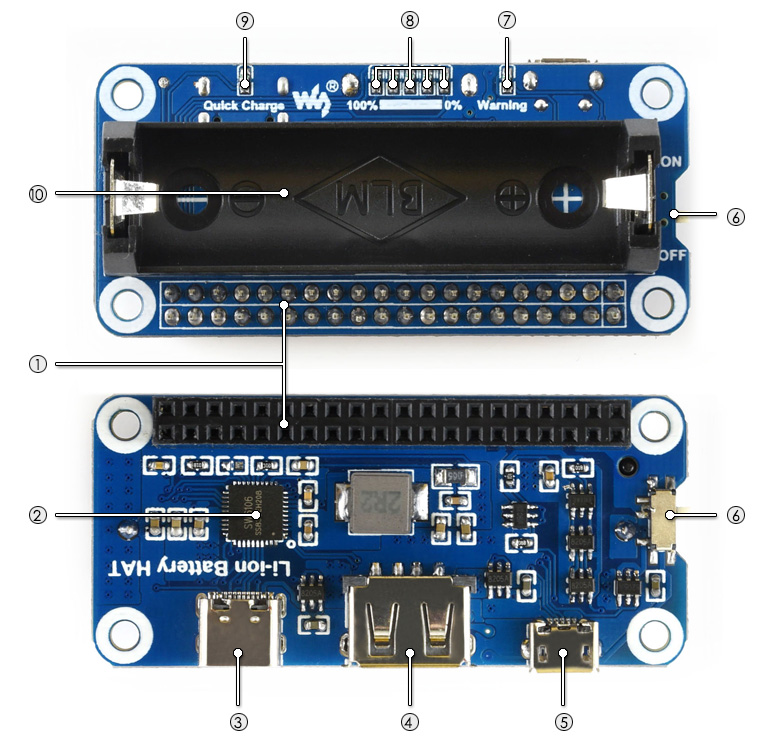

Purpose of the main elements and blocks of the board:

1. Raspberry Pi GPIO connector: for connecting the Raspberry Pi
2. SW6106 power management chip
3. USB Type-C connector: battery charge / power supply (output)
4. USB Type-A connector: power supply (output)
5. Micro USB connector: battery charge
6. Raspberry Pi power switch
7. Battery warning light: Lights up when the battery is installed with the wrong polarity
8. Battery capacity indicator: 5 LEDs to indicate battery capacity and charging status
9. Fast charging indicator: On when charging fast
10. Battery holder 14500

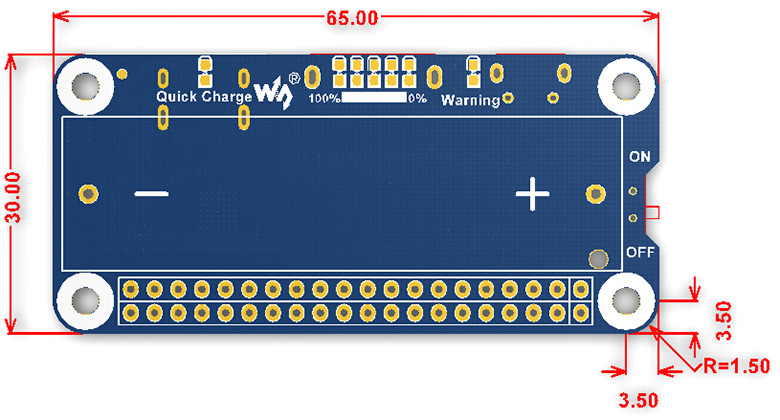

Overall dimensions (in mm): 30х65

Sources for developers
Wiki : www.waveshare.com/wiki/Li-ion_Battery_HAT

Included in the package:

1. Li-ion Battery HAT x1
2. Mounting kit for RPi x1

1. 2.

ATTENTION!!! Rechargeable batteries are not included in the package.

weight: 0.021kg
