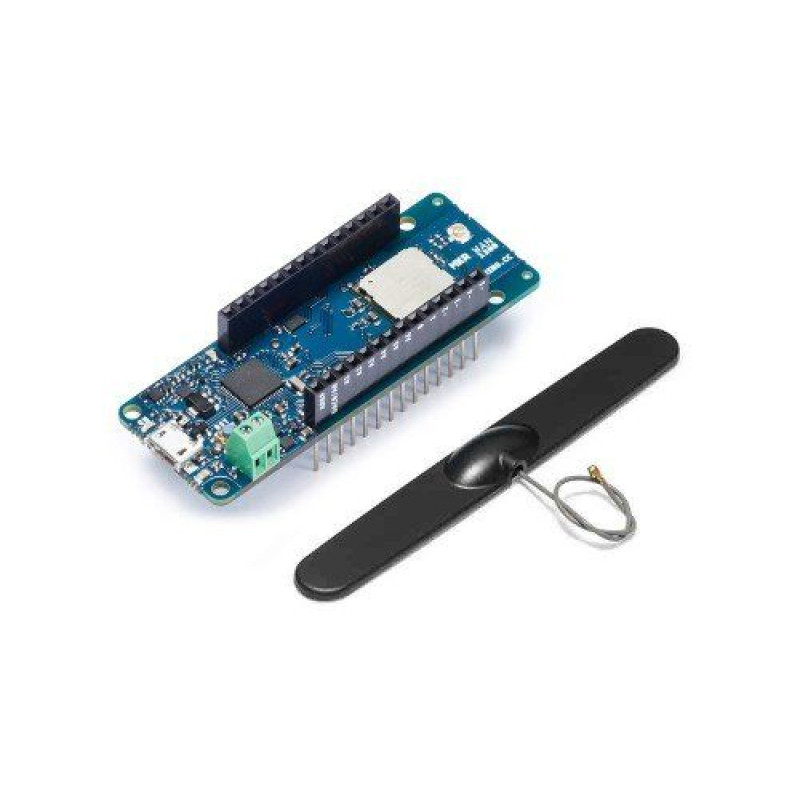

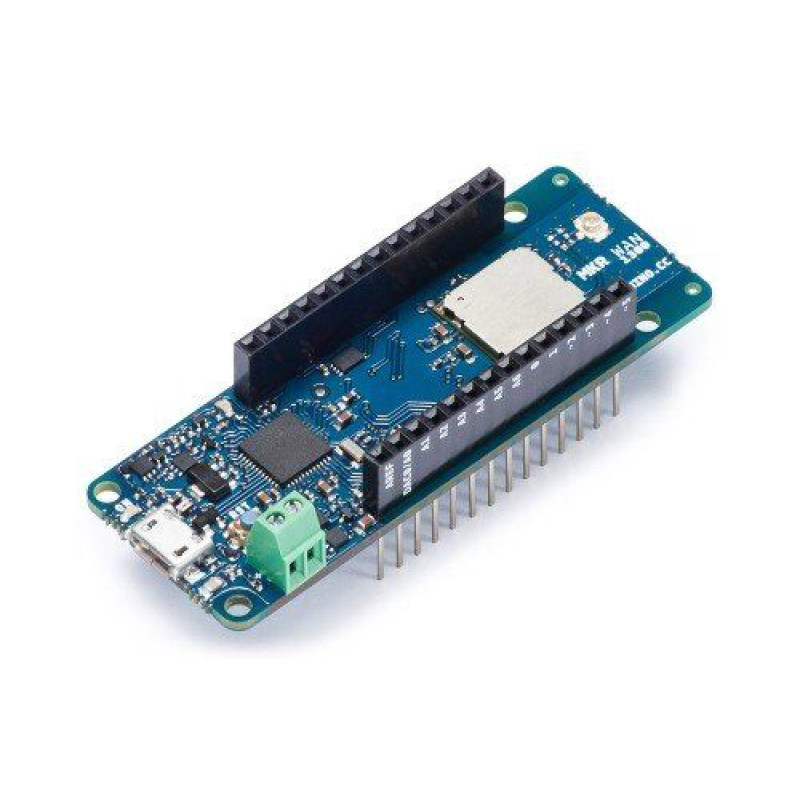

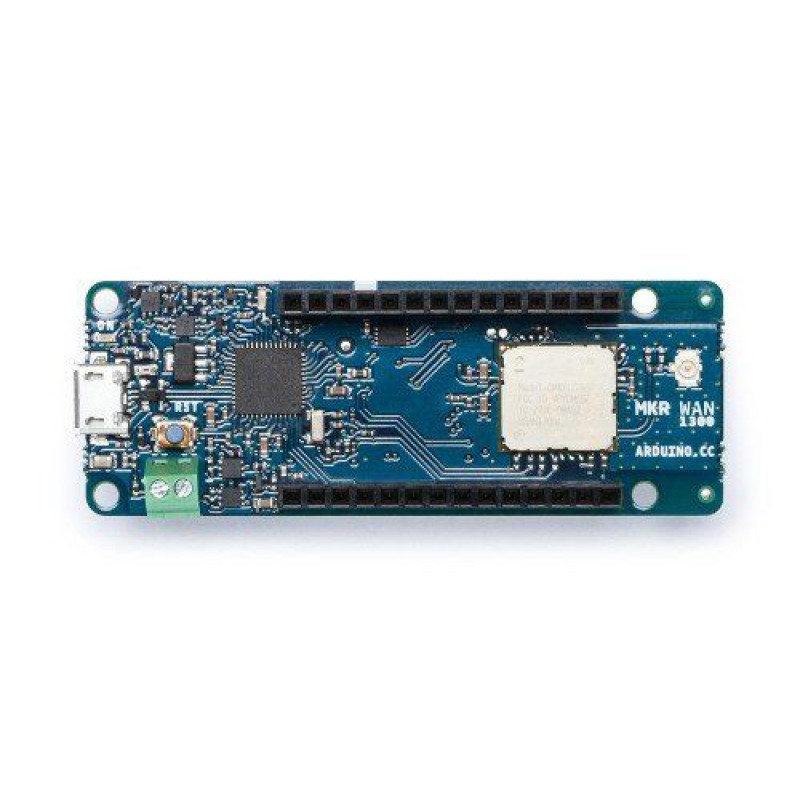

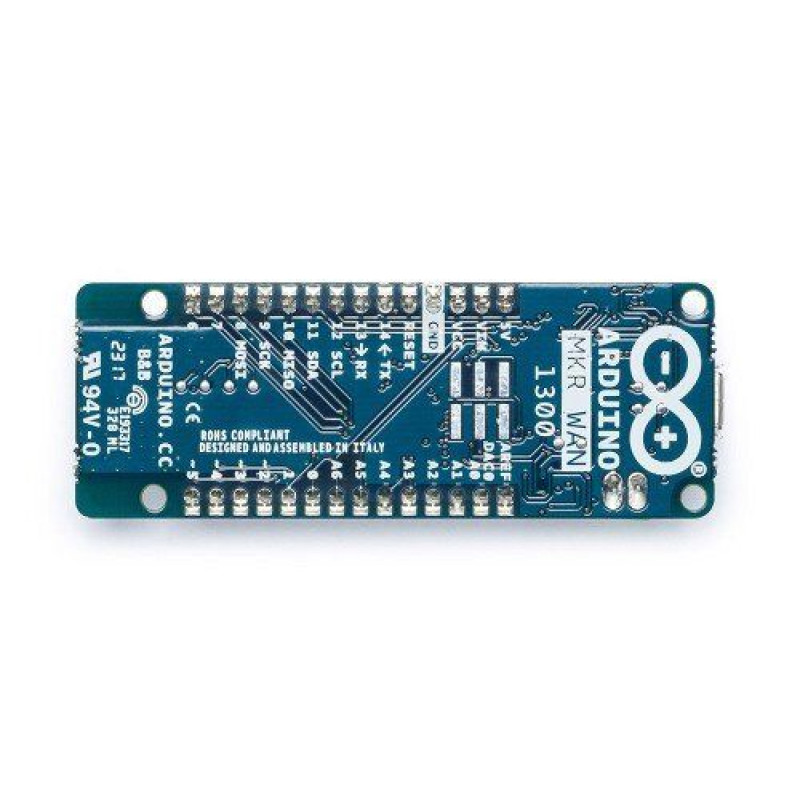

Arduino MKR WAN 1300 / ABX00017

Arduino MKR WAN 1300 was built on the basis of the Atmel SAMD21 microcontroller and the Murata CMWX1ZZABZ Lo-Ra module. The board was designed specifically to simplify the Lo-Ra connection. It is especially useful for those who have not yet encountered this type of connection.

The first and most important feature is that the board can be powered by two 1.5V AA and AAA batteries, in addition to the standard 5V external power supply. Switching from one source to another is automatic. This model is equipped with good computing power, it also has a rich set of I/O interfaces and energy-saving Lo-Ra communication function. In addition, ARDUINO offers its own Arduino Software development environment, which greatly simplifies the entire time-consuming programming process. All of the above makes this platform the best for creating new battery-powered IoT projects.

Note: Unlike most Arduino and Genuino boards, the MKR WAN 1300 operates at 3.3 V. The maximum voltage that the I/O pins can withstand is 3.3 V. Applying a voltage higher than 3.3 V to any I/O pin can damage the board. A standard USB port can be used to supply power (5V) to the board

Main features:

• Cortex-M0 32-bit SAMD21. Powerful processor with low power consumption used in all MKR family boards.
• Murata CMWX1ZZABZ. Use the LoRa® wireless protocol for your own networks or connect to various LoRaWAN™ networks such as The Things Network.
• ATECC508 cryptographic chip. The ECC508 cryptographic chip ensures the security and privacy of your data and can store up to 16 keys in an EEPROM array.

Specifications:

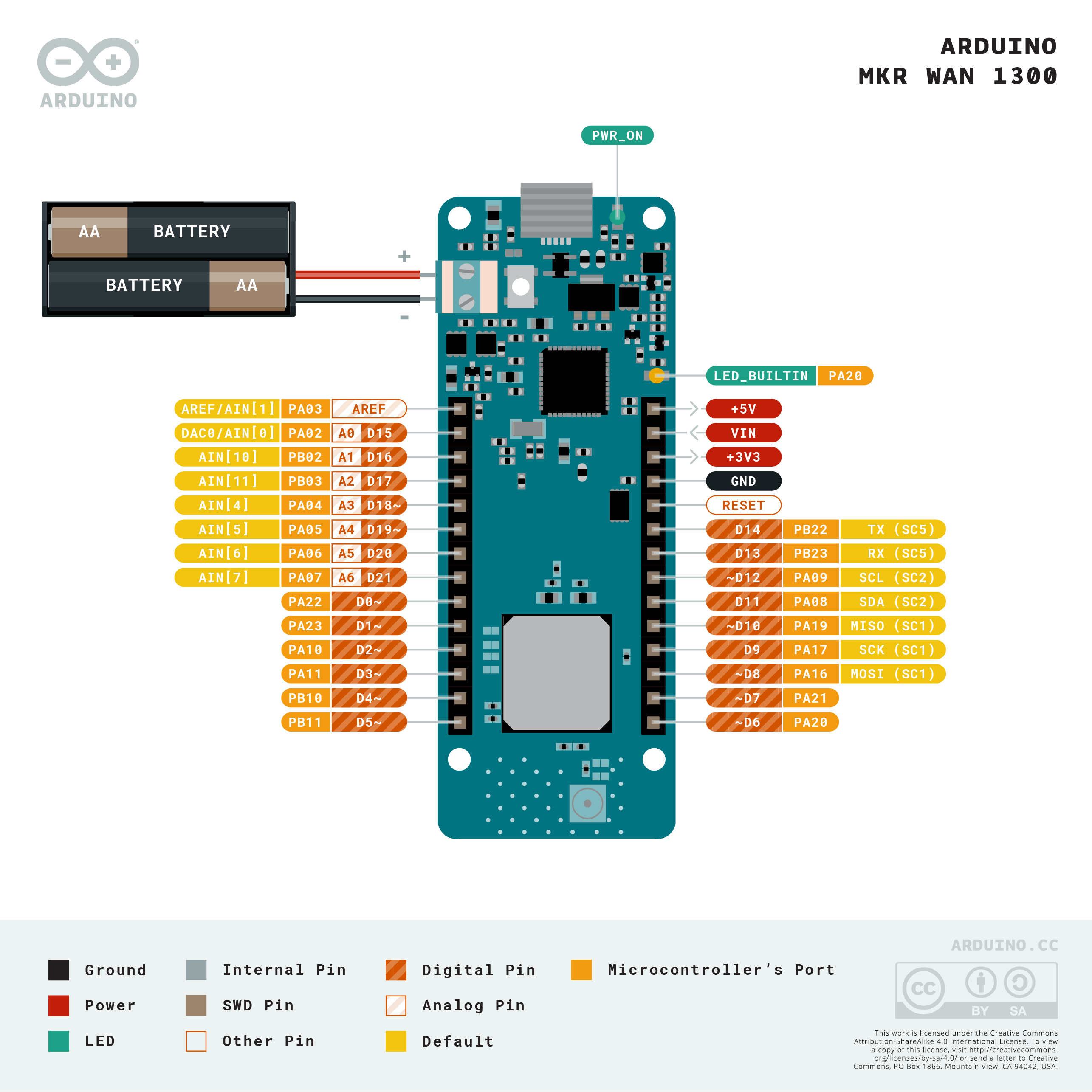

Purpose of the board pins:

Overall dimensions: 67.64mm x 25mm

Weight: 0.032 kg
