Display 7inch LCD 1024x600 HDMI Capacitive Touch Screen (14628)

The7inch Capacitive Touch Screen LCD (H) display has the following characteristics:

Screen diagonal: 7"

Resolution: 1024x600 pixels

Port: HDMI / VGA

Matrix type: IPS

Viewing angle: 170 °

Sensor type: capacitive

Number of control points: 5 points

Sensor port: USB

Brightness and contrast adjustment

Audio output 1: 3.5mm Jack

Audio output 2: 4PIN connector

Used for game consoles: Xbox360 / PS4 / Switch

Used with game consoles:

Note:

• Limited to game console OS, touch function not available.
• Audio support means that the game console can output audio through the built-in LCD speaker, external speaker interface, or headphone jack.

Supported devices and systems

Raspberry Pi

Raspbian support, 5-point touch, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, one touch, no drivers required

PC
Supports Windows 10 / 8.1 / 8/7, 5-point touch, no drivers required

Game console
Xbox360, PS4, Switch ...

Example of connection:

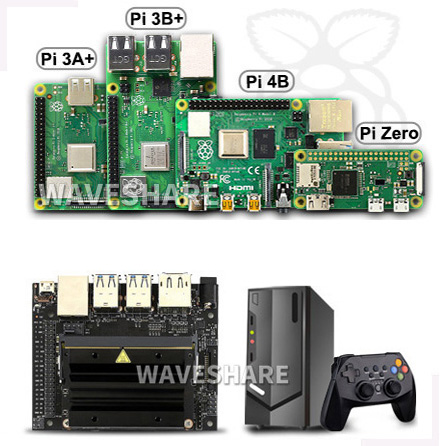

Working with a Raspberry Pi 4

Working with Raspberry Pi Zero W

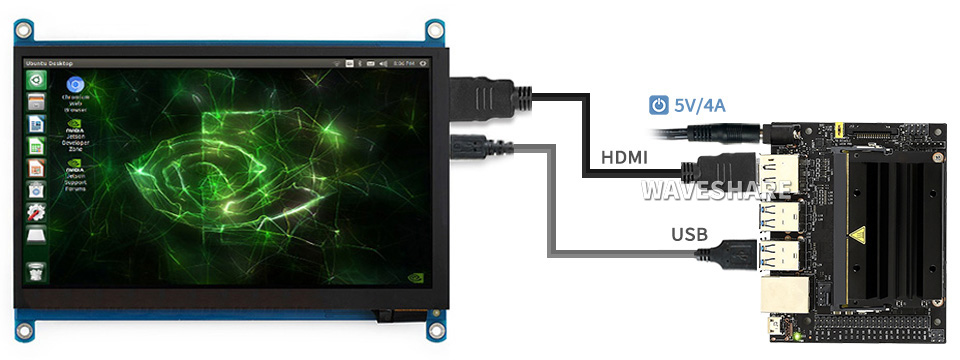

Working with AI Computer Jetson Nano

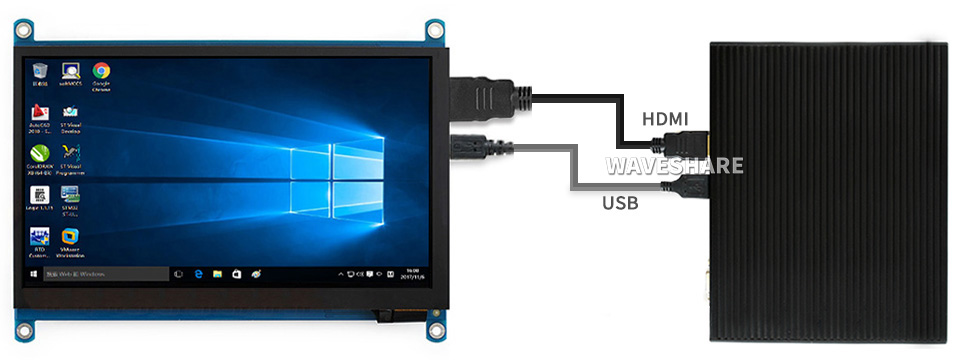

Working with a mini PC

Display - IPS panel

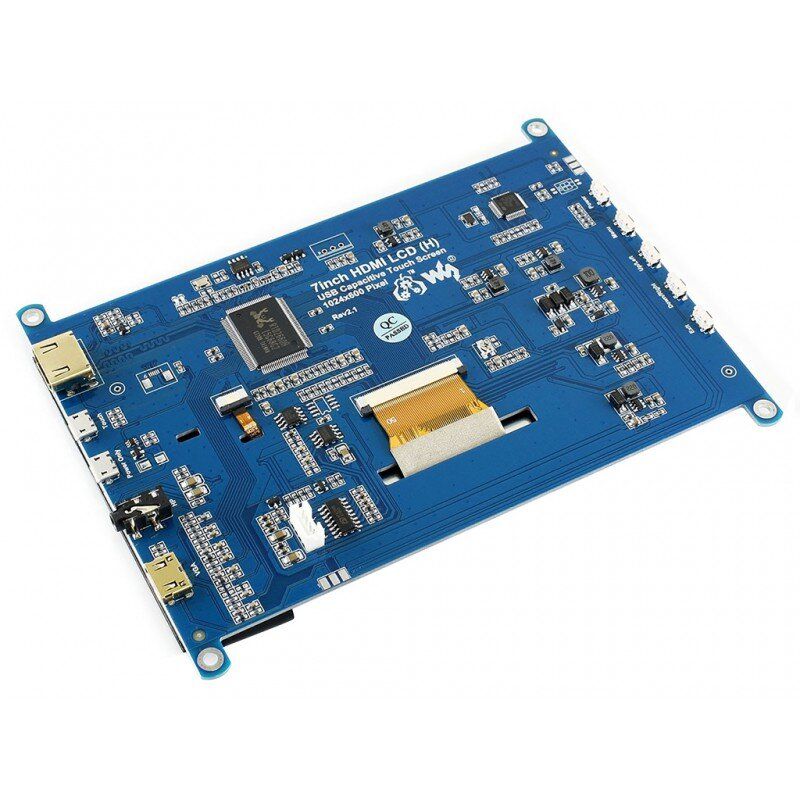

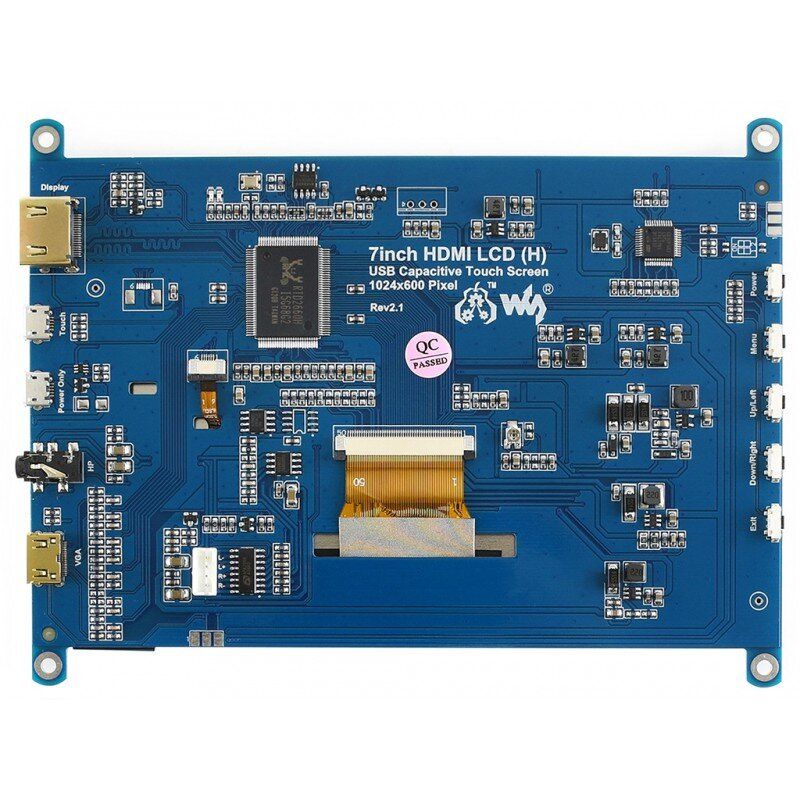

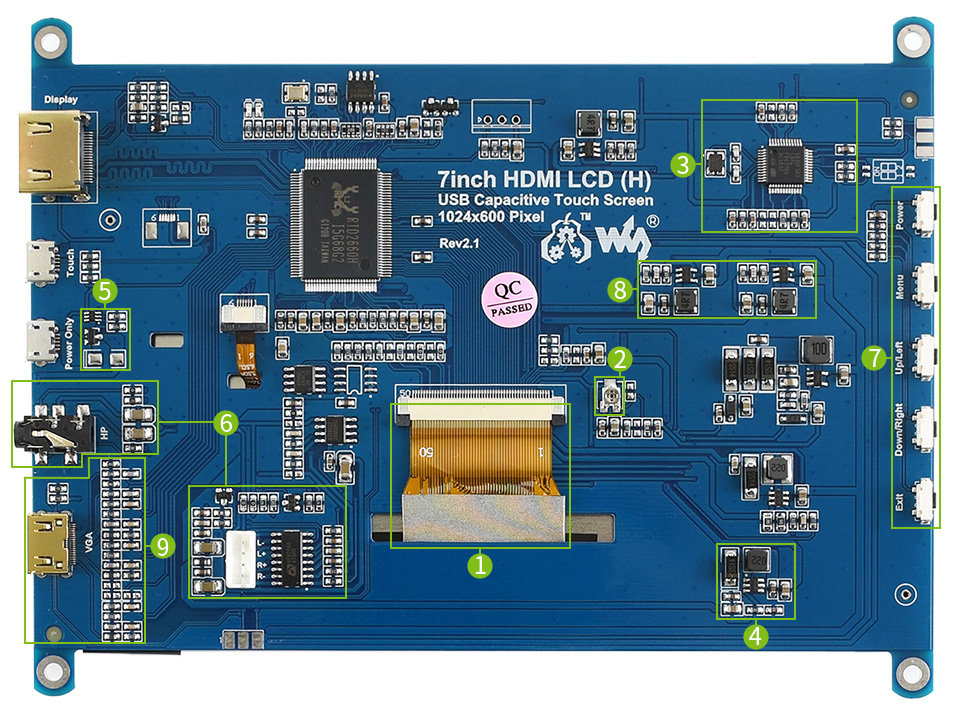

Construction elements:

1. FFC anti-interference LCD cable, more stable for industrial applications
2. VCOM voltage adjustment to optimize the display effect
3. USB protocol converter, converting the touch signal into a standard multi-point touch protocol to provide smooth multi-point touch control
4. Wide range USB 4 5.5V input power supply to avoid display flicker or touch caused by low USB voltage
5. One-way circuit isolation. When powered by the touch port, the 5V voltage from the touch port will provide power for both the touch function and display circuitry. When powered from the Power Only port, the touch port will only provide power to the function as appropriate, and the rest of the circuit will receive power through the Power Only port. The two power inputs are fully isolated to prevent any breakdowns
6. Two audio outputs for headphone and speaker, each speaker track supports 2.6W PA circuit
7. OSD setting buttons to adjust the backlight and display color
8. DC-DC LCD driver circuit, low heat for long-term operation
9. VGA port to support VGA devices

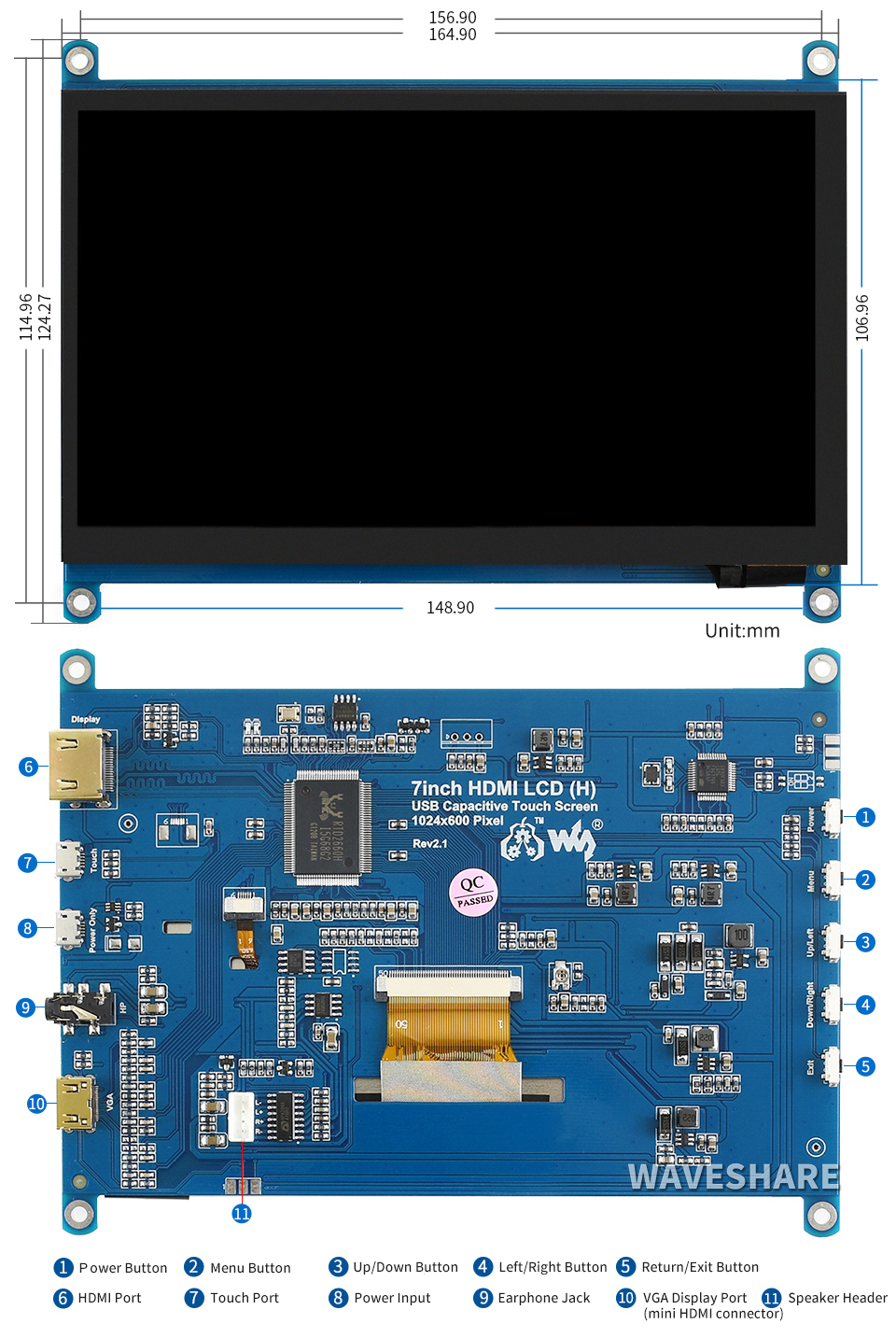

Overall dimensions:

Developer information: demo codes, schematics, data sheets, etc.

www.waveshare.com/wiki/7inch_HDMI_LCD_(H)

Package includes:

1. 7inch HDMI LCD (H) - 1 pc.
2. HDMI cable - 1 pc.
3. HDMI to Micro HDMI adapter - 1 pc.
4. USB type A plug to micro B cable - 1 pc.
5. Mounting kit - 1 pc.
6. Instruction manual - 1 pc.

1. 2. 3. 4. 5. 6.

Weight: 0.273 kg

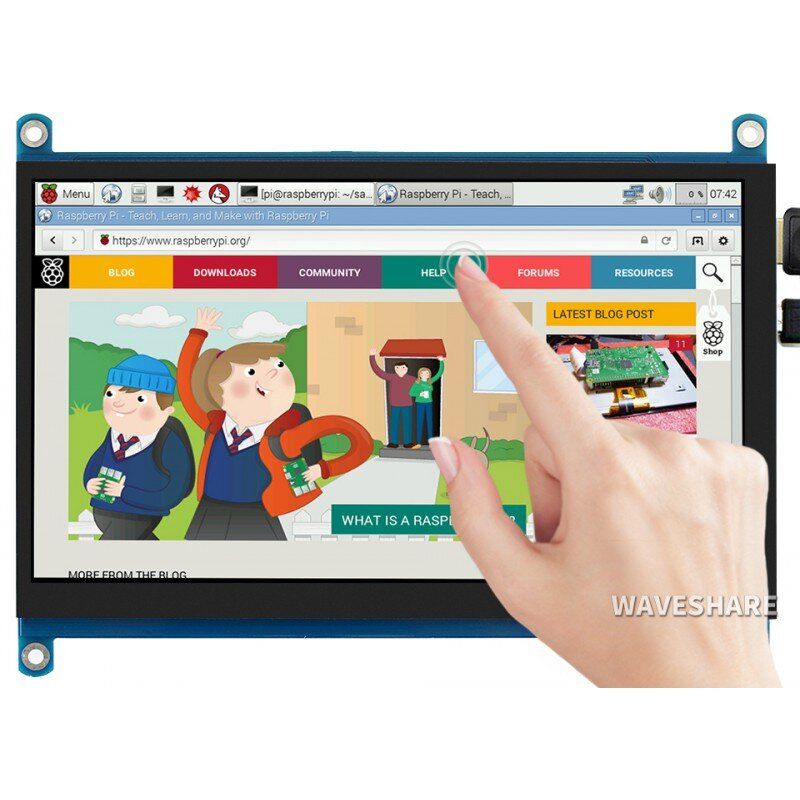

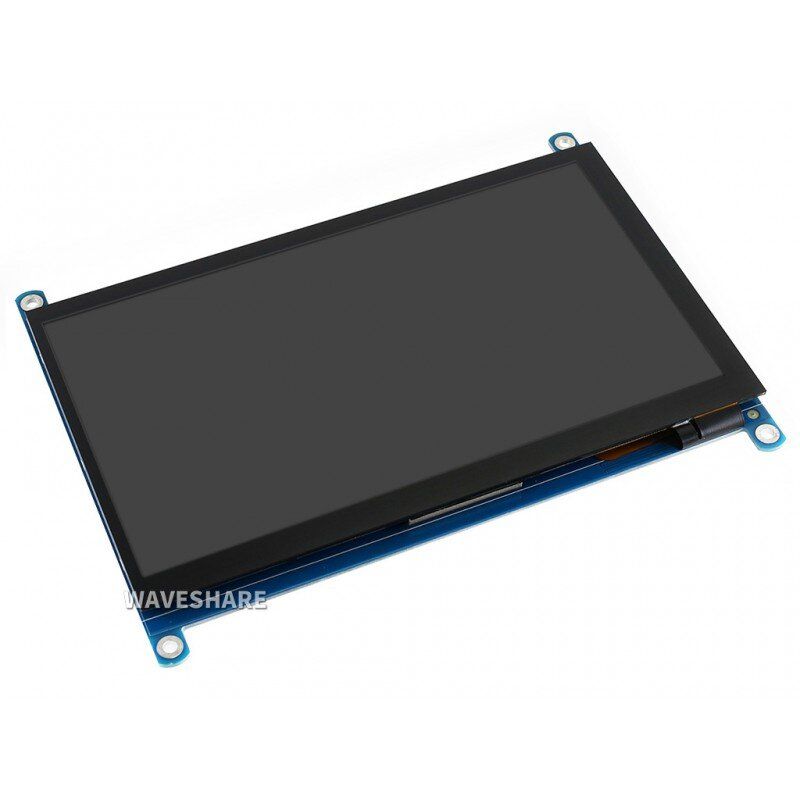

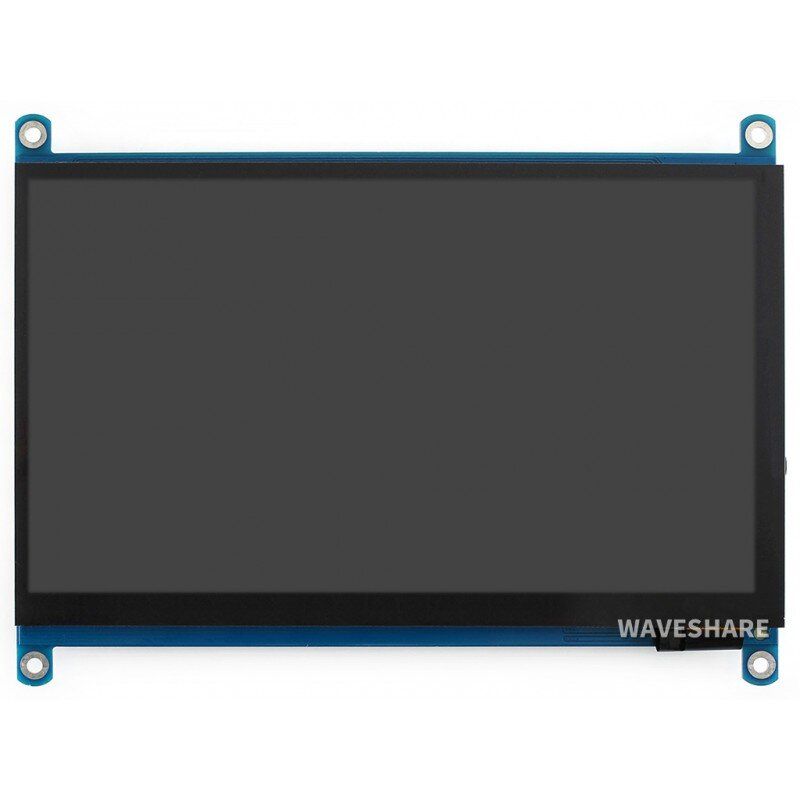

Appearance:
