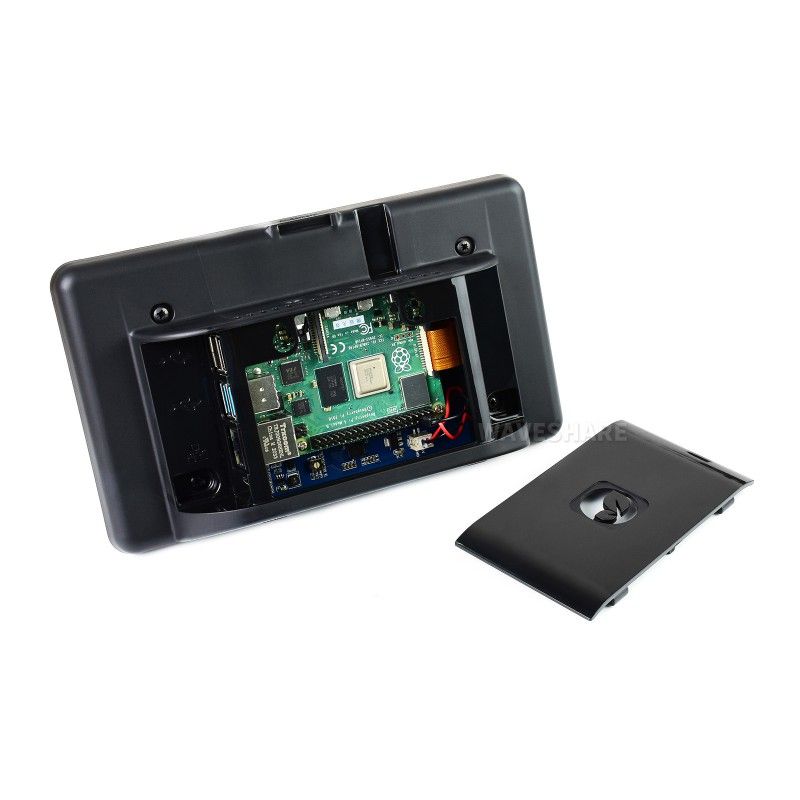

Raspberry Pi 7inch Capacitive Touch Display 800x480 with case (25270)

TheRaspberry Pi 7inch Capacitive Touch Display 800x480 with Case (25270 ) is a 7-inch capacitive touch display with DSI interface, IPS screen, 800x480 pixel resolution, 5-point touch recognition, and a case. This display can be used for a variety of projects, including embedded systems, monitoring, game consoles, interactive devices, and other applications where a high-quality, low-resolution touch display is important.

Key features:

• 7-inch capacitive touch display: This display features a capacitive touchscreen that allows you to operate it by touching the screen with your finger. It responds to a light touch and supports up to 5-point touch recognition, making it ideal for many interactive applications.
• DSI interface: This display connects to your device using the DSI (Display Serial Interface) interface, which ensures high image quality and efficient data transfer between your device and display.
• IPS screen: The IPS (In-Plane Switching) screen provides excellent image quality and wide viewing angles. This means that the image remains bright and clear even when viewed from an angle.
• 800x480 pixel resolution: This display has a resolution of 800x480 pixels, making it suitable for displaying text, images, and videos with good detail.
• Case included: Only suitable for Raspberry Pi 4B

Specifications:

• Size: 7″
• Resolution: 800×480
• Display interface: DSI
• Display panel: IPS
• Viewing angle: 170°
• Type of touch: capacitive
• Touch points: 5 points
• Touch port: I2C
• Touch panel: tempered glass
• Consumption: low power
• Certification 1: RoHS2.0
• Certification 2: CE
• Housing: ABS

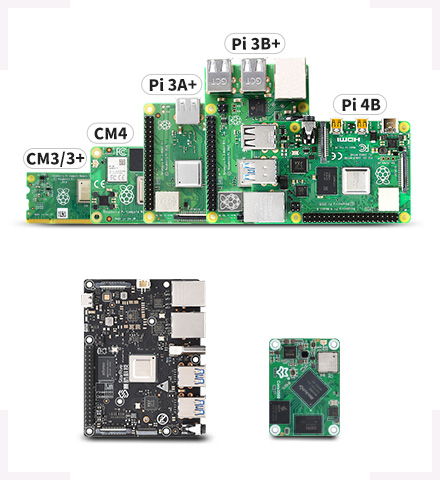

Supported systems and devices:

Raspberry Pi
Supports Raspberry Pi OS, 5-point touch screen, no drivers
Supports Ubuntu / Kali / WIN10 IoT, single touch, no drivers
Supports Retropie, no drivers required
Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4* (case only supports Pi 4B due to connector layout)

* some CM3/3+/4 baseboards require an additional adapter cable

VisionFive2.
Supports Debian, single point touch, no drivers

Core3566
Supports Debian/Ubuntu, 5-point touch screen, no drivers

Connection examples:

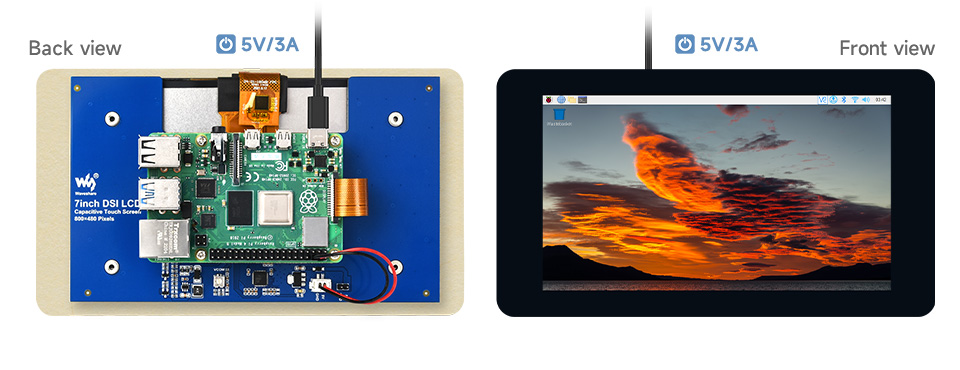

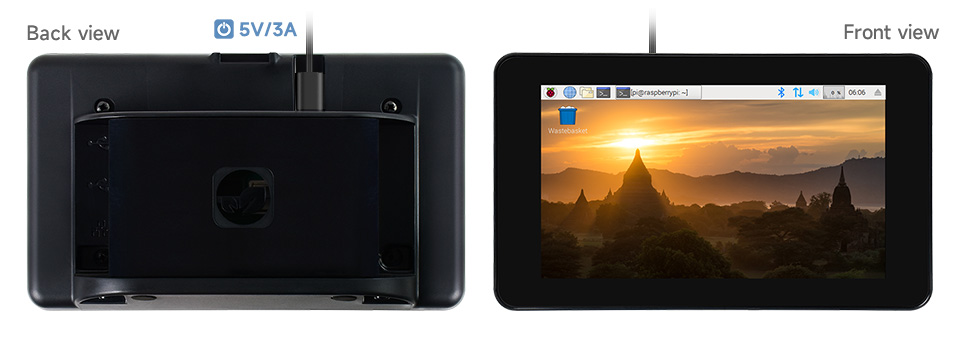

Working with a Raspberry Pi 4B

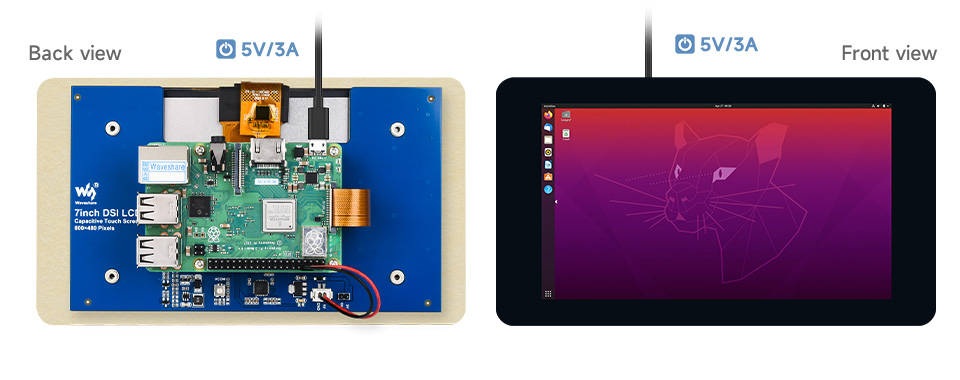

Working with Raspberry Pi 3B+

Working with Core3566 To Pi 4B Kit

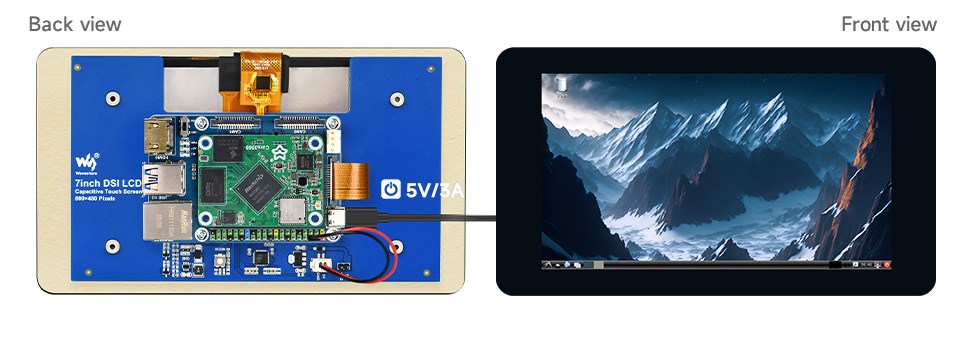

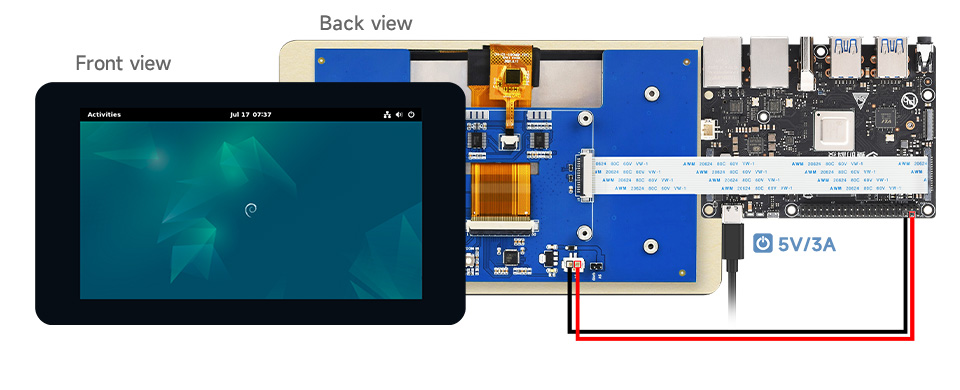

Working with VisionFive2

Touch screen characteristics:

1) up to 5 touch points, depending on the operating system.

2) tempered glass panel

3) capacitive touchscreen

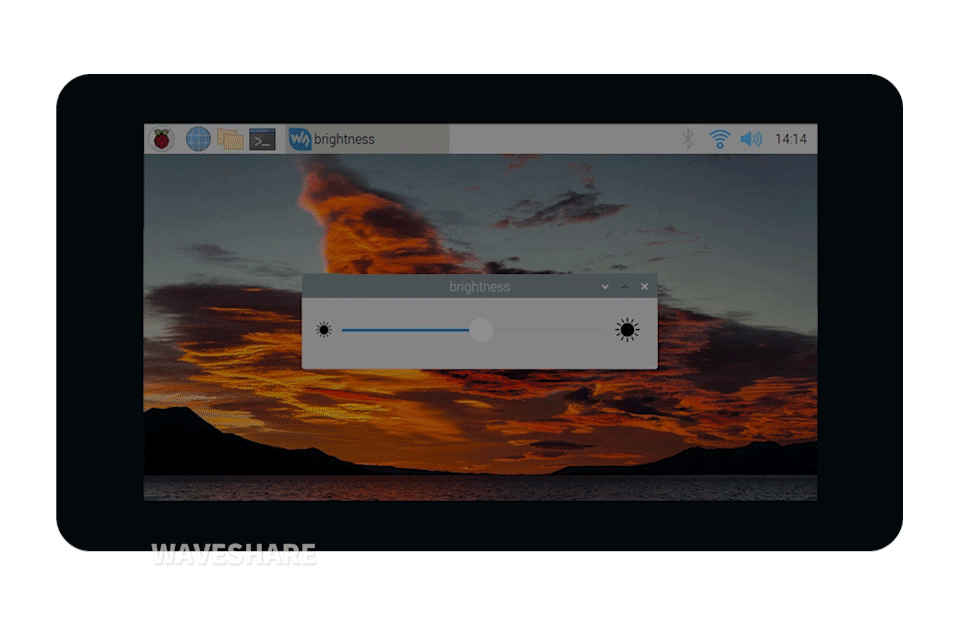

Adjustable brightness via software

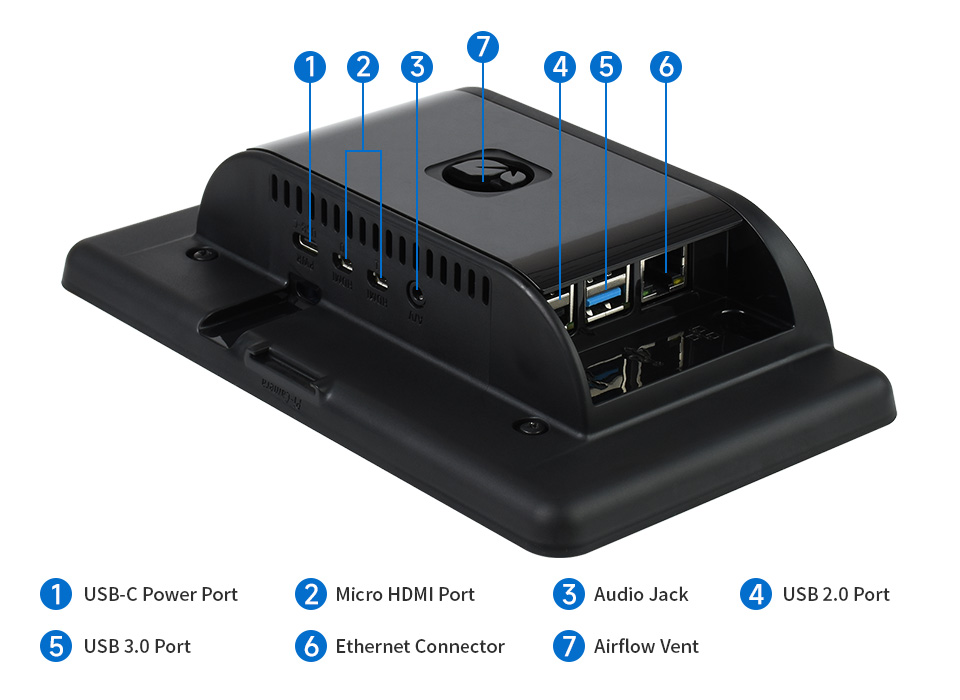

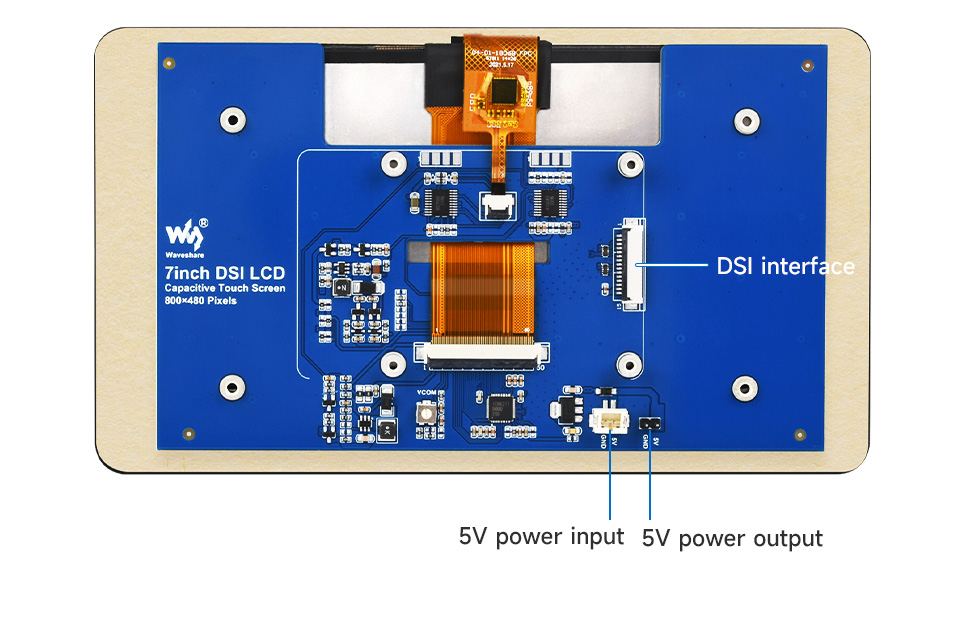

Interfaces:

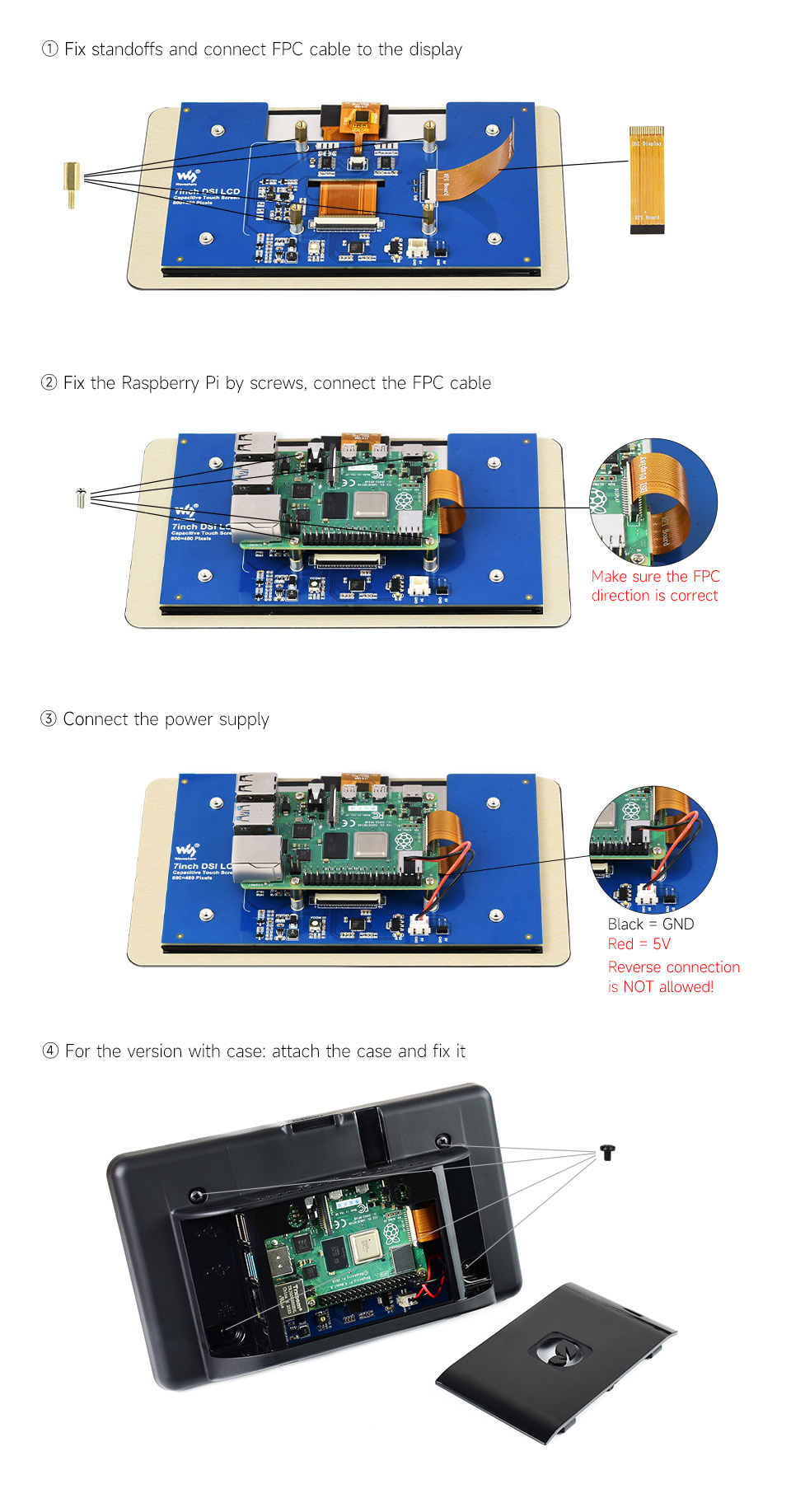

Installation procedure

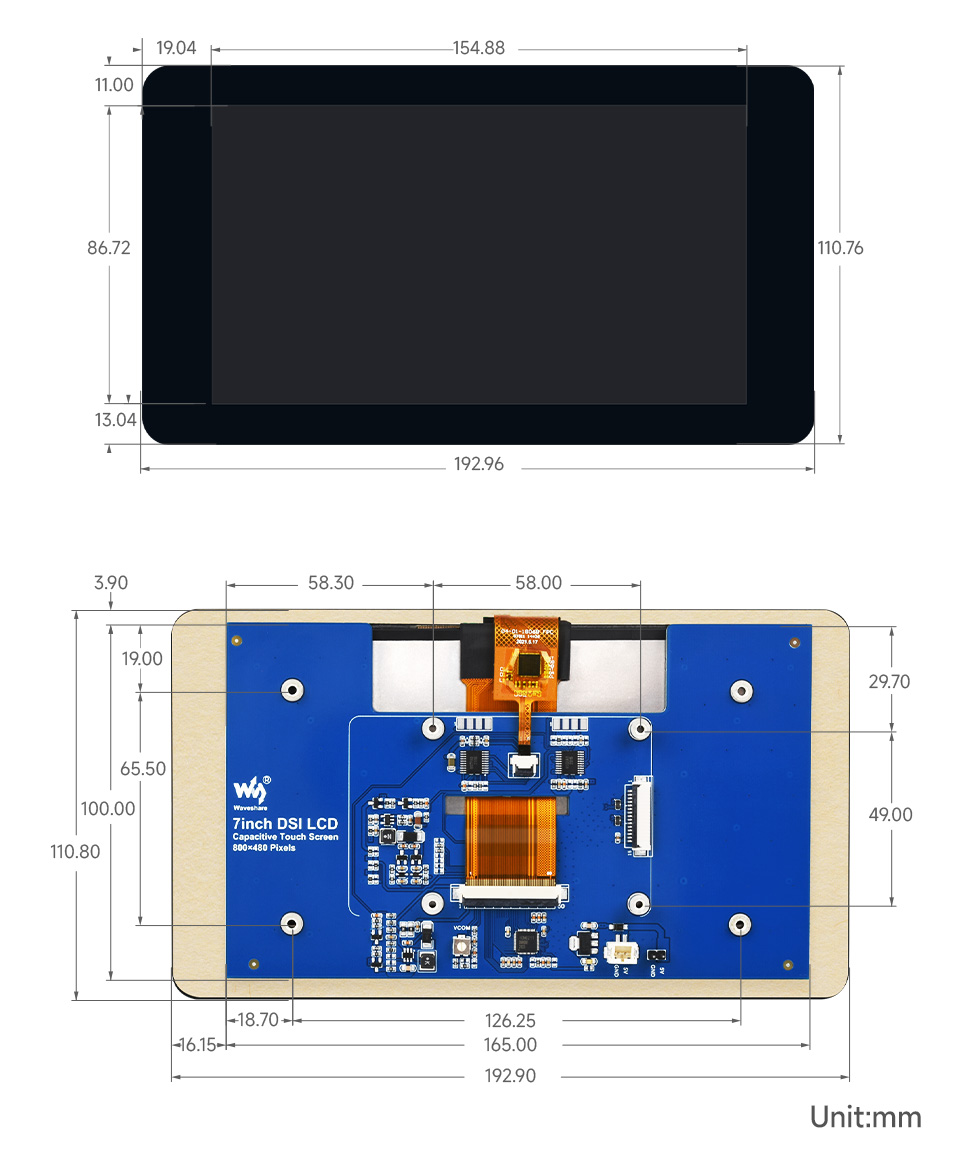

Overall dimensions: 193mm x 111mm

Wiki: www.waveshare.com/wiki/7inch_DSI_LCD_(B)

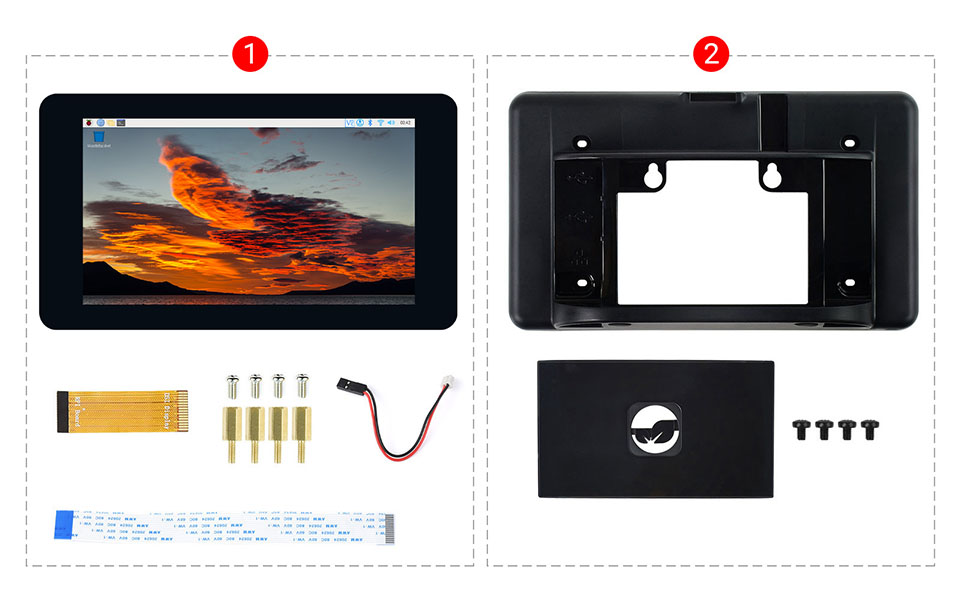

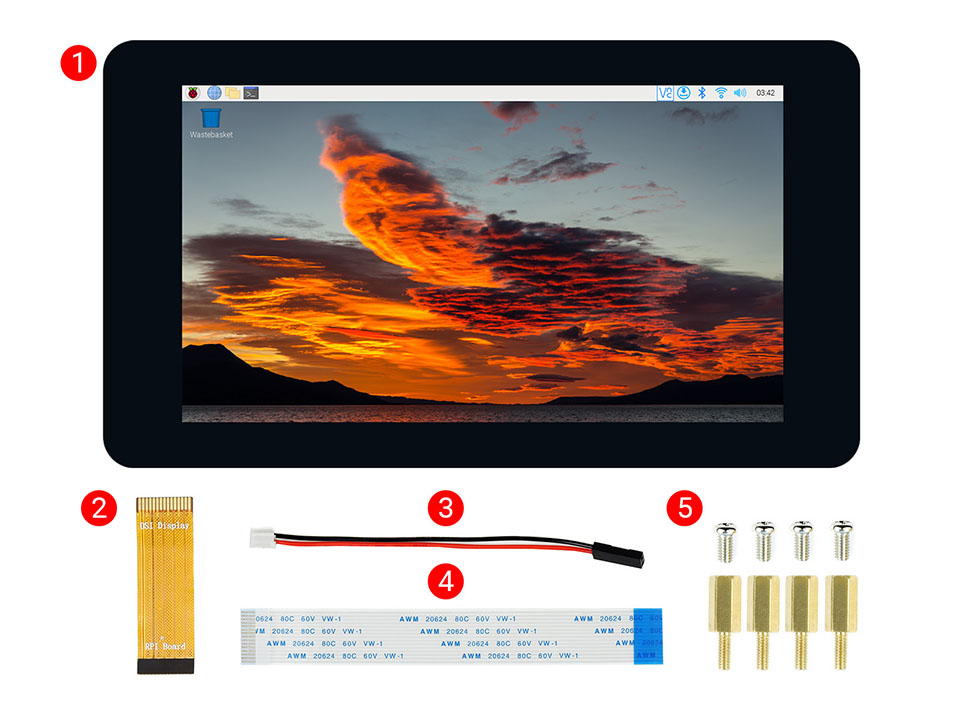

Scope of delivery:

1. Display kit
   1. 7" DSI LCD (B) x1
   2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
   3. 2PIN to PH2.0 2PIN cable 6cm x1
   4. FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
   5. Package of screws x1 pc
2. Black case kit x1

Weight: 0.375 kg
