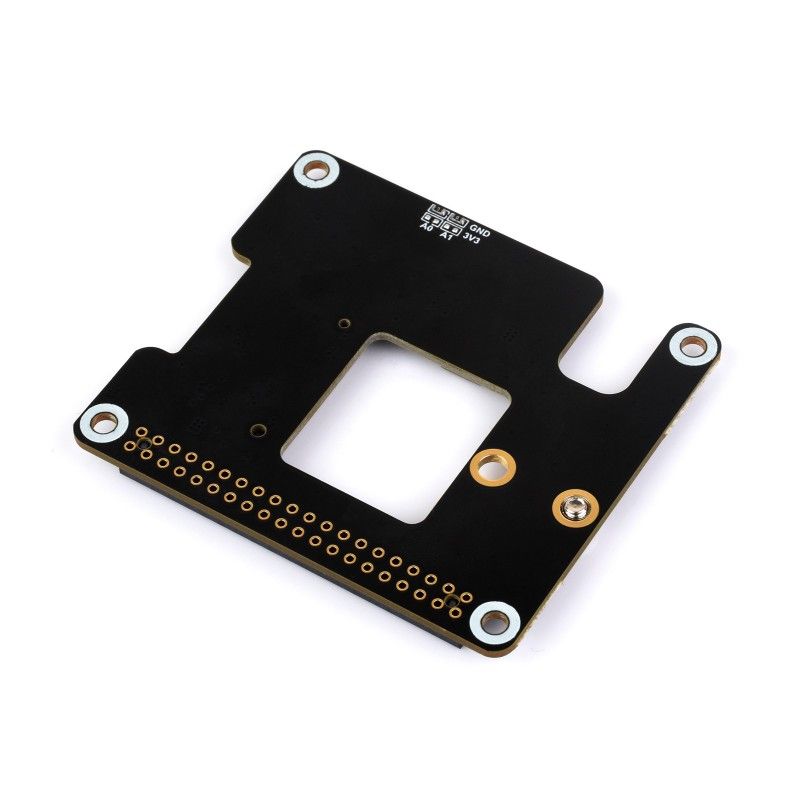

PCIe TO M.2 HAT+ adapter (26583)

ThePCIe TO M.2 HAT+ is a device that allows you to connect an M.2 solid-state drive (SSD) to your Raspberry Pi 5 via a PCIe connector. This adapter supports the NVMe protocol, which provides high data transfer speeds and is an ideal solution for Raspberry Pi 5 users looking to extend the functionality of their device with fast and efficient storage.

Key features:

• The adapter is designed specifically for use with the Raspberry Pi 5, making it the perfect choice for expanding the capabilities of this single-board computer.

• Supports the NVMe protocol, which provides maximum read and write speeds to the connected SSD.

• By utilizing the NVMe protocol and PCIe speed, this adapter delivers impressive read and write speeds, allowing you to process large amounts of data quickly.

• The adapter is easy to install on the Raspberry Pi 5 without the need for complex setup or soldering.

• Connecting an SSD via PCIe allows you to significantly expand the storage capacity and improve the performance of your Raspberry Pi 5.

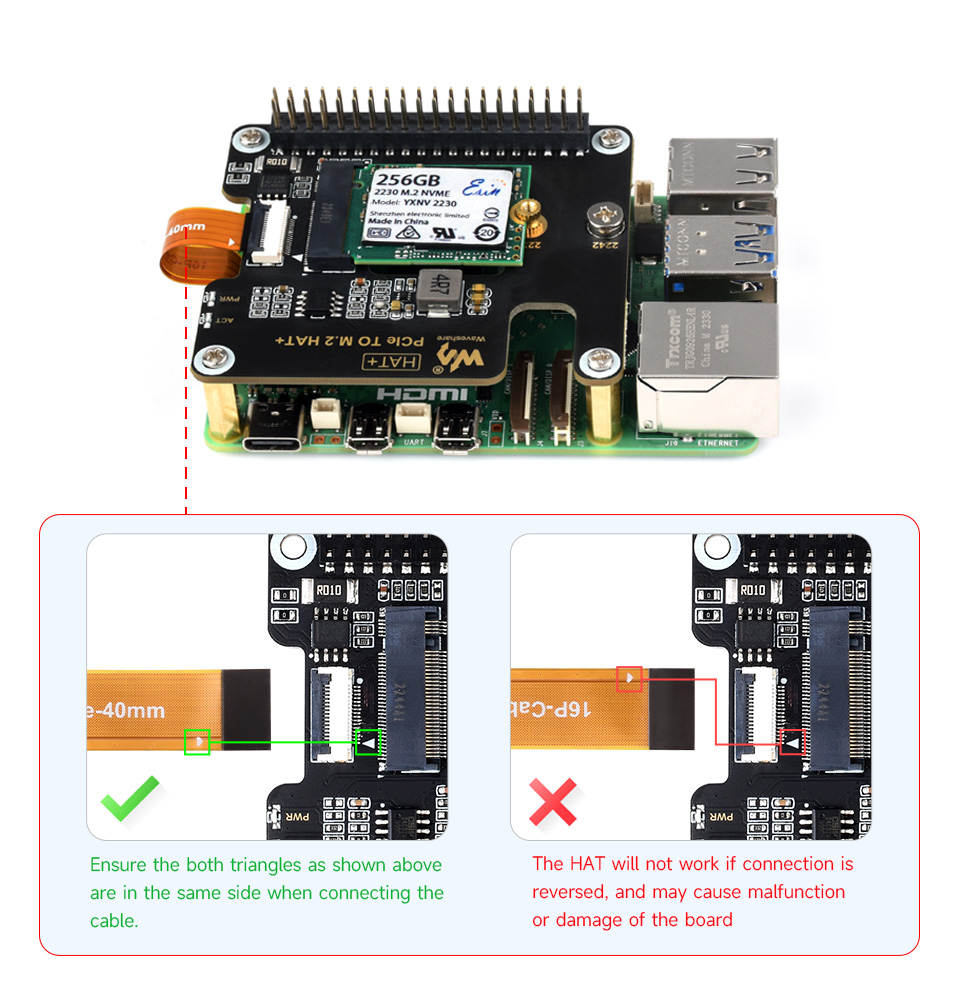

Connect to the PI5 via a 16-pin PCIe cable to the Raspberry Pi 5 interface. Make sure to install the cable correctly according to the labeling.

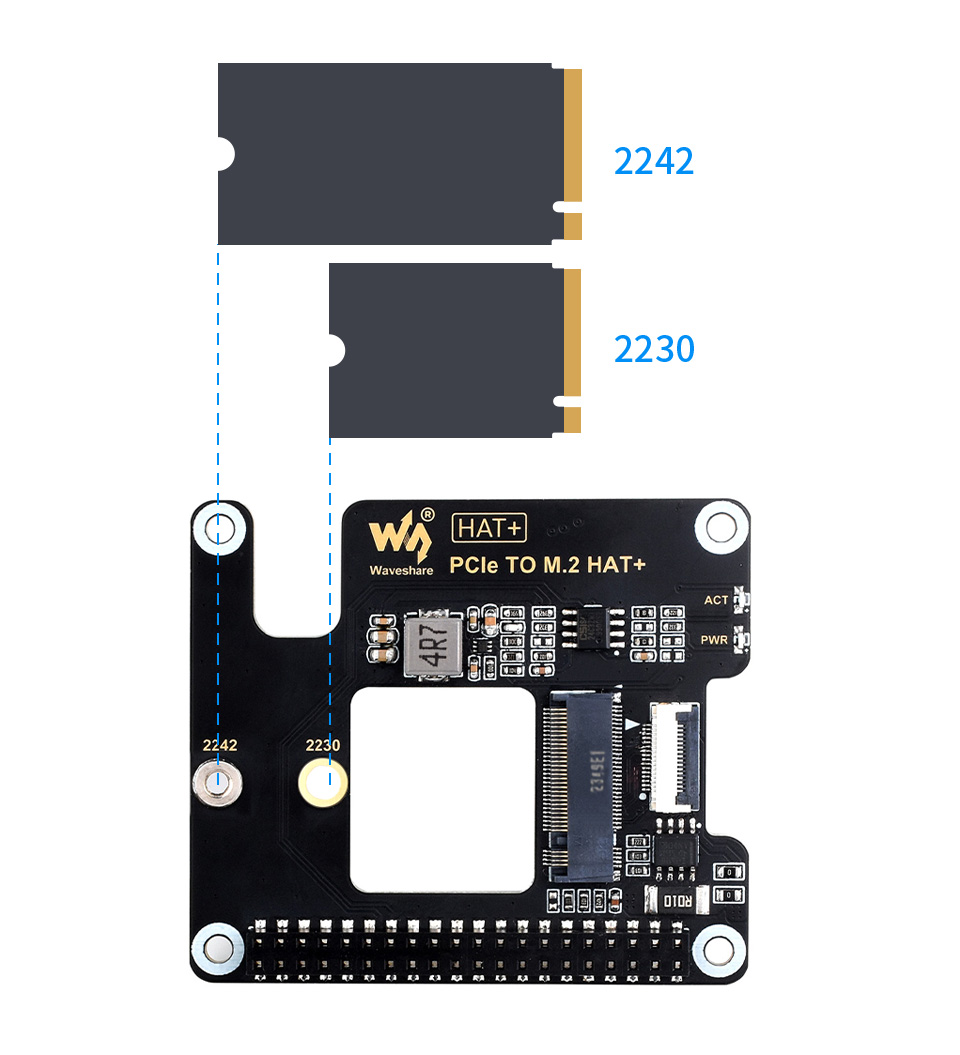

Supports NVMe drive protocol: compatible with M.2 SSD size 2230/2242, supports Gen2 and Gen3 modes, supports booting PI5 from SSD

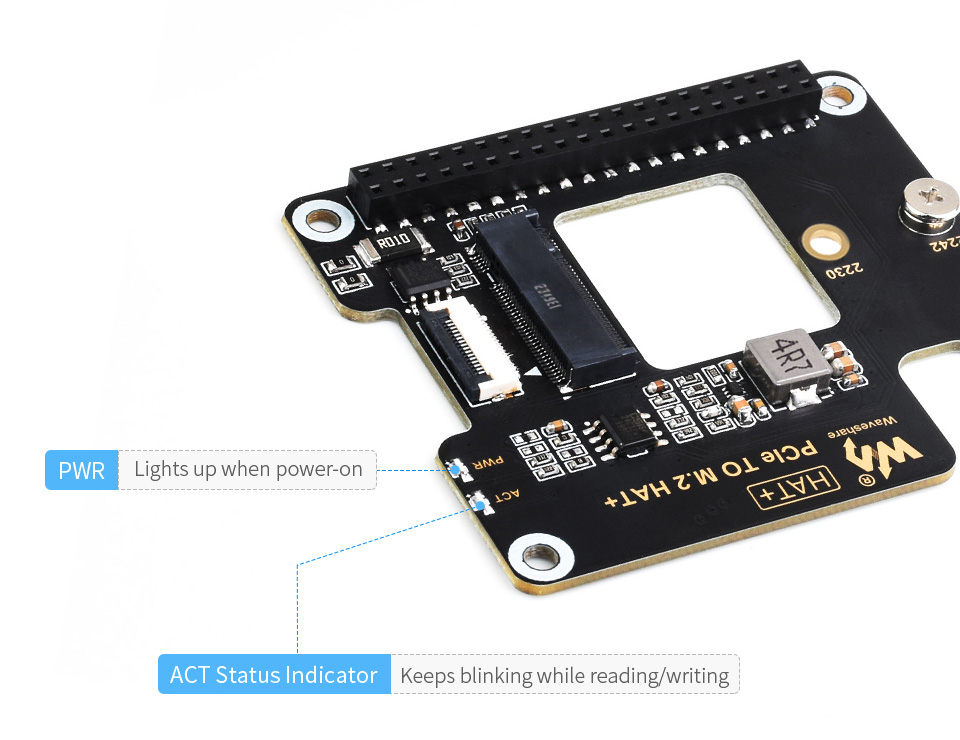

Has LED indication of data exchange and power mode

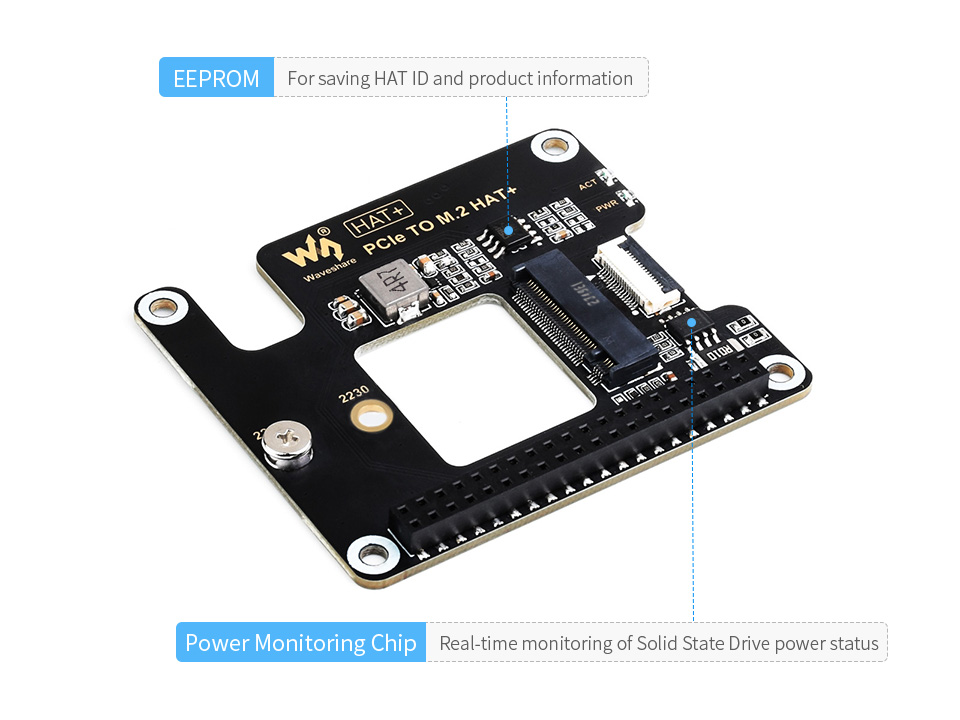

Built-in power monitoring chip and EEPROM provide real-time monitoring of the SSD power status for more stable operation

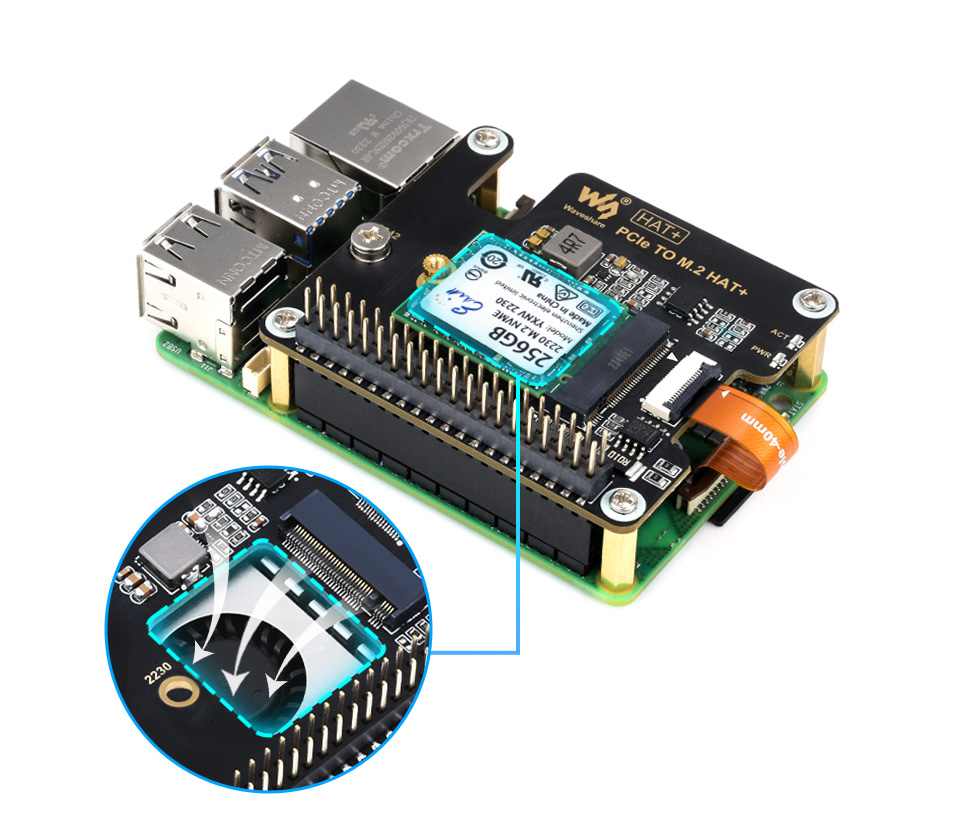

Reserved ventilation hole for cooling fan provides better cooling effect for Pi5 and SSD

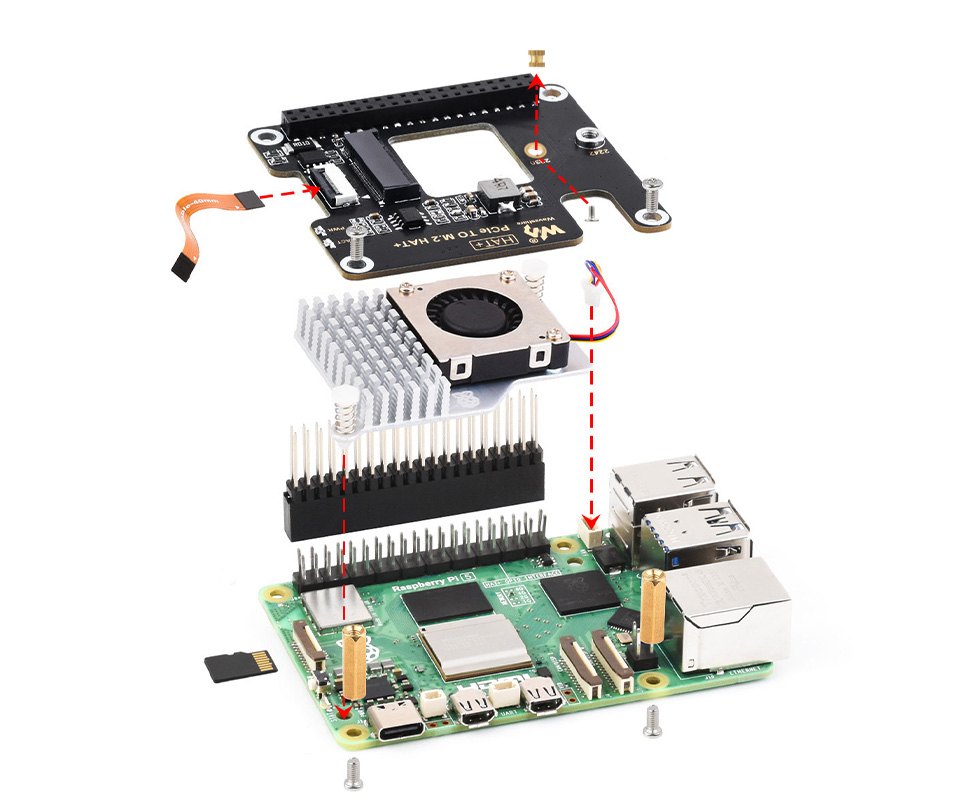

Assembly procedure:

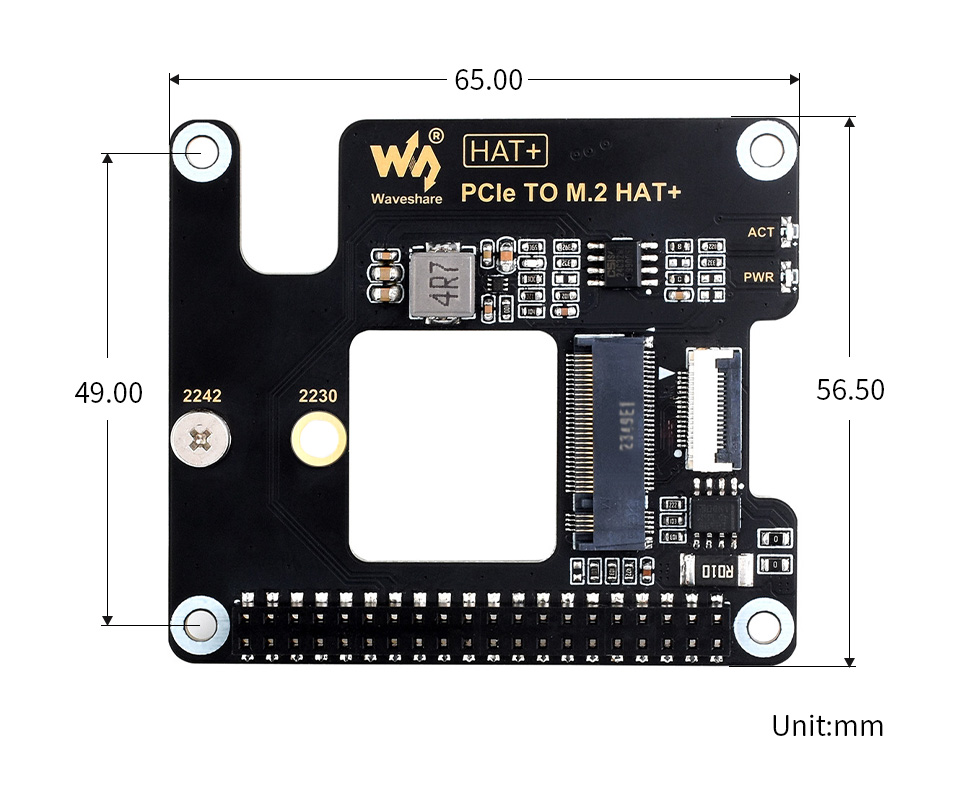

Overall dimensions: 65mm x 56.5mm

Wiki: www.waveshare.com/wiki/PCIe_TO_M.2_HAT+

Weight: 0.022 kg

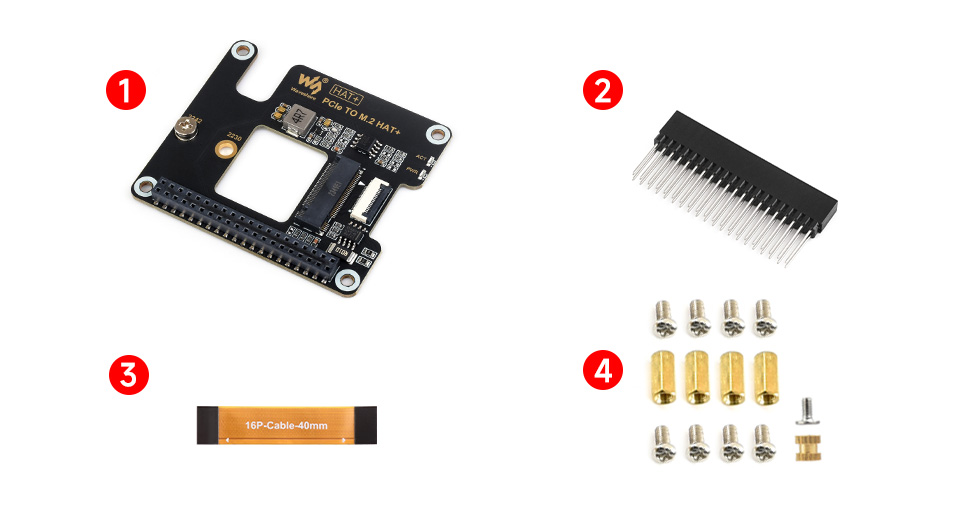

Scope of delivery:

1. PCIe to M.2 HAT+ x1
2. 2*20 Pin connector x1
3. 16P-Cable-40mm x1
4. Package of racks x1
