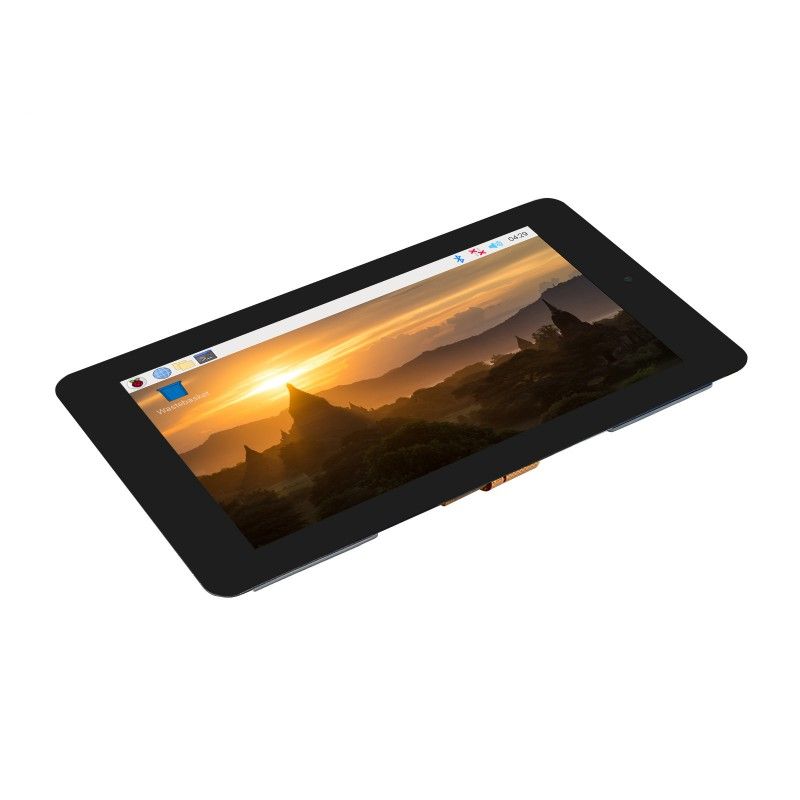

Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera

Brand: Waveshare Product Code: 20806
0
All about product
Description
Specification
Reviews 0
Questions0
new
Sold Out

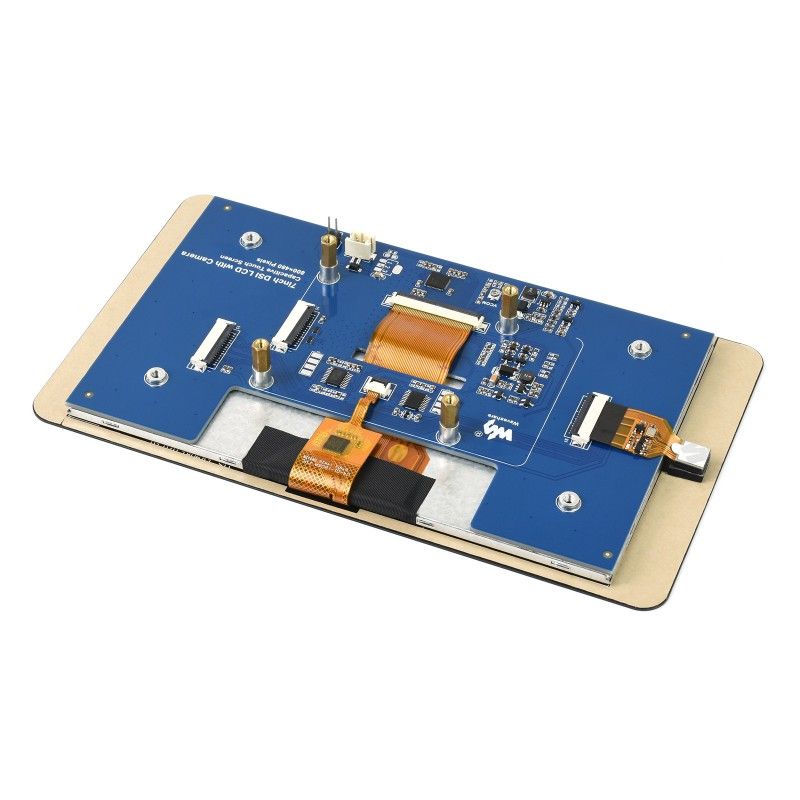

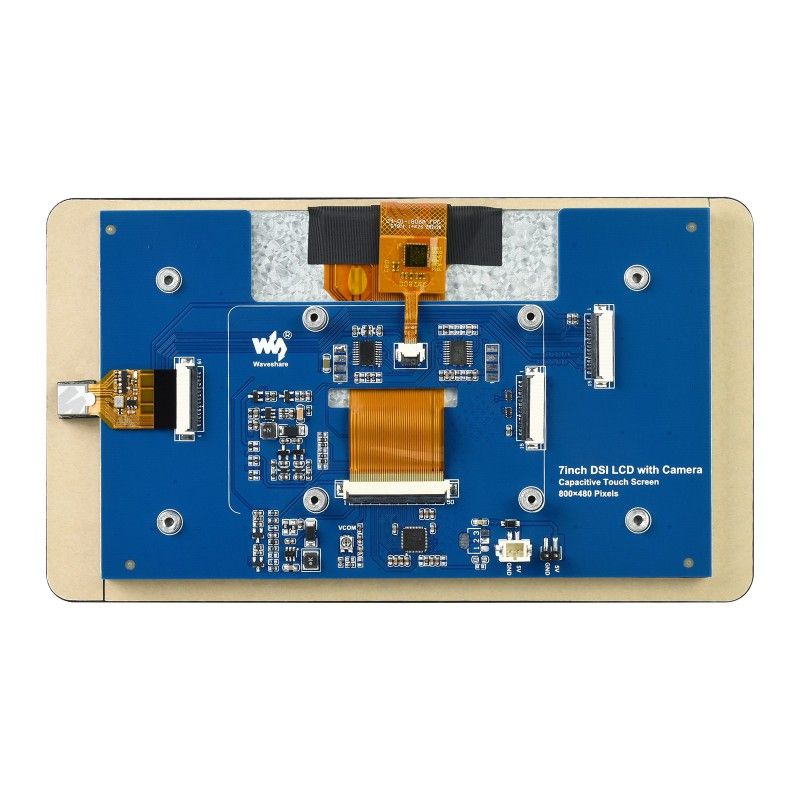

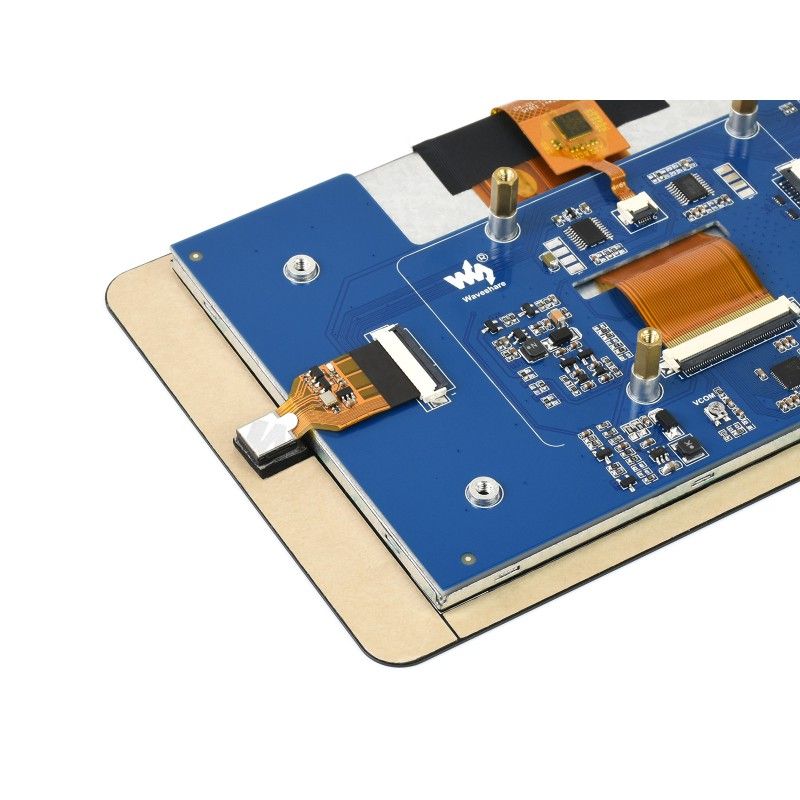

Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera
Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera
Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera
Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera
Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera
Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera
Out Of Stock
£53.30
Compatibility:Raspberry Pi
Connectivity:DSI
Country of origin:Made in China
Display type:TFT/IPS
Resolution:800 x 480
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera
£53.30
Description

Display 7inch LCD 800x480 DSI Capacitive Touch Screen (20806) - with built-in camera - 7-inch capacitive touch display for Raspberry Pi with 5 MP front camera, screen resolution 800×480, DSI interface.

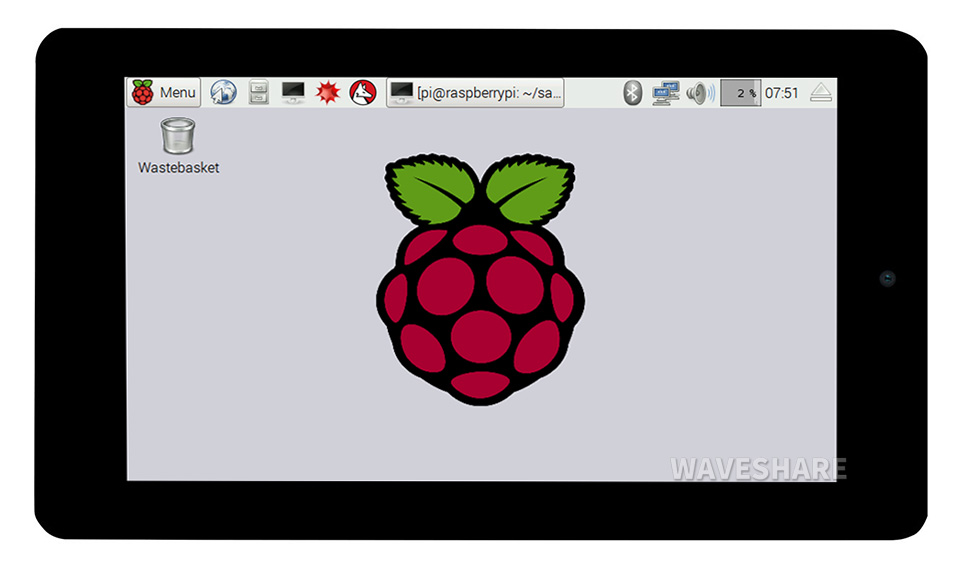

Supports Raspberry Pi OS, 5-point touch, no drivers required
Supports Ubuntu, the only touch screen without drivers.
Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4 (Note: CM3/3+/4 requires an additional adapter board)

Connection examples:

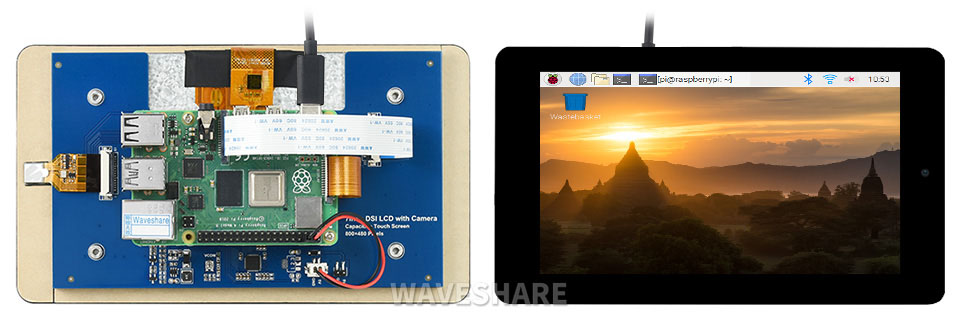

Working with Raspberry Pi 4

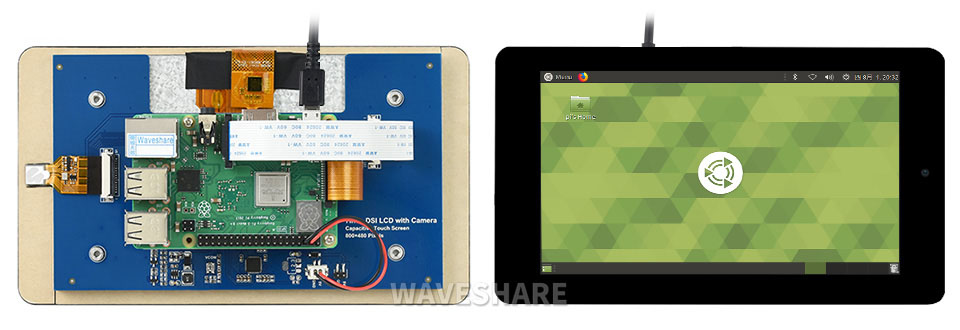

Working with Raspberry Pi 3B+

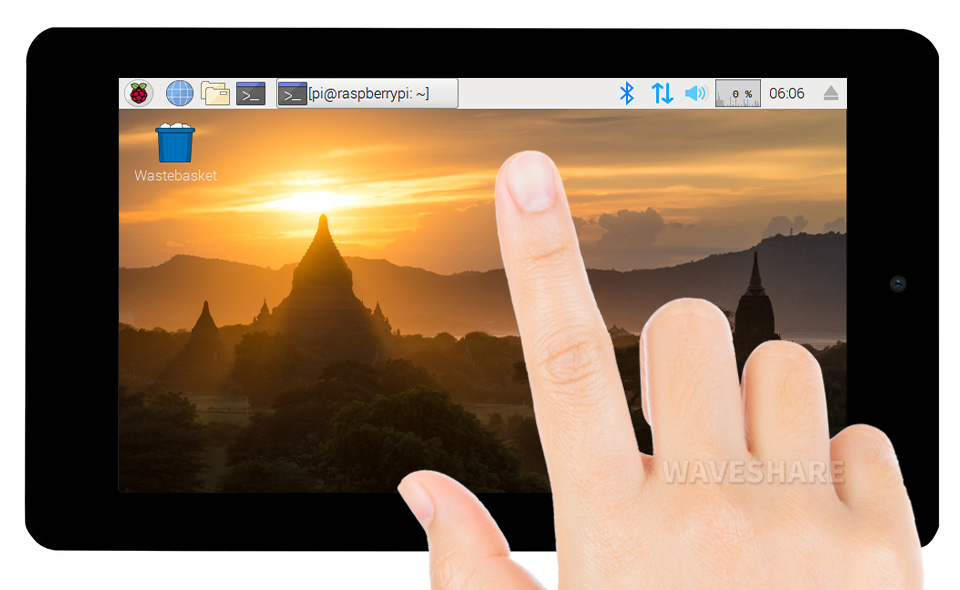

7-inch tempered glass screen and 5-point capacitive touch screen

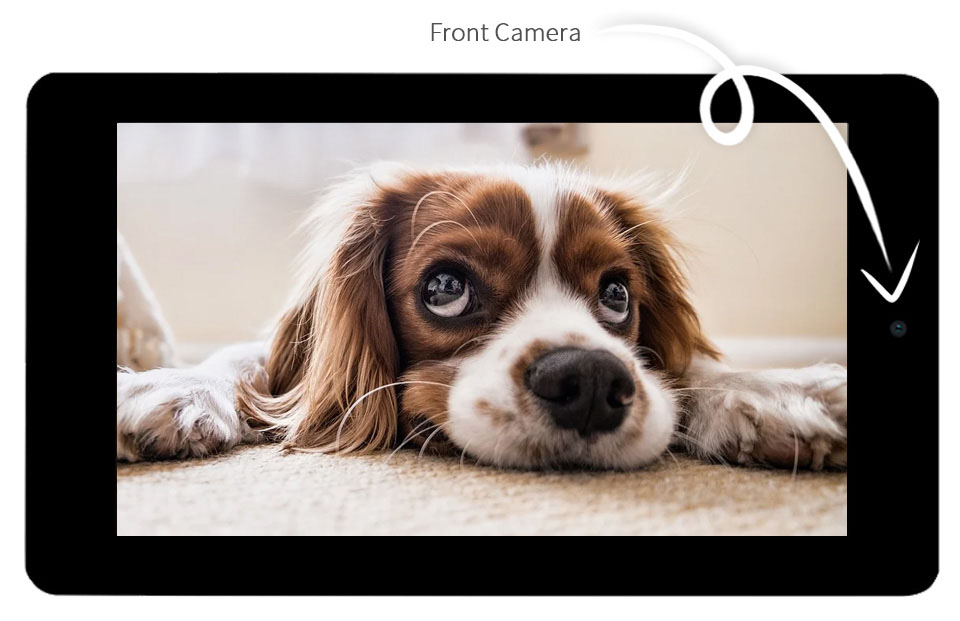

5 MP front camera

Screen parameters:

  • SENSOR OV5647.
  • CMOS SIZE 1/4 inch
  • PIXELS 5MP
  • APERTURE F2.4
  • FOCUS DISTANCE 3.89 mm
  • FOV DIAGONAL 72.9°.
  • Distortion < 1.5%.
  • DEPTH OF SHARPNESS 20 cm ∞
  • IMAGES Still image resolution 2592 × 1944
  • VIDEO 1920×1080p at 30, 1280×720p at 60, 640×480p at 60, 640×480p at 90

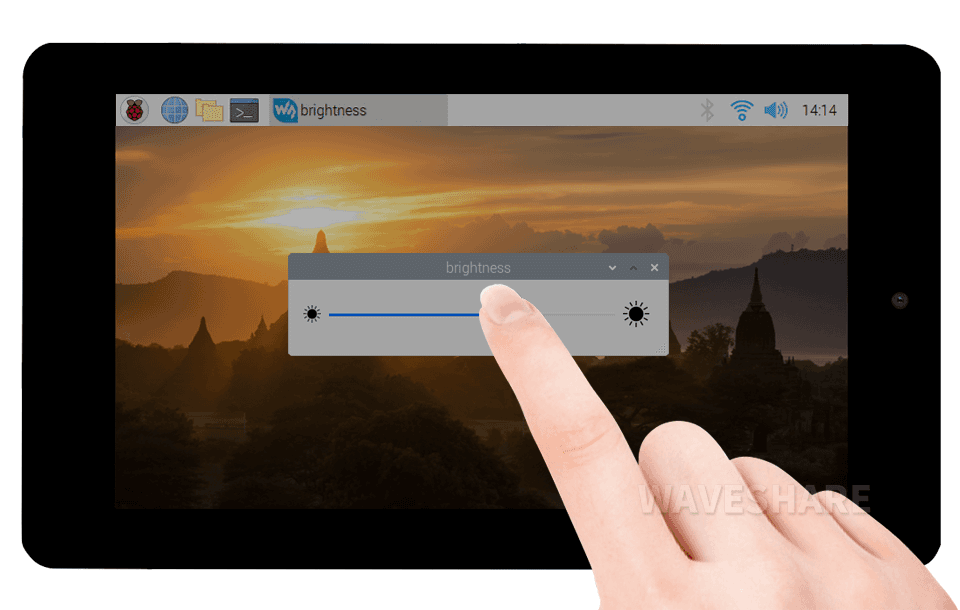

Brightness can be adjusted via software

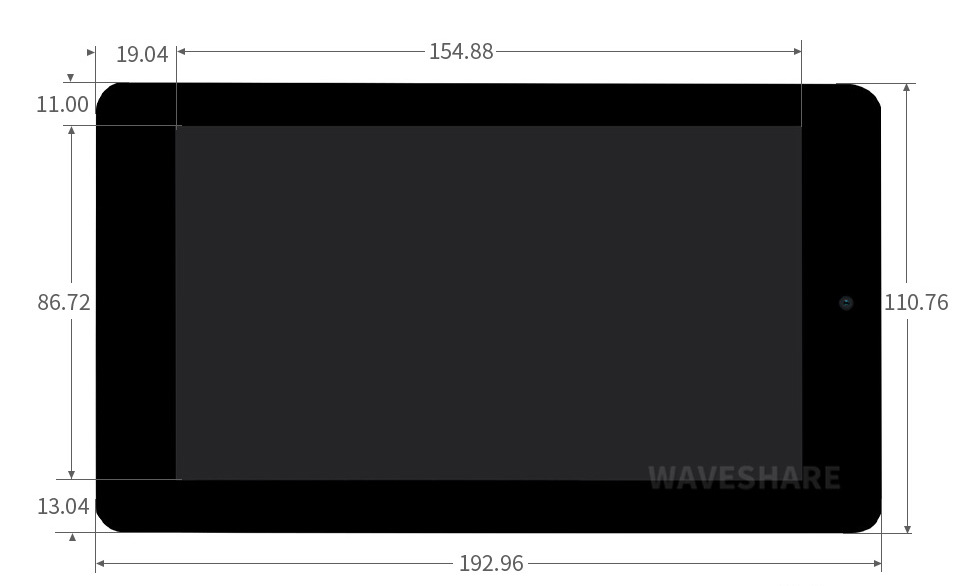

Overall dimensions: 193mm x 111mm

Information for developers (Wiki): 7inch_DSI_LCD_(with_cam)

Package contents:

  1. 7-inch DSI x1 LCD display
  2. FPC 15PIN 1.0 cable 50 mm pitch (opposite) x2
  3. FPC 15PIN 1.0 cable 120 mm pitch (opposite) x1
  4. 2-pin wire 10 cm x 1
  5. Package of screws x1

1. 2. 3. 4. 5.

Weight: 0.281 kg

Specifications
Main characteristics
Compatibility
Raspberry Pi
Connectivity
DSI
Country of origin
Made in China
Display type
TFT/IPS
Resolution
800 x 480
Size in inches
7.0 inch
Touch Screen
Capacitive
Reviews

There are no reviews for this product.

There are no reviews for this product, be the first to leave your review.

Answers & questions
Add your question and we will answer as soon as possible.

No questions about this product, be the first and ask your question.
