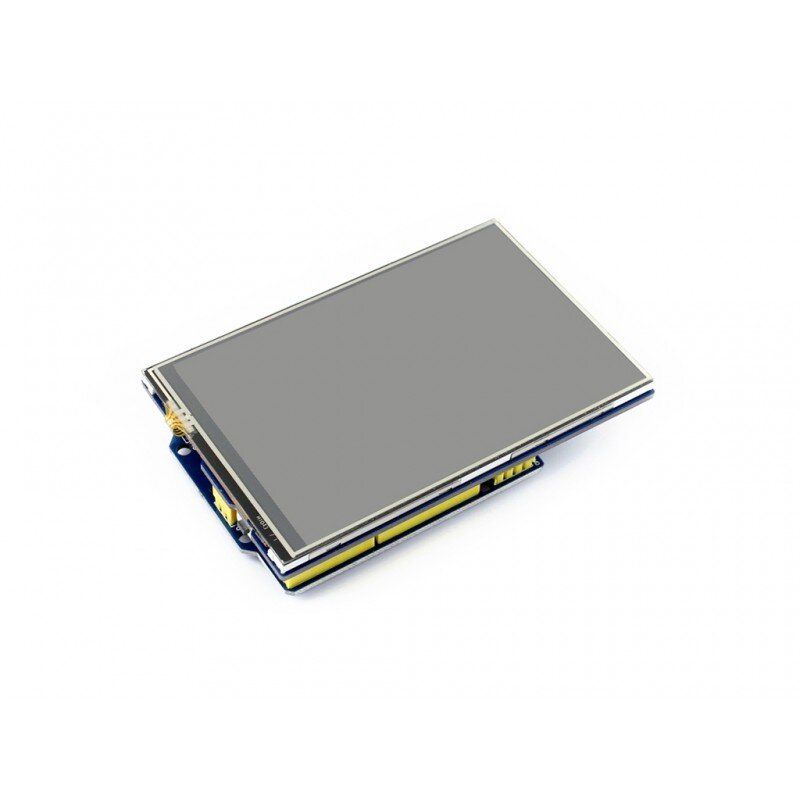

4inch Touch LCD Display Shield for Arduino

Main features:

Resistive TFT LCD touch screen, 4 inch, 480x320 resolution
Standard Arduino interface, compatible with development boards such as: Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
Built-in standalone touch controller, more convenient than solutions that use AD contacts directly for touch control
PWM backlight control, allows you to adjust the backlight to a comfortable level
Micro SD slot, provides an easy way to store photos for display
Controlled via SPI, only a few Arduino pins are used
Comes with STM32 and Arduino samples, easy to port

Specifications:

LCD TYPE: TFT
LCD interface: SPI
LCD controller: ILI9486
Touch screen type: resistive
Touch screen controller: XPT2046
Color gamut: RGB, 65 thousand colors
Resolution: 480x320 pixels
Aspect ratio: 8: 5
I / O voltage: 3.3 V / 5 V

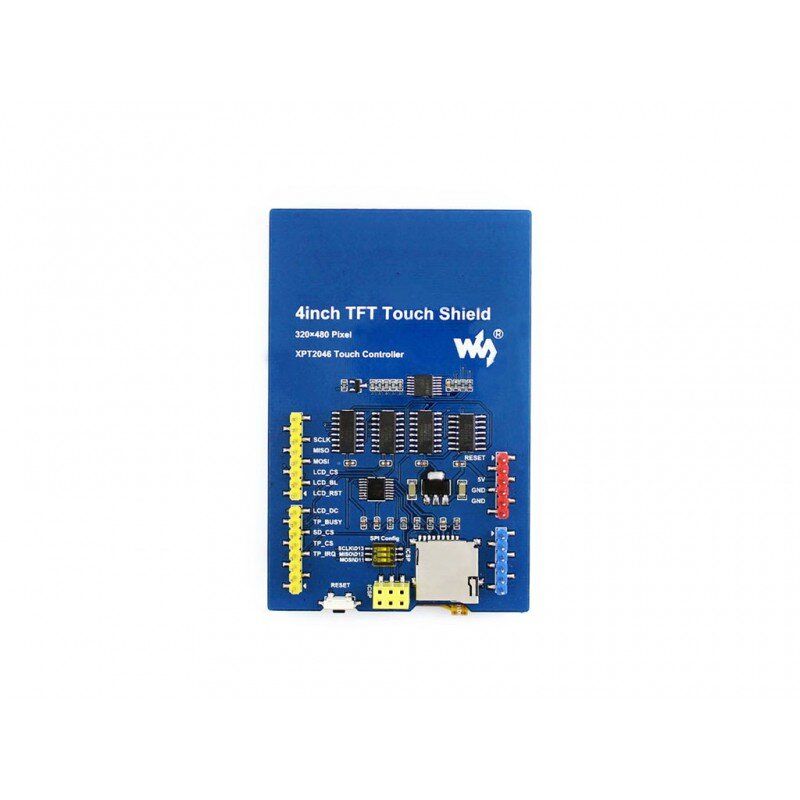

interfaces:

SYMBOL.	ARDUINO / NUCLEO connector	Description.
5V	5V	5V power input
GND	GND	Ground
SCLK	D13	SPI clock
MISO CLOCK	D12	SPI data input
MOSI DATA INPUT	D11	SPI data output
LCD_CS	D10	LCD chip selection
LCD_BL	D9	LCD backlighting
LCD_RST	D8	LCD reset
LCD_DC	D7	LCD data / control selection
TP_BUSY	D6	Touch panel is busy
SD_CS	D5	Chip selection for Micro SD card
TP_CS	D4	Chip selection for the touch panel
TP_IRQ	D3	Interrupt of the touch panel

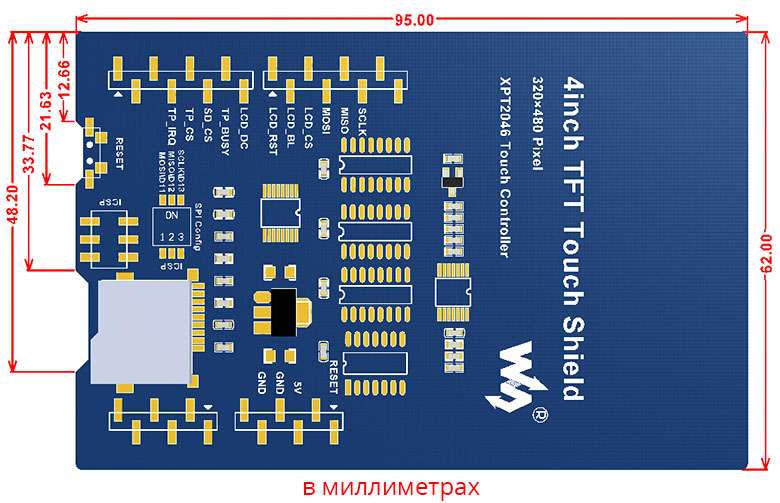

Overall dimensions:

Resources for developers: www.waveshare.com/wiki/4inch_TFT_Touch_Shield

Weight: 0.062 kg

Selection guide:

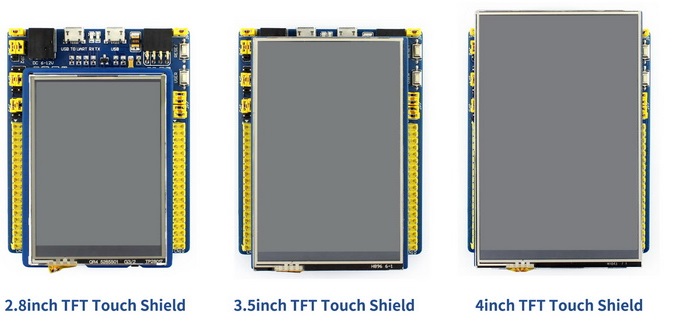

Name.	Driver	Controller.	Resolution, pix.	Display size, mm	Dimensions, mm
2.8inch TFT Touch Shield	HX8347D	XPT2046	320x240	57.6 x 43.2	73.3 x 55.3
3.5inch TFT Touch Shield	ILI9486	XPT2046	480x320	74.2 x 49.8	86.0 x 57.2
4inch TFT Touch Shield	ILI9486	XPT2046	480x320	84.3 x 56.5	95.0 x 62.0

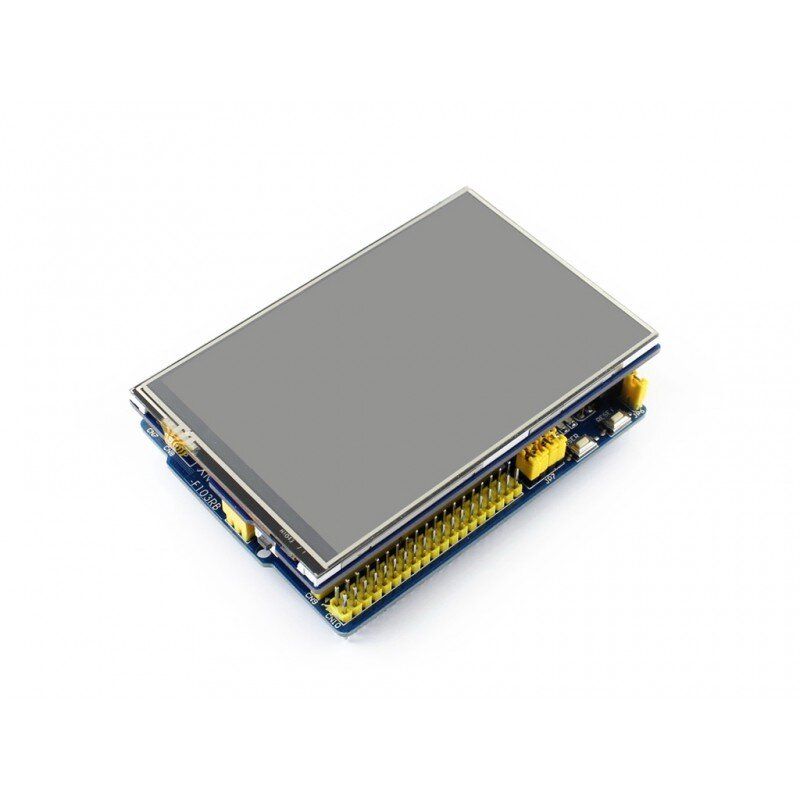

What it looks like when connected to the XNUCLEO control board:
