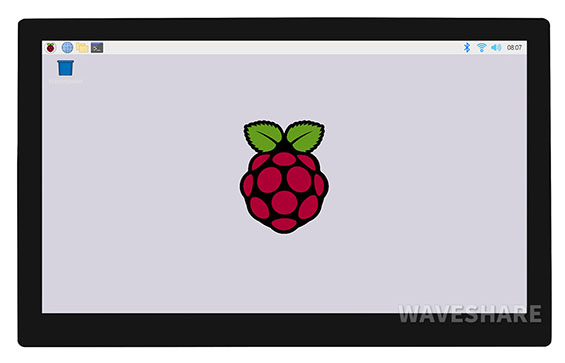

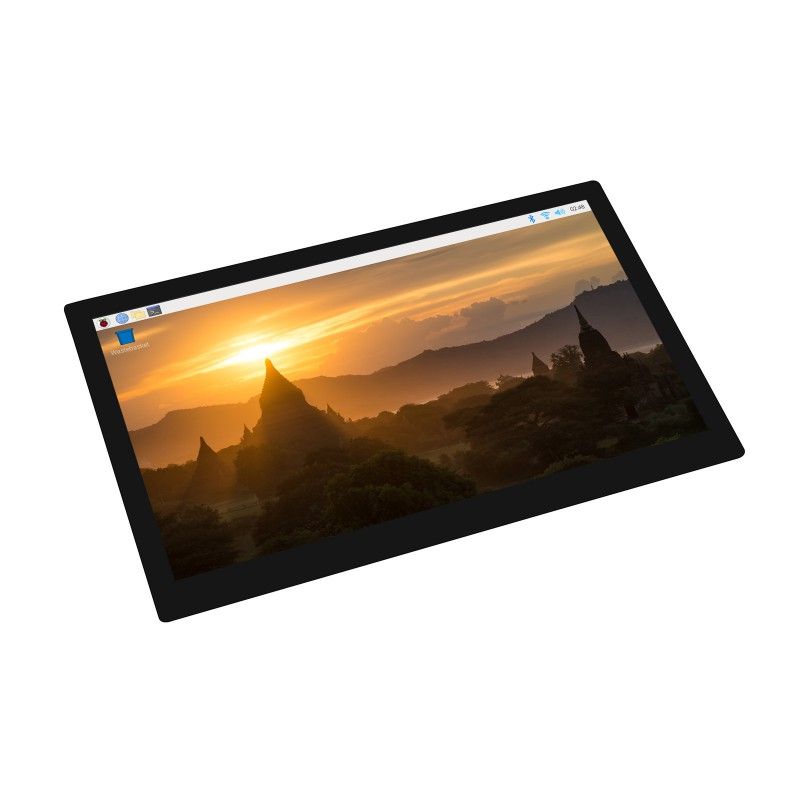

Display 10.1inch LCD 1280x720 HDMI QLED Capacitive Touch Screen (20135)

The 10.1inch LCD 1280x720 HDMI QLED Capacitive Touch Screen (20135) is a high-quality display made with QLED Quantum Dot Display technology, which uses quantum dots to produce red, green and blue light. Quantum dots are crystals that glow when exposed to current or light. They emit different colors depending on the size and material they are made of. Quantum dot displays have up to five times lower power consumption than conventional liquid crystal displays (LCDs), as well as a longer lifespan than OLEDs and higher brightness and contrast than competing technologies.

The 10.1inch LCD 1280x720 HDMI QLED Capacitive Touch Screen has the following specifications:

• Screen diagonal: 10.1 "
• Resolution: 1280x720 pixels
• Display port: HDMI
• Display panel: IPS
• Viewing angle: 170 deg.
• Sensor type: capacitive
• Number of control points: 10 points
• Sensor port: USB
• Front panel: tempered glass
• Built-in brightness and contrast adjustment menu
• 2 audio outputs: audio jack and 4-pin speaker jack
• Works with game consoles

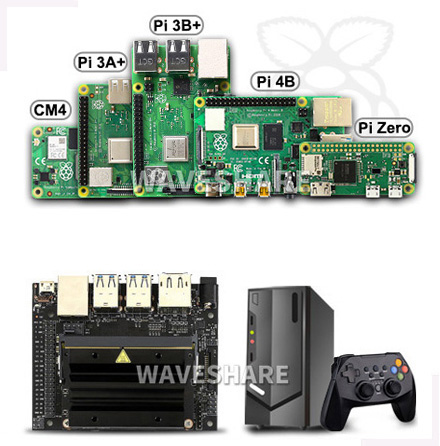

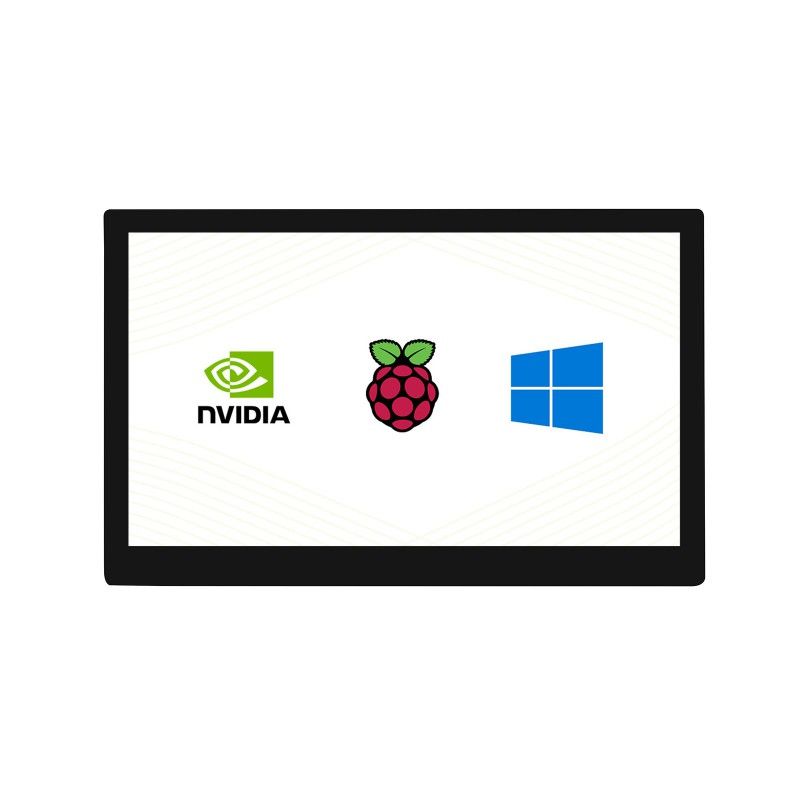

Supported devices and systems

Raspberry Pi

Raspbian support, 10-point control, no driver required
Supports Ubuntu / Kali / WIN10 IoT, one-touch, no driver required
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point control, no drivers required

PC
Supports Windows 10 / 8.1 / 8/7, 10-point control, no drivers required

Game console
Xbox360, PS4, SWITCH ...

Example of connection:

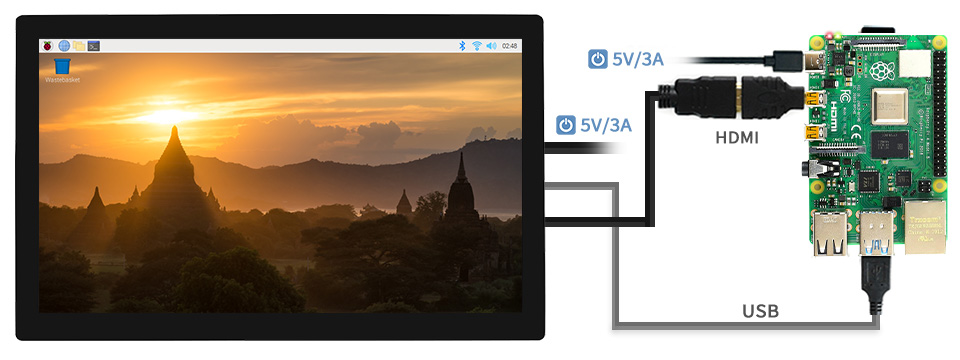

Working with a Raspberry Pi 4

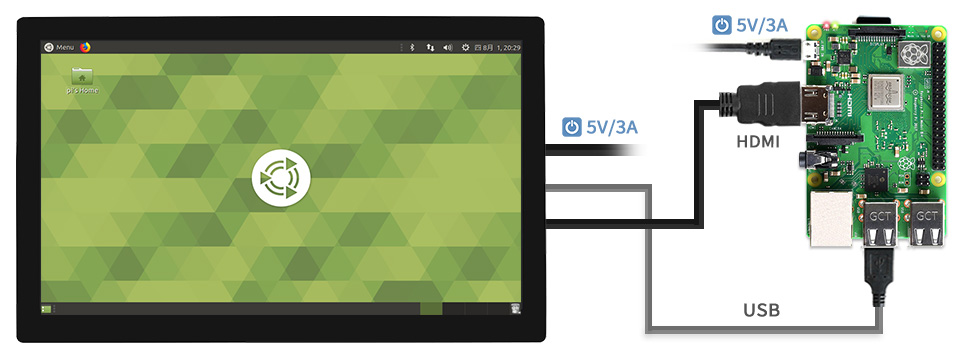

Working with Raspberry Pi 3B+

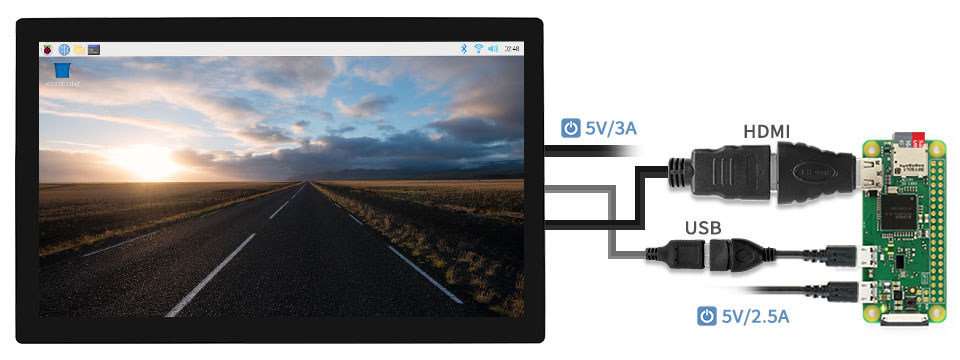

Working with Raspberry Pi Zero W

Attention: Use the HDMI to Micro HD adapter with the HDMI cable.

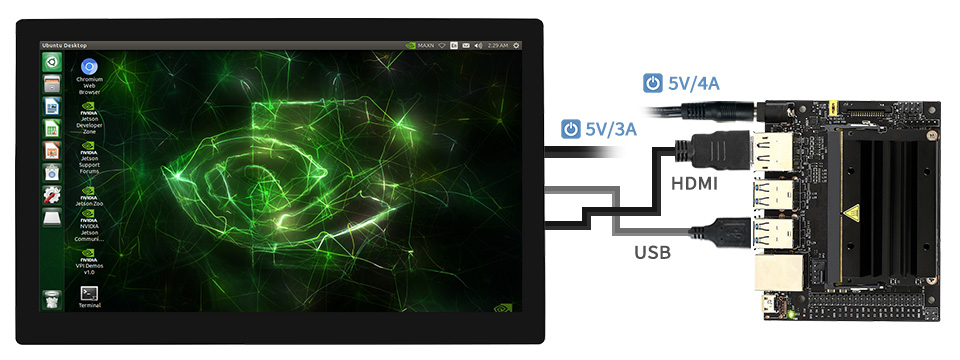

Working with Jetson Nano

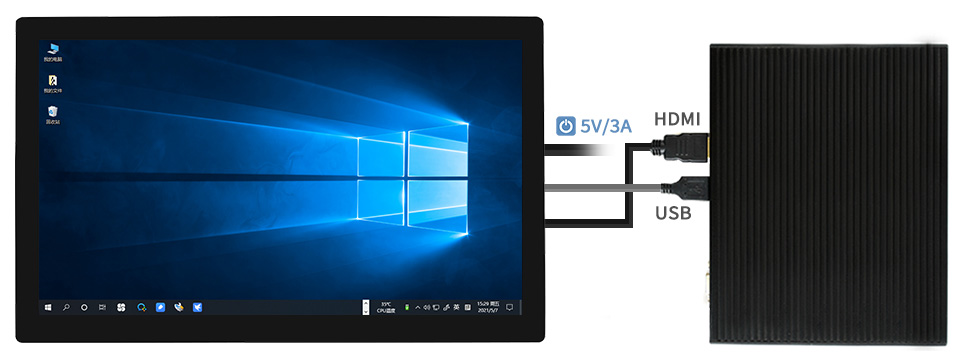

Working with mini PC

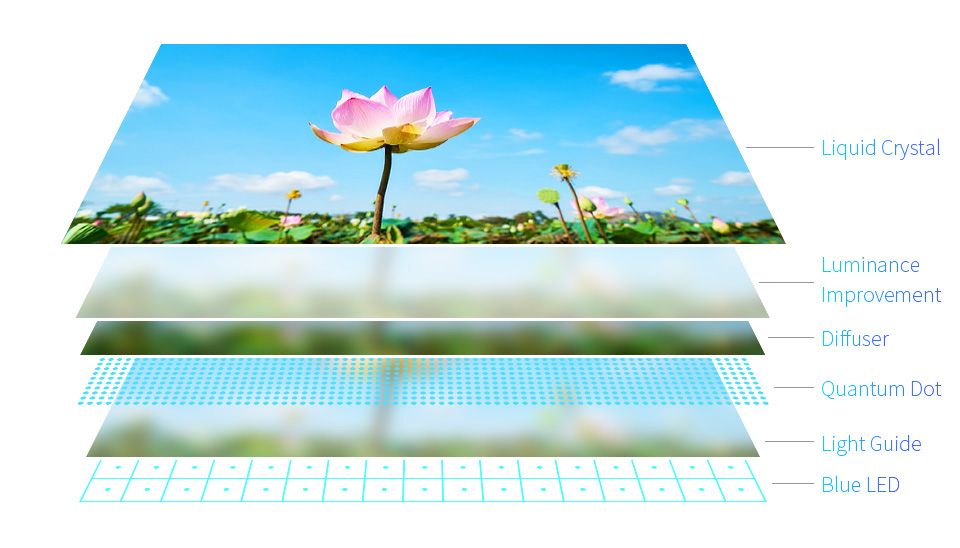

QLED Quantum Dot Technology (QLED Quantum Dot Technology)

Extended Gamut: The color gamut of this QLED display is up to: NTSC 78%, SRGB 92%.

Improved color reproduction: QLED colors are increased by 58.3%, makes the color more pure, vivid

EXTENDED SERVICE LIFE: Due to the inorganic characteristics, the lifespan of QLED LED can be up to 60,000 hours without color degradation.

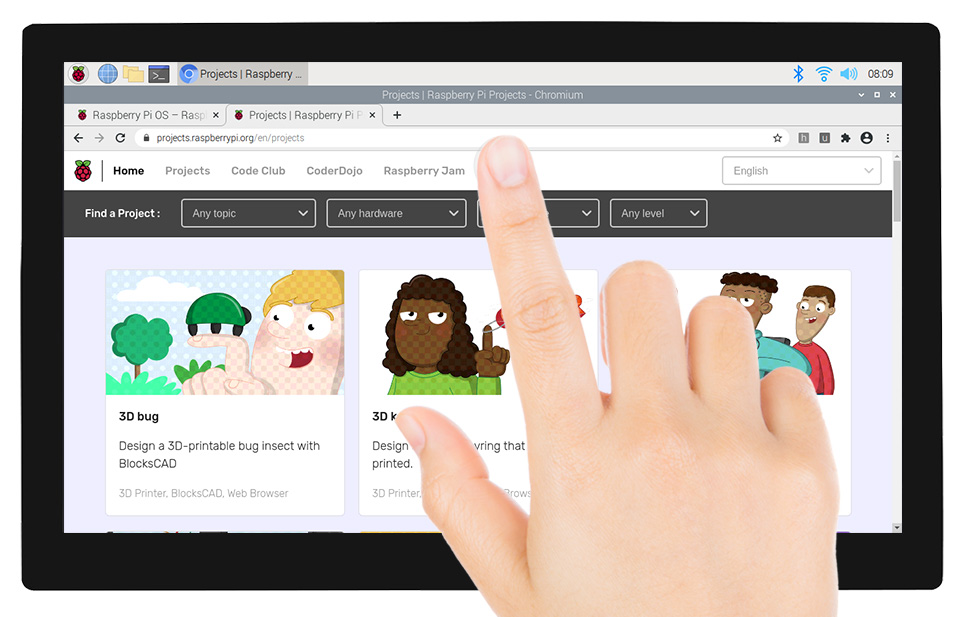

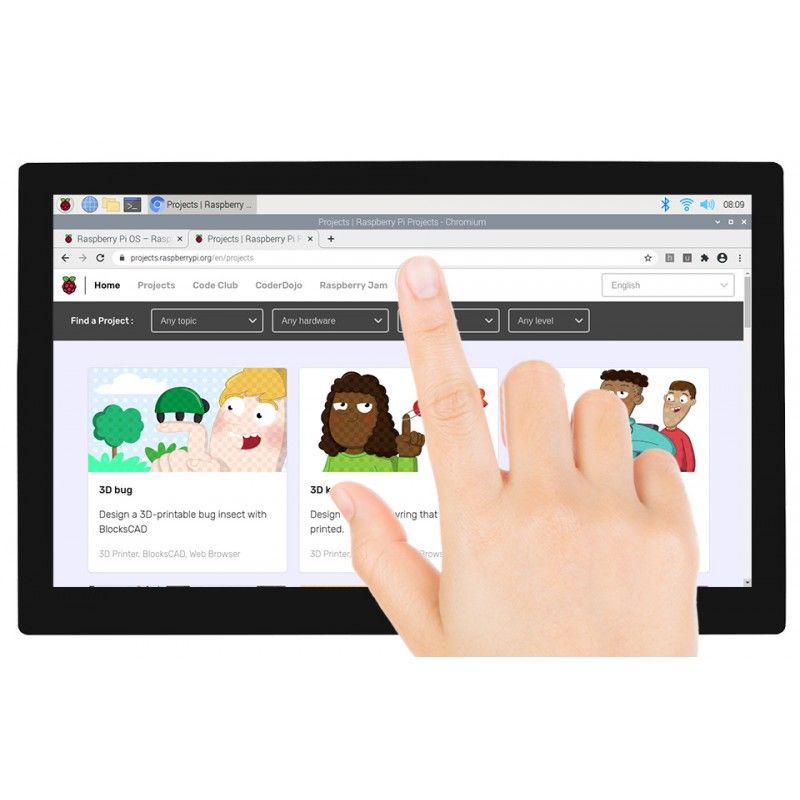

Touch control (capacitive sensor). Up to 10 control points. The front panel is made of tempered glass.

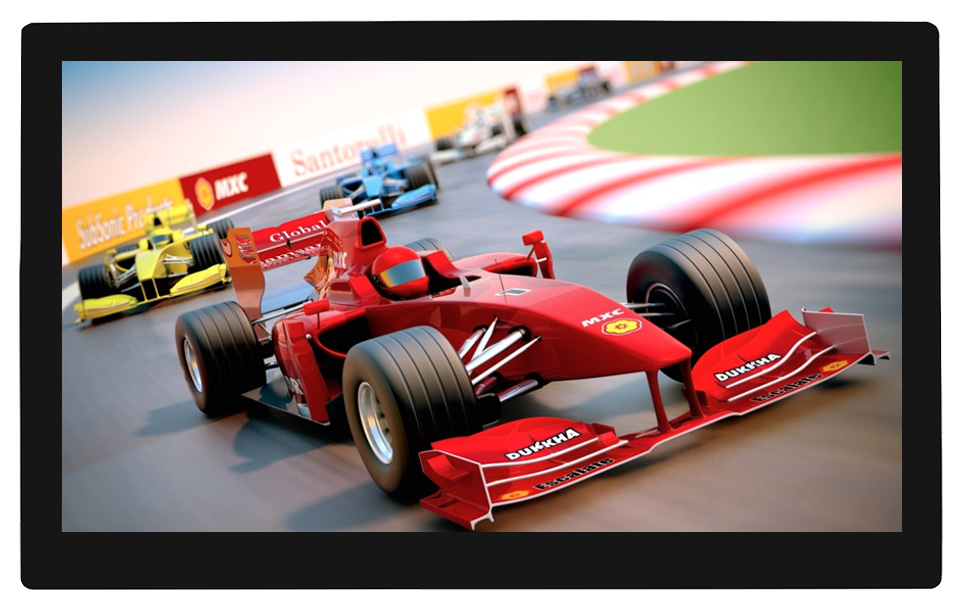

The display supports operation with Xbox360 / PS4 / SWITCH game consoles... (display and sound only. Sound via headphone output or speaker jack)

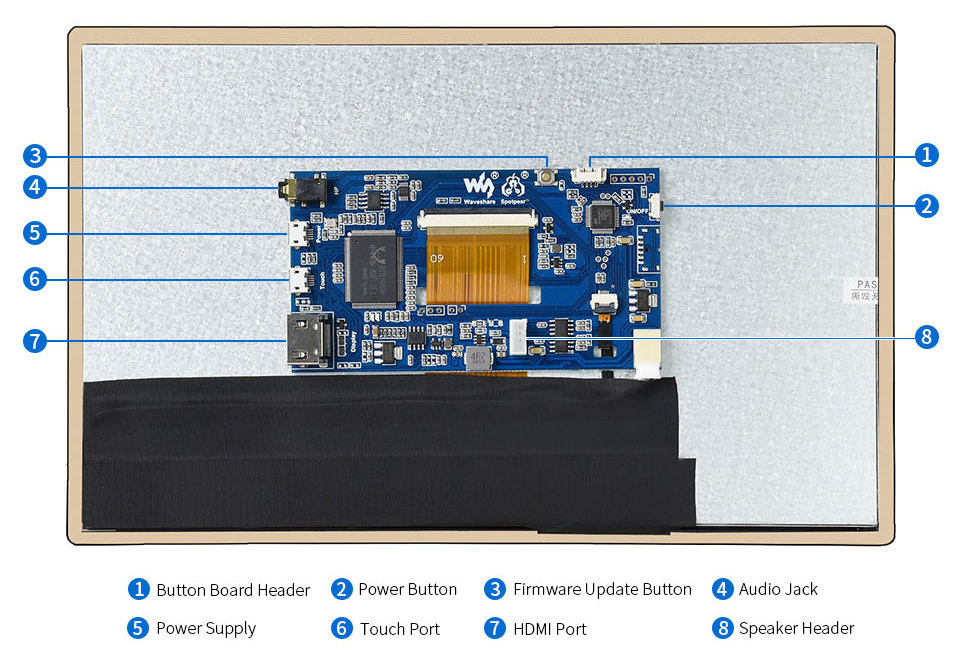

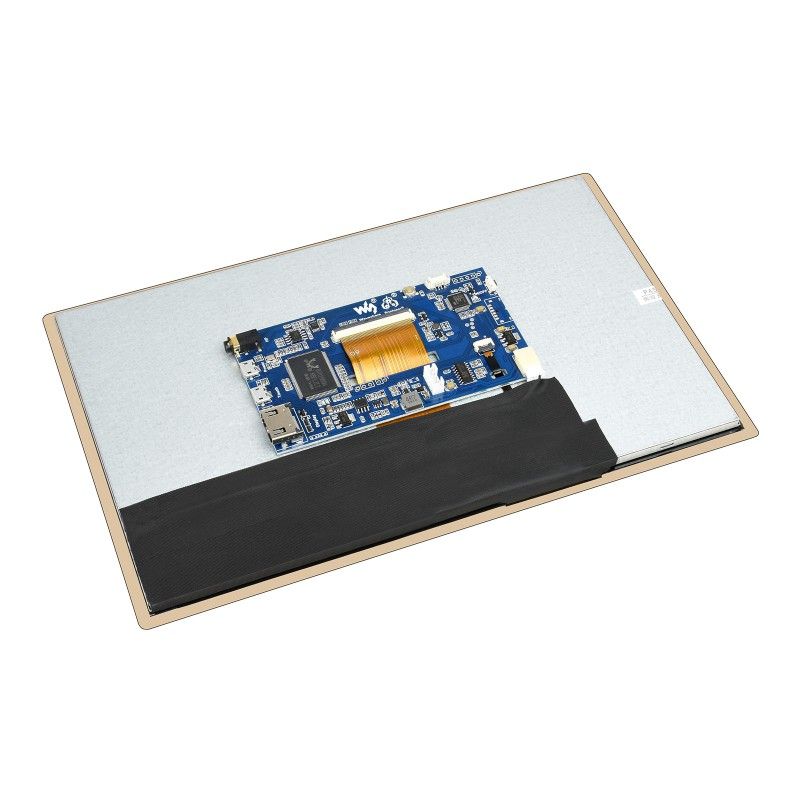

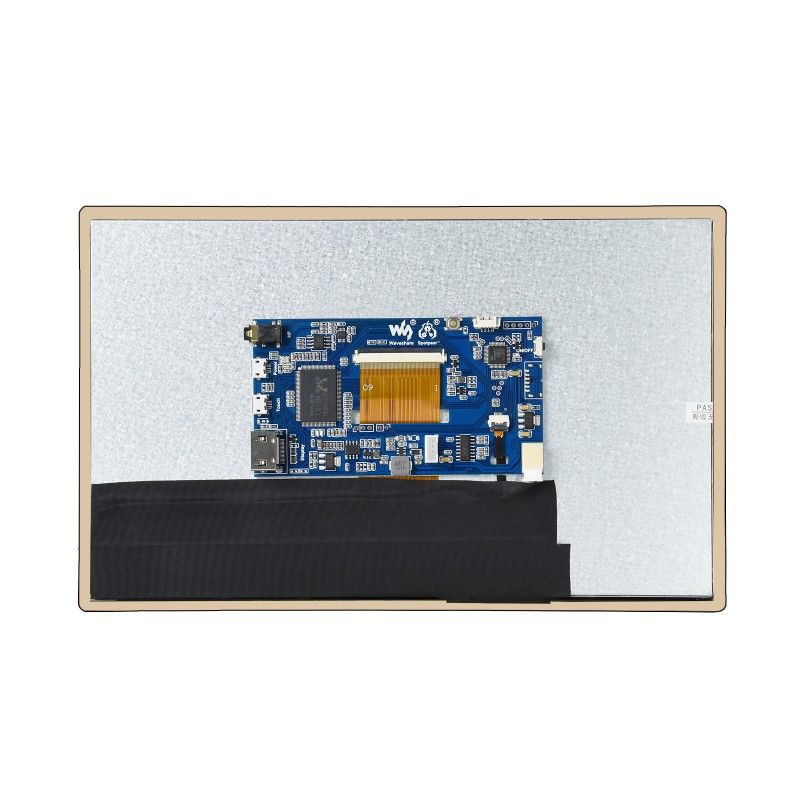

Elements of construction:

1. Button panel connector
2. Power button
3. Firmware update button
4. Audio jack
5. Power connector
6. Touch port
7. HDMI port
8. Speaker connector

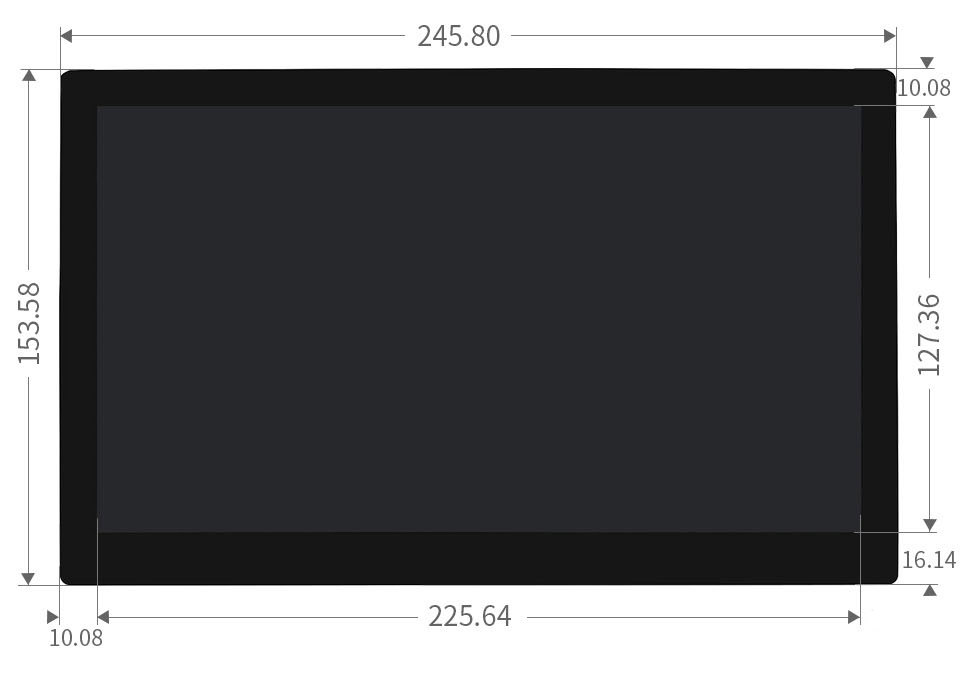

Overall dimensions: 245.80mm x 153.58mm

Resources for developers Wiki: 10.1HP-CAPQLED

The package includes:

1. 10.1HP-CAPQLED - 1 pc.
2. 5V 3A power adapter - 1 pc.
3. HDMI cable - 1 pc.
4. HDMI to Micro HDMI adapter - 1 pc.
5. USB type A plug to micro B cable - 1 pc.

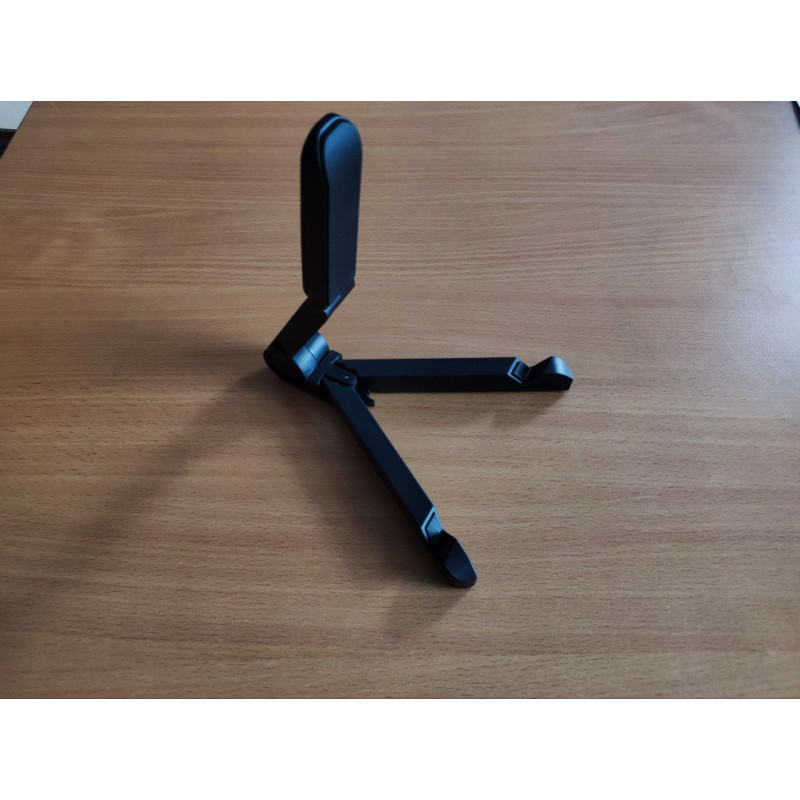

6. Holder - 1 pc.
7. Cable for the panel with buttons - 1 pc.
8. Panel with buttons - 1 pc.

1. 2. 3. 4. 5. 6.7. 8.

Weight: 0.667 kg
