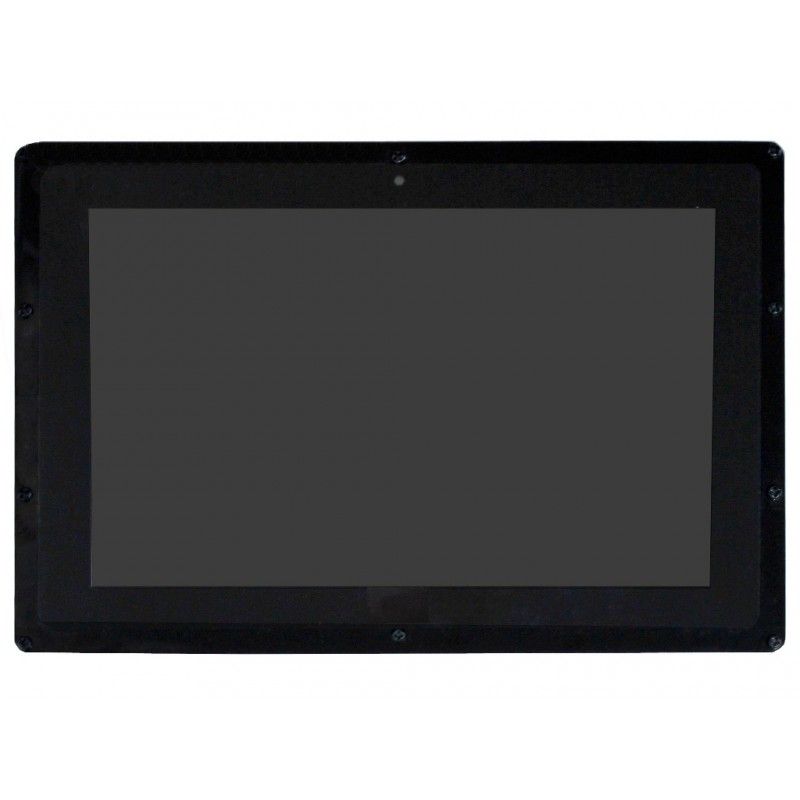

Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)

Brand: Waveshare Product Code: 11769
0
All about product
Description
Specification
Reviews 0
Questions0
new
Popular
Sold Out
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
Out Of Stock
£88.80
Compatibility:Raspberry Pi, Jetson Nano, Arduino, Banana Pi, BeagleBone, Asus
Connectivity:HDMI
Country of origin:Made in China
Display type:LCD
Resolution:1280 x 800
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Monitor 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen (11769)
£88.80
Description

The 10.1inch LCD 1280x800 HDMI Capacitive Touch Screen monitor (11769 ) has the following specifications:

Screen diagonal: 10.1"

Resolution: 1280x800 pixels

Port: HDMI

Matrix type: IPS

Viewing angle: 170 deg.

Sensor type: capacitive with 10 touch points (depending on the operating system)

Number of control points: up to 10 points

Sensor port: USB

Protective insert made of acrylic

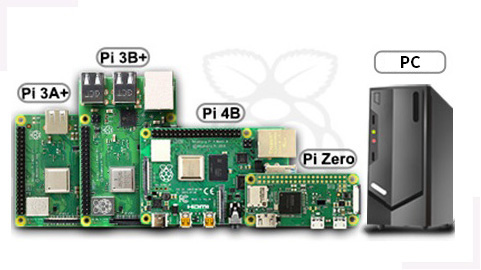

Supported devices and systems

Raspberry Pi

Raspbian support, 10 touch points, no driver required
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver required
Supports Retropie, no drivers required

Supports ALL versions of Raspberry Pi.

PC

Supports Windows 10 / 8.1 / 8 / 7. 10 touch points, no drivers required

An example of connection:

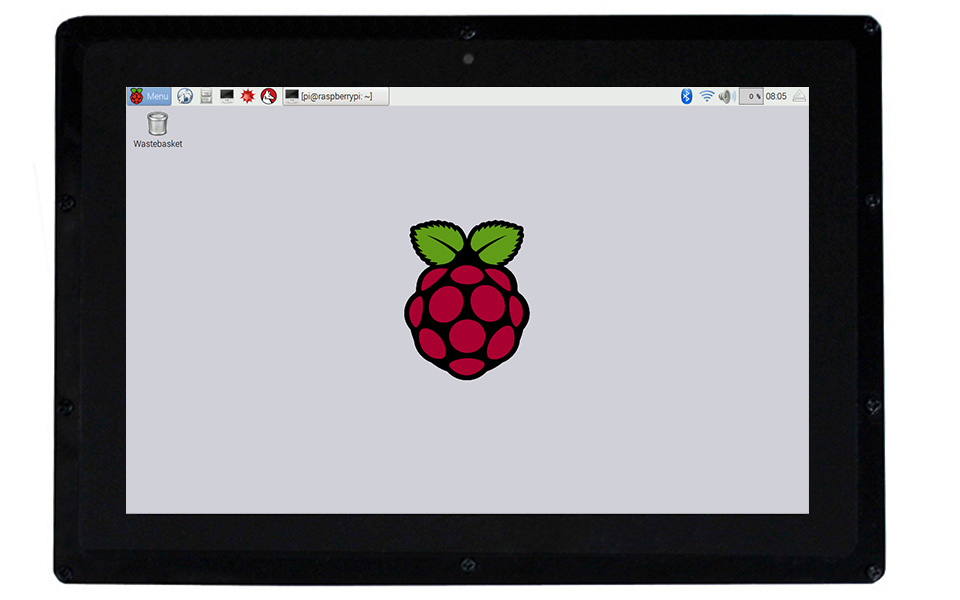

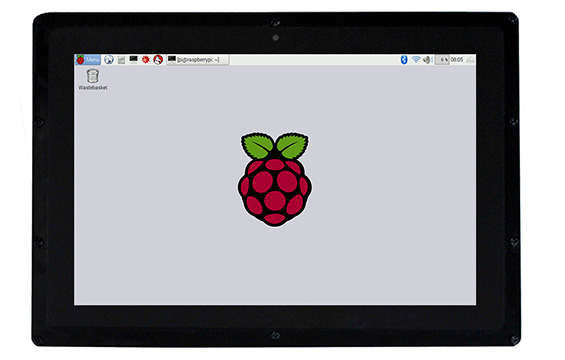

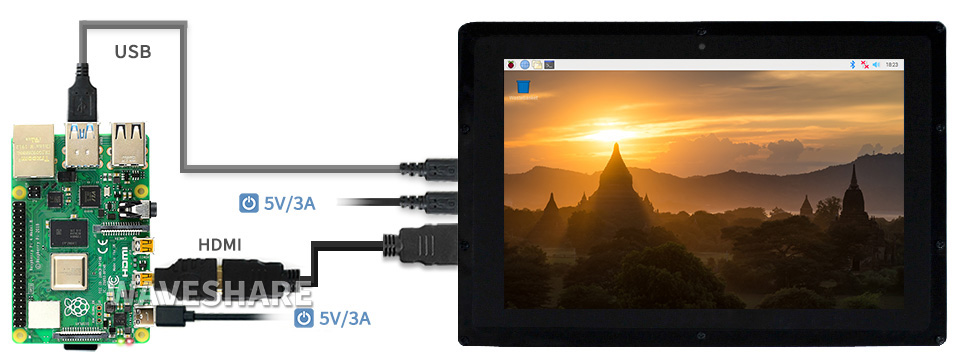

Working with Raspberry Pi 4

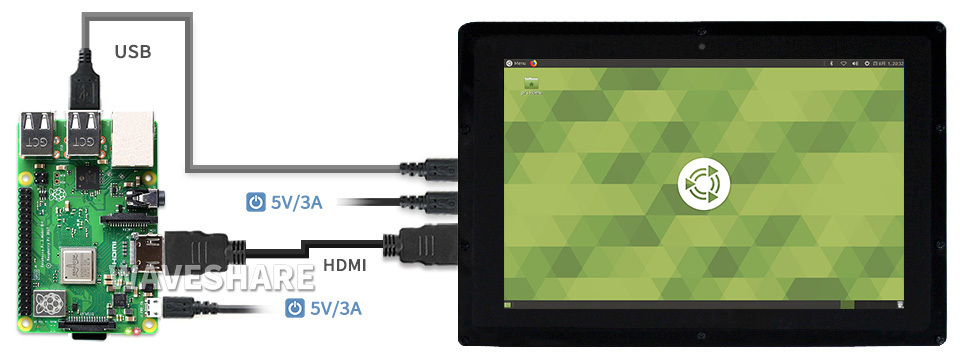

Working with Raspberry Pi 3B+

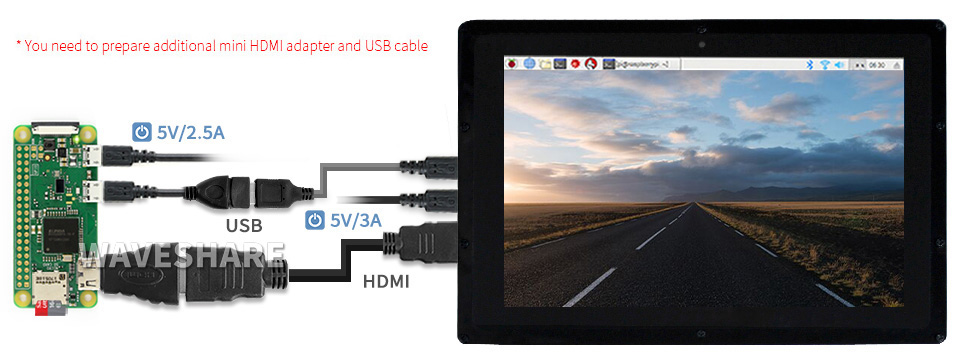

Working with Raspberry Pi Zero

Note: To connect to Raspberry Pi Zero, you need to purchase a USB cable and a mini-HDMI adapter separately.

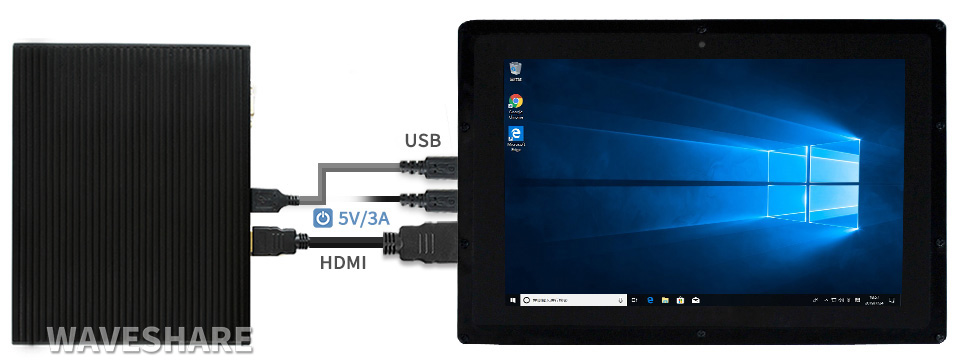

Working with a Mini PC

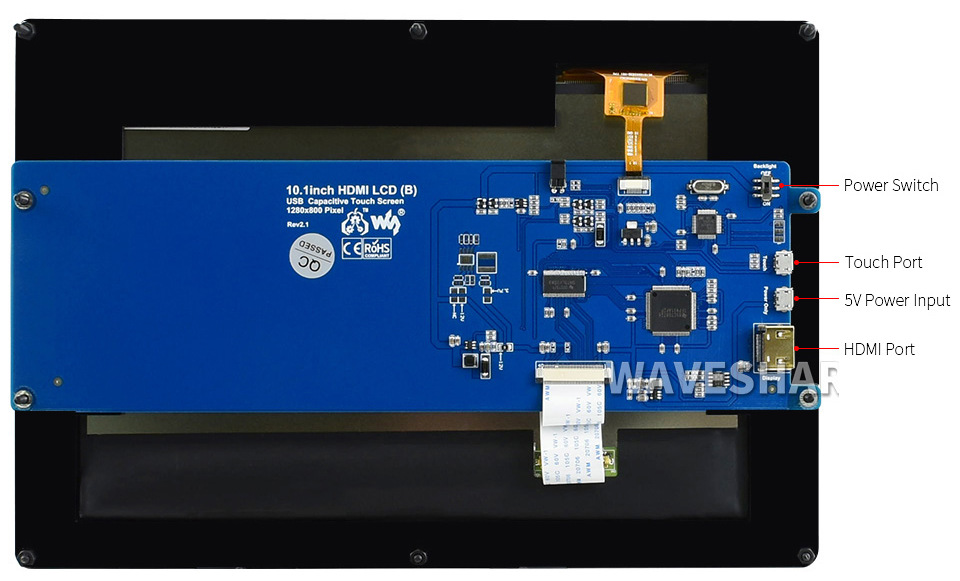

Device interfaces:

Power Switch - power switch

Touch Port - sensor port

5V Power Input - 5V power input

HDMI Port - HDMI port

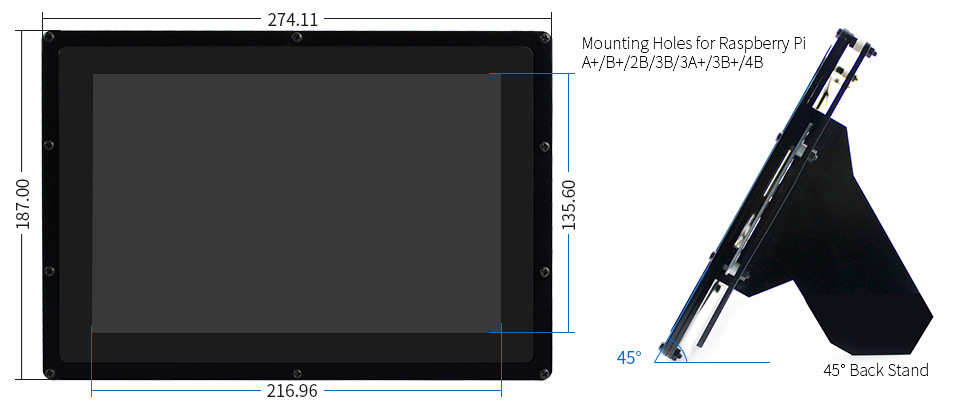

Overall dimensions (mm): 274.11 х 187

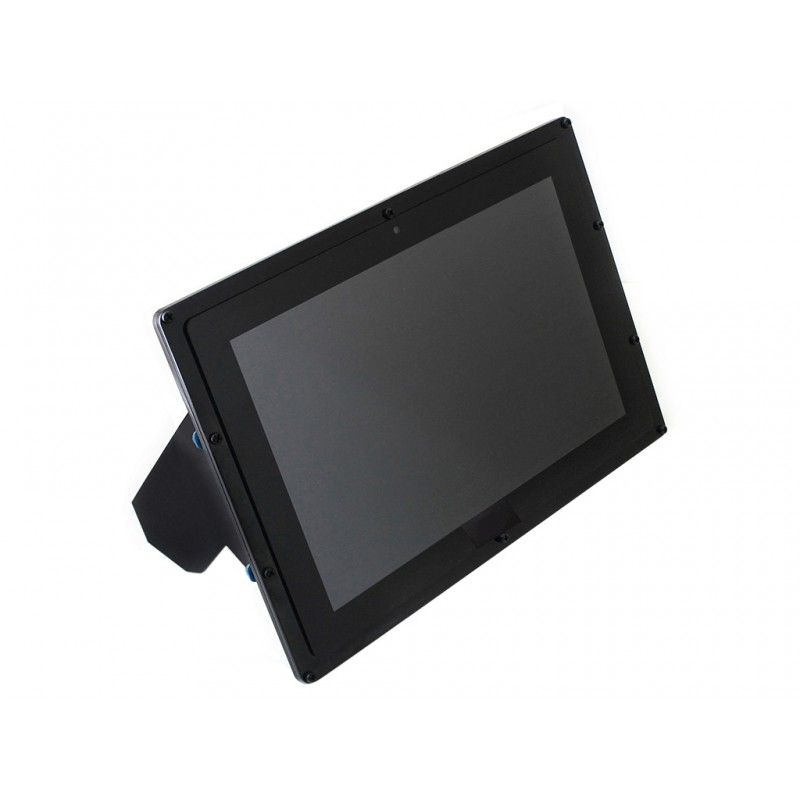

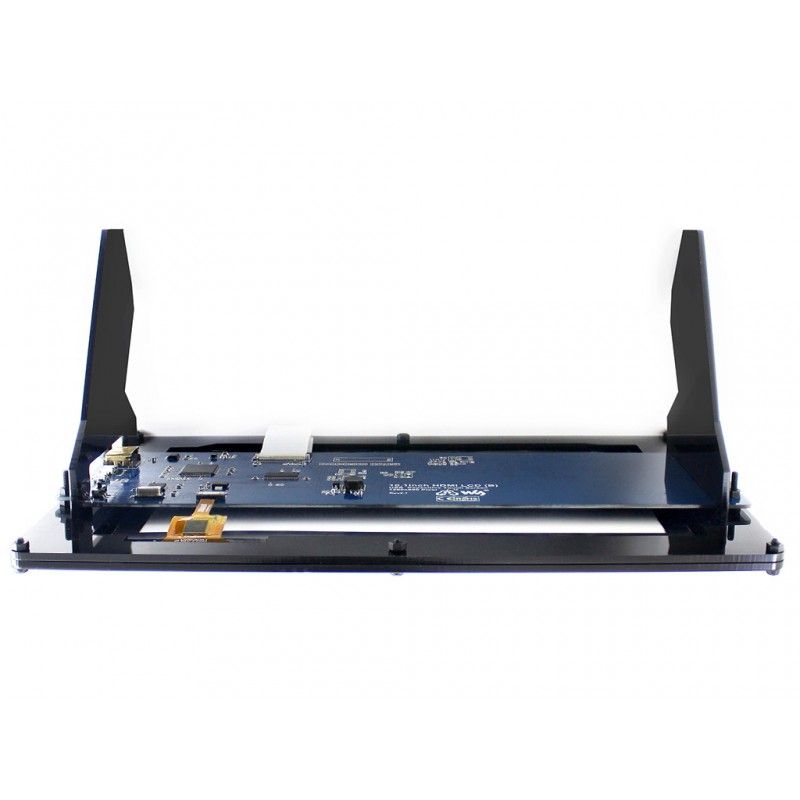

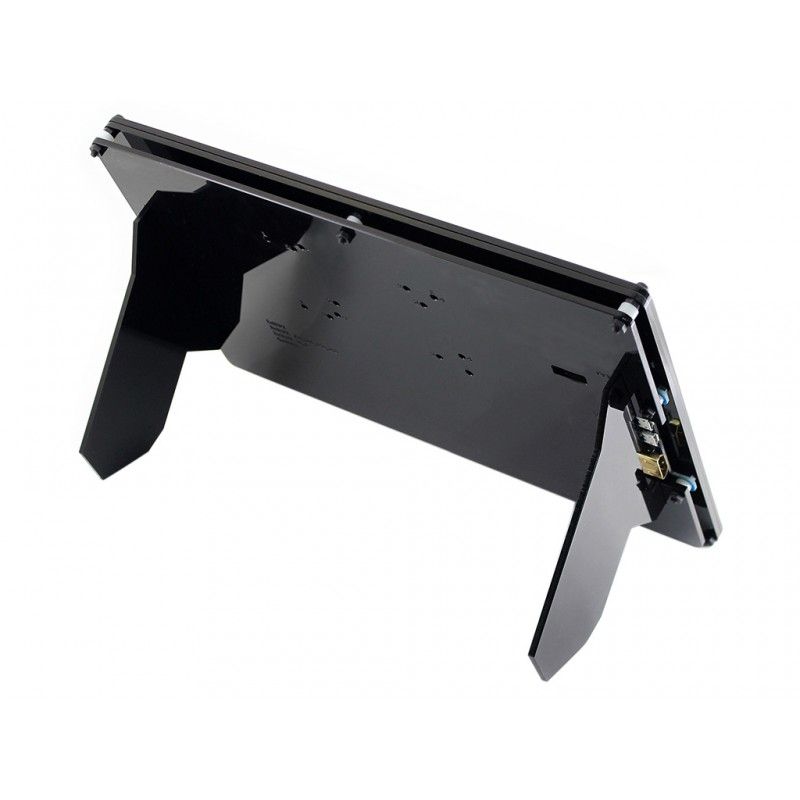

The display is equipped with 2 stand brackets that hold the screen at a 45-degree angle.

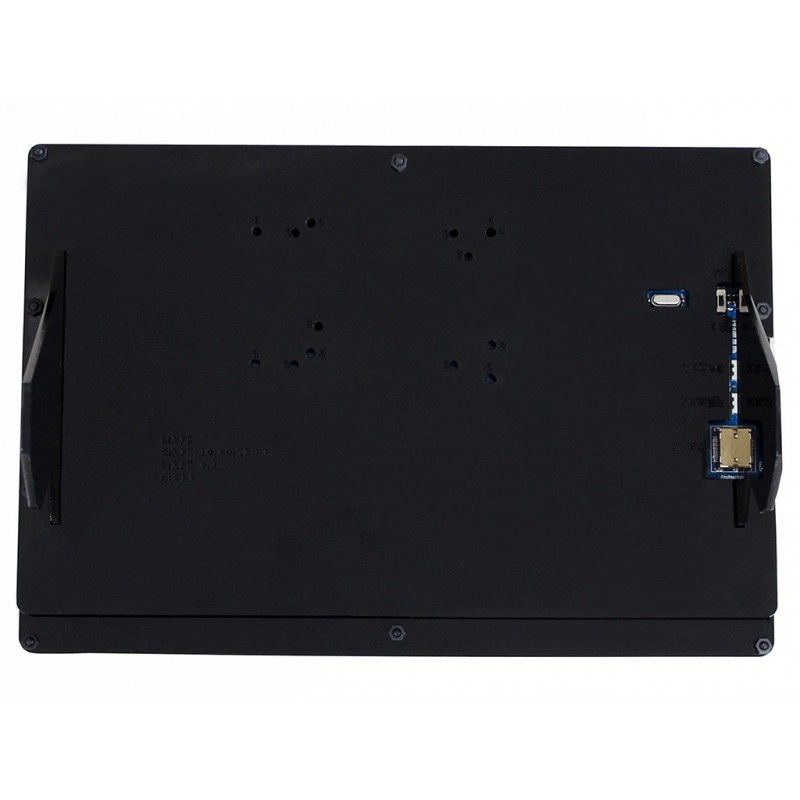

On the back there are mounting holes for Raspberry Pi A + / B + / 2B / 3B / 3a + / 3B + / 4B boards

Information for developers (Wiki): www.waveshare.com/wiki/10.1inch_HDMI_LCD_(B)_(with_case)

The package includes:

  1. 10.1inch HDMI LCD (B) bezel mounted display x1
  2. Stands x1
  3. Optional power adapter x1
  4. HDMI cable x1
  5. HDMI to Micro HDMI adapter x1
  6. USB-A to Micro-B cable x1
  7. Mounting kit x1
  8. Quick start guide x1

1. 2. 3. 4. 5. 6. 7. 8.

Weight: 0.851 kg

Specifications
Main characteristics
Compatibility
Raspberry Pi, Jetson Nano, Arduino, Banana Pi, BeagleBone, Asus
Connectivity
HDMI
Country of origin
Made in China
Display type
LCD
Resolution
1280 x 800
Size in inches
10.1 inch
Touch Screen
Capacitive
