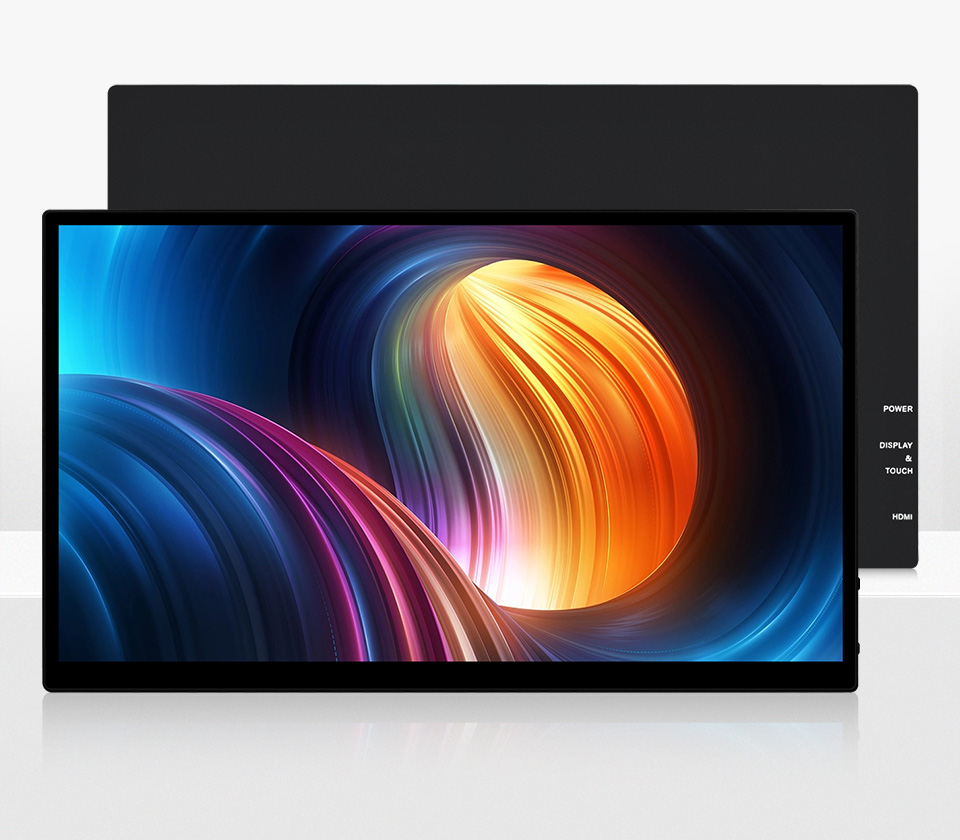

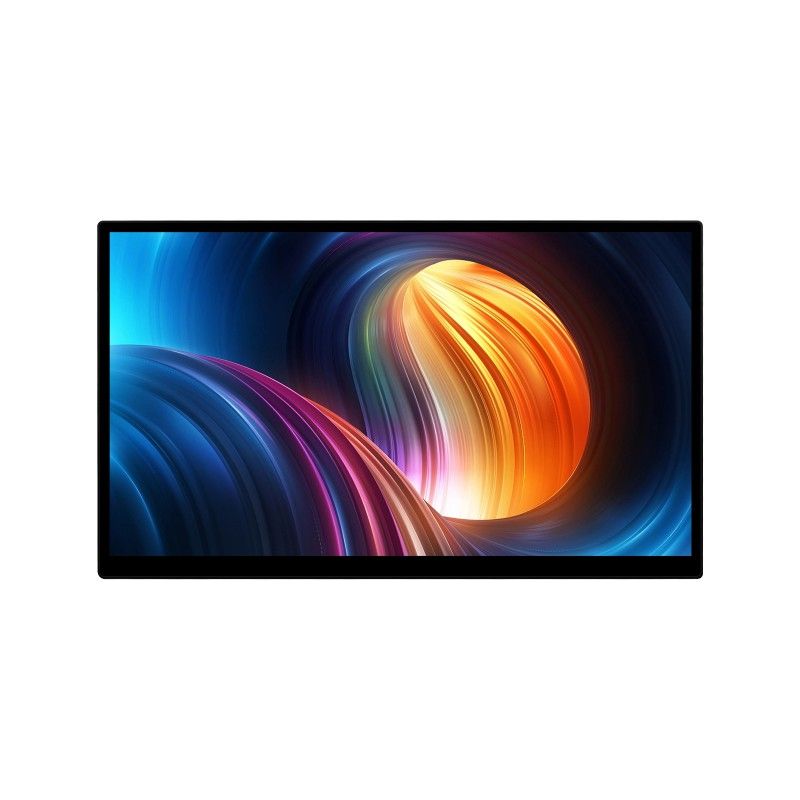

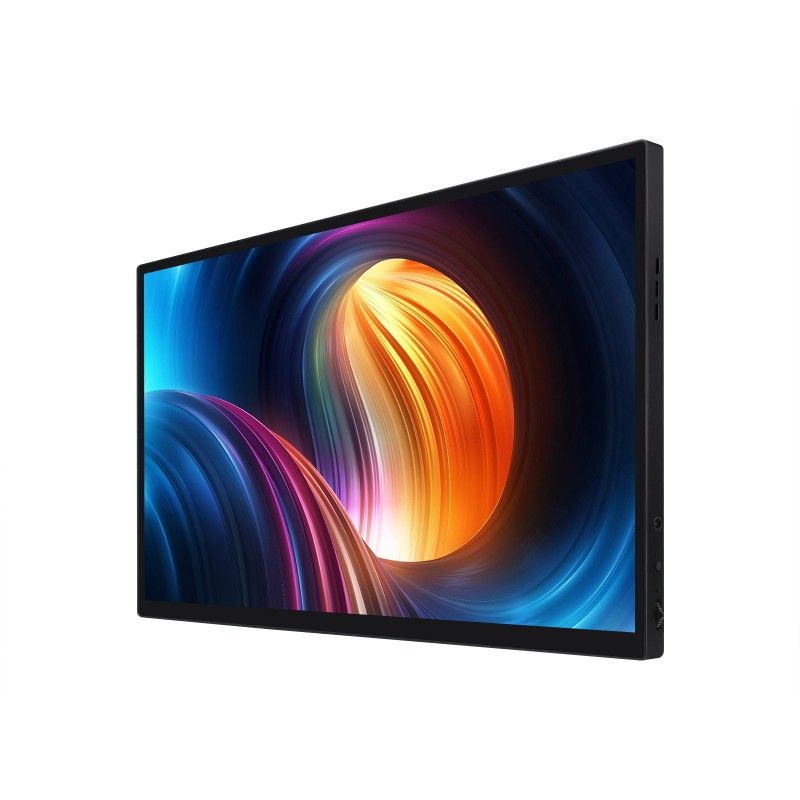

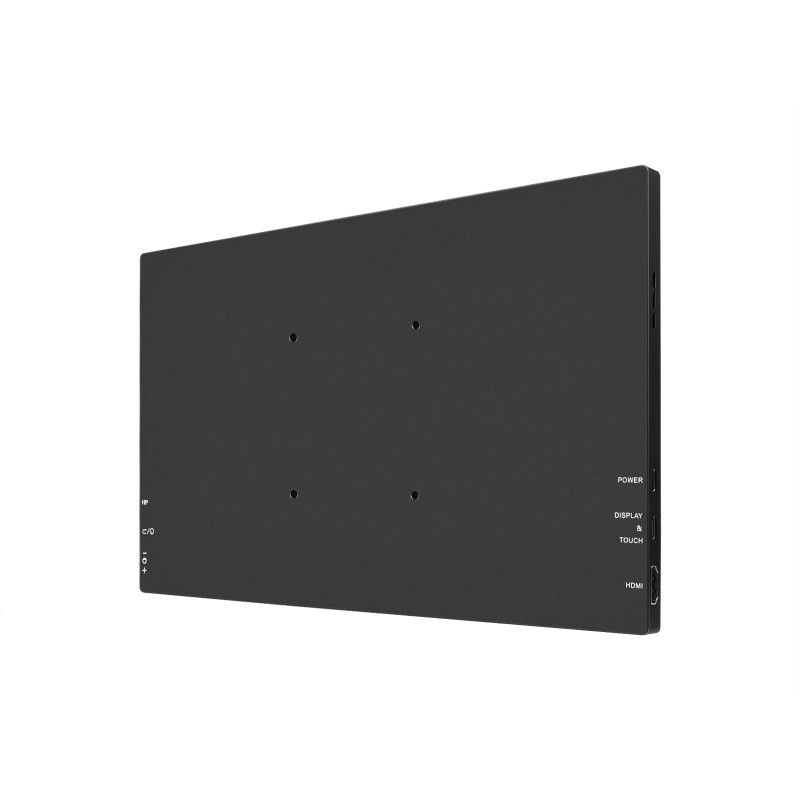

Monitor 13.3 inch 2K AMOLED Touch Display 2560x1440, HDMI/Type-C (24824)

The 13.3 inch 2K AMOLED Touch Display 2560x1440, HDMI/Type-C (24824 ) is a display component that uses AMOLED (Active Matrix Organic Light Emitting Diode) technology. This display has a resolution of 2560x1440 pixels, which is called 2K or QHD resolution.

The features of this display include a touchscreen that allows you to interact with the content on the screen by touch. The display also supports a variety of connectivity interfaces, including HDMI and Type-C Display Interface, which allows you to connect it to a variety of video sources such as computers, laptops, tablets, and other devices.

This display also features an optical bonding toughened glass panel for added durability and protection against scratches and impacts. The display body is made of metal, which ensures stability and durability.

With a resolution of 2560x1440 pixels and a size of 13.3 inches, the display provides high image quality with rich details and color gamut. It can be used in a variety of devices including monitors, laptops, multimedia devices, medical devices and others where high display quality is essential.

Key Features:

• Size: 13.3 in.
• Resolution: 2560×1440
• Display interface: HDMI/Type-C
• Display panel: AMOLED
• Viewing angle: 178°
• Type of touch: capacitive
• Touch points: 10 points
• Touch port: USB Type-C
• Touch panel: tempered glass
• Touch panel technology: optical bonding
• On-screen menu: Brightness/Contrast
• Brightness: DCC/CI Control
• Audio output: 3.5 mm jack
• Sound: Hi-Fi speaker
• Body: technological alloy with CNC
• Smartphone: Huawei/Samsung/OPPO...
• VESA wall mount: 75 × 75 mm

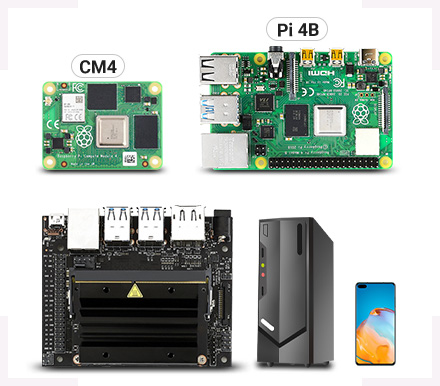

Support for devices and systems

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch screen, no drivers
Supports Ubuntu / Kali / WIN10 IoT, single-point touch

Jetson Nano
Supports Ubuntu, single-point touch, no drivers required

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, no drivers

Smartphone
Huawei, Samsung, OPPO... (wired projection)
Currently, only the Raspberry Pi 4B and CM4 have sufficient CPU performance to fully drive this 2K display.
Supports more powerful future versions as long as the GPU performance is equivalent or better than the Pi 4B.

Connection examples

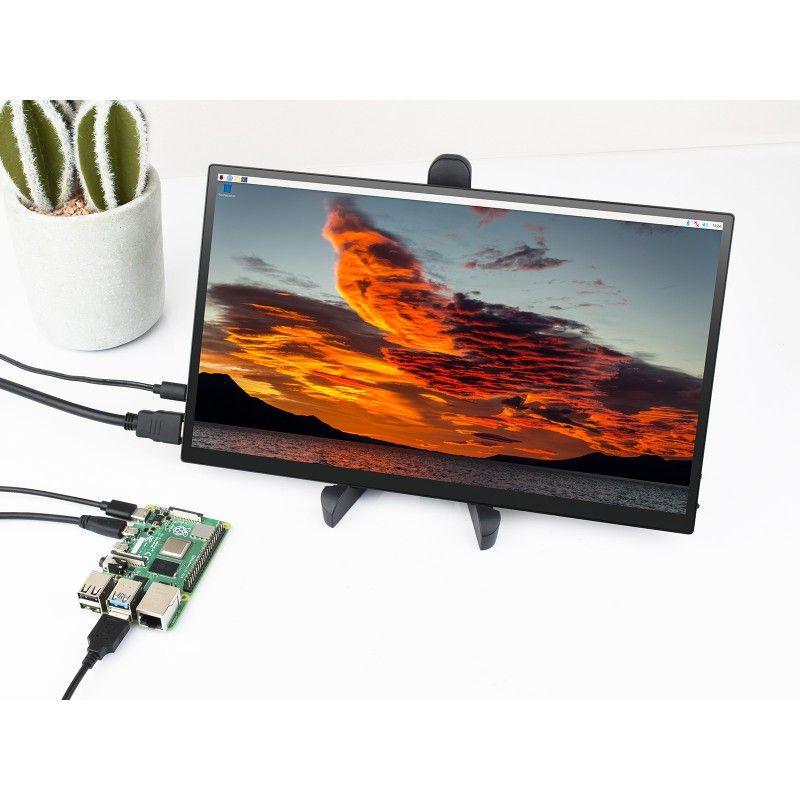

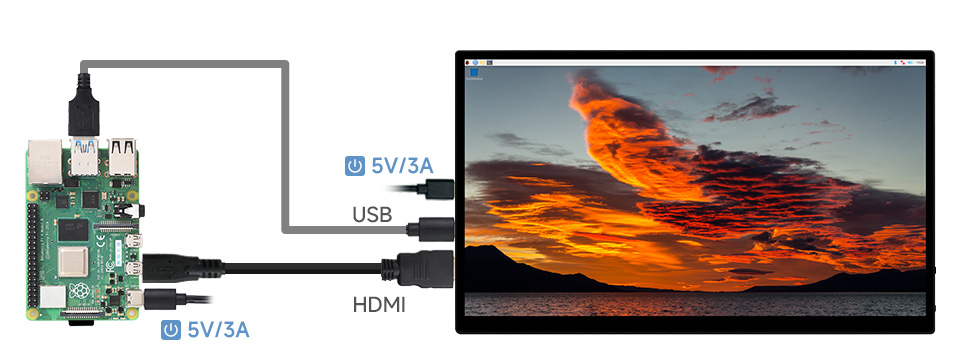

Working with Raspberry Pi 4B

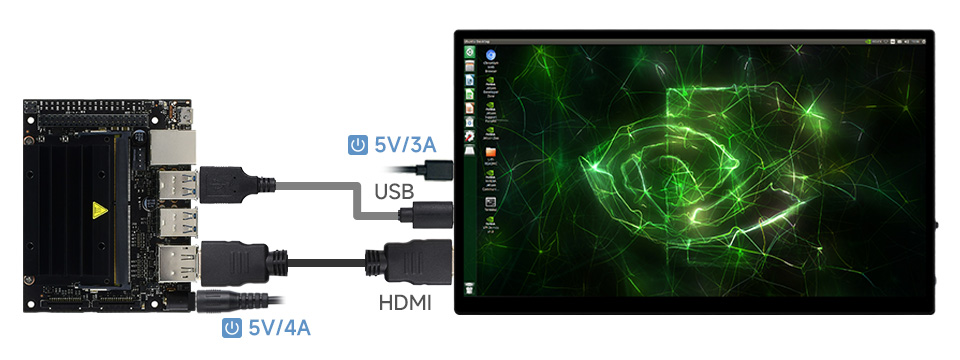

Working with Jetson Nano

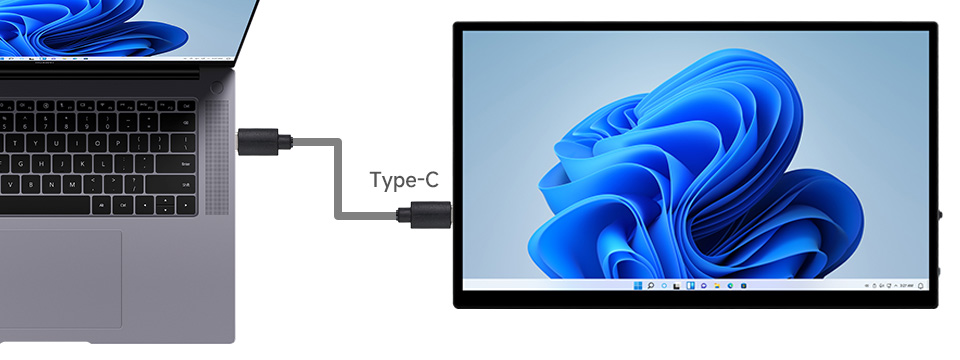

Working with a PC (make sure your smartphone or PC has a fully functional Type-C interface)

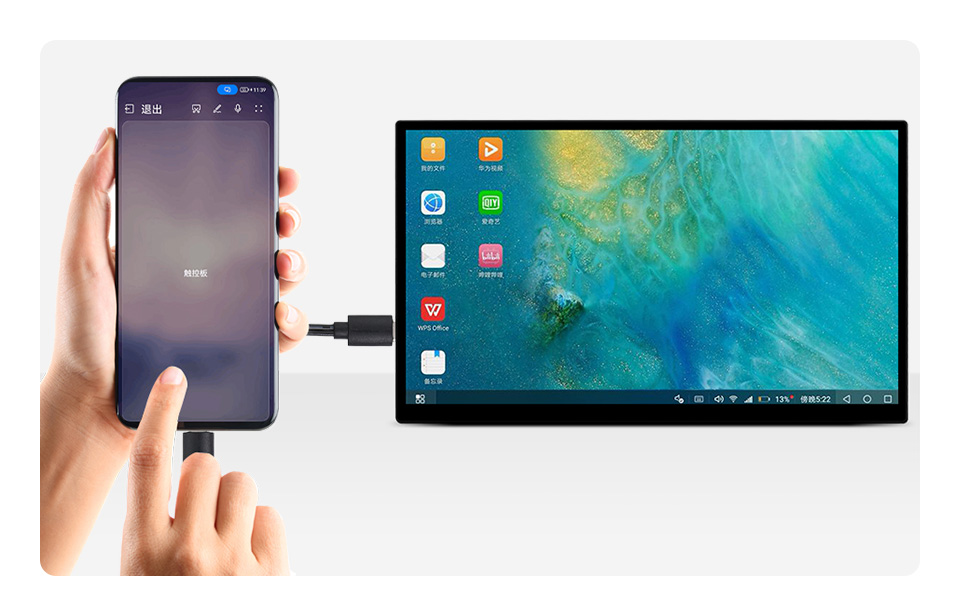

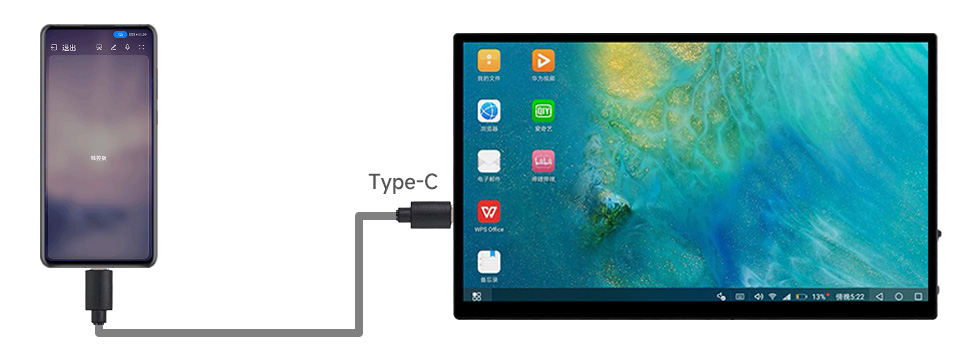

Work with a smartphone (make sure your smartphone or PC has a fully functional Type-C interface)

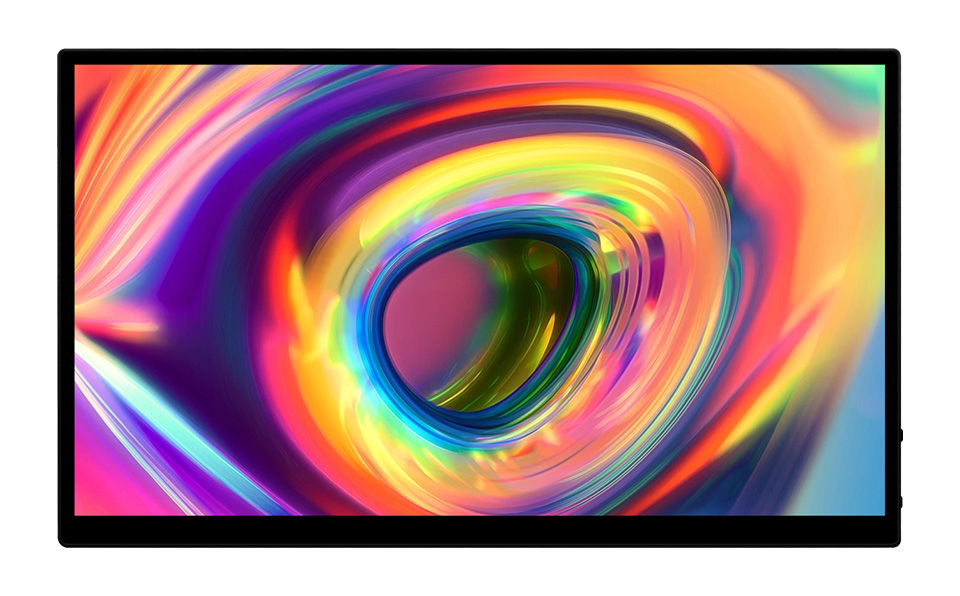

Extended display color gamut
With 100% SRGB, 100% DCI-P3 color gamut coverage
Makes the color brighter, more delicate

Active light-emitting AMOLED screen
AMOLED screen with 3.68 million active light-emitting pixels provides precise light control for more vivid colors and images

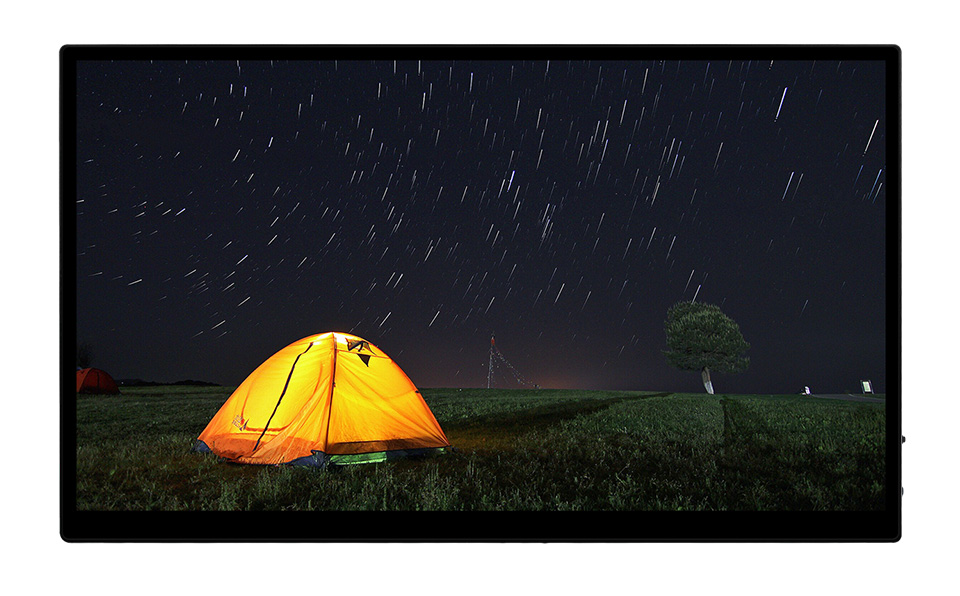

Has an impressive 100,000x contrast ratio, which means 100x the light/dark efficiency, displaying the gradations and details of the deep starry sky in front of your eyes.

Brighter light, darker shadows
Unlike a conventional LCD, AMOLED features active emission technology, each pixel on AMOLED glows by itself, creating brighter highlights or true black shadows, making it almost close to true 0nit black.

Capacitive 10-point touch device:

• Up to 10 touch points depending on the operating system
• tempered glass panel with a hardness of up to 6H
• Optical bonding, good reflection and dust protection

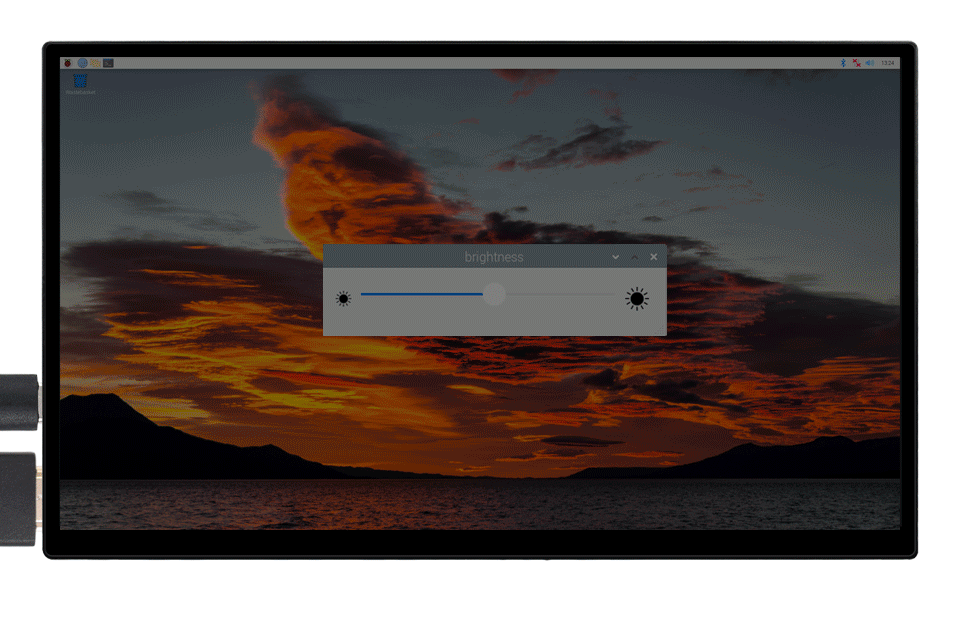

Supports DDC/CI brightness control

Full-featured Type-C interface
Audio and video transmission in one connection, Plug and Play,
Instantly zoom in on your smartphone screen
(Please contact customer service for supported mobile phone models)

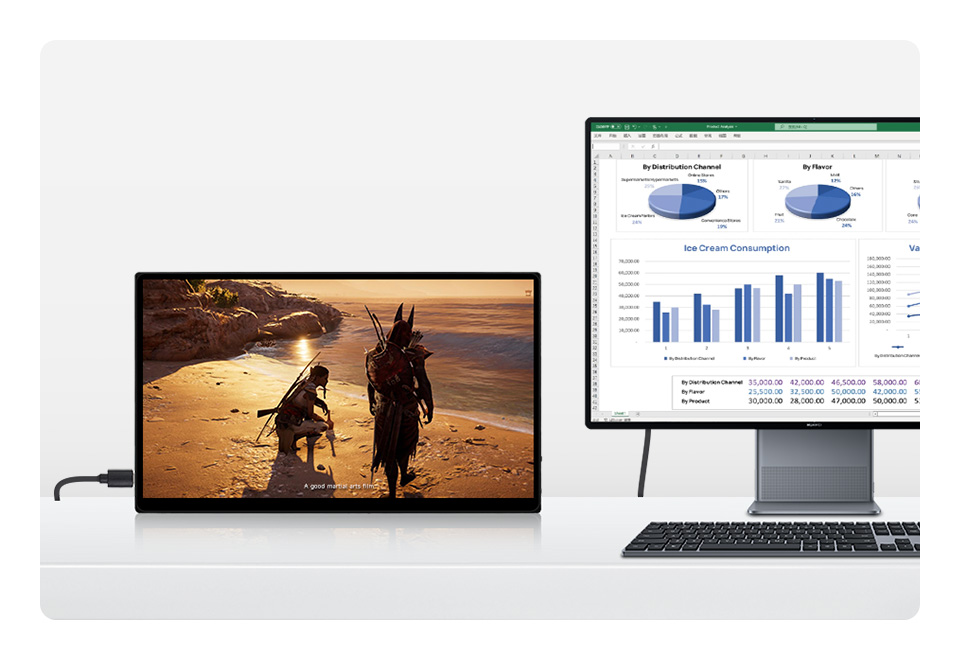

Dual computer screen for collaborative processing
One screen for work, one screen for entertainment without interfering with each other

Two-channel speaker
Hi-Fi ferrite speaker, higher volume, wider sound range, better sound quality

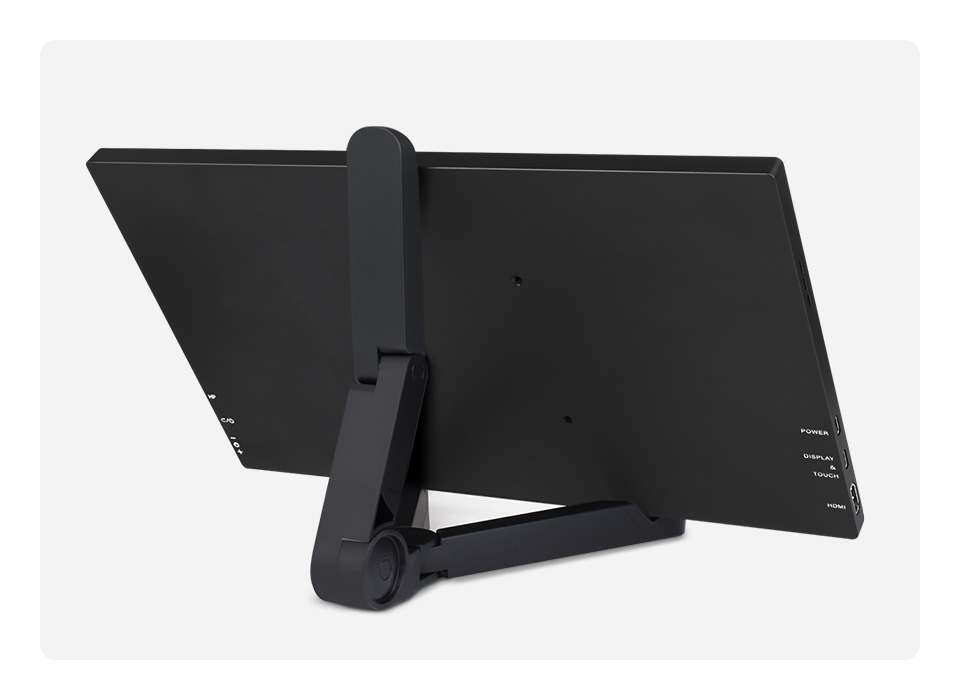

Supplied with a triangular stand

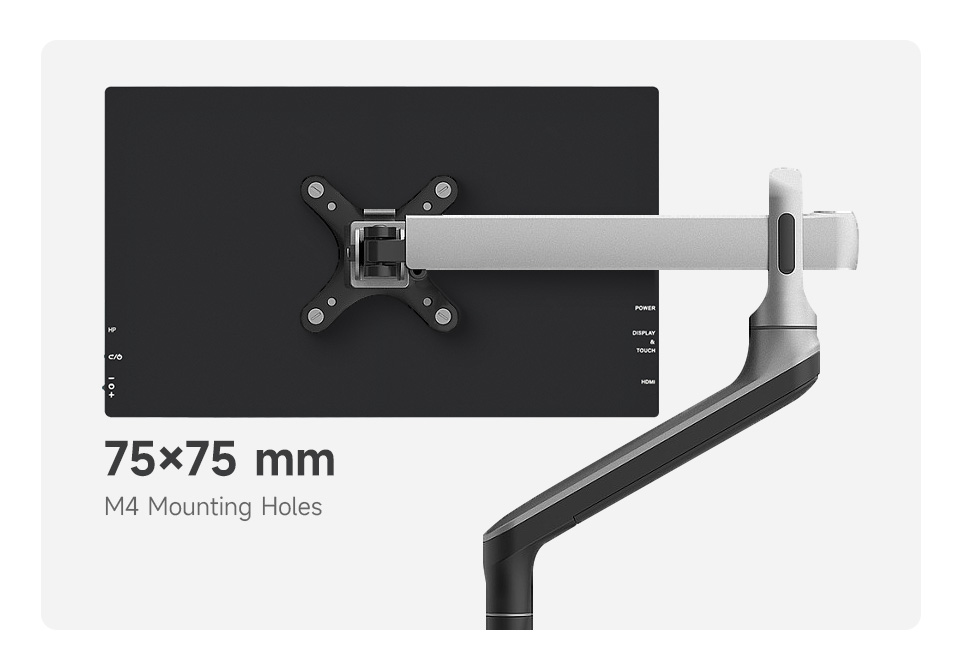

VESA mounting support

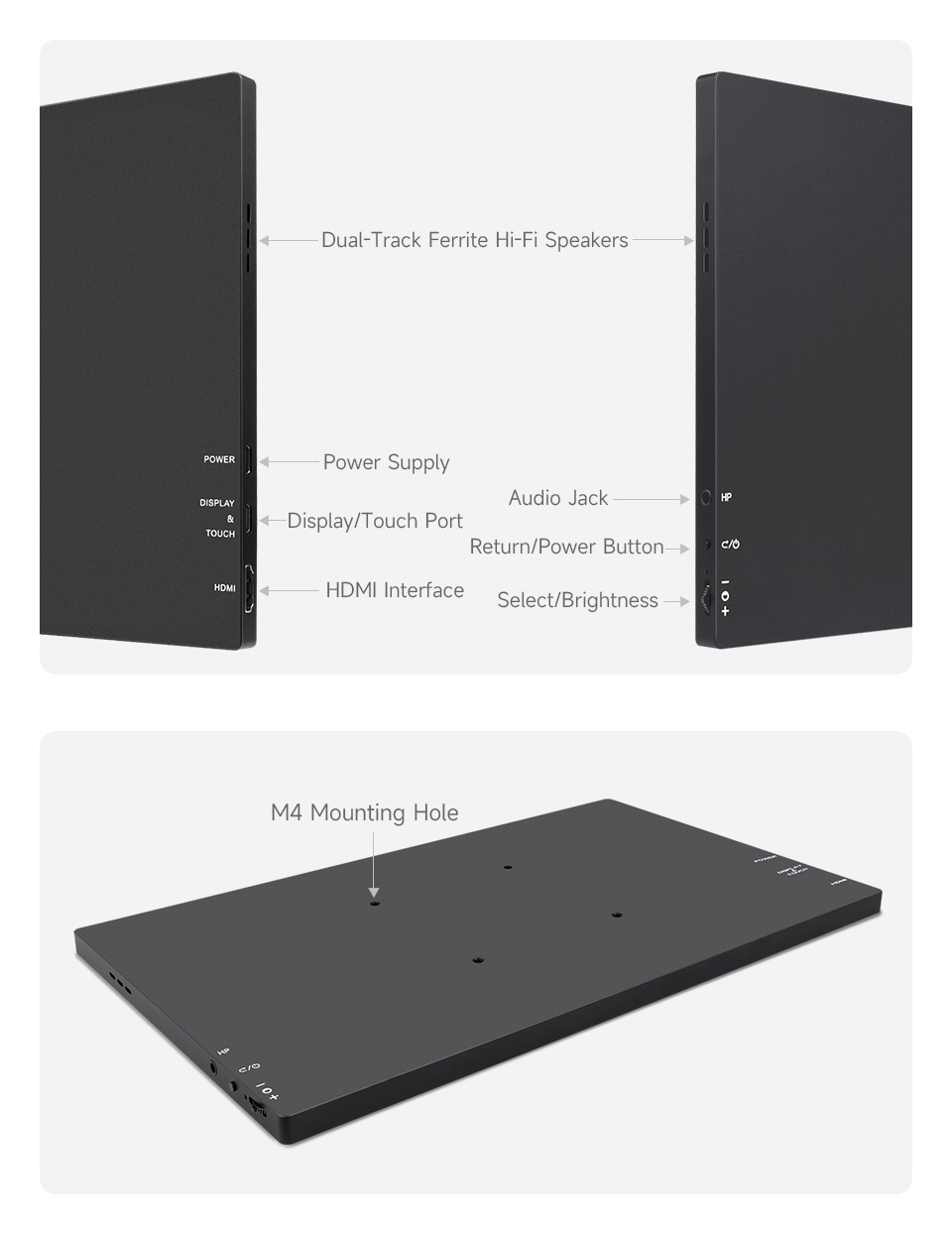

Interfaces

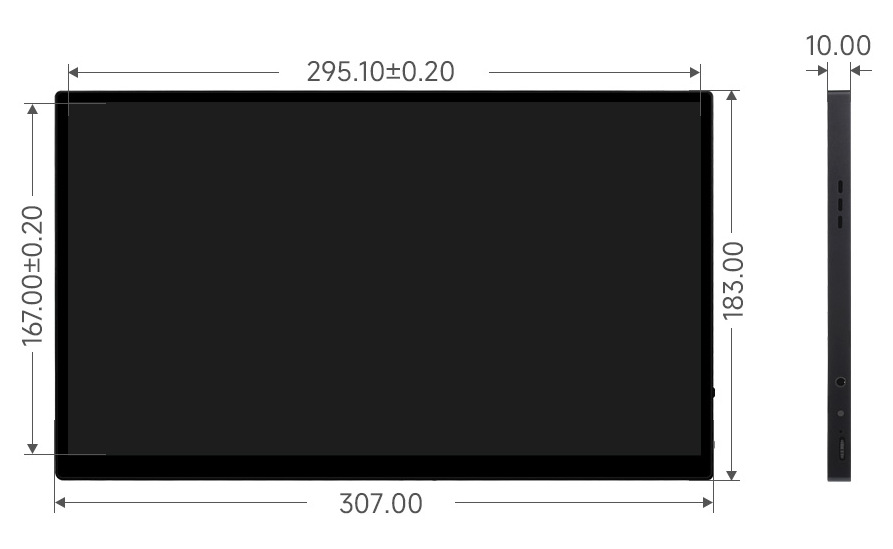

Overall dimensions: 307mm x 183mm x 10mm

Wiki: www.waveshare.com/wiki/13.3inch_QHD_AMOLED

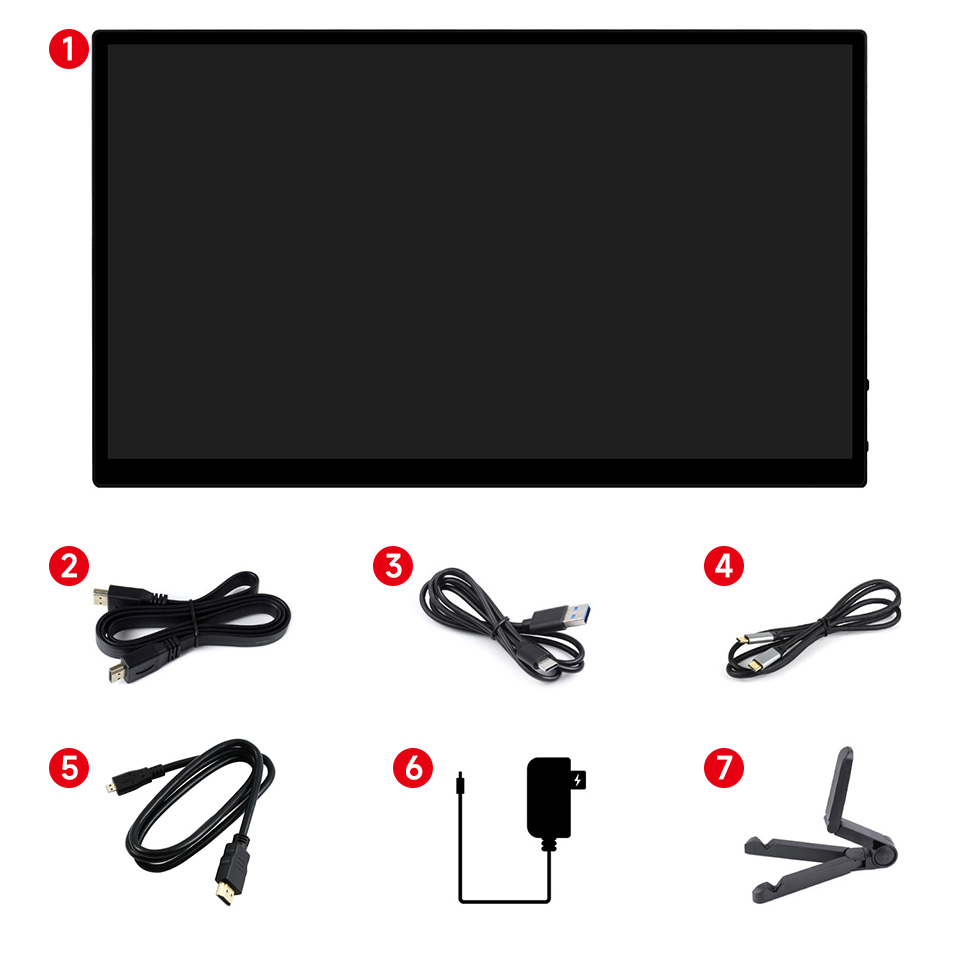

Scope of delivery:

1. 13.3-inch QHD AMOLED ×1
2. HDMI flat cable 1 m × 1
3. USB-A to USB-C cable 1 m × 1
4. USB-C to USB-C cable × 1 pc
5. HDMI to Micro HDMI cable 1 m × 1
6. 5 V 3 A power adapter × 1
7. Triangular stand ×1

Weight: 1.306 kg
