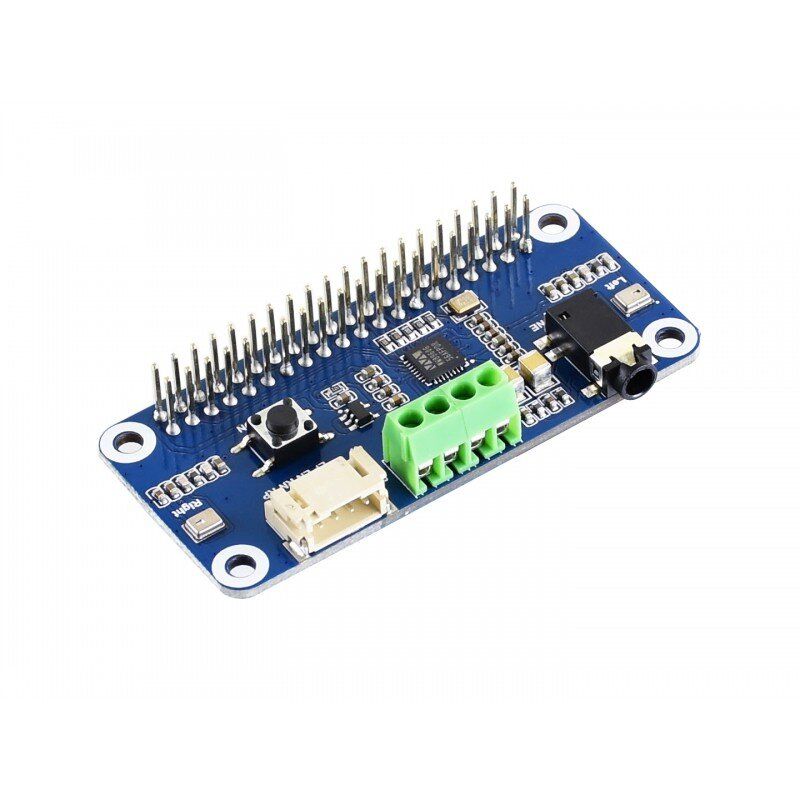

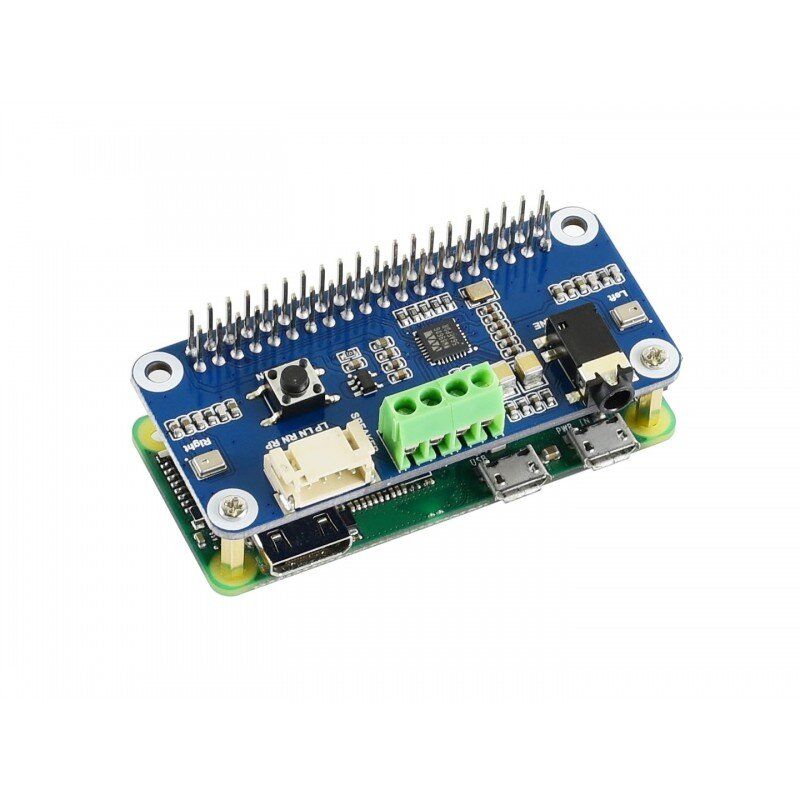

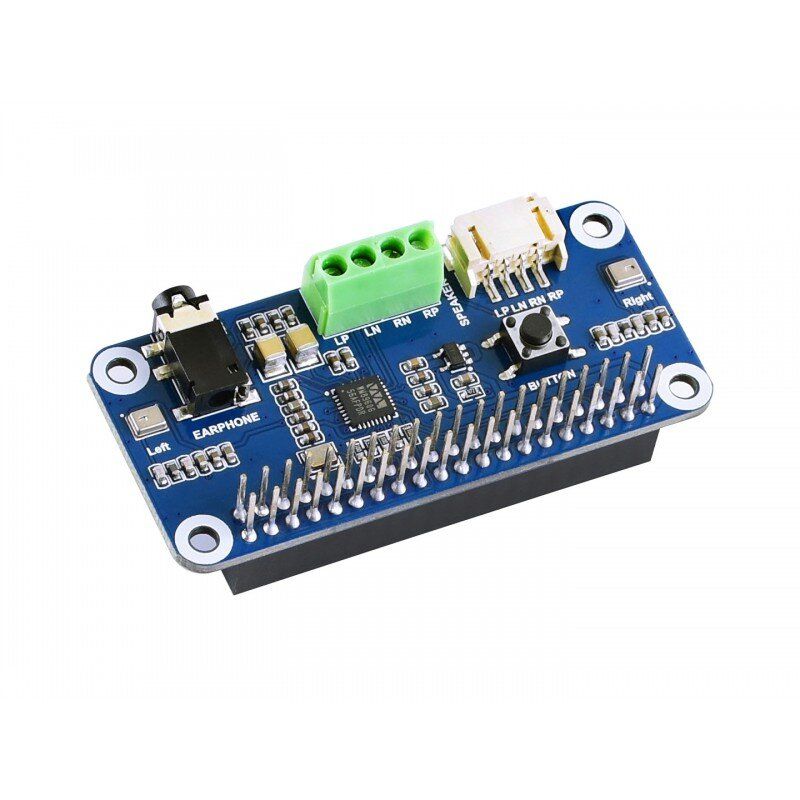

Raspberry Pi WM8960 Audio HAT expansion card (15668) is a HAT sound card designed for Raspberry Pi, with low power consumption, supporting stereo audio encoding/decoding, Hi-Fi playback/recording functions, what's more, it can directly drive speakers to play music.

Features:

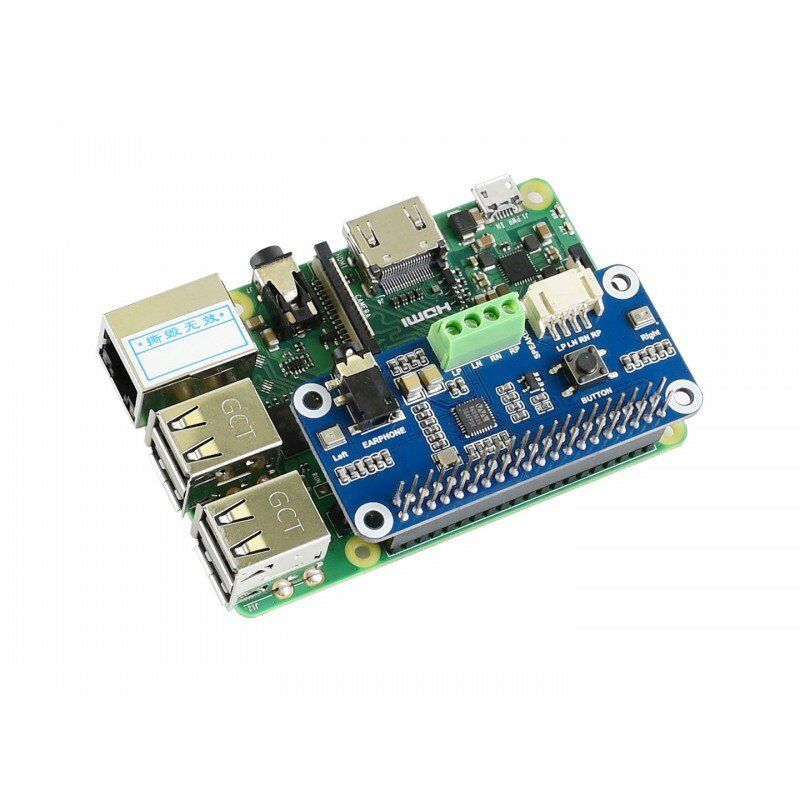

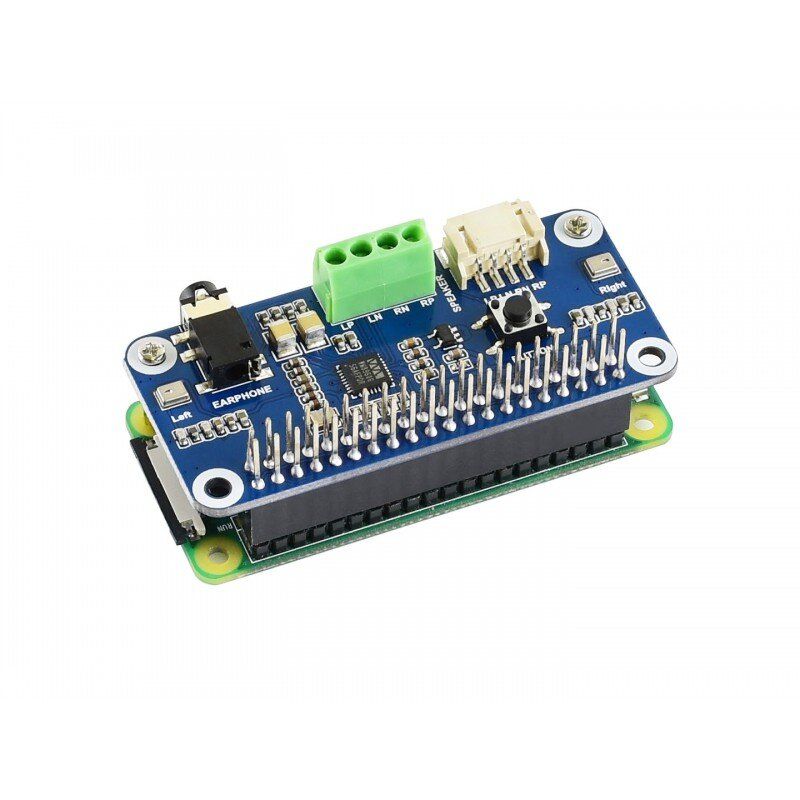

Standard Raspberry Pi 40PIN GPIO connector, supports Raspberry Pi series boards
Integrates WM8960 low-energy stereo codec, communicates via I2S interface
Integrates dual high quality MEMS silicone microphone, supports dual channel recording (left and right), has good sound quality
Built-in standard 3.5mm headphone jack, play music through external headphones

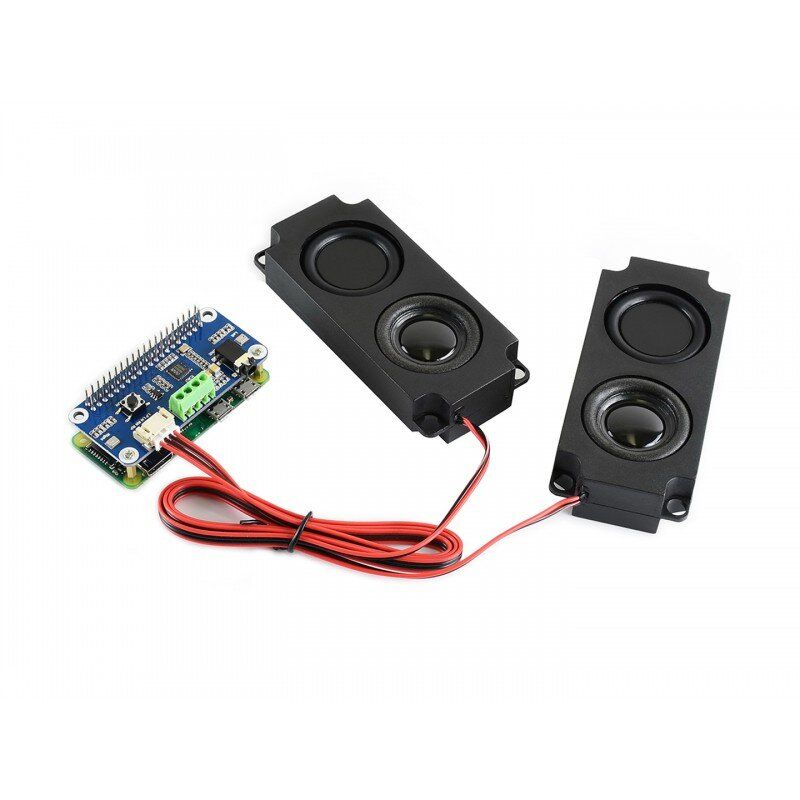

Built-in two-channel speaker interface, directly controls speakers
Supports sound effects such as stereo, 3D surround, etc.
Comes with development resources and manual (Python demo code for playback / recording)

Specifications:Code: WM8960
Power Supply: 5V
Logic voltage: 3.3V
Control Interface: I2C
Audio Interface: I2S
DAC signal-to-noise ratio: 98 dB
ADC signal-to-noise ratio: 94 dB
Headphone Driver: 40 mW (16 ohms at 3.3)
Speaker driver: 1 W per channel (8 Ohm BTL)

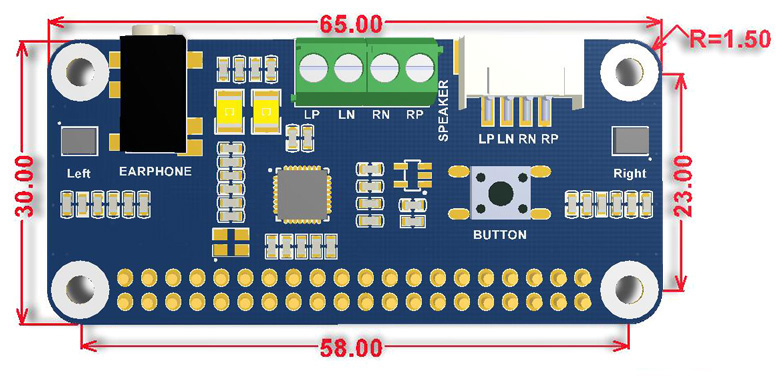

Overall dimensions (in mm):
