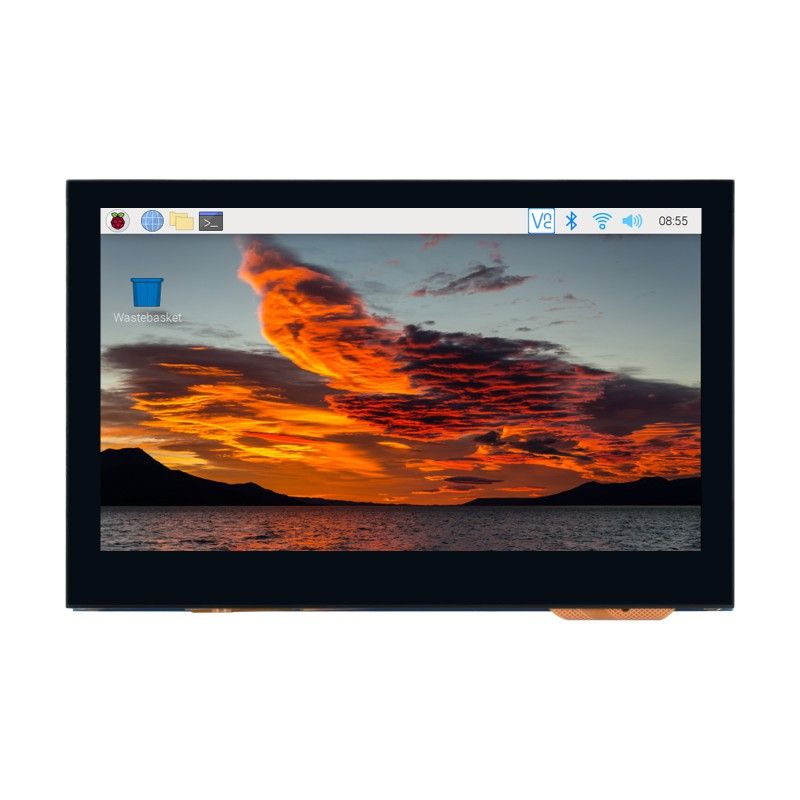

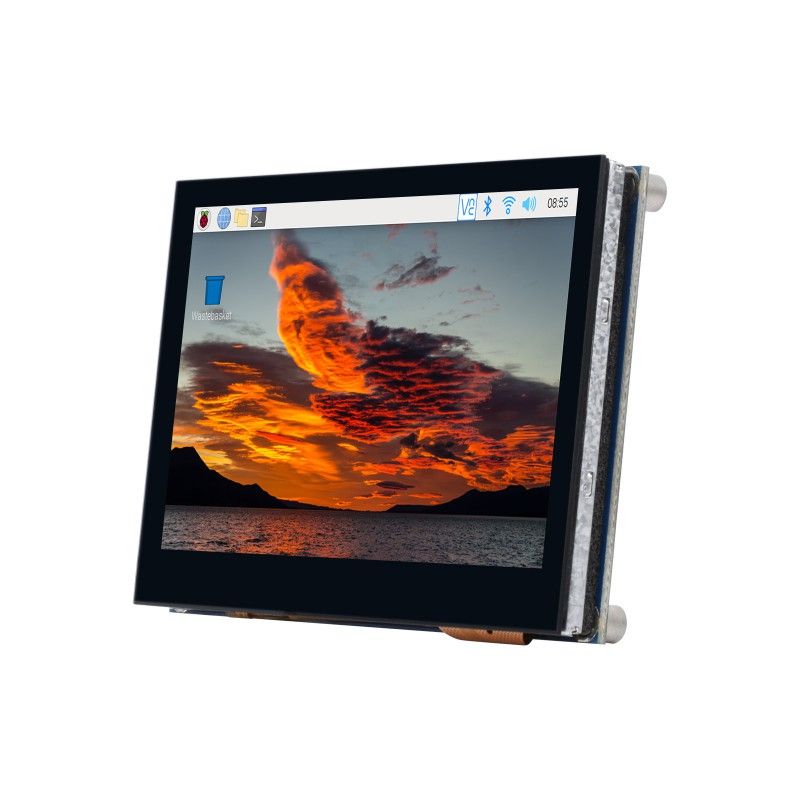

Display 4.3 inch QLED 800x480 Toughened Glass Panel (24783)

The 4.3 inch QLED 800x480 Toughened Glass Panel Display (24783 ) is a display component that utilizes QLED (Quantum Dot Light Emitting Diode) technology. This display measures 4.3 inches (approximately 10.9 cm) and has a resolution of 800 x 480 pixels.

The main characteristic of this display is its DSI (Display Serial Interface) interface, which allows it to be connected to compatible electronic devices. The DSI interface provides high speed data transfer between the microcontroller or processor and the display.

This display also has an integrated structure, which means that all the necessary components, including the display controller, backlight, and other elements, are built directly into the display. This simplifies the process of connecting and using the display.

It's also worth noting that this display has a toughened glass panel, which provides additional durability and protection against scratches and impacts.

The 4.3-inch display with a resolution of 800 x 480 pixels can be used to display text, graphics, images, and other content. It finds its application in a variety of industrial, medical, automotive, consumer and other electronic devices where a compact display is a necessary element.

Key Features:

• Size: 4.3 inches
• Resolution: 800×480
• Display interface: DSI
• Display panel: QLED
• Viewing angle: 160°
• Type of touch: capacitive
• Touch points: 5 points
• Touch interface: I2C
• Touch panel: tempered glass
• Consumption: low power

Support for devices and systems

Raspberry Pi
Supports Raspberry Pi OS, 5-point touch screen, no drivers
Supports Ubuntu / Kali / WIN10 IoT, single touch, no drivers
Supports Retropie, no drivers required

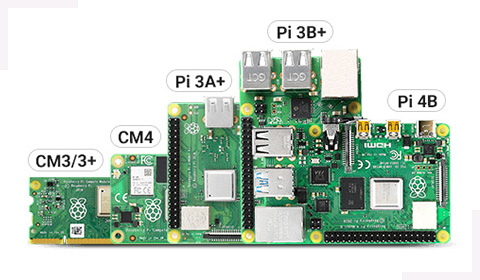

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4* * for some base boards

* some CM3/3+/4 baseboards require an additional adapter cable

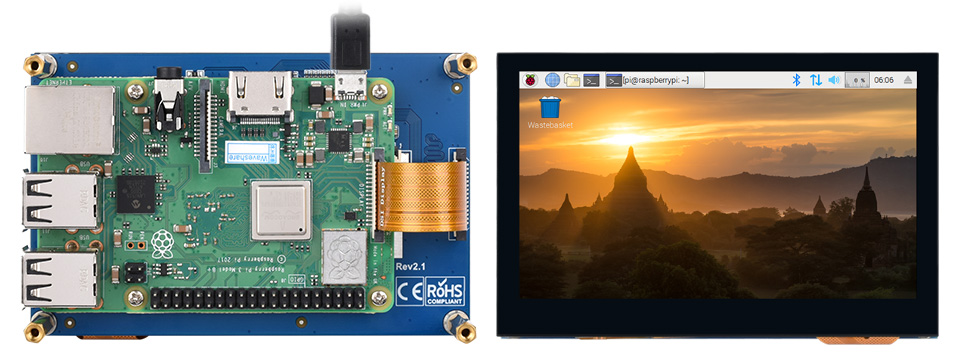

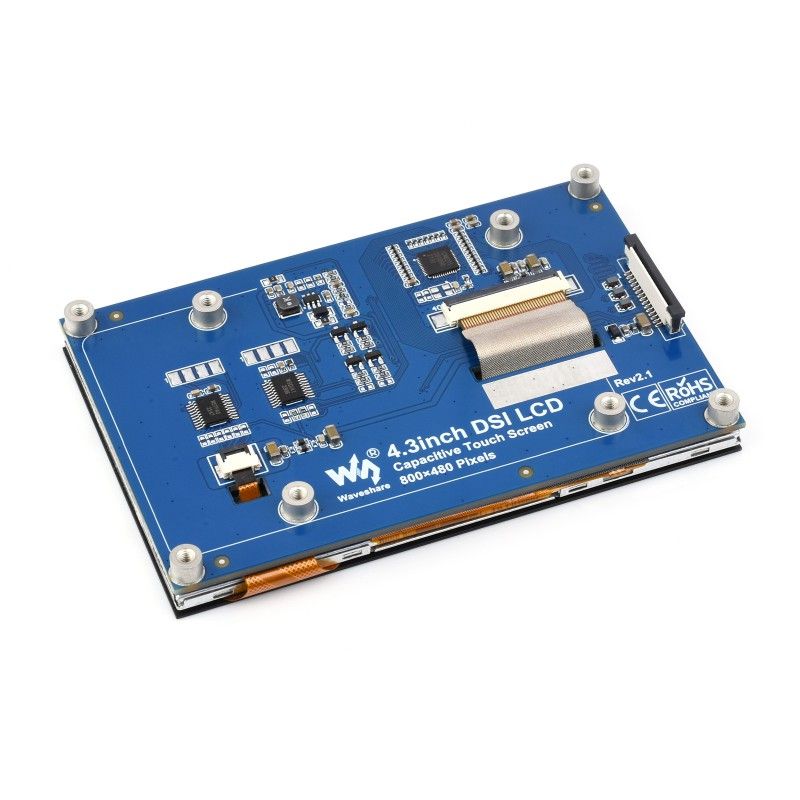

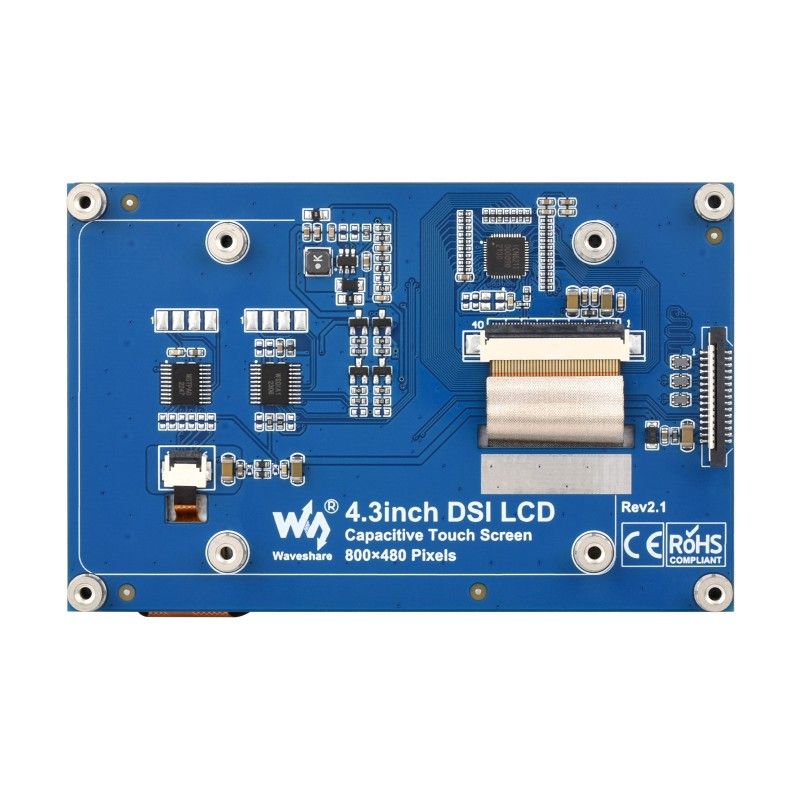

Integrated structure design
Single-cable DSI communication for fast embedding of engineering applications

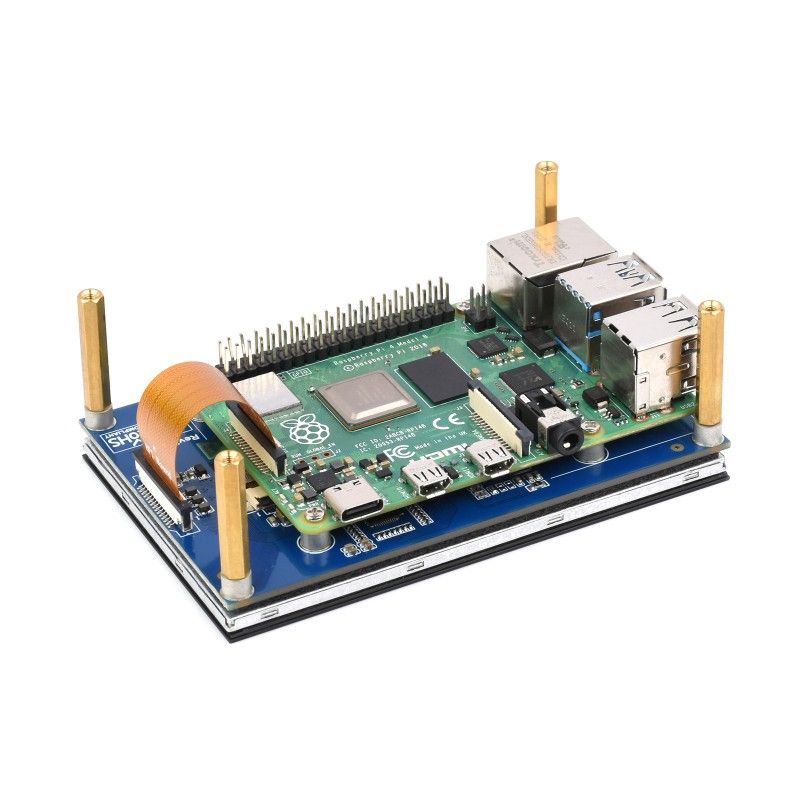

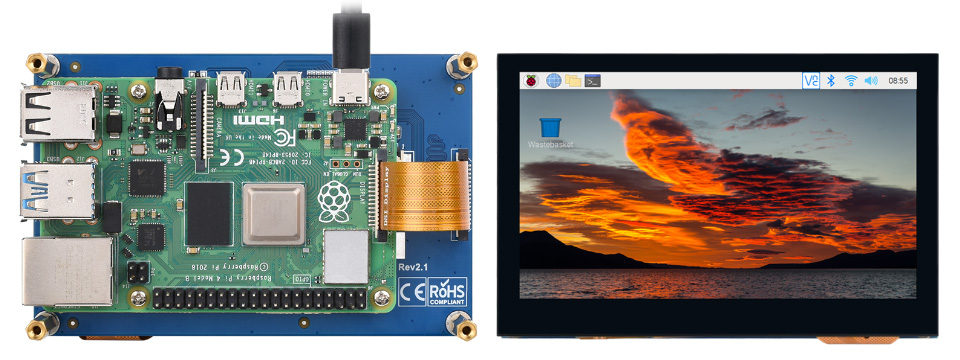

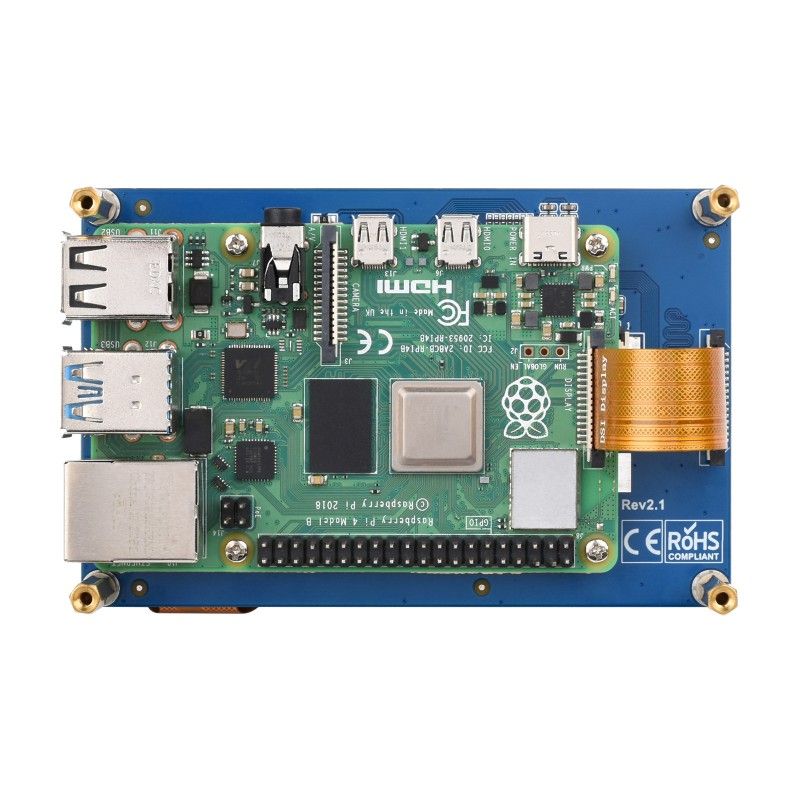

Work with Raspberry Pi 4B via DSI interface

Work with Raspberry Pi 3B+ via DSI interface

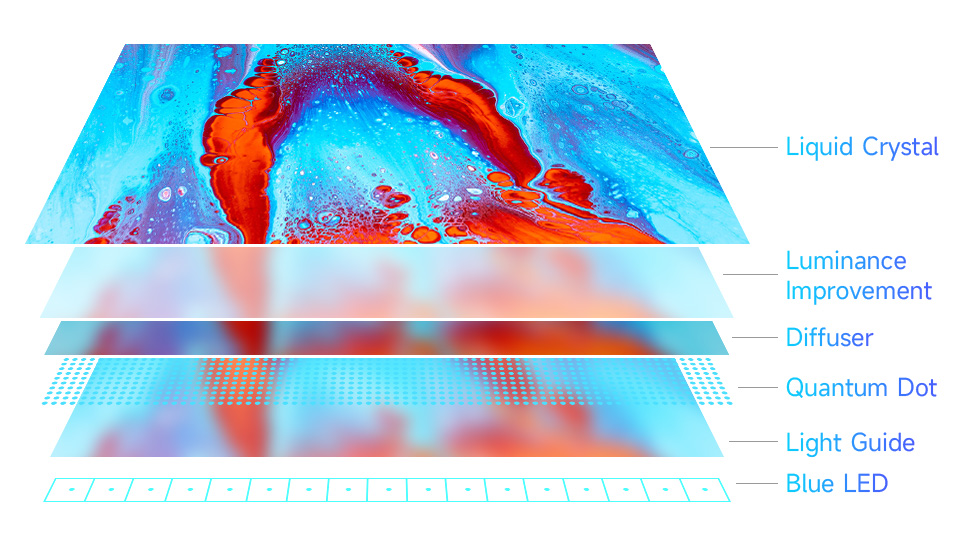

QLED Quantum Dot Technology (QLED Quantum Dot Technology)

Extended gamut: The color gamut of this QLED display is up to: NTSC 78%, SRGB 92%.

Improved color reproduction: QLED colors are increased by 58.3%, makes the color more pure, vivid

EXTENDED SERVICE LIFE: Due to the inorganic characteristics, the lifespan of QLED LED can be up to 60,000 hours without color degradation.

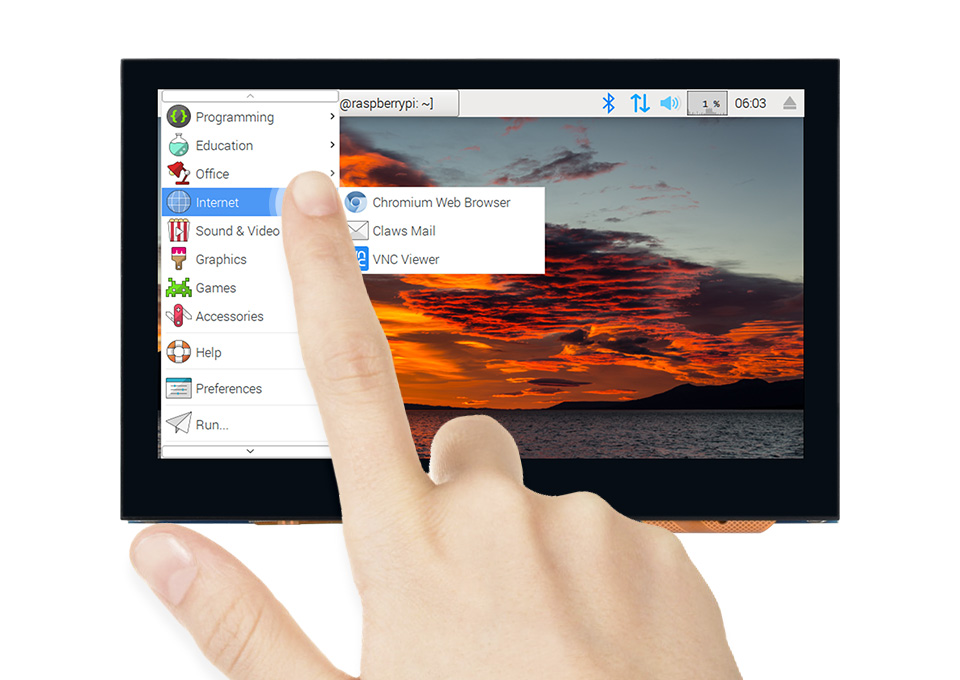

5-point capacitive sensor
Adaptation of touch function through I2C signal, support 5-point touch

Adjustable brightness via software

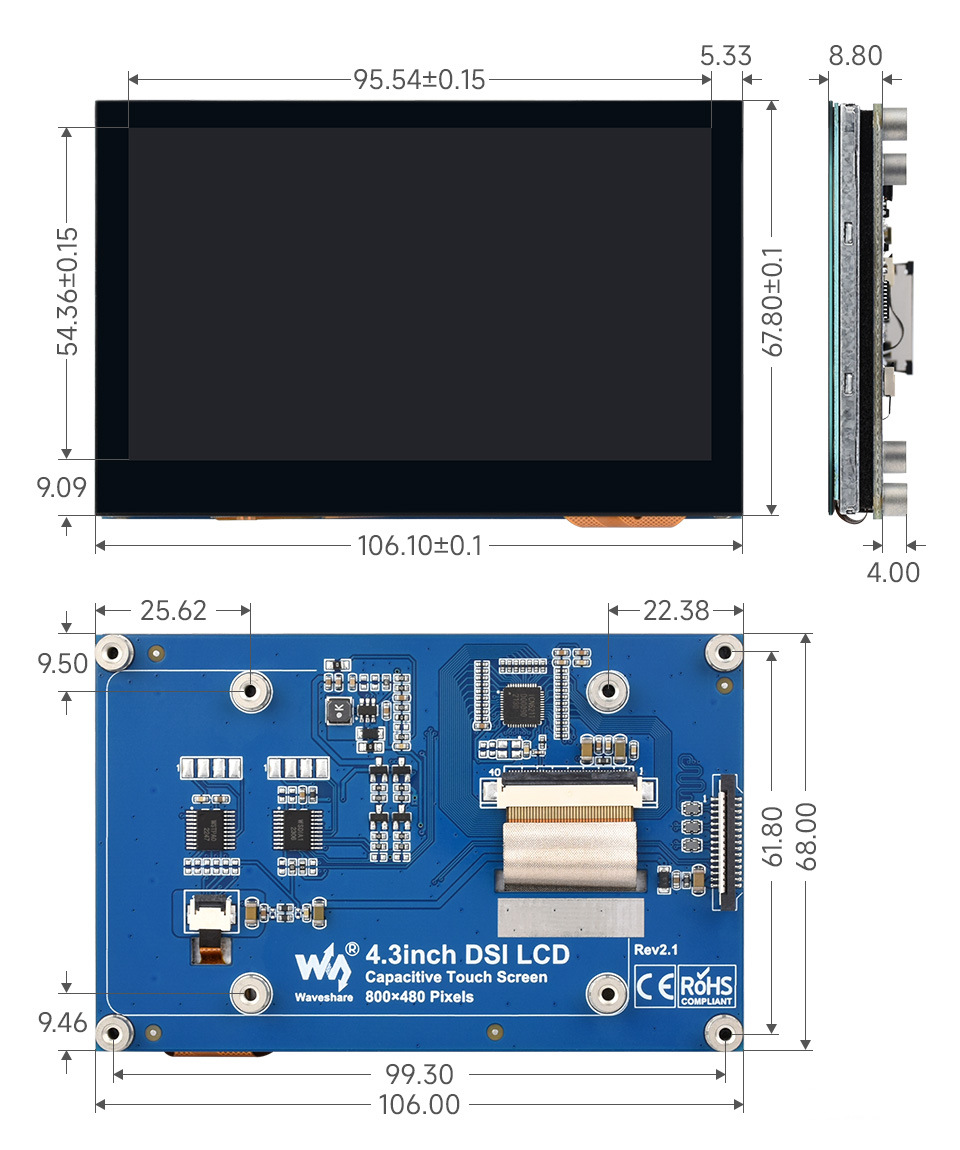

Overall dimensions: 106.1mm x 12.8mm x 67.8mm

Wiki: www.waveshare.com/wiki/4.3inch-DSI-QLED

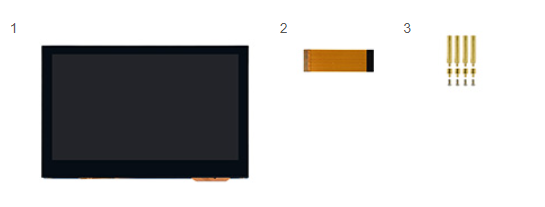

Package contents:

1. 4.3" DSI QLED x1
2. FPC 15 PIN ( 50 mm) cable x2
3. Package of screws x1 pc

Weight: 0.129 kg
