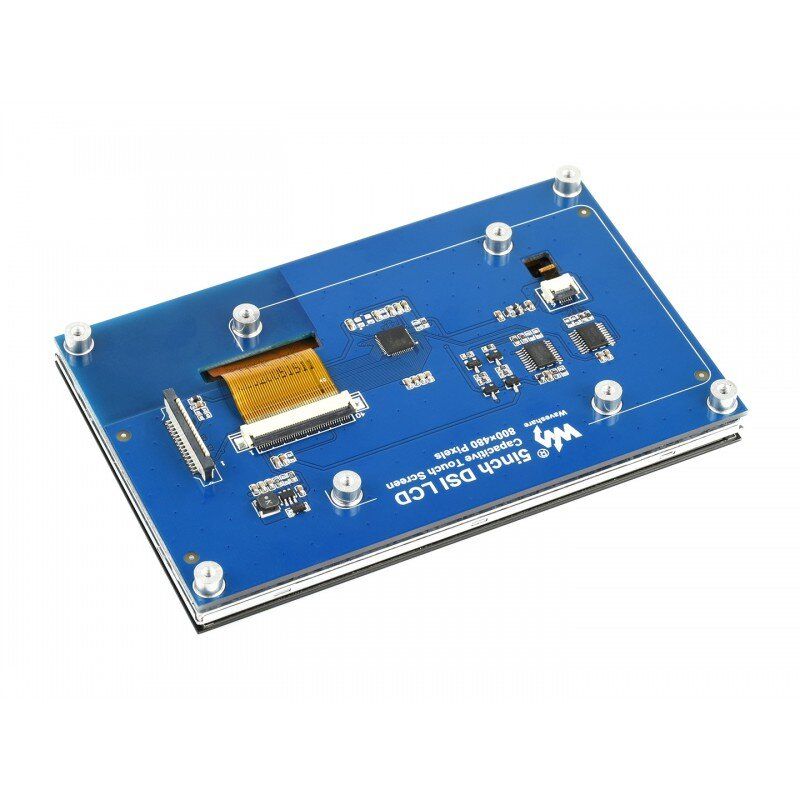

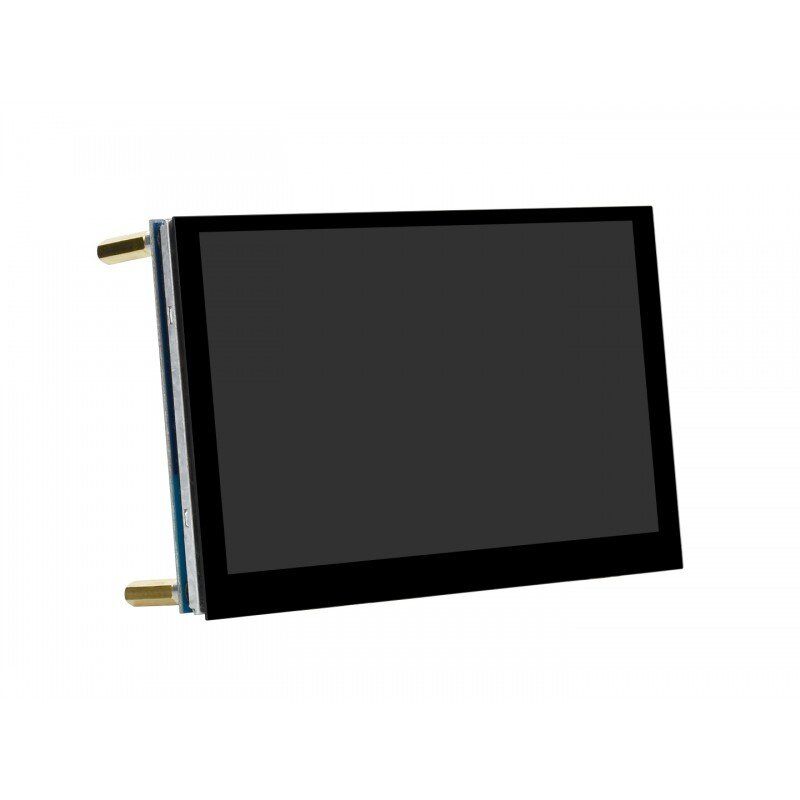

Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396)

Brand: Waveshare Product Code: 18396
0
All about product
Description
Specification
Reviews 0
Questions0
new
Popular
Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396)
Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396)
Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396)
Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396)
Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396)
Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396)
In Stock
£38.40
Compatibility:Raspberry Pi
Connectivity:DSI
Country of origin:Made in China
Display type:TFT/IPS
Resolution:800 x 480
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396)
£38.40
Description

The Raspberry Pi 5.0inch LCD 800x480 Capacitive Touch Screen (18396 ) has the following characteristics:

Screen diagonal: 5"

Resolution: 800x480 pixels

Port: DSI

Sensor type: capacitive

Number of control points: 5 points

Sensor port: I2C

Supported devices and systems

Raspberry Pi

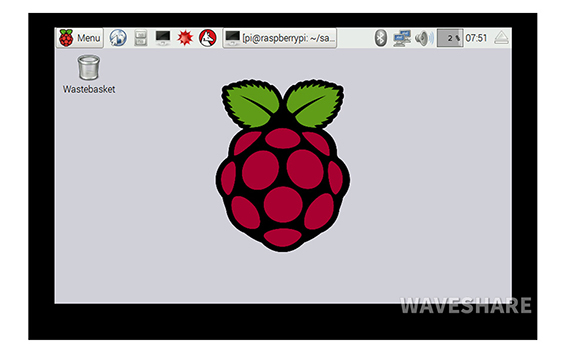

Support Raspbian, 5 points of contact, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no drivers
Supports Retropie, no drivers required

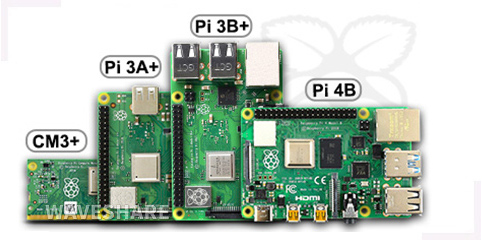

Supports the following versions of Raspberry Pi: Pi 4B / 3B + / 3A + / 3B / 2B / B + / A +, CM3 / 3 + * *.

* A special adapter board is required to connect to the CM3 / 3 +

Example of connection:

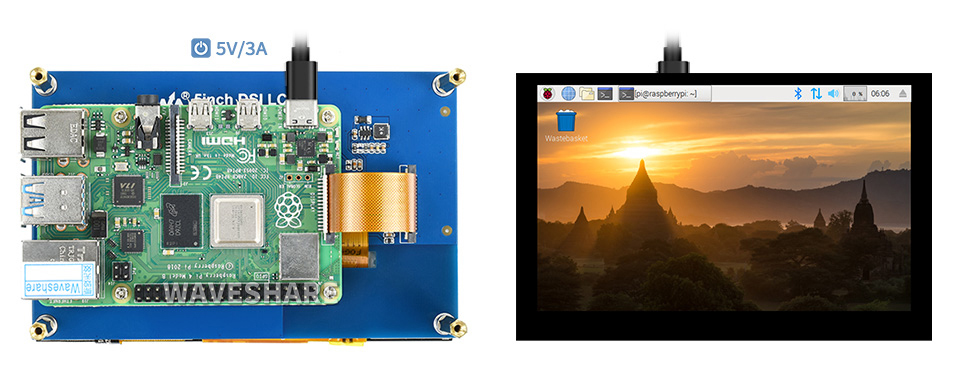

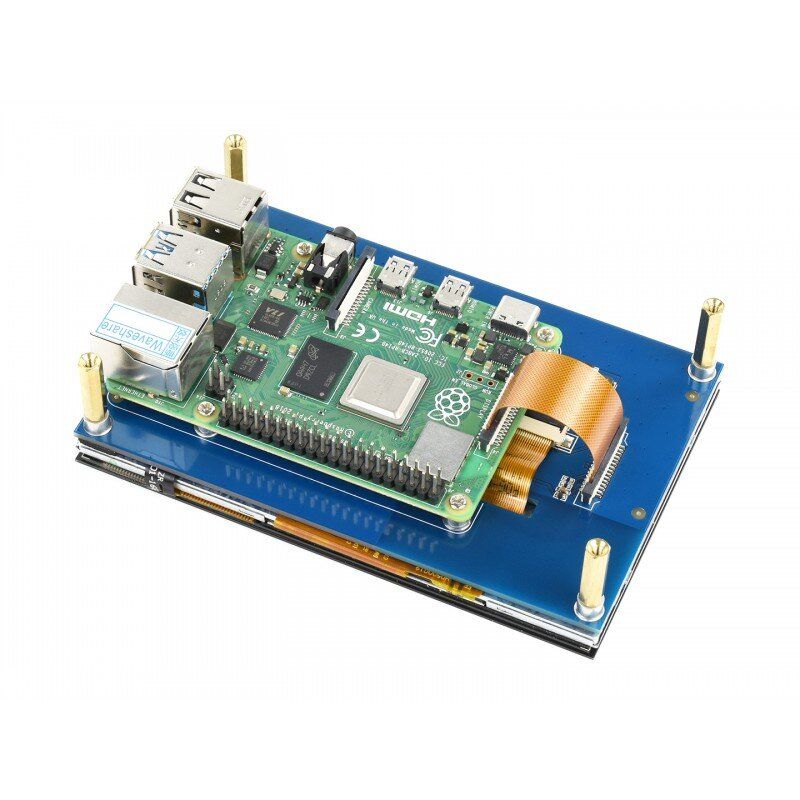

Working with Raspberry Pi 4

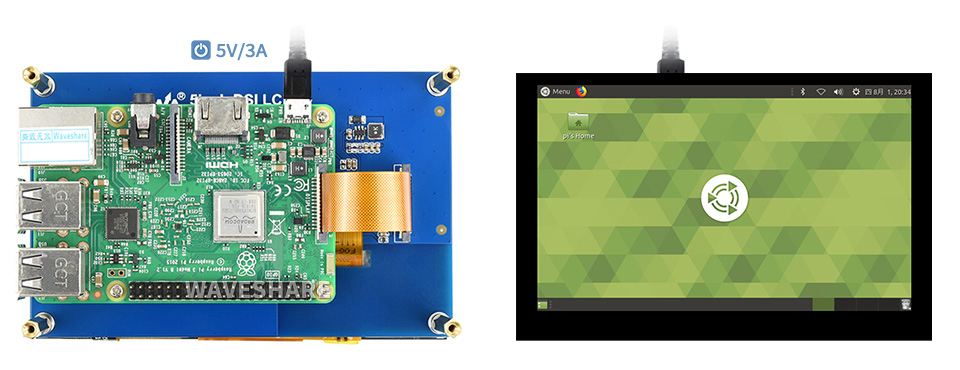

Working with Raspberry Pi 3V +

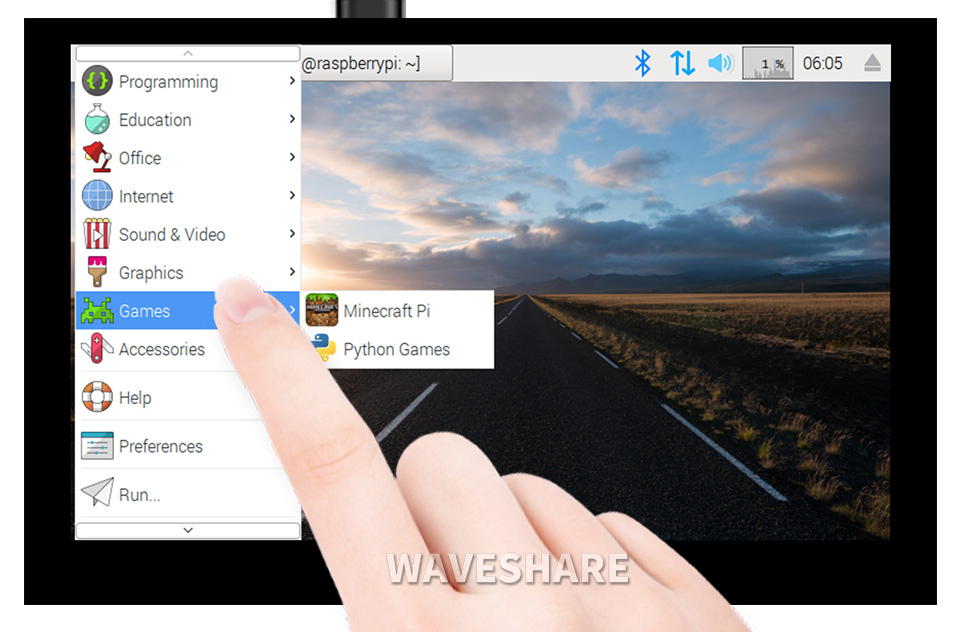

Touch panel - capacitive type with 5 touch points (depending on the operating system)

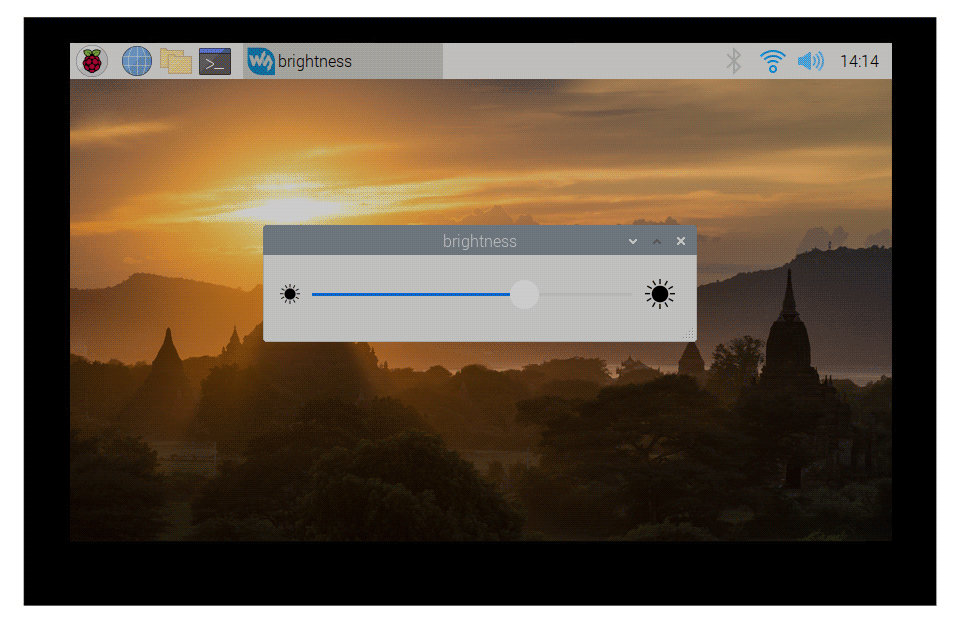

The screen brightness is adjustable through the software:

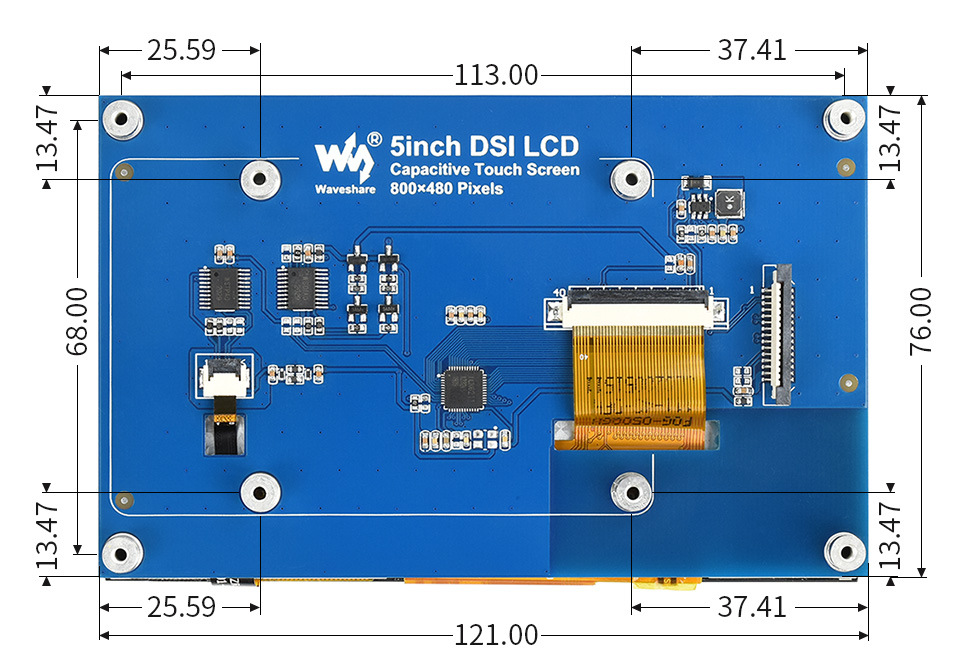

Overall dimensions, mm):

Information for developers: demo codes, schematics, data tables, etc.

5inch_DSI_LCD

The package includes:

  1. 5inch DSI LCD - 1 pc.
  2. FPC 15PIN 1.0 cable 50 mm pitch (opposite sides) - 1 pc.
  3. Mounting kit - 1 pc.

1. 2. 3.

Weight: 0.162 kg

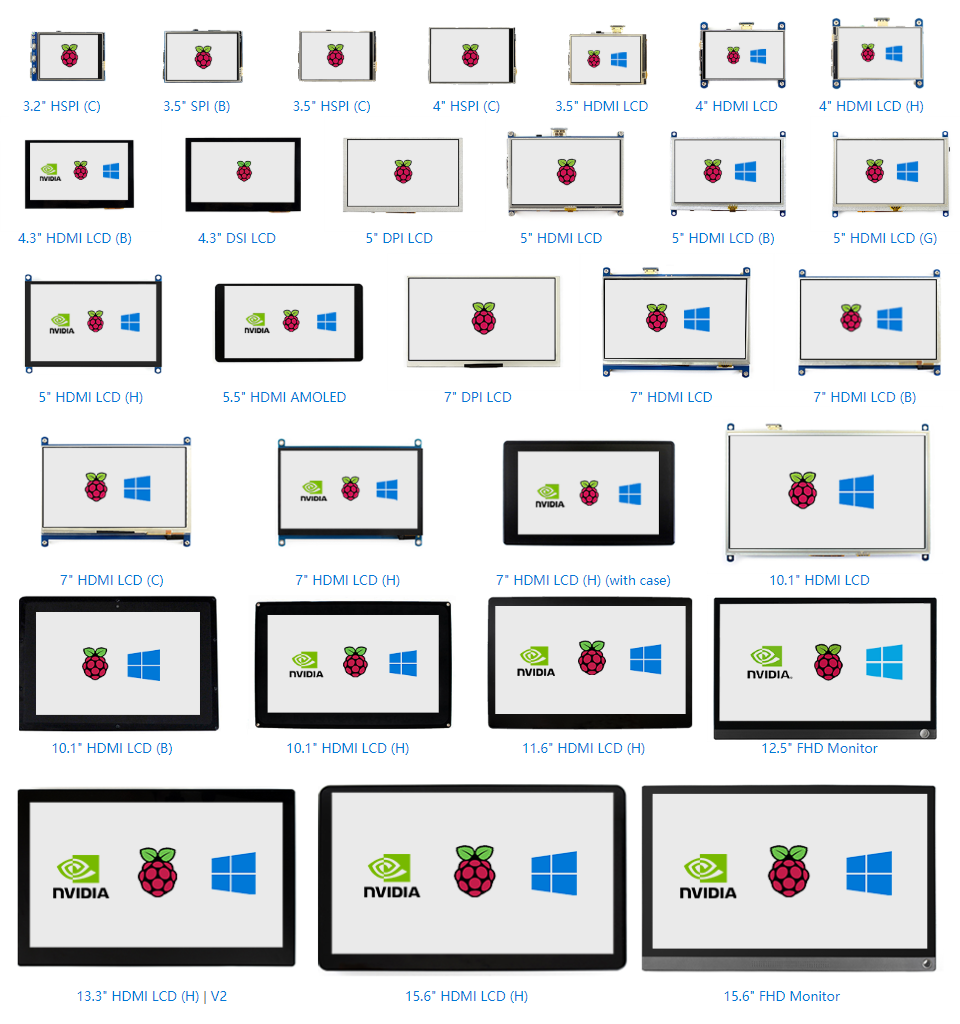

Model selection guide:

Name Display Sensor Sound Supported devices
Resolution Display port The panel
display		 viewing angle
of view		 Type
sensor		 port
of the sensor		 The panel
of the sensor		 Speaker output
signal		 Pi JETSON NANO PC
GPIO Displays
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT - resistive SPI - × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° resistive SPI - × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT - resistive SPI - × × √ × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT - resistive SPI - × × √ × ×
3.5inch HDMI LCD 480×320 HDMI IPS 160° resistive SPI - × √ √ × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° resistive SPI - × × √ × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° resistive SPI - × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° capacitive USB - × √ √ √ √
4.3inch DSI LCD 800×480 DSI IPS 160° capacitive I2C Tempered glass × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × √ × ×
5inch HDMI LCD 800×480 HDMI TFT - resistive SPI - × × √ × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT - resistive SPI - × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT - resistive USB - × × √ × √
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT - resistive USB - × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT - resistive USB - × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT - capacitive USB Tempered glass × √ √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° capacitive USB Tempered glass × √ √ √ √
5.5inch HDMI AMOLED (with case) 1080×1920 HDMI AMOLED 170° capacitive USB Tempered glass × √ √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × √ × ×
7inch HDMI LCD 1024×600 HDMI IPS 170° resistive SPI - × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT - capacitive USB - × × √ × √
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT - capacitive USB - × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° capacitive USB - × × √ × √
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° capacitive USB - × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° capacitive USB - × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° capacitive USB Tempered glass × √ √ √ √
10.1inch HDMI LCD 1024×600 HDMI IPS 170° resistive SPI - × × √ × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT - capacitive USB - × × √ √ √
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° capacitive USB Tempered glass × × √ × √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° capacitive USB Tempered glass √ √ √ √ √
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° capacitive Type-C / USB Tempered glass √ √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° capacitive USB Tempered glass √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° capacitive USB Tempered glass √ √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° capacitive USB Tempered glass √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° capacitive Type-C / USB Tempered glass √ √ √ √ √

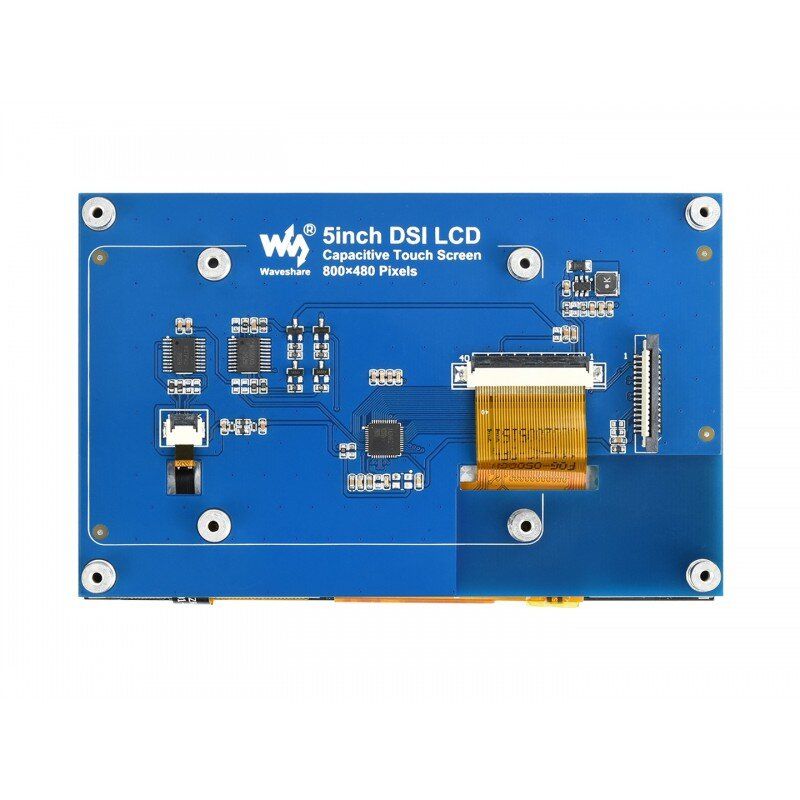

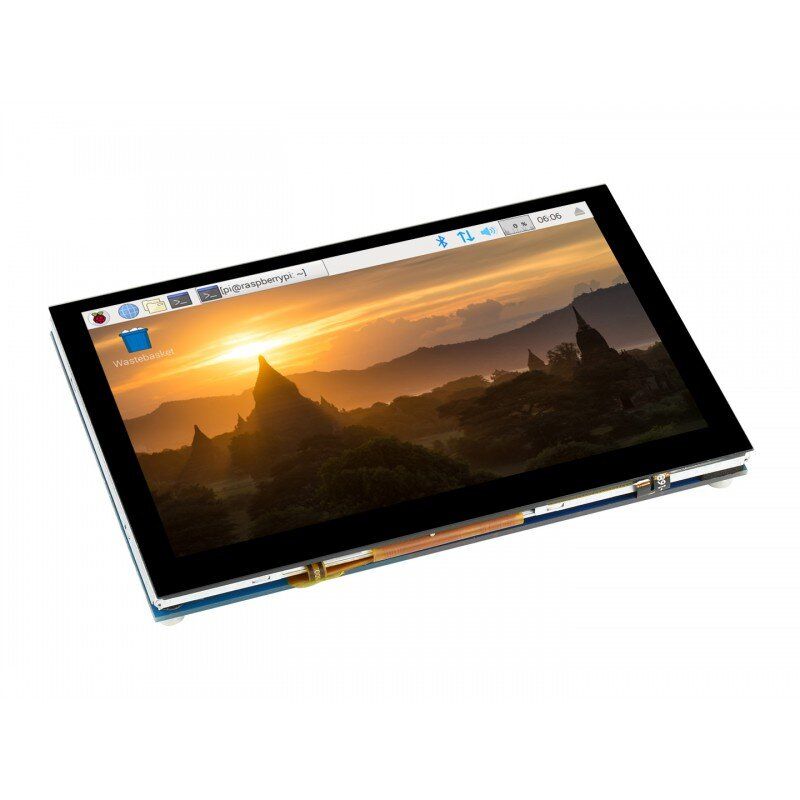

Appearance:

Specifications
Main characteristics
Compatibility
Raspberry Pi
Connectivity
DSI
Country of origin
Made in China
Display type
TFT/IPS
Resolution
800 x 480
Size in inches
5.0 inch
Touch Screen
Capacitive
