15.6inch QLED 1920x1080 mini HDMI/Type-C Capacitive Touch Monitor (24761)

The 15.6inch QLED 1920x1080 mini HDMI/Type-C Capacitive Touch Monitor (24761 ) is a Quantum Dot display that delivers high image quality and color accuracy. This display has a resolution of 1920×1080 pixels, which provides a clear and detailed display.

Optical bonding toughened glass panel is used to reduce glare and improve readability in bright lighting conditions. This improves image quality and provides a smoother display surface.

The display has 100% coverage of the sRGB color space, which means it can reproduce the full range of colors defined by this standard. This allows for accurate color reproduction and provides a realistic image.

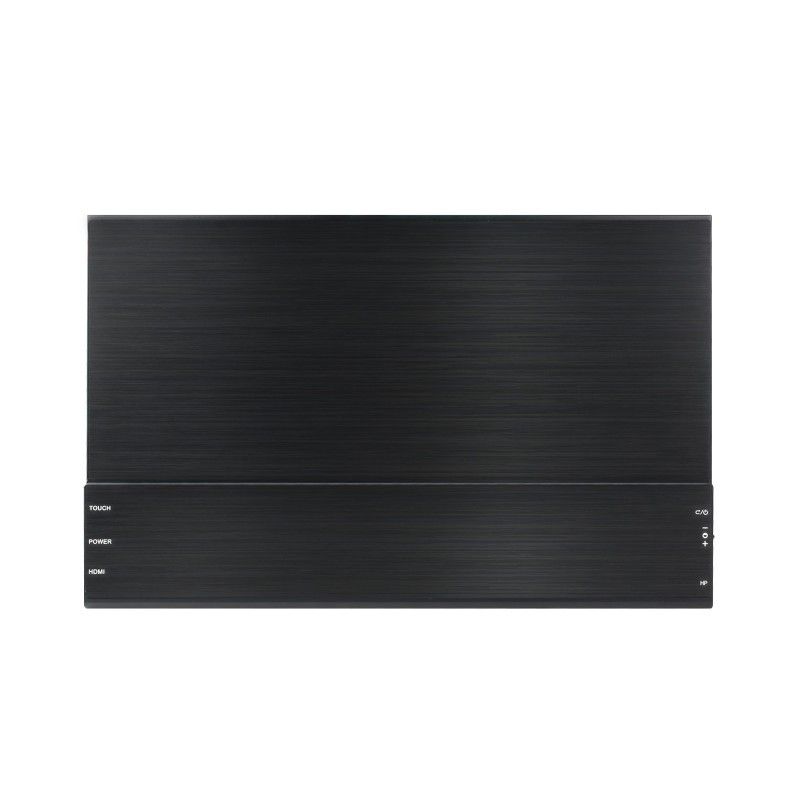

The display body is made of metal, which ensures durability and stability. In addition, the design of the display is thin and lightweight, making it easy to carry and use in mobile devices or laptops.

This 15.6-inch QLED Quantum Dot Display delivers high image quality, color accuracy, and user-friendly design, making it popular use in demanding applications such as professional photo and video editing, design, multimedia projectors, and other high-quality visual applications.

Key Features:

• Screen Diagonal: 15,6 "
• Resolution: 1920x1080 pixels
• Port: Mini-HDMI
• Matrix type: QLED
• Viewing angle: 178 deg.
• Sensor type: capacitive with 10 touch points (depending on the operating system)
• Tempered glass screen with optical bonding
• On-screen menu (OSD Menu, On-Screen Display Menu) for controlling brightness and contrast modes
• Sensor port: USB Type-C
• Audio output: 3.5mm Jack
• Built-in hi-fi speakers
• Aluminum alloy casing
• Supports operation with Xbox360 / PS4 / Switch game consoles

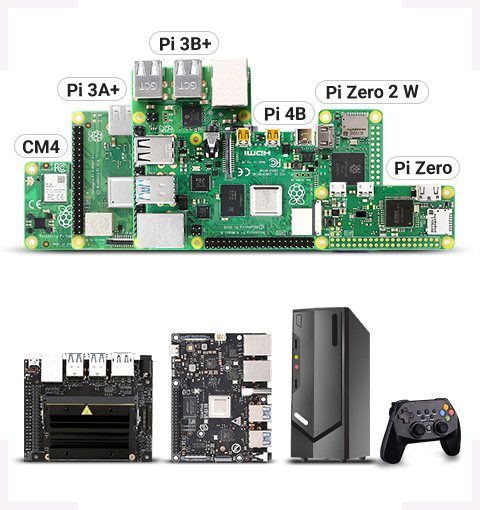

Supported systems and devices:

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, no drivers
Supports Ubuntu / Kali / WIN10 IoT, one touch, no drivers
Supports Retropie, no drivers required
Supports Raspberry Pi all versions

Jetson Nano
Supports Ubuntu, 1-point touch, no drivers required.

VisionFive2
Supports Debian, 1-point touch, no drivers required.

PC
Supports Windows 11/10/8.1/8/7, 10-point touch, no drivers required

Game consoles

Xbox360, Switch...

Connection examples:

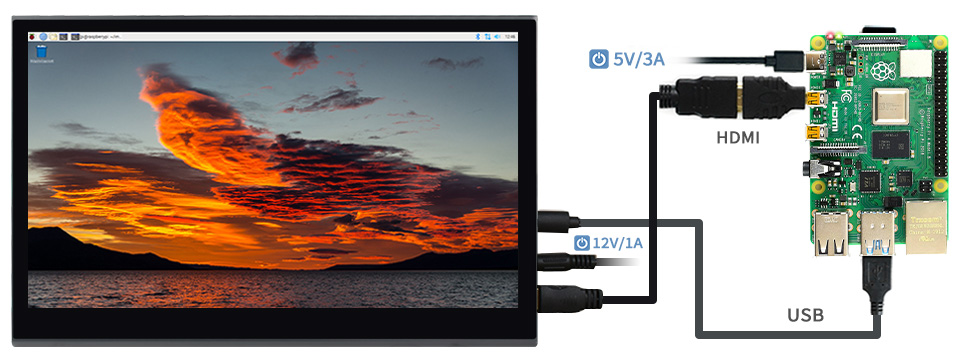

Working with a Raspberry Pi 4V

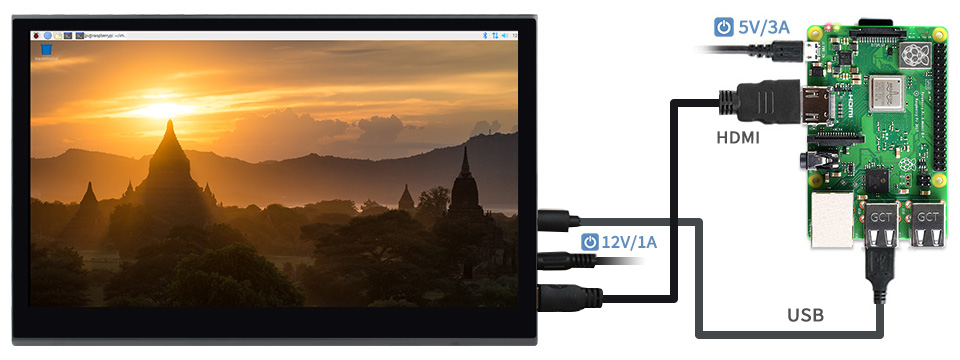

Working with Raspberry Pi 3B+

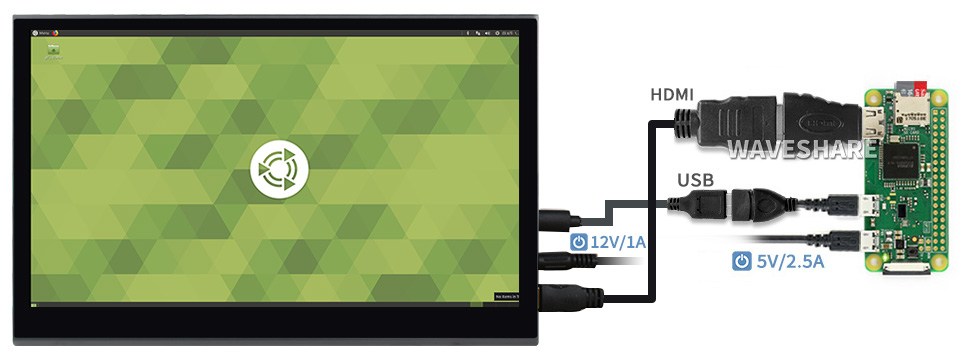

Working with Raspberry Pi Zero 2 W (requires an additional mini HDMI adapter and USB cable)

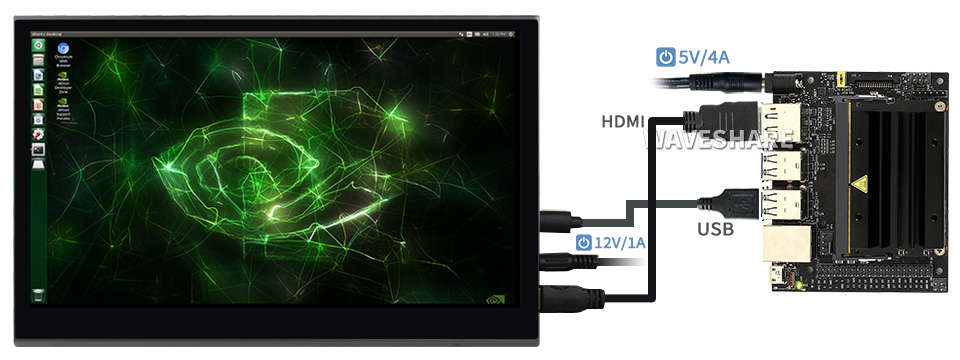

Working with Jetson Nano

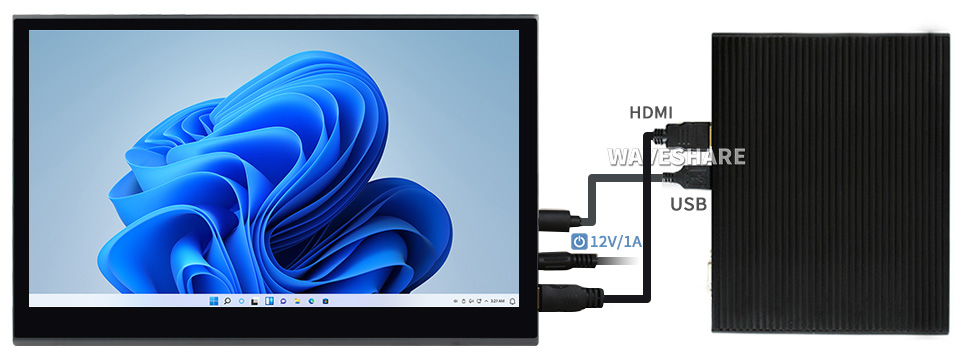

Work with PC

Uses QLED Quantum Dot technology: the color gamut of this QLED display reaches: SRGB 100%, NTSC 100%, 99% Adobe RGB and 97% DCI-P3

QLED color gamut is increased by 58.3%, making the color clearer and more vivid

Longer service life

Due to its inorganic properties, QLED color lifetime can be up to 60,000 hours without color degradation

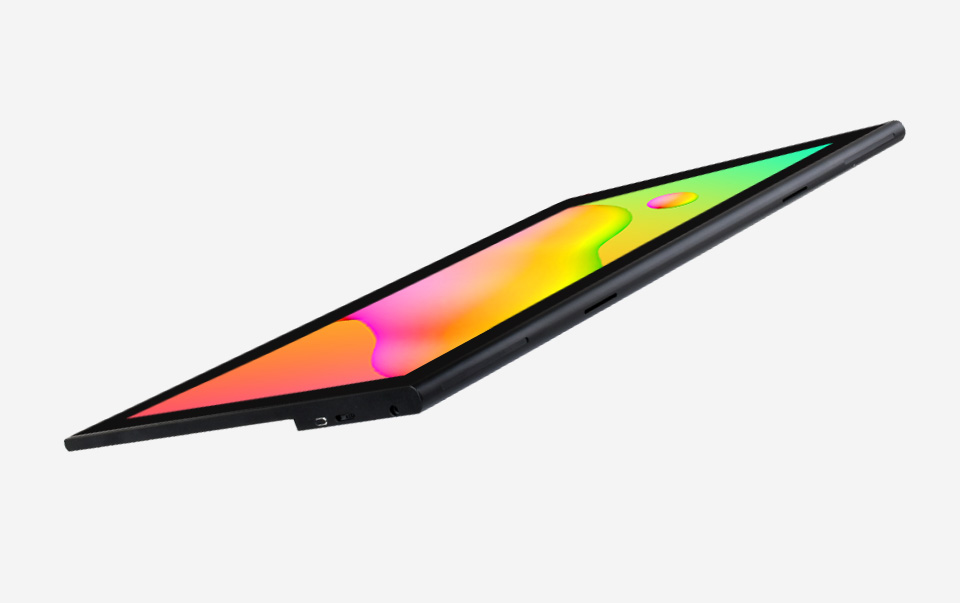

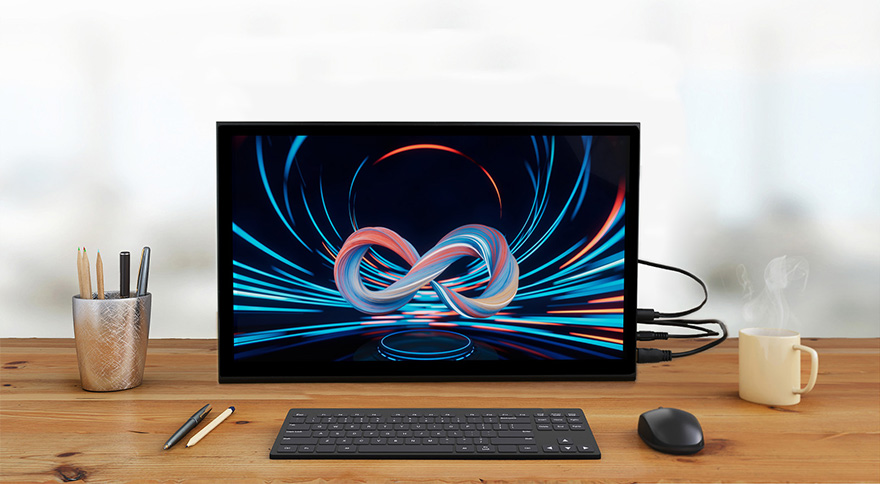

Thin and lightweight body: rounded edge design ensures comfortable use

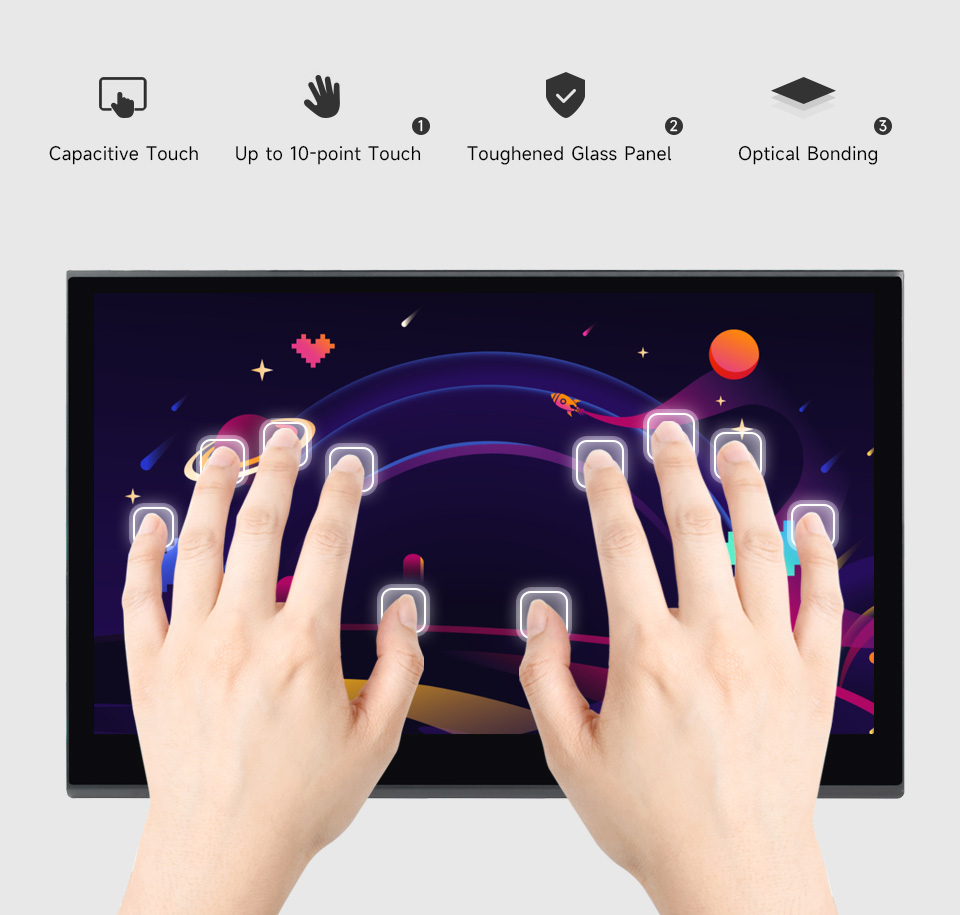

Touch screen features:

1) up to 10 touches, depending on the operating system.

2) tempered glass panel with a hardness of up to 6H.

3) fully laminated screen, better display, dustproof.

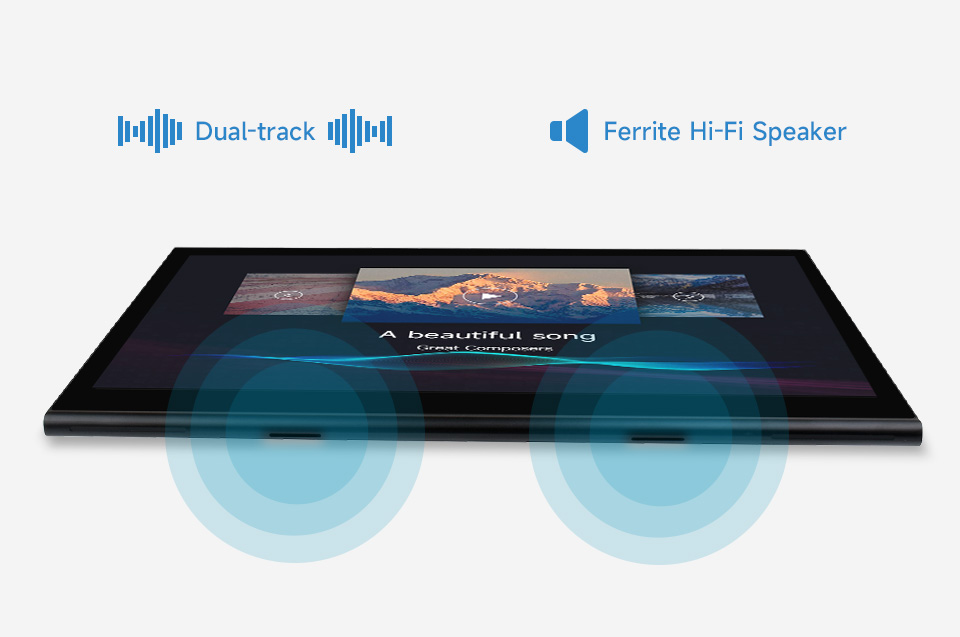

Audio system:

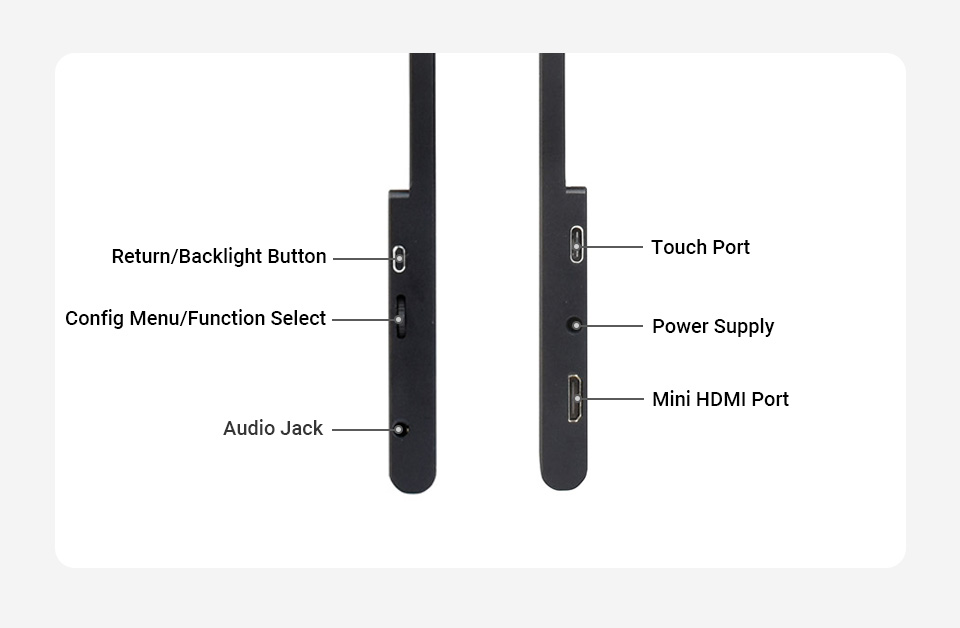

Interfaces:

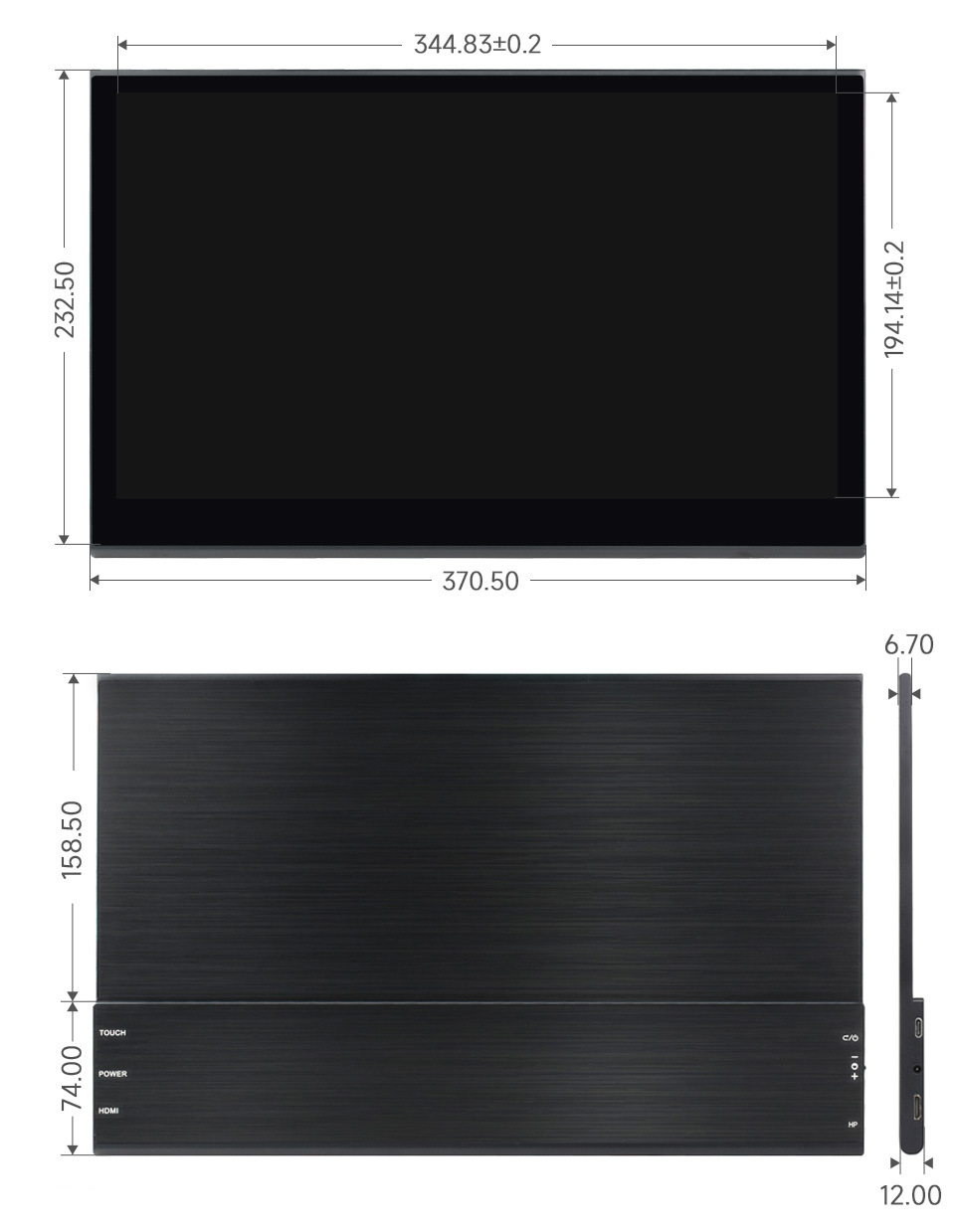

Overall dimensions: 370mm x 232.5mm x 12mm

Wiki: www.waveshare.com/wiki/15.6inch_QLED_Monitor

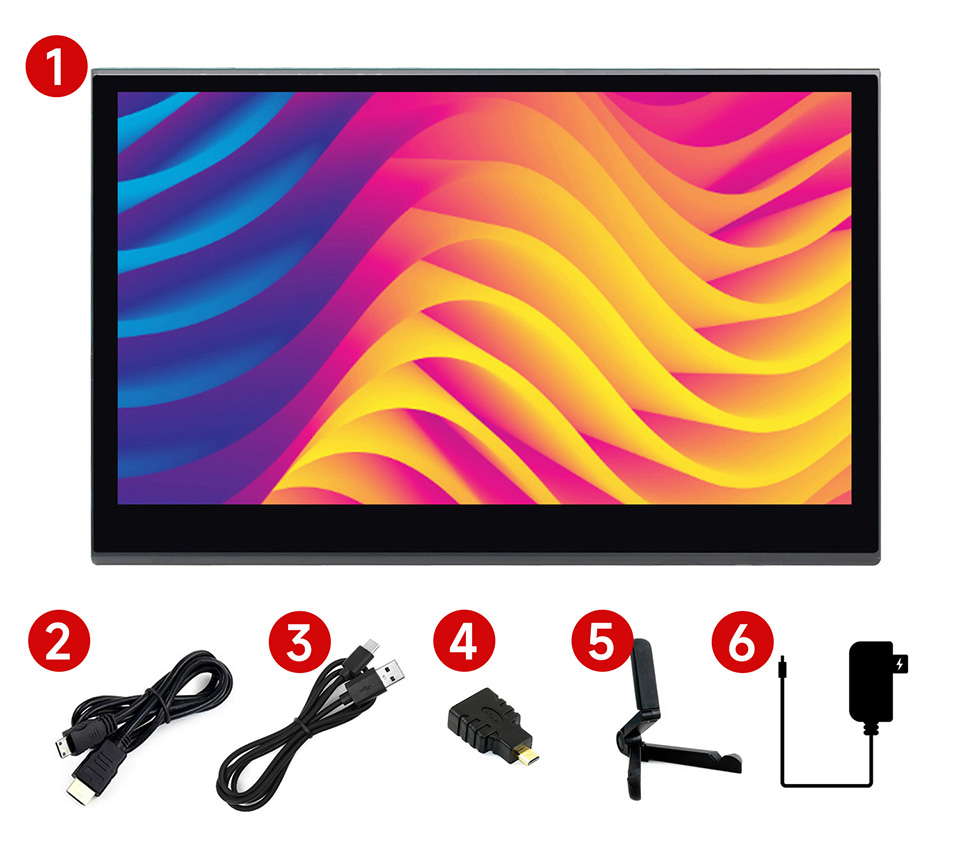

Scope of delivery:

1. 15.6" QLED monitor ×1
2. Mini HDMI - HDMI cable 1 m × 1
3. USB Type-A to Type-C cable 1 m × 1
4. HDMI to Micro HDMI adapter 1 m × 1
5. Triangular stand ×1
6. 12V 1A power supply ×1

Weight: 1,745 kg
