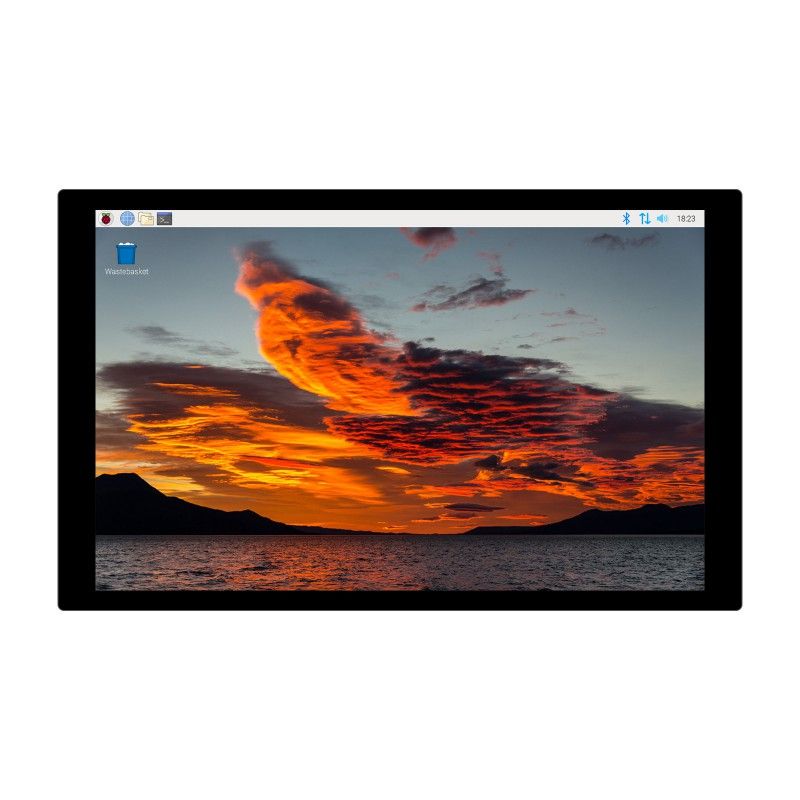

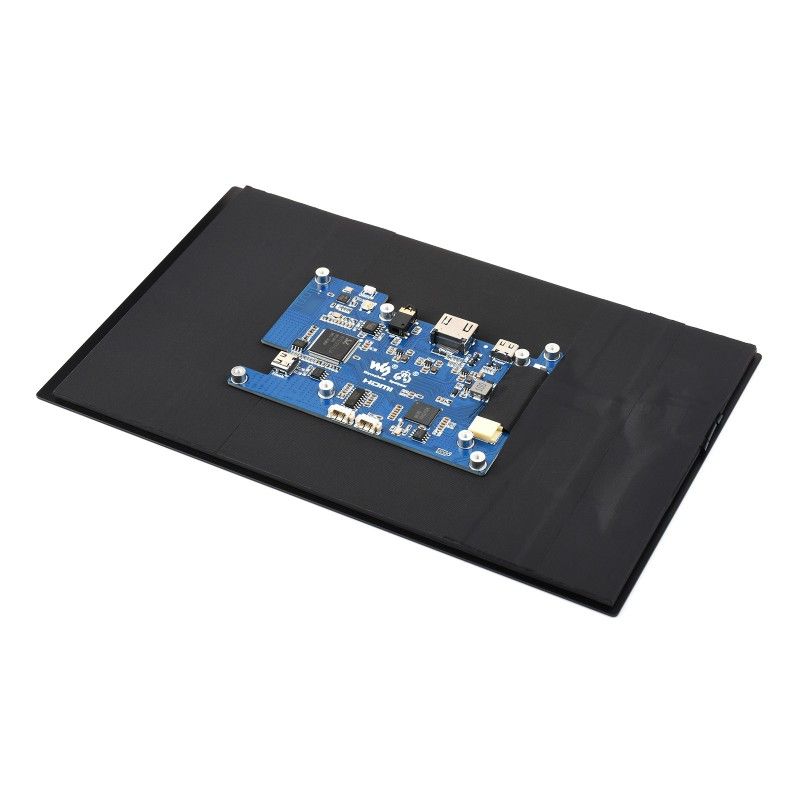

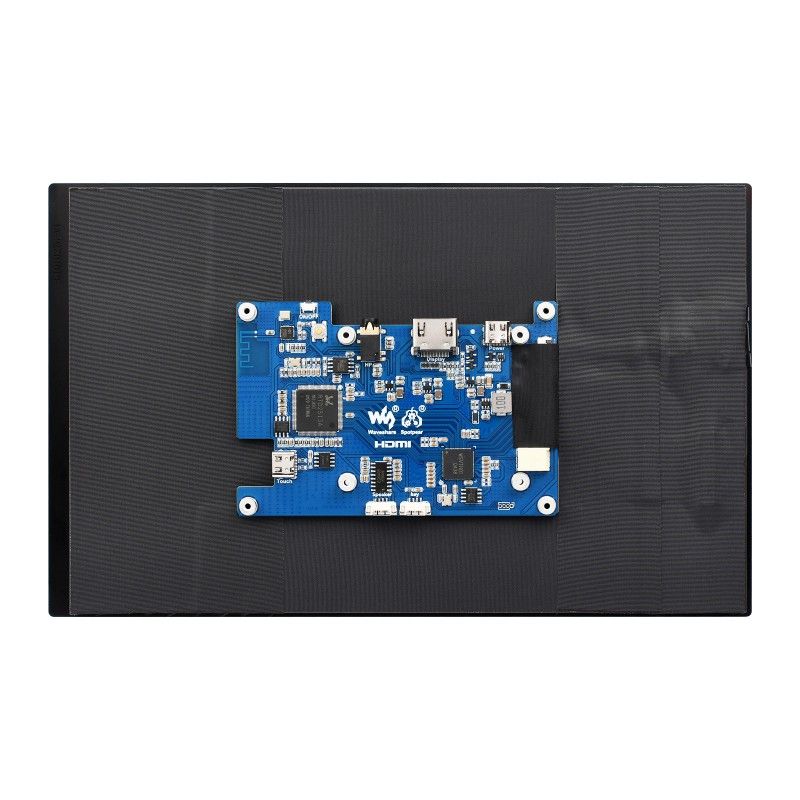

Display 10.1inch LCD 1280x800 IPS HDMI Capacitive Touch Screen (23739)

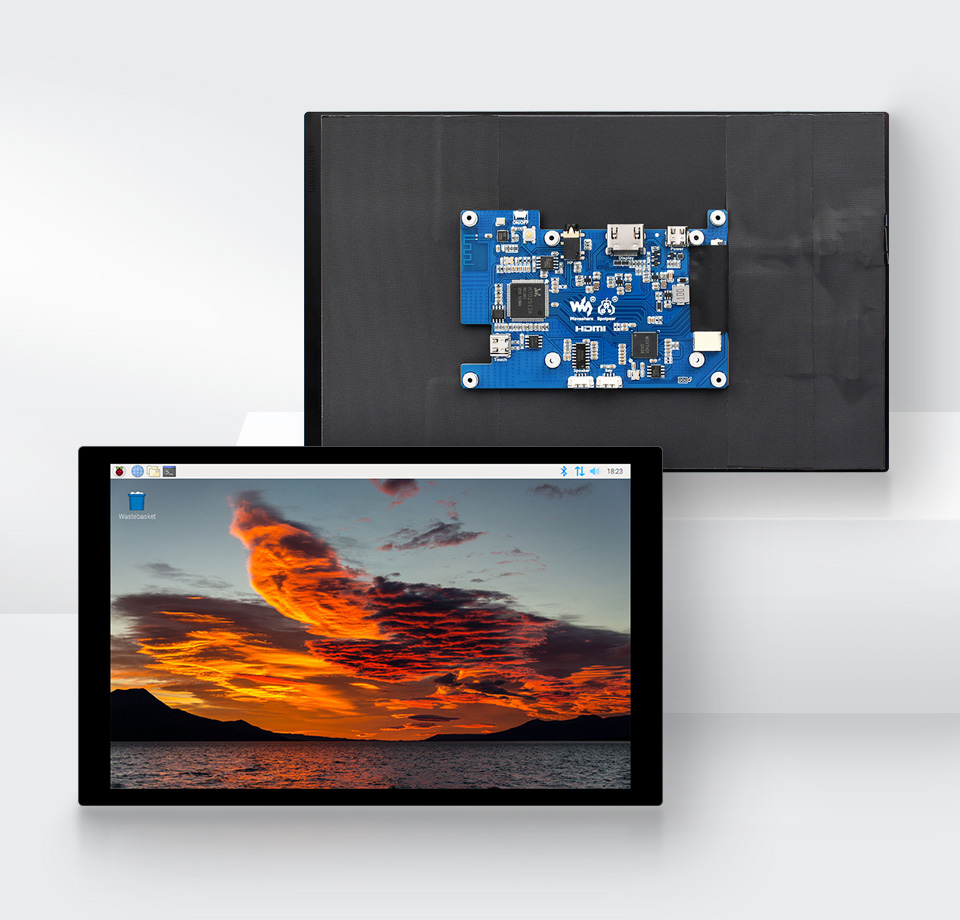

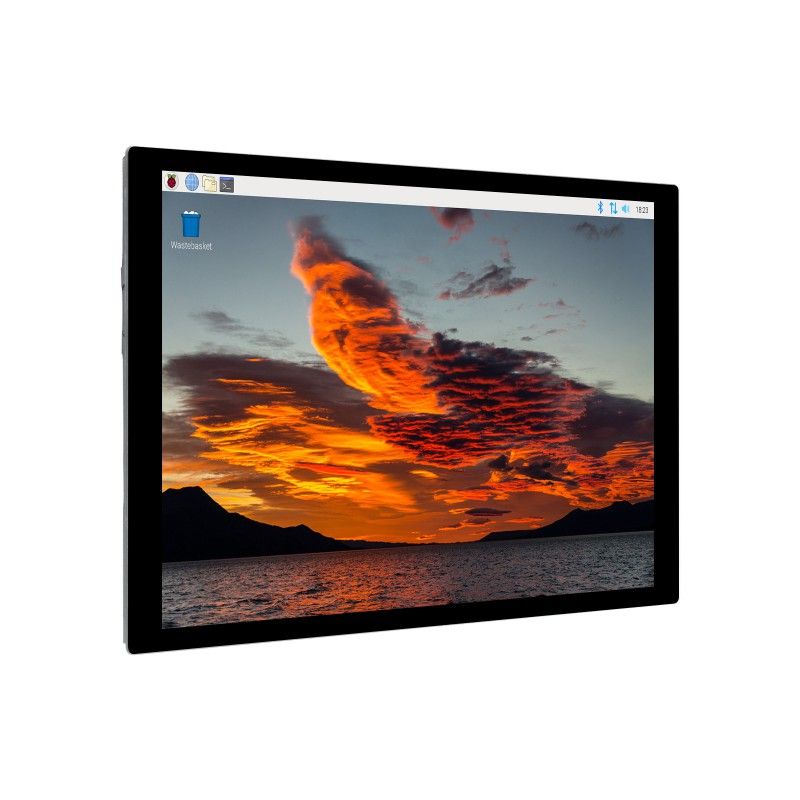

The 10.1inch LCD 1280x800 IPS HDMI Capacitive Touch Screen (23739 ) is a 10.1-inch capacitive display with optical bonding and a reinforced glass panel. It has a screen resolution of 1280x800 pixels, which ensures crisp and vivid images. This screen also features IPS technology, which allows you to view the screen from any angle without losing image quality.

For connecting to an external video source, this display has an HDMI interface. This allows you to easily connect it to any device that has an HDMI output, such as a computer, laptop, media player, or game console.

This display features optical bonding to reduce glare and improve image quality in bright lighting conditions. It also has a reinforced glass panel for added durability and resistance to shock and scratches.

This display can be used for a variety of applications such as monitoring, control, media players, and gaming systems. It is a very useful and practical addition to any device that requires a high quality visual display.

Key features:

• Screen diagonal: 10,1 "
• Resolution: 1280x800 pixels
• Display port: HDMI
• Display panel: IPS
• Viewing angle: 178 deg.
• Sensor type: capacitive
• Number of control points: 10 points
• Sensor port: USB Type-C
• Audio output: 3.5mm jack and 4PIN connector
• Front panel: tempered glass with optical bonding
• Screen brightness and contrast can be adjusted using the built-in menu
• Brightness: DCC/CI control, 600cd/m2

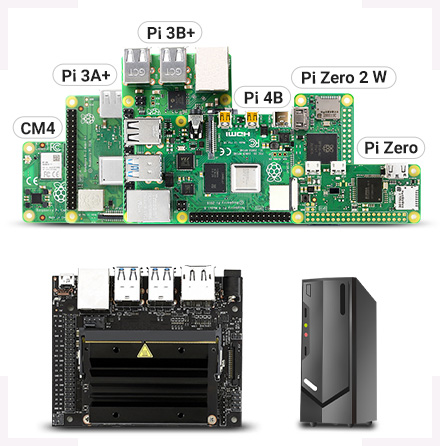

Supported devices and systems

Raspberry Pi
Support Raspberry Pi OS, 10-point control, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, one touch, no drivers required

PC

Support Windows 11 / 10 / 8.1 / 8 / 7, 10-point control, no driver

Connection example:

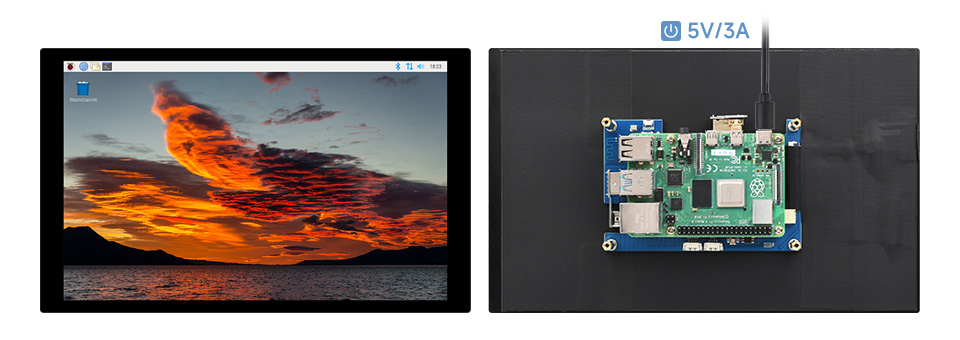

Working with Raspberry Pi 4B

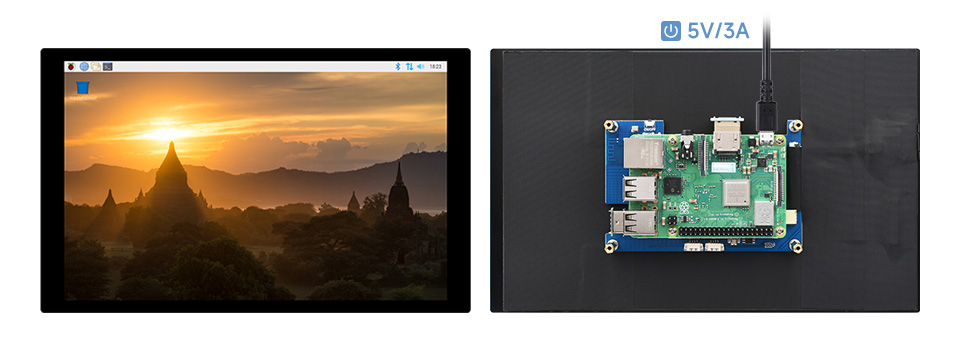

Working with Raspberry Pi 3B+

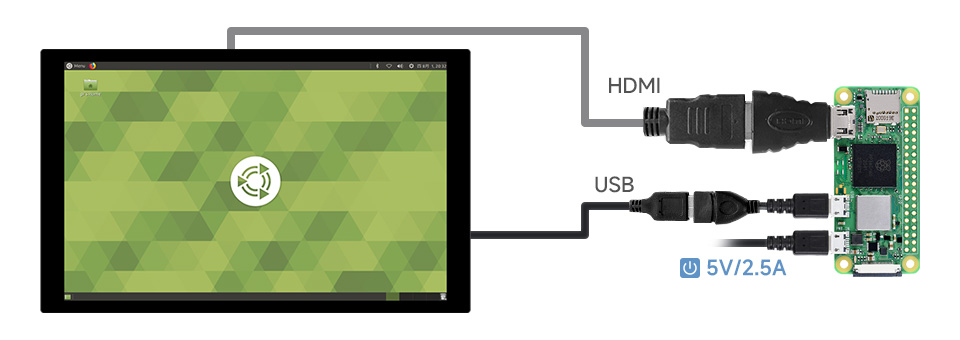

Working with Raspberry Pi Zero 2 W (requires an additional mini HDMI adapter and USB cable)

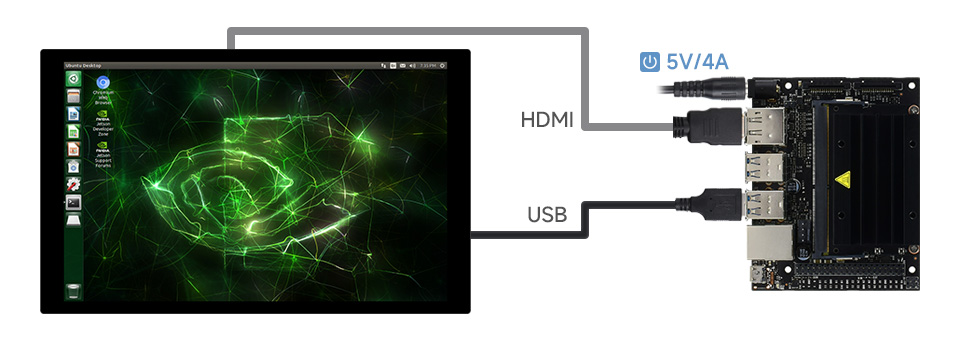

Working with Jetson Nano

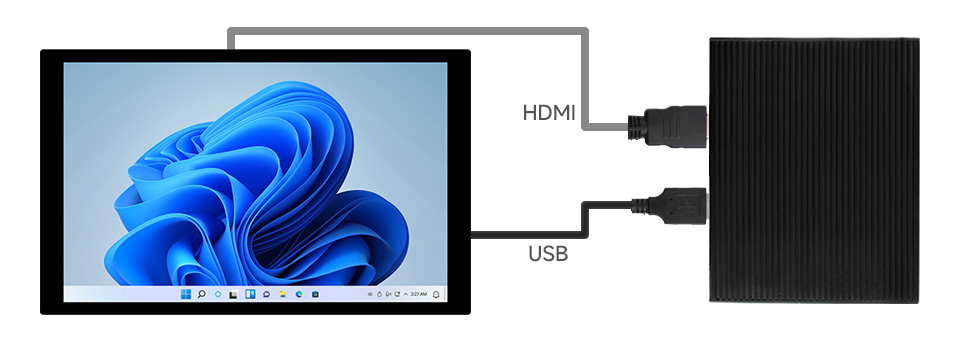

Work with PC

Capacitive 10-point touch device with characteristics:

• up to 10 touch points depending on the operating system
• tempered glass panel with a hardness of up to 6H
• optical bonding, good reflectivity and dust protection

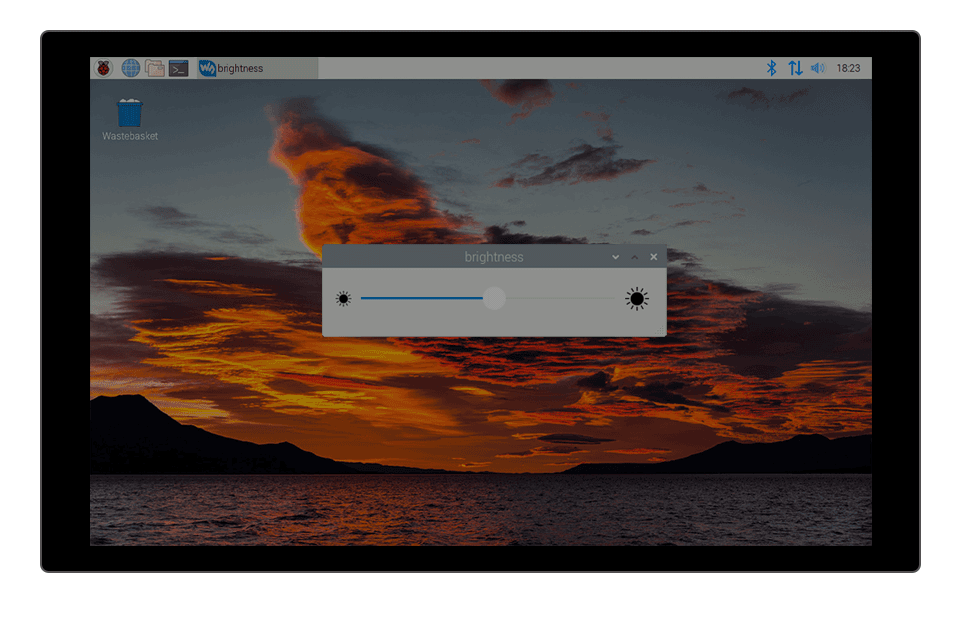

Supports programmable brightness adjustment

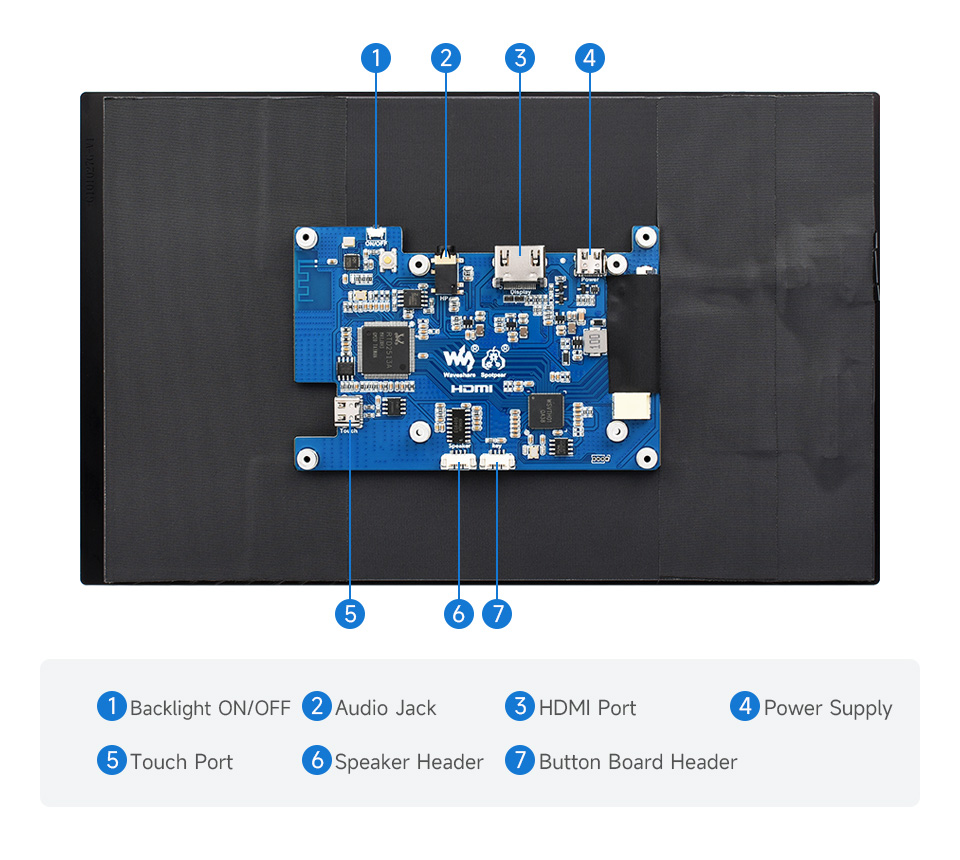

Interfaces:

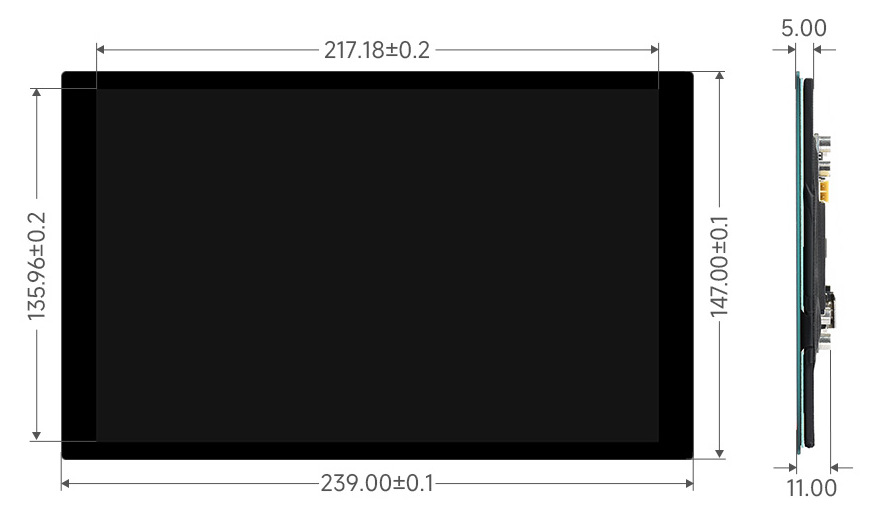

Overall dimensions: 239mm x 147mm x 11mm

Wiki: www.waveshare.com/wiki/10.1DP-CAPLCD

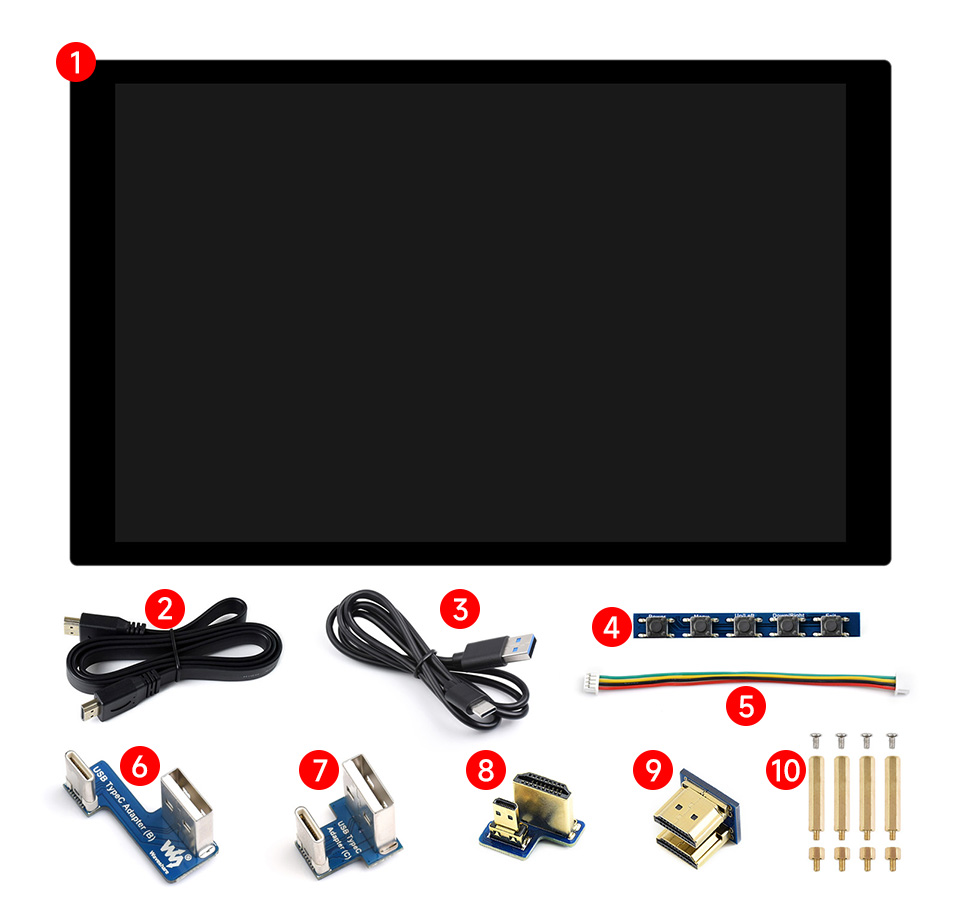

Package contents:

1. 10.1DP-CAPLCD ×1
2. HDMI flat cable 1 m × 1
3. USB-A to USB-C cable 1 m × 1
4. Button board ×1
5. Button board cable × 1
6. USB to Type-C (B) adapter ×1
7. USB to Type-C adapter (C) ×1
8. HDMI to Micro HDMI adapter × 1
9. HDMI adapter ×1
10. Package of screws ×1

Weight: 0.538 kg
