Monitor 8inch LCD Capacitive Touch Display 1280x800 HDMI/Type-C (24483)

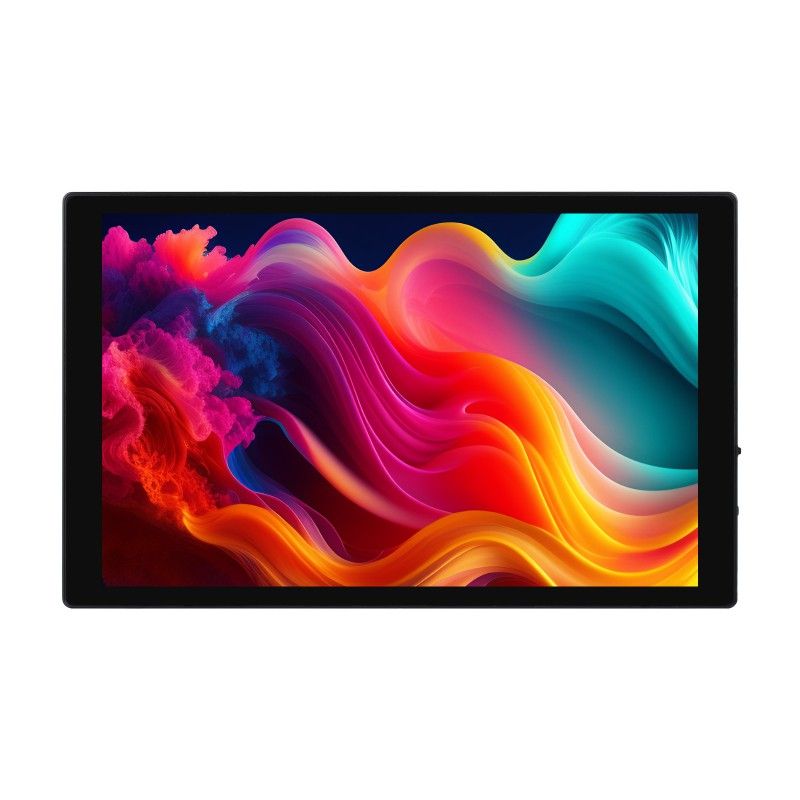

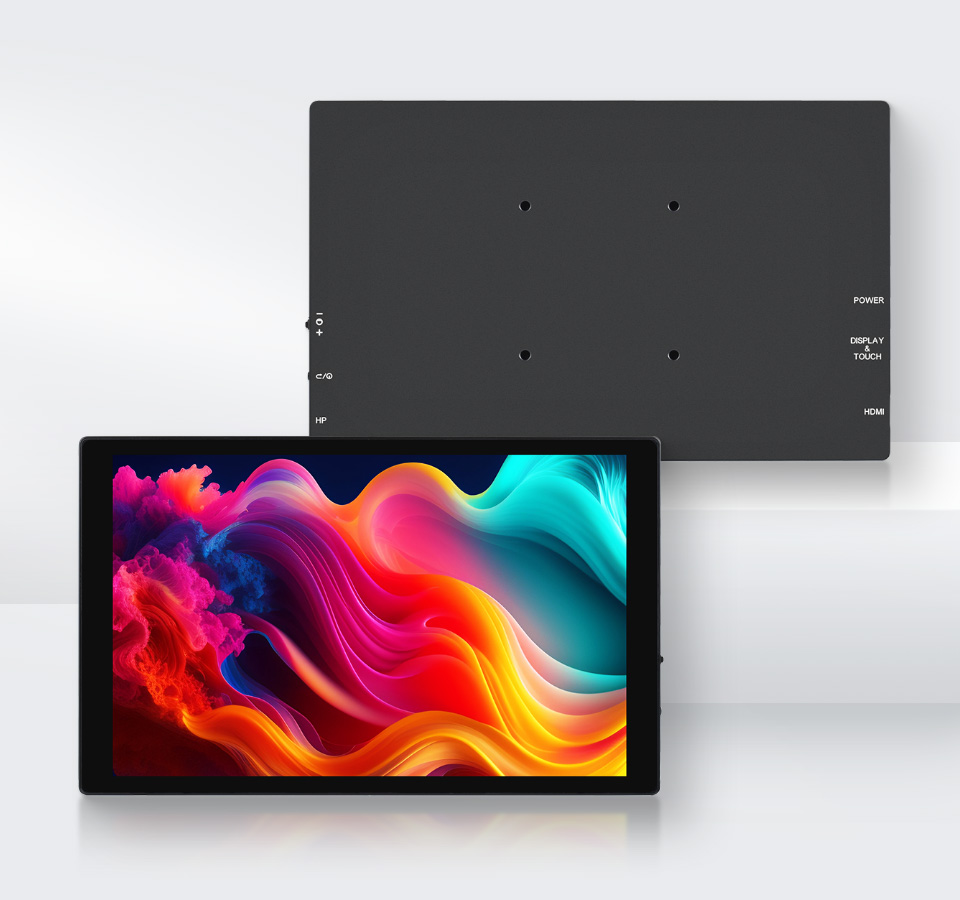

The8inch LCD Capacitive Touch Display 1280x800 HDMI/Type-C Monitor (24483 ) is an 8-inch capacitive touch display with a resolution of 1280x800 pixels, which has a tempered glass optical panel, IPS matrix, and is equipped with many interfaces for high compatibility. The stylish and durable aluminum alloy case reliably protects the display. Built-in buttons allow for easy operation.

Main features:

• Screen diagonal: 8"
• Resolution: 1280x800 pixels
• Ports: HDMI/Type-C
• Display type: IPS
• Viewing angle: 178 deg.
• Sensor type: capacitive with 10 touch points (depending on the operating system)
• Number of control points: up to 10 points
• Sensor port: USB-C
• Touch panel with optical bonding
• Audio output: 3.5mm Jack
• Built-in Hi-Fi sound speakers
• Protective aluminum alloy housing
• VESA Wall Mount mounting system 50mm x 50mm
• OSD Menu - built-in menu and brightness and contrast control
• Smartphone screen duplication system via cable (for Huawei, Samsung, OPPO, LG, ...)

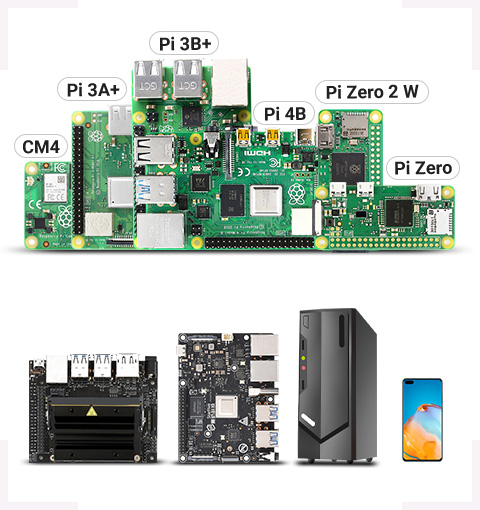

Supported devices and systems

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch screen, no drivers
Supports Ubuntu/Kali/WIN10 IoT, single point touch, no drivers
Supports Retropie, no drivers required
Supports all versions of Raspberry Pi

Jetson NANO
Supports Ubuntu, one touch, no drivers required

VisionFive2

Supports Debian, one touch, no drivers required

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7. 10 touch points, no drivers required

Smartphones.

Huawei, Samsung, OPPO, LG... (wired projection)

Connection example:

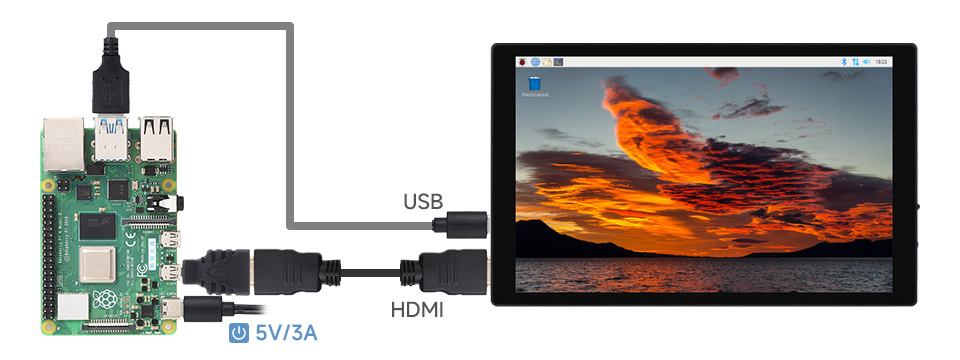

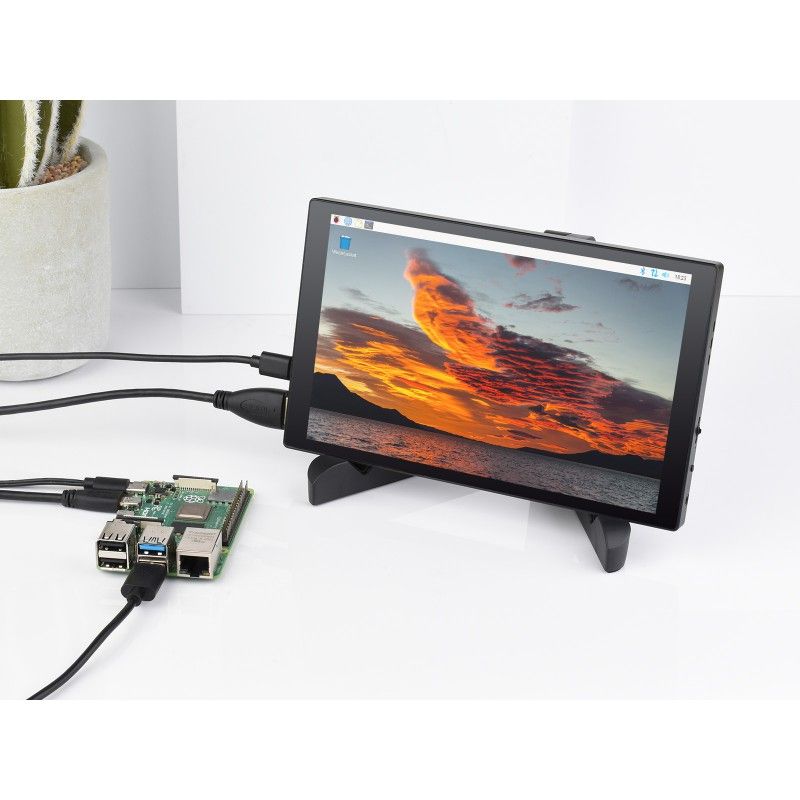

Working with a Raspberry Pi 4V

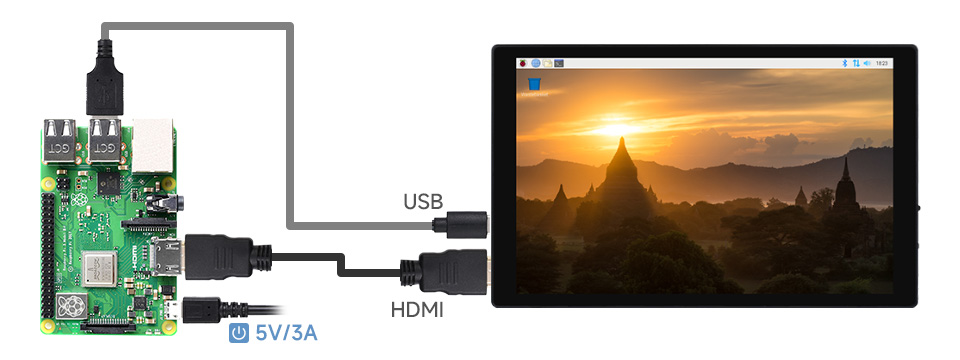

Working with Raspberry Pi 3B+

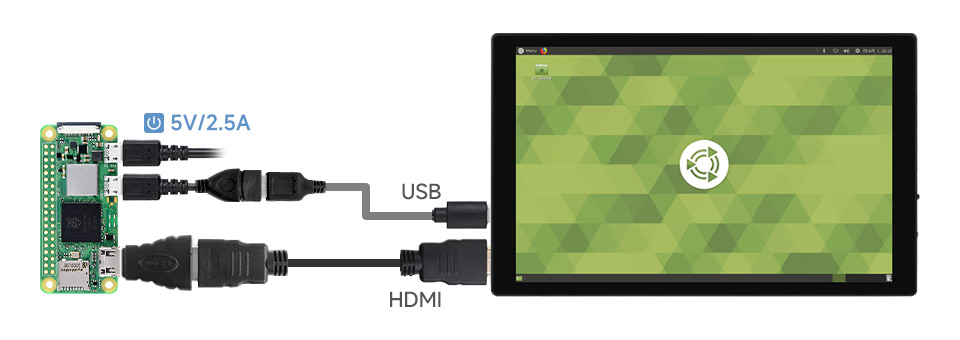

Working with Raspberry Pi Zero 2 W

You need to prepare an additional mini HDMI adapter and USB cable

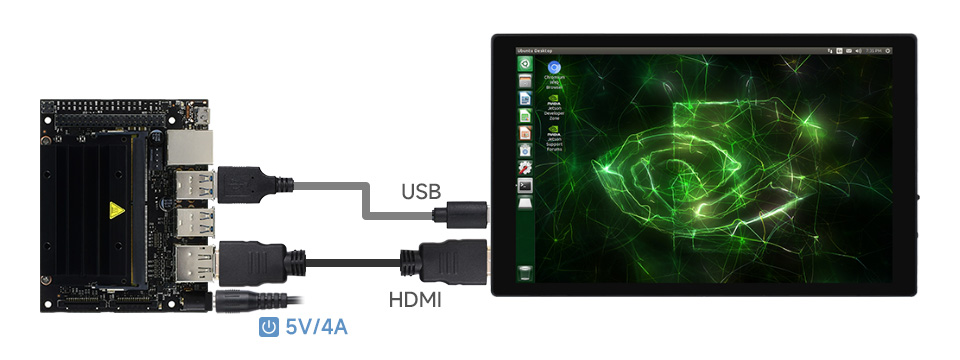

Working with Jetson Nano

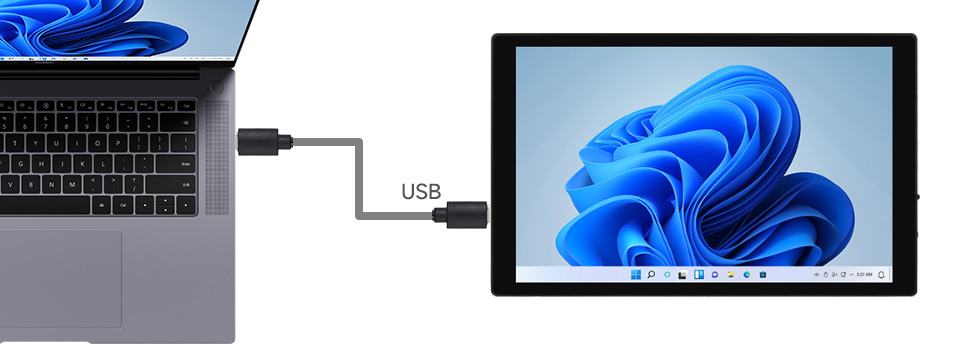

Working with a PC

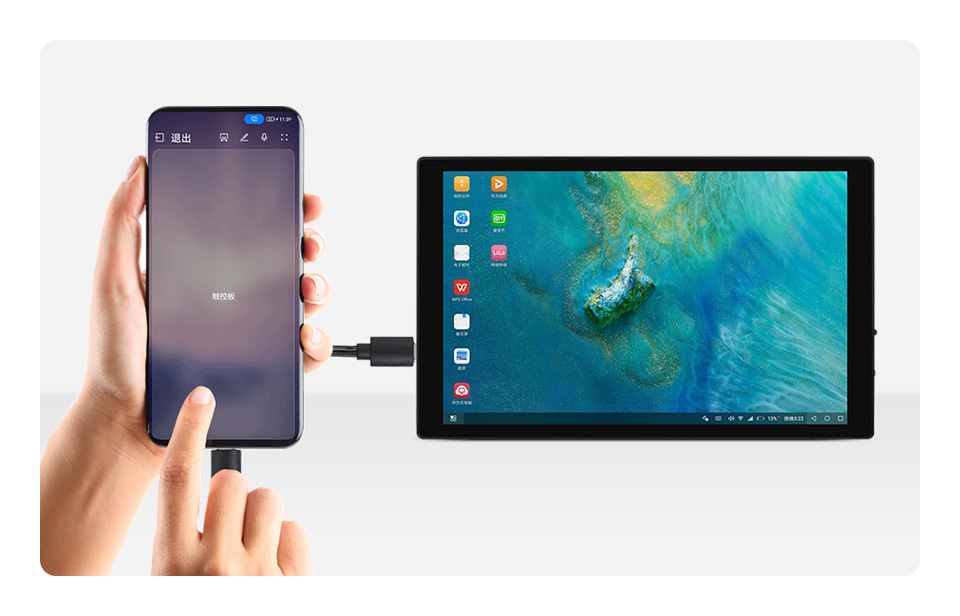

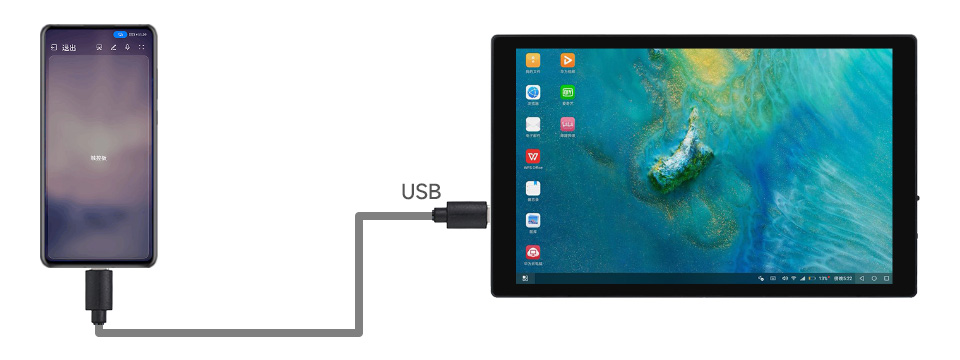

Working with a smartphone

Warning:

1. Please make sure that the smartphone or PC itself has a fully functional Type-C interface
2. For your reference only: the above controller boards or hosts are NOT included in the package

The color gamut of this display is up to NTSC 82%, the chromaticity is increased by 58.3%, making the colors clearer and brighter

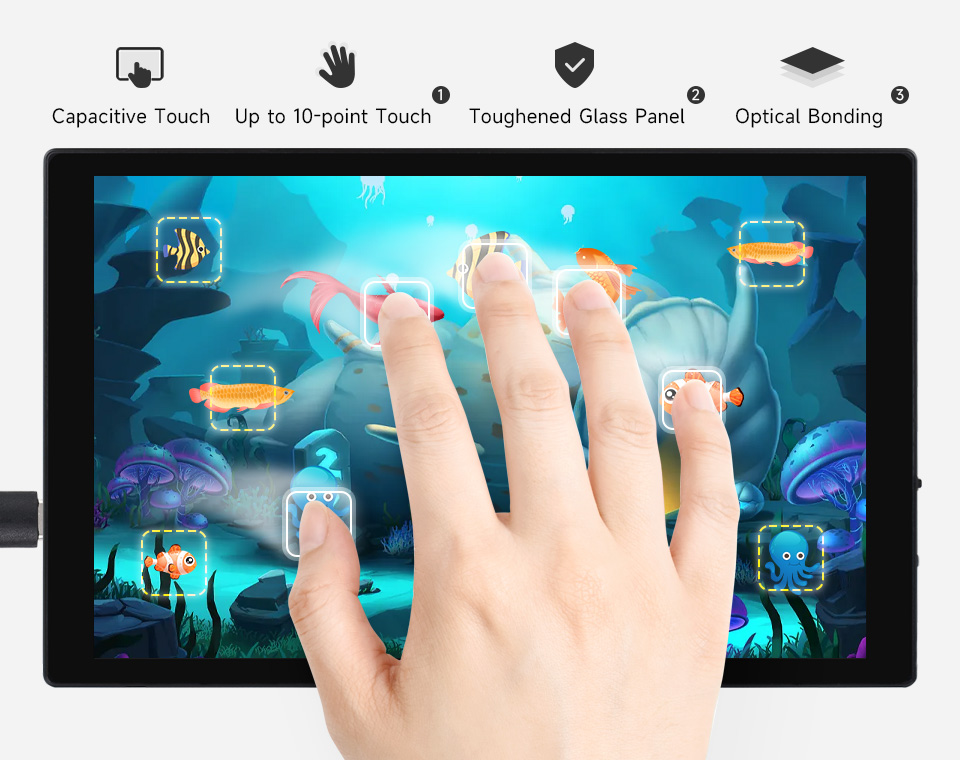

10-point touchscreen:

• Up to 10 touch points depending on the operating system
• tempered glass panel with a hardness of up to 6H
• Optical bonding in stages for good reflection and dust protection

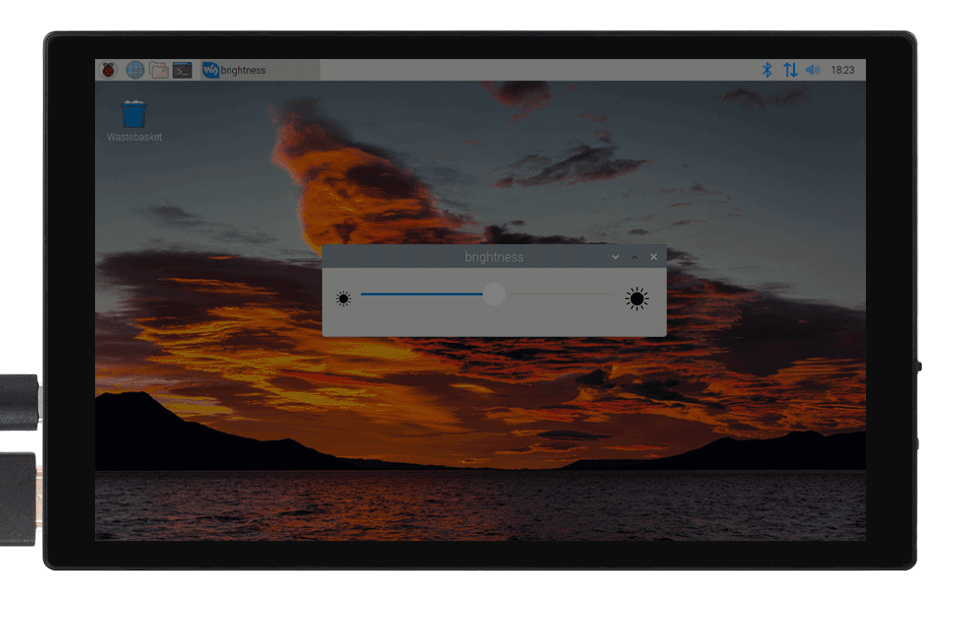

Supports DDC/CI brightness adjustment

Full-featured Type-C interface:

• Audio and video transmission in one connection, Plug and Play,
• Instantly zooms in on your smartphone screen

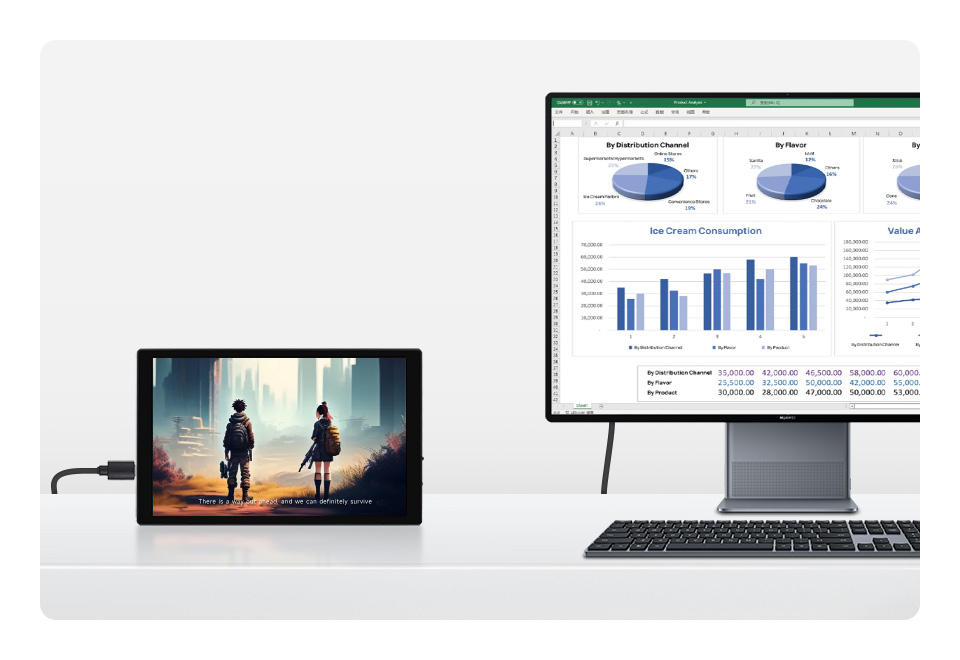

Dual computer screen for collaboration: one screen for work, one screen for entertainment, not interfering with each other

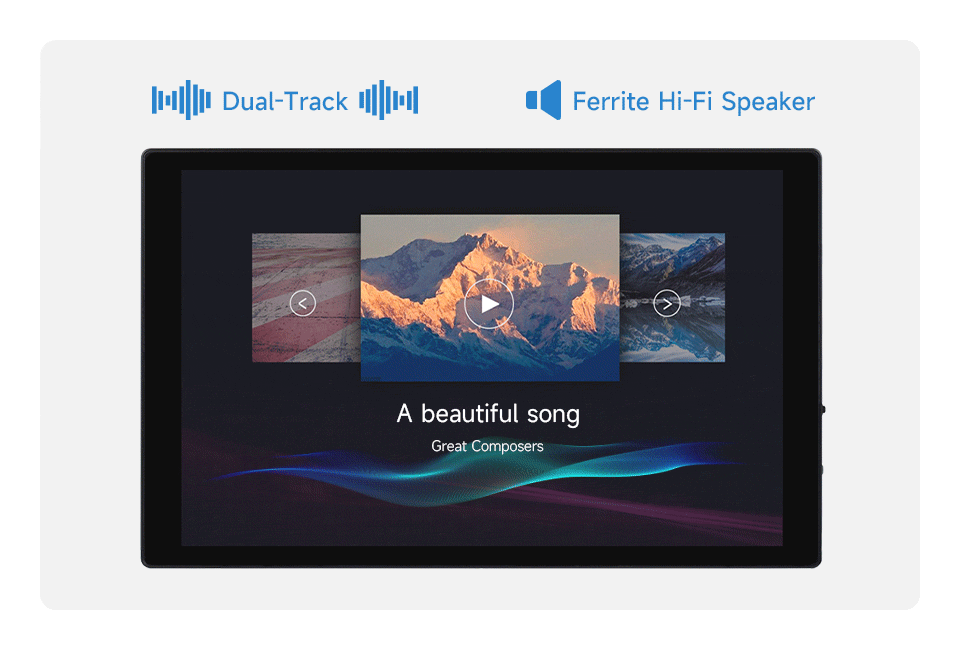

Display has built-in Hi-Fi speakers and supports Dual Track

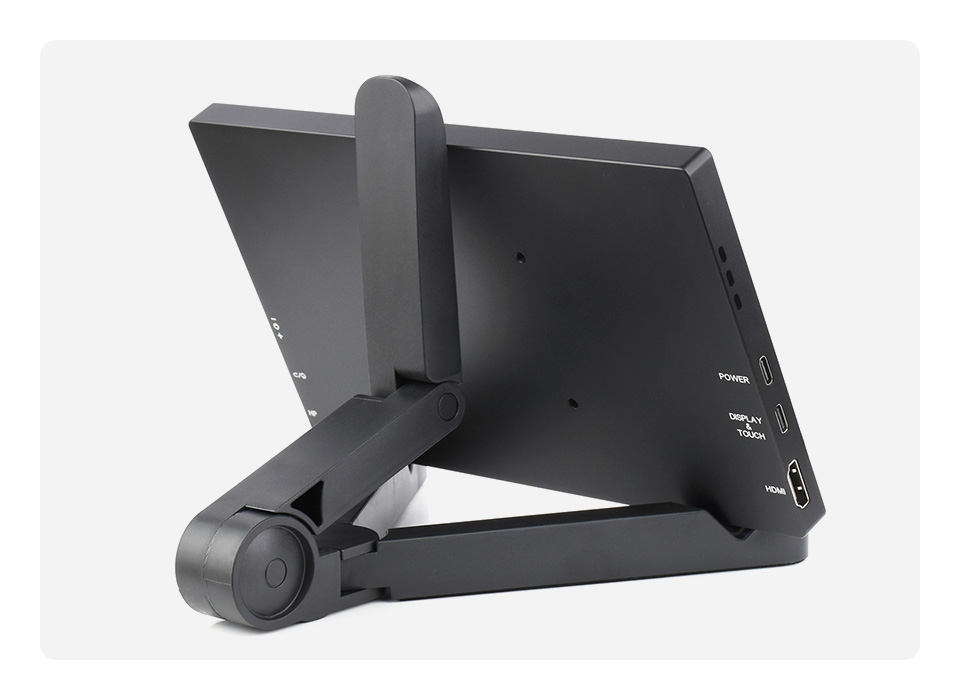

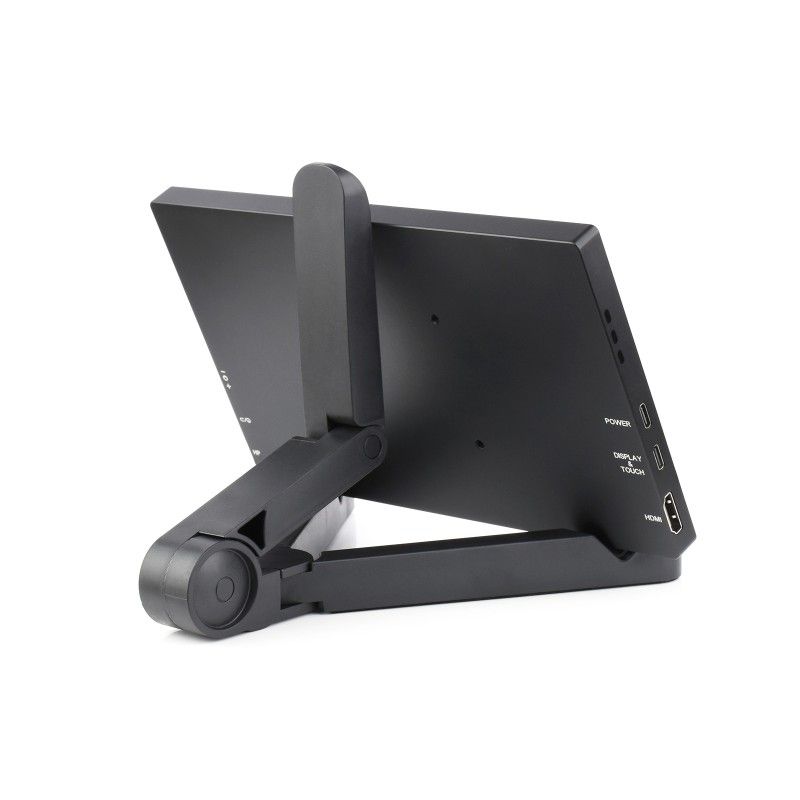

The display has a special stand

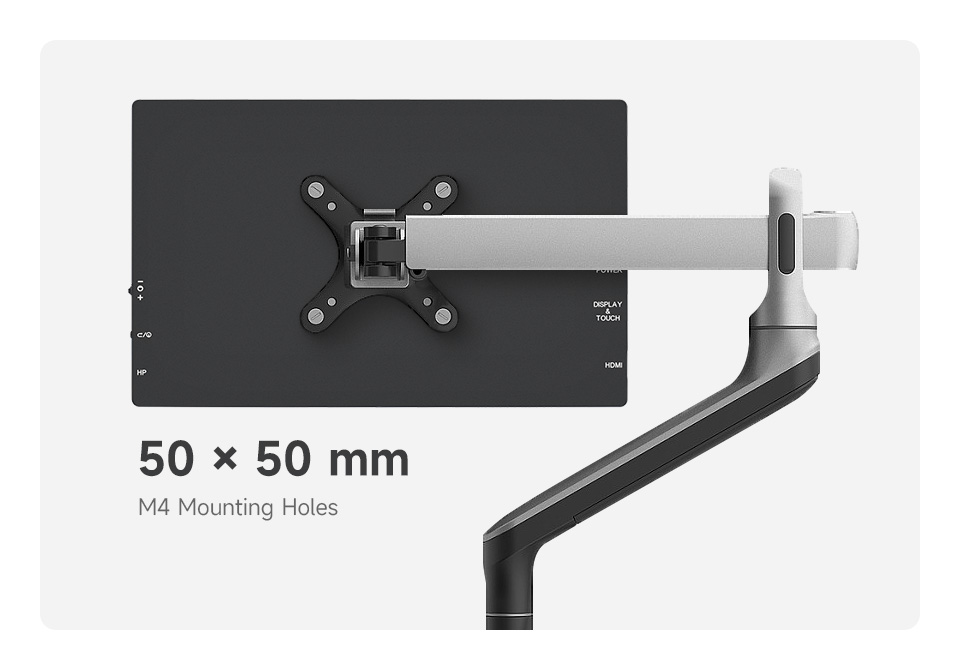

Supports VESA Mounting mount

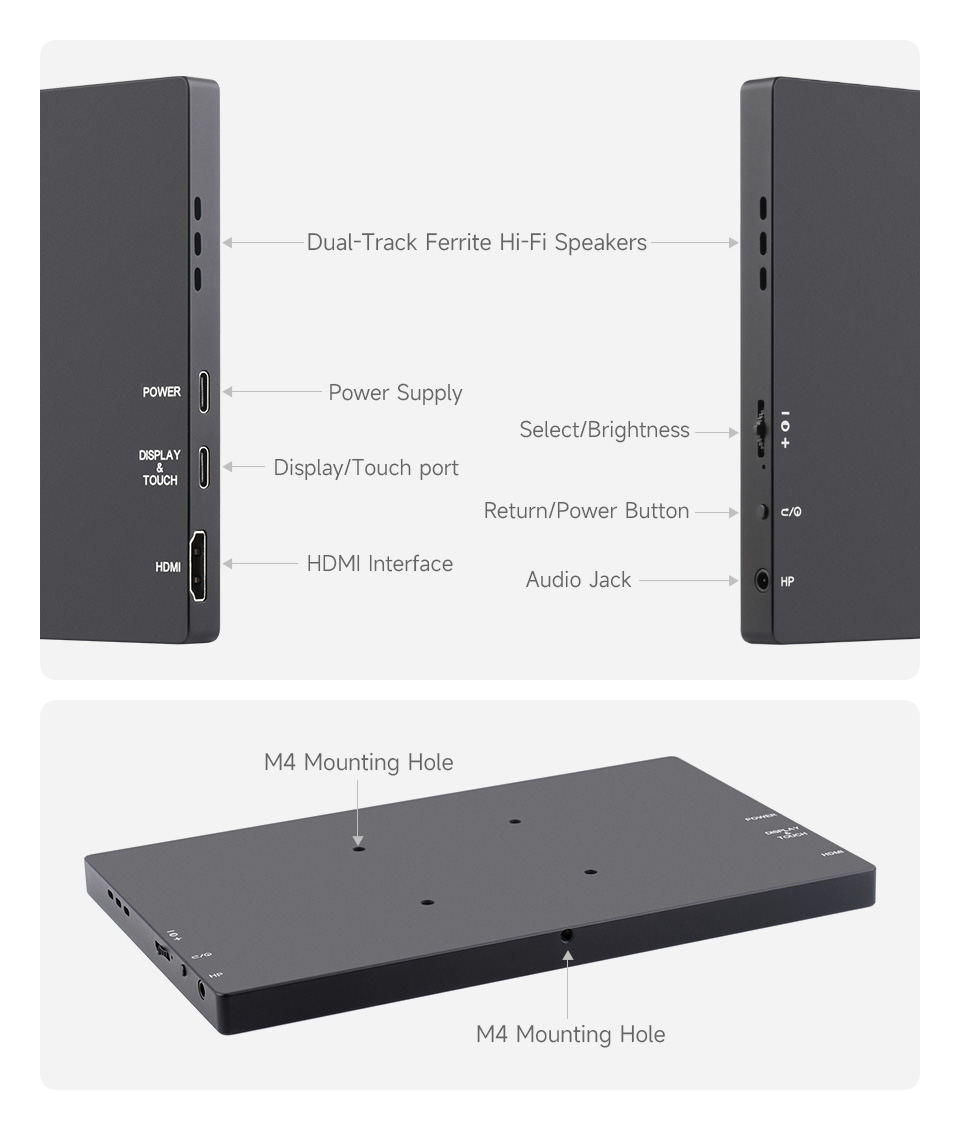

Device interfaces:

Select/Brightness - to switch brightness and select menus

Return/Power button - turns the display on/off and returns from the menu

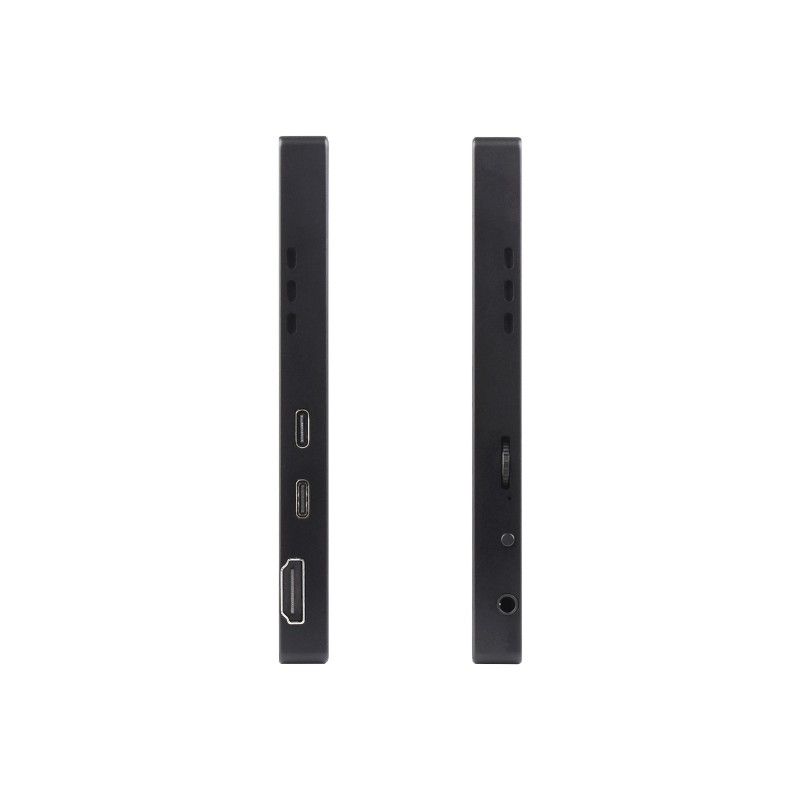

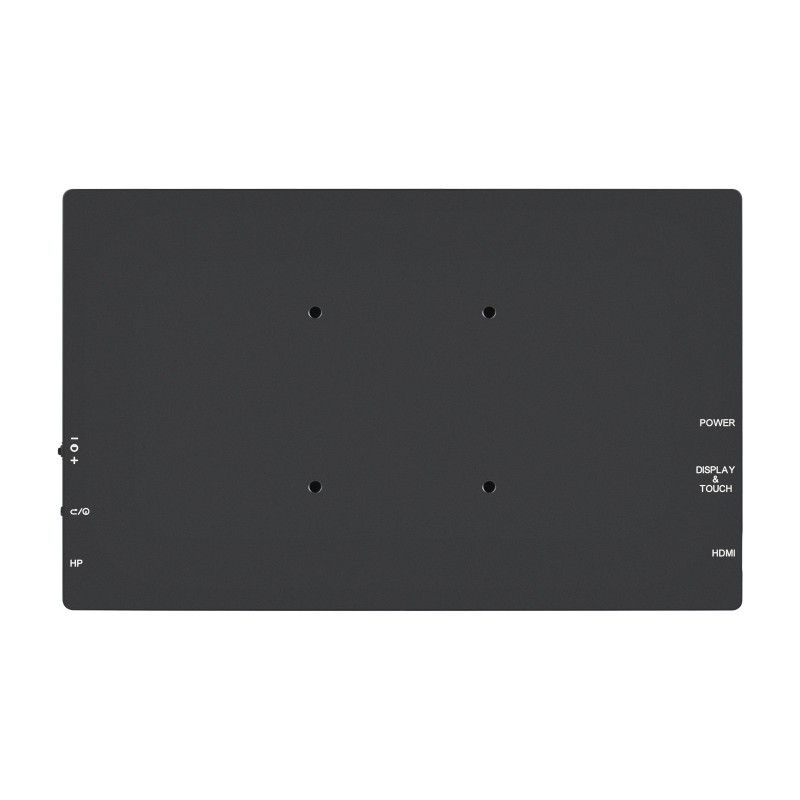

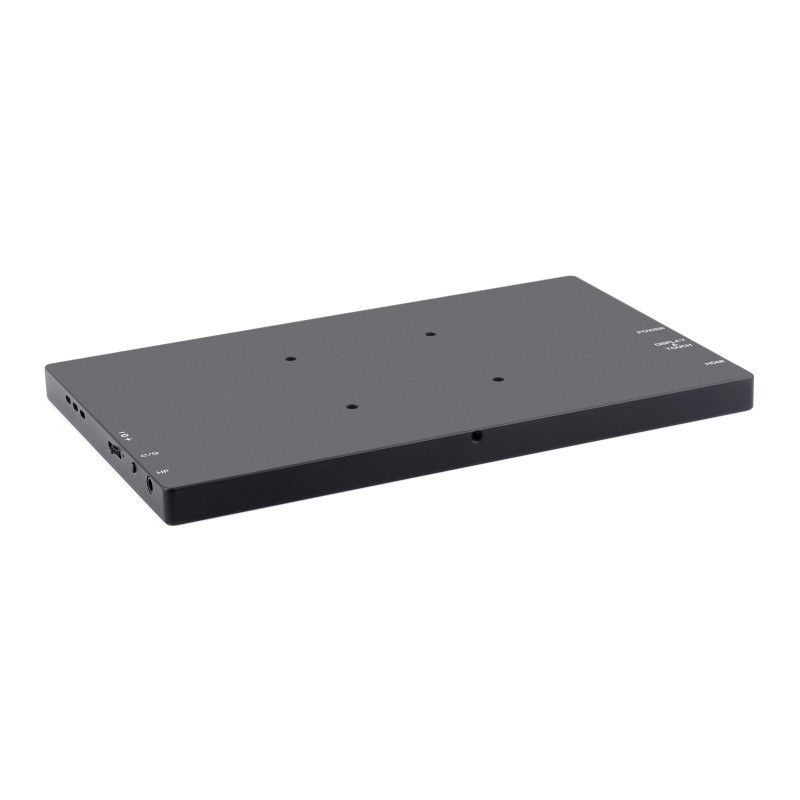

Connectors:

Audio Jack - 3.5mm audio jack

HDMI Interface - HDMI port

Display/Touch port - touch port

Power supply - power port

M4 Mounting Hole - holes for mounting

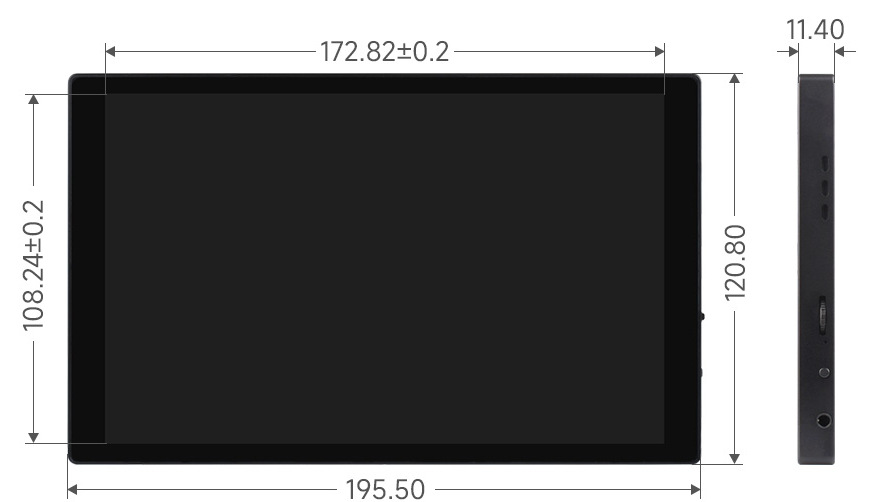

Overall dimensions: 195.5 x 120.8 x 11.4 mm

Wiki: www.waveshare.com/wiki/8HP-CAPLCD_Monitor

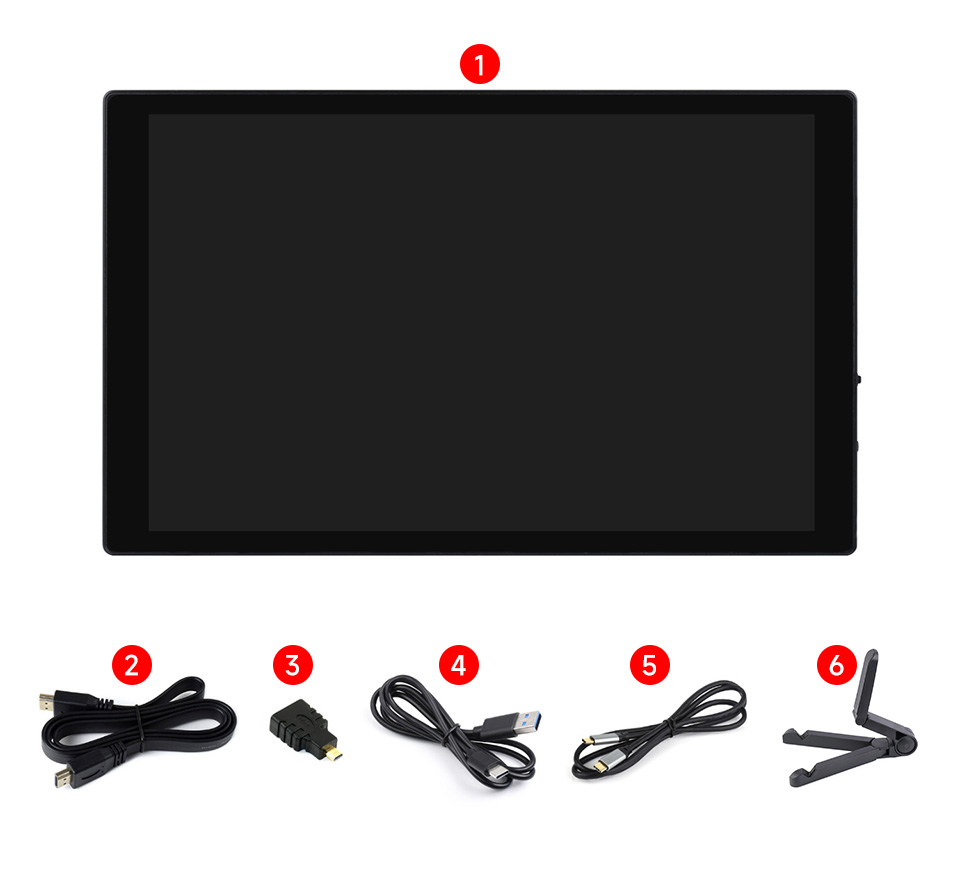

Scope of delivery:

1. 8HP-CAPLCD monitor ×1
2. Flat HDMI cable 1 m × 1
3. HDMI to Micro HDMI adapter 1 m × 1
4. USB-A to USB-C cable 1 m × 1
5. USB-C to USB-C cable × 1 pc
6. Triangular stand ×1

Weight: 0.623 kg
