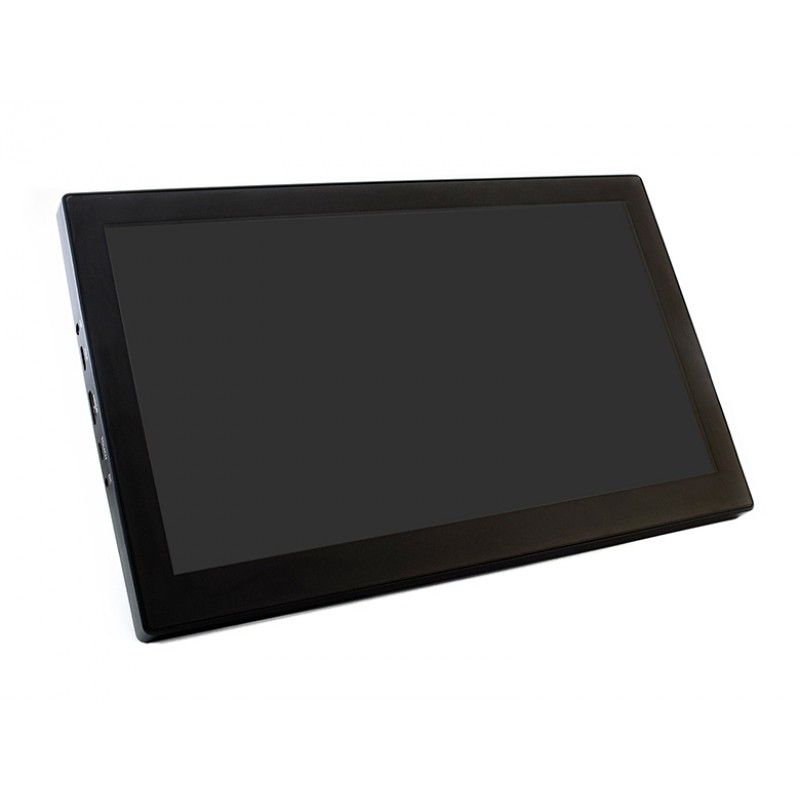

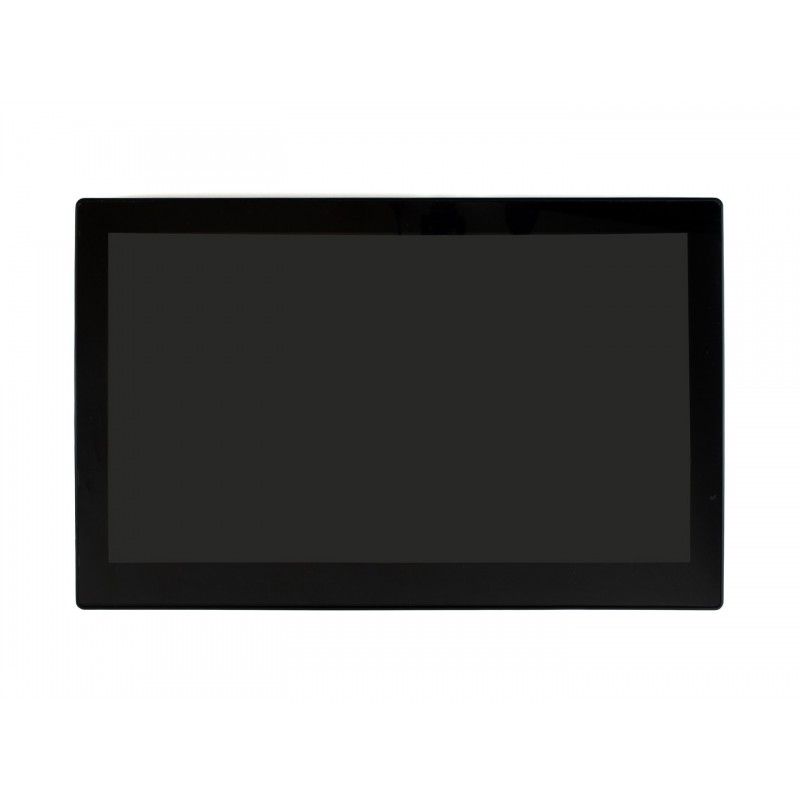

Monitor 13.3inch LCD 1920x1080 HDMI Capacitive Touch Screen (16328)

The 13.3inch LCD 1920x1080 HDMI Capacitive Touch Screen monitor (16644 ) has the following specifications:

Screen diagonal: 13.3 "

Resolution: 1920x1080 pixels

Port: HDMI (with HDCP) / VGA

Matrix type: IPS

Viewing angle: 178 deg.

Sensor type: capacitive with 10 touch points (depending on the operating system)

Number of control points: up to 10 points

On-screen menu (OSD Menu, On-Screen Display Menu) to control brightness and contrast modes

Sensor port: USB

Audio output: 3.5mm Jack

Built-in Hi-Fi sound speakers

Protective insert made of polycarbonate

Supports operation with Xbox360 / PS4 / Switch game consoles

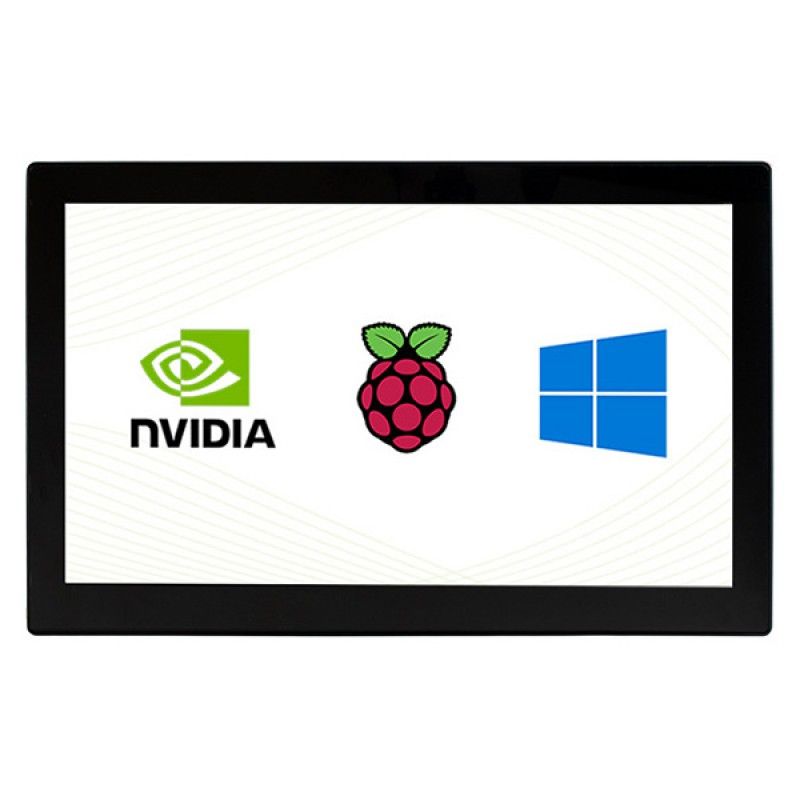

Supported devices and systems

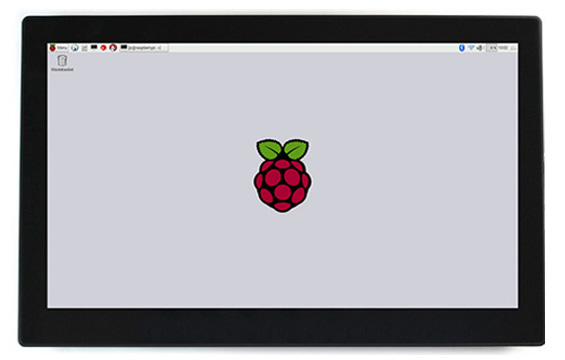

Raspberry Pi
Supports Raspbian, 10 touch points, no driver required
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver required
Supports Retropie, no drivers required

Supports ALL versions of Raspberry Pi.

Jetson NANO
Supports Ubuntu, one touch, no drivers required

PC
Supports Windows 10 / 8.1 / 8 / 7. 10 touch points, no drivers required

Game consoles

Xbox360, PS4, Switch ...

An example of connection:

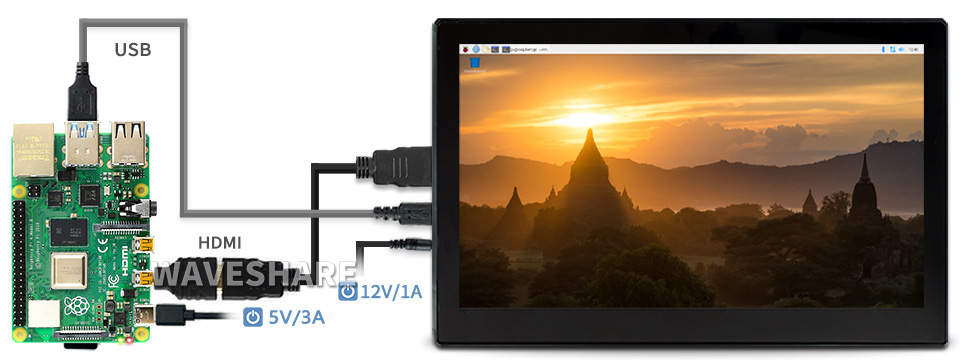

Working with a Raspberry Pi 4

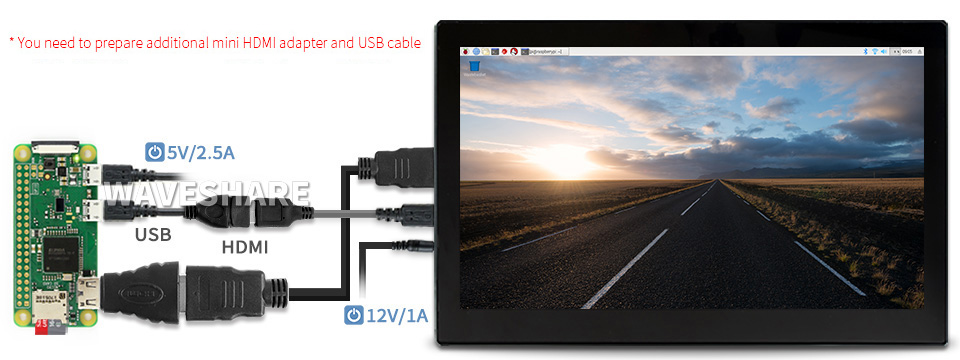

Working with Raspberry Pi Zero

Note: To connect to Raspberry Pi Zero, you need to purchase a USB cable and a mini-HDMI adapter separately.

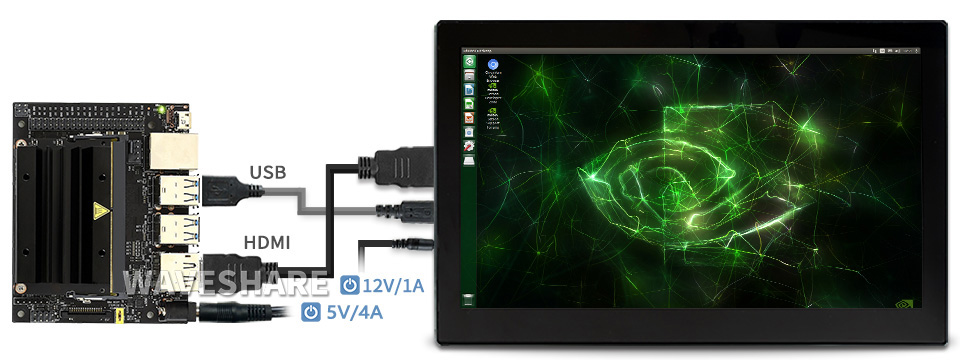

Working with NVIDIA Jetson NANO

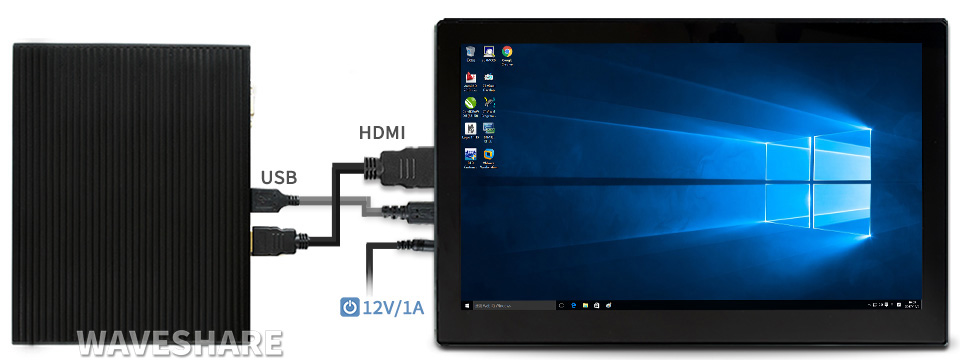

Working with Mini PCs

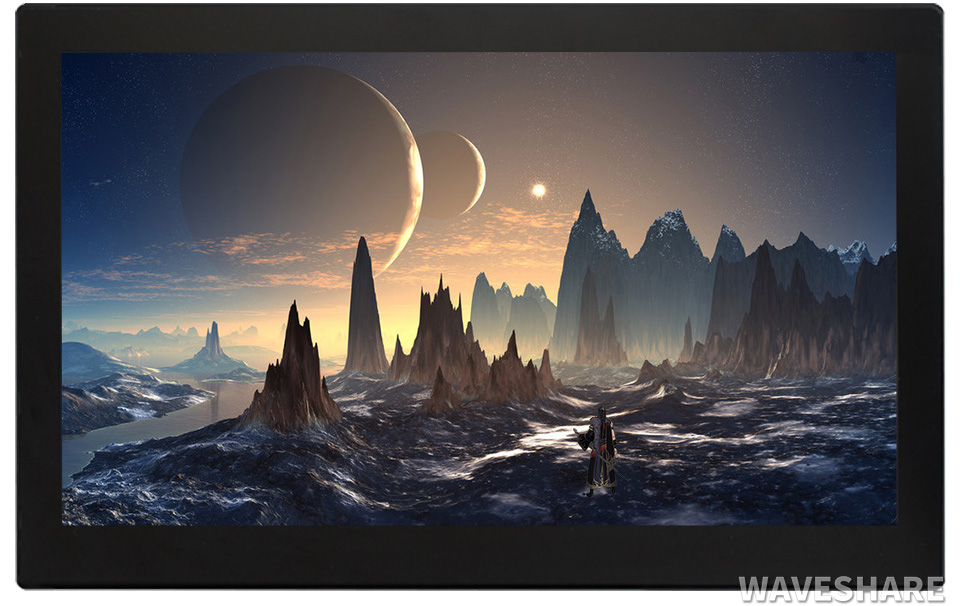

The display supports work with game consoles (used for video and sound playback)

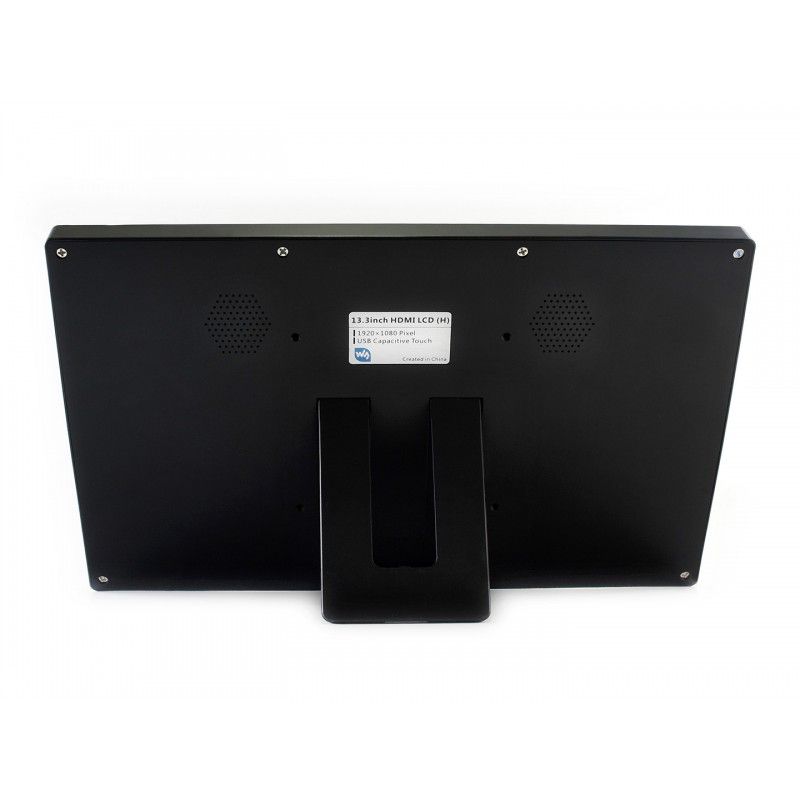

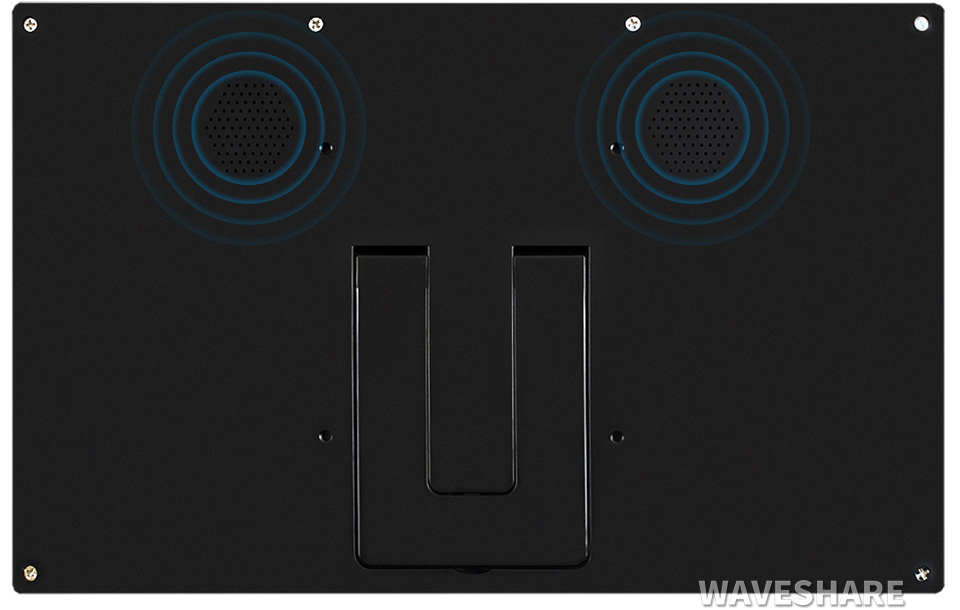

The display on the rear side has built-in Hi-Fi speakers and supports Dual Track

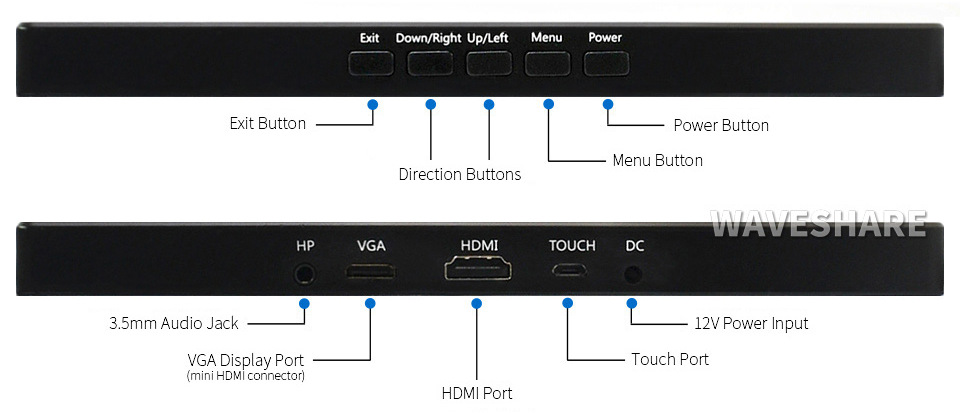

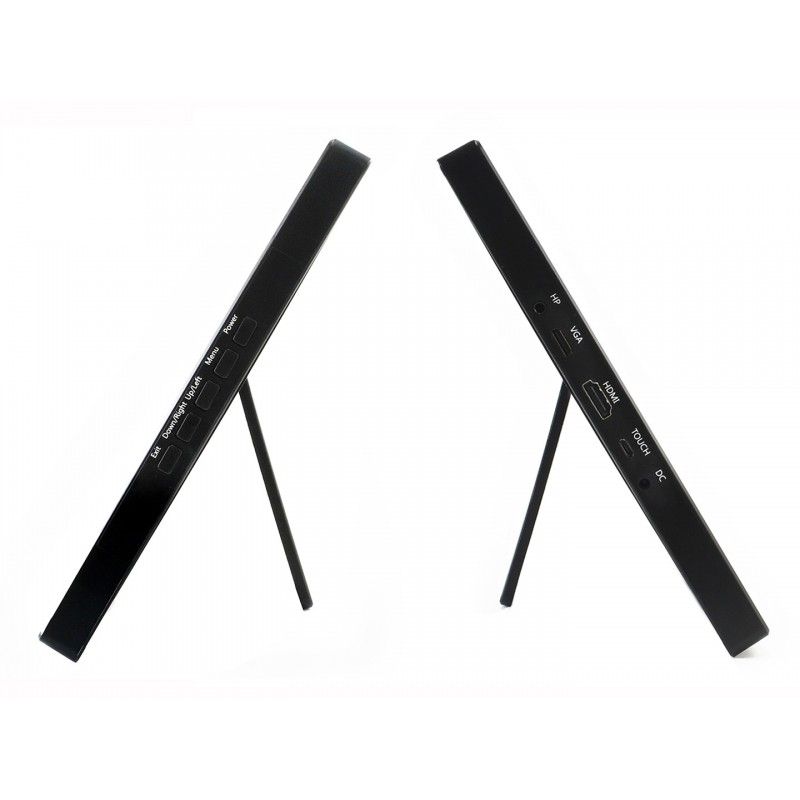

Device interfaces:

Buttons:

Exit - Exit button

Direction -- Orientation

Menu

Power

Connectors:

3.5mm Audio Jack - audio jack

VGA Display Port (mini HDMI connector) - display port

HDMI Port - HDMI port

Touch Port - sensor port

12V Power Input -- 12V power port

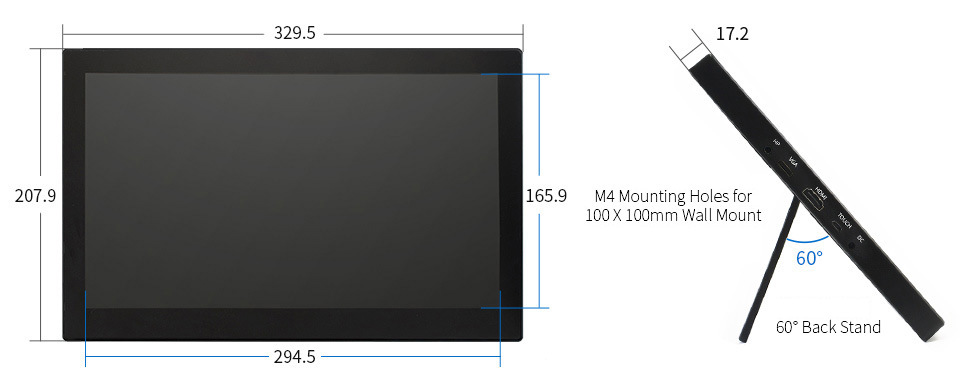

Overall dimensions (mm): 329.5 x 207.9 x 17.2

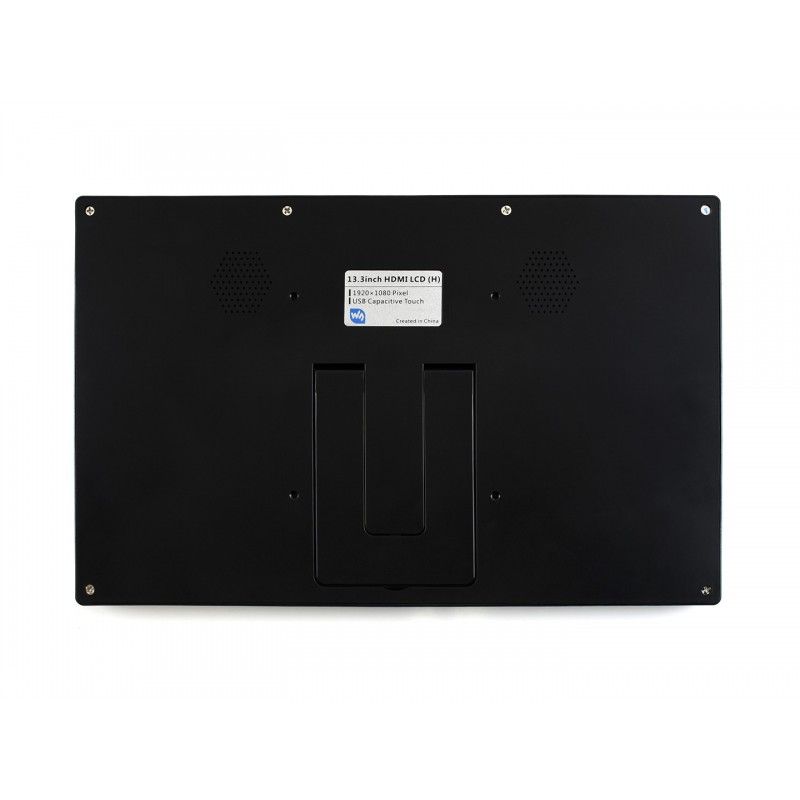

The display is equipped with 4 M4 holes for wall mounting and has a hinged stand that opens at a 60-degree angle.

Information for developers (Wiki): www.waveshare.com/wiki/13.3inch_HDMI_LCD_(H)_(with_case)_V2

The package includes:

1. 13.3inch HDMI LCD (H) display x1
2. Power adapter (European plug included) 12V x1
3. HDMI cable x1
4. HDMI to Micro HDMI adapter x 1
5. USB A to Micro-B cable x1
6. Quick start guide x1

1. 2.3.4.5.6.

Weight: 1.521 kg
