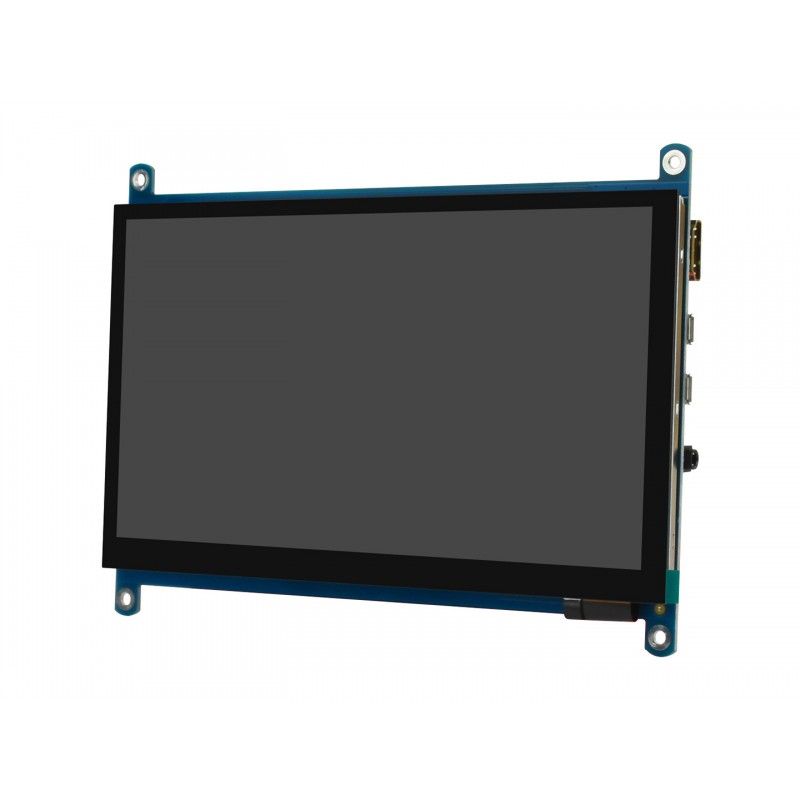

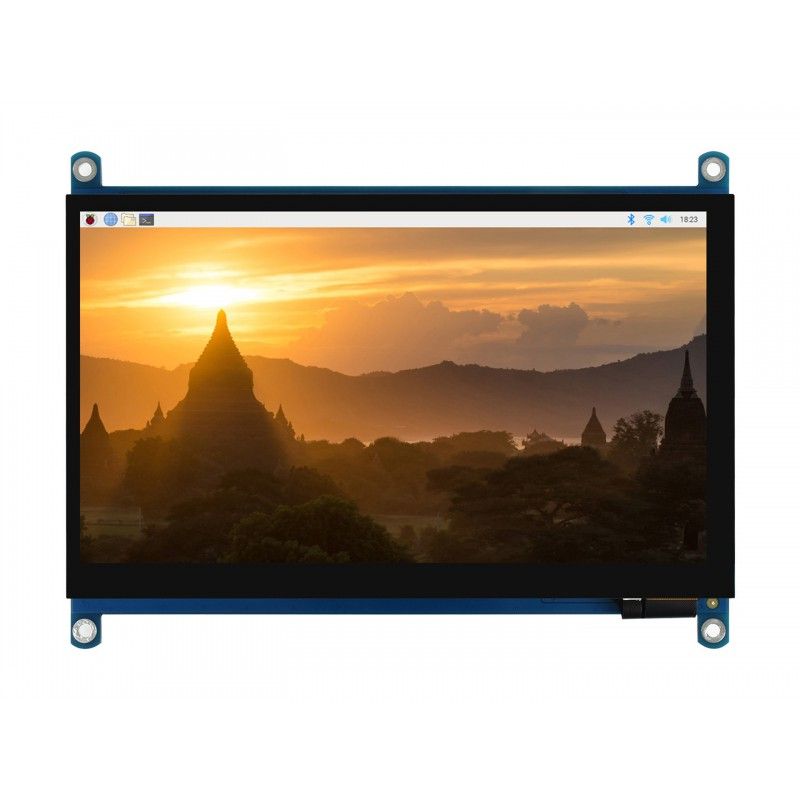

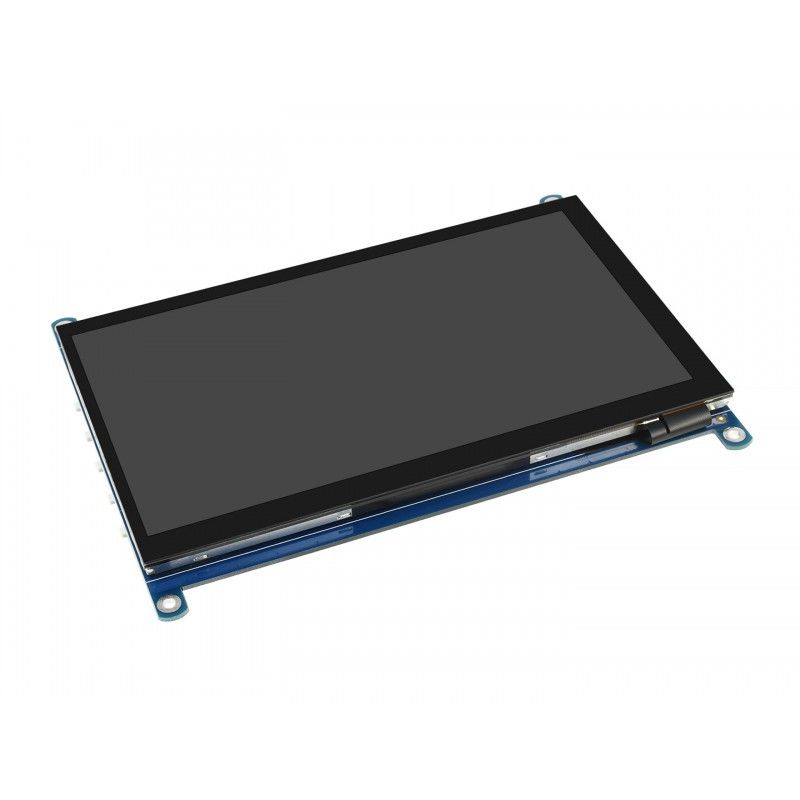

Display 7inch LCD 1024x600 HDMI QLED Capacitive Touch Screen (18625)

Display 7inch LCD 1024x600 HDMI QLED Capacitive Touch Screen (18625 ) is a high-quality display made using QLED Quantum Dot Display technology - a device that uses quantum dots to produce red, green and blue light. Quantum dots are crystals that glow when exposed to current or light. They emit different colors depending on the size and material they are made of. Quantum dot displays have up to five times lower power consumption than conventional liquid crystal displays (LCDs), as well as a longer lifespan than OLEDs and higher brightness and contrast than competing technologies.

The 7inch LCD 1024x600 HDMI QLED Capacitive Touch Screen has the following characteristics:

• Screen diagonal: 7"
• Resolution: 1024x600 pixels
• Display port: HDMI
• Sensor type: capacitive
• Number of control points: 5 points
• Sensor port: USB

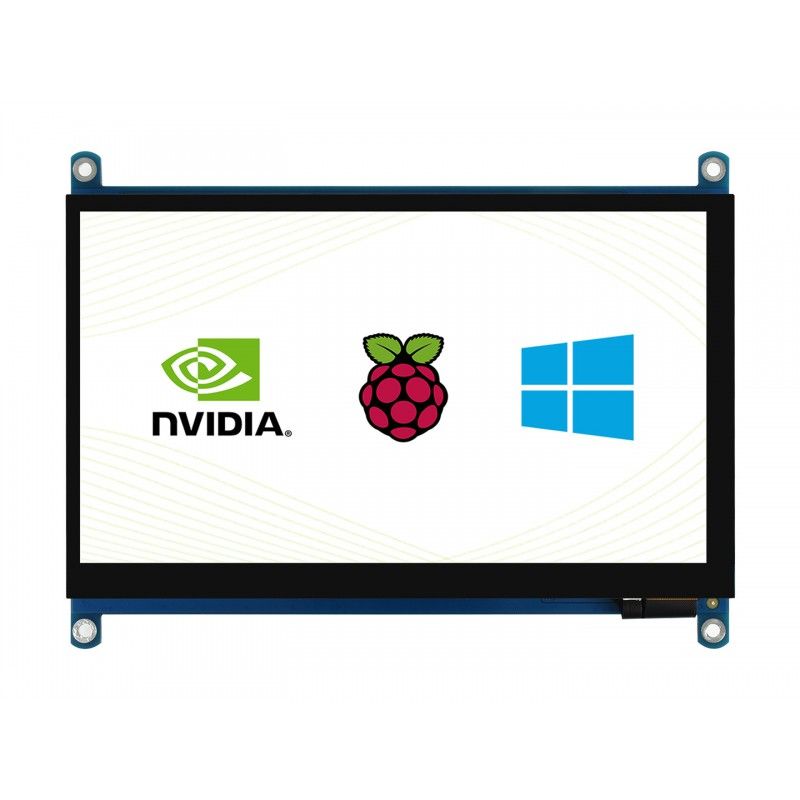

Supported devices and systems

Raspberry Pi

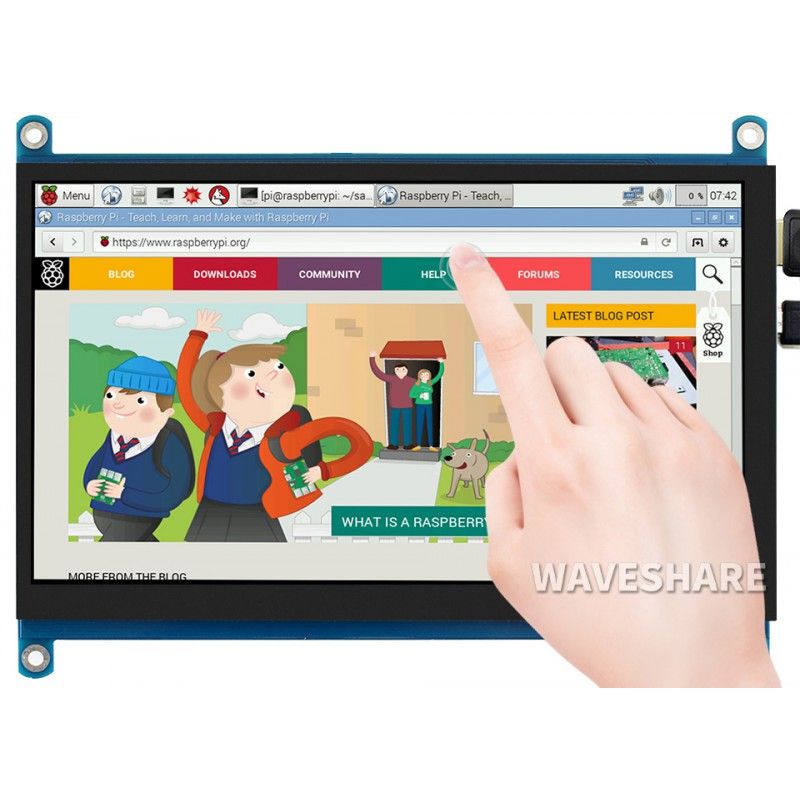

Support Raspbian, 5-point touch, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no drivers
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point control, no drivers required

PC
Supports Windows 10 / 8.1 / 8/7, 5-point control, no drivers required

Game console
Xbox360, PS4, SWITCH ...

An example of connection:

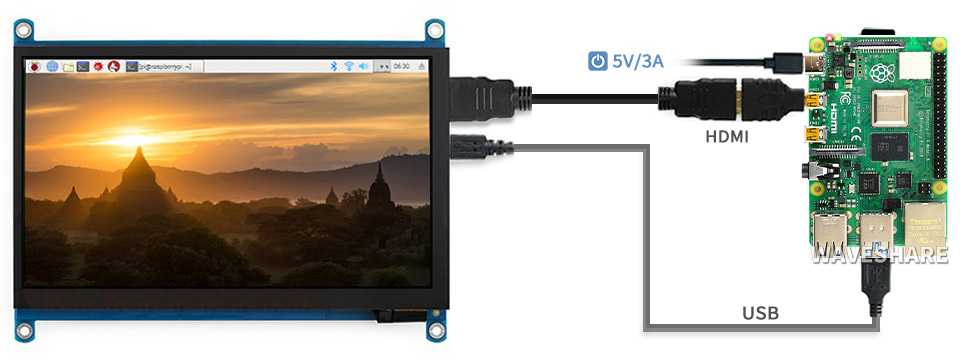

Working with a Raspberry Pi 4

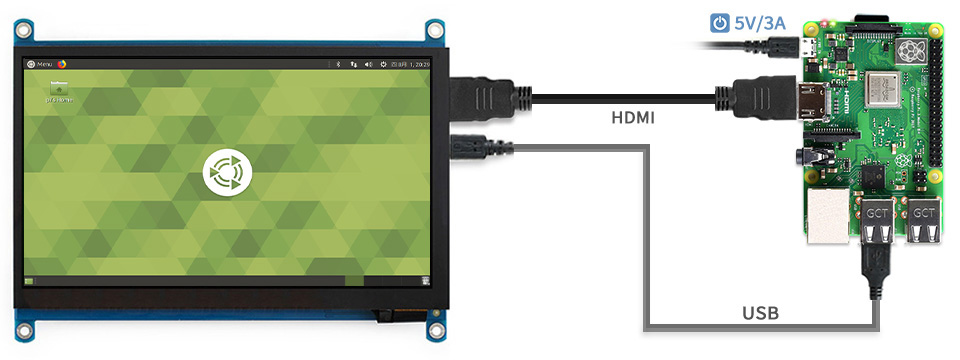

Working with Raspberry Pi 3B+

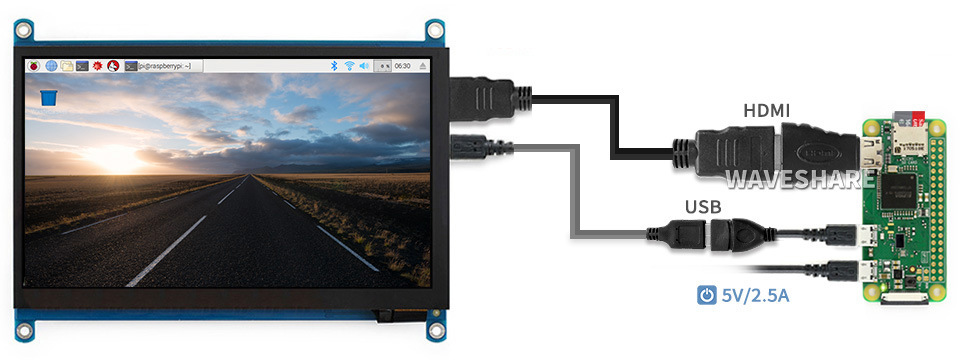

Working with Raspberry Pi Zero W

Attention: Use the HDMI to Micro HDMI adapter with the HDMI cable

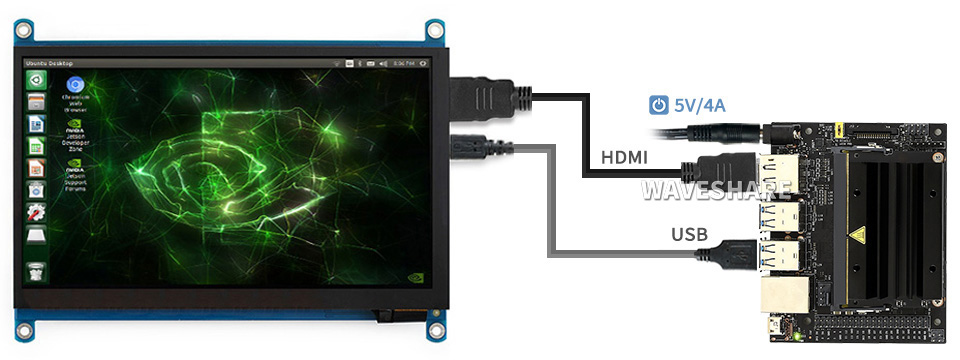

Working with Jetson Nano

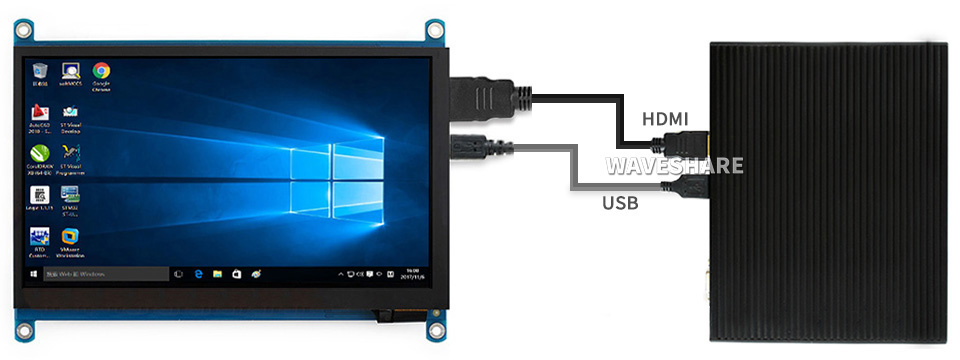

Working with mini PC

QLED Quantum Dot Technology (QLED Quantum Dot Technology)

Extended gamut: The color gamut of this QLED display is up to: NTSC 78%, SRGB 92%.

Improved color reproduction: QLED colors are increased by 58.3%, makes the color more pure, vivid

EXTENDED SERVICE LIFE: Due to the inorganic characteristics, the lifespan of QLED LED can be up to 60,000 hours without color degradation.

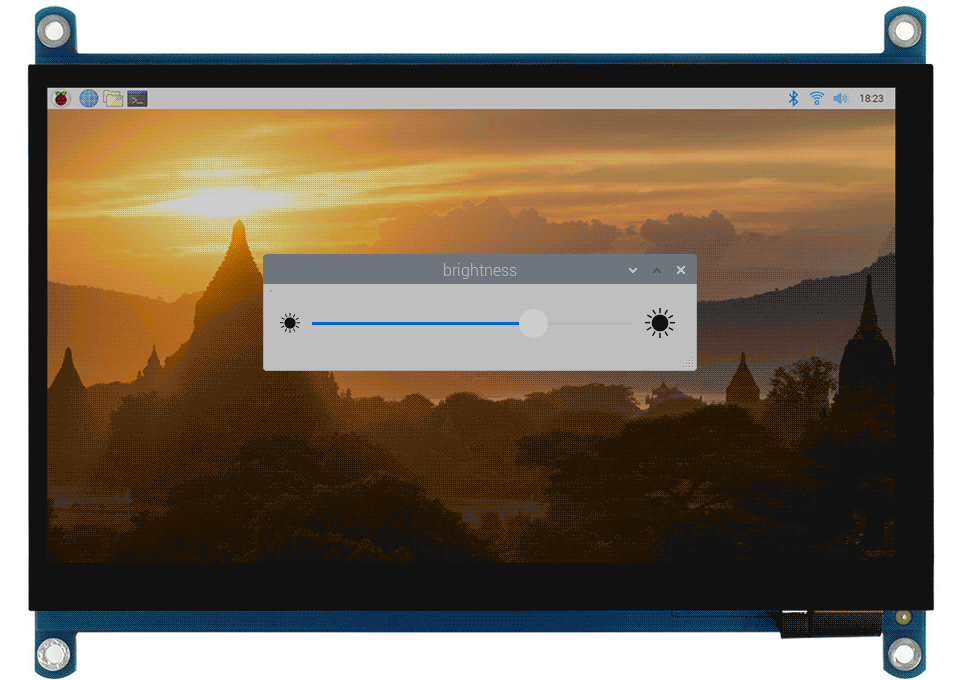

Manual screen brightness adjustment

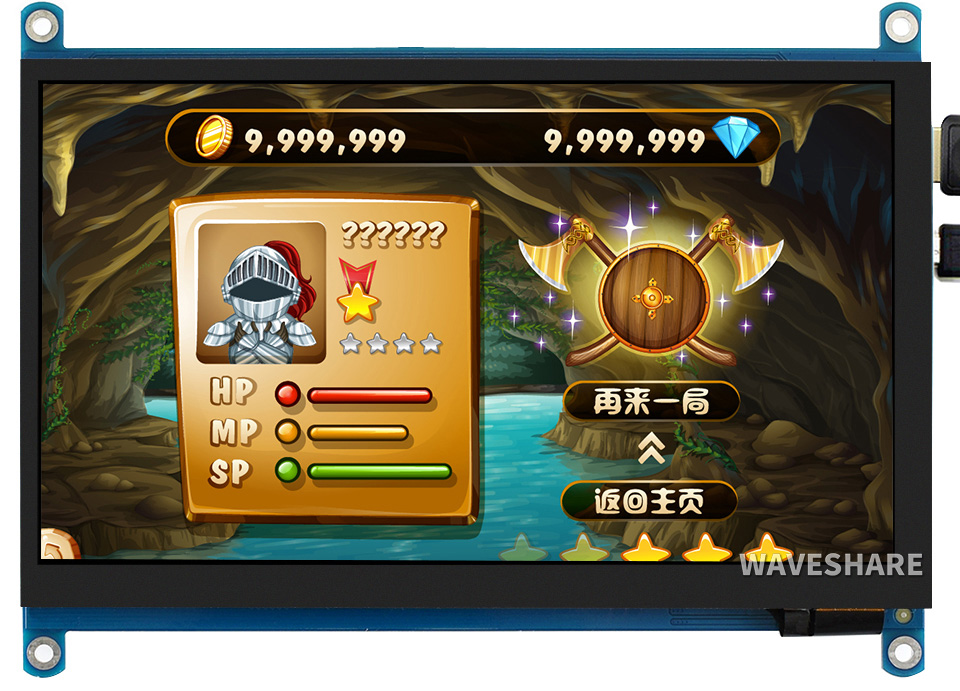

The display supports operation with Xbox360 / PS4 / SWITCH game consoles ... (display and sound only)

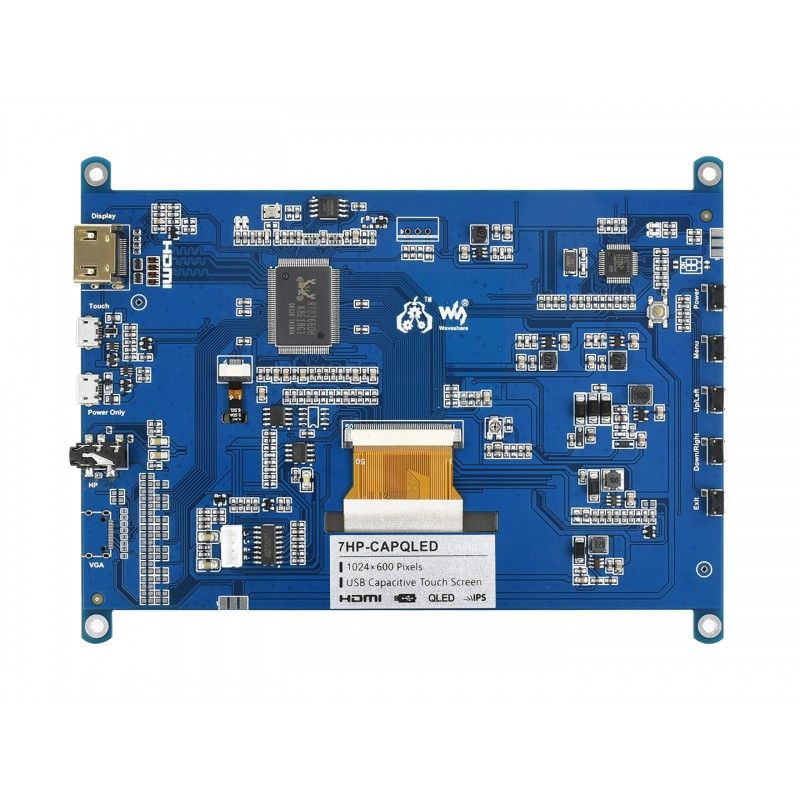

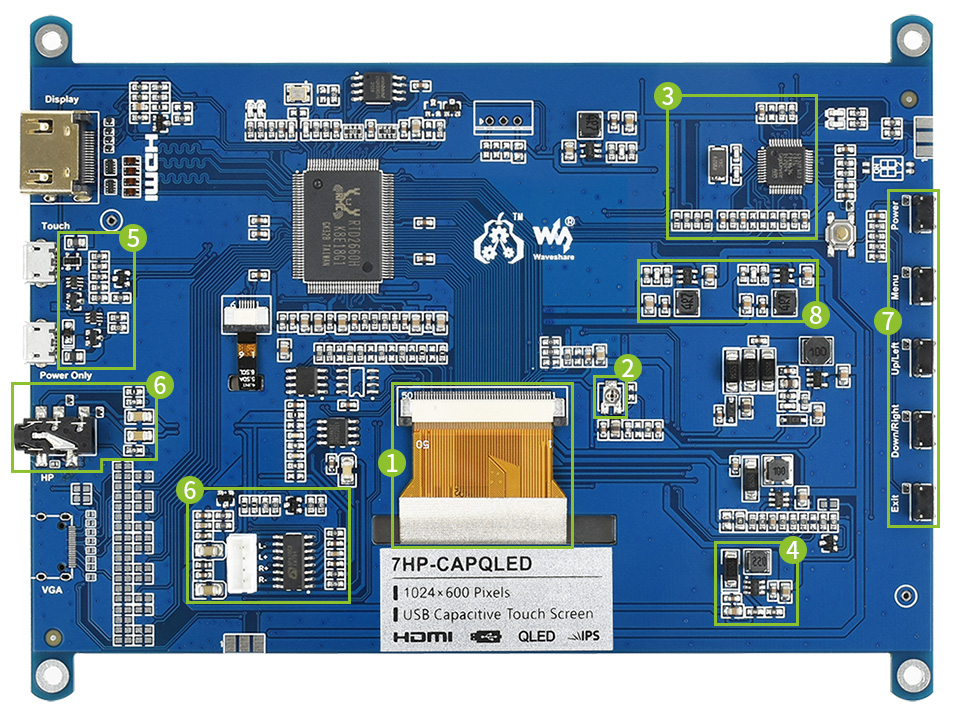

Construction elements:

1. FFC LCD cable with EMI and ESD protection in accordance with CE certificate
2. VCOM voltage adjustment to optimize the display effect
3. USB protocol translator that converts the touch signal to the standard multi-point touch protocol to achieve smooth multi-point touch control
4. USB power input with a wide input range of 4 5.5V to avoid display flickering or touch screen crash caused by low USB voltage
5. Diode isolation with low voltage drop. If both Touch and Power Only are connected to a power supply, only the one with the higher power will be used as the power supply. The two power inputs are completely isolated from each other.
6. Two audio outputs for headphones and speaker, each supporting a 2.6W PA circuit
7. OSD configuration buttons for setting the backlight (via software) and display color
8. DC-DC LCD driver circuitry, low heat for long term operation

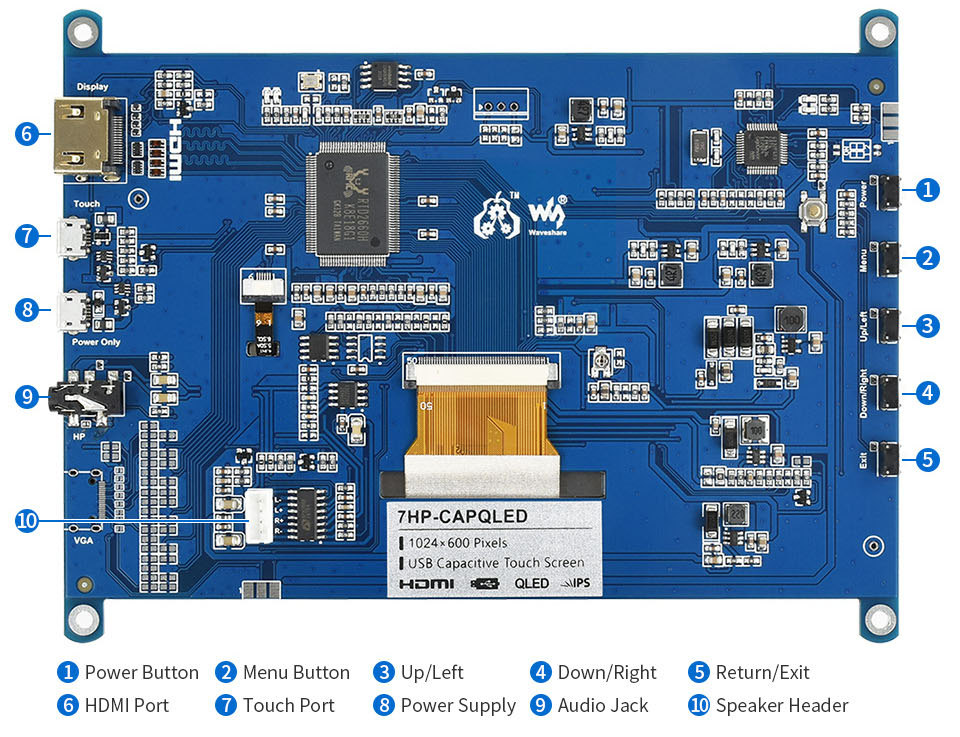

Interfaces:

1. Power supply pin
2. Menu button
3. Up / Left button
4. Down / Right button
5. Exit button
6. HDMI port
7. Touch port
8. Power connector
9. Audio jack
10. Speaker connector

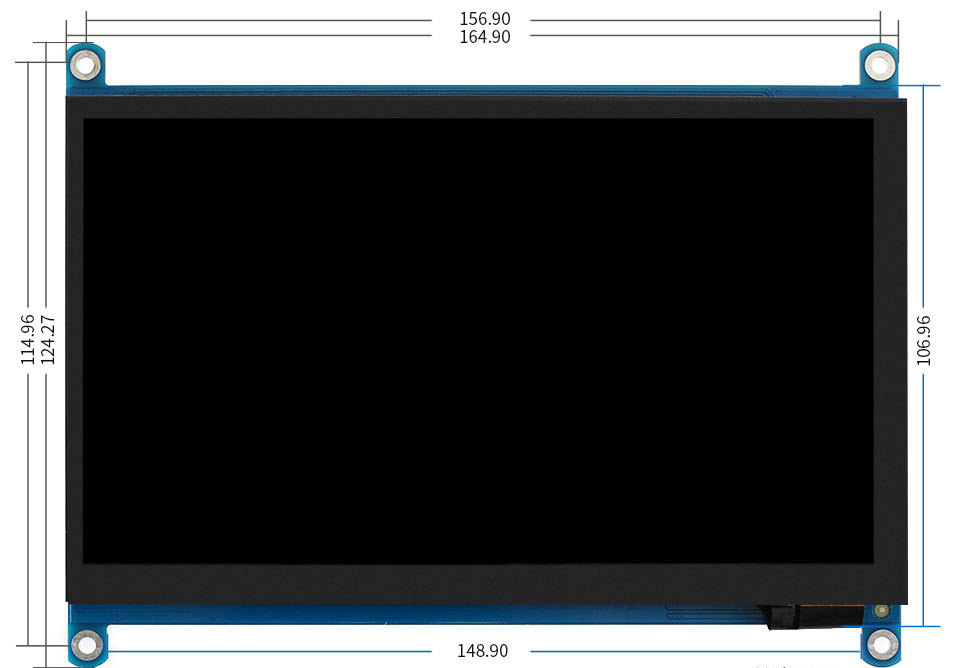

Overall dimensions, mm: 164,90 х 124,27

Resources for Wiki developers: 7HP-CAPQLED

1. 7HP-CAPQLED - 1 pc.
2. HDMI cable - 1 pc.
3. HDMI to Micro HDMI adapter - 1 pc.
4. USB type A plug to micro B cable - 1 pc.
5. Mounting kit - 1 pc.

1. 2. 3. 4. 5.

Weight: 0.428 kg
