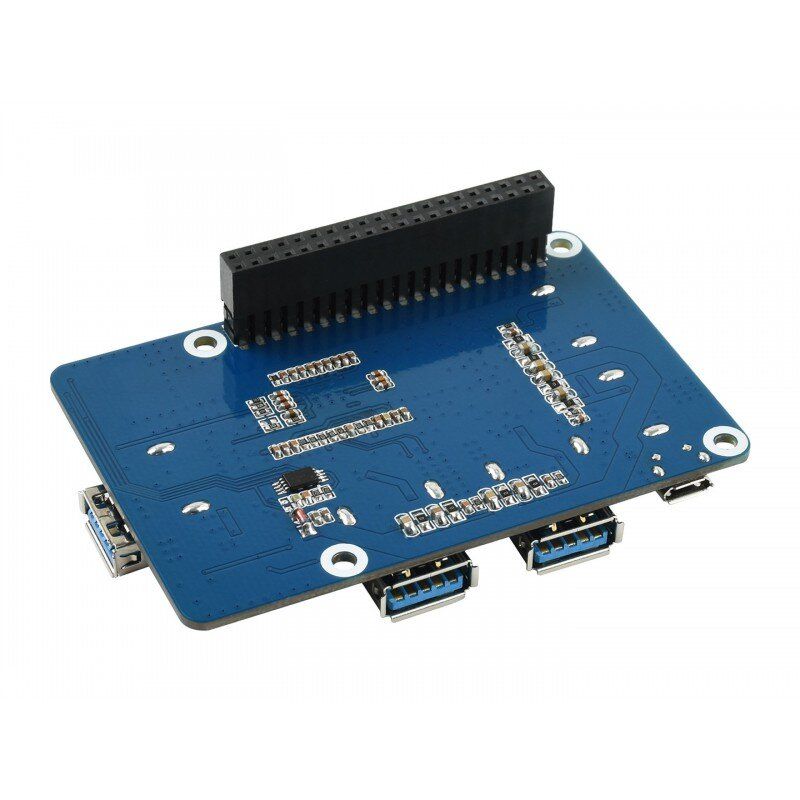

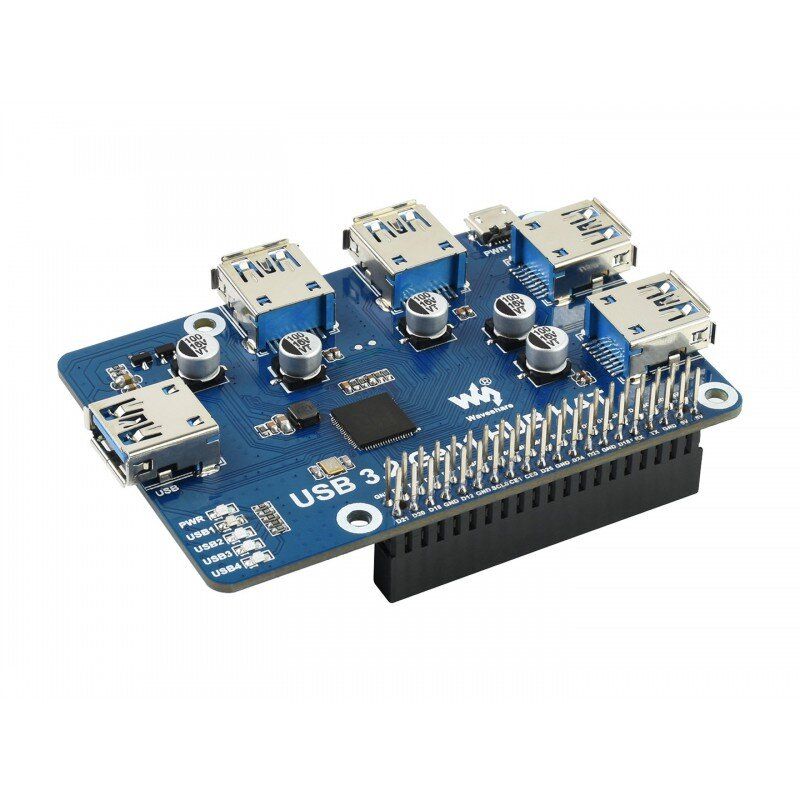

Raspberry Pi USB 3.2 Gen1 HUB HAT expansion card (17584)

TheRaspberry Pi USB 3.2 Gen1 HUB HAT (17584 ) is designed to increase the number of USB devices that can be connected to the Raspberry Pi microcomputer. It allows you to simultaneously connect such devices as a USB Flash Drive, USB mouse, USB keyboard, USB card reader, USB printer, USB game console, USB fan, USB external storage device, etc.

The expansion card has 4 USB 3.2 Gen1 ports capable of providing high-speed data transfer (up to 5 Gbps) as well as powering these devices, as it has a special connector built in to connect an external power supply that serves these USB ports.

Main features:

• 4 USB 3.2 Gen1 ports, compatible with USB 3.0/2.0/1.1

• built-in external 5V DC Micro USB power port provides stable power to external devices

• one power indicator and four USB port status indicators

• does not require drivers

• compatible with OS: Windows, Mac OS, Linux and Android

• designed for Raspberry Pi 4, but compatible with other versions of Raspberry Pi.

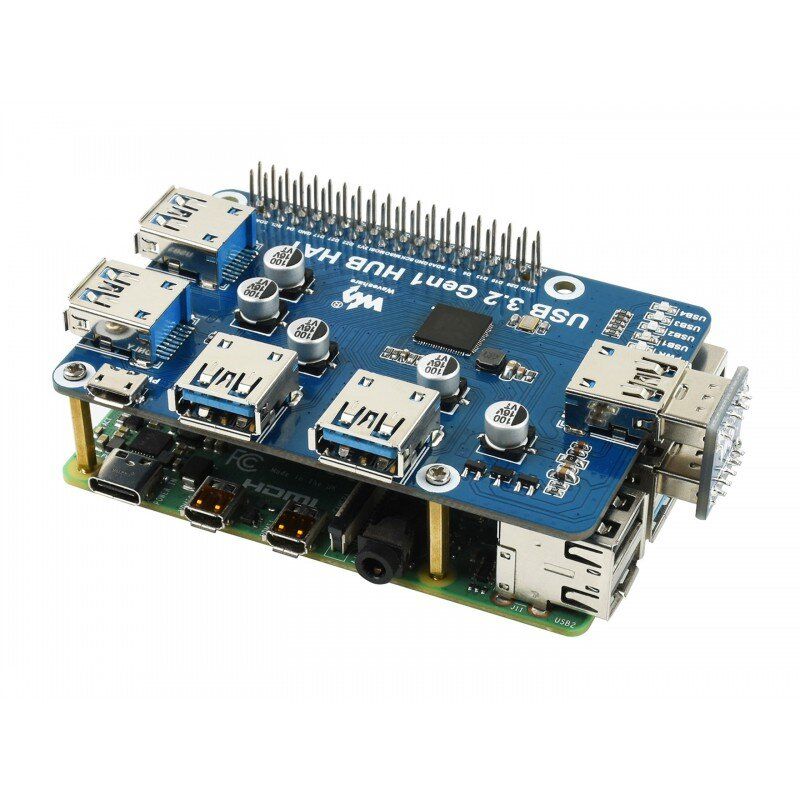

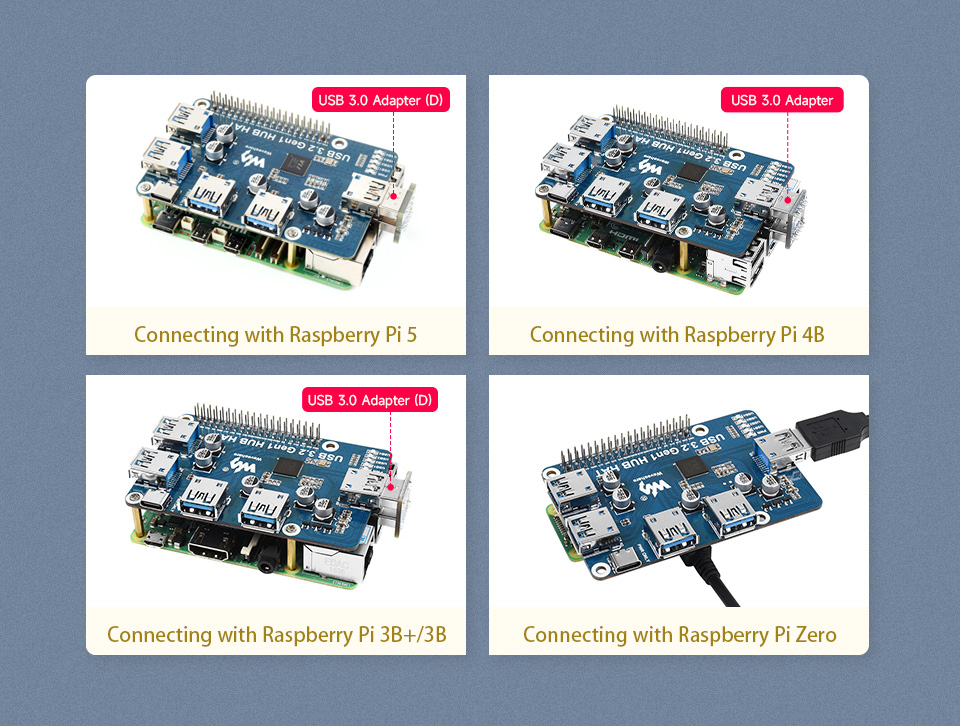

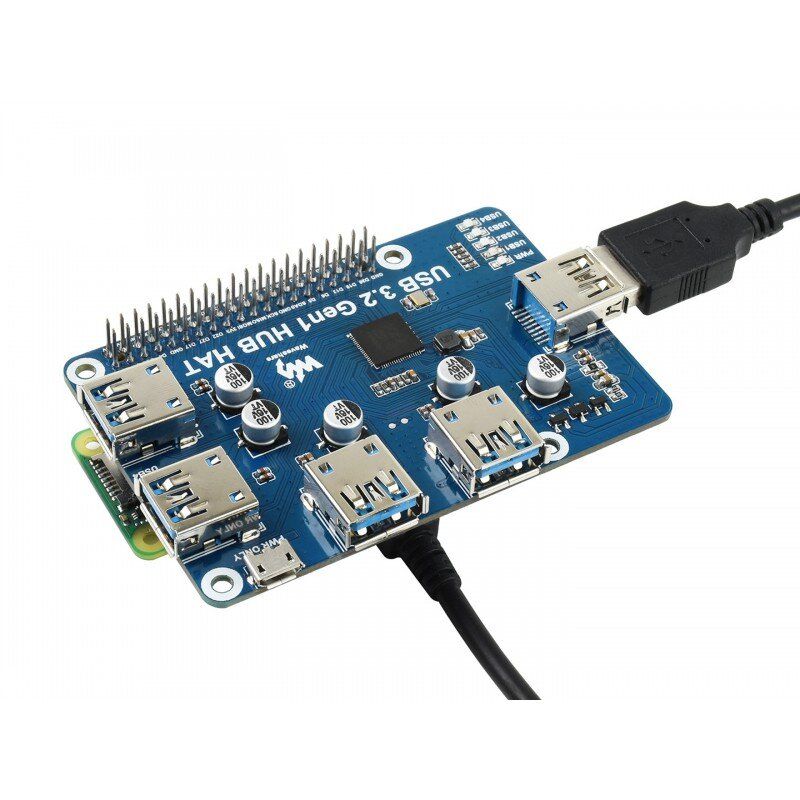

Thanks to the standard 40-pin GPIO connector, the board can be easily connected to all Raspberry Pi microcomputers. Data is transferred via a USB hub using a special adapter included in the package. Examples of connection to Raspberry Pi 4B / 3B + / 3B / Zero:

Since it is possible to fully utilize the potential of high-speed data transfer only in the Raspberry Pi 4B, which supports USB 3.0, other models limit the bandwidth to match the bandwidth of the USB port on the microcomputer board.

The availability of external power supply via the Micro USB 5V connector in combination with the built-in power supply of these ports allows for stable operation of external devices with high power consumption (such as removable disks, etc.)

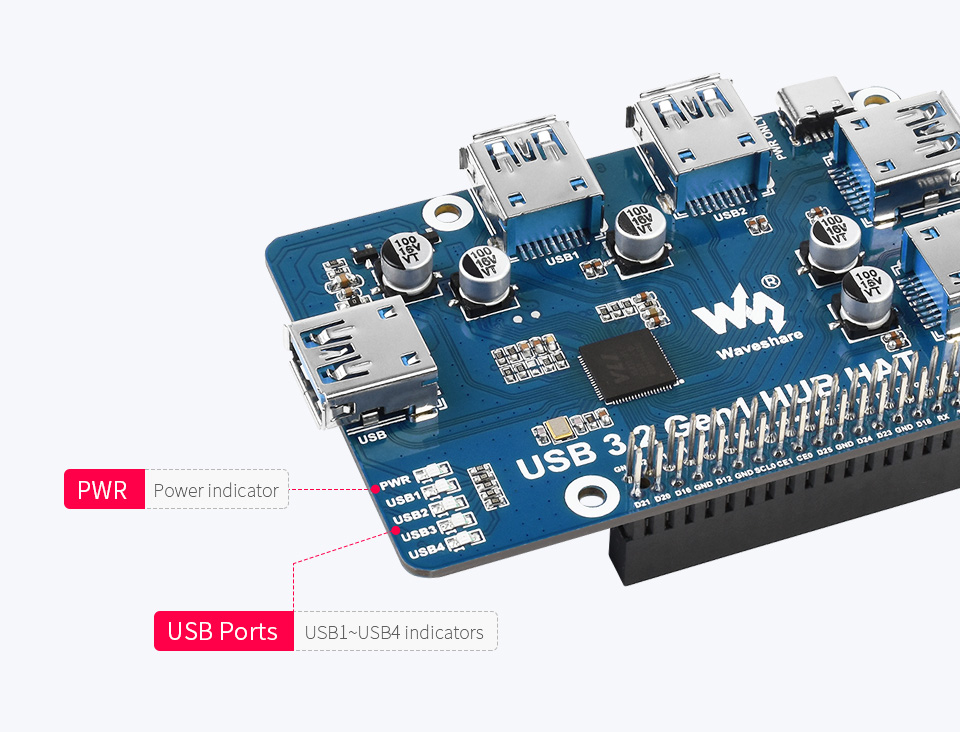

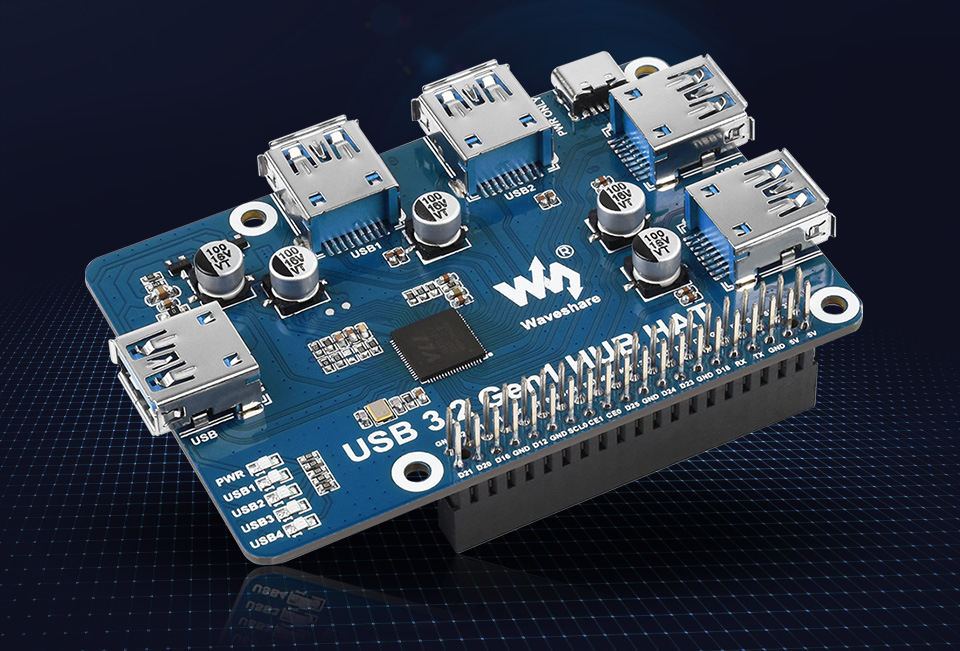

You can visually check the status of the board and USB ports thanks to the built-in LEDs that indicate the respective device statuses (board power LED and USB port status LEDs).

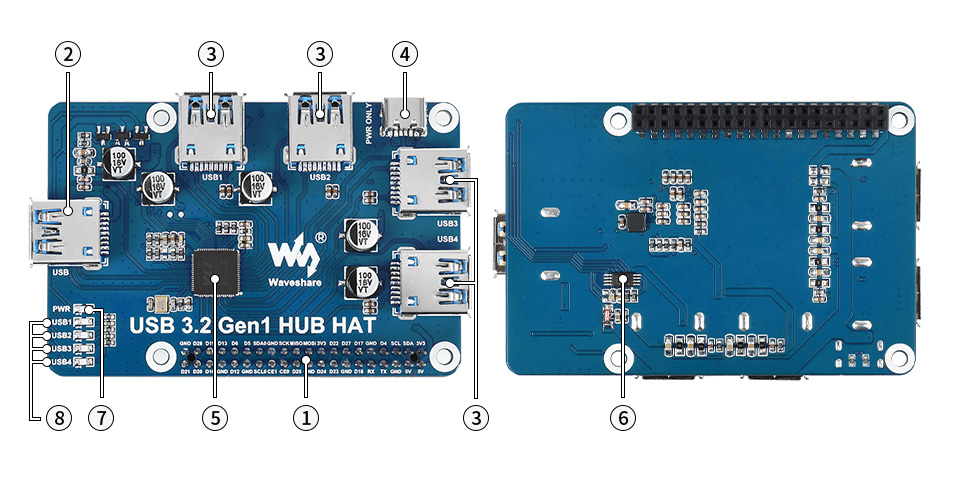

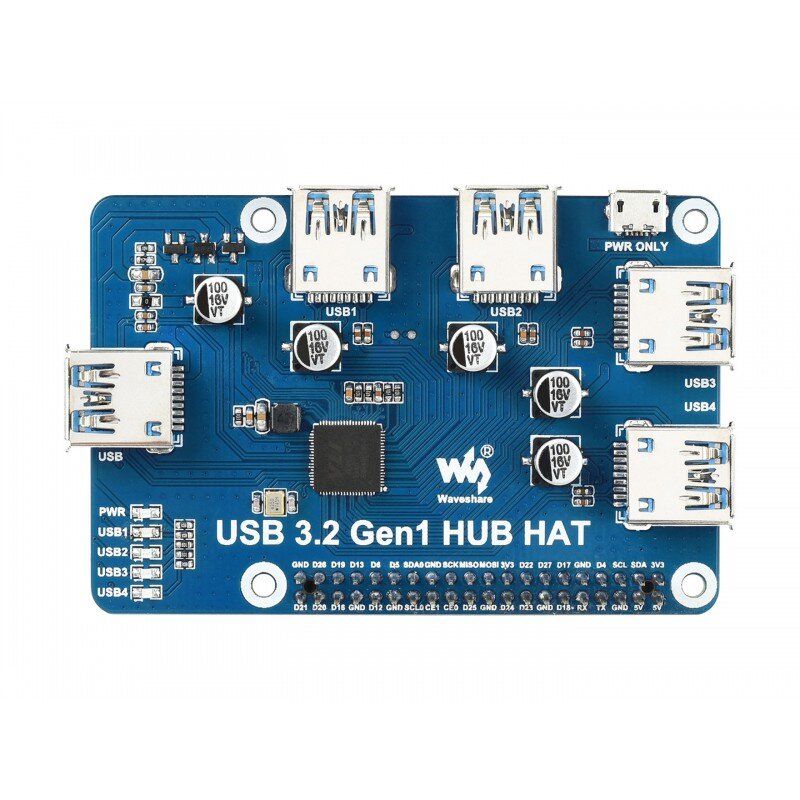

Board elements:

1. Raspberry Pi GPIO connector for connecting a Raspberry Pi

2. USB 3.2 Gen1 HUB input for connection to the Raspberry Pi USB port

3. USB 3.2 Gen1 output ports (USB1 USB4)

4. Micro USB port for connecting exclusively external power supply (PWR) 5 V DC

5. VL817-Q7 - USB HUB chip

6. MX25L512COI-10G - flash memory chip

7. PWR - power supply indicator

8. USB1 USB4 - status indicators for USB1 USB4 ports

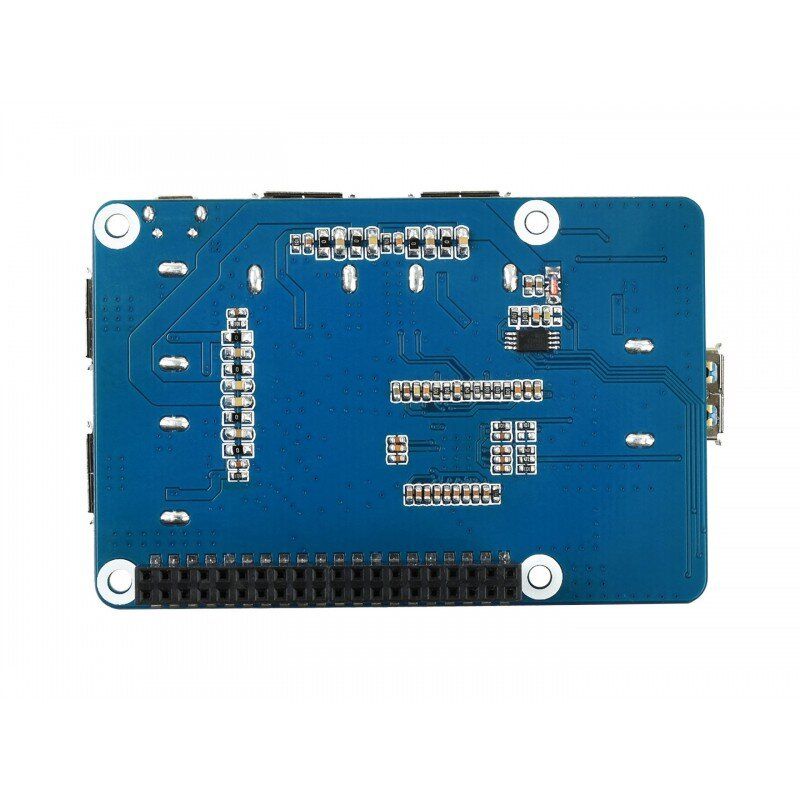

Overall dimensions, mm: 85 х 56,7

Information for developers: USB_3.2_Gen1_HUB_HAT

The package includes:

1. USB 3.2 Gen1 HUB expansion card x1
2. USB 3.0 Adapter x1
3. USB 2.0 Adapter x1
4. USB 3.0 cable x1
5. RPi mounting kit x1

1. 2. 3.4. 5.

Weight: 0.089kg
