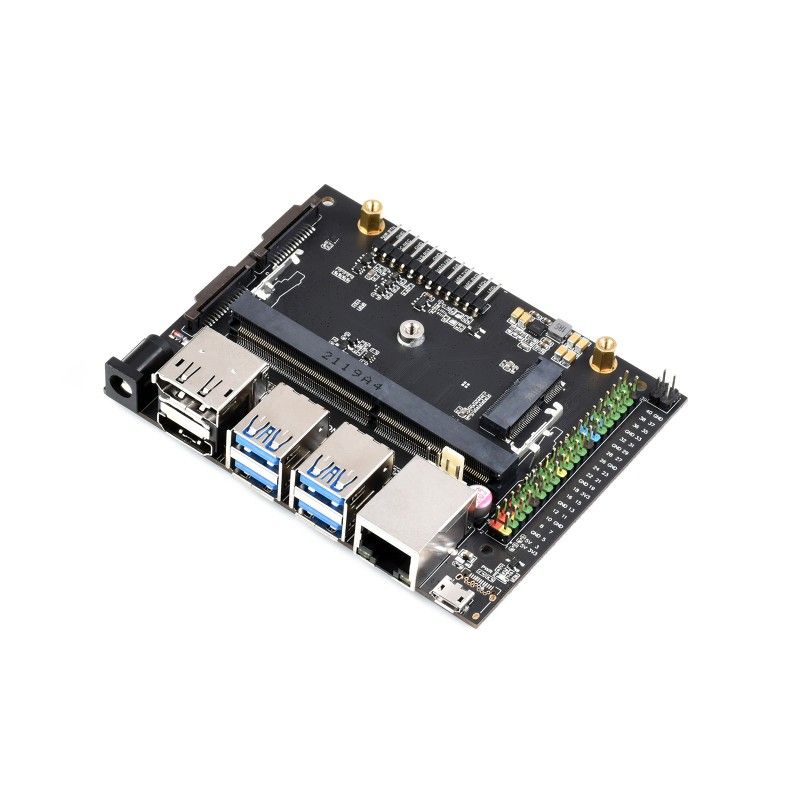

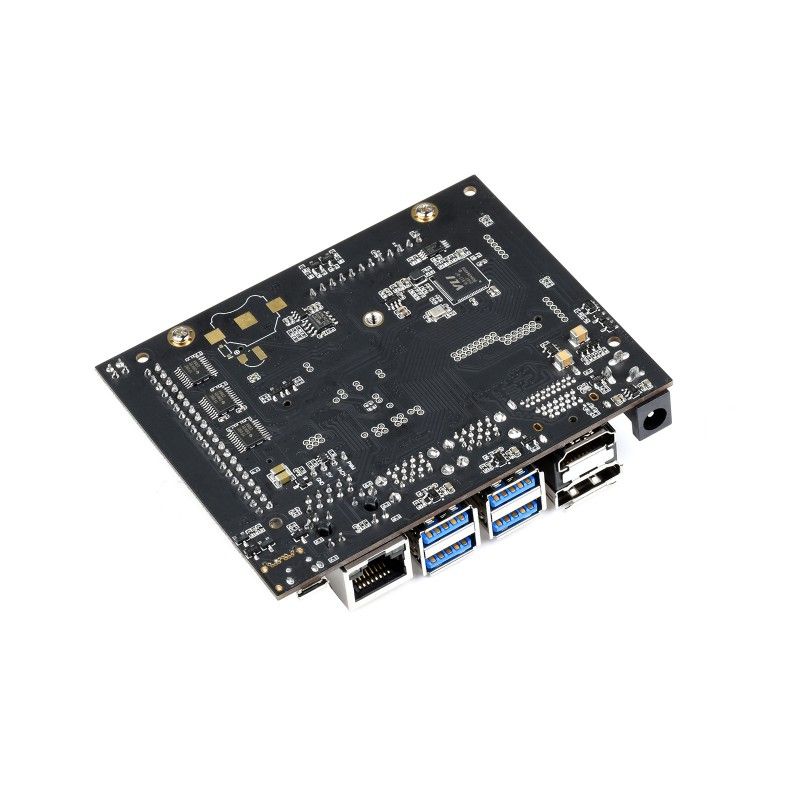

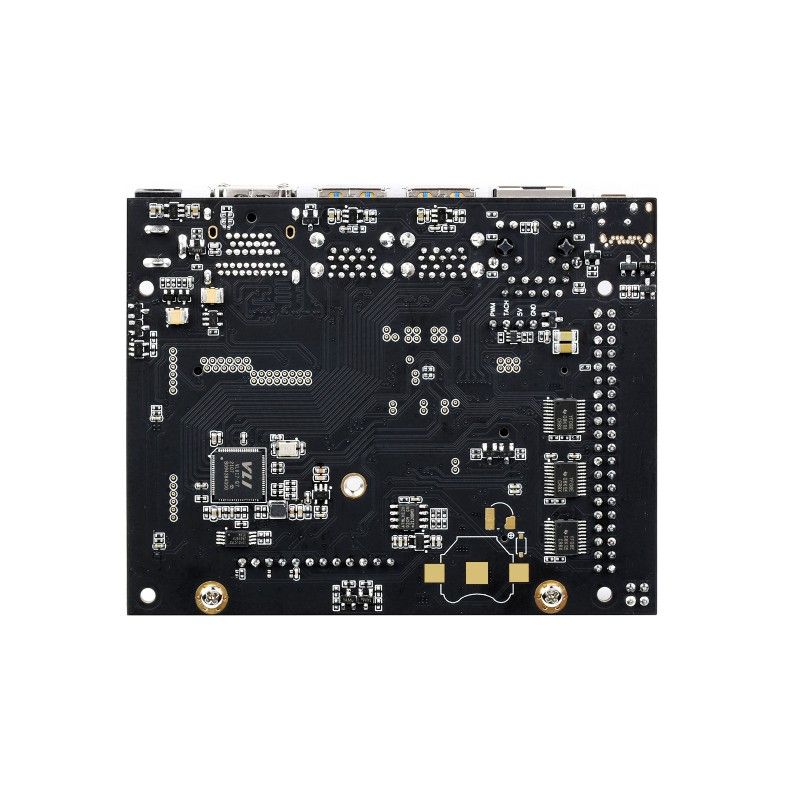

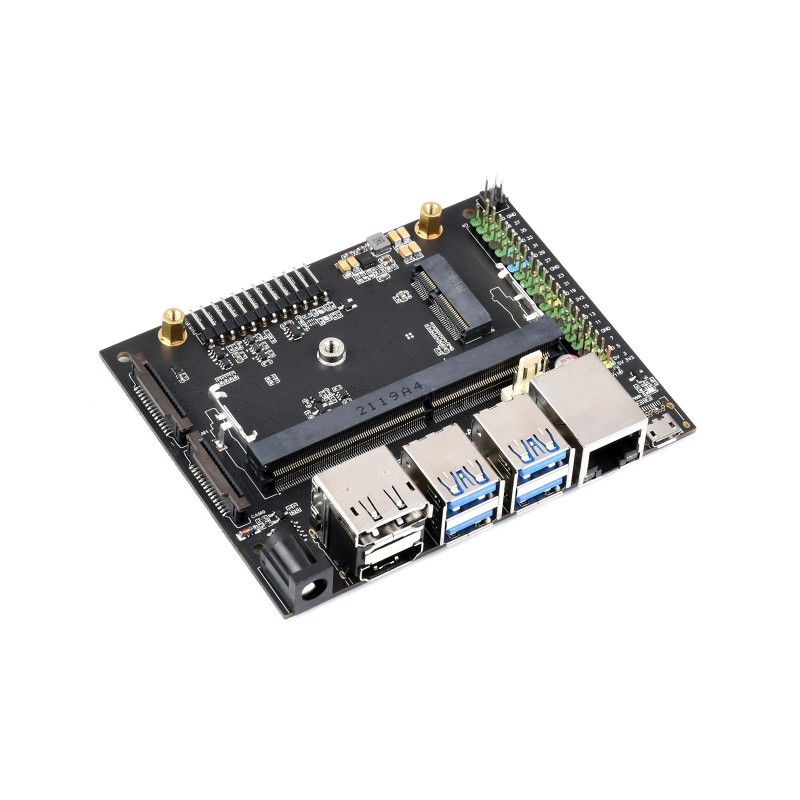

Waveshare Jetson Nano Base Board (21650)

Please note: Jetson Nano / Jetson Xavier NX module is not included in the package.

The Waveshare Jetson Base Board (21650 ) is a JETSON-IO-BASE-A base board compatible with Jetson Nano and Jetson Xavier NX for exploring AI and AI robotics. It is very useful for beginners and experts, as it allows you to use the same tools and software that work with more productive platforms from NVIDIA. It is suitable for areas such as image classification, object detection, segmentation, speech processing, and more, and can be used in a variety of AI projects.

Please note: The new modification of the base board has the following changes: Added built-in eMMc 16GB storage, which provides more stable read/write performance. An additional micro SD card is no longer required for the boot disk, which provides sufficient space to install the system image and development/research requirements in most cases.

Specifications:

Supports 2-way CSI camera, suitable for binocular vision applications such as parallax algorithm ranking, face recognition, organism detection, VR video recording

Two 4K outputs: support DisplayPort and HDMI High Definition ports

4x High Speed USB3.0: High-speed USB3.0 data transfer allows you to use more USB peripherals

40-pin GPIO connector with color coding and clear labels

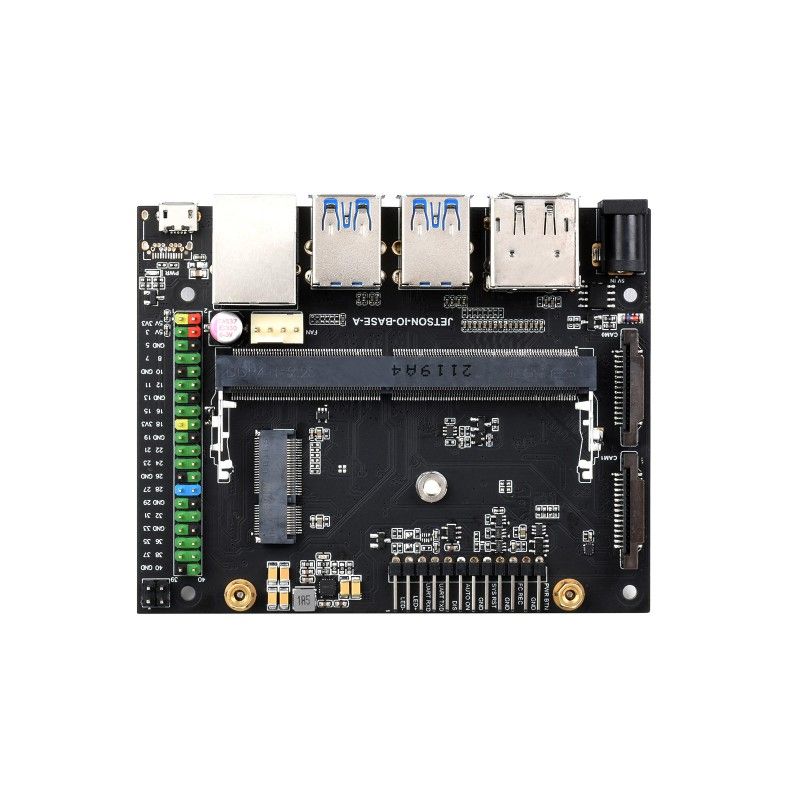

Board elements:

1. Main module connector
2. M.2 Key E expansion connector
3. PoE pins: PoE module is not included
4. 40-pin GPIO connector
5. Micro USB port: for 5V power input or USB data transfer
6. Gigabit Ethernet port: auto-negotiates 10/100/1000Base-T, supports PoE when an external PoE module is connected
7. 4 USB 3.0 ports
8. HDMI output port
9. DisplayPort connector
10. Connector for 5 V DC power input
11. 2 MIPI CSI camera connectors

Overall dimensions: 100mm x 80mm

Information for developers (Wiki): JETSON-NANO-DEV-KIT

The package includes:

1. JETSON-IO-BASE-A (board) x1

1.

Weight: 0.081 kg
