NVIDIA Jetson Xavier NX 16GB Module

Name: NVIDIA Jetson Xavier NX 16GB Module
Brand: NVIDIA
SKU: V115063
Price: 856.00 GBP
Availability: OutOfStock

Brand: NVIDIA Product Code: V115063

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

Out Of Stock

£856.00

Country of origin:Made in USA

Form factor:Module

RAM:16GB

Series of modules:Jetson Xavier NX

Storage:16GB

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

NVIDIA Jetson Xavier NX 16GB Module

£856.00

Description

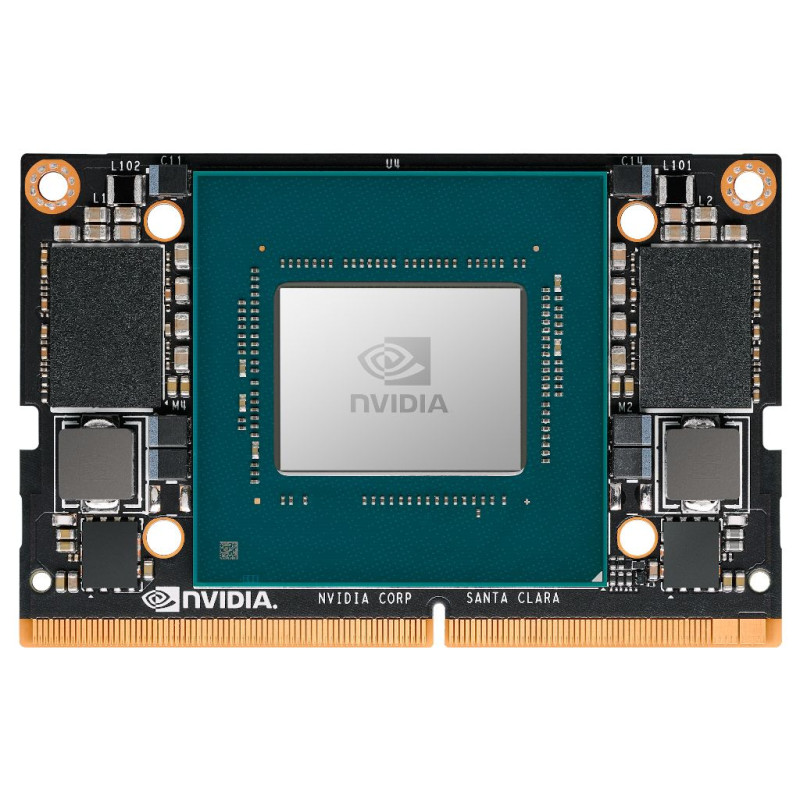

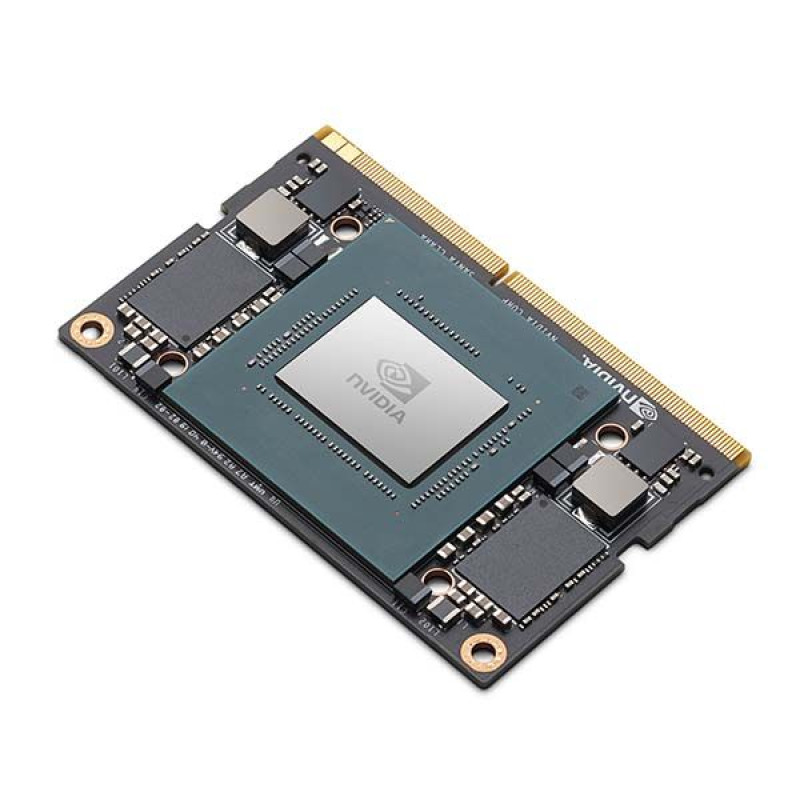

TheNVIDIA Jetson Xavier NX 16GB Module is a computing module that delivers up to 21 TOPS of AI computing performance, consumes only 10 watts of power, and has a compact form factor smaller than a credit card. It leverages 16 GB of onboard memory for real-time AI to run complex programs with multiple neural networks while processing high-resolution sensor data in parallel. This module is suitable for applications for embedded and edge computing devices that require enhanced performance but are constrained by size, weight, and power limits.

Technical specifications:

AI performance.	21 TOPS (INT8)
GPU	384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU	6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
CPU Max Freq	2-core @ 1900MHz 4/6-core @ 1400Mhz
DL accelerator	2x NVDLA Engines
Vision accelerator	2x PVA
Memory	16 GB 128-bit LPDDR4x @ 1866 MHz 59.7GB/s
Storage	16 GB eMMC 5.1
Power consumption	10W \| 15W \| 20W
PCIe	1 x1 + 1x4 (PCIe Gen3, Root Port & Endpoint)
CSI camera	up to 6 cameras (36 via virtual channels) 14 MIPI CSI-2 lanes D-PHY 1.2 (up to 30 Gbps)
Video encoding	2x 4K60 \| 4x 4K30 \| 10x 1080p60 \| 22x 1080p30 (H.265) 2x 4K60 \| 4x 4K30 \| 10x 1080p60 \| 20x 108p30 (H.264)
Video decoding	2x 8K30 \| 6x 4K60 \| 12x 4K30 \| 22x 1080p60 \| 44x 1080p30 (H.265) 2x 4K60 \| 6x 4K30 \| 10x 1080p60 \| 22x 1080p30 (H.264)
Display.	2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Network	10/100/1000 BASE-T Ethernet
Dimensions	45 mm x 69.6 mm standard 260-pin SO-DIMM connector
