Raspberry Pi Compute Module 4 Industrial IoT Mini-Computer (20785)

Raspberry Pi Compute Module 4 is not included

Raspberry Pi Compute Module 4 Industrial IoT Mini-Computer (20785 ) is a kit that consists of the CM4 Industrial IoT Base Board(with support for 5G/4G/3G/2G global cellular network, PoE Ethernet) and a specialized metal case with a fan, which allows you to assemble a full-fledged microcomputer based on the Raspberry Pi CM4 computing module (the computing module itself is not included in this kit). This kit allows you to create industrial-grade projects with a wide range of functions based on the Raspberry Pi.

An optional communication module is required to enable the 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8202G-M2, SIM8200EA-M2. The base board is compatible with communication modules with M.2 B KEY interface.

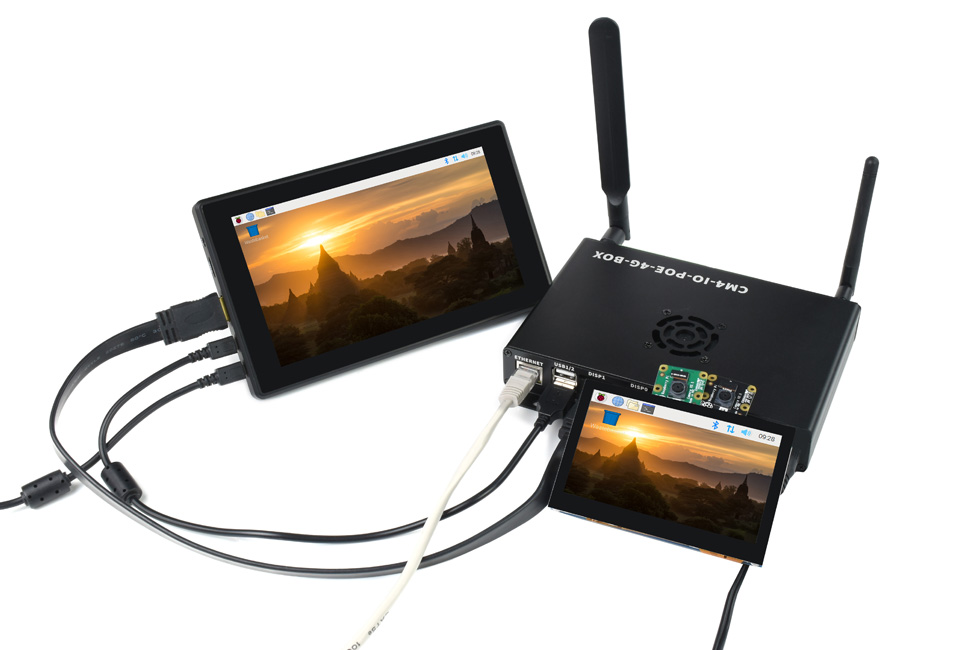

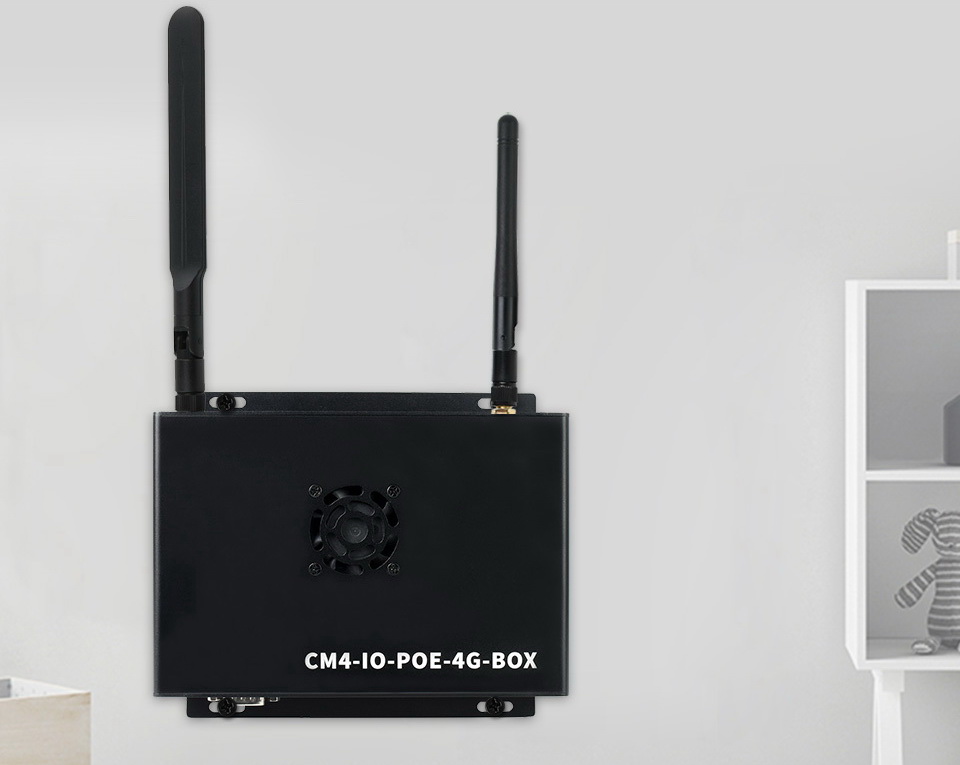

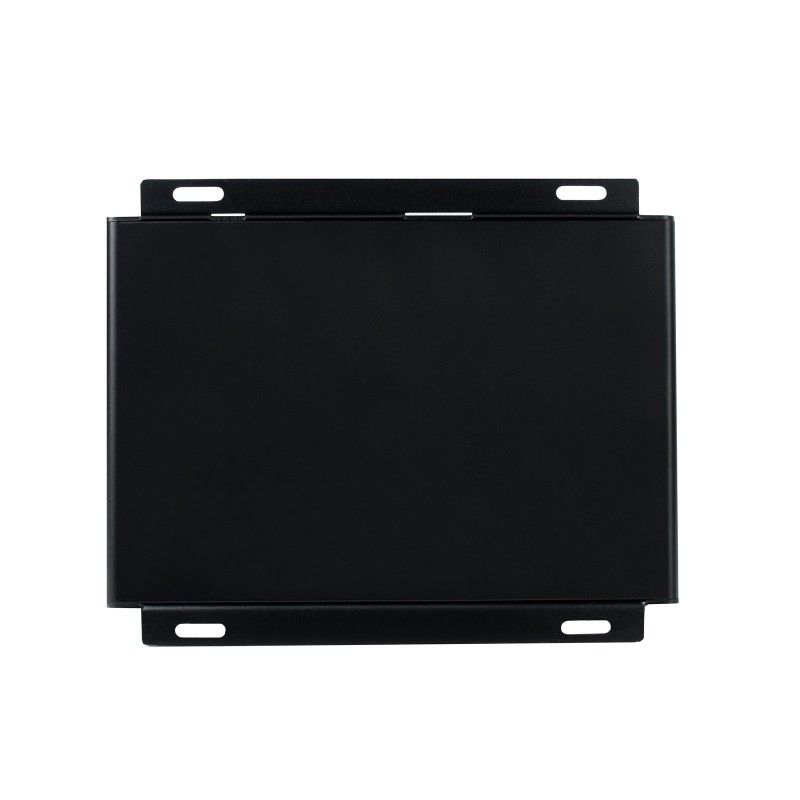

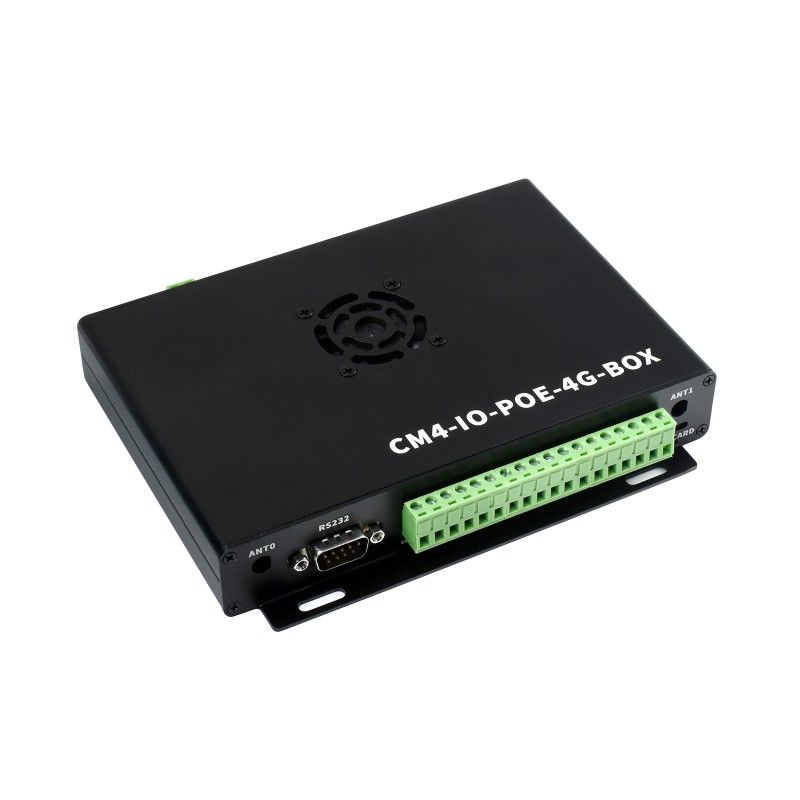

Thanks to the wall-mount design, it can be easily mounted on almost any surface.

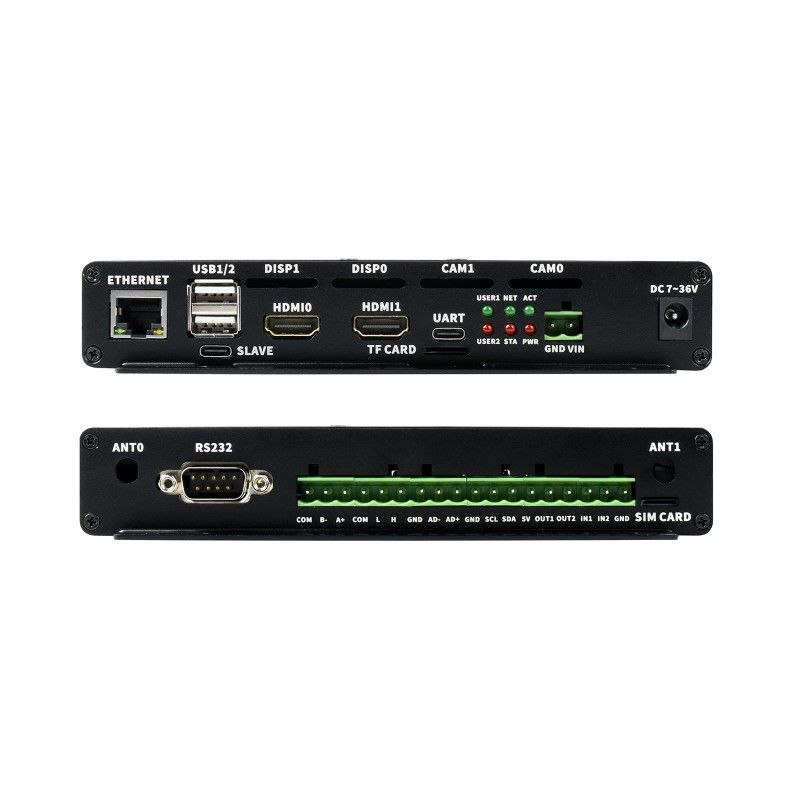

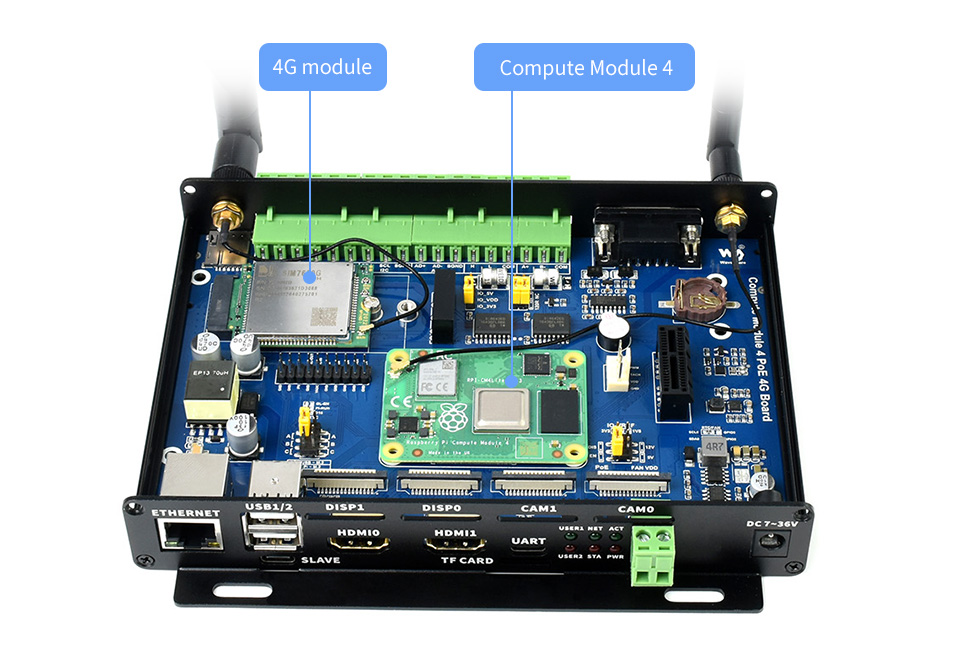

The base board and the computing module are protected by a robust two-piece metal housing. The case has openings for all major interfaces, including an external antenna (antenna not included). A cooling fan is built into the case for better heat transfer.

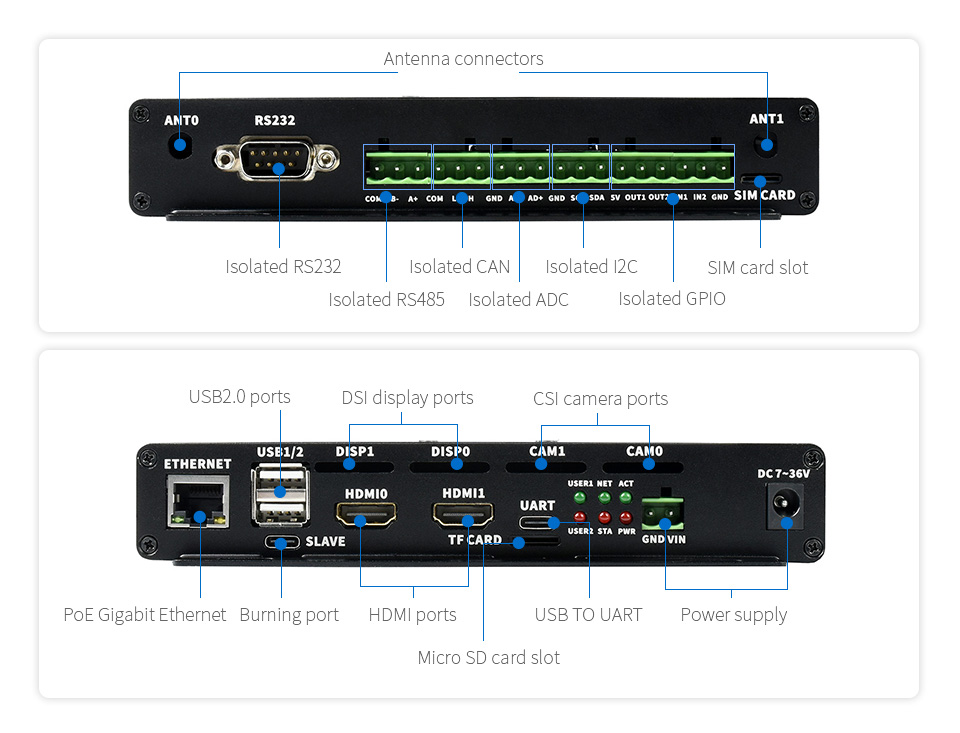

For your convenience, all places for external interfaces are labeled.

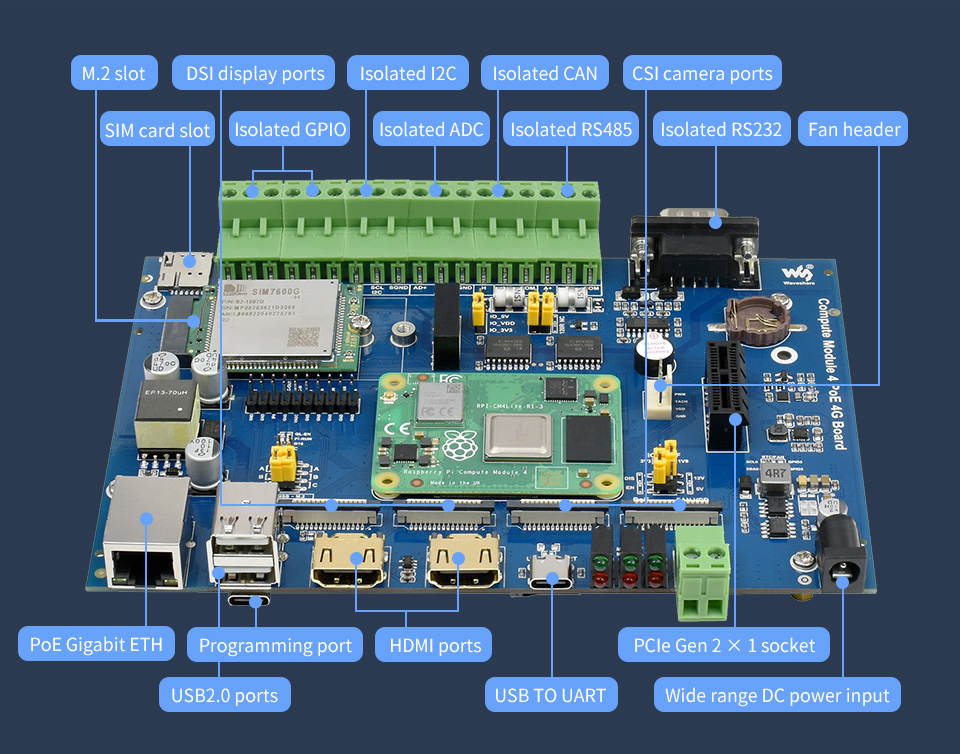

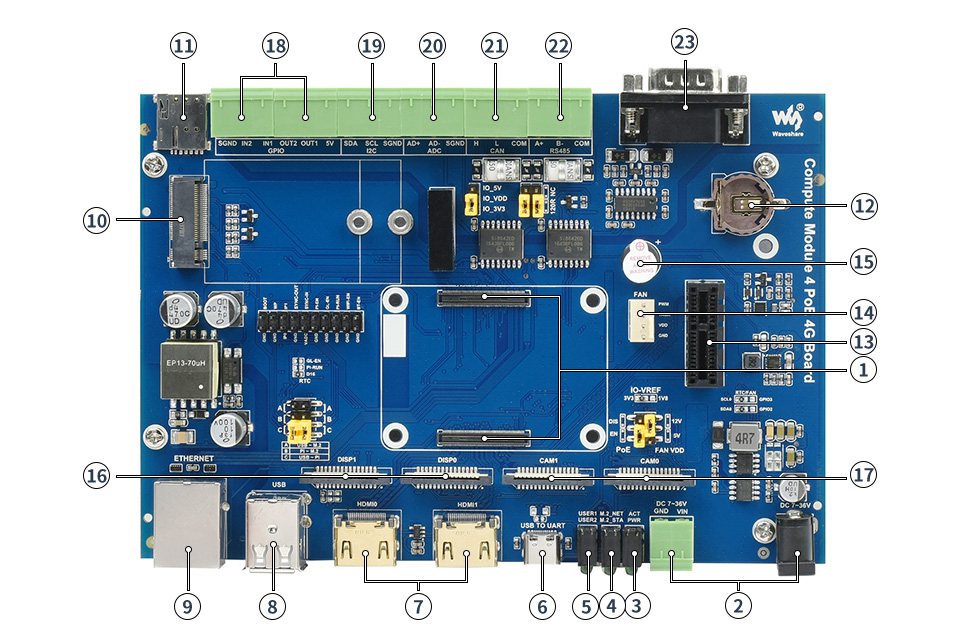

Main elements of the base board:

1. Compute Module 4 connector for connecting Raspberry Pi Compute Module 4
2. Power input: power supply with a wide voltage range of 7-36 V
3. CM4 status indicator
-red: Raspberry Pi power indicator
-green: Raspberry Pi operating status indicator
4. M.2 status indicator
-red: the indicator is on
-green: working status indicator
5. Convenient user indicator for testing I/O output or monitoring program execution status
6. USB TO UART for serial debugging
7. HDMI: two HDMI ports, supports dual 4K 30fps output
8. USB 2.0: two USB 2.0 ports for connecting USB devices
9. RJ45 Gigabit Ethernet: 10/100/1000M Gigabit Ethernet port with auto-negotiation and PoE Power Over Ethernet functions
10. M.2 slot for connecting a 5G/4G communication module
11. SIM card slot supports a standard SIM card for 4G/3G/2G communication
12. RTC real time clock battery holder supports CR1220 button cell
13. PCIe Gen 2×1 connector
14. Fan connector for connecting the cooling fan, allows you to adjust the speed and measure
15. Sound signal
16. DISP: two MIPI DSI display ports
17. CAM: dual MIPI CSI camera ports
18. Isolated GPIO allows you to monitor/detect devices via GPIO
19. Isolated I2C allows controlling/reading devices via I2C
20. Isolated ADC: differential ADC input
21. Isolated CAN interface
22. isolated RS485 interface
23. isolated RS232 interface

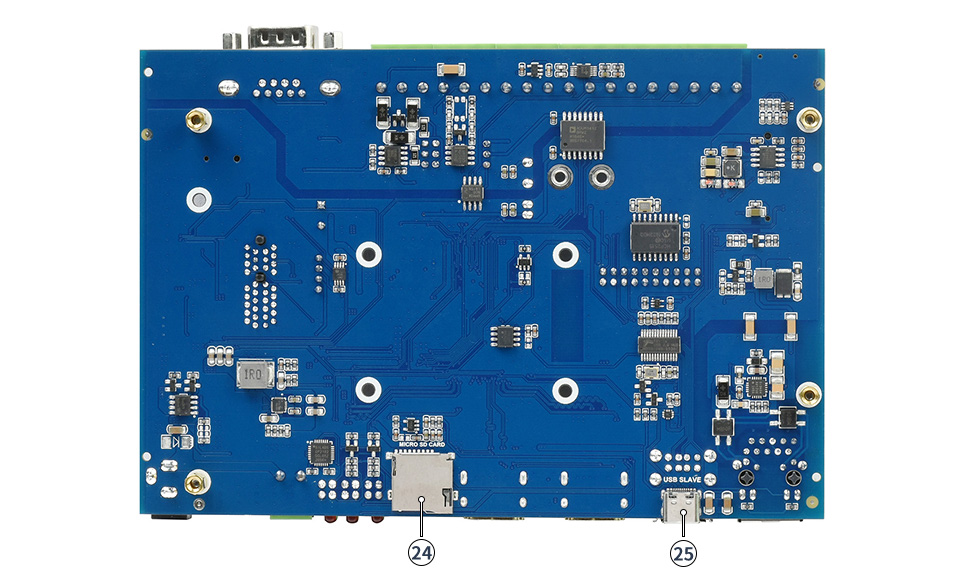

24. Micro SD card slot (bottom side) Insert a Micro SD card with a pre-recorded system to start the Compute Module 4 Lite
25. USB-C programming port (bottom side) allows you to write a system image to Compute Module 4 eMMC variants

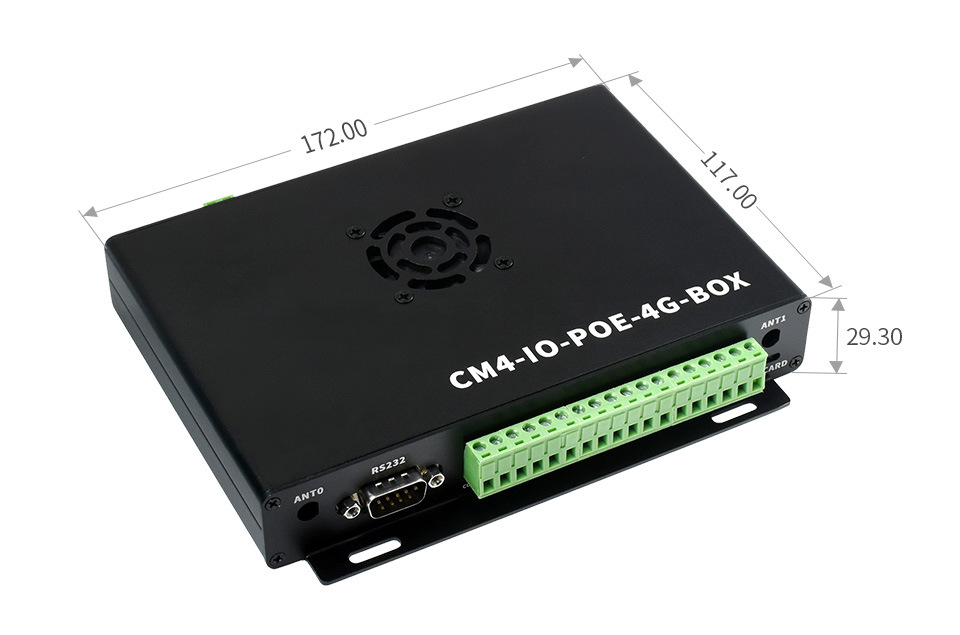

Overall dimensions: 172mm x 117mm x 29.3mm

Information for developers (Wiki): Compute_Module_4_PoE_4G_Board

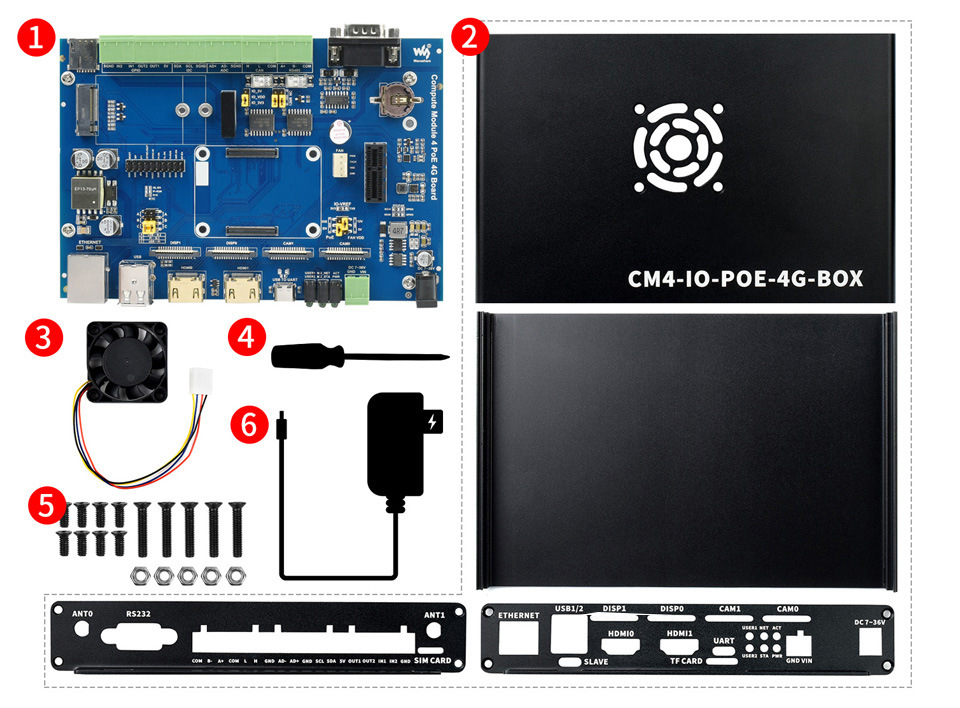

The package includes:

1. Compute Module 4 PoE 4G base board x1
2. Metal case (top and bottom) x1
3. Fan-4010-PWM-12V x1
4. Screwdriver x1
5. Package of screws x1 pc
6. Power adapter 12 V 2 A x1

Weight: 0.643 kg
