Raspberry Pi Multi-GNSS HAT expansion board (16193)

£18.30

Description

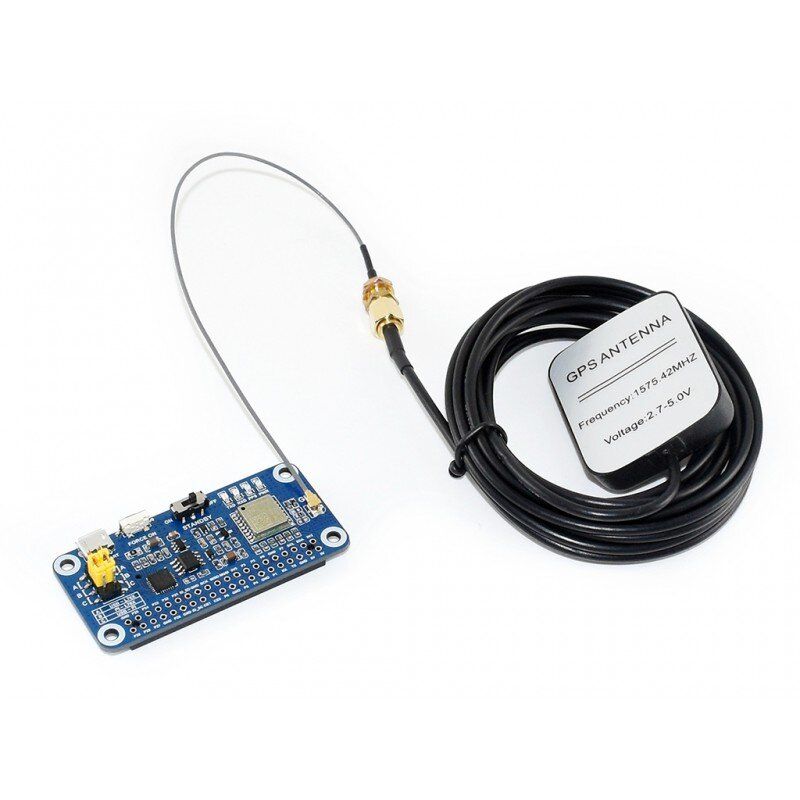

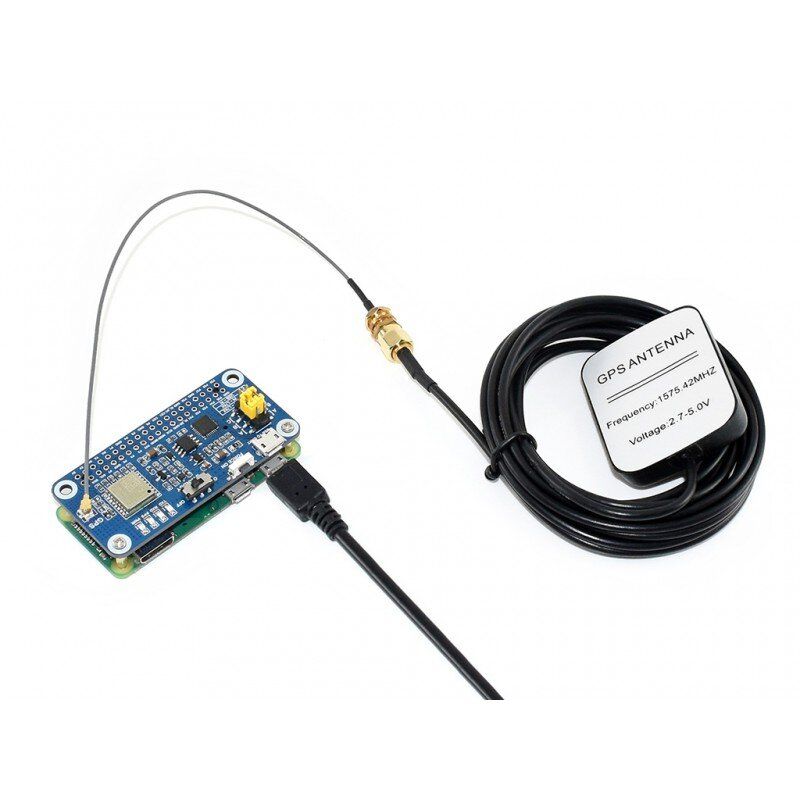

TheL76X Multi-GNSS HAT for Raspberry Pi, Supports GPS, BDS, QZSS is a Raspberry Pi GNSS HAT expansion board that supports Multi-GNSS systems: GPS, BDS and QZSS, with advantages such as fast positioning, high accuracy, low power consumption, etc.

This board is the easiest way to enable global positioning for your Raspberry Pi.

TheL76X Multi-GNSS HAT is used for vehicle tracking, asset tracking, security systems, industrial PDAs, and GIS applications.

Features.

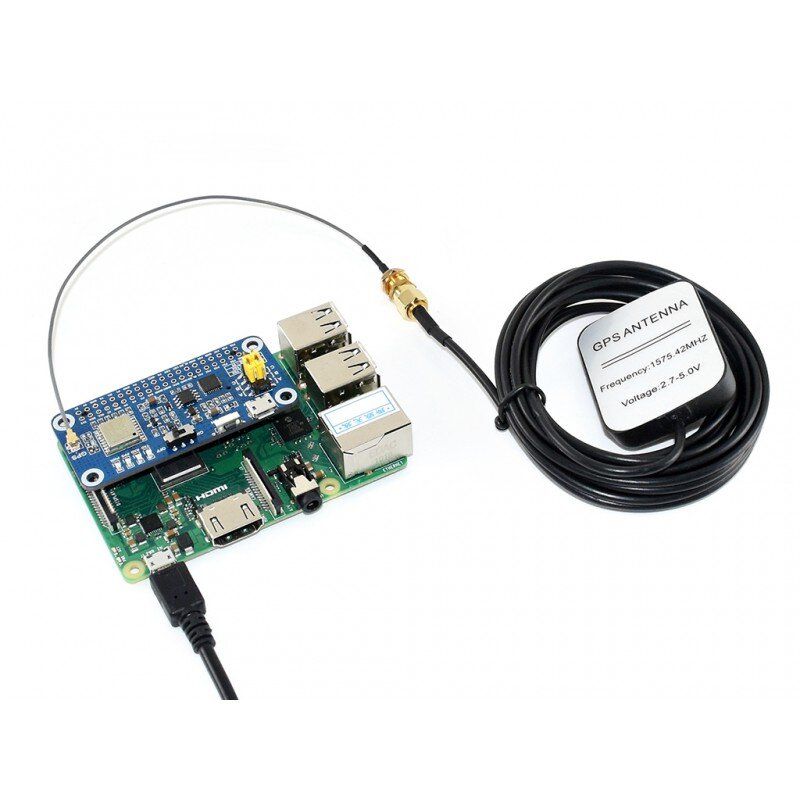

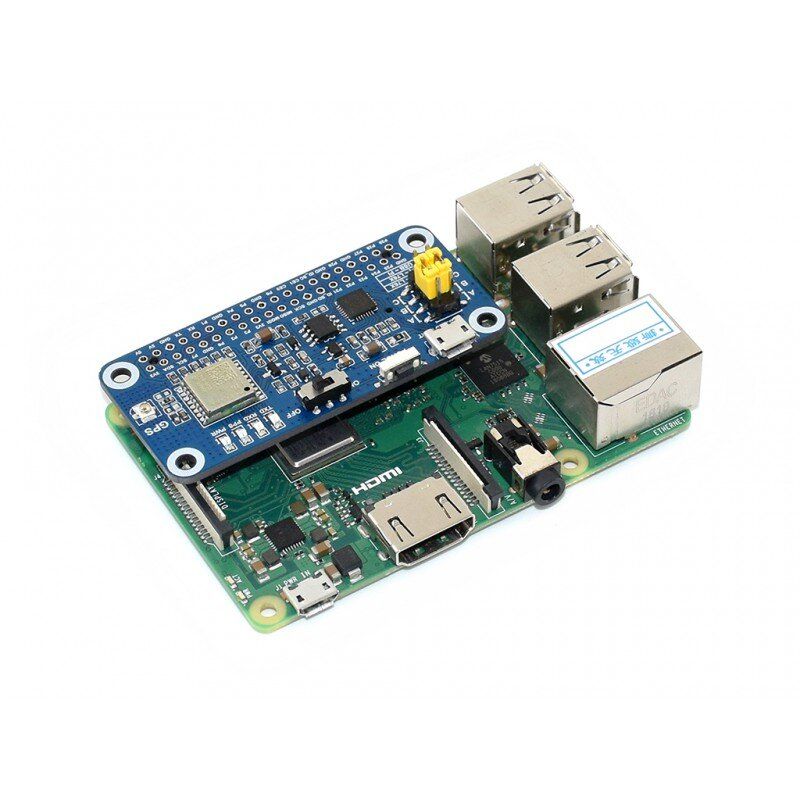

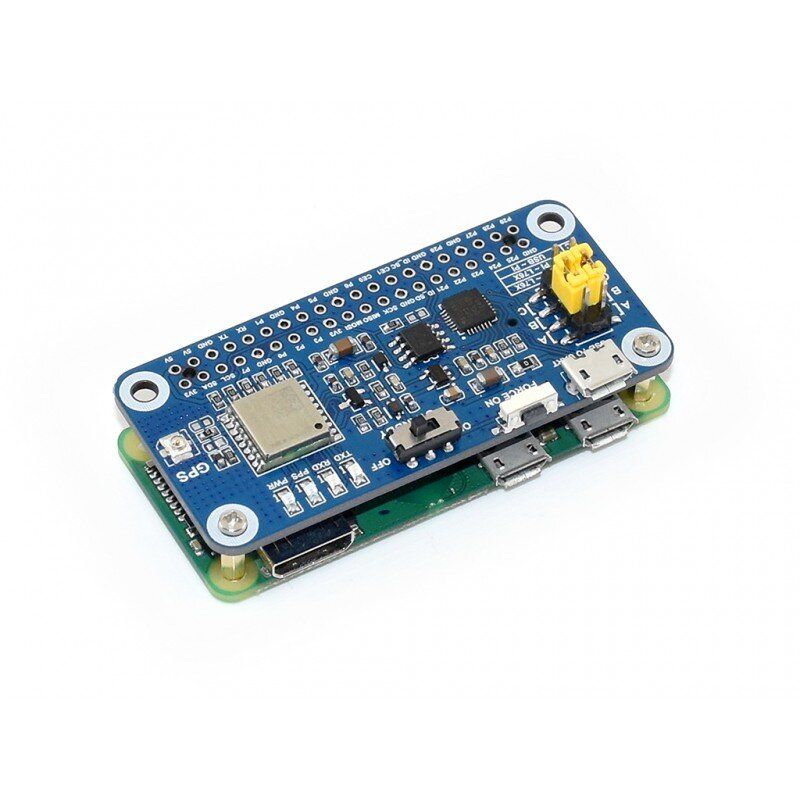

Standard Raspberry Pi 40PIN GPIO connector, supports Raspberry Pi, Jetson Nano series boards
Supports multi-GNSS systems: GPS, BDS and QZSS
EASY ™, self-verification technology, helps to quickly position
AlwaysLocate™, intelligent intermittent mode controller for energy saving
Supports DGPS, SBAS (WAAS / EGNOS / MSAS / GAGAN)
UART 4800 data transfer rate 115200 bps (9600 bps by default)

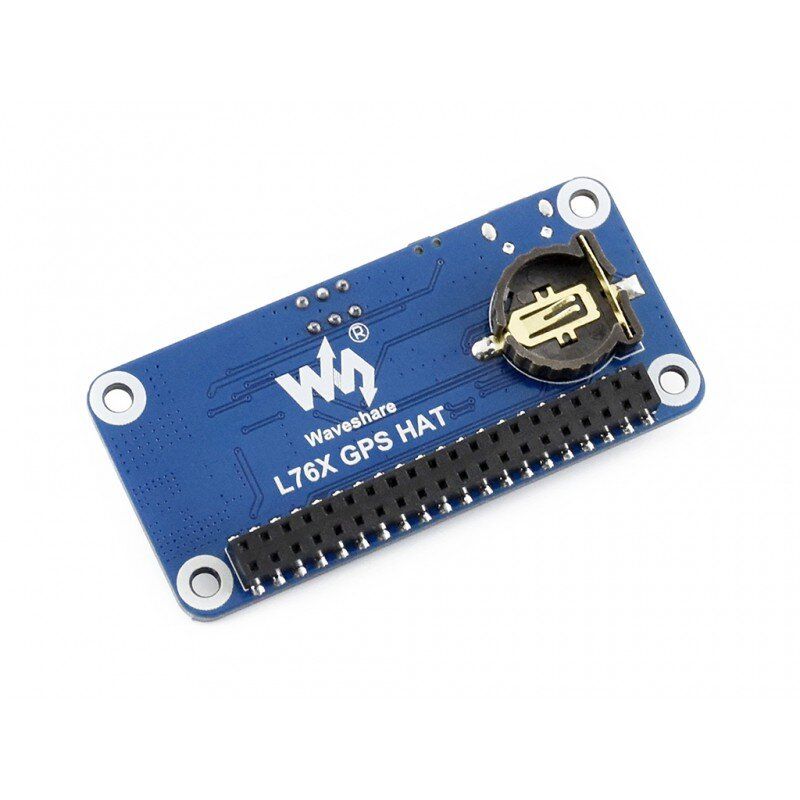

On-board battery holder, supports ML1220 battery, for storing ephemeral information and hot starts

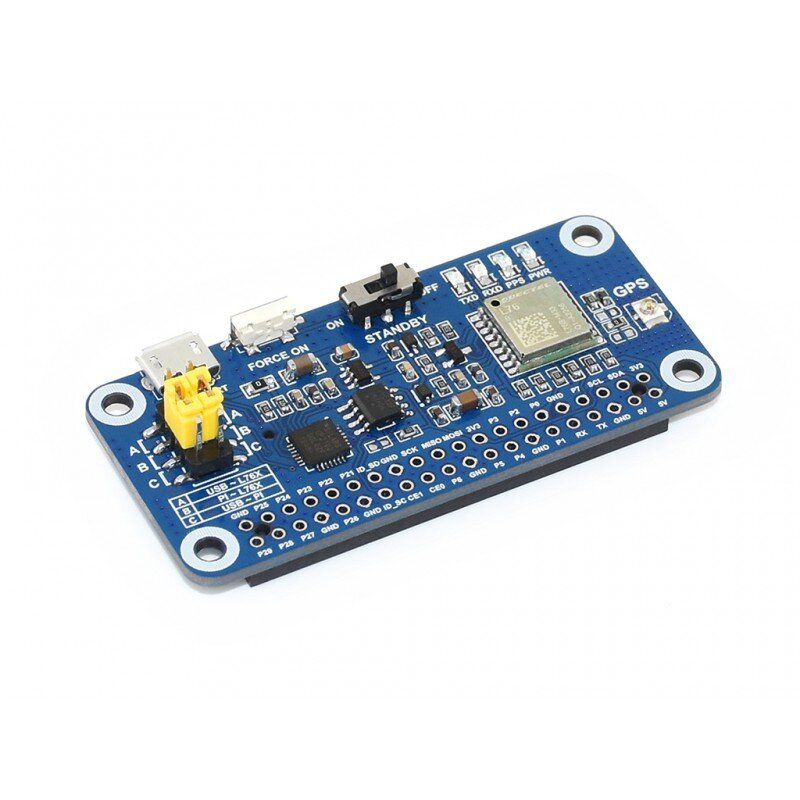

4 LEDs to indicate the operating status of the module
Comes with development resources and manual (examples for Raspberry Pi / Jetson Nano / Arduino / STM32)

GNSS specifications

band: GPS L1 (1575.42 MHz), BD2 B1 (1561.098 MHz)
Channels: 33 tracking h, 99 collection h, 210 prn h
C / A code
SBA: WAAS, EGNOS, MSAS, GAGAN
Horizontal position accuracy:
Autonomous:

Specifications

Main characteristics

Country of origin

Made in China

Form factor

Expansion board
