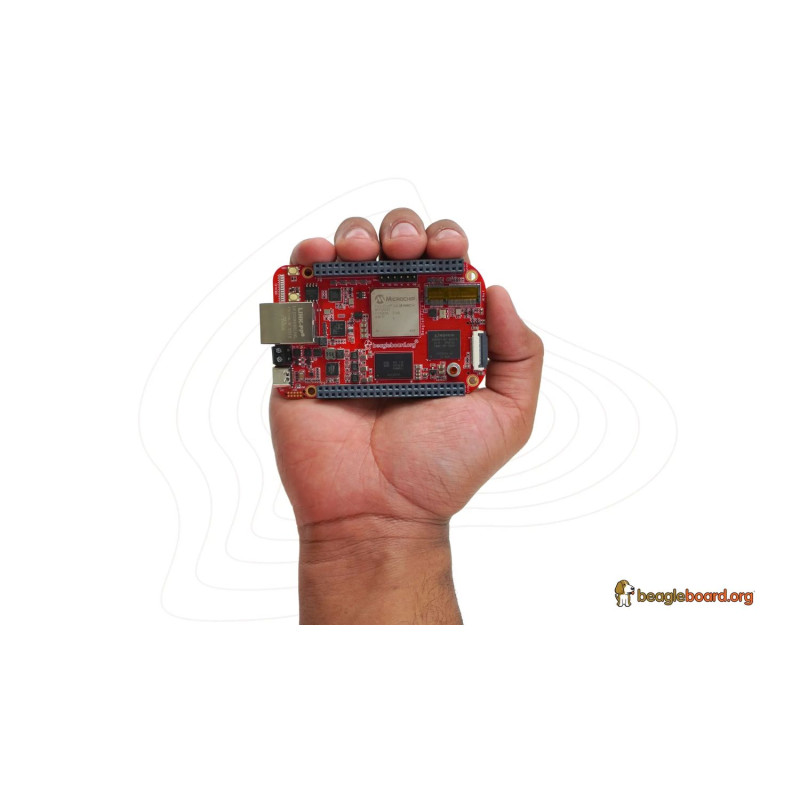

BeagleV FIRE microcomputer

The BeagleV FIRE microcomputer is an excellent example of the latest technology that combines power, efficiency, and a variety of capabilities for use in a variety of applications, including robotics, the Internet of Things, embedded systems, and more. It is powered by Microchip's PolarFire® MPFS025T 5-core RISC-V system-on-chip (SoC) with FPGA structure. The BeagleV®-Fire opens up new horizons for developers, tinkerers and the open source community to explore the enormous potential of the RISC-V architecture and FPGA technology. It has the same P8 and P9 expansion board pins as the BeagleBone Black, which extends its capabilities. Built on the powerful and power-efficient RISC-V Instruction Set Architecture (ISA) along with a versatile FPGA structure, the BeagleV®-Fire SBC offers developers, hobbyists and researchers unparalleled opportunities to explore and experiment with RISC-V technology.

Key features:

• Processor performance: BeagleV®-Fire is based on the RISC-V processor, which is known for its high performance and efficiency. This processor provides fast task execution and data processing, making BeagleV®-Fire an excellent choice for a wide range of applications.

• Built-in capabilities: The BeagleV®-Fire features a variety of built-in capabilities, including wireless connectivity, I/O ports for connecting to a variety of devices, network protocol support, and more.

• Flexibility and expandability: Due to its architecture and extensibility, BeagleV®-Fire can be easily adapted to fulfill different tasks. It supports various expansion modules and additional components, making it ideal for a variety of projects and additional development.

• Low power consumption: The BeagleV®-Fire is optimized for efficient energy use, which allows it to conserve battery power and extend the operating time without recharging.

• Compact and lightweight design: Its compact size and light weight make BeagleV®-Fire easy to use in a variety of environments, including embedded systems and devices with limited space.

Chipset features

Microchip® Polarfire® MPFS025T SoC FPGA

• FPGA Fabric
  • 23K logic elements (4 LUT + DFF inputs)
  • 68 math blocks (18×18 MACC)
  • 4 SerDes 12.7 Gbps lanes
• Microprocessor subsystem
  • Processor
    • 1x 64-bit monitor/loader core RV64IMAC (E51)
    • 4x 64-bit application cores RV64GC (U54-MC)
    • Fmax 667 MHz (-40 °C to 100 °C Tj),
    • 3,125 CoreMarks/MHz, 1,714 DMIPS/MHz
  • Storage
    • MMC 5.1 SD/SDIO
    • 1 Quad SPI flash controller
    • 128 KB eNVM
    • 56 KB sNVM
  • Memory interfaces
    • 36-bit DDR4/DDR3/LPDDR4/LPDDR3 memory controller with SECDED
  • Communication interfaces
    • Controllers 2x GigE MAC, USB 2.0 OTG, 5x multi-mode UART, 2x SPI, 2x I2C, 2x CAN 2.0.
    • 2 PCIe Gen2 endpoints/root ports

Board features

• Built-in memory
  • 2 GB LPDDR4
  • 16 GB Kingston eMMC
  • 128 Mbit SPI flash
• Connectors and expansion
  • USB Type-C with support for high-speed (480 Mbps) dual-use and power supply
  • Gigabit Ethernet
  • M.2 E-Key slot for WiFi and other PCIe/SDIO modules
  • microSD card slot
  • SYZYGY high-speed connector
  • CSI 22-pin camera connector
  • 2×46-pin additional BeagleBone Cape connectors with built-in ADC
  • Screw terminal for 5 V power input
  • 6-pin 3.3 V UART connector
  • JTAG TAG-CONNECT trace

WIKI: https:// www.beagleboard.org/boards/beaglev-fire

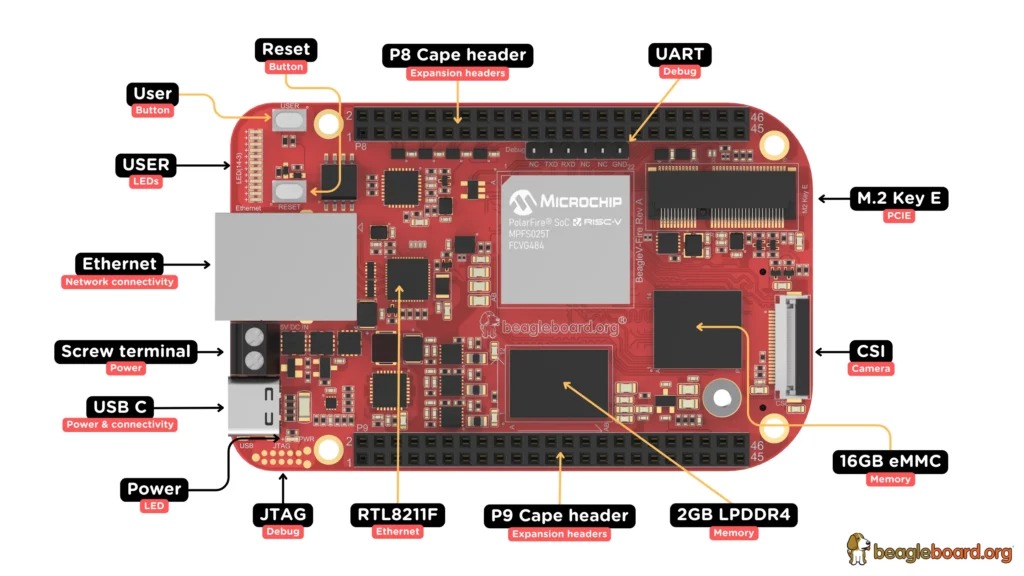

Board elements and interfaces:

Dimensions and weight
Dimensions: 86.38*54.61*18.8 mm
Maximum height: 18.8 mm
PCB size: 86.38 * 54.6 mm
PCB layers: 12 layers
Thickness of the printed circuit board: 1.6mm
RoHS compliant: yes

Gross weight: 106 г
Net weight: 45,8 г
