Raspberry Pi Compute Module 4 NAS Multi-functional Mini-Computer (24678)

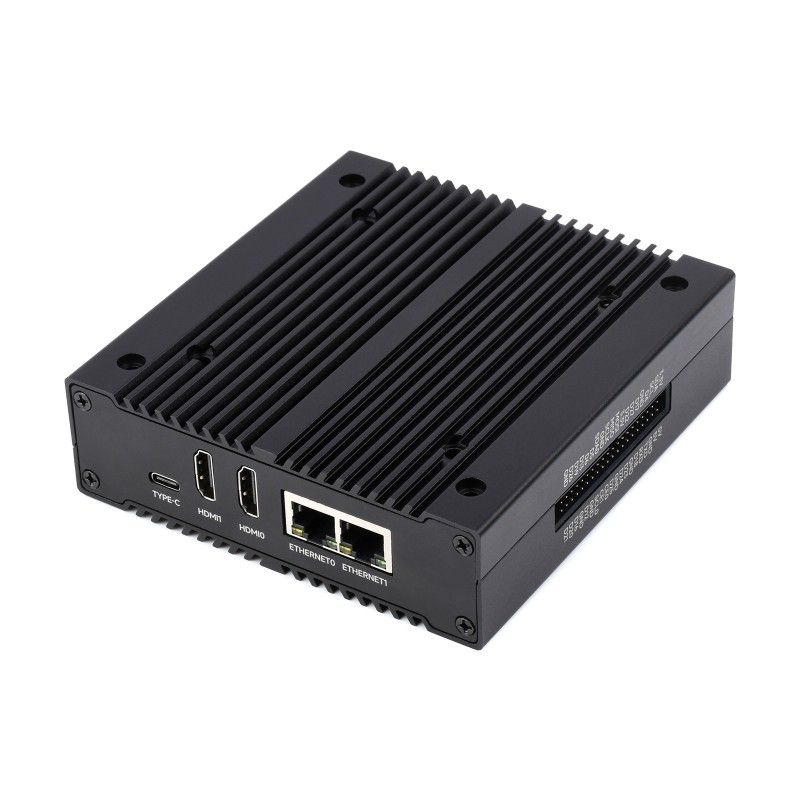

The Raspberry Pi Compute Module 4 NAS Multi-functional Mini-Computer (24678 ) is designed for the Raspberry Pi Compute Module 4 (not included), which is a device that can perform multiple functions. Its main purpose is to provide Network Attached Storage (NAS) and it has two slots for Solid State Drives (SSDs).

The Raspberry Pi Compute Module 4 is a special version of the Raspberry Pi that is designed for use in industrial or commercial projects. It has a smaller footprint and fewer external connectors than a regular Raspberry Pi, but retains high functionality.

This NAS device is designed to be used with the Raspberry Pi Compute Module 4, which is not included and must be purchased separately. It provides network storage and can be used as a central server for storing, backing up, and sharing data.

The main feature of this device is the presence of two slots for placing solid-state drives (SSDs). This allows you to use two independent drives to store data and configure different backup or redundancy modes.

Key features:

• Is an all-in-one mini computer, mainly designed for home, small home office, etc.
• Provides a simple and easy-to-use solution that does not require expert knowledge of networking and storage systems

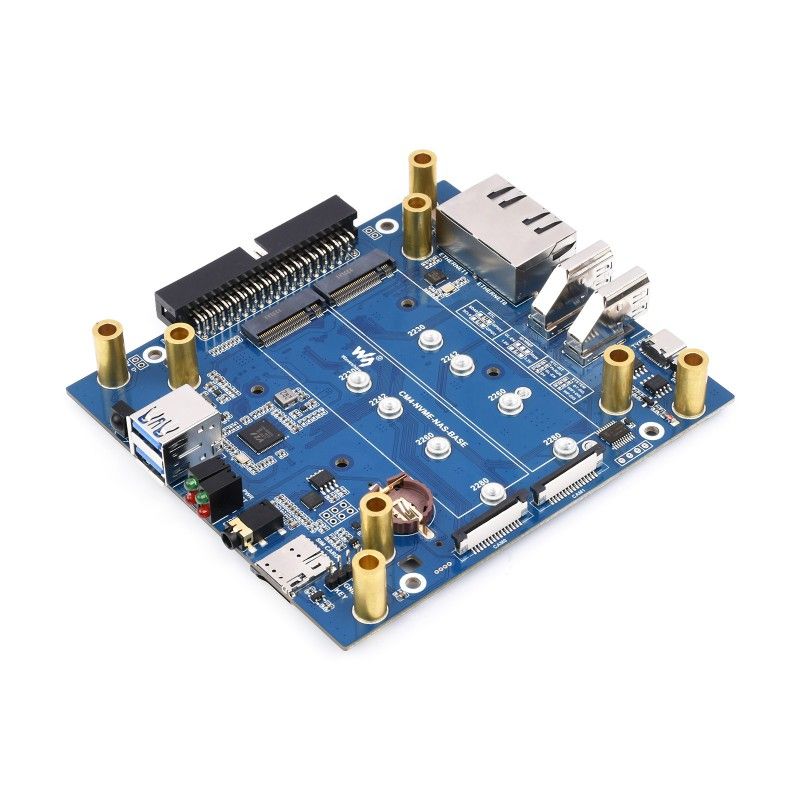

• Has built-in 2 M.2 M KEY slots for installing NVME SSDs
• Has a built-in MINI PCIE connector for installing a 4G module
• 2 × HDMI 4K output interfaces
• Built-in USB3.2 ports, IR receiver, RTC, dual Gigabit Ethernet connectors, 3.5mm jack, etc.

Specifications:

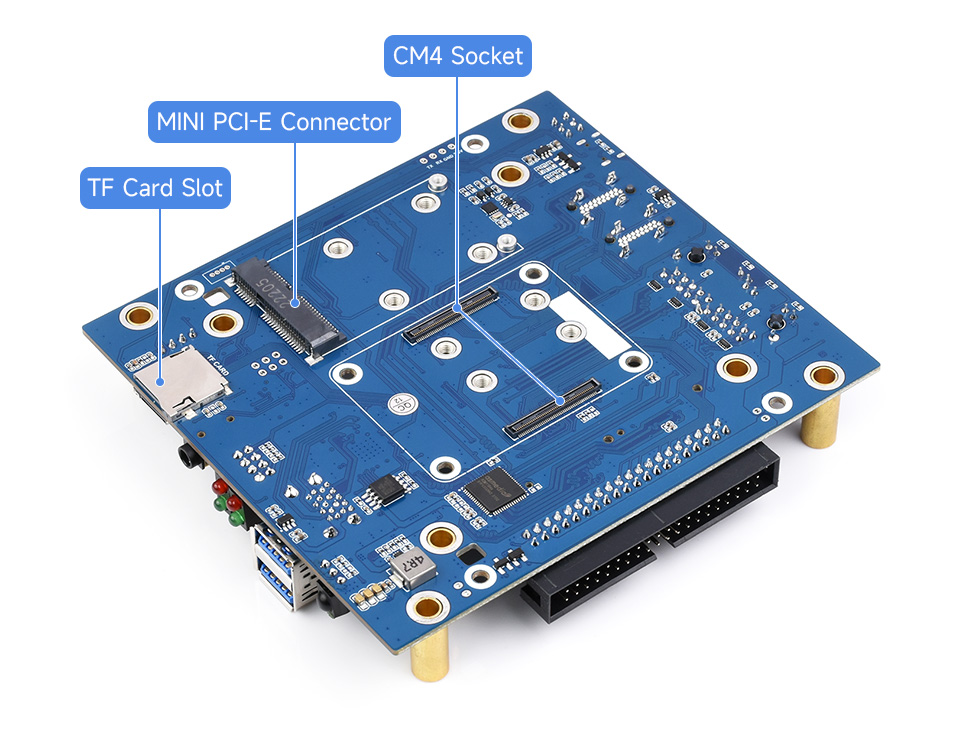

• CM4 SOCKET: suitable for all Compute Module 4 variants
• NETWORK:

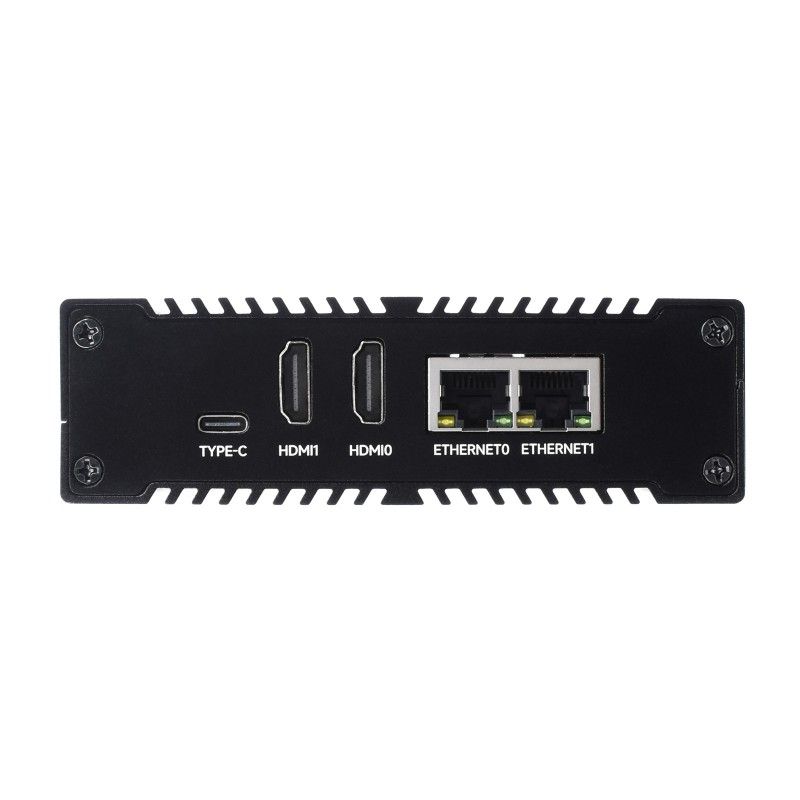

  • RJ45 × 2 Gigabit Ethernet connector (original ETH0 network port and ETH1 PCIE extended network port)
  • MINI PCIE connector, supports 4G module (USB protocol, does not support PCIE protocol)
  • Nano-SIM card slot, supports a standard Nano-SIM card for 4G/3G/2G Internet access
• M.2: two slots for NVME SSDs (compatible with 2230, 2242, 2260, 2280)
• USB: USB 3.2 Gen1 (5 Gbps) × 2 port
• CSI: CAMERA MIPI CSI-2 camera port × 2, 15-pin 1.0mm FPC connector
• HDMI: HDMI × 2, supports 4K 30fps output
• AUDIO: 3.5 mm headphone/microphone jack
• RTC: real-time clock with battery socket and Compute Module 4 output
• TF CARD SLOT: TF card slot for Compute Module 4 Lite variants (without eMMC)
• POWER INPUT: Type-C (5V 4A)

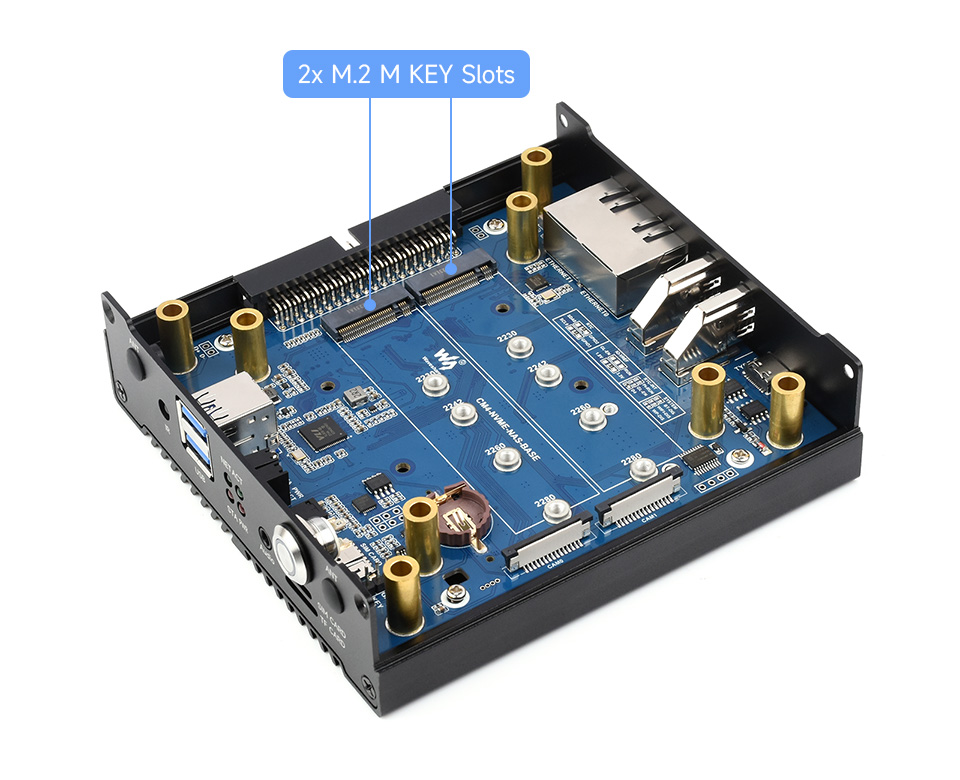

2 built-in M.2 M KEY slots support all sizes of NVME SSDs (2230, 2242, 2260, 2280)

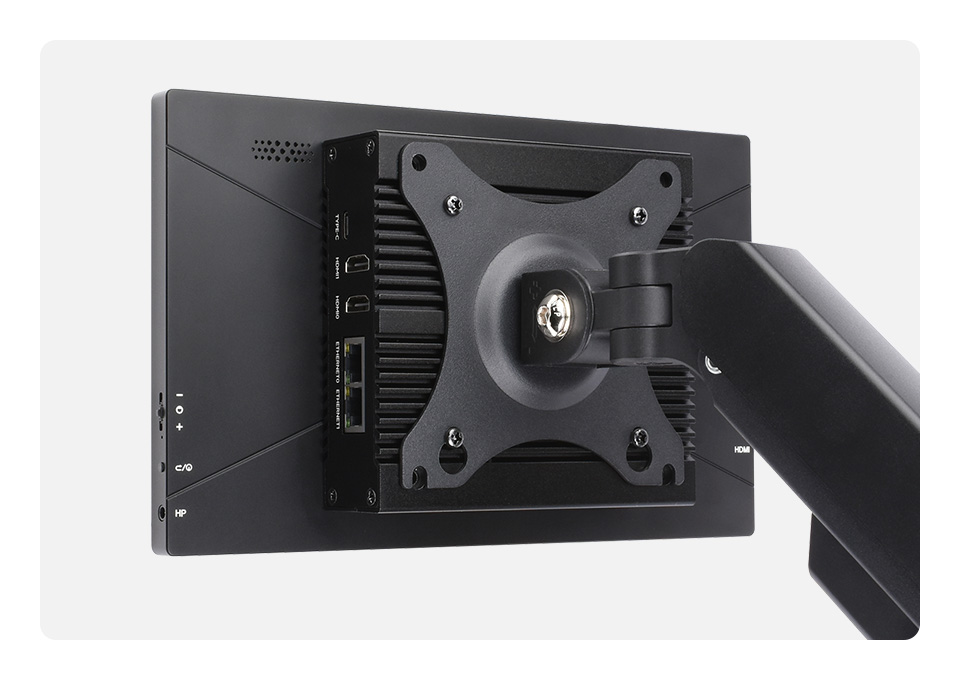

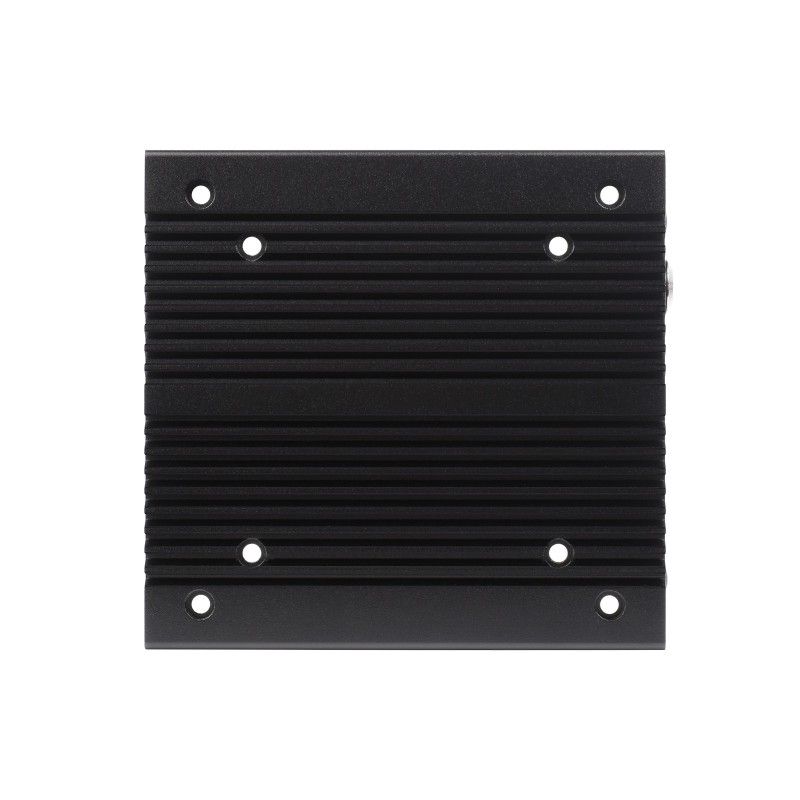

VESA mounting support supports standard VESA 100×100 mm and 75×75 mm holes

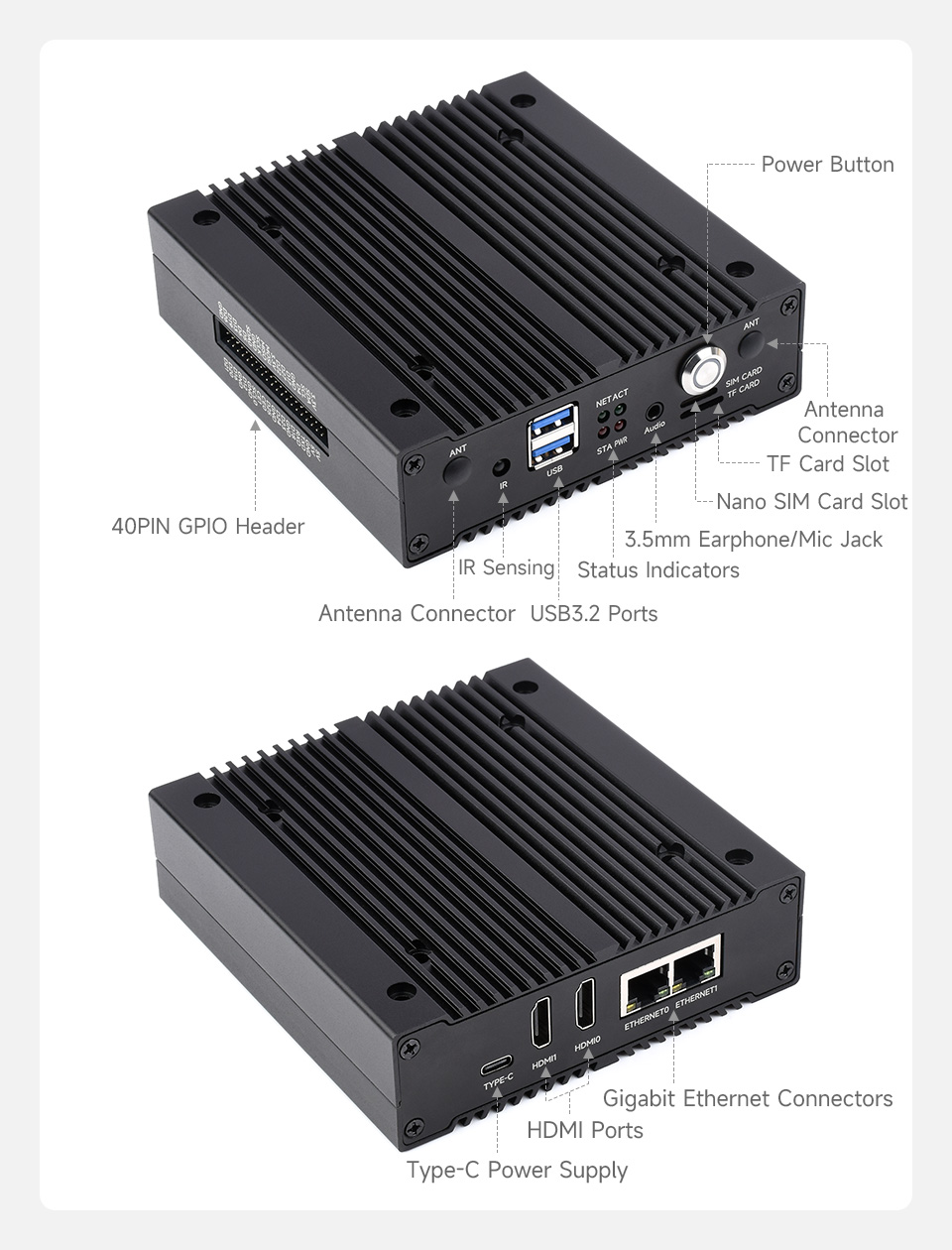

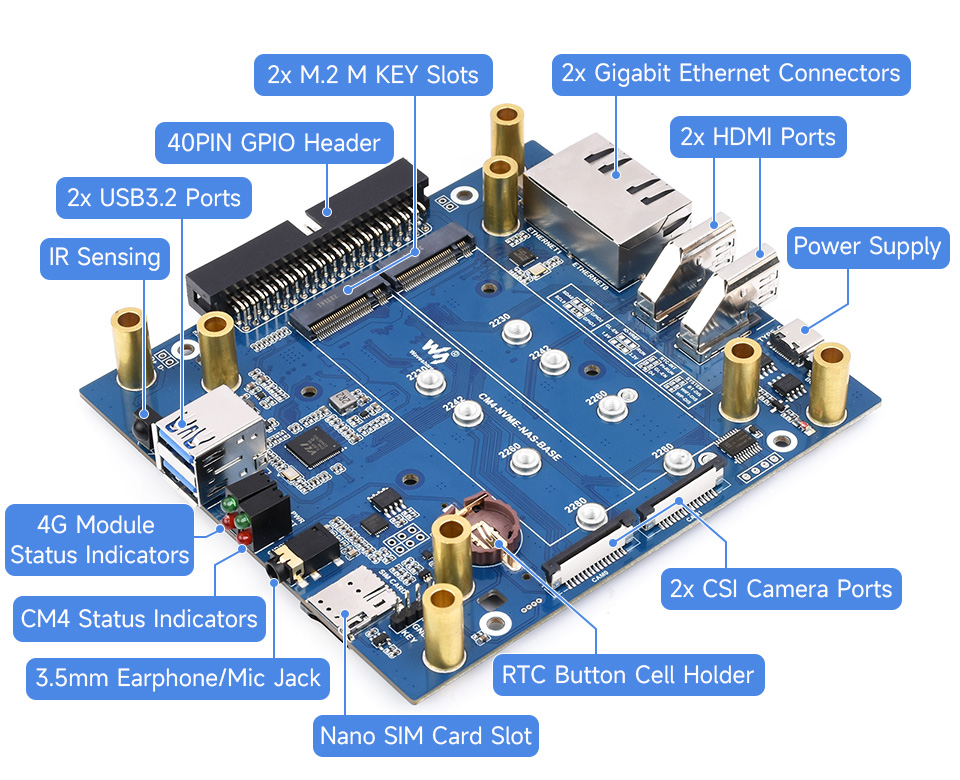

Interfaces:

Precise cutout with clear label: each cutout is fully aligned with the connector

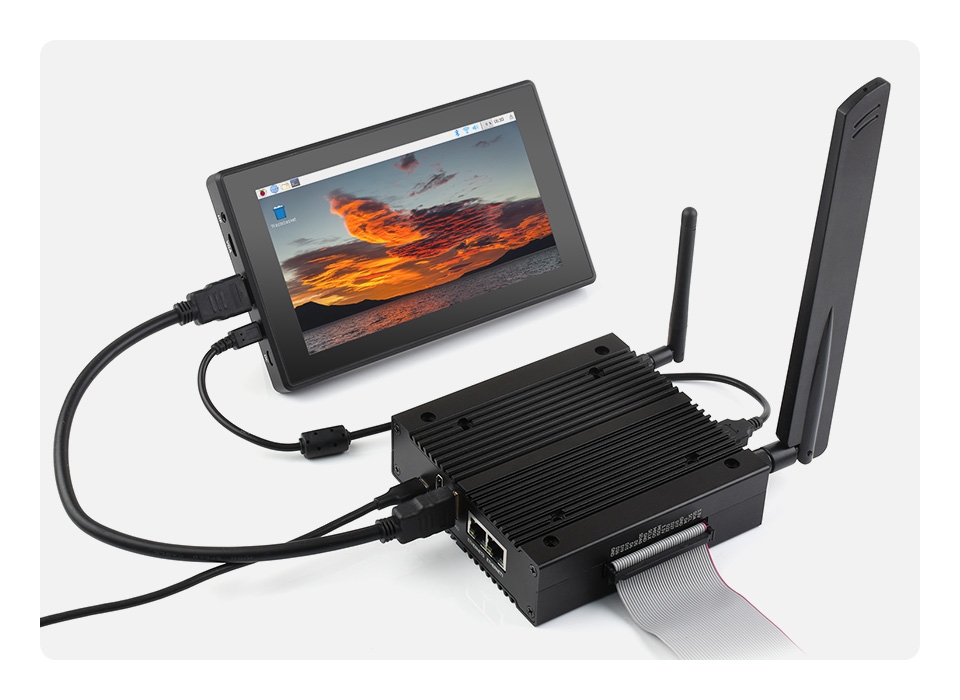

Application example: Supports connecting to multiple peripherals, suitable for various application scenarios

Construction elements

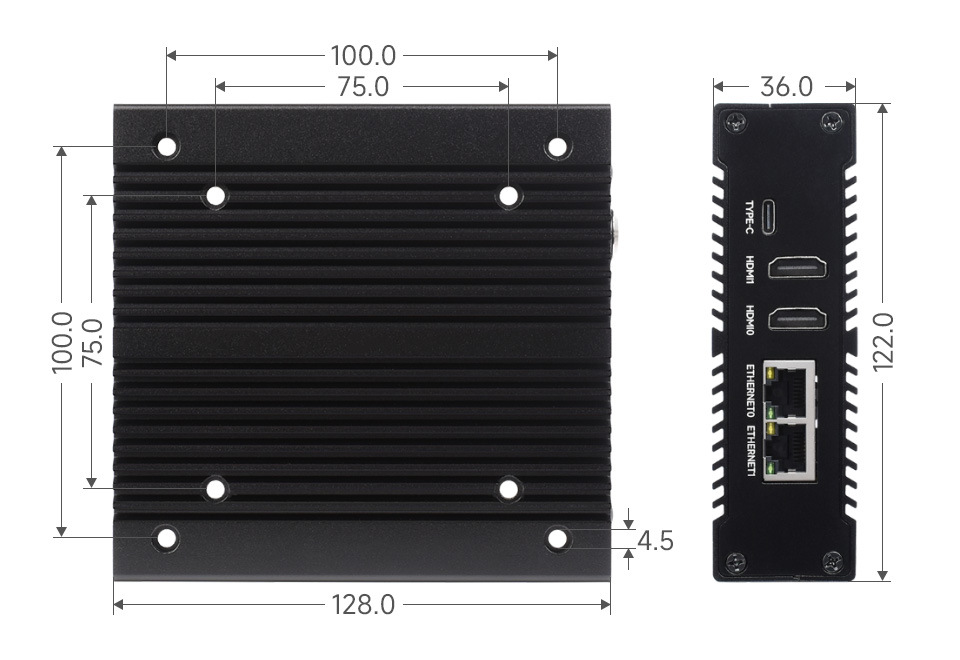

Overall dimensions: 128mm x 122mm x 36mm

WIKI: www.waveshare.com/wiki/CM4-NVME-NAS-BOX

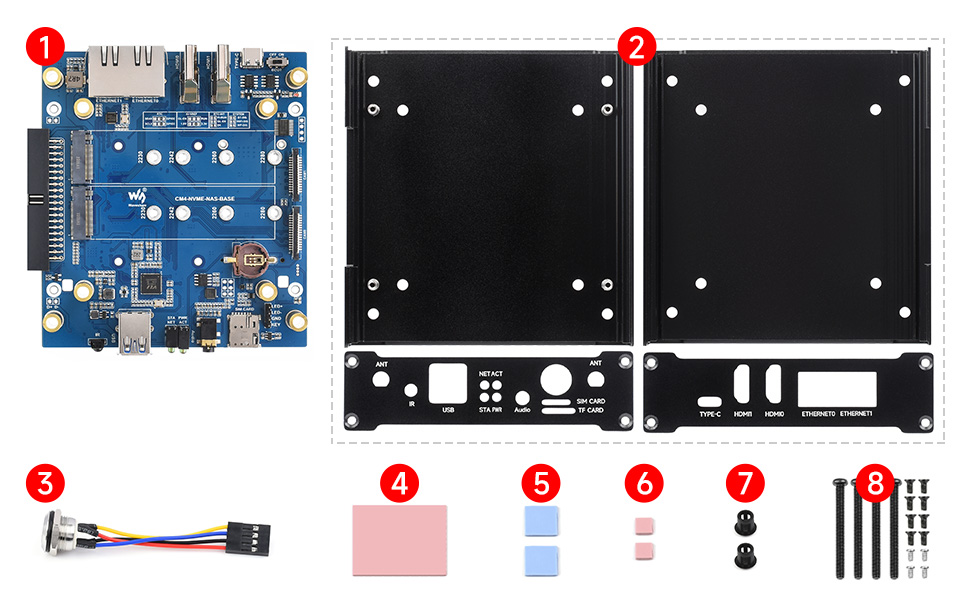

Scope of delivery:

1. CM4-NVME-NAS-BASE x1
2. Metal case (top and bottom) x1
3. 12 mm momentary push button switch (with LED and four pre-connected cables) x1
4. Silicone thermal tape 30×40 mm x1
5. Silicone thermal tape 15×15 mm (2 pcs.) x1
6. Silicone thermal tape 7×7 mm (2 pcs.) x1
7. Antenna connector rubber plug (2 pcs.) x1
8. Package of screws x1 pc

Weight: 0.551 kg
