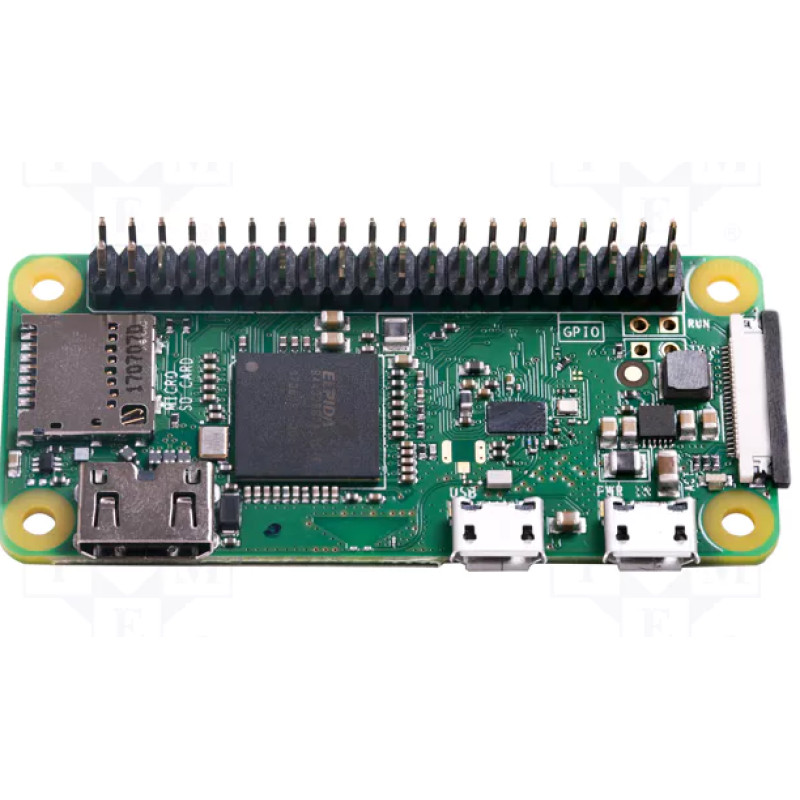

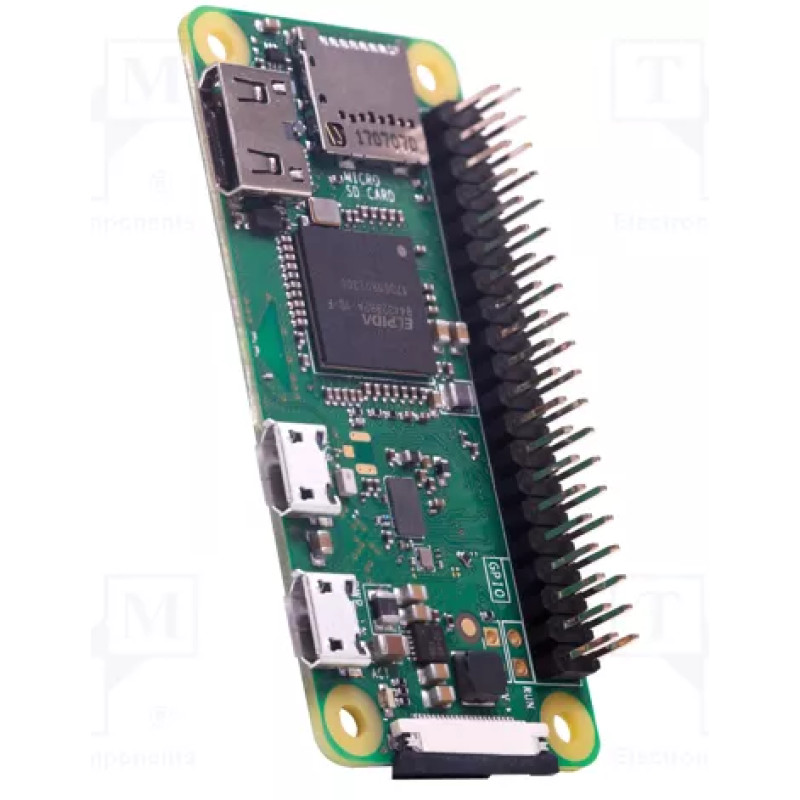

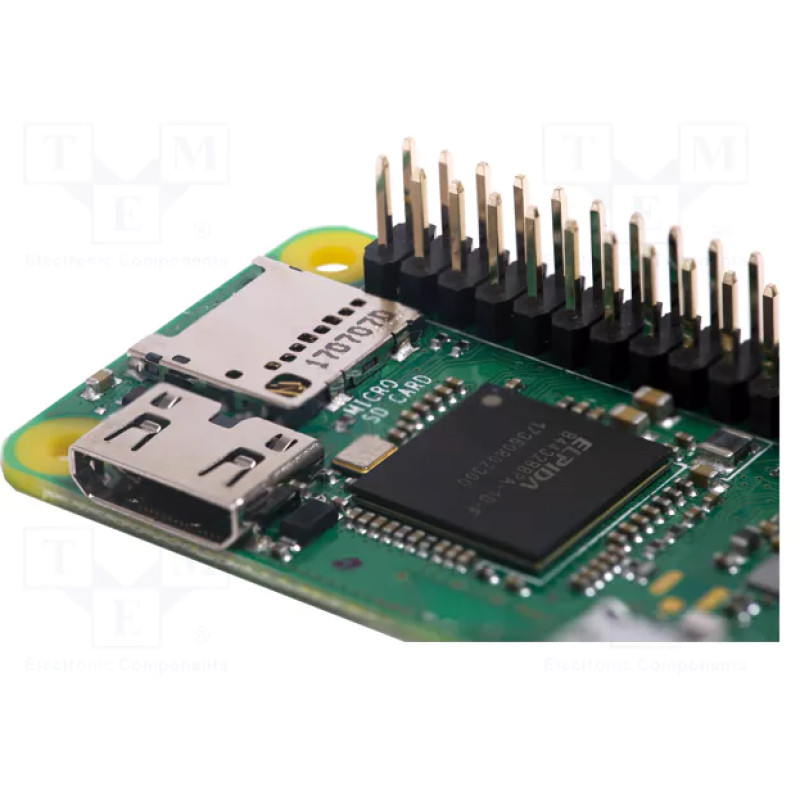

Raspberry Pi Zero 2 W with header

The Raspberry Pi Zero 2 W with header is a compact, powerful, and versatile single-board microcomputer with a pre-installed GPIO connector (header), making it ideal for projects with minimalist space requirements. This model is equipped with a Broadcom BCM2710A1 processor and supports Wi-Fi and Bluetooth wireless connectivity, making it easy to integrate into IoT projects, automation, or educational applications.

Key features:

• The Broadcom BCM2710A1 processor (1 GHz), delivers excellent performance in a compact form factor.
• Ease of use thanks to built-in Wi-Fi and Bluetooth modules.
• The pre-installed header saves time and effort when connecting peripherals.
• Easy setup and a wide range of operating systems (Raspberry Pi OS, Ubuntu, etc.).

Specifications:

• Architecture type: Cortex A53;
• Amount of RAM: 512 MB;
• Version: wireless;
• Communication protocol: Bluetooth 4.2, Bluetooth Low Energy, IEEE 802.11b/g/n, WIFI;
• Processor: BCM2710A1;
• Clock frequency: 1 GHz;
• Video encoding: H.264, H.265, OpenGL ES 1.1/2.0;
• WiFi: 2.4 GHz;
• Operating temperature: -20...70°C;
• Interface: GPIO, HDMI, MIPI-CSI, SD, USB;
• Connector type: 40pin, microSD, Micro USB x2, mini HDMI, MIPI-CSI;
• Power supply voltage: 5 V DC.

Overall dimensions: 65 mm x 30 mm

Weight: 15.5 g
