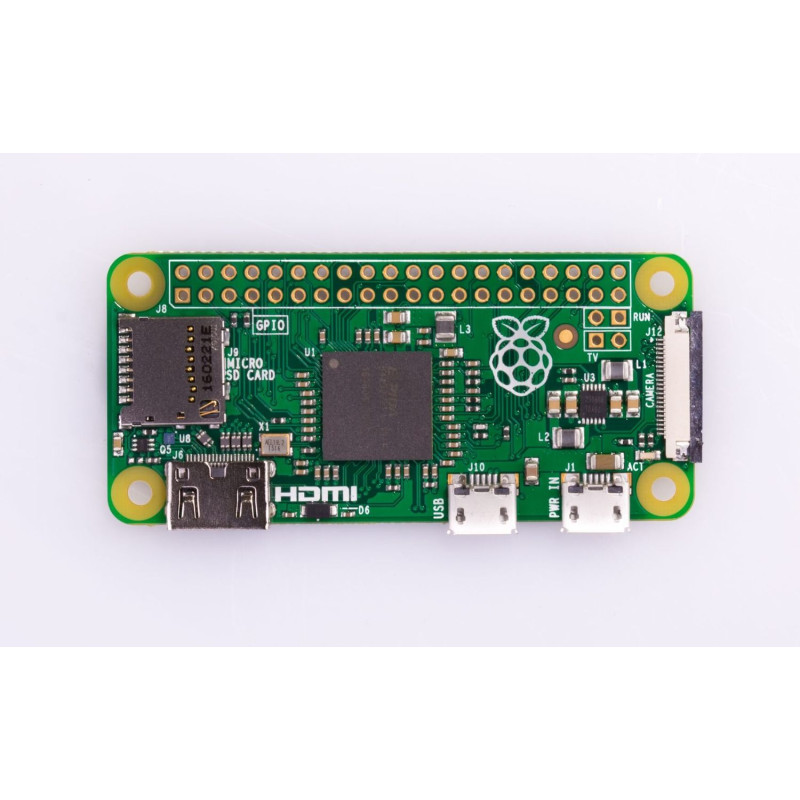

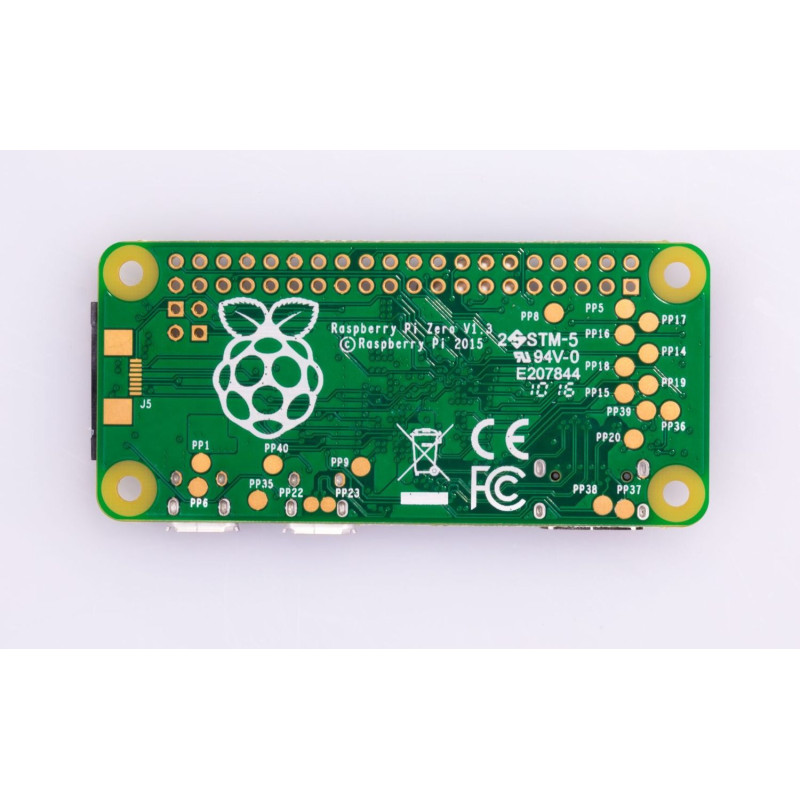

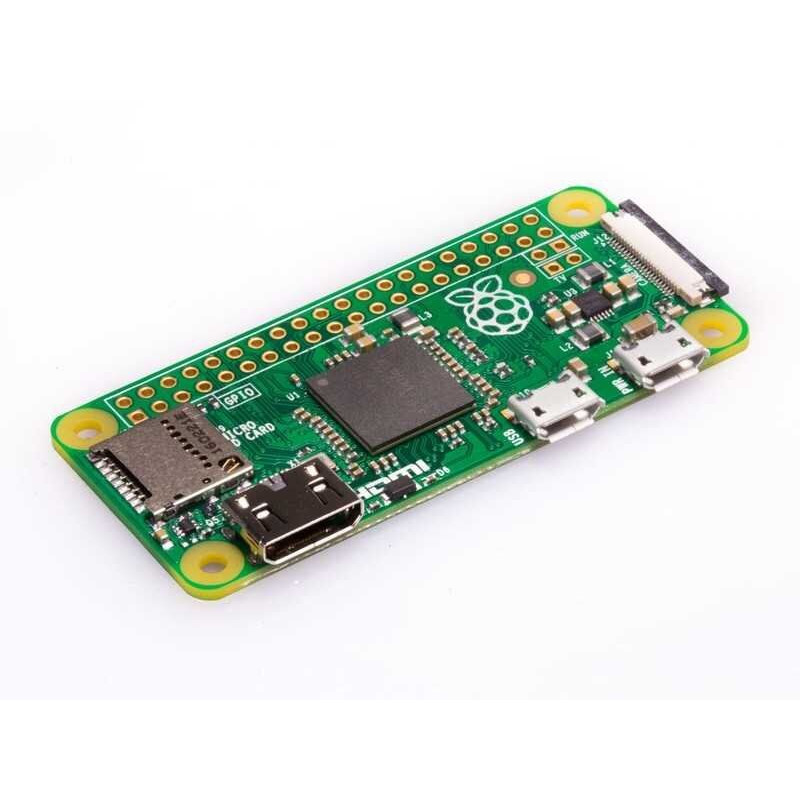

Raspberry Pi Zero V1.3

The Raspberry Pi Zero V1.3 microcomputer is an excellent budget solution for those projects that are satisfied with the technical characteristics of this microcomputer:

• Chip: BCM2835 system-on-chip (SoC), which includes a 1 GHz ARMv6 32-bit processor and a powerful VideoCore IV video processor
• RAM memory: RAM 512MB DDR2 ELPIDA
• Data storage: microSD memory card (not included)
• Monitor connection: Mini HDMI port with output resolution up to 1080 @ p60
• USB port: Micro USB OTG port
• Power connector: Micro USB port
• Connecting additional expansion cards: 40-pin GPIO connector
• Camera connection: CSI camera connector (v1.3 only)

The dimensions and weight of this board allow it to be used in projects with compact dimensions, as well as in various robots and automation systems. On this model, the GPIO connector pins are not soldered on the pin connector board.

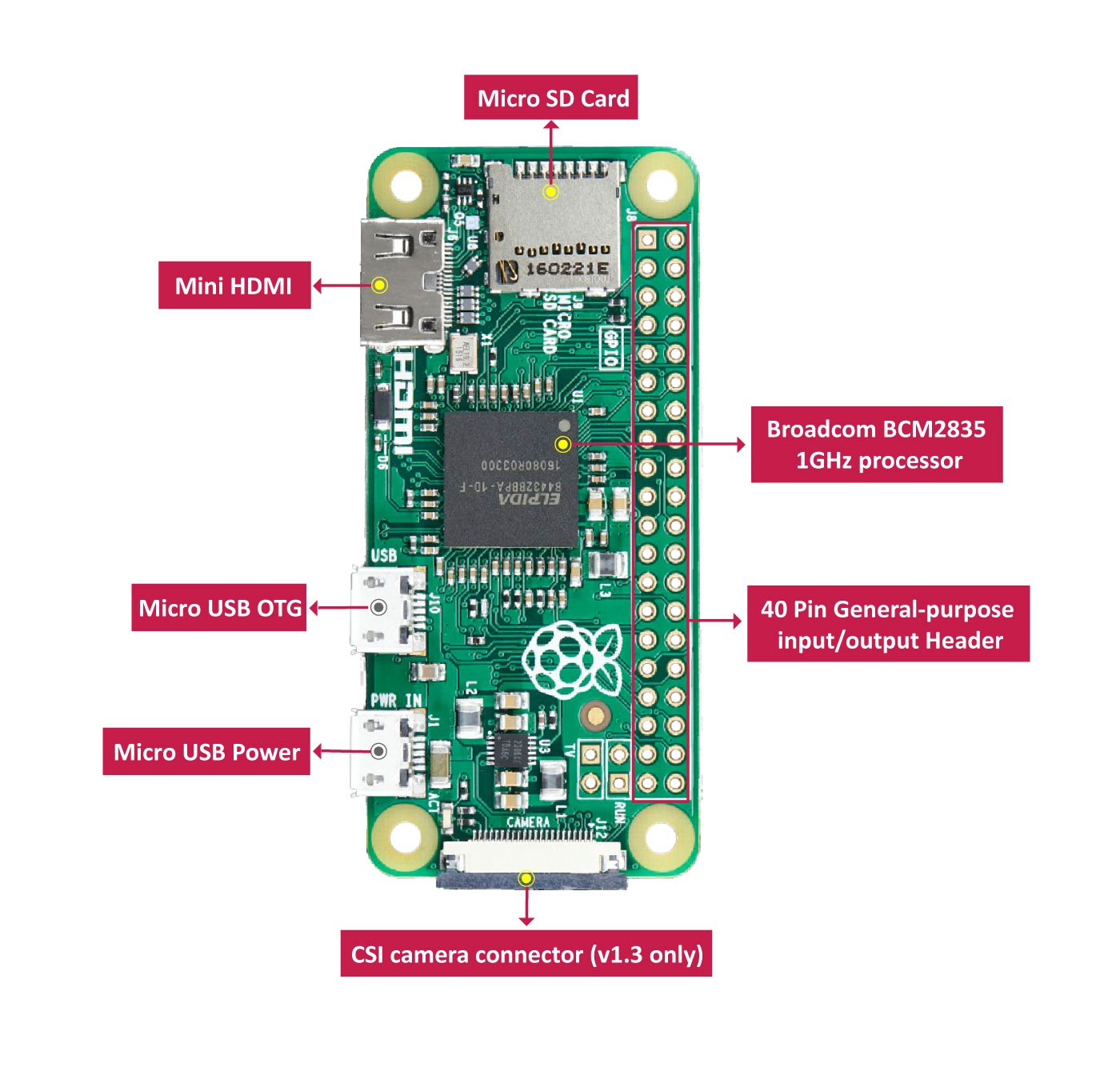

Board elements:

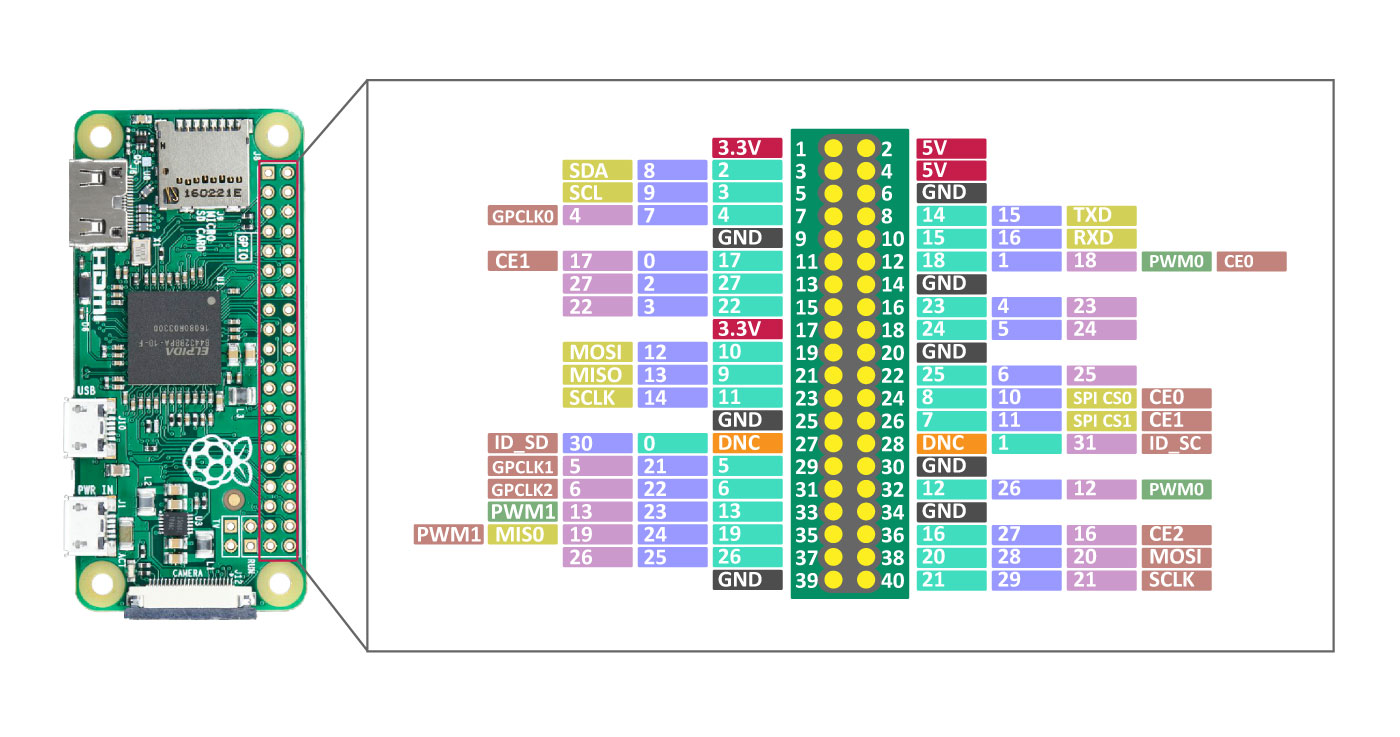

GPIO connector specification:

Overall dimensions: 65mm x 31mm

Weight: 0.009 kg
