Raspberry Pi Compute Module 4 Nano Base Board (C) (23451)

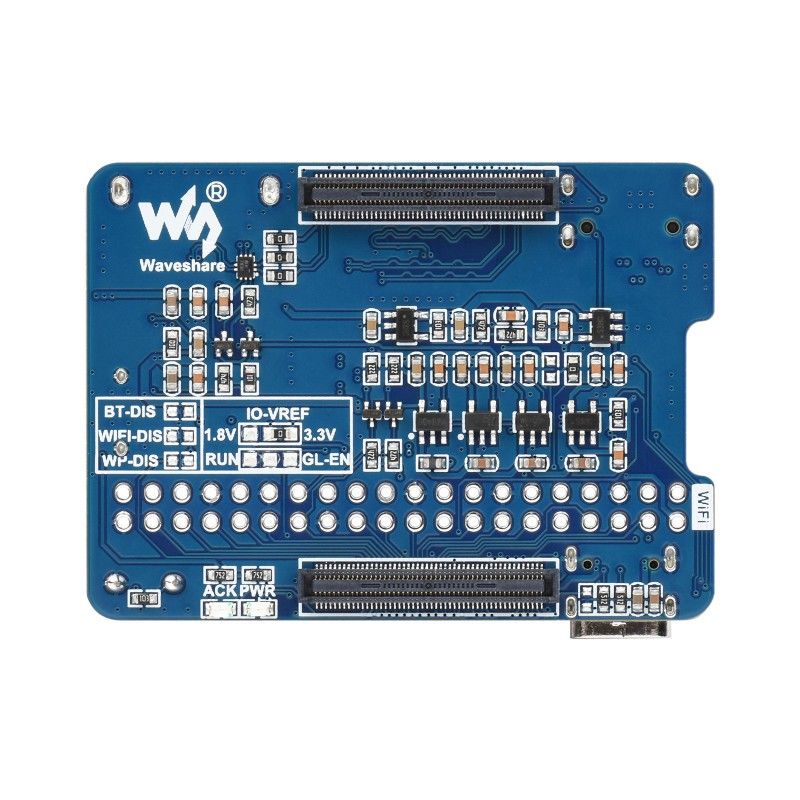

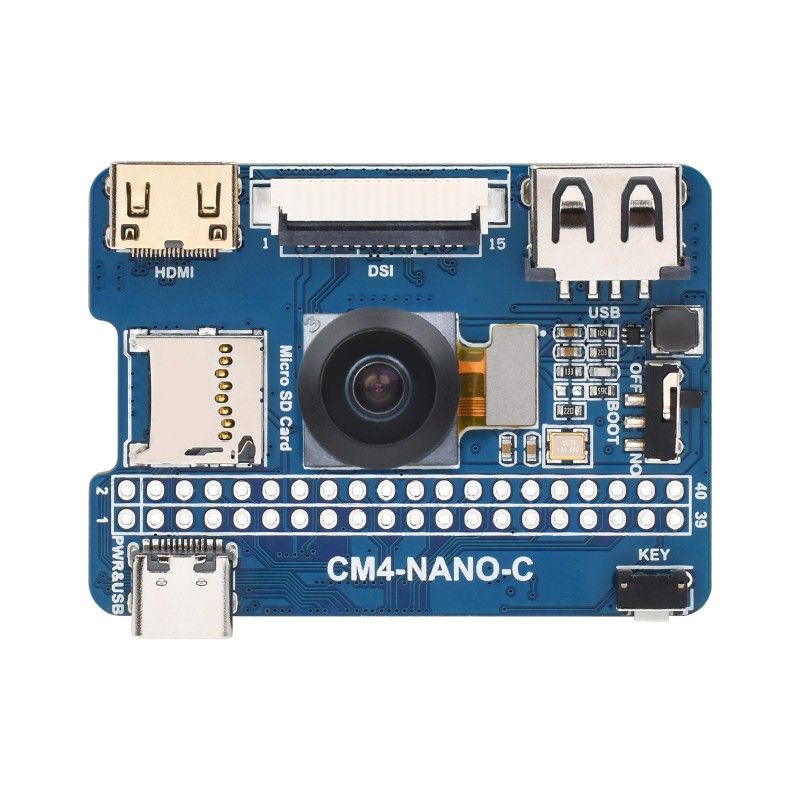

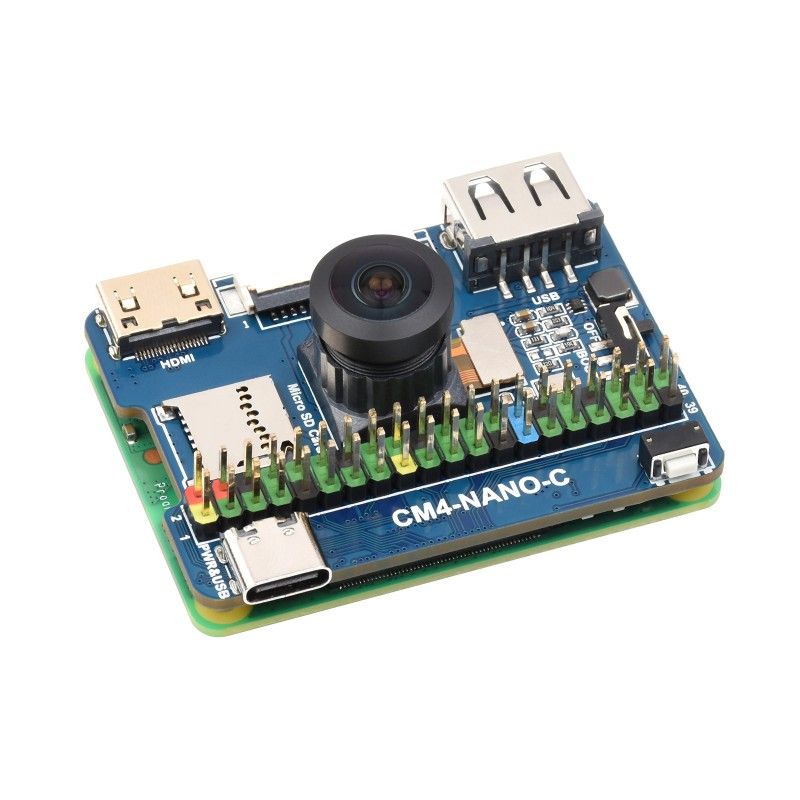

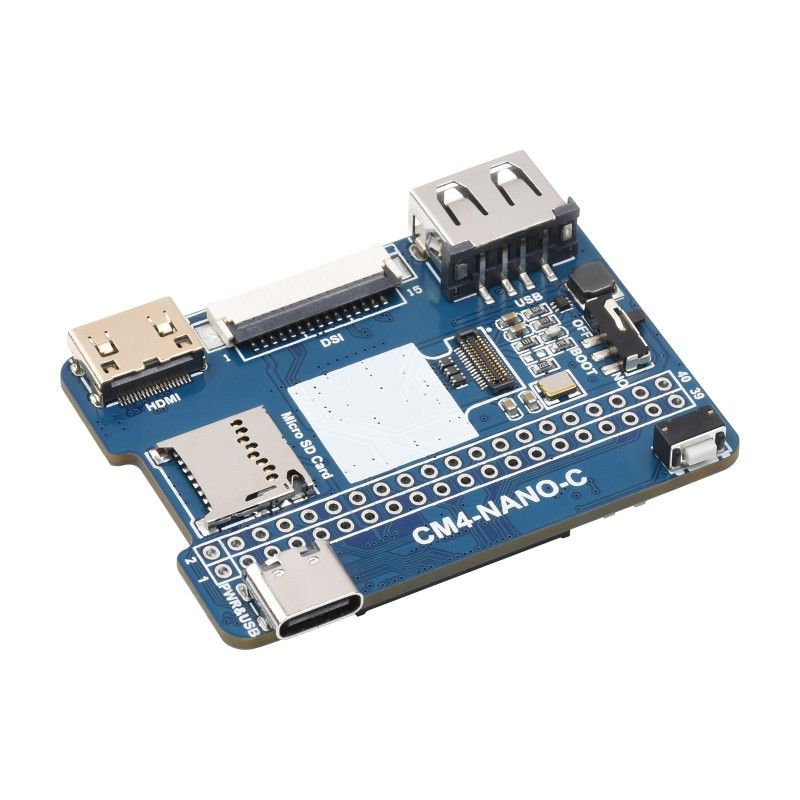

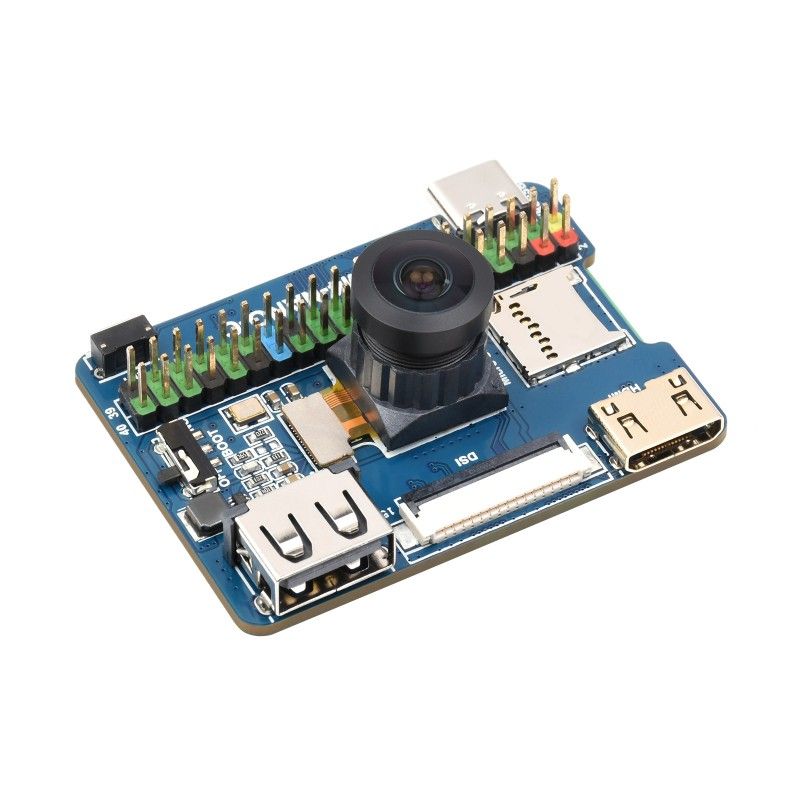

TheRaspberry Pi Compute Module 4 Nano Base Board (C) (23451 ) is an expansion board specifically designed for the Raspberry Pi Compute Module 4 (CM4). The CM4 is a computer module based on the Raspberry Pi 4 architecture, but has a smaller form factor that allows it to be easily integrated into various project devices. The main feature of the Nano Base Board (C) is that it has the same size as the CM4, which allows you to easily mount the module on the board. In addition, the board has a built-in 8-megapixel camera, which makes it easy to add photography and video capabilities to a project.

The board also has all the connectors and interfaces needed to work with the CM4. This includes GPIO connectors for connecting external devices, an HDMI connector for video output, USB ports for connecting peripherals, a microSD connector for data storage, and more.

The Nano Base Board (C) is a convenient tool for developing various projects based on the Raspberry Pi Compute Module 4. It provides convenient access to the advanced features of the CM4 and allows you to quickly create devices with camera functions.

Specifications

• CM4 SOCKET: Fits all Compute Module 4 variants
• SOCKET: Raspberry Pi 40PIN GPIO × 1
• USB: USB 2.0 type A port × 1
• DISPLAY: MIPI DSI port × 1 (15-pin FPC 1.0 mm connector)
• CAMERA: IMX219-D160 (8MP, 160°FOV)
• VIDEO: mini HDMI × 1 port, supports 4K 30fps output
• STORAGE: TF card slot for Compute Module 4 Lite variants (no eMMC)
• POWER INPUT: 5В
• DIMENSIONS: 55.0 × 40.0 mm

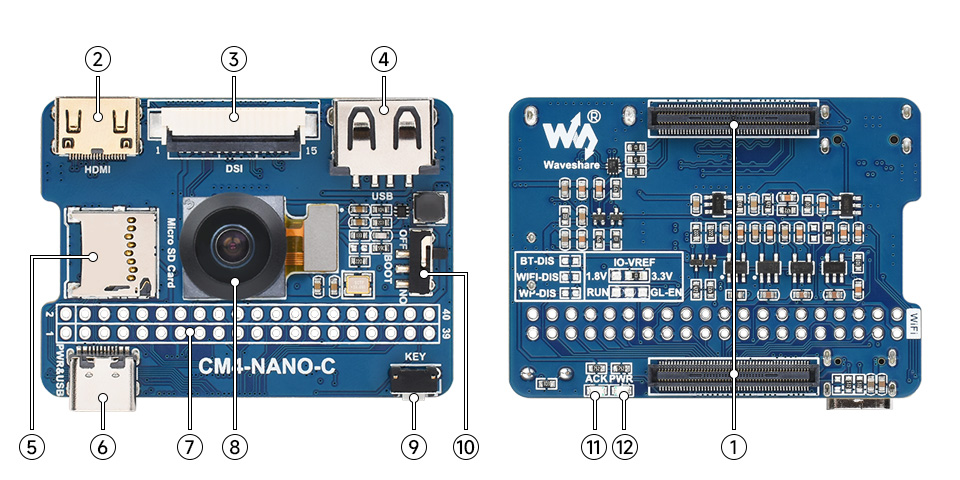

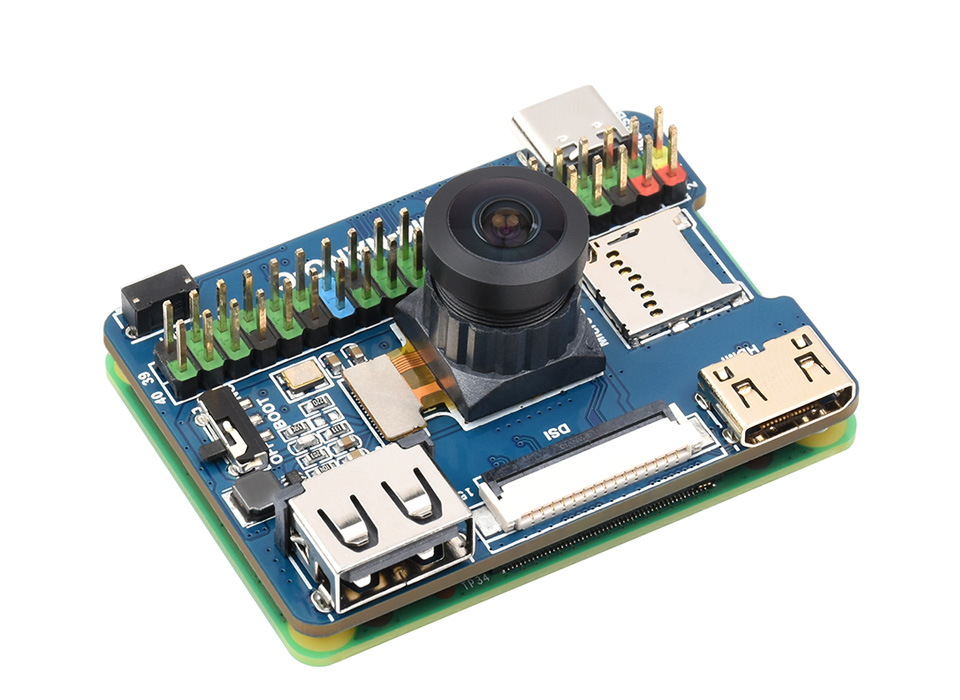

Board elements:

1. CM4 connector fits all Compute Module 4 variants
2. Mini HDMI port supports 4K 30fps output
3. DSI port MIPI DSI display interface
4. USB2.0 port for connecting a variety of USB devices
5. TF card slot for connecting a TF card with a pre-recorded image (for the simplified version ONLY)
6. Power supply/Programming 5V power supply or used for eMMC recording
7. 40-pin GPIO connector for connecting various kinds of HAT
8. IMX219-D160 Camera: 8 MP, 160° FOV
9. User button: connection to GPIO21
10. BOOT switch:
    1. ON: switch USB to type C interface, will enter boot mode after power on (configured as a high capacity disk via RPI boot)
    2. OFF: Switch USB to type A interface, will not enter boot mode at power on (boots from eMMC or TF card)
11. ACK indicator: working status of CM4
12. PWR indicator: CM4 power status

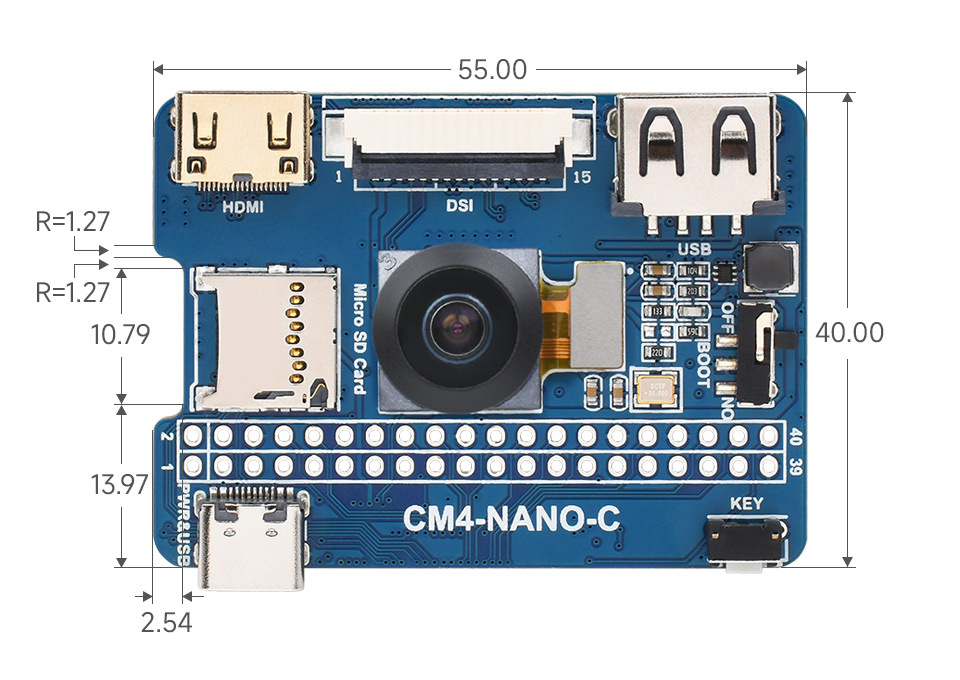

Overall dimensions: 55mm x 40mm

WIKI: www.waveshare.com/wiki/CM4-NANO-C

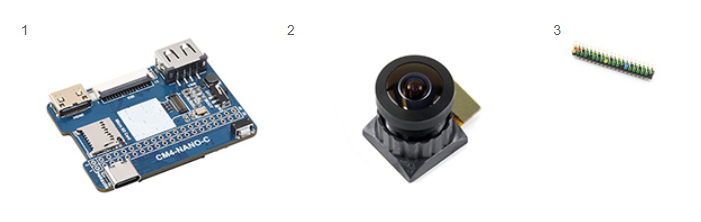

Scope of delivery:

1. CM4-NANO-C x1
2. IMX219-D160 x1
3. 2*20PIN color straight pinheader x1

Weight: 0.002 kg
