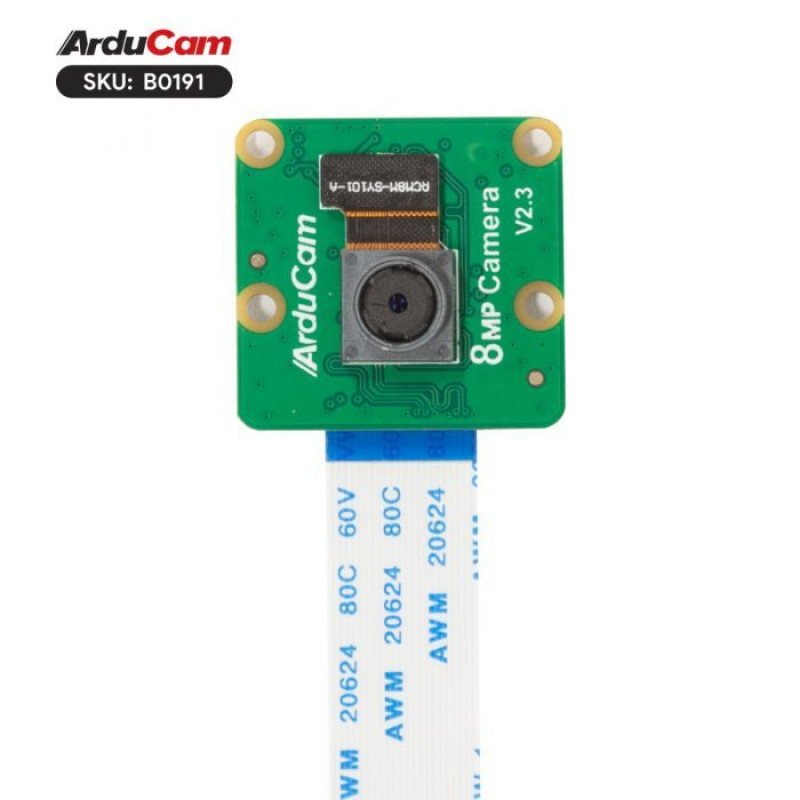

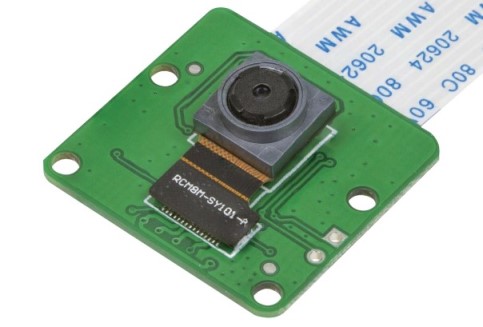

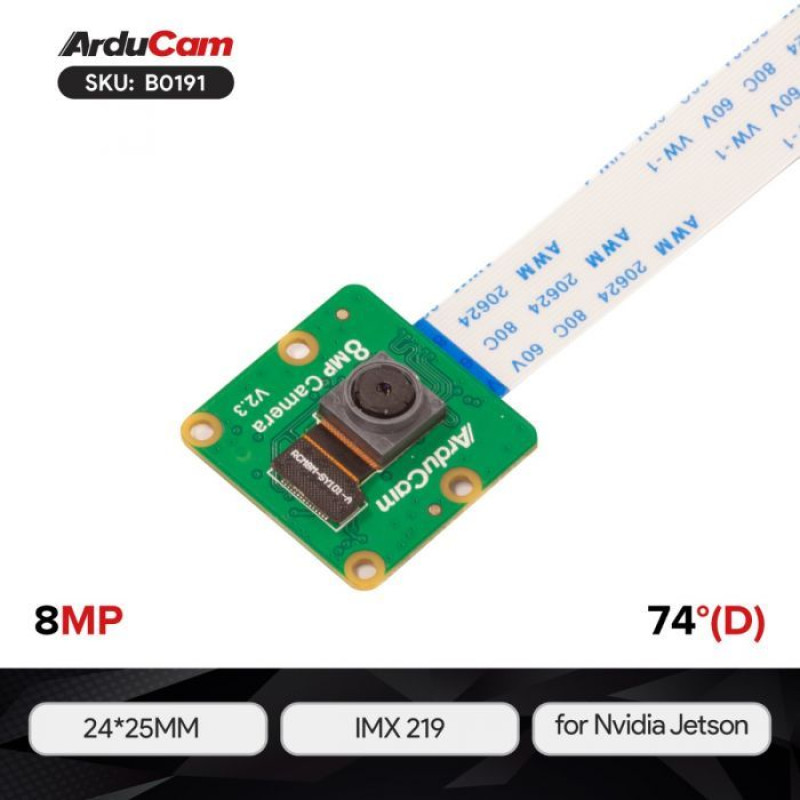

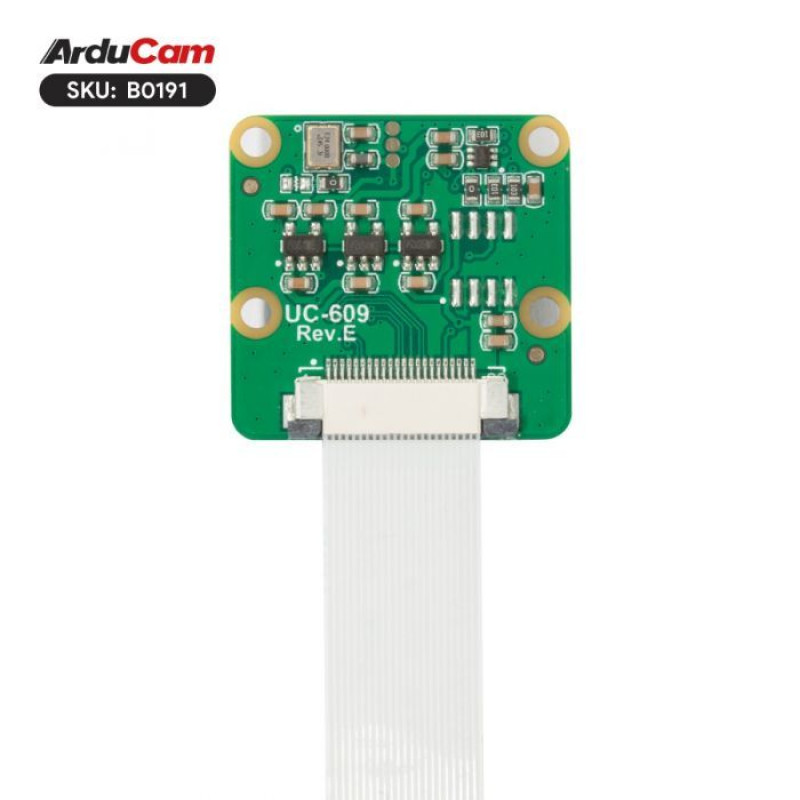

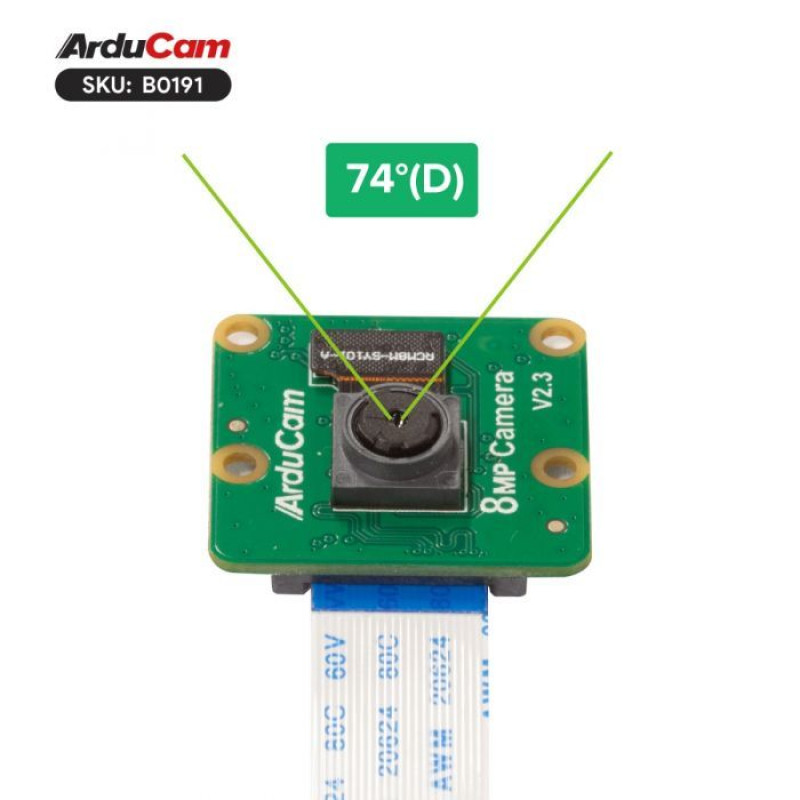

Arducam IMX219 Visible Light Fixed Focus Camera

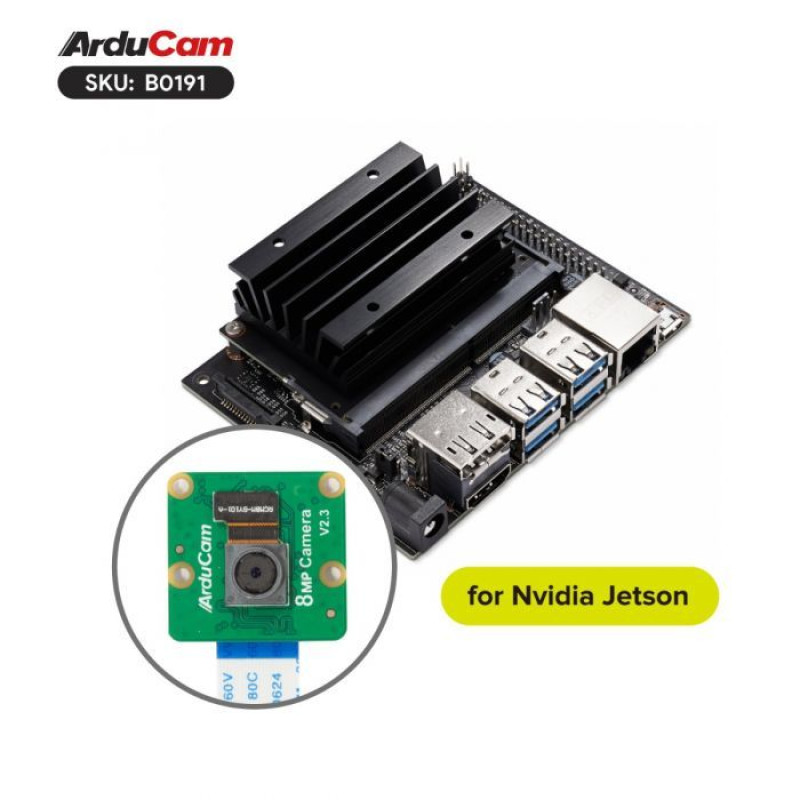

TheArducam IMX219 Visible Light Fixed Focus Camera is a high quality fixed focus camera specifically designed to capture the visible light spectrum. The camera is equipped with a Sony IMX219 sensor, which provides excellent 8 megapixel resolution and high image quality. This Arducam IMX219 camera module is designed primarily for the NVIDIA® Jetson Nano platform, but can also be used on other hardware such as ARM, DSP, FPGA, etc. The camera is ideal for a variety of projects including video surveillance, smart devices, robotics, and augmented reality applications.

Key Features:

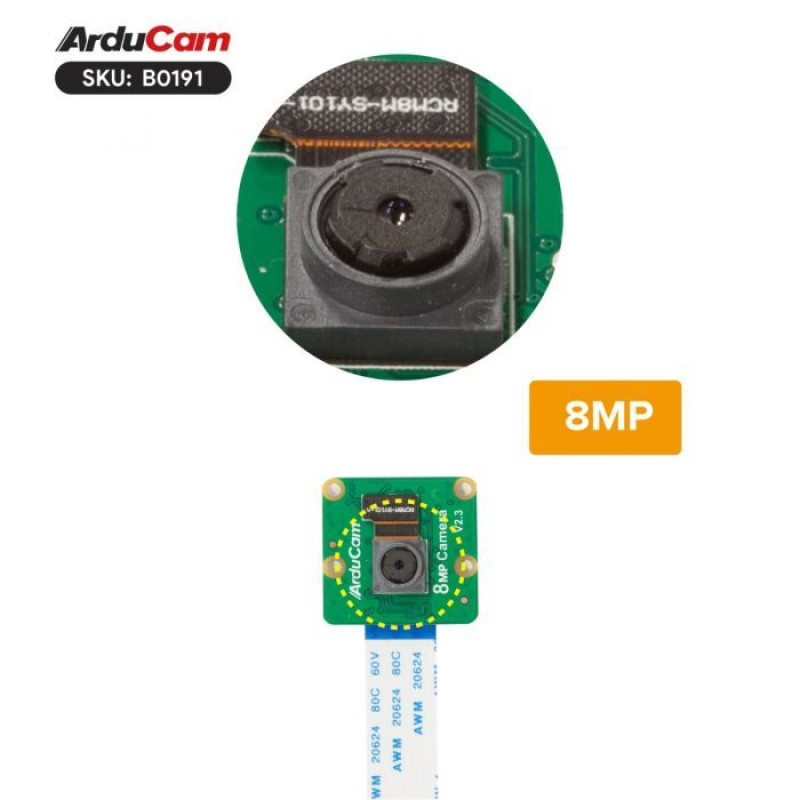

• More than HD: This camera is equipped with a 1/4" 8-megapixel IMX219 sensor for clear images, with a maximum resolution of 3280 x 2464 pixels
• Focal length: 3.04 mm; viewing angle: H=62.2 degrees, V=48.8 degrees
• IR sensitivity: built-in IR filter, visible light only
• Shuttertype: roller shutters
• Color type: colored
• IR sensitivity: visible light, 650 nm IR filter
• Interface: MIPI
• Format: RAW Bayer

Specifications:

• Image sensor: IMX219
• Resolution: 8 megapixels
• Video modes: NVIDIA Jetson Nano/Xavier NX/Orin NX/Orin Nano/AGX Orin: 3280x2464@21fps, 3280x1848@28fps, 1920x1080@30fps, 1640x1232@30fps, 1280x720@60fps
• Sensor resolution: 3280 × 2464 pixels
• Sensor image area: 3.68 x 2.76 mm (4.6 mm diagonal)
• Pixel size: 1.12 µm x 1.12 µm
• Optical size: 1/4"
• IR sensitivity: integrated IR filter, visible light only
• Lens focus type: fixed focus
• Focal length of the lens: 3.04 mm
• Focal ratio: F2.0
• Field of view of the lens: (FOV) 62.2° (H) × 48.8° (V)
• Lens lens type: standard lens
• Lens focal length: 200 mm to infinity
• Peak current consumption: 300 mA

Note:

1. This camera uses kernel drivers to operate - one kernel version, one camera driver. For a note on supported Nvidia Jetson boards and Jetpack versions, please refer to the supported JetPack versions for various NVIDIA Jetson platforms to ensure compatibility.
2. This camera is specifically designed for the official default NVIDIA® Jetson™ developer kit and does not support third-party carrier boards.

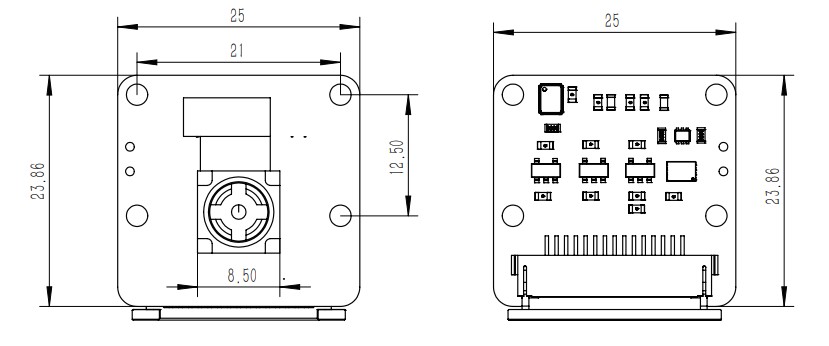

Overall dimensions: 24mm x 25mm

Wiki: Arducam Jetson Nano Camera Modules

Weight: 3 g

Scope of delivery:

1. Arducam IMX219 fixed focus visible light camera module x1

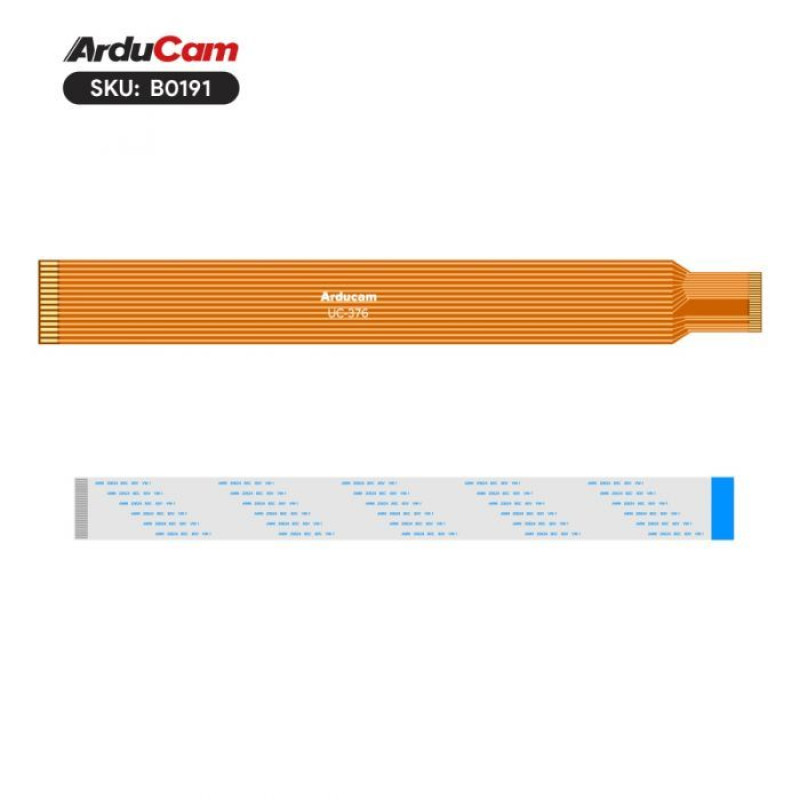

2. 15 cm 22-22 contact FPC cable x1
3. 15 cm 15-22 pin FPC cable x1
