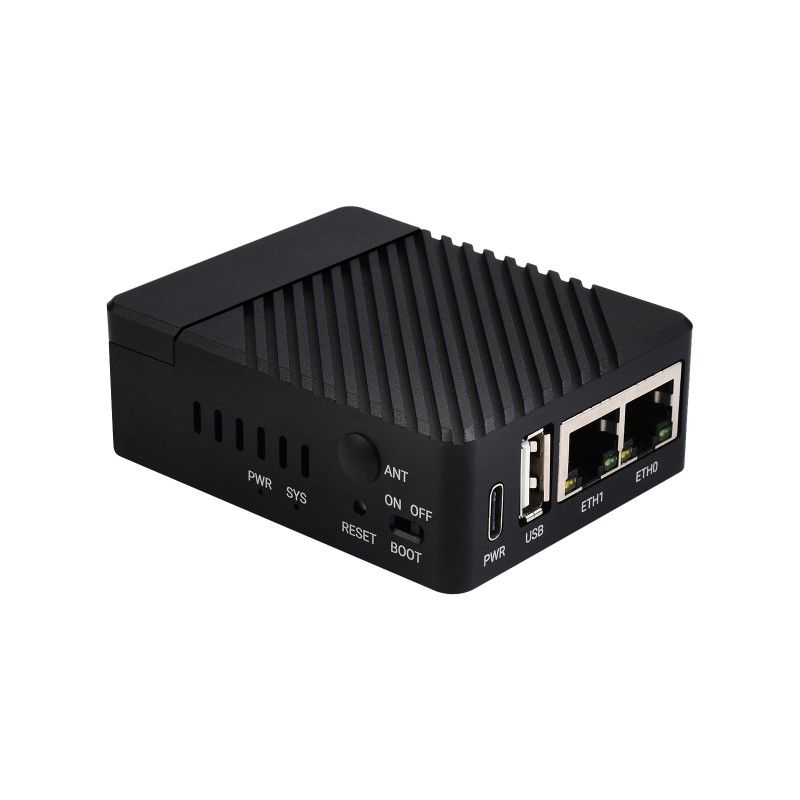

Raspberry Pi Compute Module 4 Mini Dual Gigabit Ethernet Mini-Computer (23852)

The Raspberry Pi Compute Module 4 Mini Dual Gigabit Ethernet Mini-Computer (23852 ) is a kit that contains everything you need to build a dual Gigabit Ethernetmini-computer for the CM4.

This kit enables you to build a minicomputer that has two Gigabit Ethernet connectors. This allows for a fast and stable network connection, which can be useful for a variety of applications such as network devices, servers, routers, and more.

The kit includes all the necessary components to assemble a minicomputer, including an expansion card with two Gigabit Ethernet connectors, a power adapter, a case, cables, and other accessories. In addition, it supports the Raspberry Pi Compute Module 4, which is installed on the expansion board, adding the processing power and capabilities of the CM4 to the minicomputer.

With this kit, you can build your own dual Gigabit Ethernet minicomputer based on the Raspberry Pi Compute Module 4. It provides flexibility and customization for a variety of projects that require a network connection with high speed and reliability.

* For reference only, CM4 is NOT included.

Specifications

• CM4 SOCKET: Fits all Compute Module 4 variants
• NETWORK: dual Gigabit Ethernet RJ45 connector
• USB: USB 2.0 port
• PIN: Raspberry Pi 40PIN GPIO connector
• STORAGE: TF card slot for Compute Module 4 Lite variants (without eMMC)
• FAN CONNECTOR: 4-wire SH1.0 port, allows you to adjust and measure the speed, 5V
• POWER INPUT: 5 V, Type-C interface

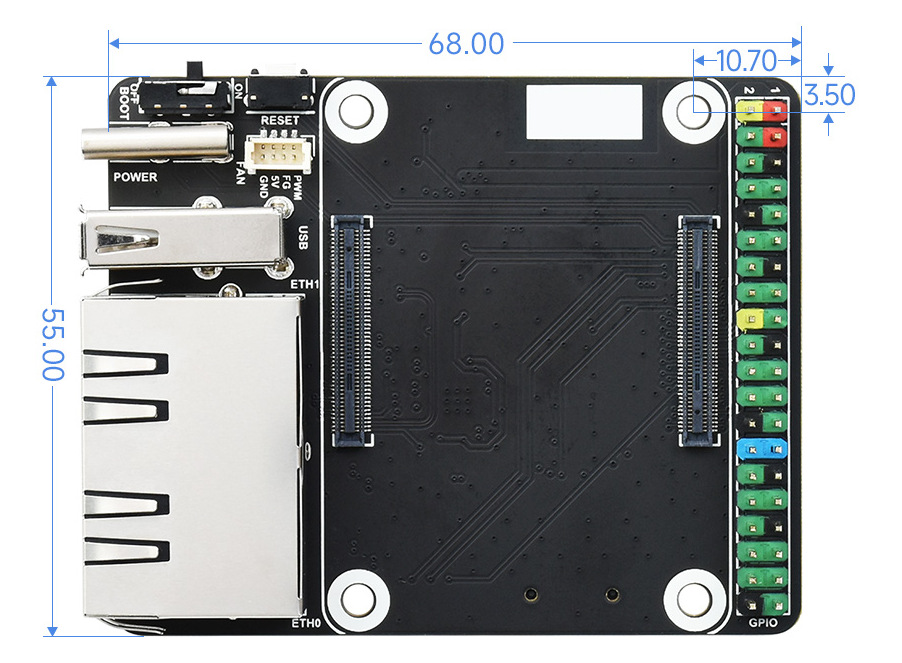

• DIMENSIONS: 55.0 × 68.0 mm

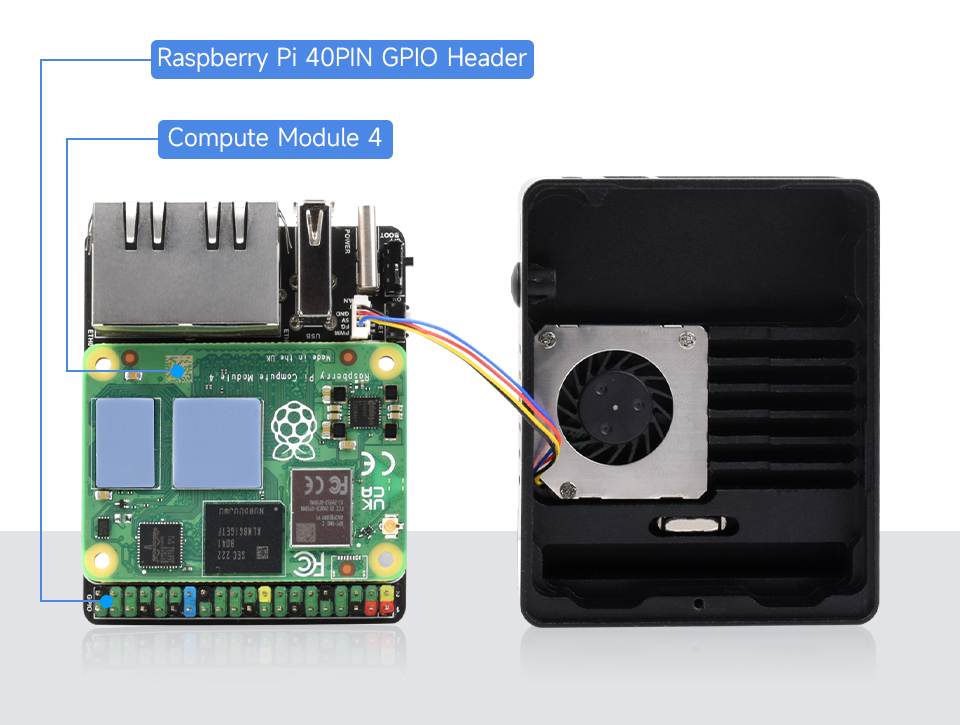

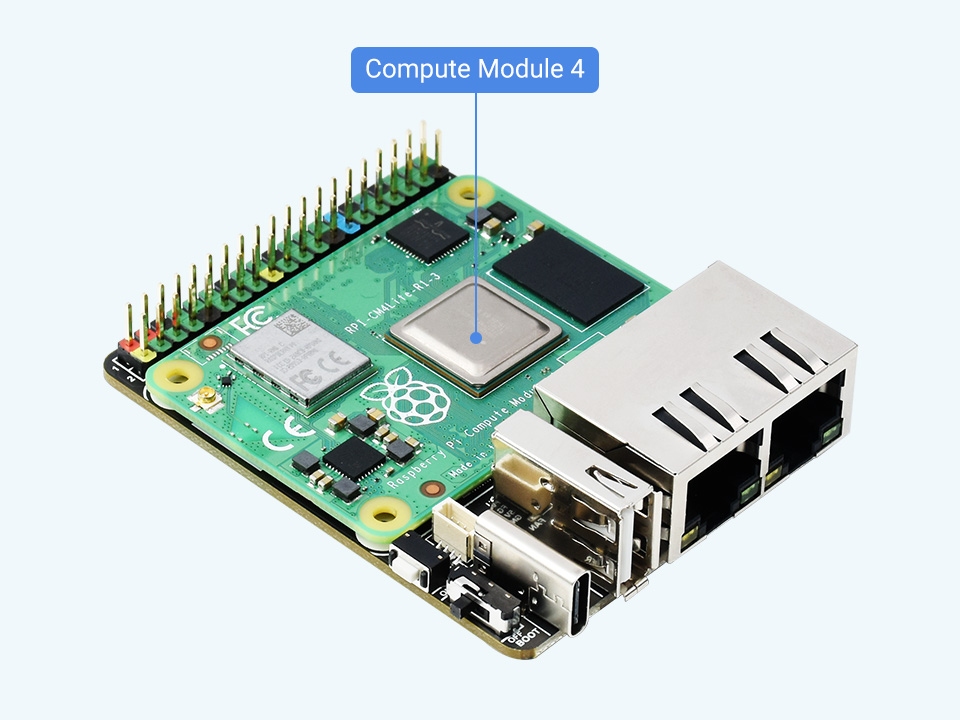

Connection to Compute Module 4
Standard CM4 connector and 40-pin GPIO connector
Suitable for Compute Module 4 Lite/EMMC series modules

For reference only, CM4 is NOT included.

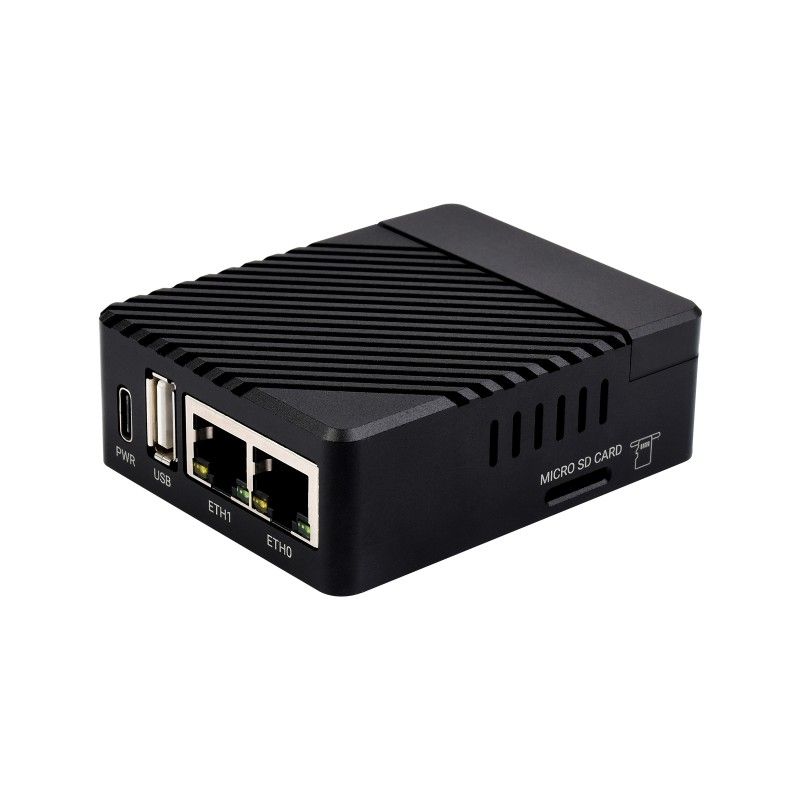

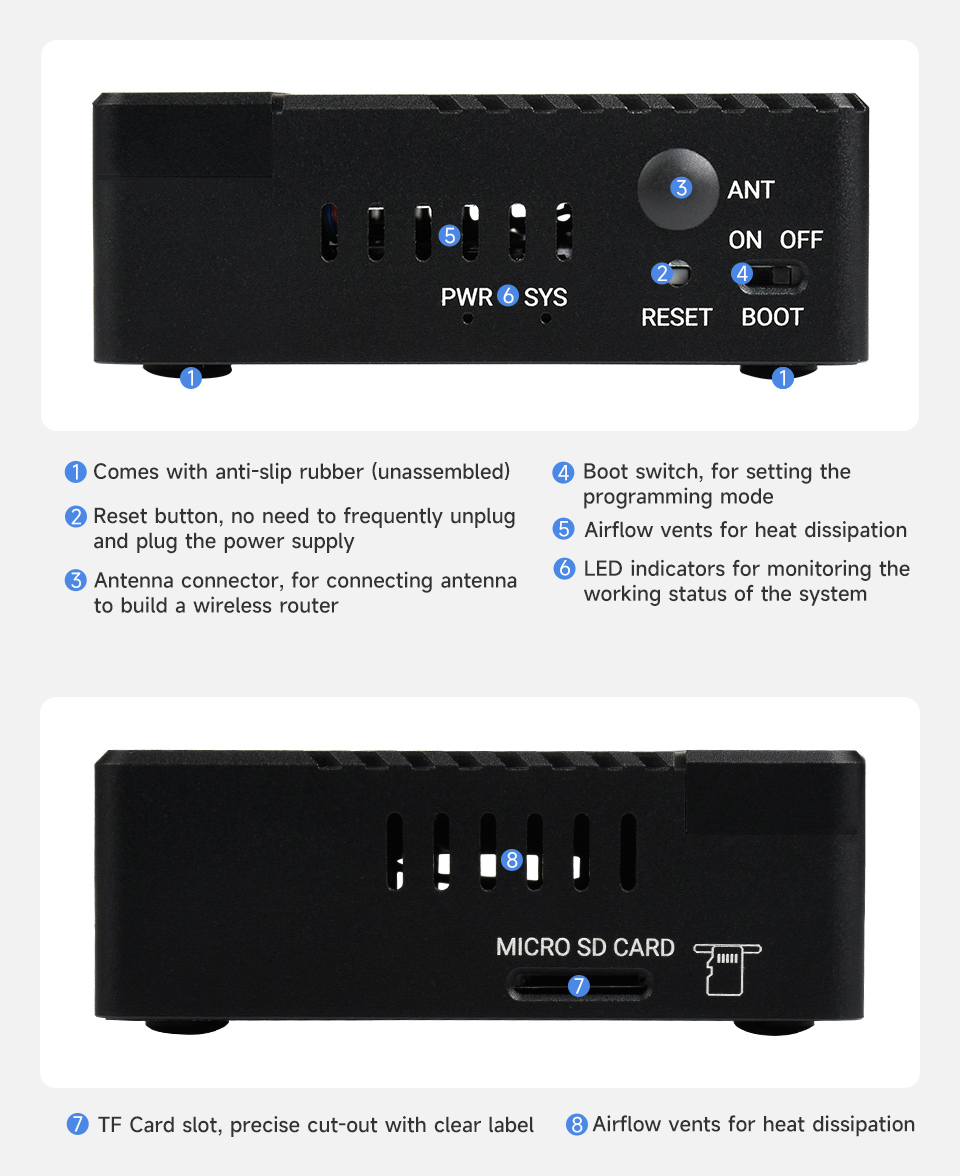

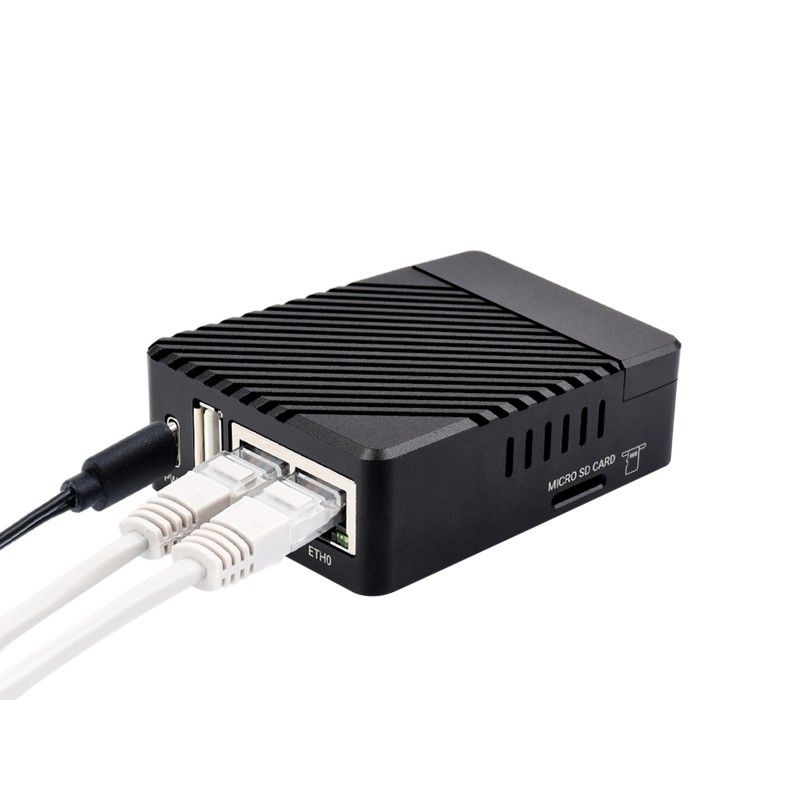

Rich interfaces
Precise cutout with clear label
Each cutout matches the connector exactly

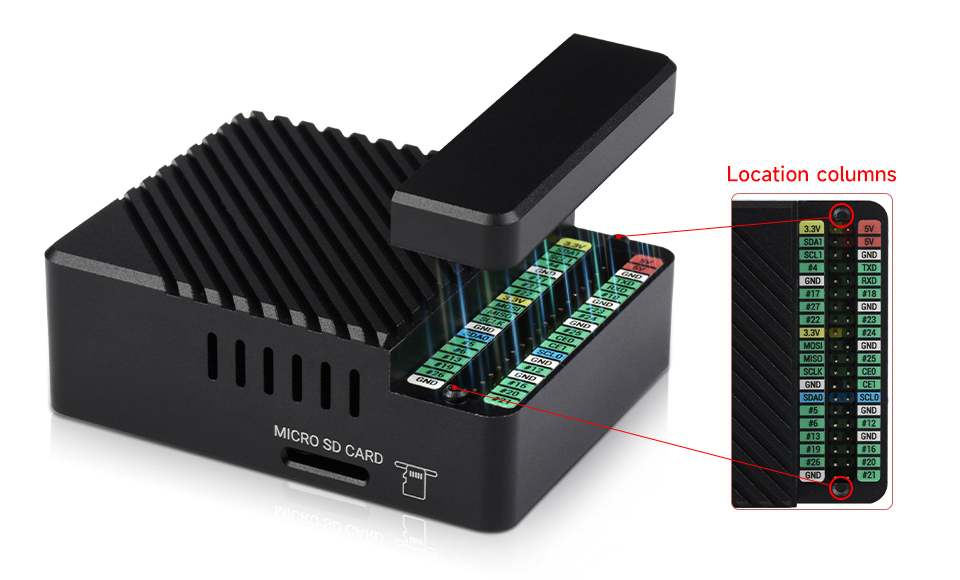

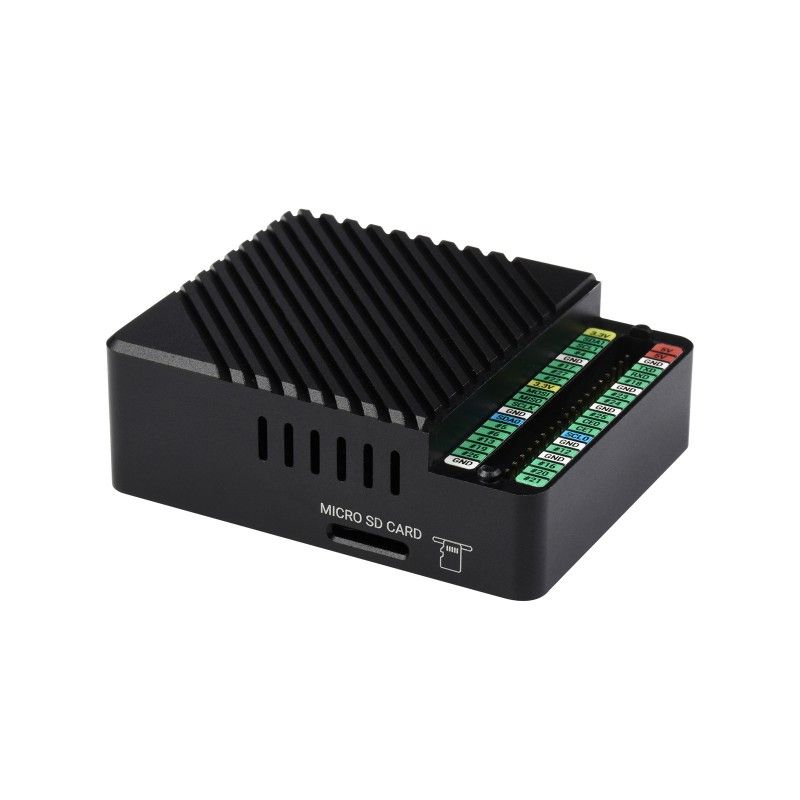

Magnetic design
Magnetic removable top with location columns that is easy to fix
Better protection for GPIO pins

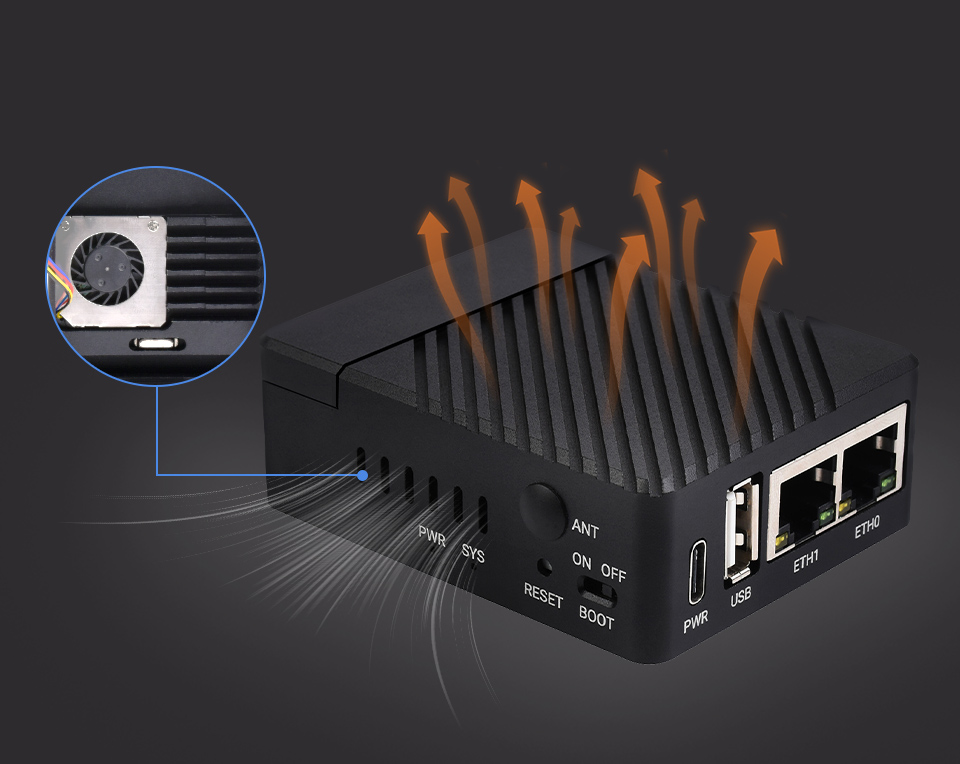

Heat dissipation design
Metal housing for large heat conduction and heat dissipation area
Built-in fan with adjustable speed and cooling fins, more efficient

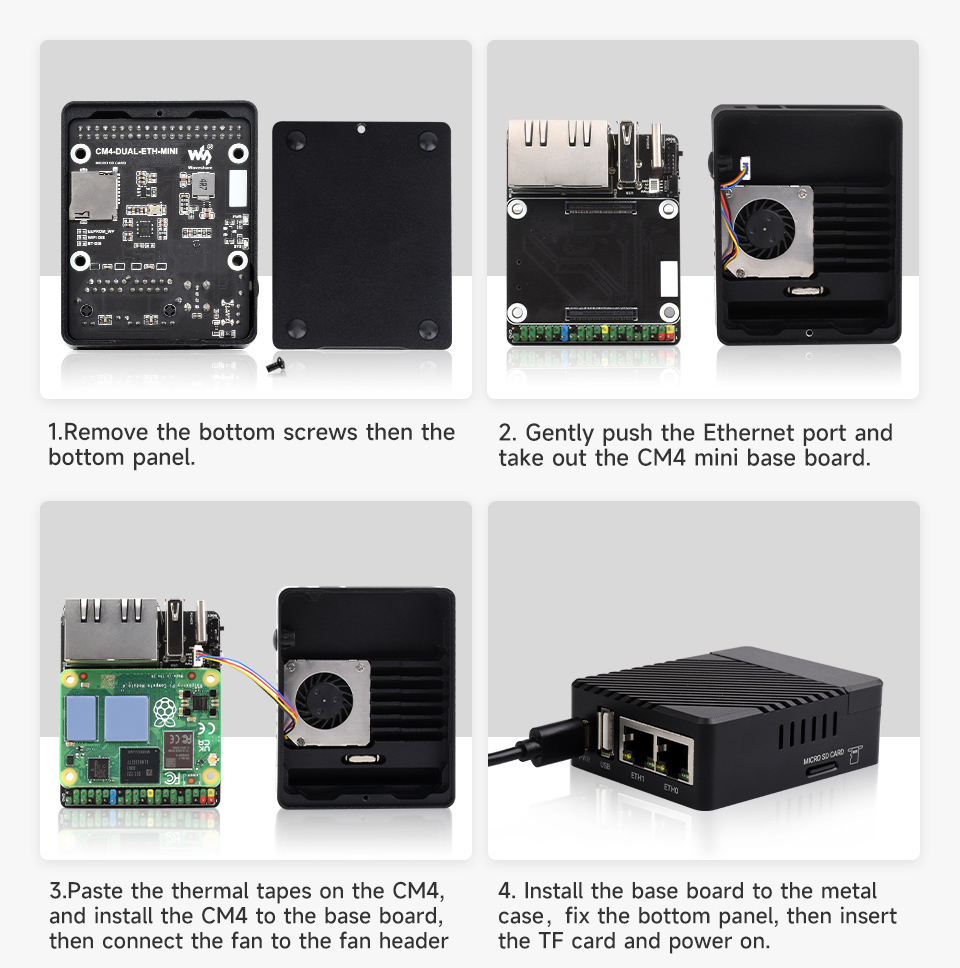

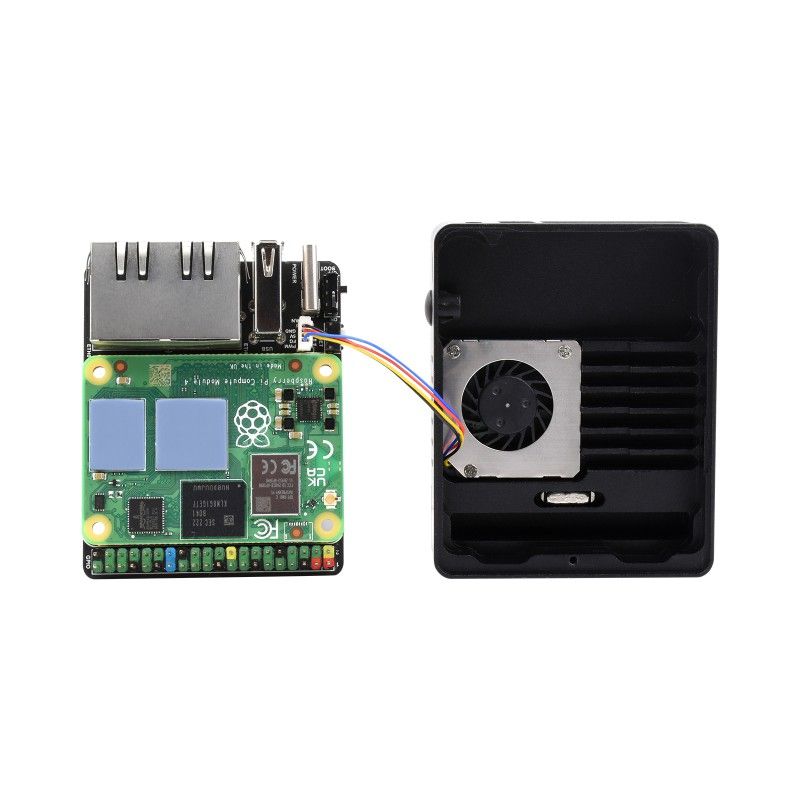

Assembly guide

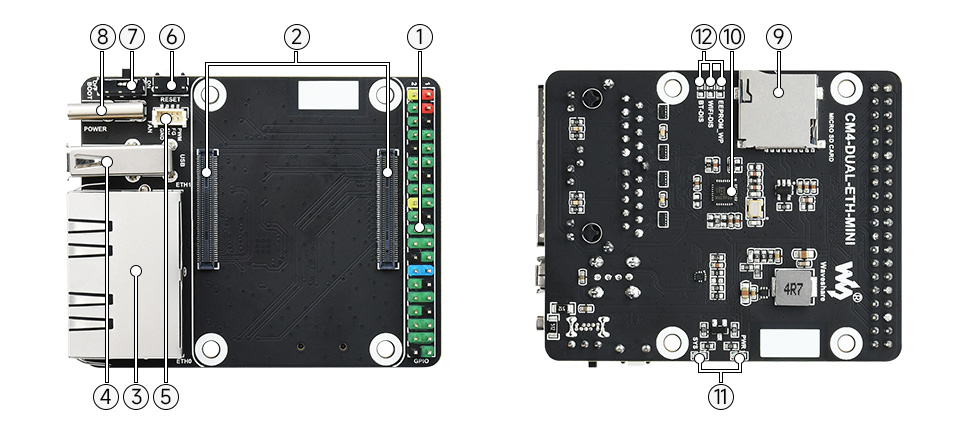

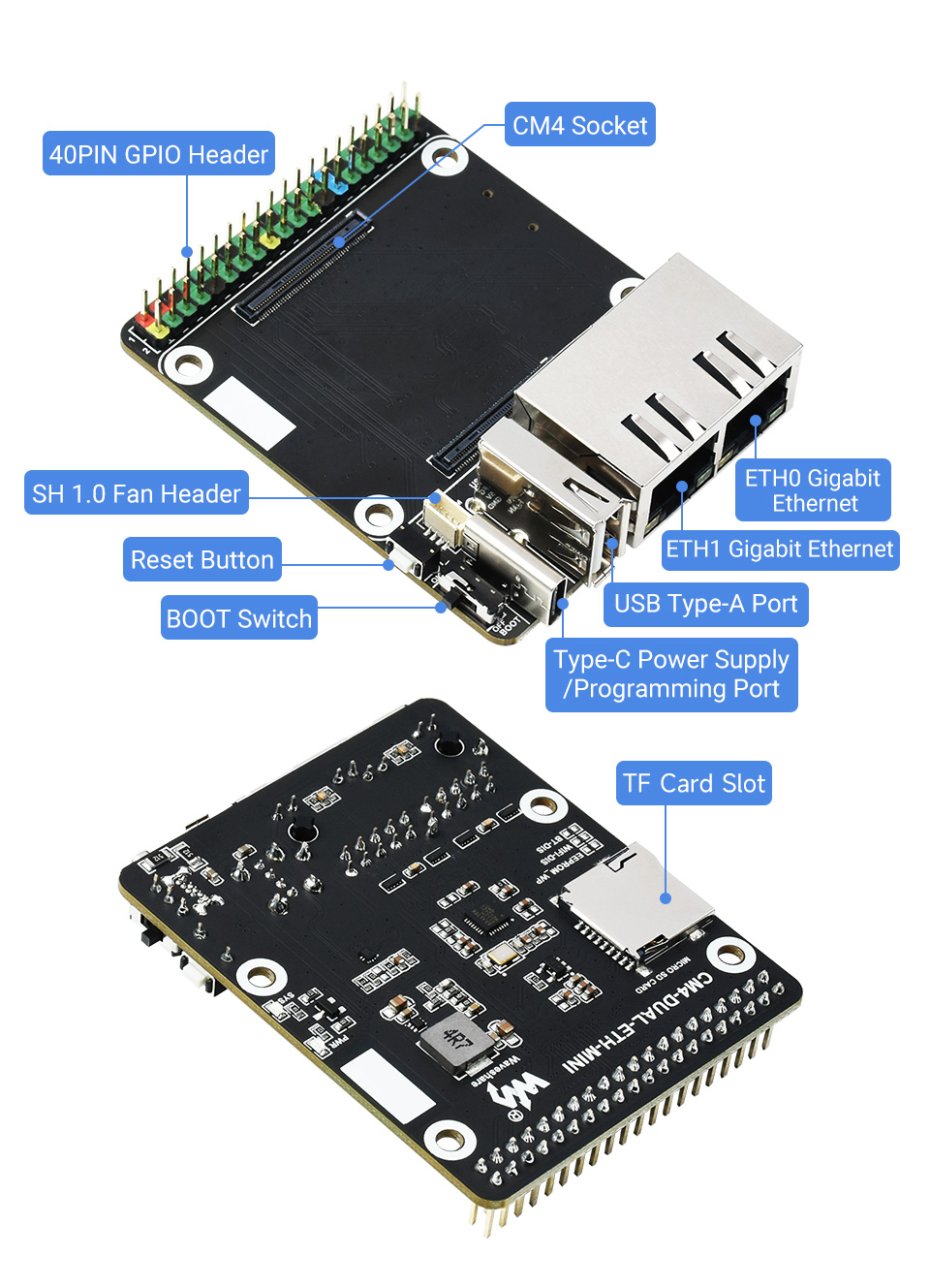

Board Elements:

1. 40-pin GPIO connector for connecting various kinds of HAT
2. CM4 socket fits all Compute Module 4 variants

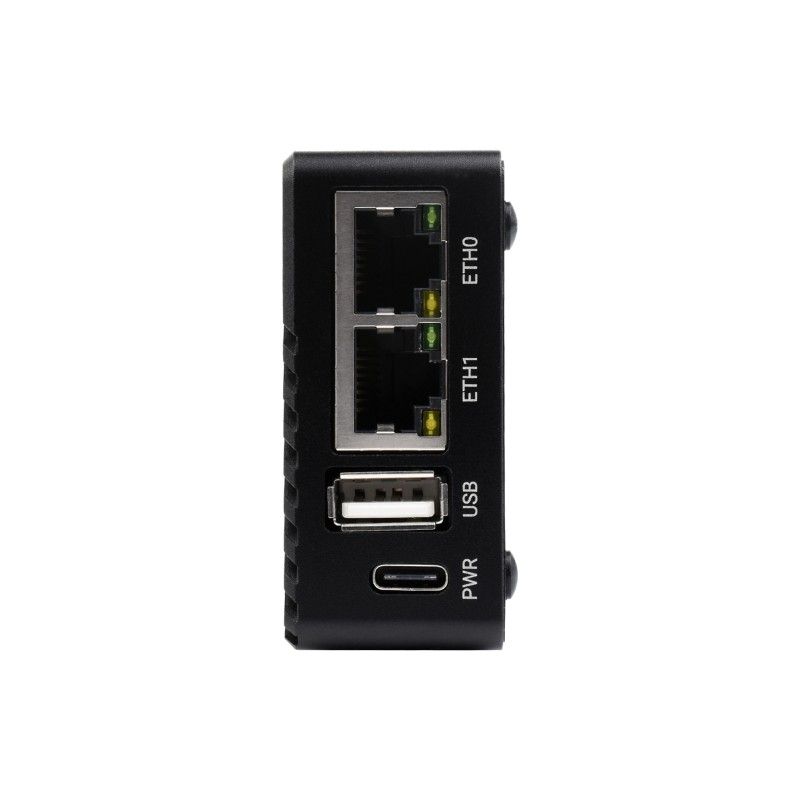

3. Dual Gigabit Ethernet RJ45 port: two Gigabit Ethernet RJ45 ports, compatible with 10/100/1000M
   1. ETHERNET 0: original CM4 network port
   2. ETHERNET 1: extended PCIe network port
4. USB 2.0 type A port for connecting various USB devices
5. FAN connector for connecting a cooling fan, allows you to adjust the speed and measure
6. Reset button
7. Boot switch
   1. ON: CM4 will boot from the USB-C interface
   2. OFF: CM4 will boot from an eMMC or TF card
8. Type-C port: 5V/2.5A power supply or used for eMMC programming
9. TF card slot for connecting a TF card with a pre-recorded image (for the simplified version ONLY)
10. RTL8111HN: Gigabit NIC chip
11. Indicator:
    1. PWR: indicates the power status of the Raspberry Pi
    2. SYS: indicates the operating status of the Raspberry Pi
12. SYSTEM switch
    1. EEPROM_WP: prevents EEPROM from being overwritten
    2. WiFi_DIS: WiFi is disabled, only for CM4 version with wireless connection
    3. BT_DIS: Bluetooth disabled, only for CM4 version with wireless connection

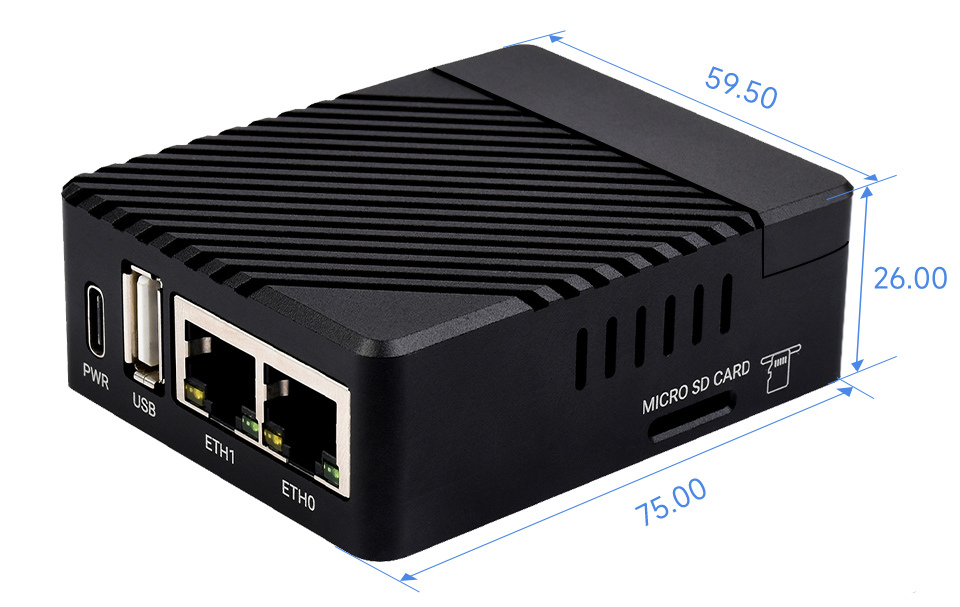

Overall dimensions: 75mm x 59.9mm x 26mm

WIKI: www.waveshare.com/wiki/CM4-DUAL-ETH-MINI

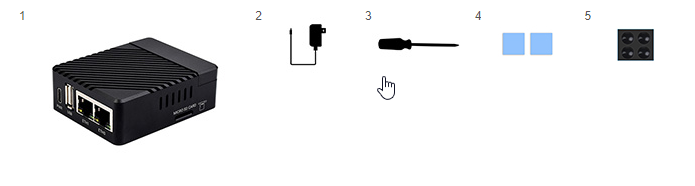

Scope of delivery:

1. CM4-DUAL-ETH-MINI + metal housing (assembled) x1
2. 5 V 3 A power adapter x1
3. Screwdriver x1
4. Thermal tape 2pcs x1 pc
5. Black anti-slip rubber 4 pcs. x1

Weight: 0.263 kg
