Official Raspberry Pi 5 Case, Black and Grey

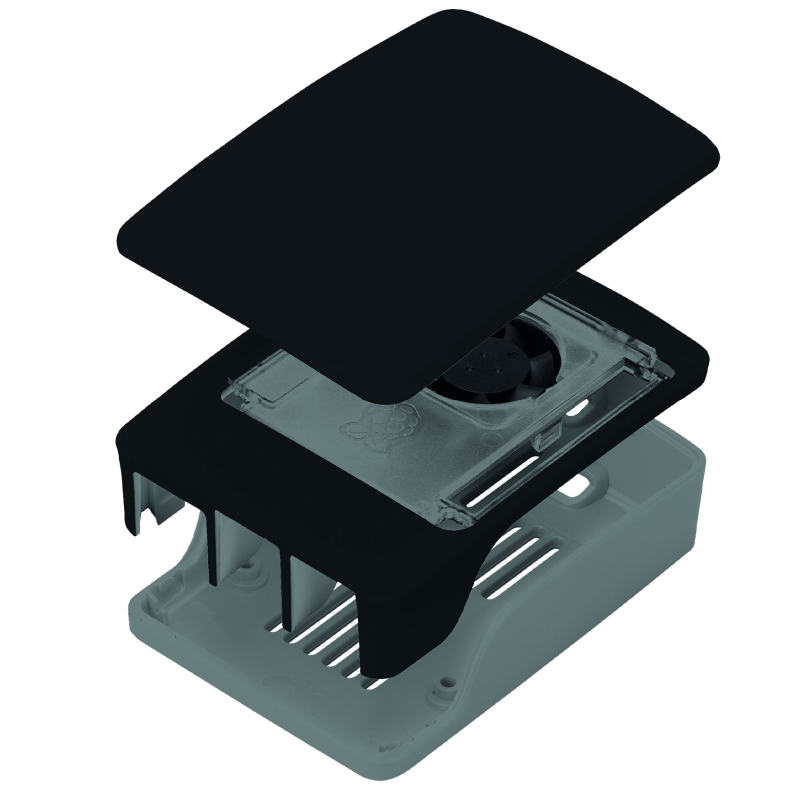

TheRaspberry Pi 5 Case Black/Grey is a four-piece case with an active cooling fan. The plastic parts of the case are black and gray in color.

This case is equipped with a variable-speed fan that is controlled and adjusted through a special connection on the Raspberry Pi 5 board. It keeps the Raspberry Pi 5 at a comfortable operating temperature even under heavy load.

ATTENTION:

• The case is designed specifically for Raspberry Pi 5. You cannot use this case for Raspberry Pi 4 or older boards!
• Raspberry Pi 5 is not included in the package.

Main features:

• Has a built-in temperature controlled cooling fan that plugs into the fan connector on the Raspberry Pi 5
• Includes a 2×17×4mm heat sink with self-adhesive pad to improve heat dissipation from the CPU
• Easy-to-remove cover reveals fan and cable and GPIO connectors
• Built-in mounting features allow for chassis stacking
• Expansion boards can be mounted to the chassis using GPIO connector supports and extensions (not included)
• Four silicone feet for the chassis are included

Technical specifications:

• Input voltage: 5 VDC supplied via the four-pin fan connector on the Raspberry Pi 5
• Fan speed control: Pulse width modulation control with tachometer
• Maximum air flow: 2.79 CFM
• Maximum fan speed: 8000 rpm +/- 15%.
• Case material: ABS (base, frame, cover) and PC (fan)

Overall dimensions: 98 mm x 71 mm x 33 mm
