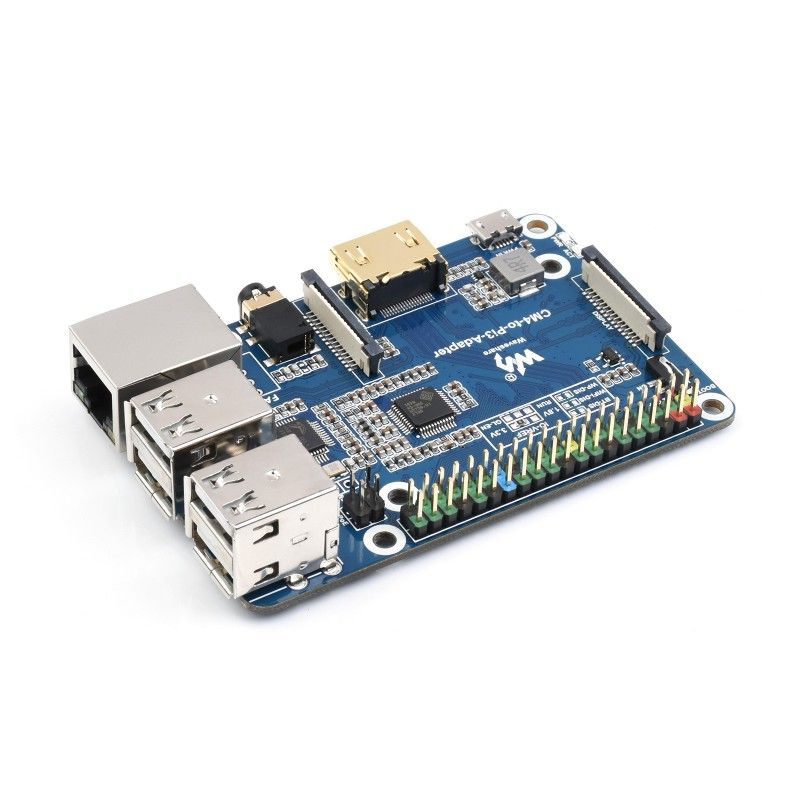

CM4-to-Pi3-Adapter-B expansion card (25871)

The CM4-to-Pi3-Adapter-B (25871 ) is an adapter designed to provide compatibility between Raspberry Pi Compute Module 4 (CM4) single-board computers and expansion boards for Raspberry Pi 3 Model B or Raspberry Pi 3 Model B+. This is an alternative solution that allows you to use the more powerful CM4 module with expansion cards for Raspberry Pi 3 of previous generations.

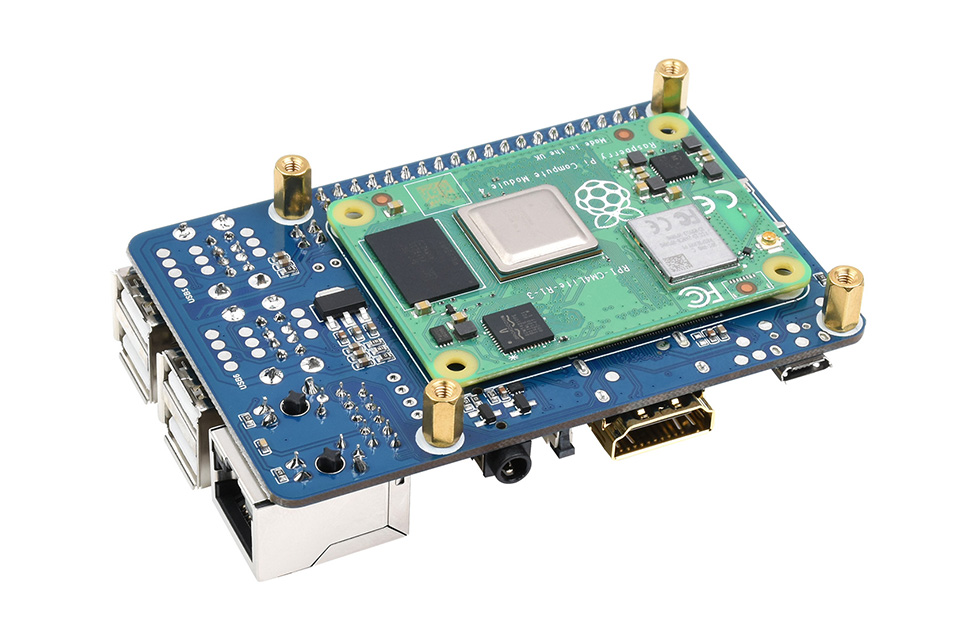

This adapter allows you to connect the CM4 module to a Raspberry Pi 3B or 3B+ and use it as a replacement for the original module, which allows you to expand the capabilities of older Raspberry Pi boards with a more powerful CM4.

This adapter opens up possibilities for developers and enthusiasts who want to upgrade their older projects on Raspberry Pi 3 boards using the more powerful and modern CM4 module.

Main features:

• Has a built-in standard CM4 connector and supports CM4 Lite/eMMc series boards with quad-core 64-bit Cortex A72 processor

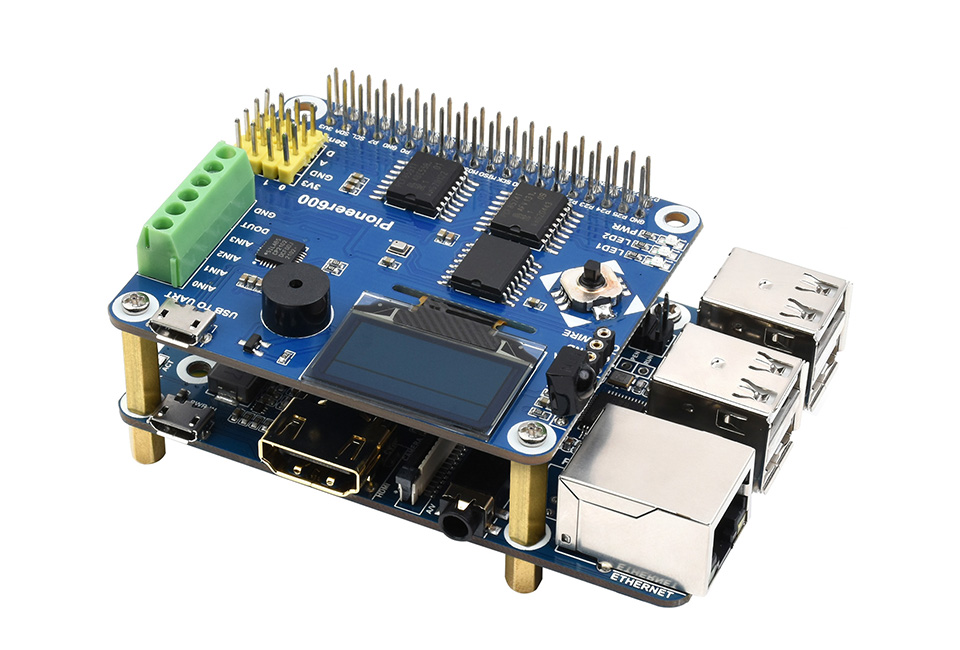

• Fully compatible with Raspberry Pi 3B / 3B+ expansion board interfaces

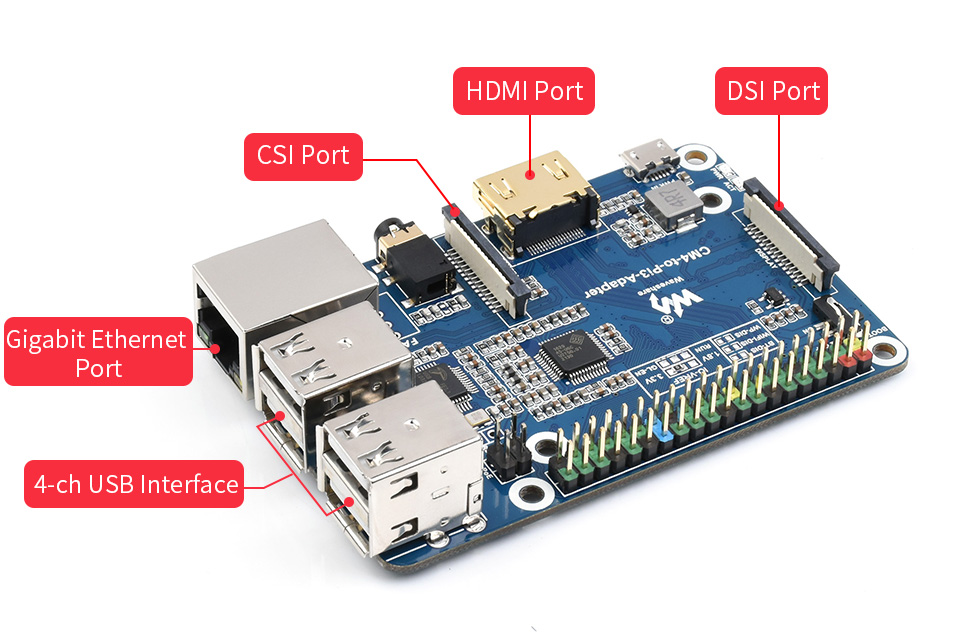

• Has:

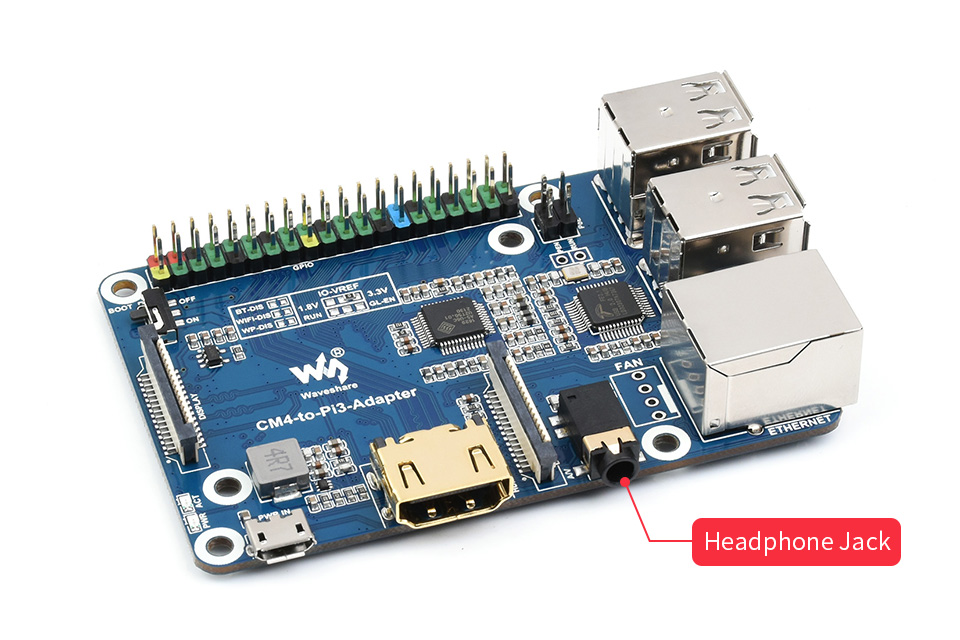

  • built-in headphone jack (expandable with USB)
  • built-in 4-channel USB ports compatible with USB 2.0 / 1.1 transmission
  • built-in Gigabit Ethernet RJ45 port, adaptive 10/100/1000 M
  • built-in PoE connector for connecting a PoE HAT

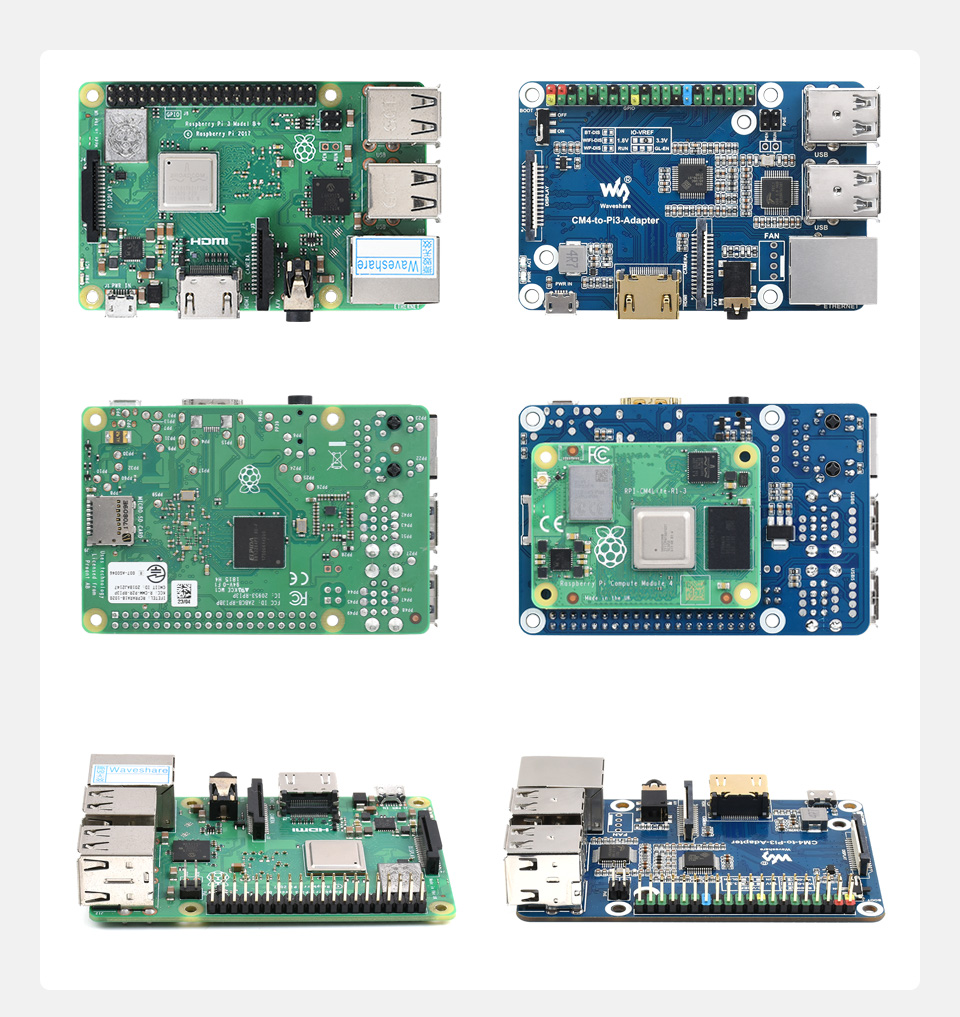

Comparison of the original Raspberry Pi 3B+ (left) with the SM4 adapter (right)

Has fully compatible interface connectors at the same locations

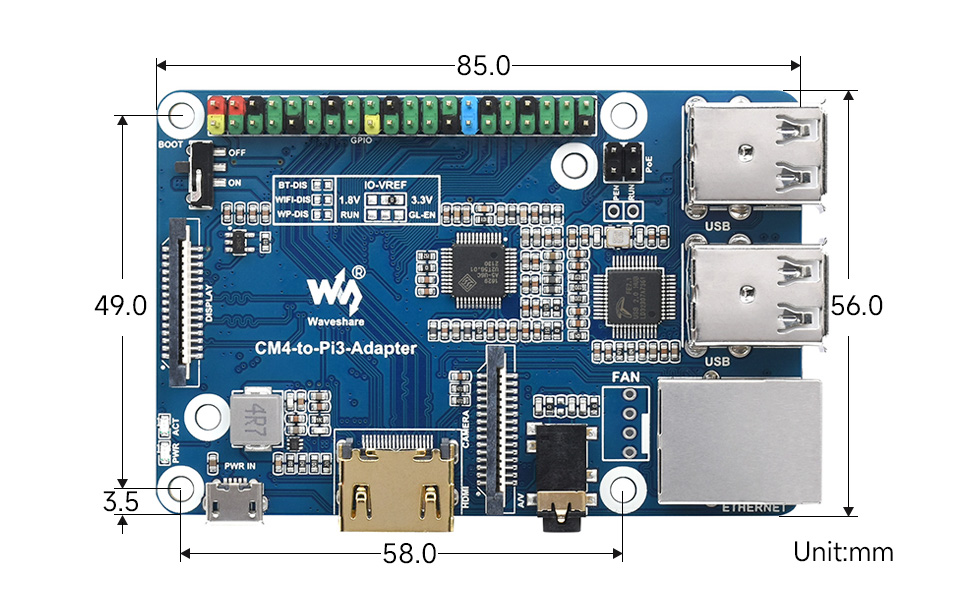

Overall dimensions: 85 mm x 56 mm

Wiki: www.waveshare.com/wiki/CM4-to-Pi3-Adapter

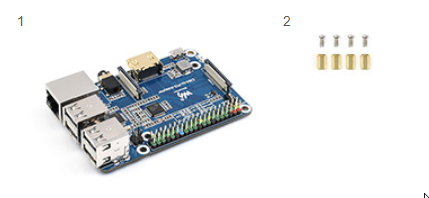

Scope of delivery:

1. CM4-to-Pi3-Adapter-B x1
2. Package of screws x1 pc

Weight: 0.049 kg
