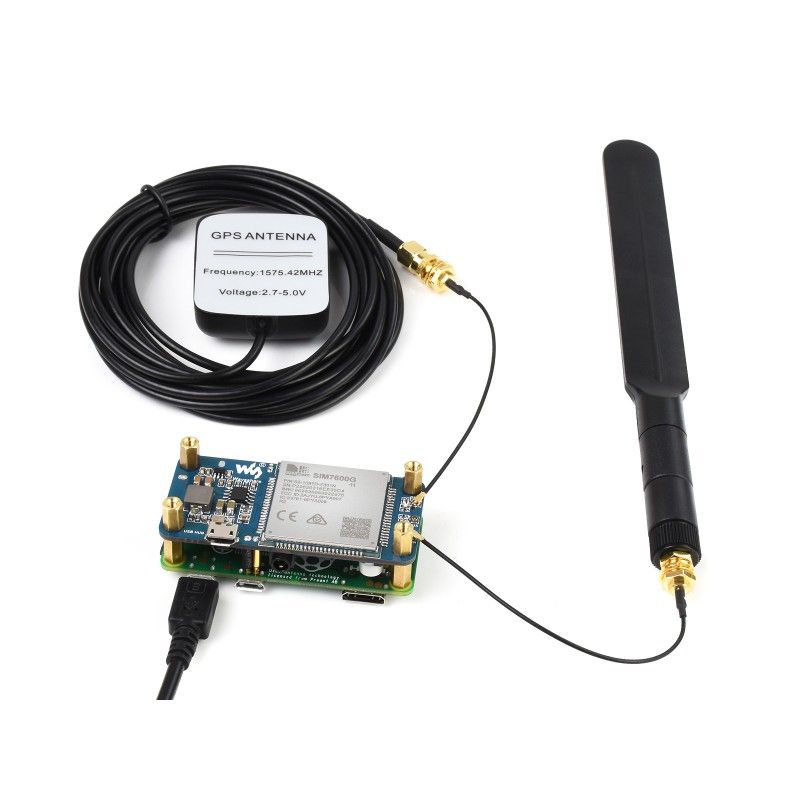

Raspberry Pi SIM7600G-H 4G HAT expansion board (19485)

The Raspberry Pi SIM7600G-H 4G HAT Expansion Board (19485 ) is a Raspberry Pi expansion board that contains the SIM7600G-H 4G communication module and provides the Raspberry Pi with 4G / 3G / 2G LTE Cat-4 communication with global support, as well as GNSS-based positioning (GPS, BeiDou, Glonass, GALILEO, QZSS, LBS). Supports dial-up access, phone calls, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.

The expansion card is suitable for use with both Raspberry Pi and PCs, thanks to a general-purpose MicroUSB connector.

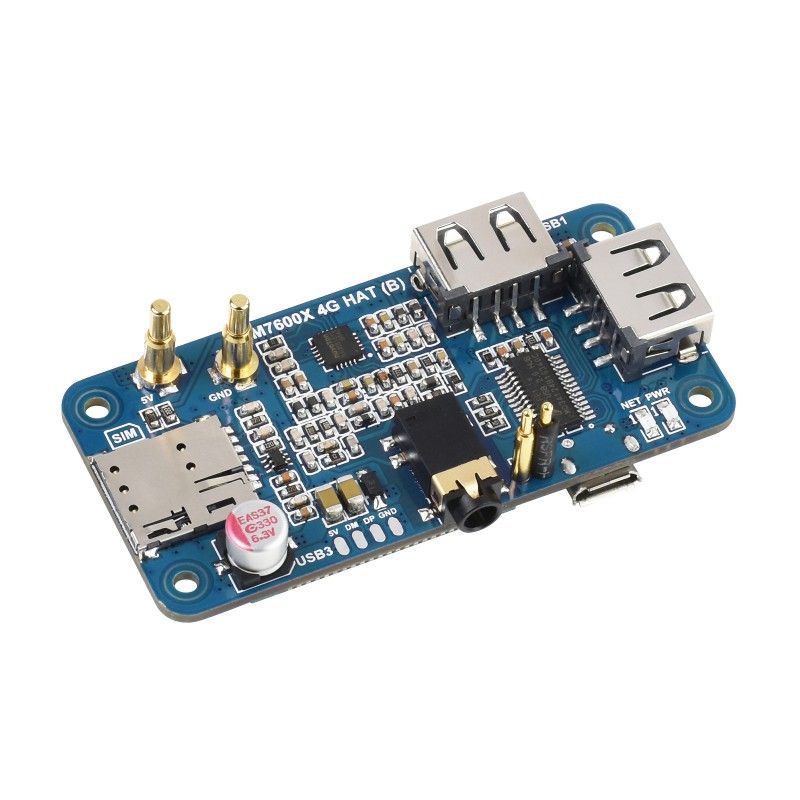

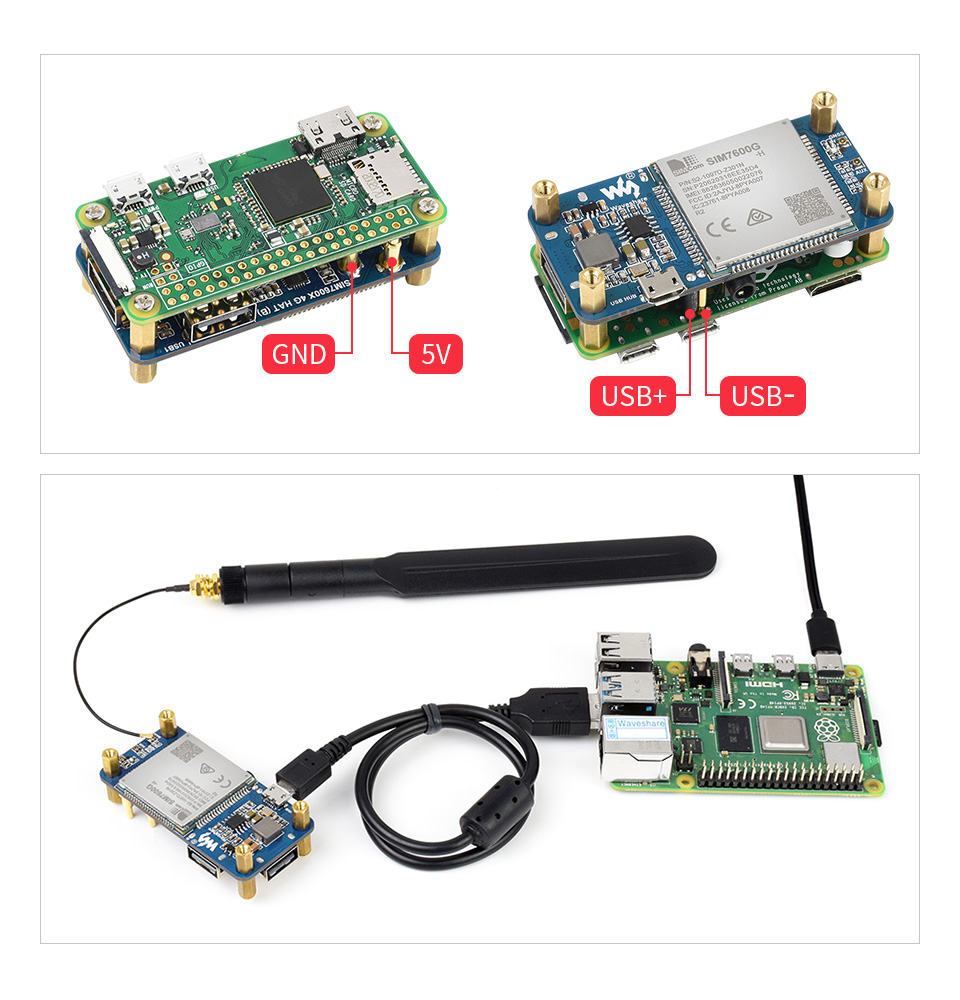

It has a dedicated Pogo connector for connecting to the Raspberry Pi Zero / Zero W without an additional USB cable.

Key Features:

• Connects via pogo pin or MicroUSB connector
  • Dedicated connector for Raspberry Pi Zero / Zero W
  • MicroUSB connector for other Raspberry Pi boards or PCs

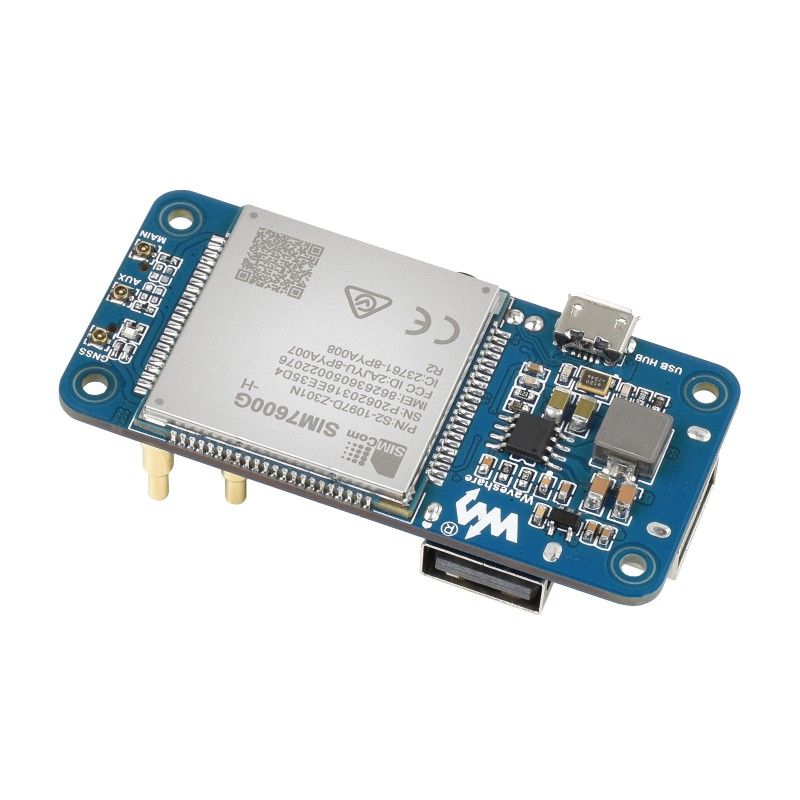

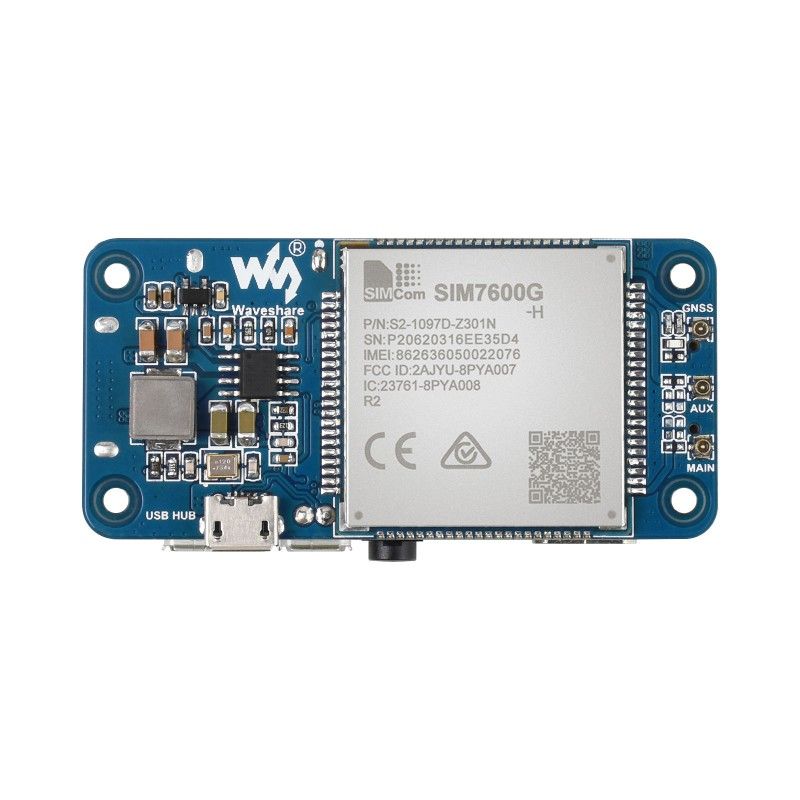

• Includes SIM7600G-H 4G global band module, compatible with 2G/3G/4G networks with global support
• USB HUB connector for other Raspberry Pi boards or PCs, providing USB expansion and 4G network access
• Supports dial-up access, phone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports positioning by GPS, BeiDou, Glonass, GALILEO, QZSS, LBS

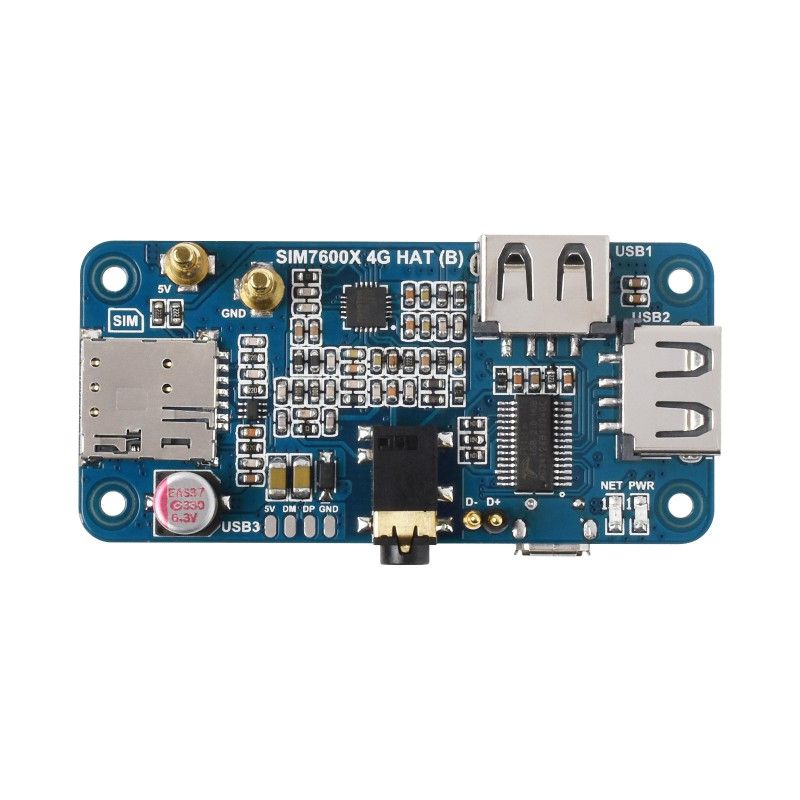

• Has a SIM card slot, supports 1.8V/3V SIM card
• Has a built-in audio jack and audio decoders for phone calls
• 2x LED indicators for easy monitoring of the operating status
• Control via AT commands (3GPP TS 27.007, 27.005 and V.25TER command set)
• Supports a set of applications for SIM cards: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Raspberry Pi)

Specifications:

Frequency Range.
LTE Cat-4	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41
3G	UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G	GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Satellite system	GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type	16-channel
	C/A code
Audibility.	-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
	Cold starts: -148 dBm
Time to first detection (outdoors)	Cold starts: Specifications Main characteristics Country of origin Made in China Form factor Expansion board USB 2 x USB 2.0 Reviews There are no reviews for this product. + Add review Write a review Raspberry Pi SIM7600G-H 4G HAT expansion board (19485) My mark: Continue There are no reviews for this product, be the first to leave your review. Answers & questions Add your question and we will answer as soon as possible. + Ask a question Ask a question Add your question and we will answer as soon as possible. * Your question Continue No questions about this product, be the first and ask your question. you watched new Popular Sold Out Display 9.3inch 1600x600 HDMI Capacitive Touch (24644) Model: 24644 Out Of Stock 0 £76.30 new Popular Sold Out Raspberry Pi Compute Module 4 I/O PoE Board (B) (20157) Model: 20157 Out Of Stock 0 £34.50 new Popular Sold Out Raspberry Pi Compute Module 4 Aluminum Heatsink (19623) Model: 19623 Out Of Stock 0 £2.20 new Popular Sold Out Arduino Uno Rev3 SMD / A000073 Model: V70370 Out Of Stock 0 £23.10 new Popular Sold Out JETSON-ORIN-CASE-A Model: V123663 Out Of Stock 0 £11.80 new Popular Sold Out Raspberry Pi Relay Board 3-Ch HAT expansion board (11638) Model: 11638 Out Of Stock 0 £9.00 new Popular Sold Out Raspberry Pi 400 GPIO Header Adapter (2x 40PIN) HAT expansion card (18995) Model: 18995 Out Of Stock 0 £3.70 new Popular Sold Out Arduino MKR Mem Shield / ASX00008 Model: ASX00008 Out Of Stock 0 £18.00 new Popular Sold Out Raspberry Pi A7670E Cat-1/GNSS HAT expansion board (26631) Model: 26631 Out Of Stock 0 £23.40 new Popular Sold Out Arduino MKR CAN shield / ASX00005 Model: ASX00005 Out Of Stock 0 £33.80
