Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)

Brand: Waveshare Product Code: 19623
0
All about product
Description
Specification
Reviews 0
Questions0
new
Popular
Sold Out
Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)
Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)
Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)
Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)
Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)
Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)
Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)
Out Of Stock
£2.20
Compatibility:RPi Compute Module 4
Cooling type:Passive cooling
Country of origin:Made in China
Type of accessory:Cooling systems
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Raspberry Pi Compute Module 4 Aluminum Heatsink (19623)
£2.20
Description

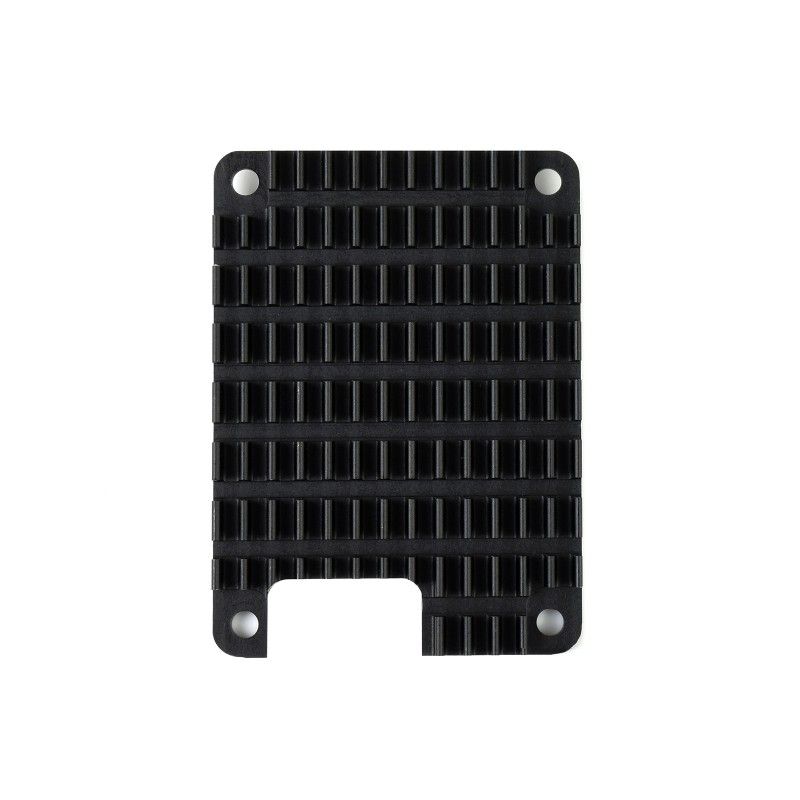

TheRaspberry Pi Compute Module 4 Aluminum Heatsink (19623 ) is the easiest solution for cooling your Raspberry Pi Compute Module 4 CM4. The heatsink is made of anodized aluminum alloy and in addition to cooling properties, it will also add a bit of aesthetics to the CM4. The shape of the fins allows for efficient heat dissipation without the use of forced ventilation.

Comparison of the cooling efficiency of the computing module with aheatsink (With Heatsink) compared to forced ventilation(With Cooling Fan) and without(CM4 Bare Board):

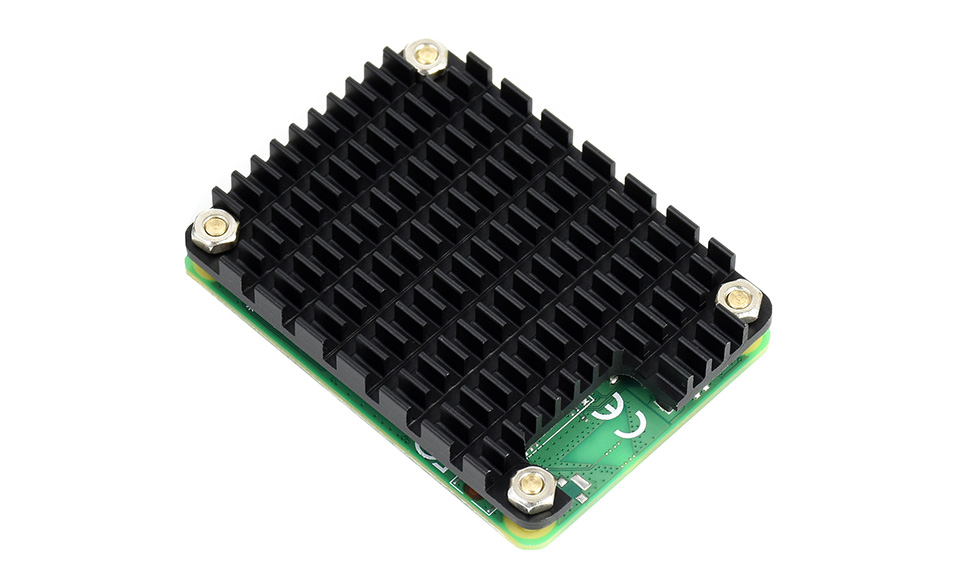

The heatsink is mounted on the standard mounting holes of the compute module using the mounting hardware (included in the package).

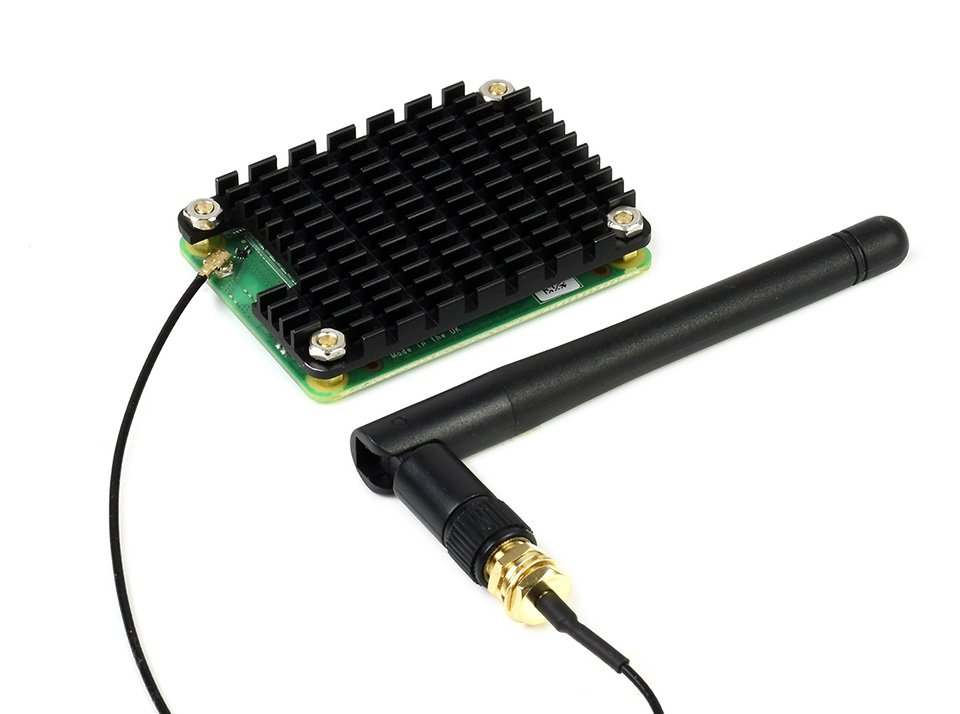

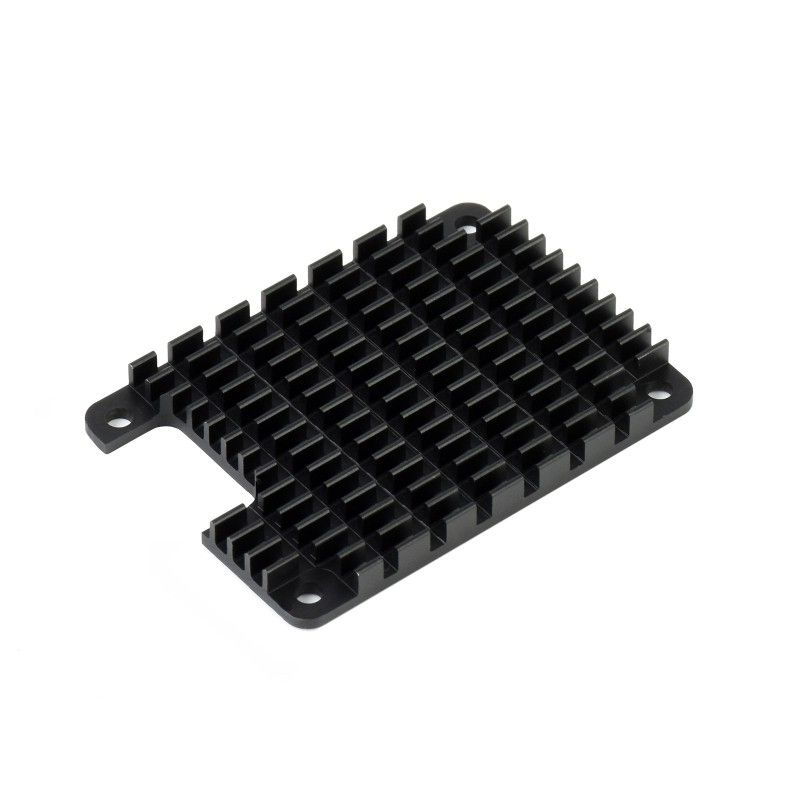

The radiator has a special cutout on one of its sides that provides convenient access to the antenna socket:

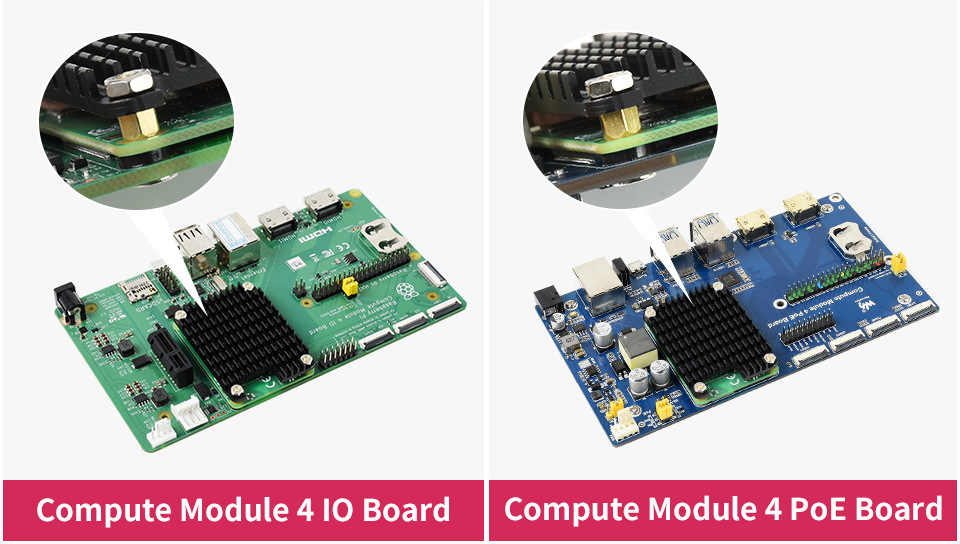

An example of installing a heatsink on a compute module for the Compute Module 4 IO Board and Compute Module 4 PoE Board options:

Note: The Compute Module 4 IO Board and Compute Module 4 PoE Board are not included in the package!

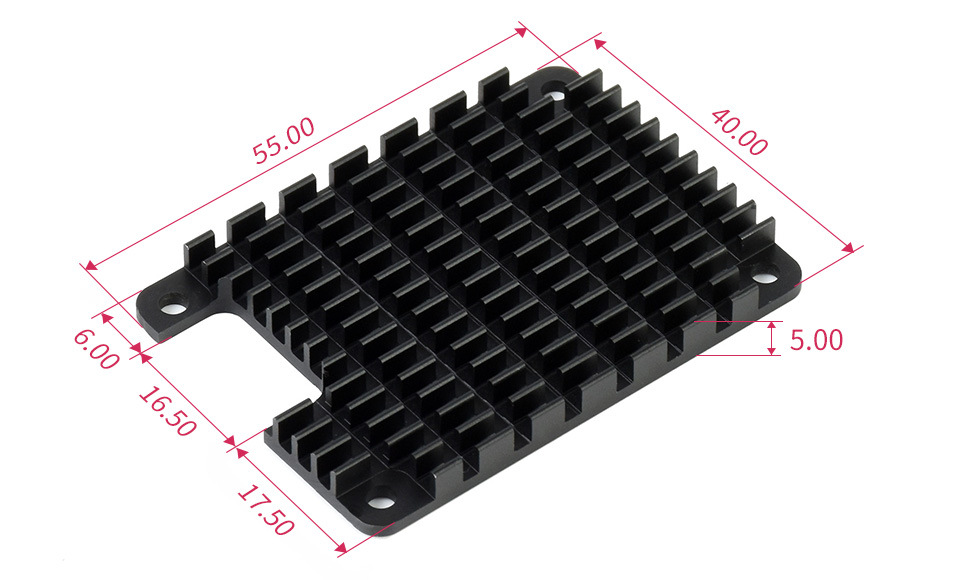

Overall dimensions:

Installation procedure:

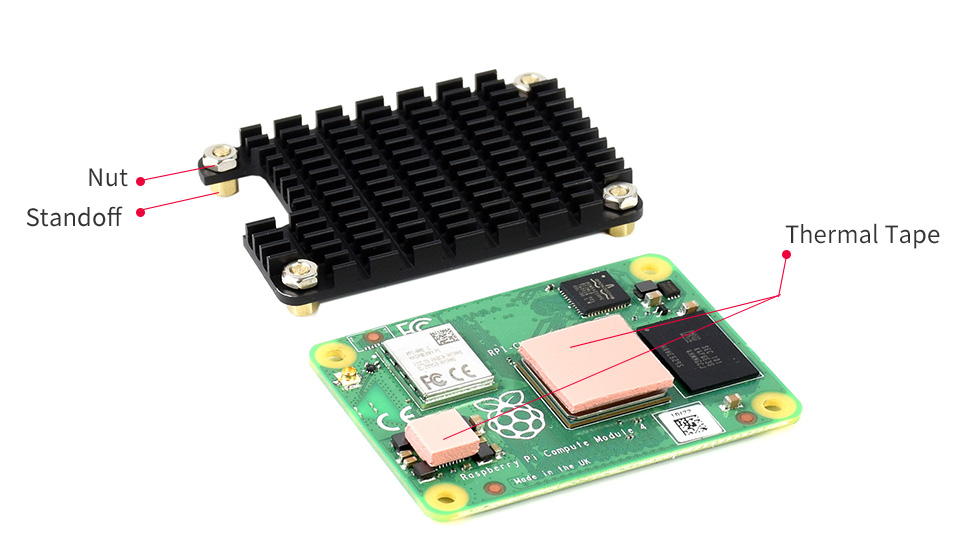

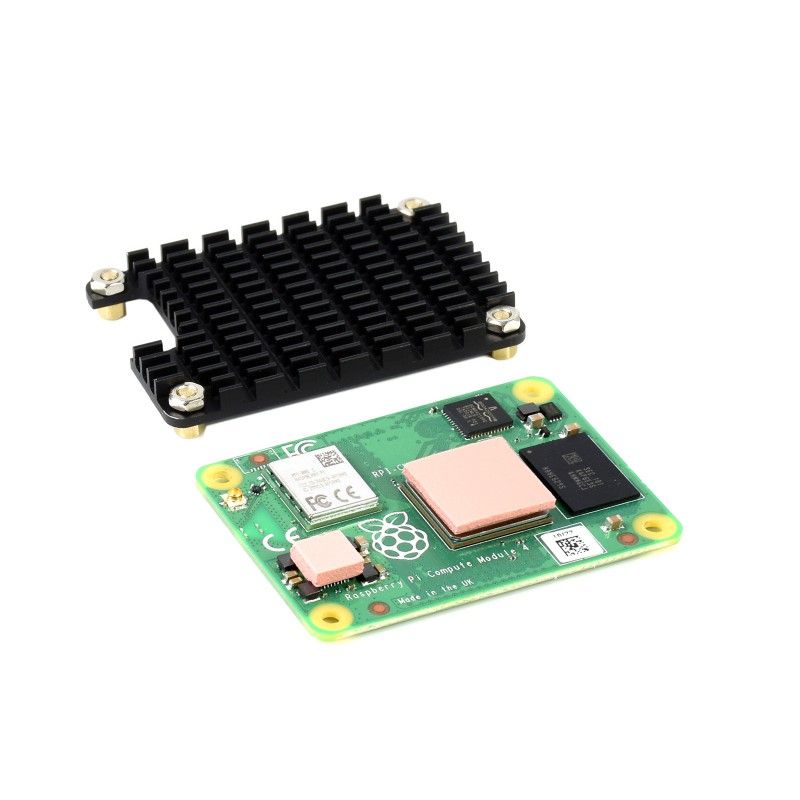

1. Attach the thermal tape to the CM4, fasten the nuts and racks to the radiator.

Nut - nut

Standoff - standoff

Thermal Tape

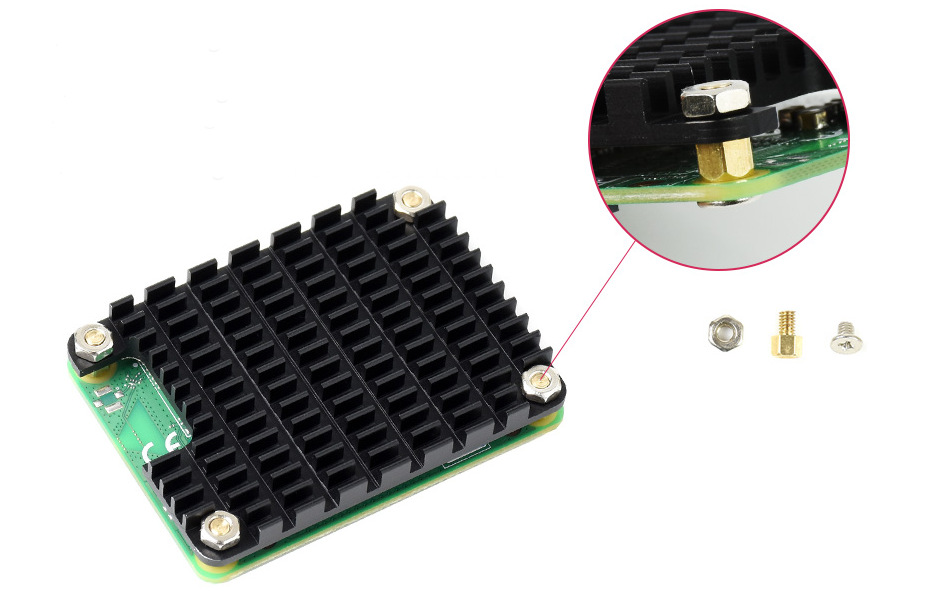

2. If you are using the compute module separately, secure the heatsink to the standoffs with short screws as shown in the following figure

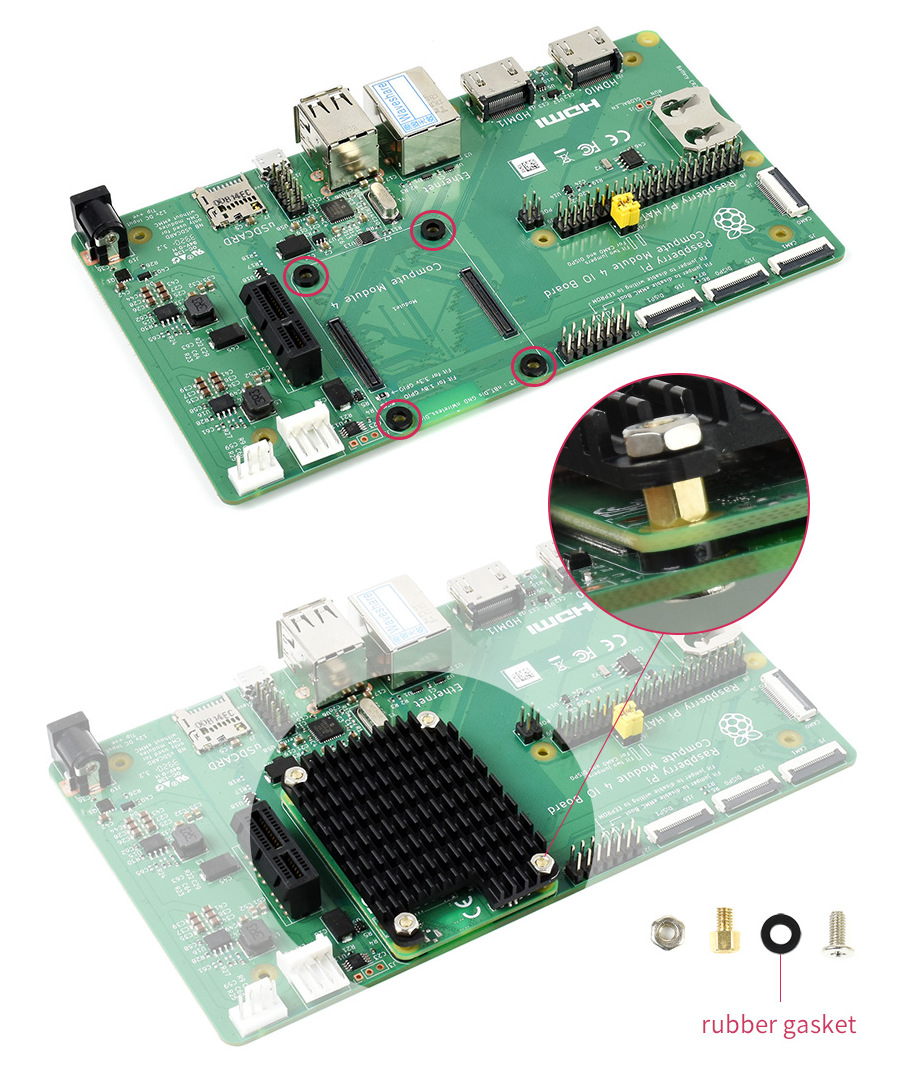

3. If the compute module is used on the Compute Module 4 IO Board or Compute Module 4 PoE Board, attach the racks with nuts and secure to the board with arubber gasket and long screws:

Included in the scope of delivery:

  1. CM4-HEATSINK heatsink x1
  2. Fasteners and thermal tape x1

1. 2.

Weight: 0.022kg

Specifications
Main characteristics
Compatibility
RPi Compute Module 4
Cooling type
Passive cooling
Country of origin
Made in China
Type of accessory
Cooling systems
