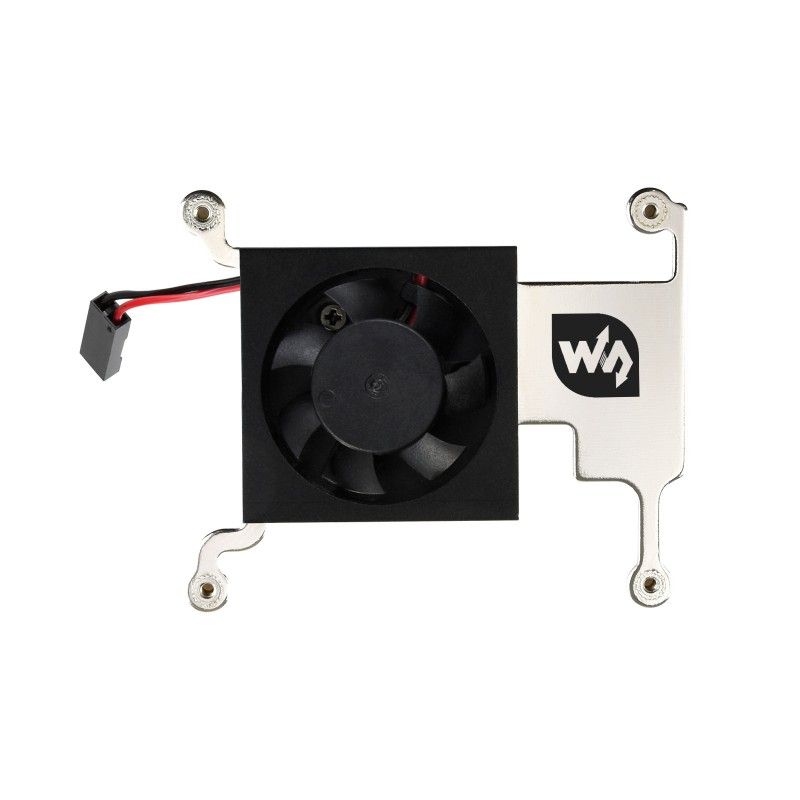

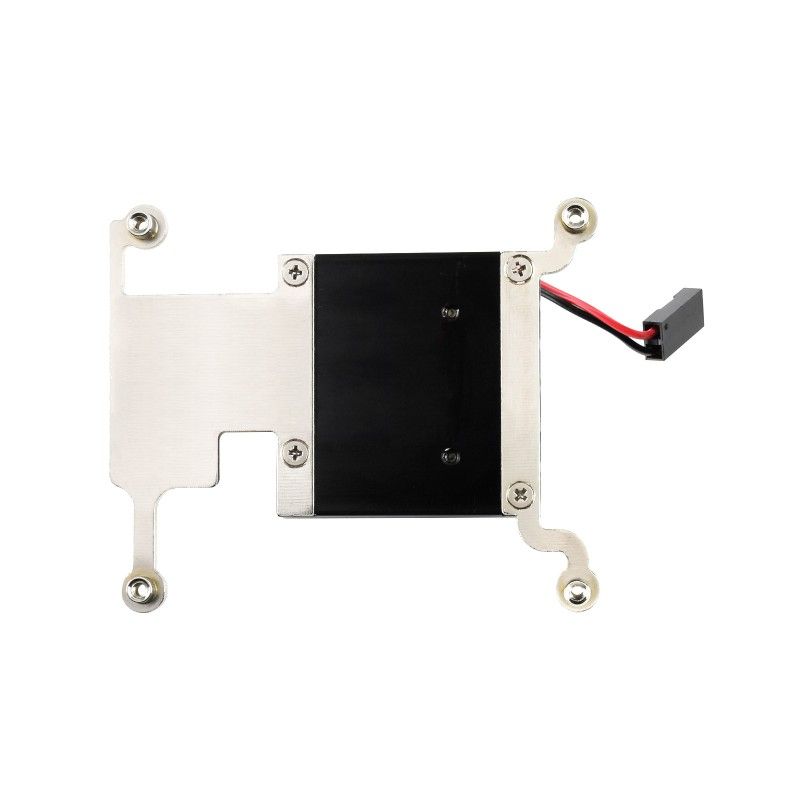

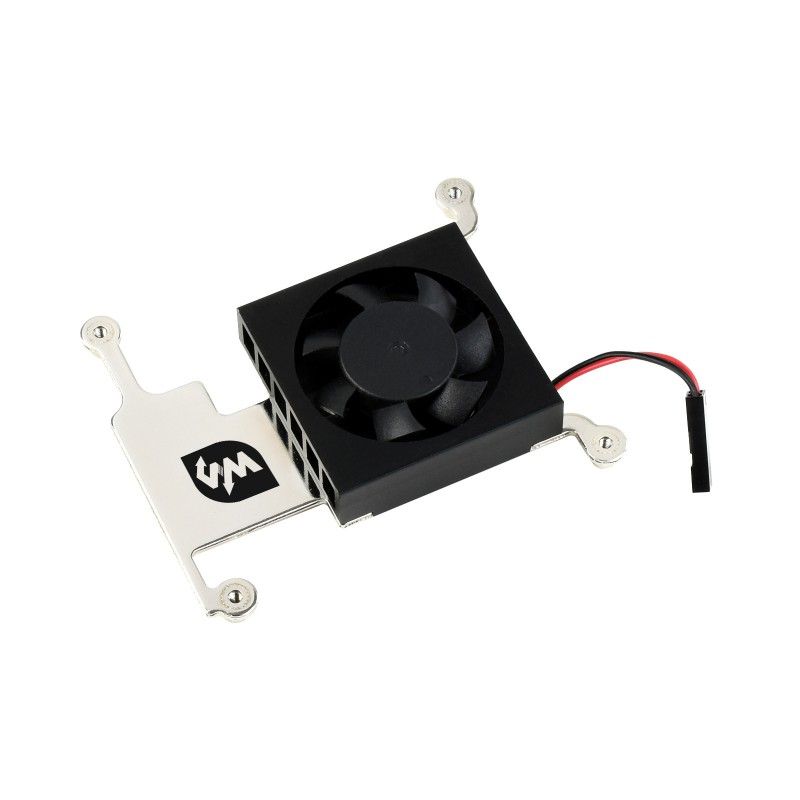

Active cooling system Raspberry Pi 4B/3B+/3B (19254)

The Raspberry Pi 4B/3B+/3B Active Cooling System (19254 ) is a low-profile CPU cooling fan for the Raspberry Pi 4B/3B+/3B, with an aluminum alloy bracket. This cooling fan helps to ensure optimal operating conditions for the Raspberry Pi, especially when the CPU is under heavy load, which can occur when running resource-intensive applications or tasks. It adds reliability and durability to your Raspberry Pi single board computer.

Key Features:

1. CPU cooling: This fan is designed specifically for use with the Raspberry Pi 4B, 3B+, and 3B single board computer. It is used to keep the processor at a normal temperature while it is running, which contributes to stable and reliable operation of the device.

2. Low-profile design: This fan has a low-profile design, which means it does not take up much space and does not interfere with other components that may be connected to the Raspberry Pi, such as expansion modules.

3. Aluminum bracket: The fan comes with an aluminum alloy bracket that helps dissipate heat from the CPU and provides more efficient cooling.

4. Easy Installation: Installing this fan on a Raspberry Pi is quite simple and requires minimal skills. It connects to the Raspberry Pi main board and is securely mounted with an aluminum bracket.

Specifications.

• PI SUPPORT: Raspberry Pi 4B/3B+/3B
• POWER SUPPLY: DC 5V input (can be powered by Raspberry Pi)
• DESIGN: low profile heat dissipating aluminum alloy bracket, optional GPIO adapter
• RATED POWER: 1 W (5 V, 0.2±0.02 A)
• CABLE LENGTH: 45±10 mm
• FAN: 3007 fan, 8000±10% rpm

Example of the setup

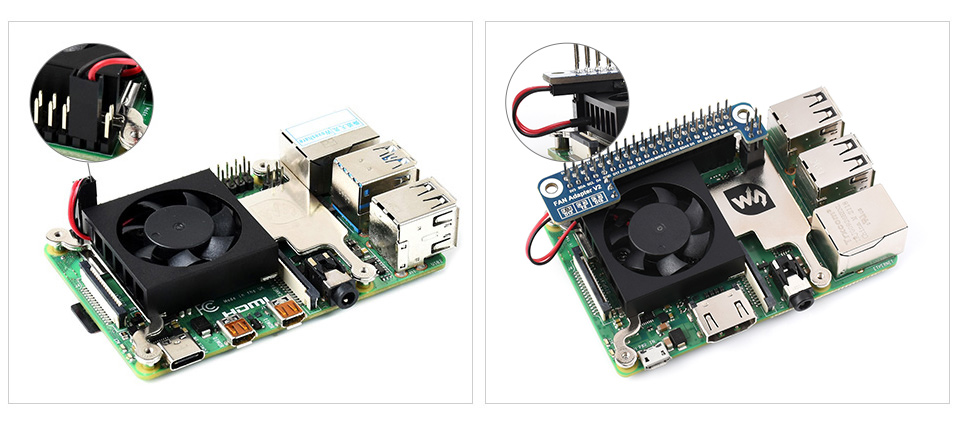

Cooling Raspberry Pi 4B (left) and Raspberry Pi 3B+/3B using a GPIO adapter (right)

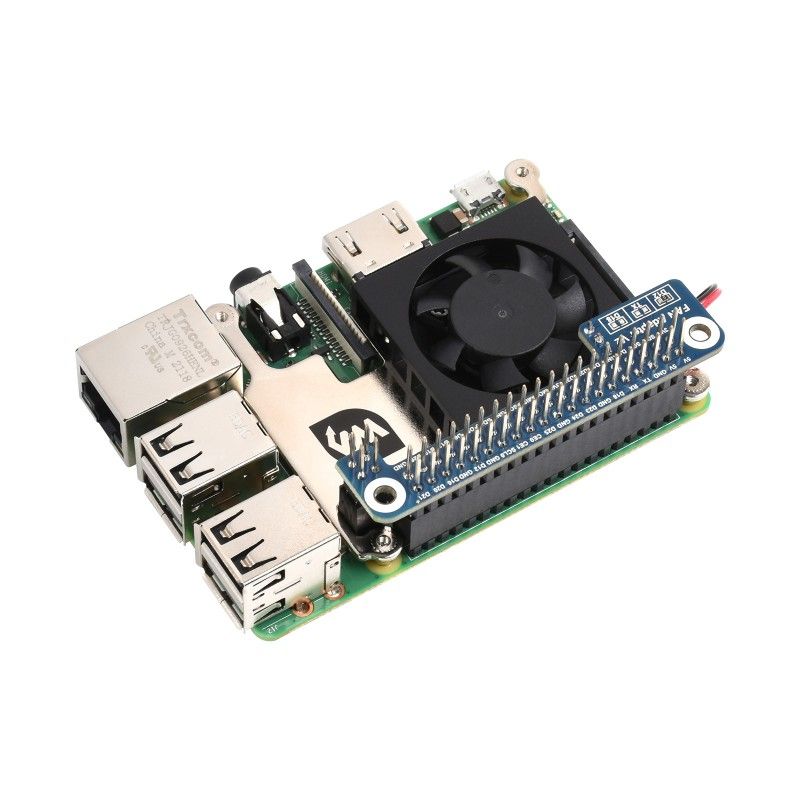

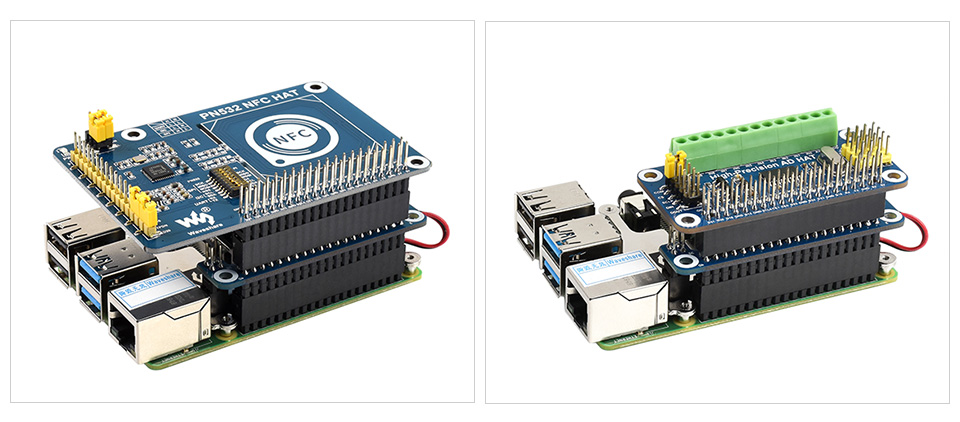

Connecting other Raspberry Pi HATs via GPIO adapter

The GPIO adapter is optional.
Raspberry Pi and other HATs are NOT included.

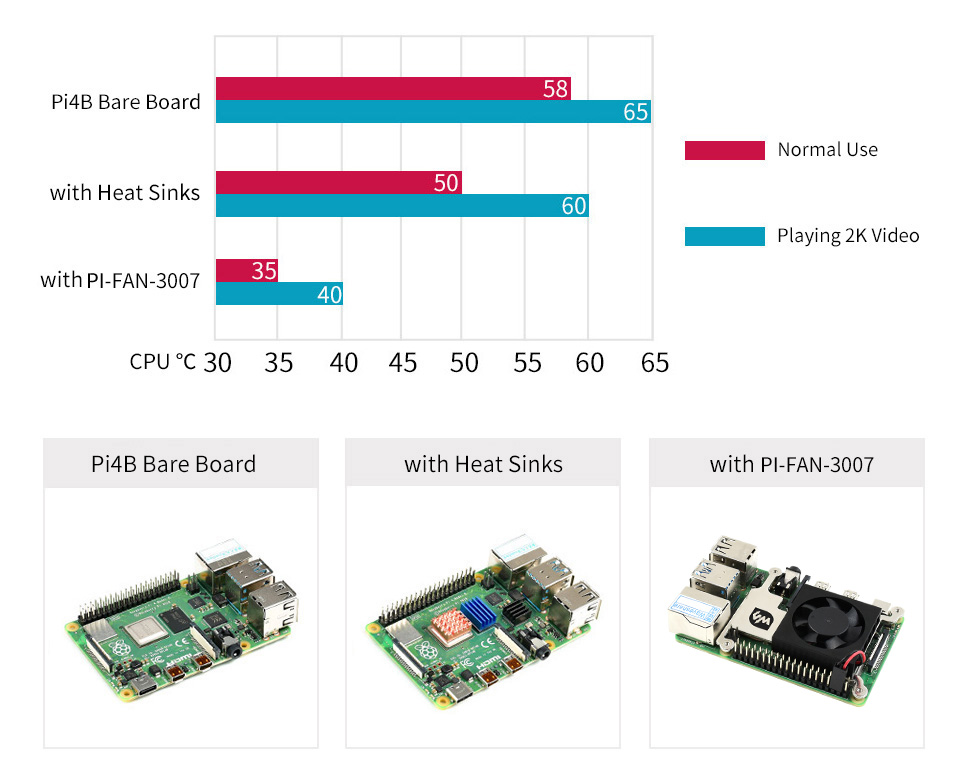

Comparison of Raspberry Pi 4B cooling solutions

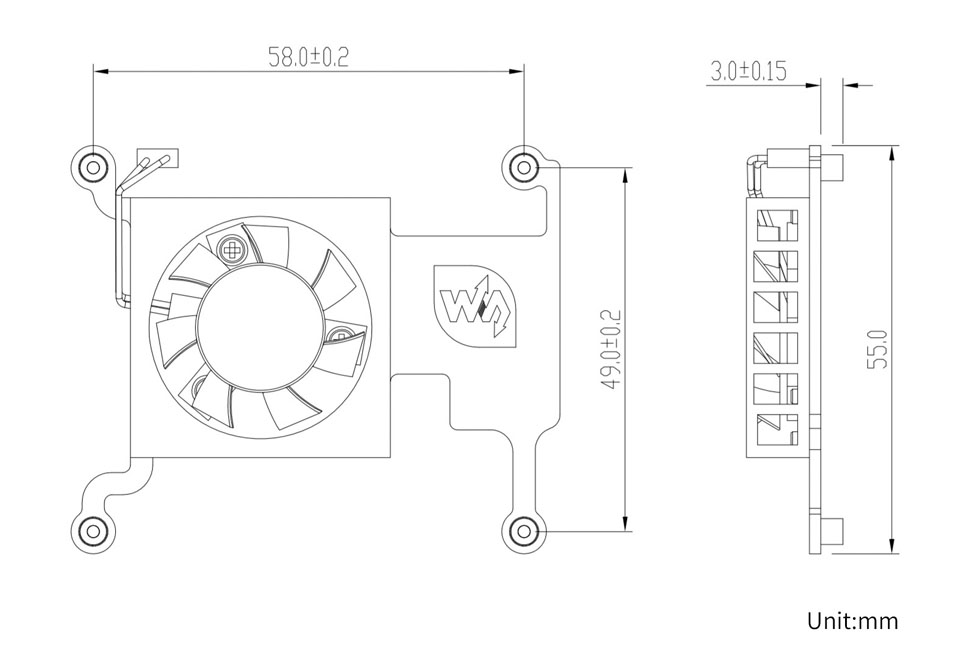

Overall dimensions: 55mm x 58mm

Wiki: PI-FAN-3007

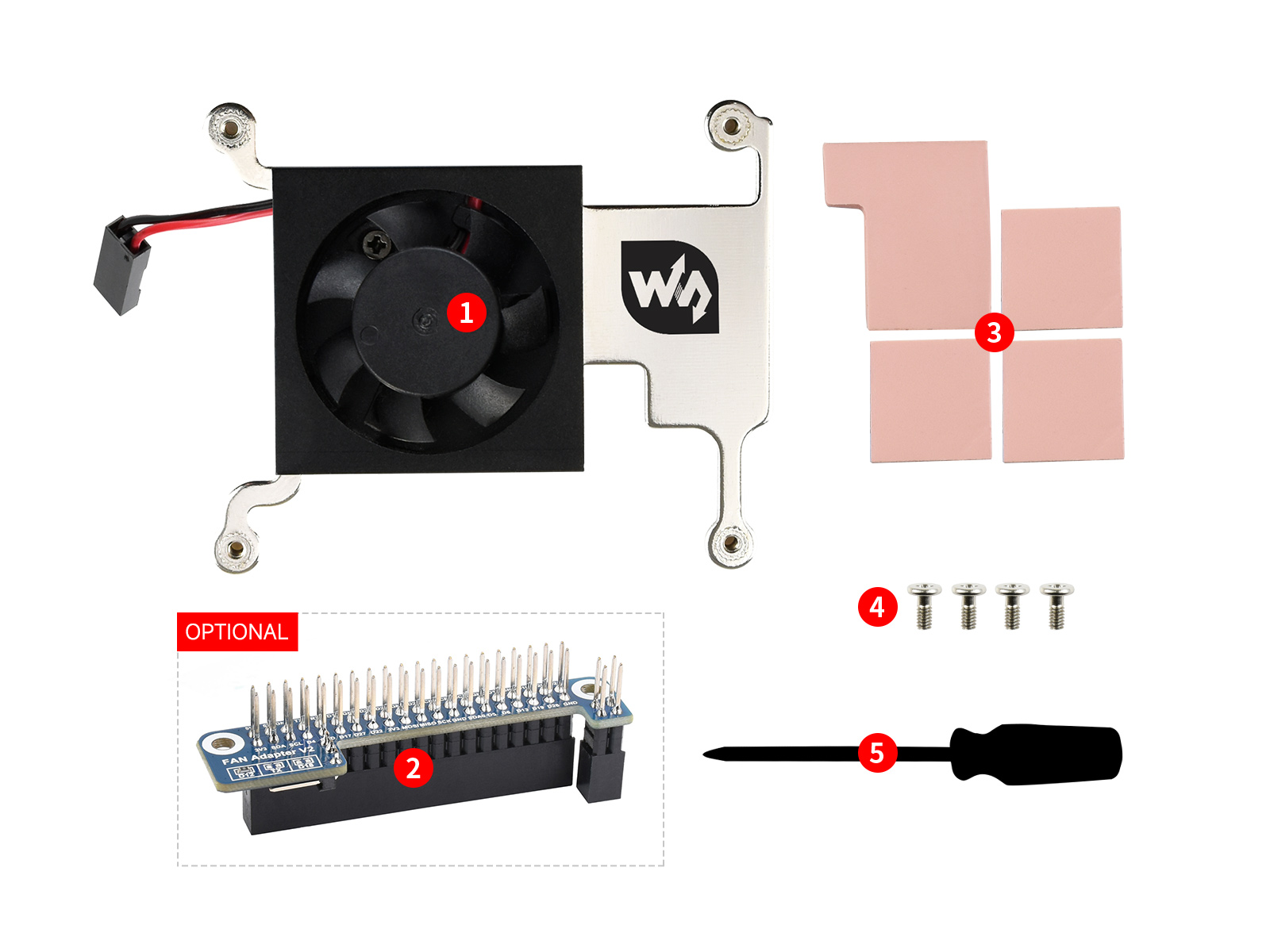

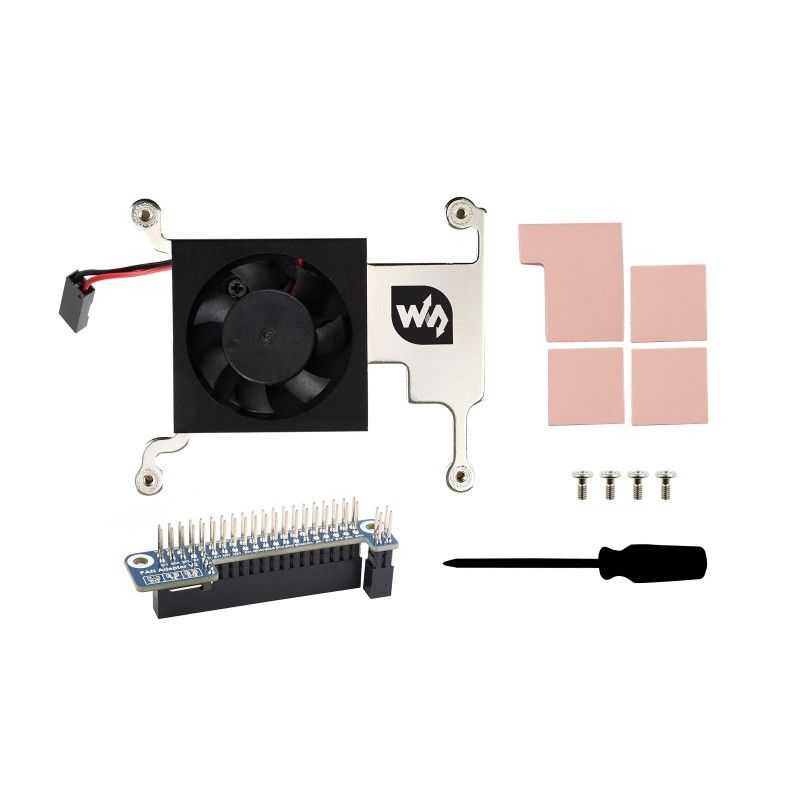

Package contents:

1. PI-FAN-3007-B x1
2. GPIO FAN adapter x1
3. Silicone thermal tape x4 pcs
4. Screw x4
5. Screwdriver x1

Weight: 0.061kg
