Waveshare Jetson Nano Developer Kit (21813)

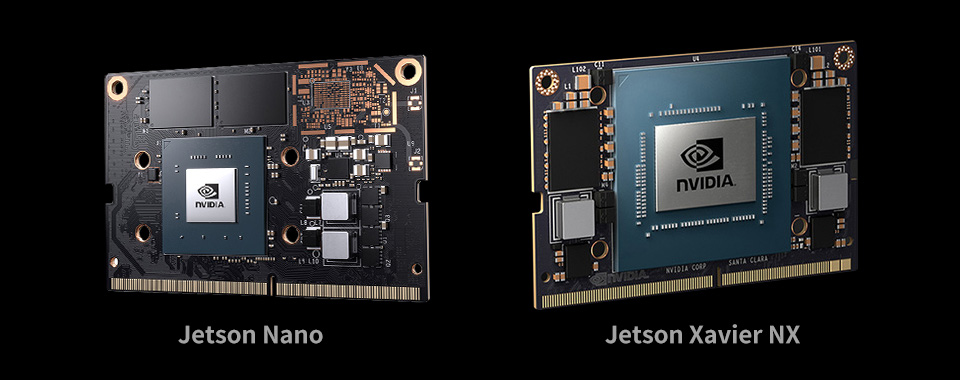

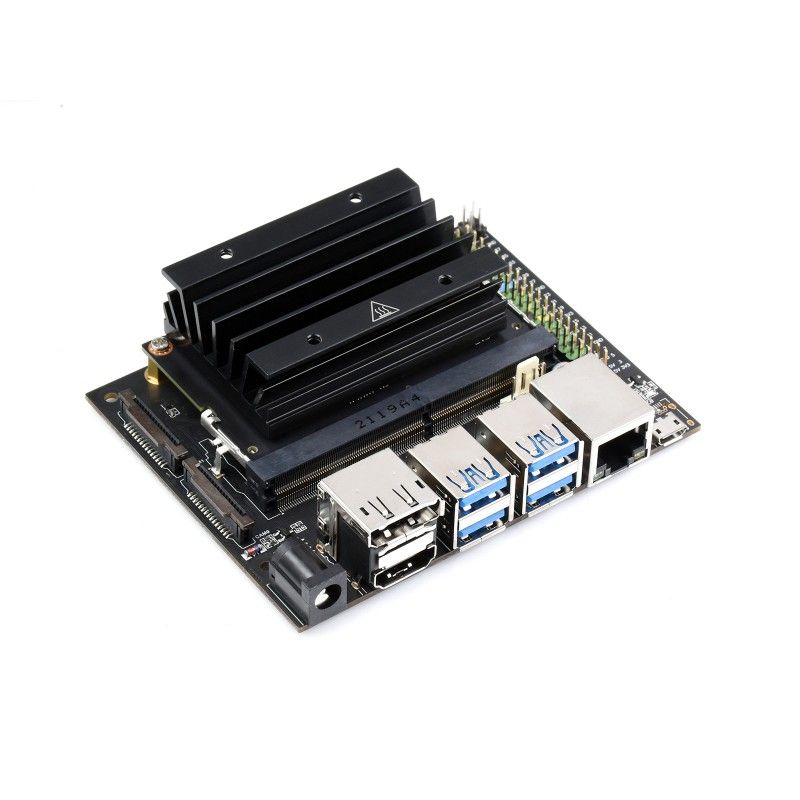

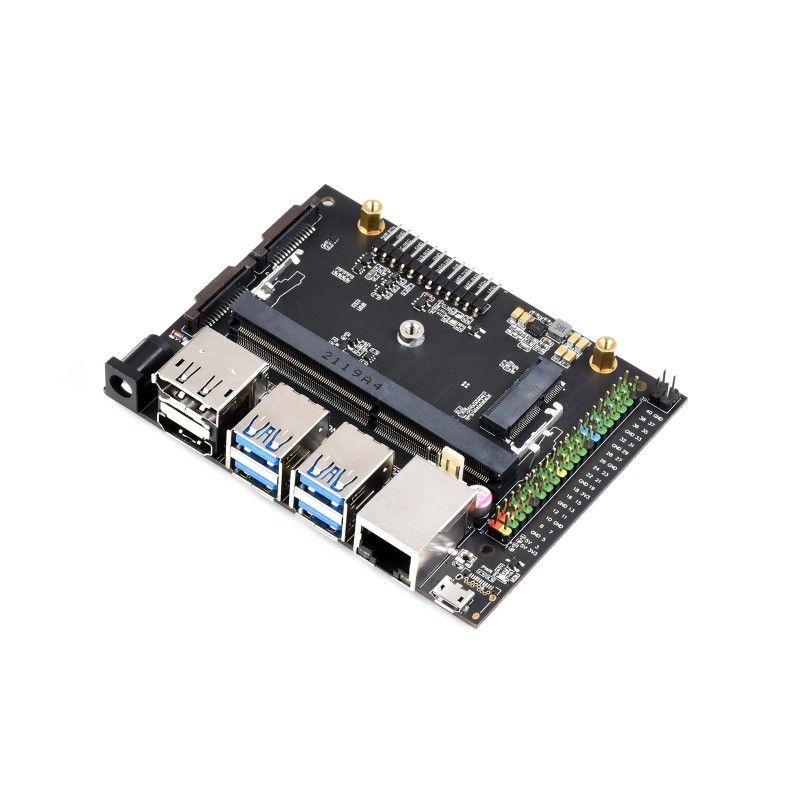

Waveshare Jetson Nano Development Kit (21813) JETSON-NANO-DEV-KIT-A-EU is a developer kit that includes the Waveshare Jetson Base Board (21650) and the Jetson Nano computing module. The base board is also compatible with the Jetson Xavier NX and is designed to explore the areas of AI and AI robotics.

This kit will be very useful for beginners and experts alike, as it allows you to use the same tools and software that work with more productive platforms from NVIDIA. It is suitable for areas such as image classification, object detection, segmentation, speech processing, and more, and can be used in a variety of AI projects.

With a 5G (867Mbps)/2.4G (300Mbps) wireless network card, it supports dual Bluetooth and WiFi modes, and the dual 6DB high-gain antennas effectively improve penetration and make data transmission wider and smoother, which is suitable for mobile networking scenario.

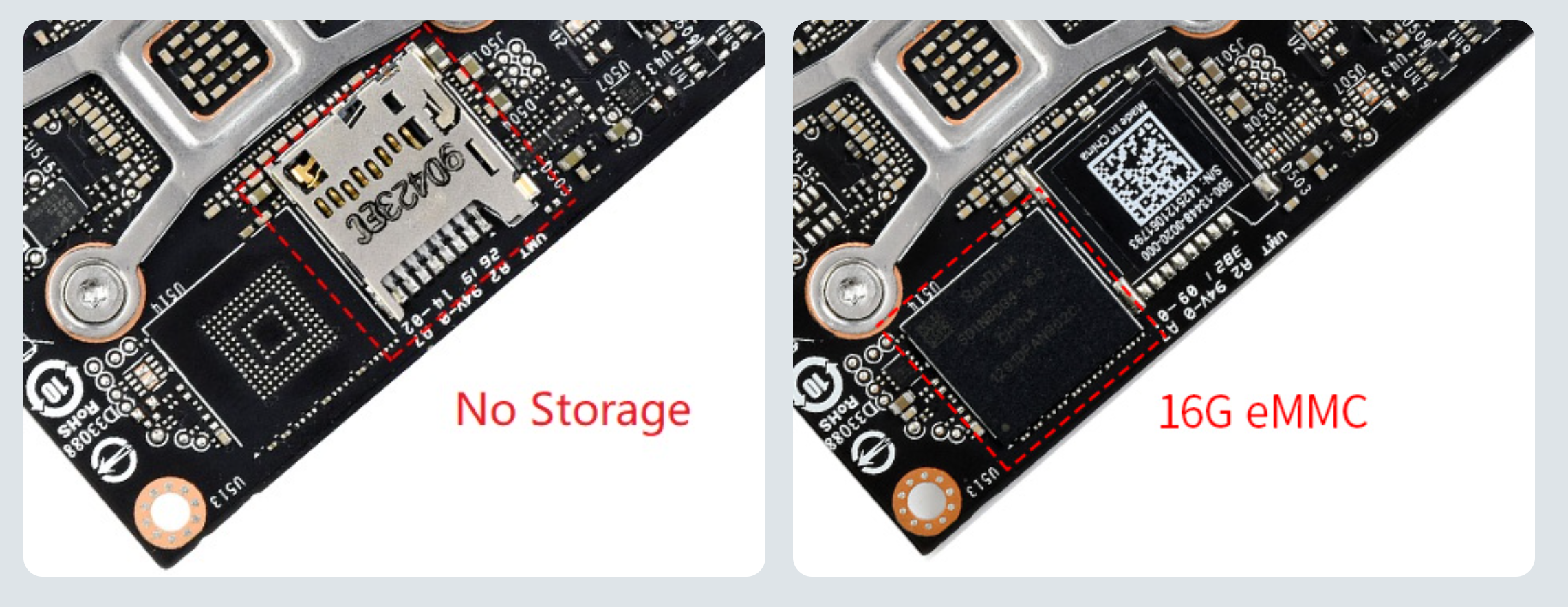

Please note: The new version of the baseband has the following changes: Added built-in 16GB eMMC storage, which provides more stable read/write performance. An additional micro SD card is no longer required for the boot disk, which provides sufficient space for installing the system image and development/research requirements in most cases.

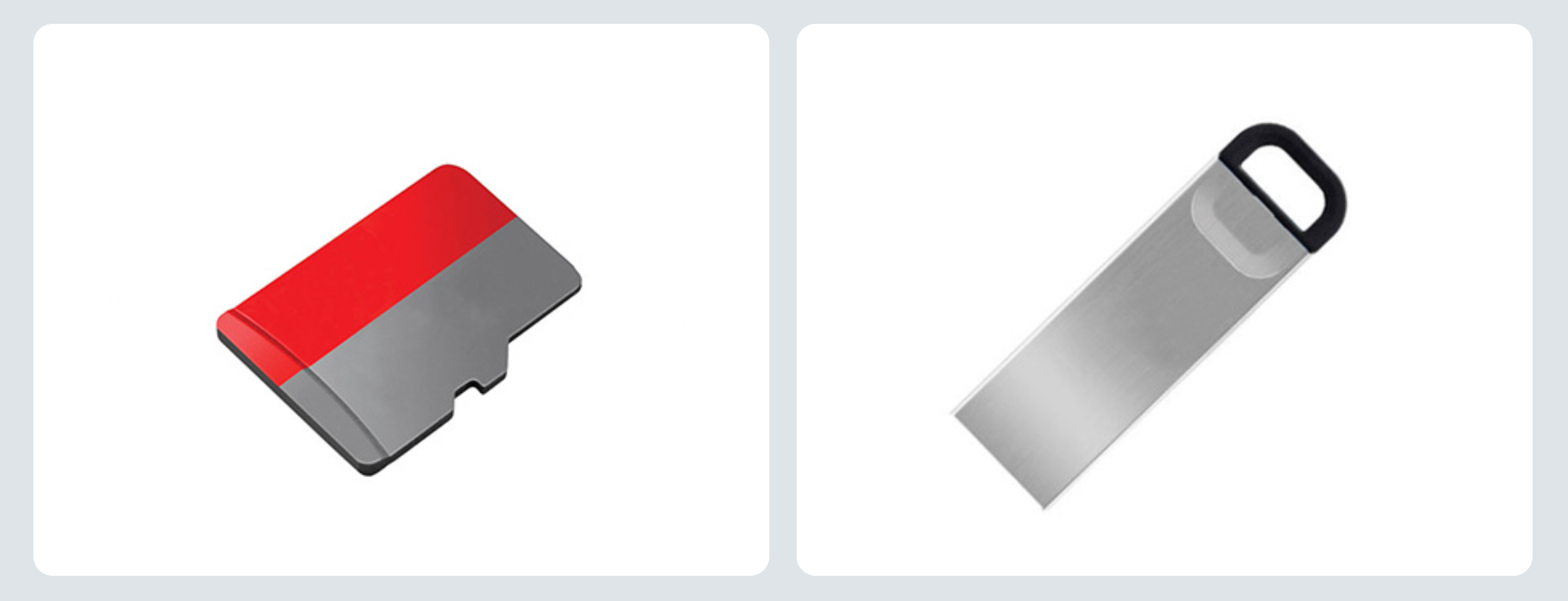

Also included instead of a microSD card slot is a 32 GB USB flash drive, USB 3.2 Gen 1 with a read speed of 200 MB/s, suitable for complex development projects

Technical specifications:

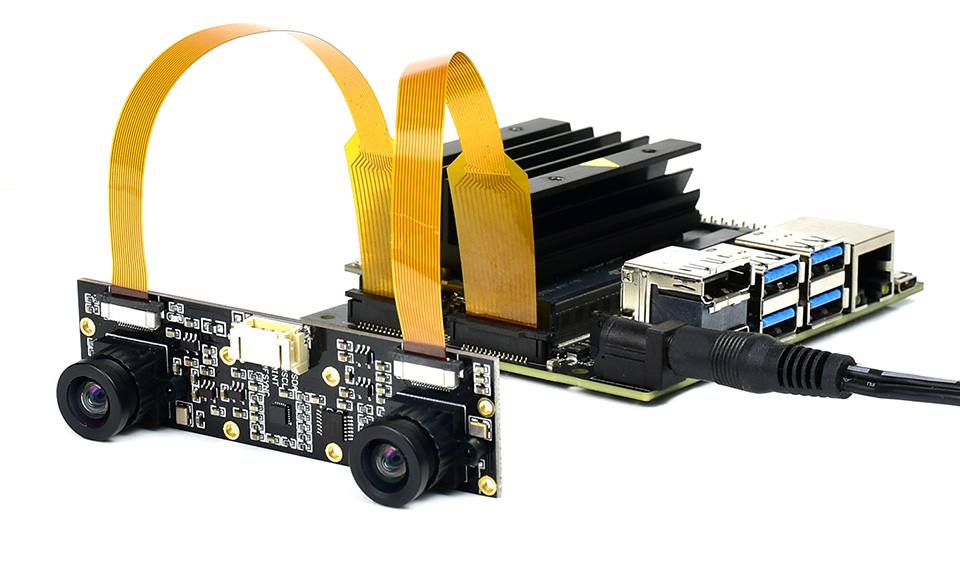

Supports 2-way CSI camera, suitable for binocular vision applications such as parallax algorithm ranking, face recognition, organism detection, VR video recording

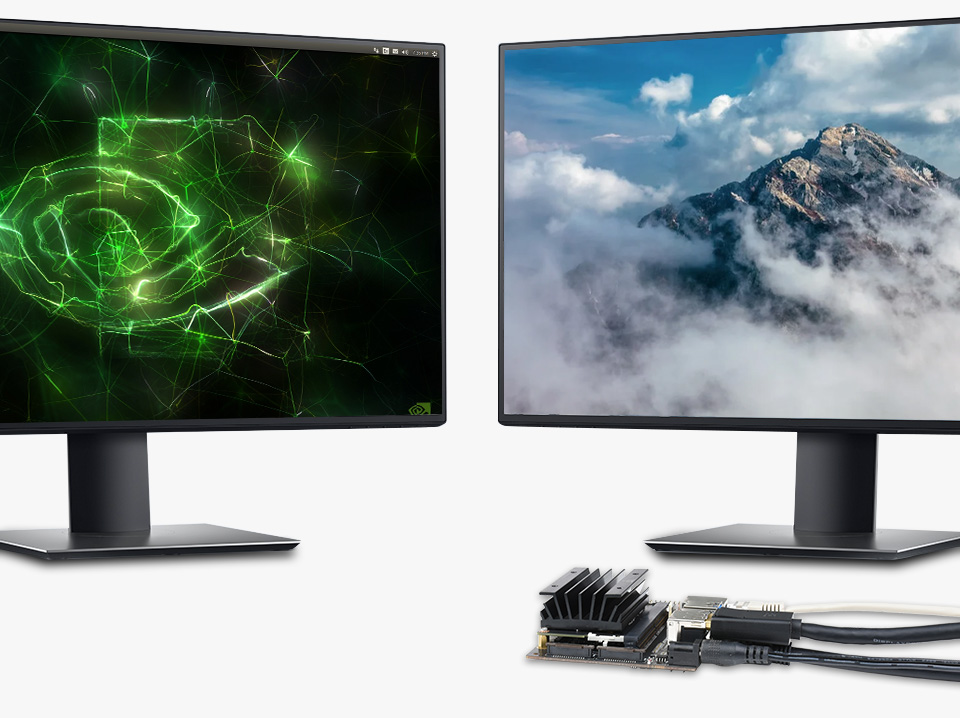

Two 4K outputs: support DisplayPort and HDMI High Definition ports

4x High Speed USB3.0: High-speed USB3.0 data transfer allows you to use more USB peripherals

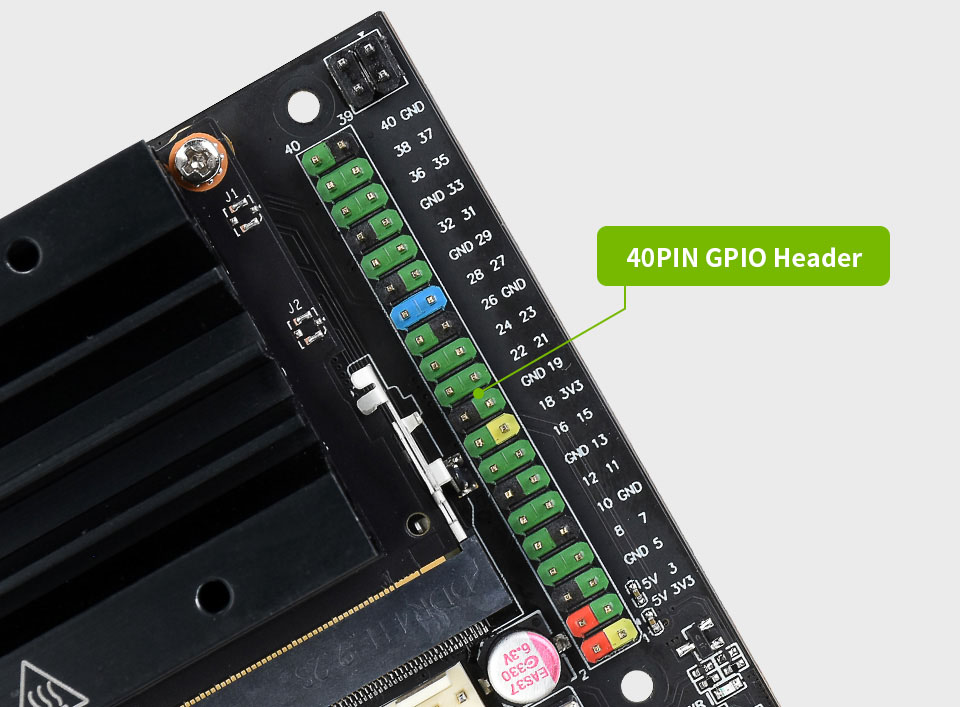

40-pin GPIO connector with color coding and clear labels

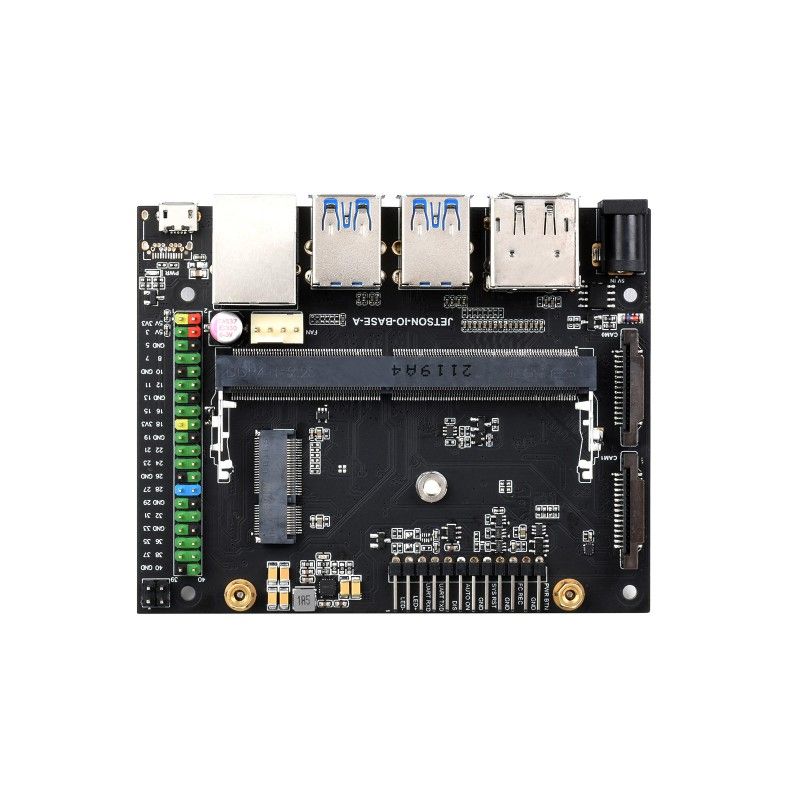

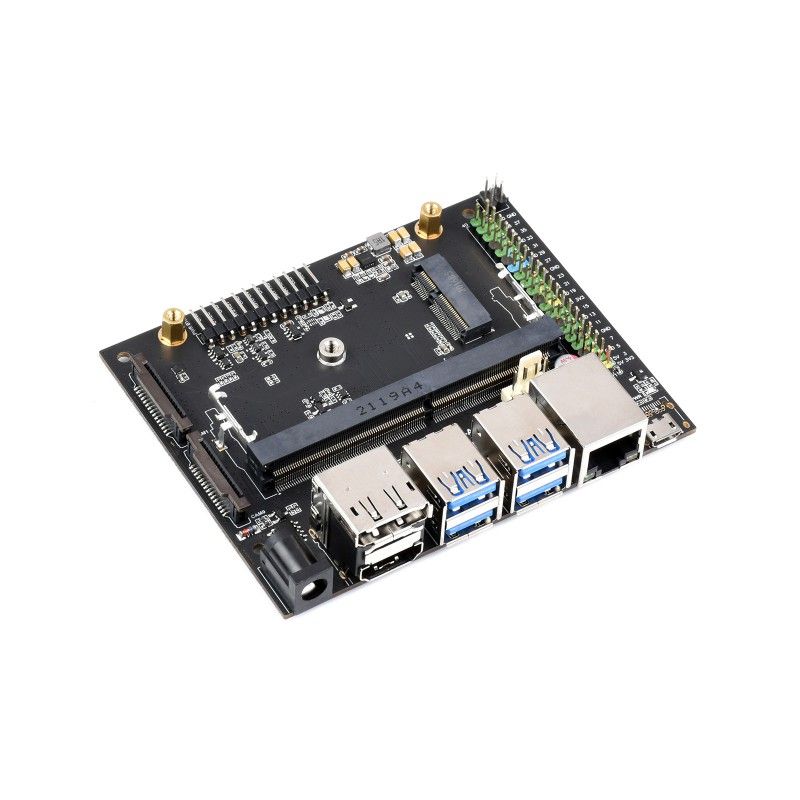

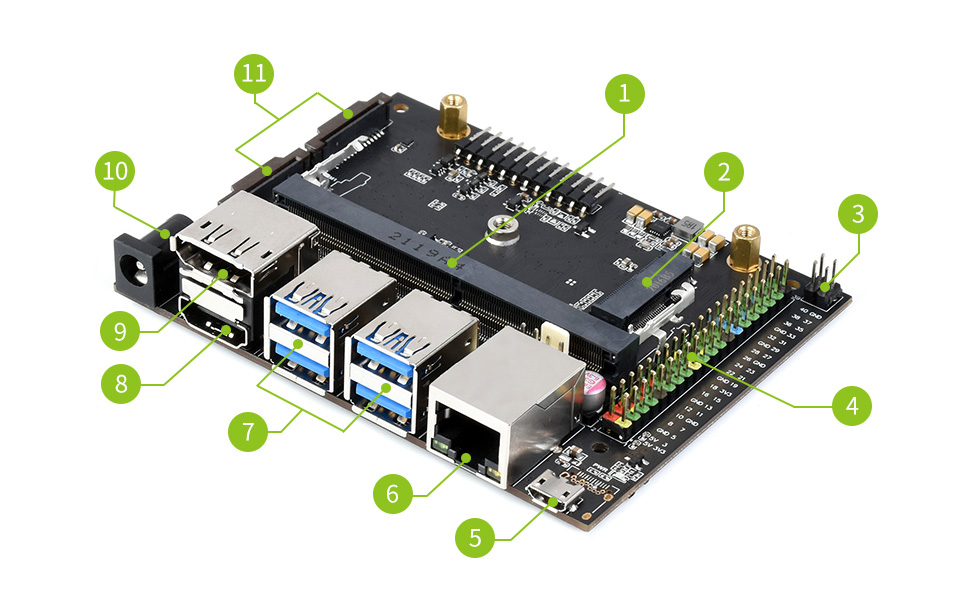

Board elements:

1. Main module connector
2. M.2 Key E expansion connector
3. PoE pins: PoE module is not included
4. 40-pin GPIO connector
5. Micro USB port: for 5V power input or USB data transfer
6. Gigabit Ethernet port: auto-negotiates 10/100/1000Base-T, supports PoE when an external PoE module is connected
7. 4 USB 3.0 ports
8. HDMI output port
9. DisplayPort connector
10. Connector for 5 V DC power input
11. 2 MIPI CSI camera connectors

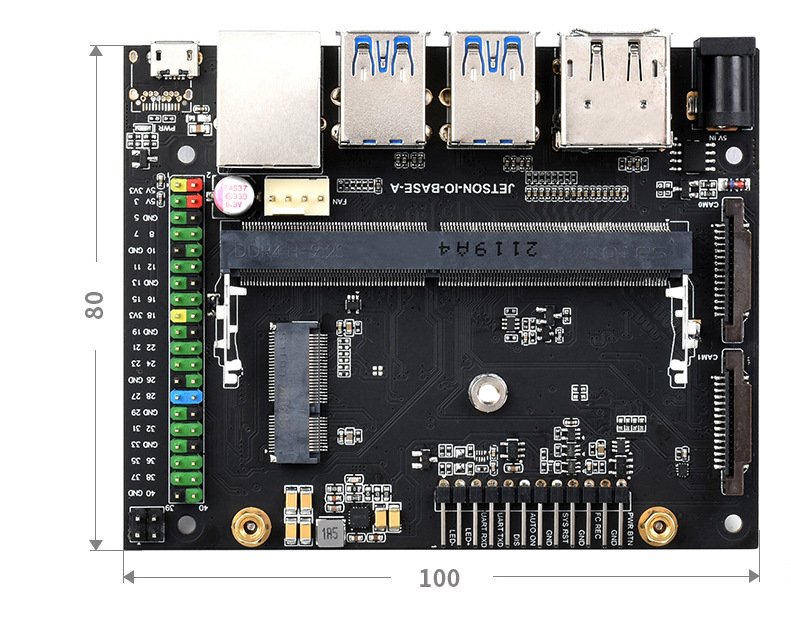

Overall dimensions: 100mm x 80mm

Information for developers (Wiki): JETSON-NANO-DEV-KIT

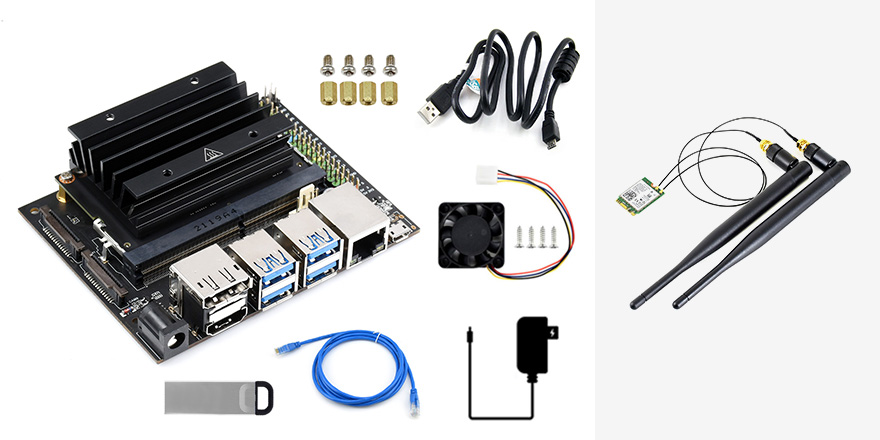

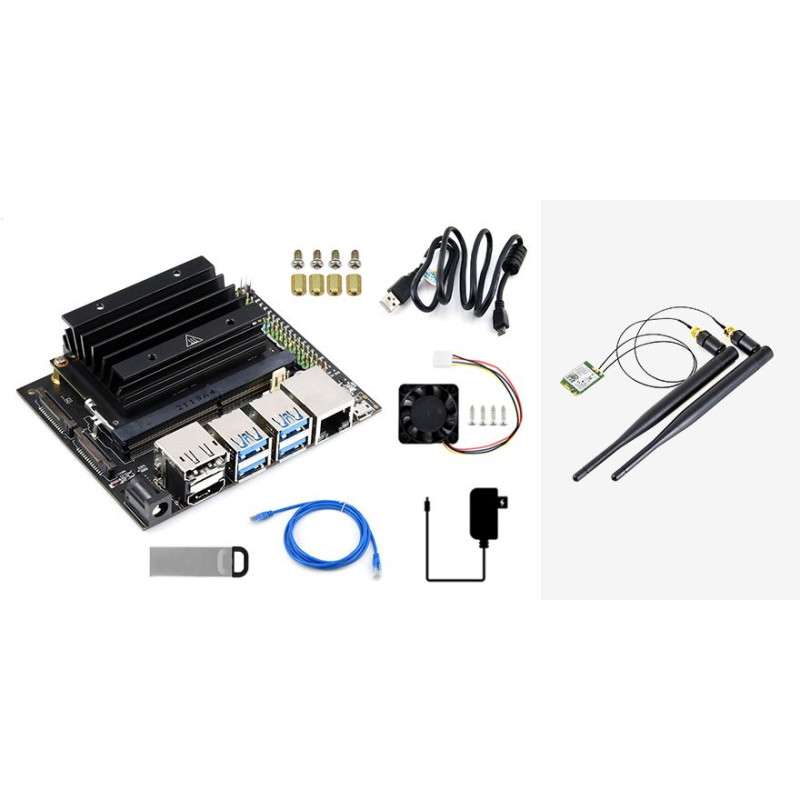

The package includes:

1. JETSON-IO-BASE-A (board)
2. Jetson Nano computing module
3. Cooling radiator
4. 32GB USB flash drive
5. AC8265 dual-mode NIC with antennas
6. 32GB USB drive
7. Cooling fan
8. USB cable (1.2m)
9. Ethernet cable (1.5m)
10. 5V 4A EU power adapter

1. 2. 3. 4.

Weight: 0.696 kg
