Raspberry Pi Pico Starter Kit (20159)

TheRaspberry Pi Pico Starter Kit (20159 ) is a kit designed specifically for beginners that includes everything you need to get started with the Raspberry Pi Pico microcontroller. This kit contains all the basic components and accessories that will help you build your first Raspberry Pi Pico-based projects.

The heart of the kit is the Raspberry Pi Pico microcontroller, which uses the RP2040 microcontroller. It has a 133 MHz dual-core ARM Cortex-M0+ processor and a large number of GPIO pins for connecting various devices and sensors.

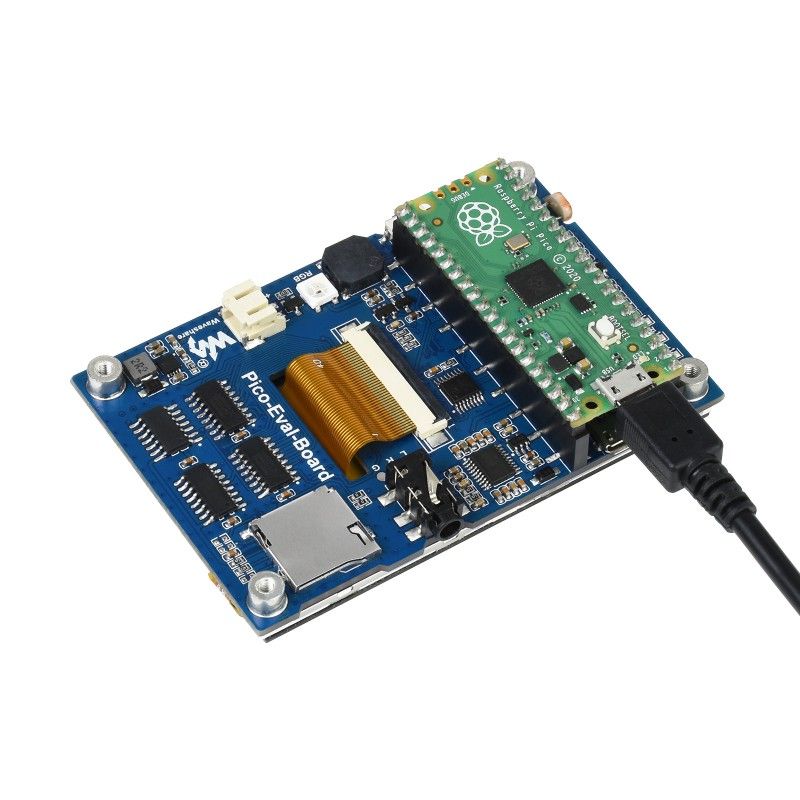

The kit includes the Raspberry Pi Pico development board, which allows you to connect the microcontroller to a computer and use it for programming and testing projects.

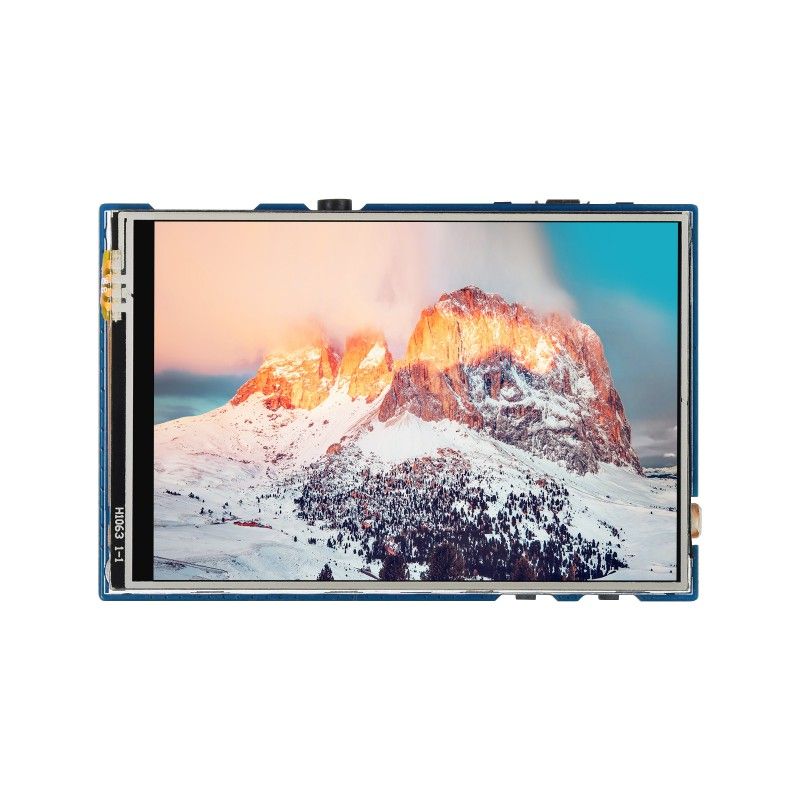

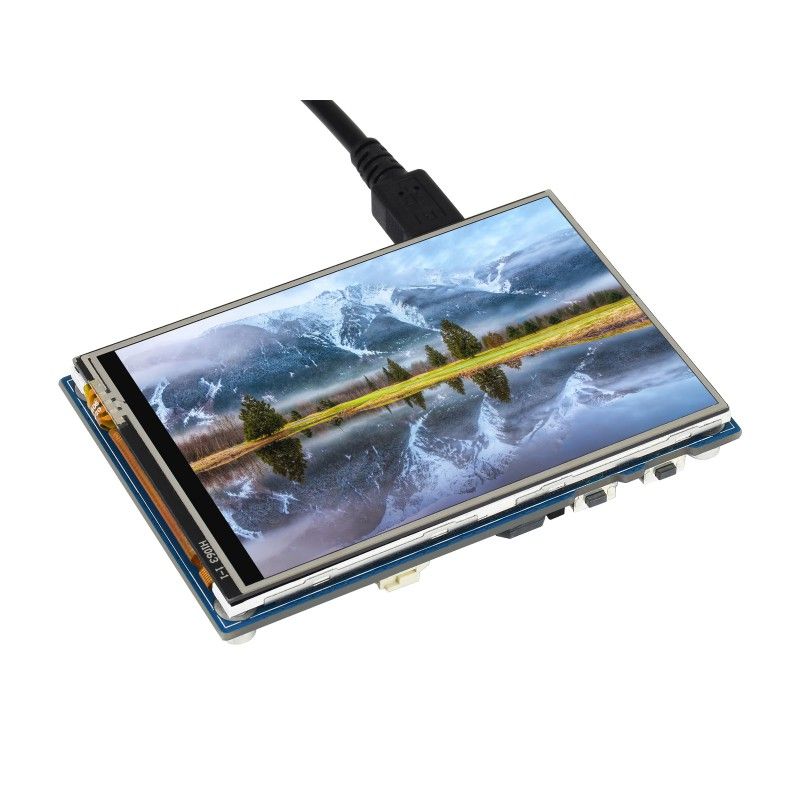

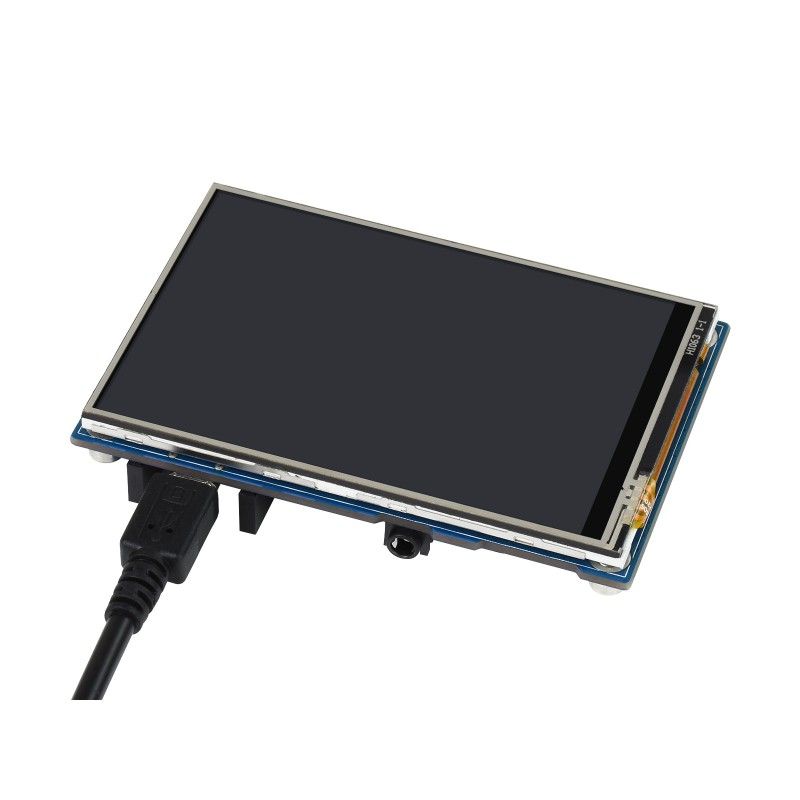

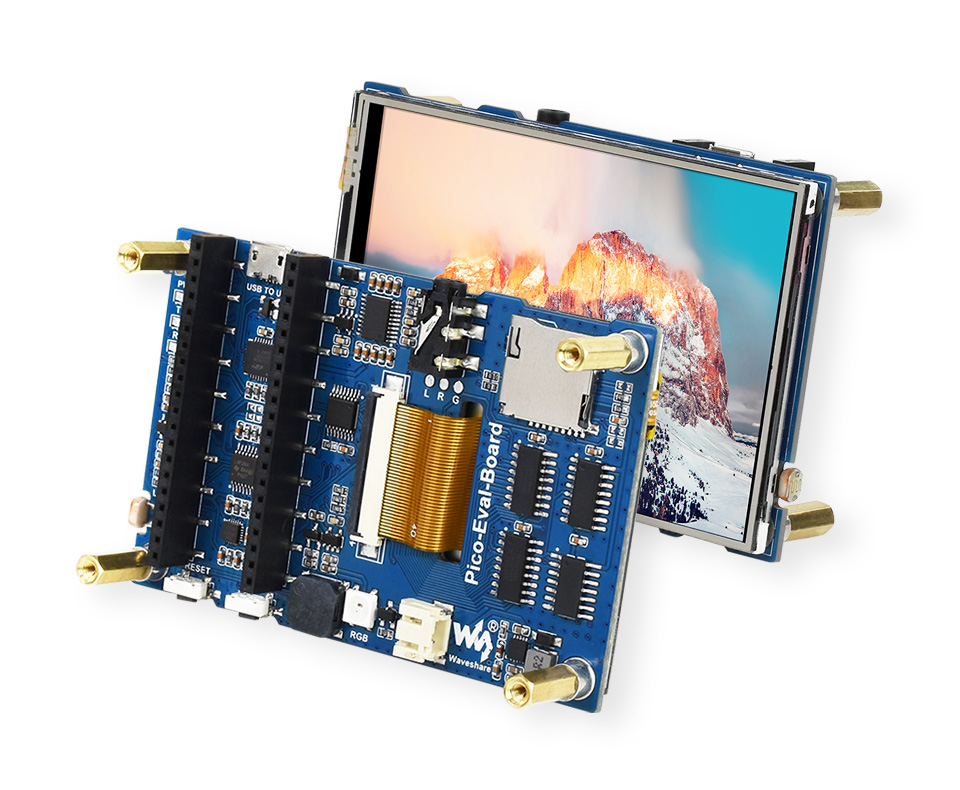

With a 3.5-inch 65K color LCD display and a variety of useful built-in components, this evaluation board allows you to test almost all of the RP2040's peripherals, eliminating the mess of wiring.

The Raspberry Pi Pico Starter Kit also includes a printed manual and sample projects to help you get started with the microcontroller and quickly learn the basics of programming. You'll be able to create a variety of projects including controlling LEDs, interacting with buttons, reading data from sensors, and more.

Main features:

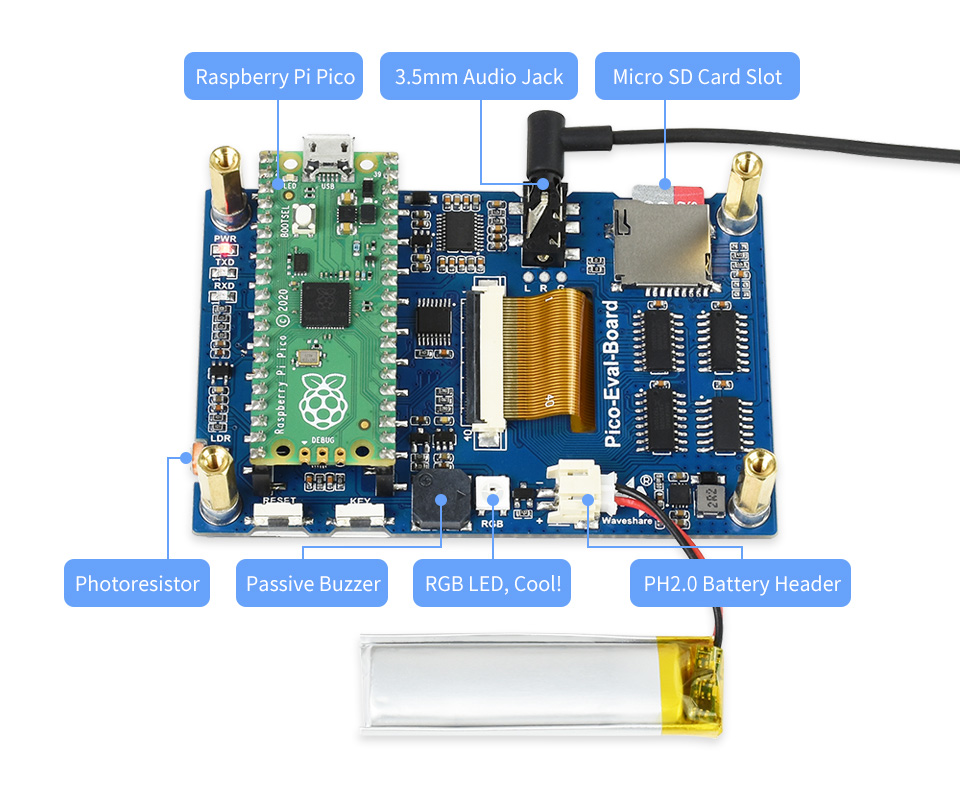

• Has a standard Raspberry Pi Pico connector that supports the Raspberry Pi Pico series boards
• Has a 3.5-inch resistive touchscreen with 65 thousand colors that provides a clear and bright display
• Has a standard 3.5 mm audio jack for headphones or other audio peripherals
• Micro SD card slot via SDIO interface (access speed is faster than SPI interface)
• Has an integrated battery connector and charging circuit that allows operation without a wired power supply
• Equipped with a buzzer, photoresistor and RGB LED
• Comes with development resources and a manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:

• OPERATING VOLTAGE: 5В
• RESOLUTION: 480×320 pixels
• TOUCH TYPE: resistive
• DISPLAY COLORS: 65K colors
• COMMUNICATION BUS: SPI
• DISPLAY SIZE: 73.44 × 48.96 mm
• DISPLAY PANEL: IPS
• PIXEL SIZE: 0.153 × 0.153 mm
• CONTROLLER: ILI9488/XPT2046

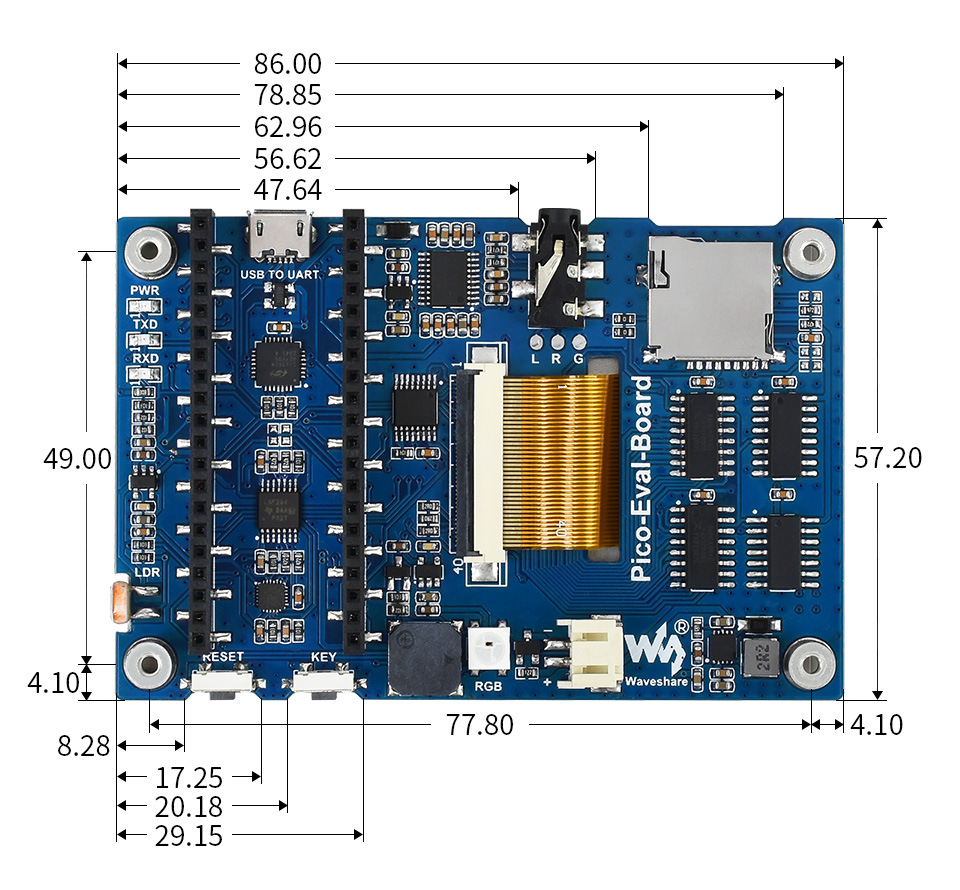

• DIMENSIONS: 86.00 × 57.20 mm

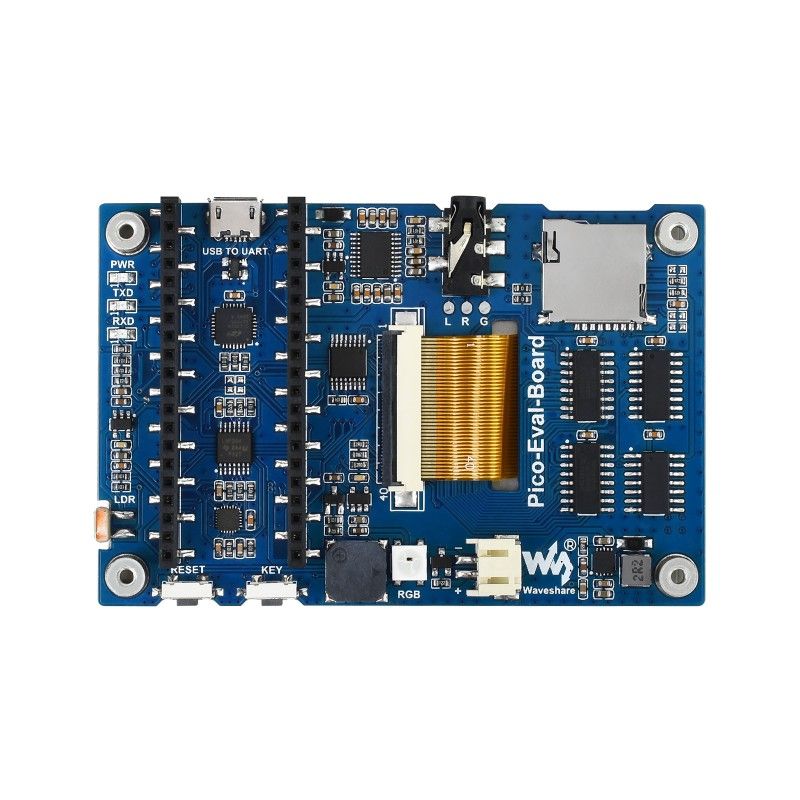

Board elements:

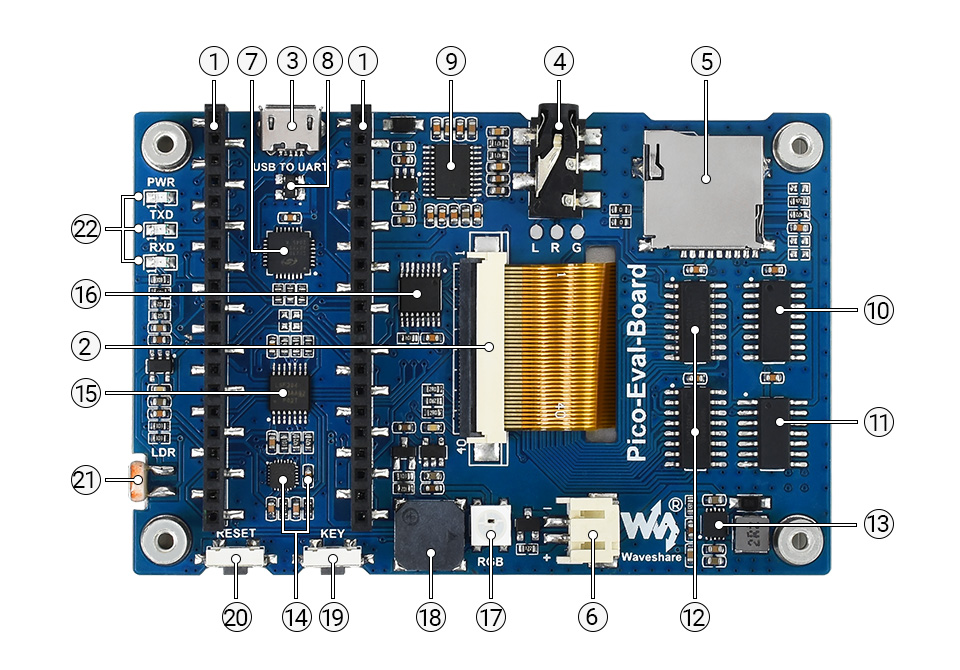

1. Raspberry Pi Pico connector: for direct connection to a Raspberry Pi Pico
2. LCD connector: for connecting a 3.5-inch IPS LCD
3. Mirco USB connector: CP2102 communication or battery charging
4. 3.5 mm audio jack: headphone interface
5. Micro SD card slot: use SDIO interface, faster access speed
6. PH2.0 battery connector: for connecting a 3.7V Li-Po battery
7. CP2102: USB to UART converter
8. SP0503: diode to protect the chip from ESD
9. PCM5101A: stereo audio DAC, supports analog audio output
10. 74HC4040: counter chip for clock frequency division
11. 74HC04D: inverter chip
12. 74HC4094: serial to parallel data converter
13. ETA6096: battery charger, 1A charging current
14. ICM20948: 9-axis motion sensor, allows to recognize body position
15. LSD0204: voltage level translator that provides safe communication between chips at different operating voltages
16. XPT2046: resistive touch controller
17. W2812B: RGB LED, so cool
18. Passive buzzer: adjustable sound frequency
19. User key: user-defined key, plugs into GP2
20. Reset key: resetting the Pico
21. Photoresistor: convert light intensity to voltage signal, measure light intensity
22. Indicators:
    1. PWR: power indicator
    2. TXD: CP2102 UART TX
    3. RXD: CP2102 UART RX

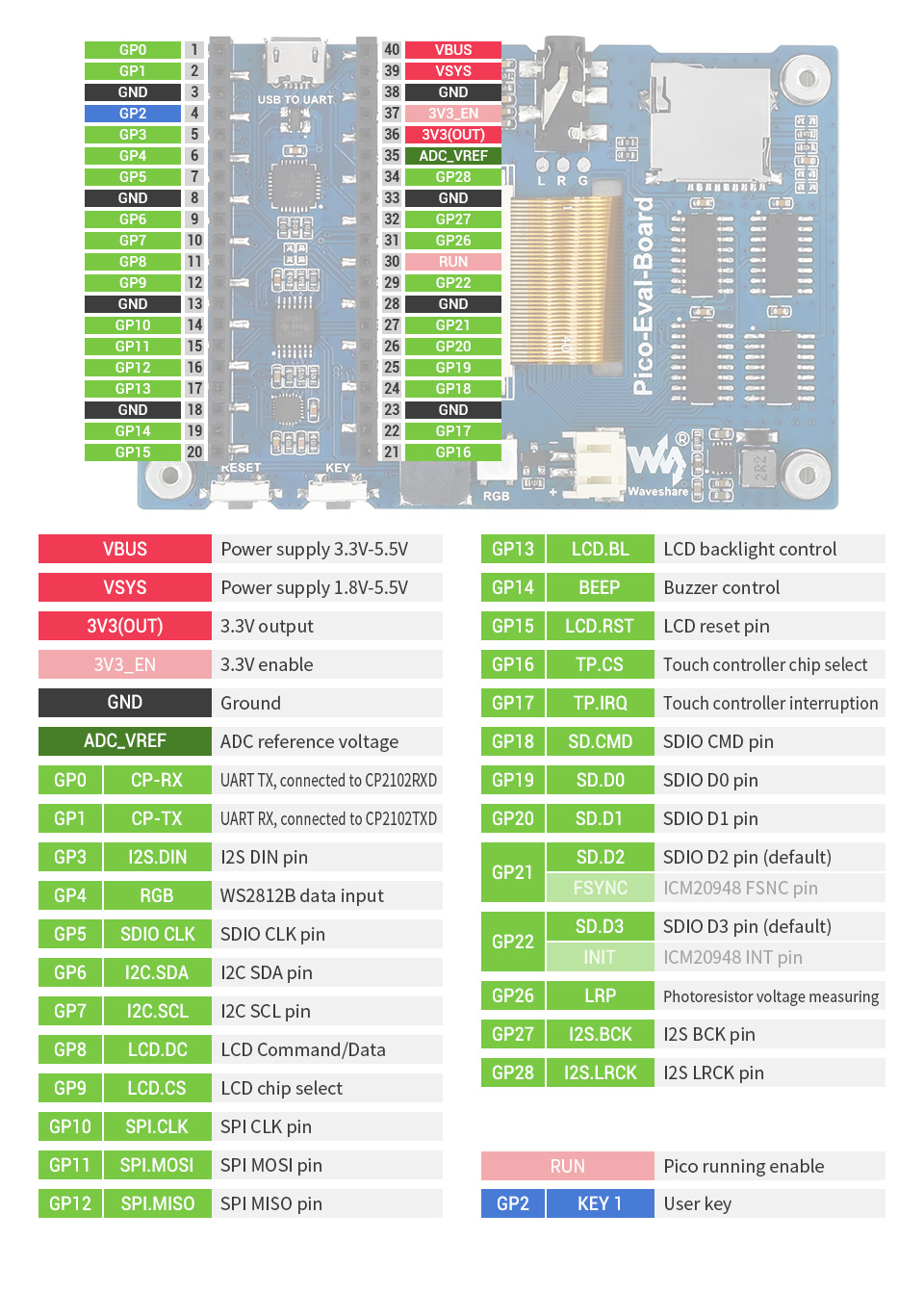

Pinout:

Overall dimensions: 86mm x 57.2mm

WIKI: Pico-Eval-Board

Scope of delivery:

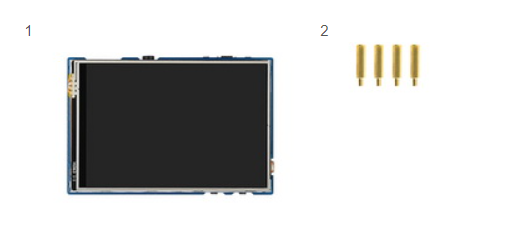

1. Pico-Eval-Board x1
2. Set of screws and legs x1

Weight: 0.071 kg
