Arducam IMX219 Visible Light Fixed Focus Camera Module

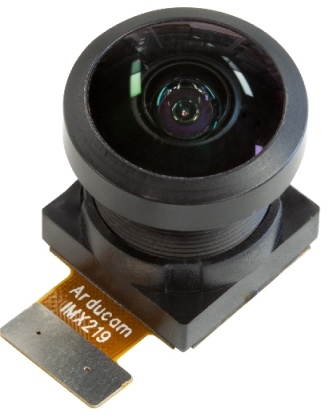

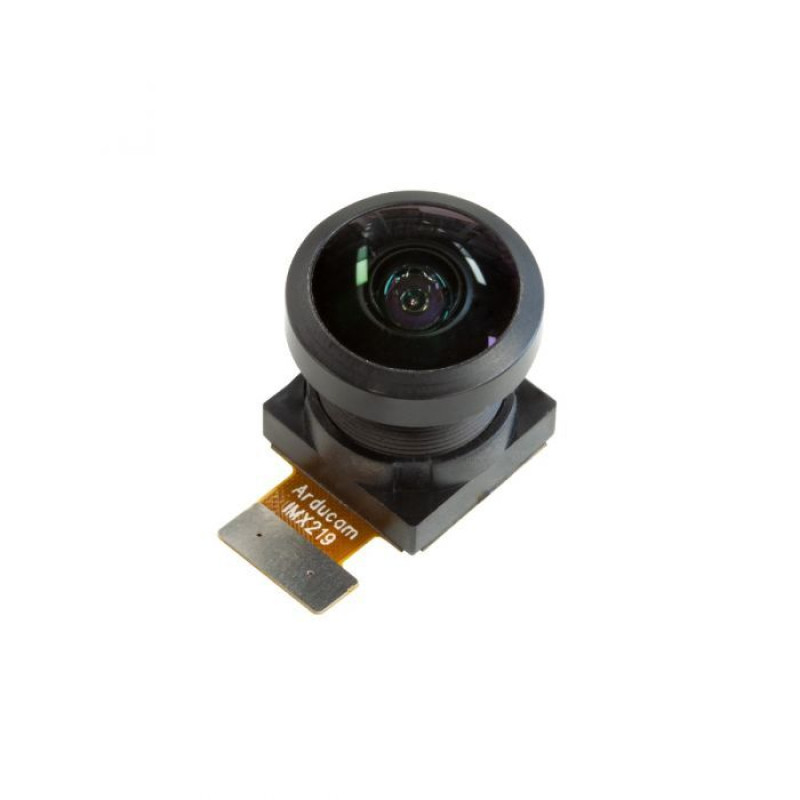

The Arducam IMX219 Visible Light Fixed Focus Camera Module is a compact and high-performance camera module equipped with a Sony IMX219 sensor that provides 8 megapixel resolution. This Arducam IMX219 camera module with fisheye lens is designed mainly for the Raspberry Pi V2 and Nvidia Jetson Nano camera board, replacing the standard IMX219 camera module installed by default to get a much wider field of view. The camera is optimized to capture the visible spectrum of light and has a fixed focus, making it an ideal solution for video surveillance, robotics and multimedia applications on platforms like the Raspberry Pi, action cameras and 3D scanning applications.

Key Features:

• Sensor: Sony IMX219
• Resolution: 8 MP (3280x2464)
• Focus: fixed focus for stable operation
• Optics: optimized to capture the visible spectrum of light
• Interface: MIPI CSI-2 for fast and reliable connection
• Compatibility: Raspberry Pi

Specifications:

• Image sensor: IMX219
• Resolution: 8 megapixels
• Video modes: 1080p47, 1640 × 1232p41 and 640 × 480p206
• Sensor resolution: 3280 × 2464 pixels
• Sensor image area: 3.68 x 2.76 mm (4.6 mm diagonal)
• Pixel size: 1.12 µm x 1.12 µm
• Optical size: 1/4"
• IR sensitivity: integrated IR filter, visible light only

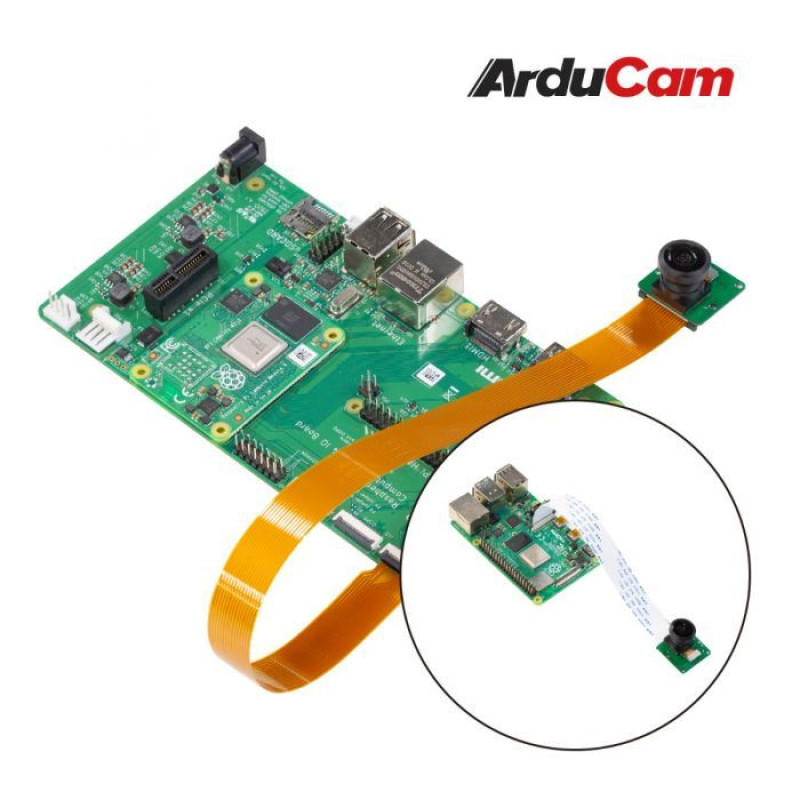

• Supported platform: Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W
• Focusing type: manual focusing
• Focal length: 0.76 mm
• Focal ratio: F2.1
• Field of view: (FOV) 220° (H)
• Lens mount: M12
• Peak current: 300 mA

Notes:

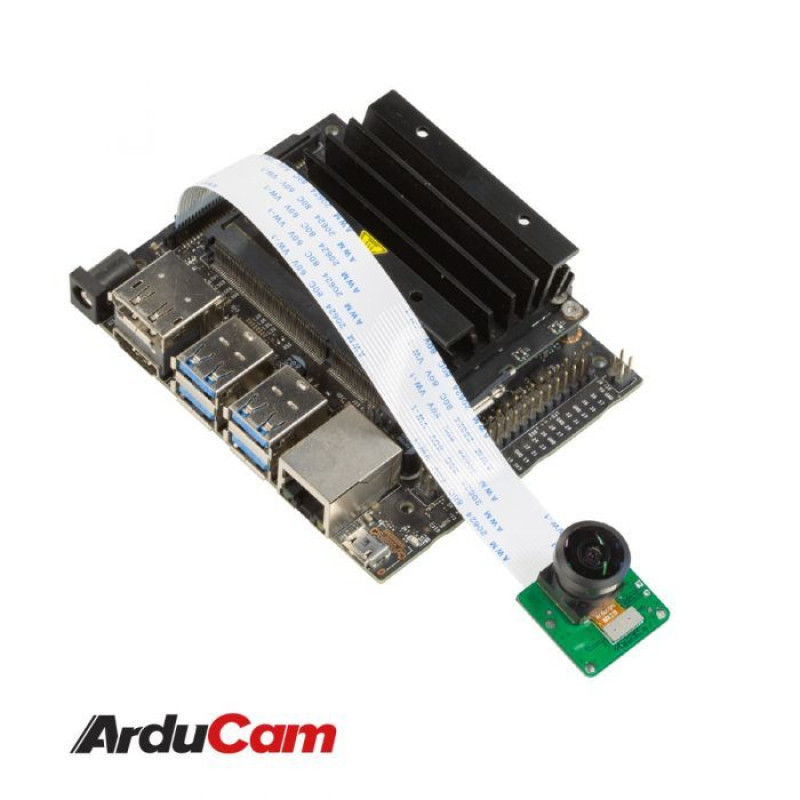

1. This camera uses kernel drivers - one kernel version, one camera driver. Please note for supported Nvidia Jetson boards and Jetpack versions, please refer to the Supported JetPack Version for various NVIDIA Jetson platforms to ensure compatibility.
2. The camera is specifically designed for the official default NVIDIA® Jetson™ Developer Kit and does not support third-party boards.

Wiki:

Used on Jetson

Used on Raspberry Pi

Datasheet

3D Drawing-Case

Scope of delivery:

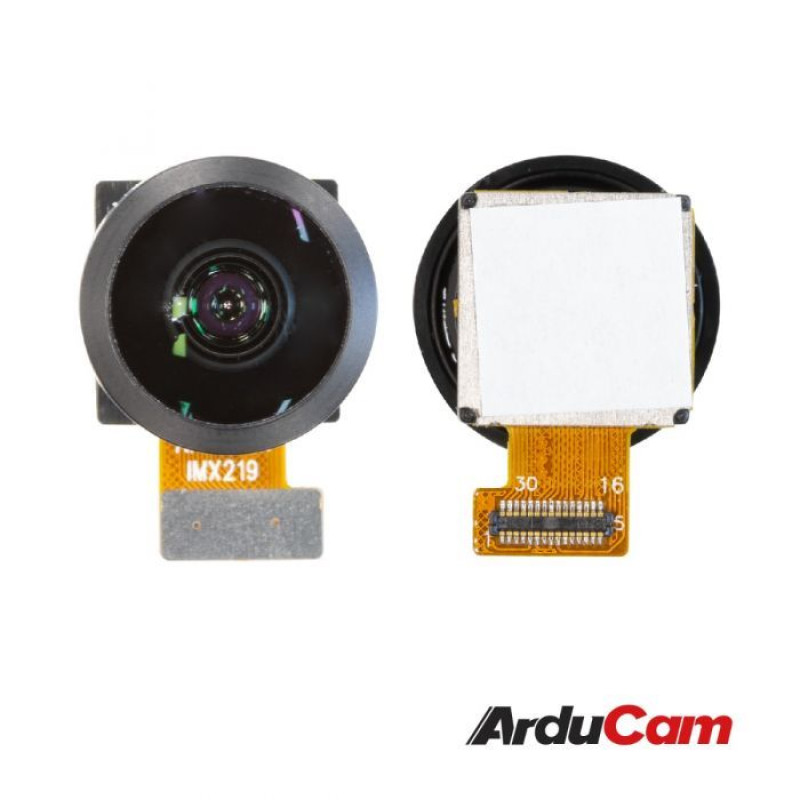

1. Arducam IMX219 x1 wide-angle camera module

Note:

1. The kit does not include a Raspberry Pi motherboard.

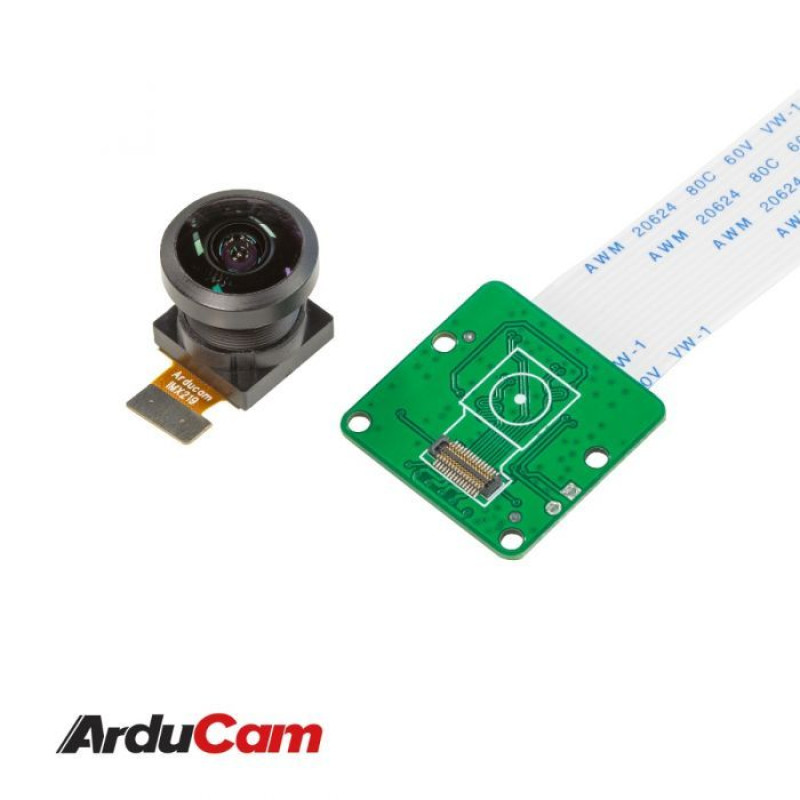

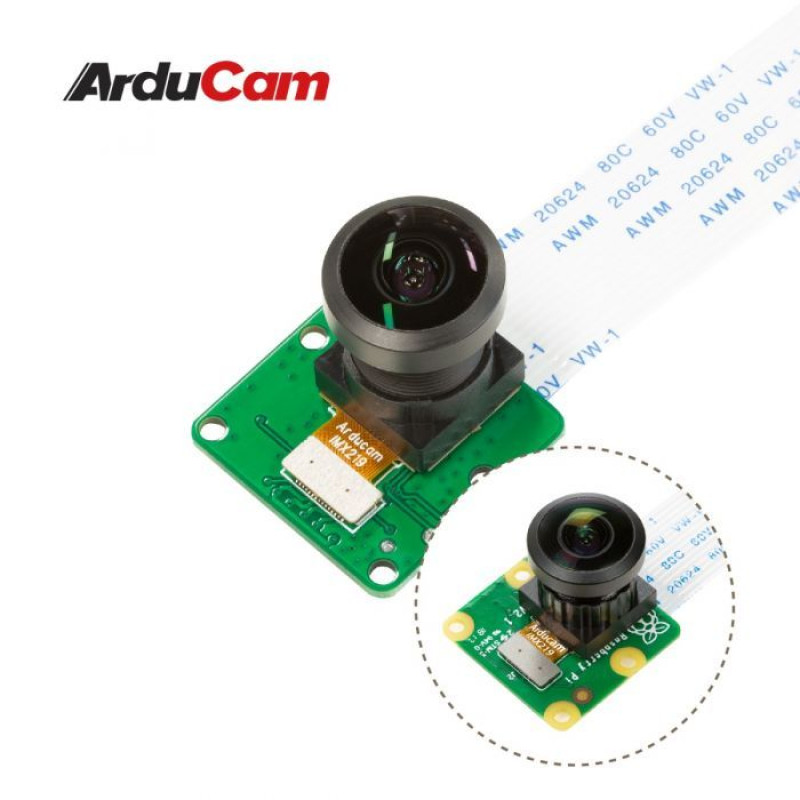

2. The replacement module does not include FPC cables or any camera boards. A Raspberry Pi V2 camera board is required for proper operation.
3. Lenses of all camera modules are not interchangeable. Please contact our sales team in advance if you need to replace them.
