NVIDIA Jetson Xavier NX Developer Kit

The NVIDIA® Jetson Xavier NX™ Developer Kit / 945-83518-0005-000 is designed to develop and test projects using artificial intelligence (AI) and machine learning technologies that allow you to collect and process large amounts of data (for example, robots and courier drones that need to process video streams from multiple cameras and control manipulators based on data received from very high resolution sensors).

The performance of this module is 10 times higher than that of its predecessor Jetson TX2 due to cloud support and acceleration of the NVIDIA software stack. The developers of the module paid great attention to its performance and energy efficiency: with a consumption of 15W, it provides a performance of 21 TOPS, and with 10W - 14 TOPS, which allows you to run several neural networks in parallel and process data from several high-resolution image sensors. Given its small size, the Jetson Xavier NX module is perfectly suited for solving the problems of developing and testing energy-efficient AI solutions.

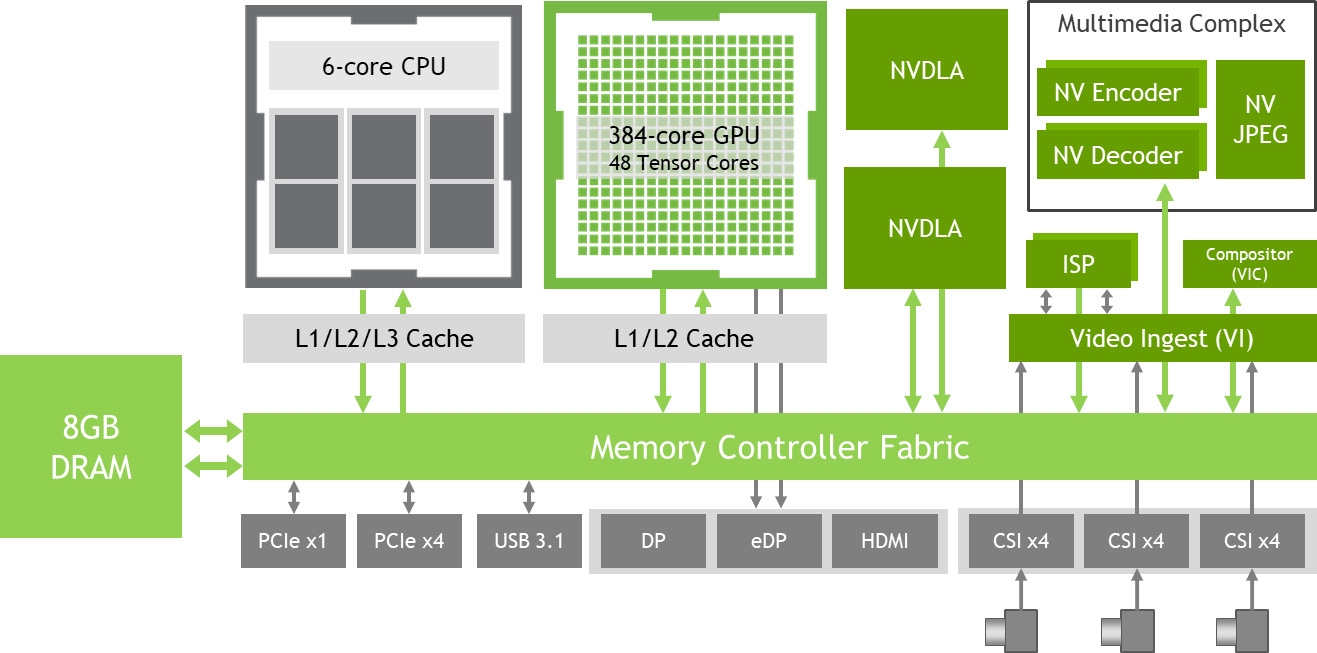

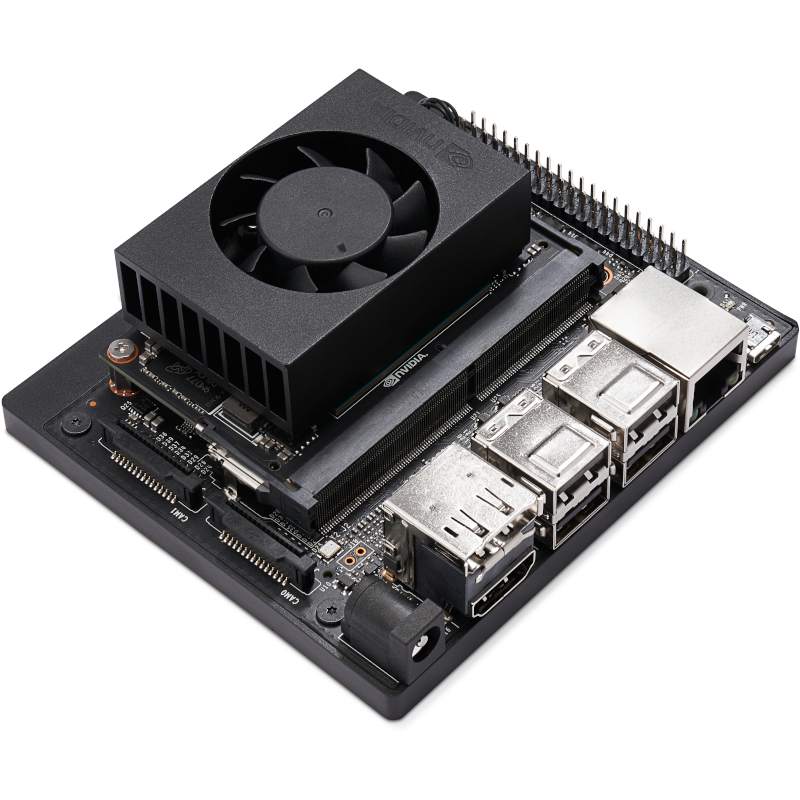

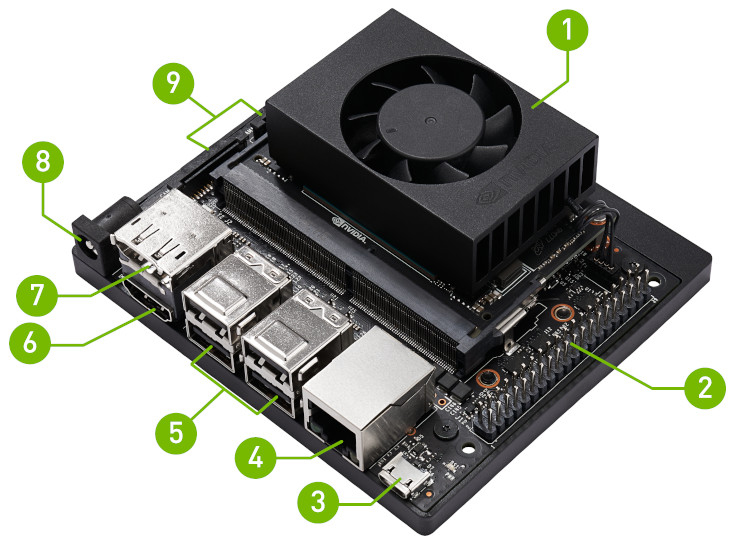

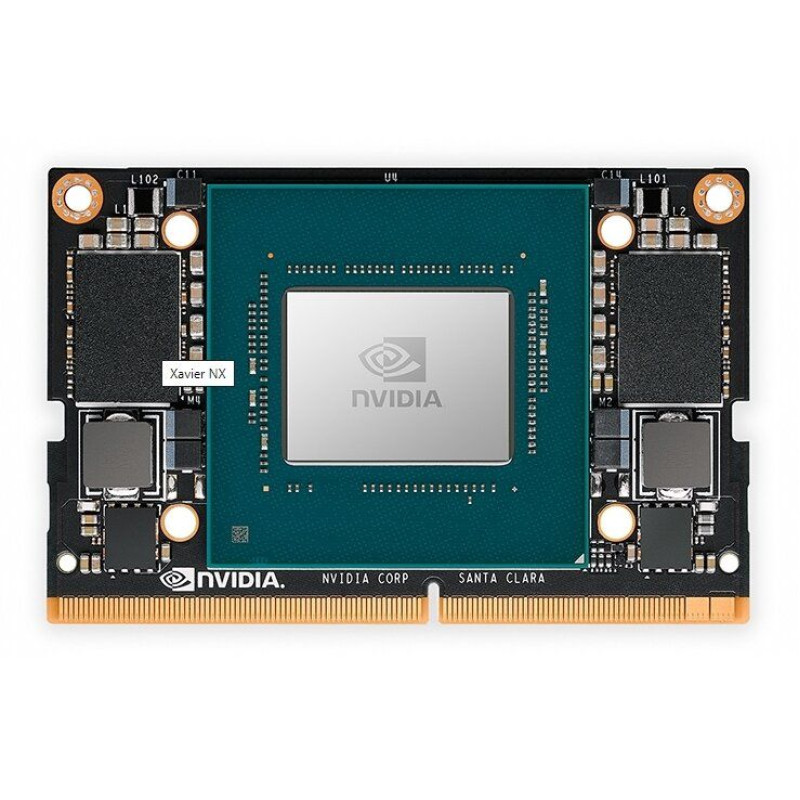

The Jetson Xavier NX computing module is based on a 6-core 64-bit Nvidia Carmel Arm processor and is equipped with an Nvidia Volta GPU with 384 CUDA cores, 48 tensor cores, and two Nvidia deep learning accelerators. It is made on a 260-pin SO-DIMM board and integrates with the kit's base board, which has many interfaces (Ethernet, HDMI, USB, etc.), as well as GPIO for connecting to expansion cards.

The system is based on the CUDA-X AI software architecture and supports the NVIDIA JetPack development kit, which is a complete artificial intelligence software stack capable of working with complex AI networks, accelerated libraries for deep learning, as well as machine vision, computer graphics, multimedia, and more.

Jetson Xavier NX is fully compatible in terms of size and pins with Jetson Nano, which makes it easy to upgrade the corresponding hardware solutions and models. It also supports all major AI frameworks, including TensorFlow, PyTorch, MxNet, Caffe, and others.

SPECIFICATIONS.

GPU architecture: NVIDIA Volta with 384 NVIDIA CUDA® cores and 48 tensor cores
Processor: 6-core NVIDIA Carmel ARM® v8.2 64-bit processor 6MB L2 + 4MB L3
DL accelerator: 2 NVDLA engines
GPU accelerator: 7-Way VLIW Vision Processor
Memory: 8 GB, 128-bit LPDDR4x at 51.2 GB/s
Storage: microSD (not included)
Video Encoding: 2x 4K @ 30 | 6x 1080p @ 60 | 14x1080p @ 30 (H.265 / H.264)
Video Decoding: 2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265)
2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264)
Camera: 2x MIPI CSI-2 DPHY lanes
Connectivity: Gigabit Ethernet, M.2 E dongle (including WiFi/BT), M.2 M dongle (NVMe)
Display: HDMI and display port
USB: 4x USB 3.1, USB 2.0 Micro-B
Other interfaces: GPIO, I2C, I2S, SPI, UART
Overall dimensions: 103 mm x 90.5 mm x 34.66 mm

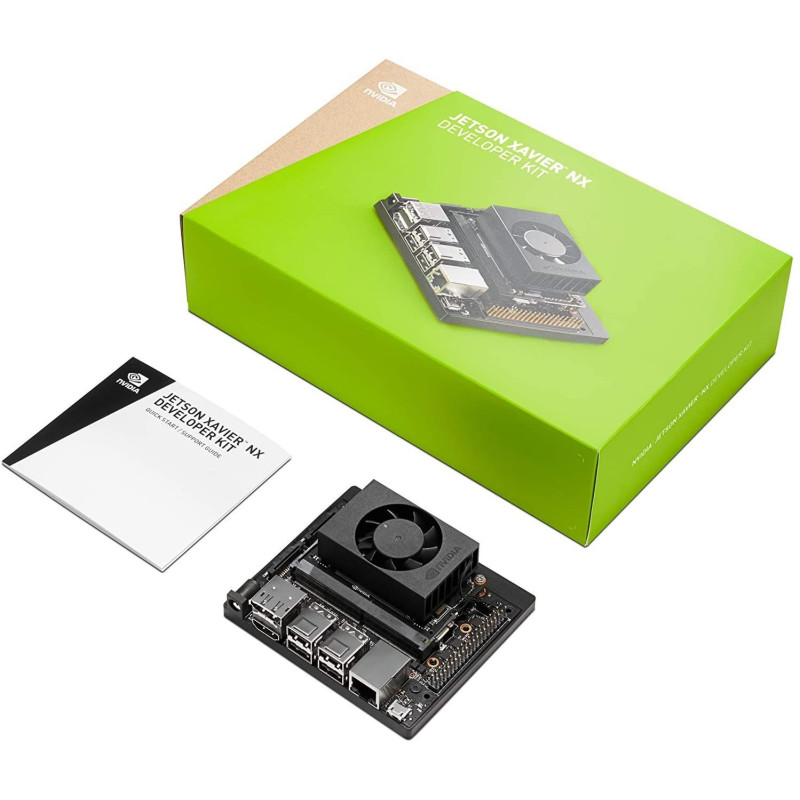

The kit includes:

1. NVIDIA Jetson Xavier NX module and support carrier board
2. 19 V power supply
3. 802.11 WLAN and Bluetooth® module with antennas (mounted under the carrier board)
4. Quick Start and Support Guide with information on how to get started
