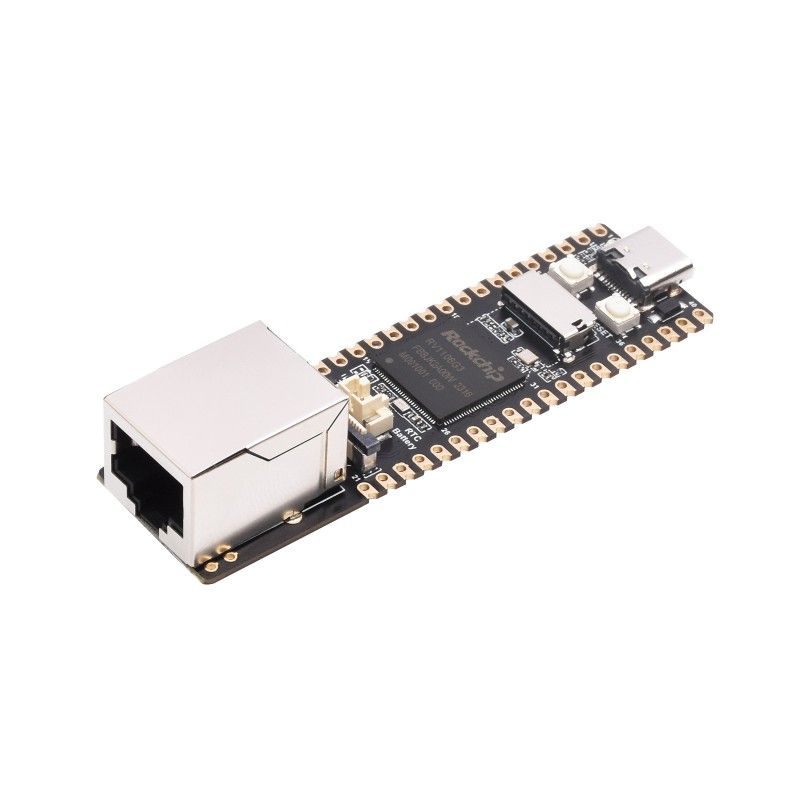

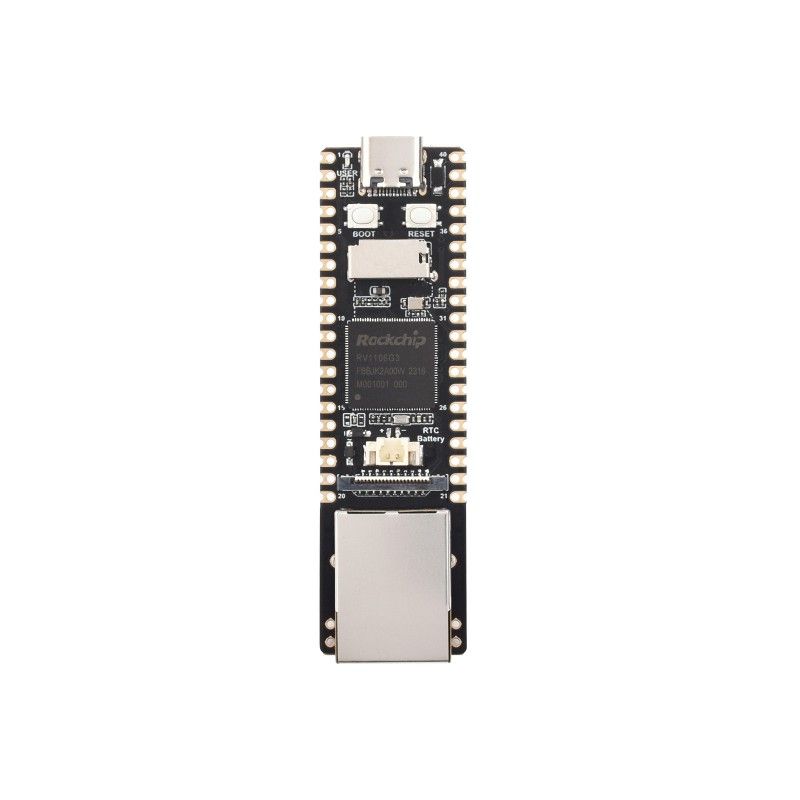

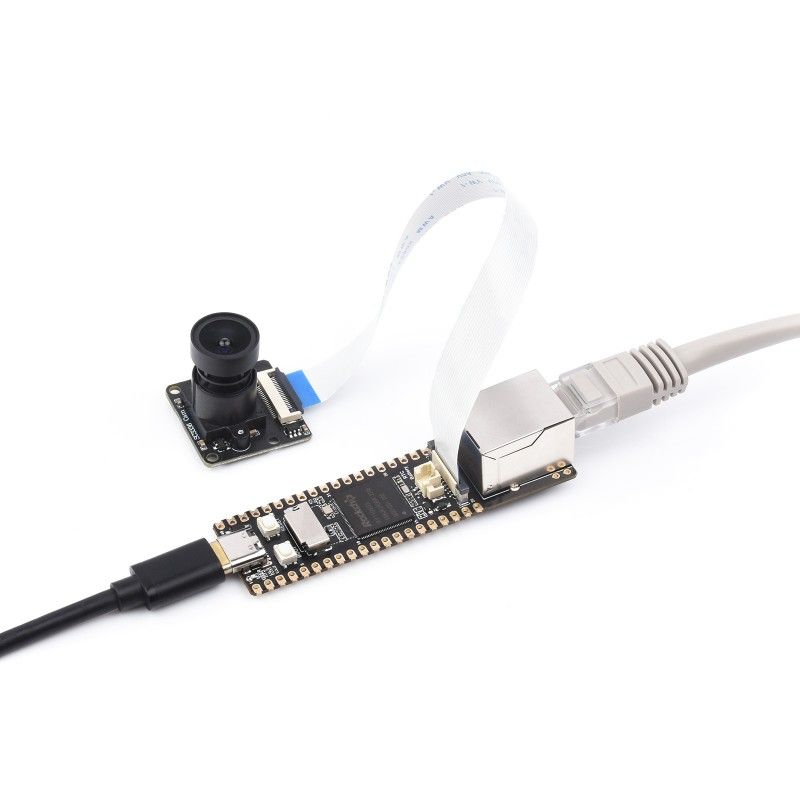

Luckfox Pico Max

TheLuckfox Pico Max is a high-performance and compact board based on ARM Cortex-A7 processors, RISC-V MCU, with a neural processing unit (NPU) and image processing unit (ISP). This board is high-performance and versatile, and it can be used to develop various types of projects, including embedded systems, machine learning, image processing, artificial intelligence, and many other applications. It empowers developers by providing access to a variety of computing tools and technologies to create innovative Linux-based projects.

Luckfox Pico Max supports many interfaces, such as MIPI CSI, GPIO, UART, SPI, I2C, USB, TF Card Slot, Ethernet Port, etc.

Main features

• Has a 32-bit ARM Cortex-A7 core with built-in NEON and FPU
• It has a built-in 4th generation NPU of Rockchip's own design, which provides high computing accuracy and supports hybrid quantization of int4, int8 and int16. The processing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
• It has a built-in third-generation ISP3.2 of its own design, supporting 5 megapixels, with several image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
• Has high encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% of the bitrate of normal CBR mode, so that the camera images are high-definition with a smaller size, twice the storage space
• Equipped with built-in 16-bit DDR2 DRAM, built-in POR, audio codec and MAC PHY

Specifications.

• Processor: Cortex [email protected]
• NPU: 0.5TOPS, supports int4, int8 and int16
• ISP: 5M input @ 30fps (max)
• Memory: 256MB DDR3L
• USB: USB 2.0 host/device
• Camera: MIPI CSI 2-way
• GPIO: 26 × GPIO pins
• Ethernet port: 10/100M Ethernet controller and built-in PHY
• Memory by default: SPI NAND FLASH (256 MB)

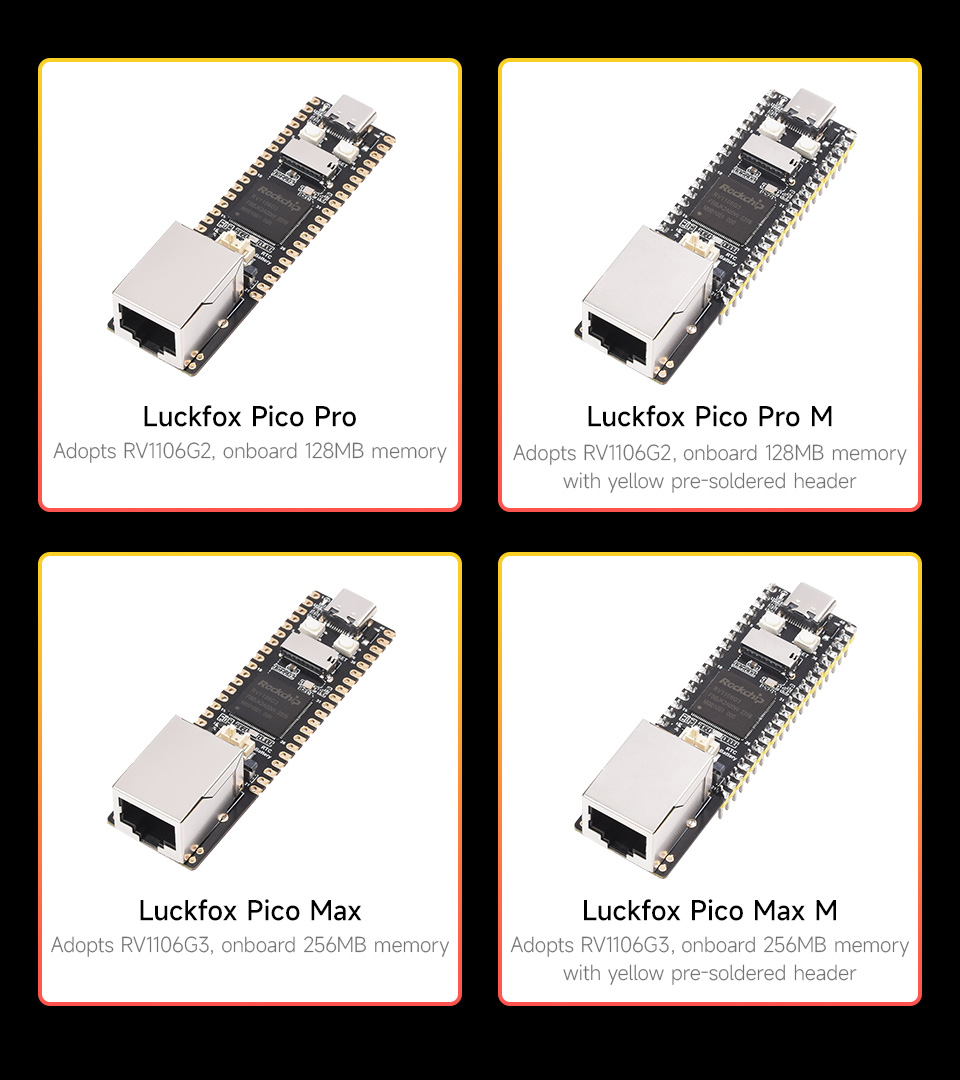

Comparison of the Luckfox Pico family of boards:

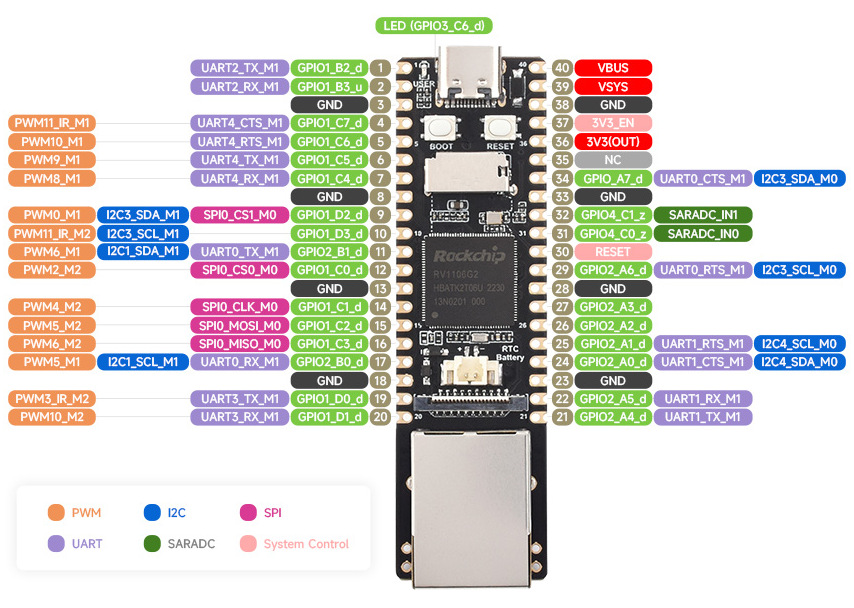

Pinout:

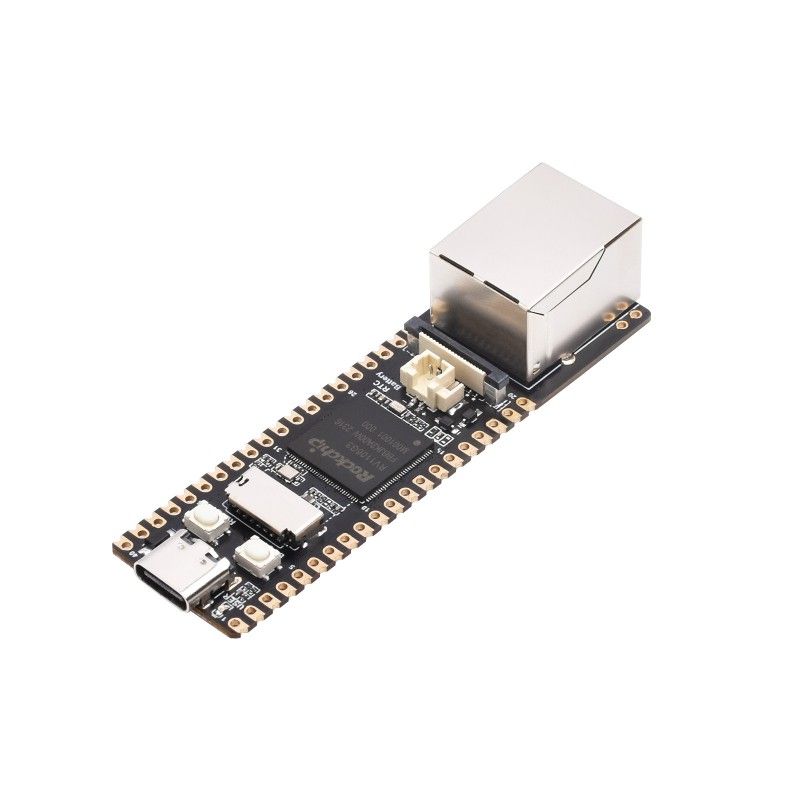

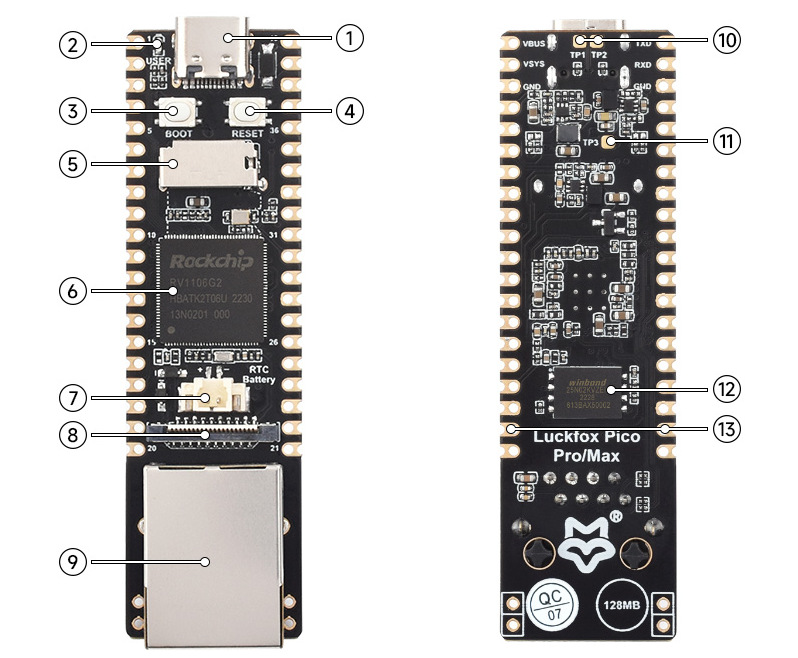

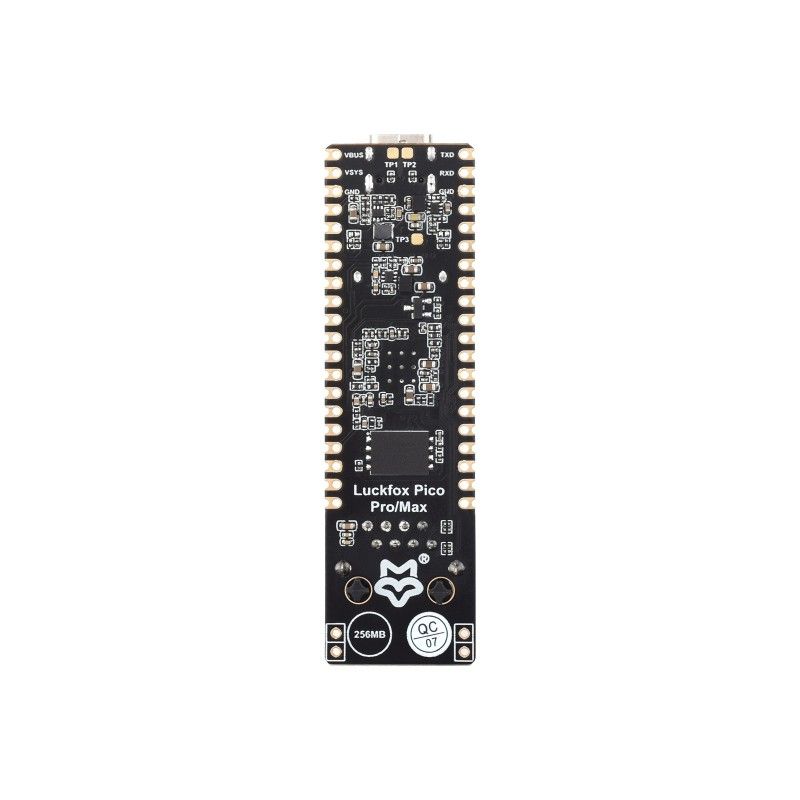

Board elements:

1. USB Type-C connector
2. ACT-LED
3. BOOT button. Press it during power on to enter the boot mode
4. RESET button

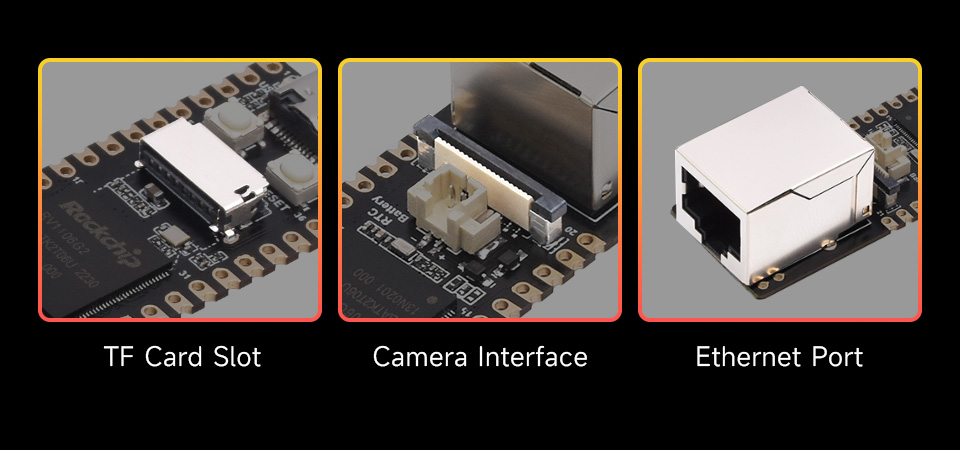

5. Slot for TF card
6. RV1106. Vision SoC processor with built-in ARM Cortex-A7 core (RV1106G3 for Max version)
7. RTC battery connector. MX1.25 connector for connecting the RTC battery
8. CSI camera interface. MIPI CSI 2-band
9. RJ45 Ethernet port
10. USB test tablets
11. BOOT test panel

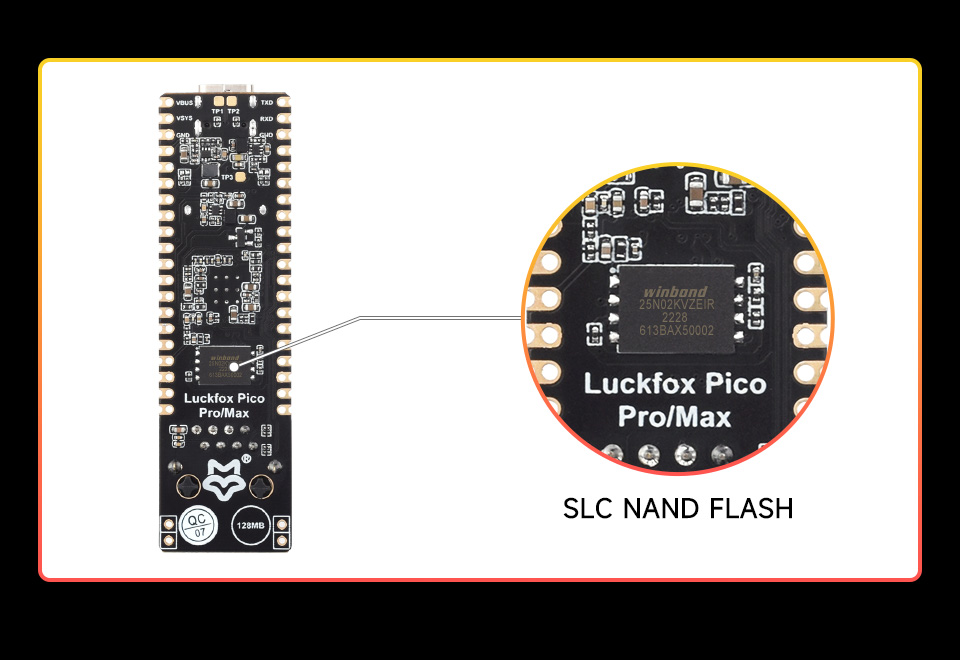

12. W25N02KV. 256 MB SLC NAND FLASH
13. GPIO connector

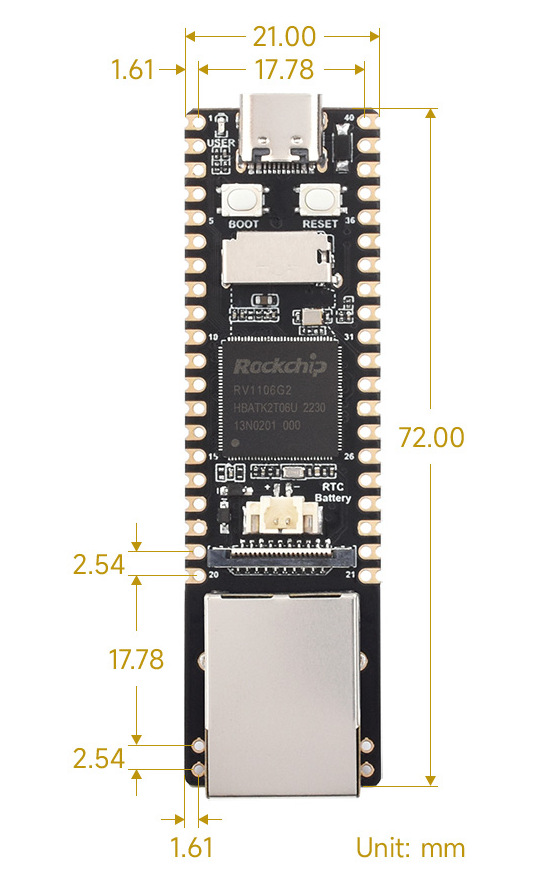

Overall dimensions: 21mm x 72mm

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start

Scope of delivery:

1. Luckfox Pico Max x1

Weight: 0.011 kg
