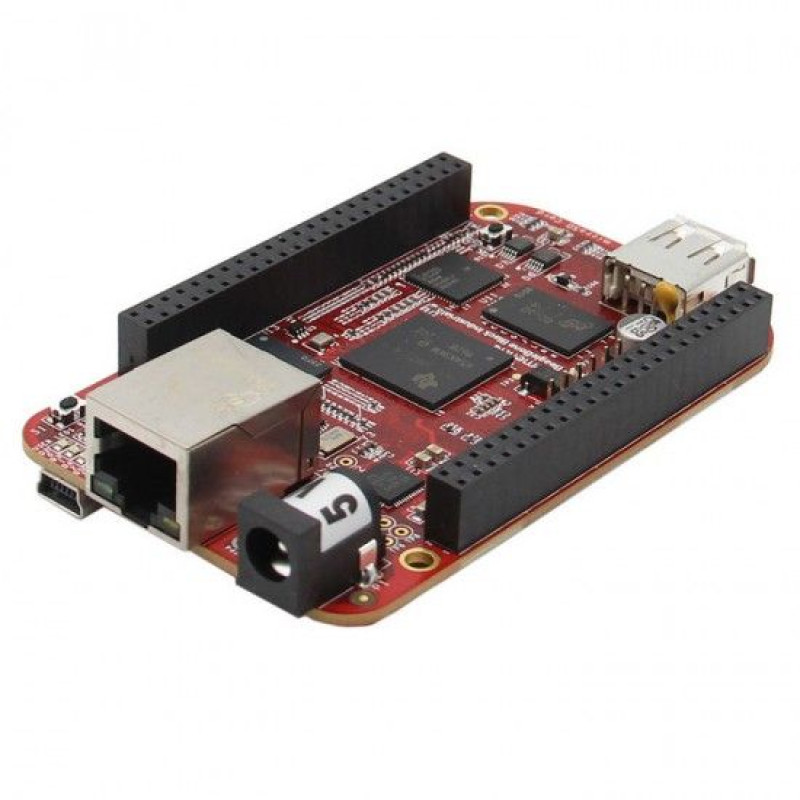

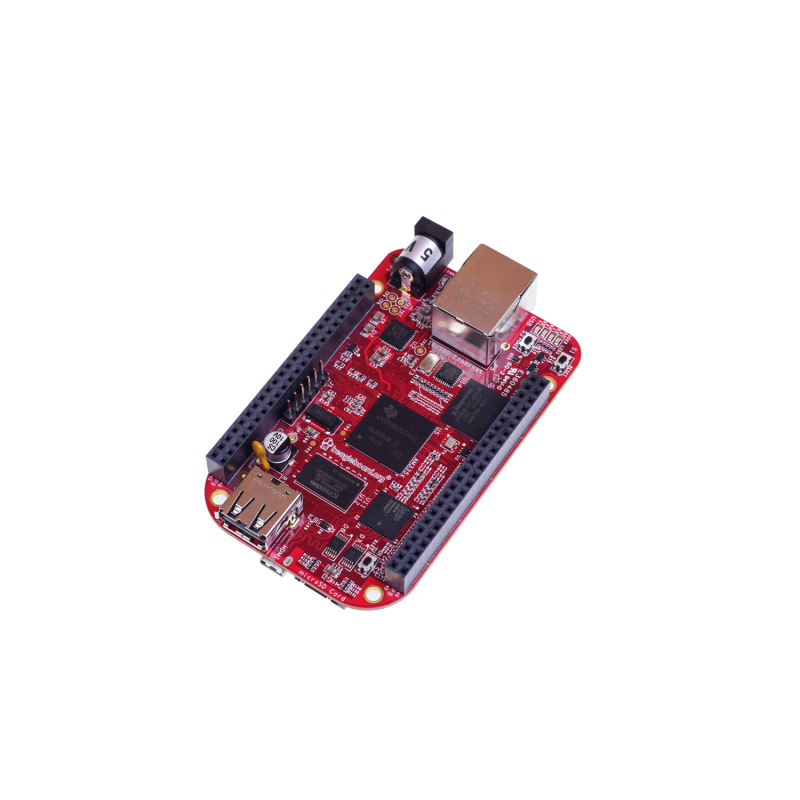

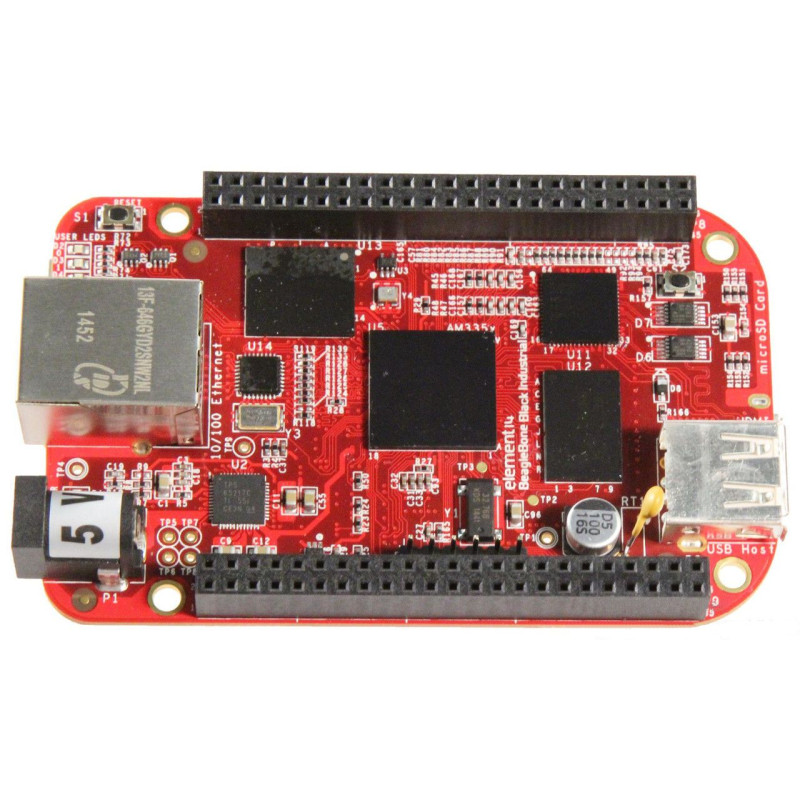

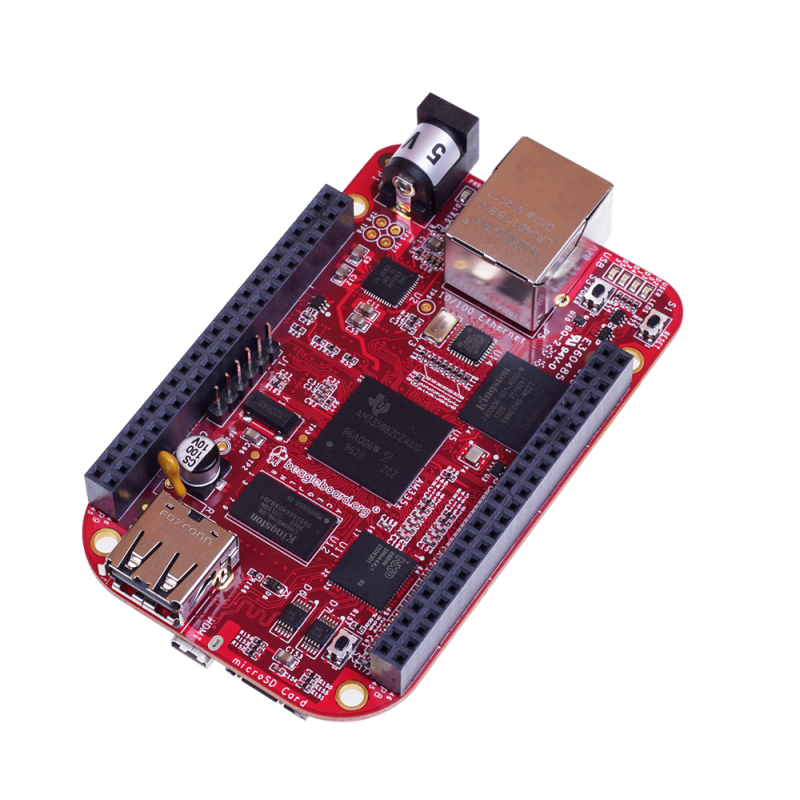

BeagleBone Black Industrial microcomputer

TheBeagleBone Black Industrial microcomputer is designed to solve industrial problems and has an extended operating temperature range: from -40°C to +85°C. It is fully compatible with the original BeagleBone Black and differs in addition to the temperature range only in the absence of an HDMI interface.

Processor: AM335x 1GHz ARM® Cortex-A8

• 512MB DDR3 RAM
• 4GB 8-bit eMMC built-in flash memory
• 3D graphics accelerator
• NEON floating-point accelerator
• 2x PRU 32-bit microcontroller

• Connectors

• USB client/host
• Ethernet
• 2x 46 pin headers

Compatible software

• Debian
• Android
• Ubuntu
• Cloud9 IDE on Node.js with BoneScript library
• etc.

Technical specifications:

Processor: AM335x 1GHz ARM® Cortex-A8

SDRAM memory: 512 MB DDR3L 800 MHz

Built-in flash memory: 4 GB, 8-bit built-in MMC

PMIC: TPS65217C PMIC regulator and one additional LDO.

Debugging support: optional built-in 20-pin CTI JTAG, serial connector

Power supply: miniUSB USB or DC power supply socket

PCB: 3.4 inches x 2.1 inches

Indicators: 1-Power, 2-Ethernet, 4-user-controlled LEDs

HS USB 2.0 client port: access to USB0, client mode via miniUSB

Host port HS USB 2.0: access to USB1, type A socket, 500 mA LS / FS / HS

Serial port: access to UART0 via 6-pin 3.3V TTL connector.

Ethernet: 10/100, RJ45

SD / MMC connector: microSD, 3.3 V

User input:
reset button
boot button
power button

Expansion connectors:
5 V power supply, 3.3 V power supply, VDD_ADC (1.8 V)
3.3 V I/O for all signals
McASP0, SPI1, I2C, GPIO (69 max.), LCD, GPMC, MMC1, MMC2, 7
AIN (1.8 V max.), 4 timers, 4 serial ports, CAN0,
EHRPWM (0,2), XDMA interrupt, power button, expansion card ID (can be combined up to 4)

Resources for developers Wiki: BeagleBone Black Industrial page
