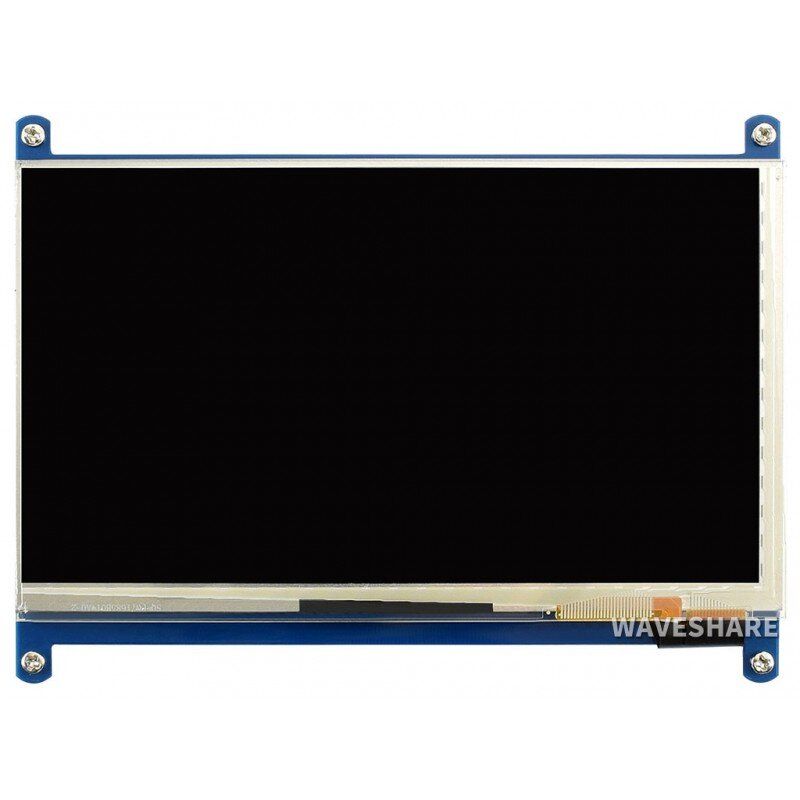

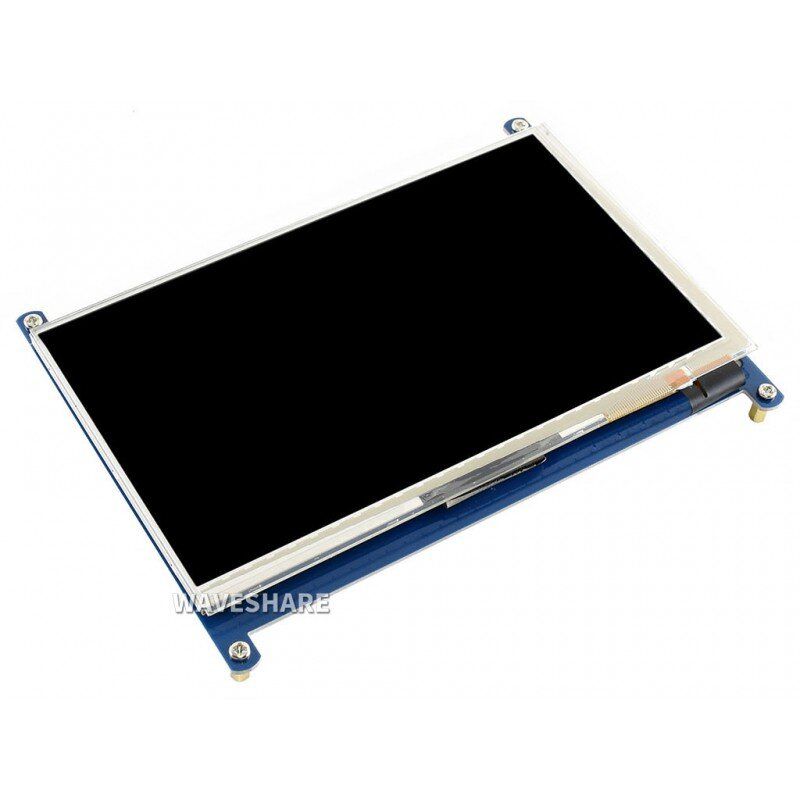

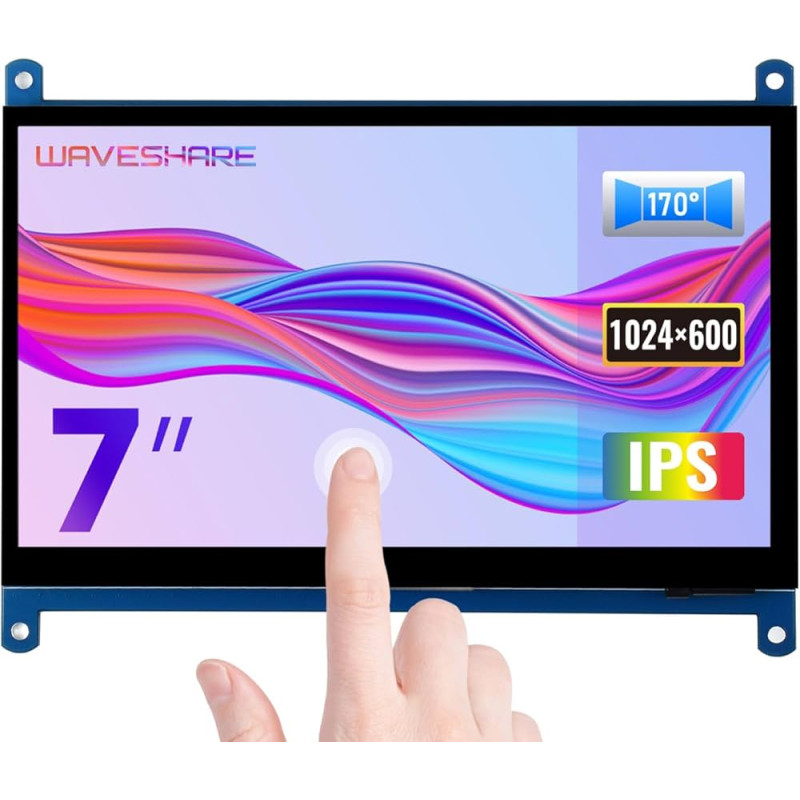

Display 7inch LCD 1024x600 HDMI Capacitive Touch Screen (11199)

The7inch LCD 1024x600 HDMI Capacitive Touch Screen (11199 ) has the following characteristics:

Screen diagonal: 7"

Resolution: 1024x600 pixels

Port: HDMI

Matrix type: IPS

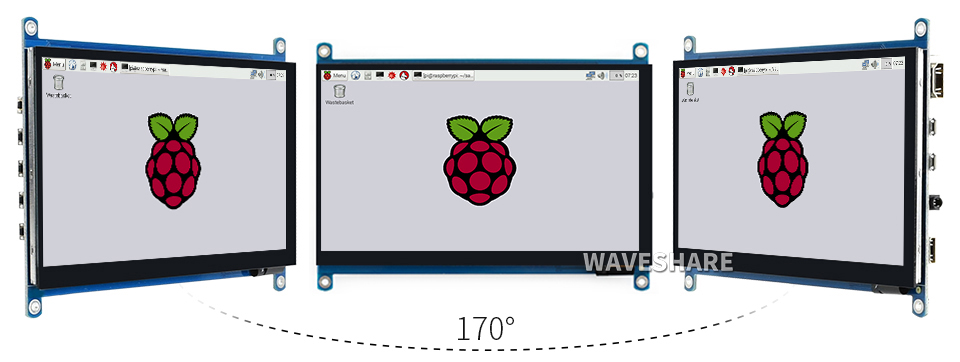

Viewing angle: 170 °

Sensor type: capacitive

Number of control points: 5 points

Sensor port: USB

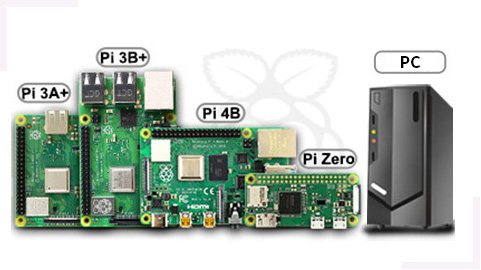

Supported devices and systems

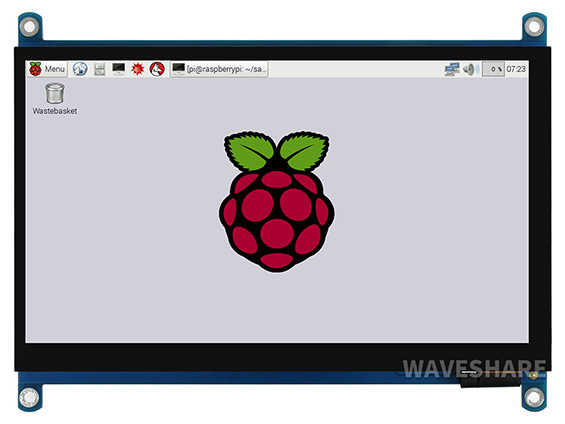

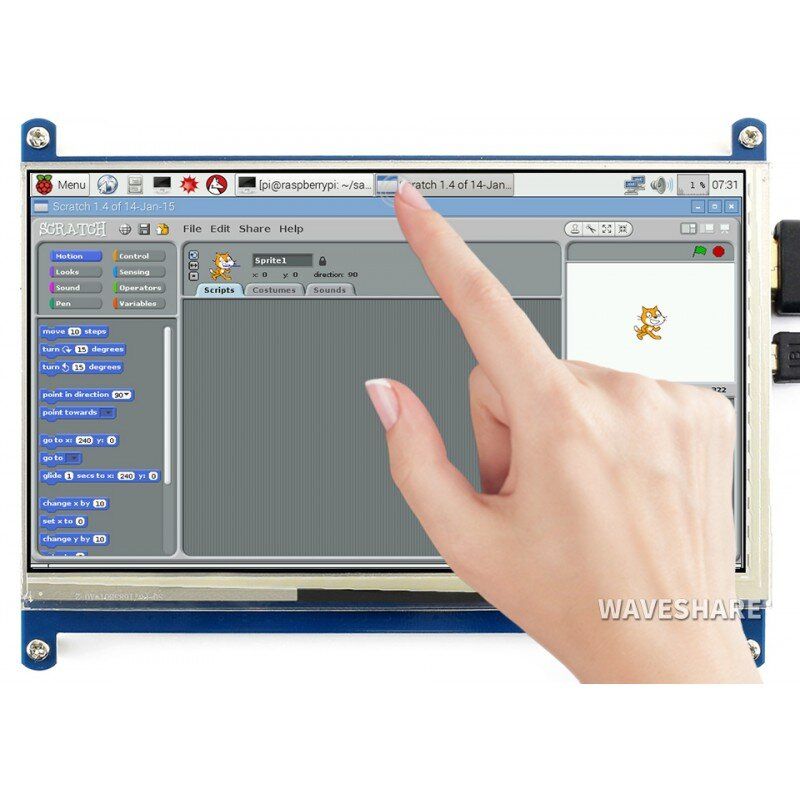

Raspberry Pi

Support Raspbian, 5 points of contact, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no drivers
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

PC

Supports Windows 10 / 8.1 / 8/7 with driverless operation with 5 touch points

An example of connection:

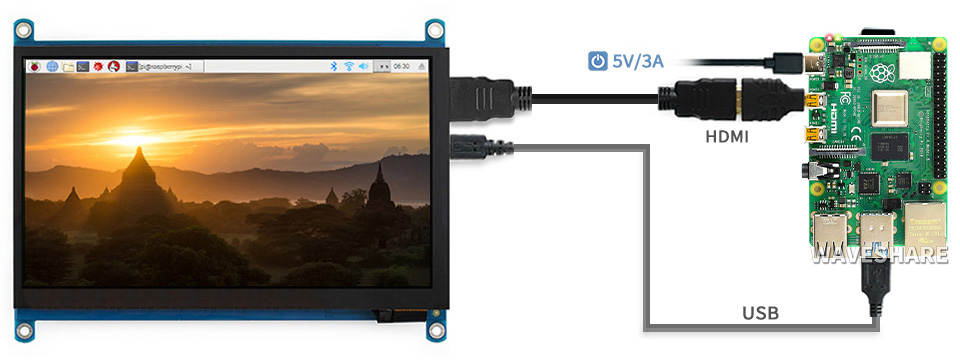

Working with Raspberry Pi 4

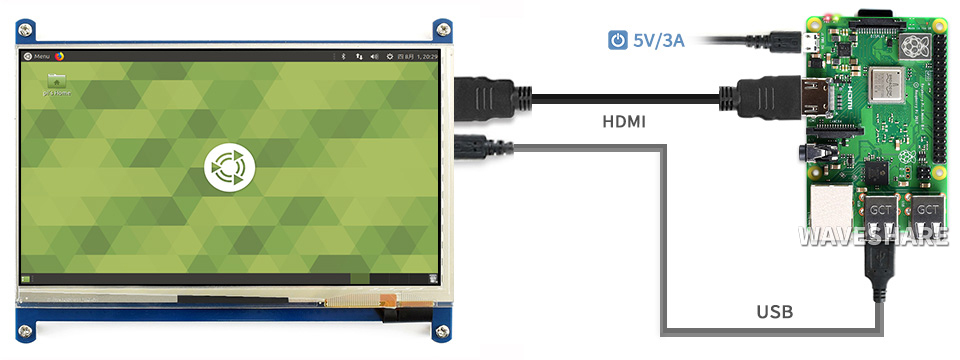

Working with Raspberry Pi 3V +

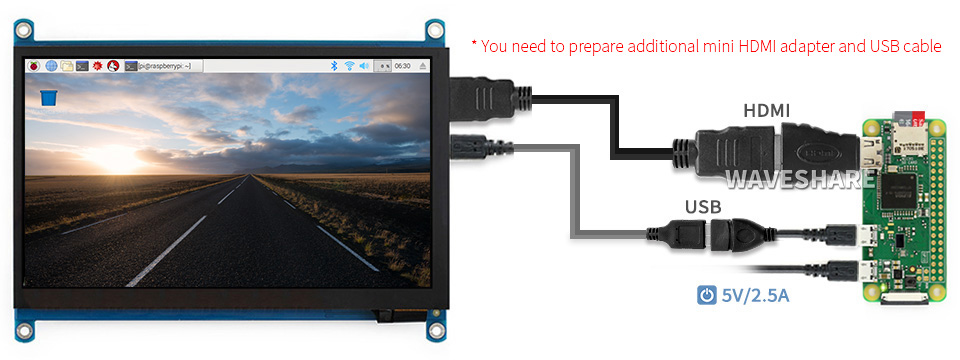

Working with Raspberry Pi Zero W

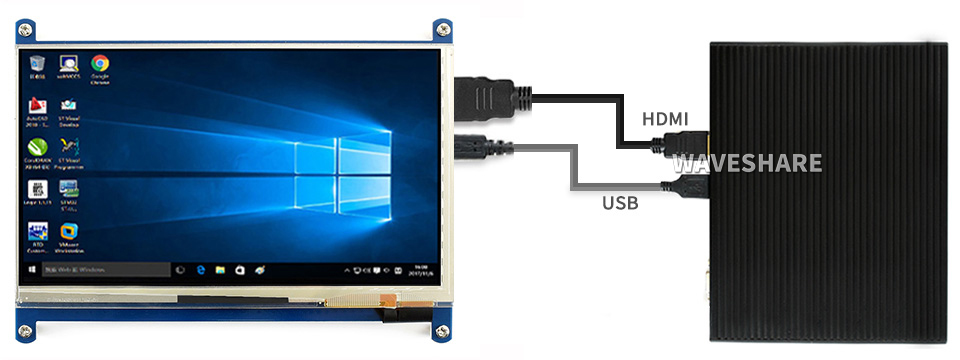

Working with a mini PC

Display - IPS panel

Touch panel - capacitive type with 5 points of contact (depending on the operating system)

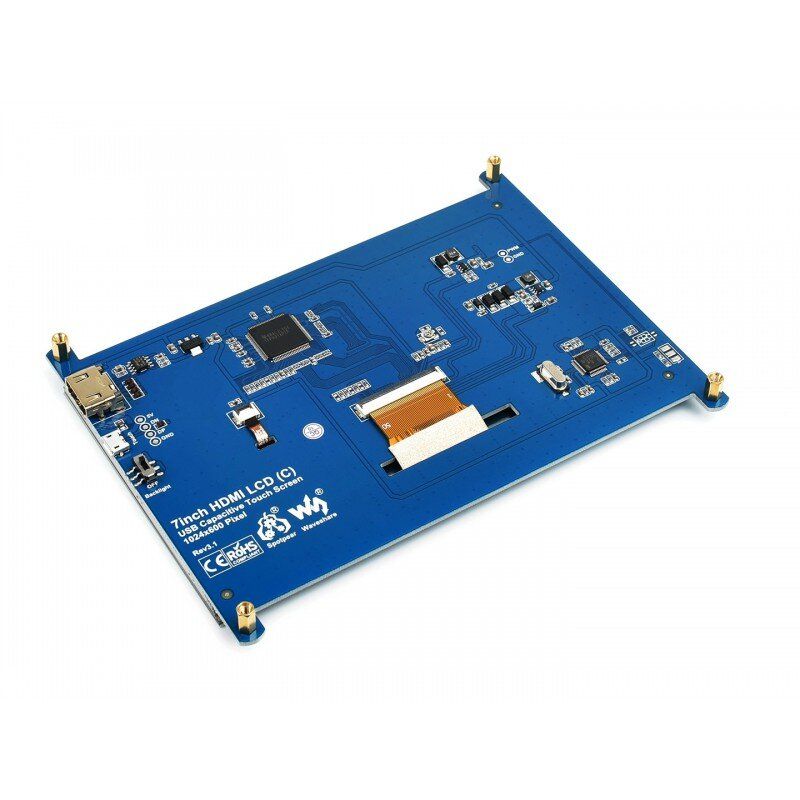

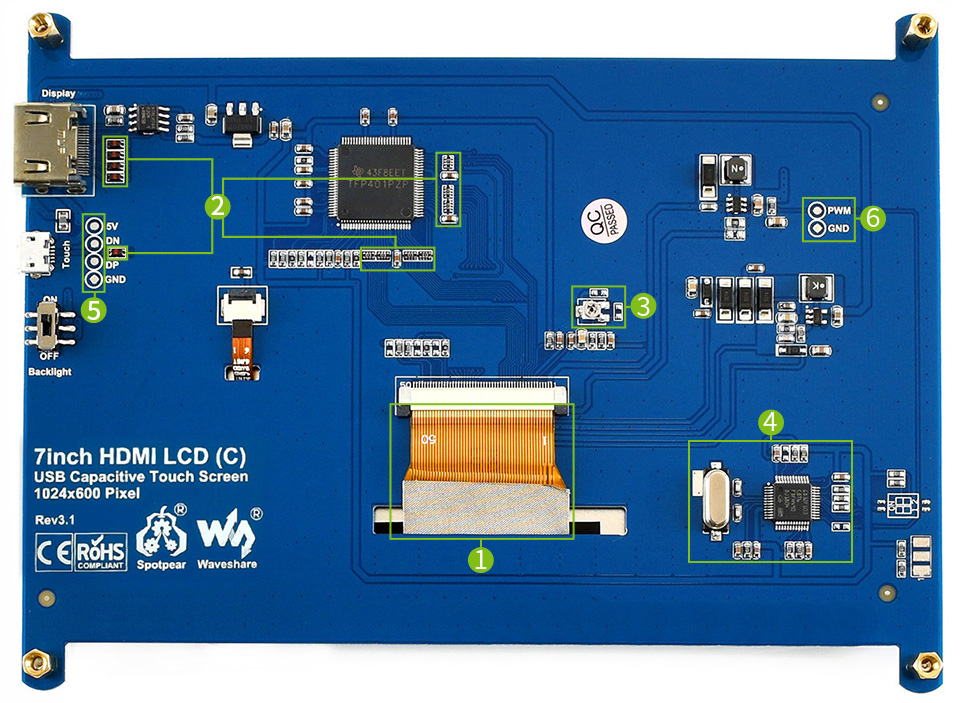

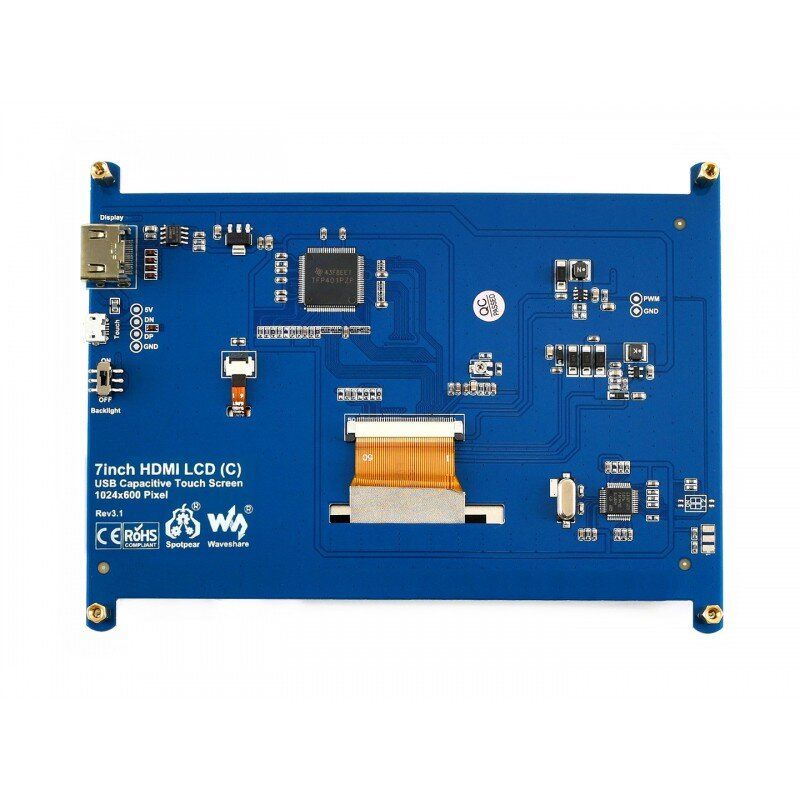

Construction elements:

1. FFC LCD cable with interference protection, more stable for industrial applications
2. Protection against electromagnetic interference and electrostatic discharge in accordance with CE certificate
3. VCOM voltage adjustment to optimize the display effect
4. USB protocol translator that converts the touch signal to the standard multi-point touch protocol to achieve smooth multi-point touch control
5. USB and power input soldering pads, USB interface connector, easy to connect external power supply
6. Backlight adjustment solder pads for PWM input signal to control the backlight brightness, increasing the display life

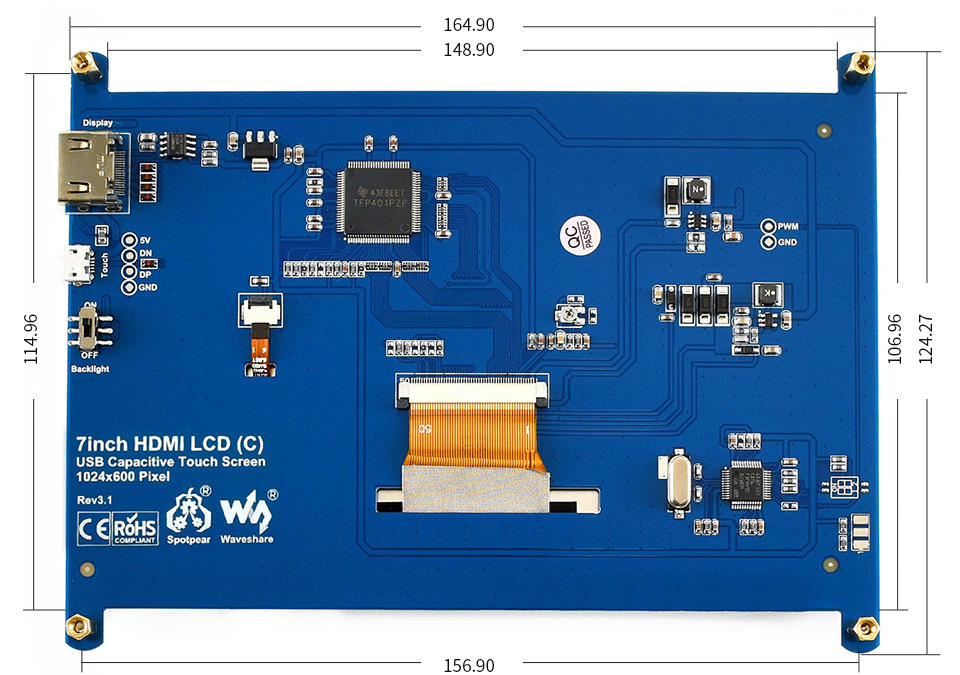

Overall dimensions, mm):

Information for developers: demo codes, schematics, data sheets, etc.

www.waveshare.com/wiki/7inch_HDMI_LCD_(C)

The package includes:

1. 7inch HDMI LCD (C) - 1 pc.
2. HDMI cable - 1 pc.
3. HDMI to Micro HDMI adapter - 1 pc.
4. USB type A plug to micro B cable - 1 pc.
5. Mounting kit - 1 pc.
6. Instruction manual - 1 pc.

1. 2. 3. 4. 5. 6.

Weight: 0.318 kg

Model selection guide:

Appearance:
