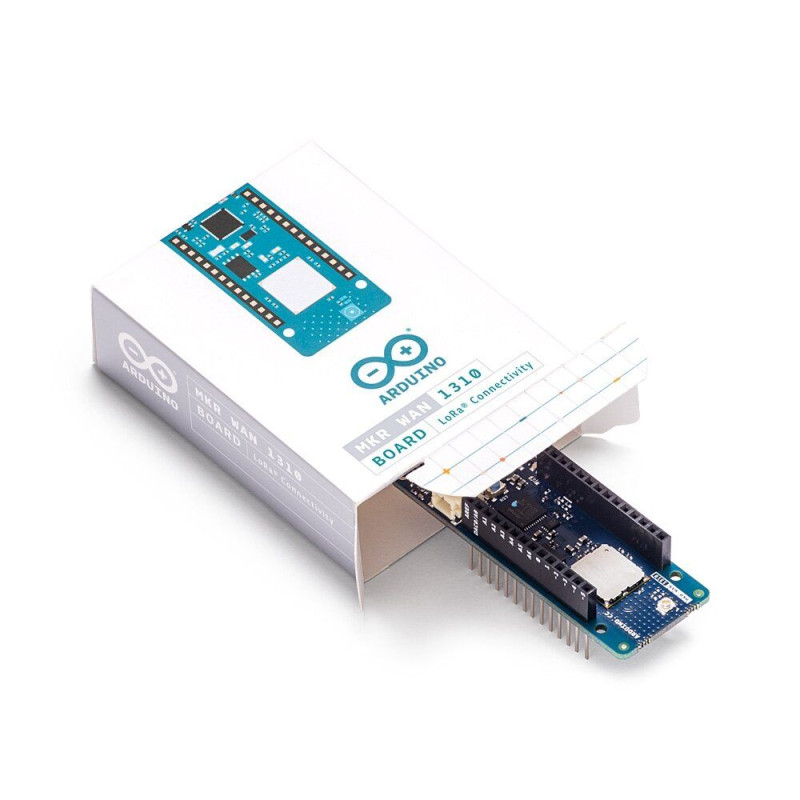

Arduino MKR WAN 1310 / ABX00029

The Arduino MKR WAN 1310 board is a practical and cost-effective solution for projects that require connecting various sensors and actuators using the capabilities of the LoRa® wireless protocol or in long-distance LoRaWAN™ networks.

This open-source board can be connected, using Arduino Create, to your own LoRa® network using the Arduino Pro Gateway for LoRa®, or to an existing LoRaWAN™ infrastructure such as The Things Network, or even to other boards that use direct connection mode.

TheArduino MKR WAN 1310 has a number of improvements over its predecessor, the MKR WAN 1300. Although it is still based on the low-power Atmel SAMD21 processor, Murata CMWX1ZZABZ LoRa® module and MKR family cryptographic coprocessor (ECC508), the MKR WAN 1310 includes a new charger, 2 MB SPI flash memory and improved board power management.

The modern architecture has significantly improved battery life, and when properly configured, power consumption is now only 104µA! You can use the USB port to supply power (5V) to the board, and it's up to you to run the board with or without batteries.

Wireless updates and other OTA (Over The Air) functions are now possible thanks to the built-in 2 MB SPI Flash memory. This feature will allow you to transfer configuration files from the network to the board, create your own script commands, or simply store data locally to send it at any time convenient for you. At the same time, the ECC508 cryptographic coprocessor enhances security by storing credentials and certificates in a built-in secure memory sector. These features make the Arduino MKR WAN 1310 ideal IoT nodes for building LoRa-based networks.

Specifications:

• MCU: Microchip Atmel SAMD21 32-bit ARM Cortex M0 + MCU @ 48 MHz with 32 KB SRAM, 256 KB flash memory (8 KB for bootloader)
• External storage: 2 MB SPI flash
• Digital inputs / outputs: 8 digital inputs/outputs, 12x PWM, UART, SPI and I2C, 8x external interrupts
• Analog contacts: 7 analog inputs (8/10/12-bit ADC) and 1 analog output (10-bit DAC)
• Constant current in the I/O line: 7 mA
• LPWAN connection:
  • Lora Murata CMWZ1ZZABZ module based on Semtech SX1276 and STMicro STM32L
  • Antenna power: 2 dB
  • Carrier frequency: 433/868/915 MHz
  • Operating regions: EU / USA
• USB: 1x micro USB port for power and programming
• Security: ATECC508 (ECC508 crypto chip)
• Additional: reset button, 6x LEDs, RTC 32.768 kHz
• Power supply:
  • 5 V via micro USB port or VIN contact
  • 2-pin connector for Li-ion or Li-Po rechargeable battery
• Power consumption: only 104 µA
• Dimensions: 67.64 x 25 mm
• Weight: 32 grams
