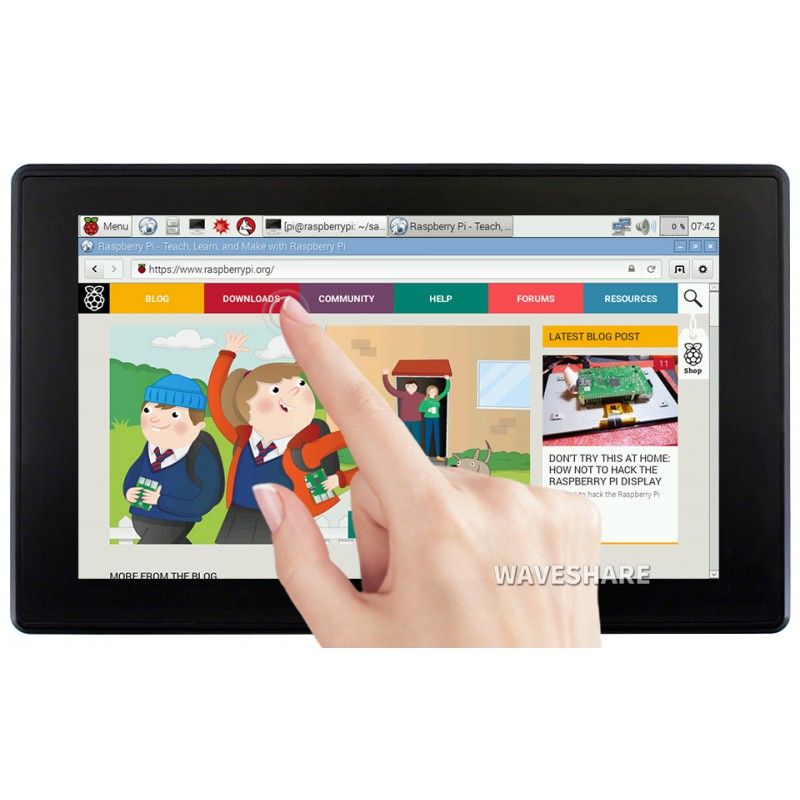

Monitor 7.0inch LCD 1024x600 HDMI Capacitive Touch Screen (13857)

The 7.0inch LCD 1024x600 HDMI Capacitive Touch Screen monitor (13857 ) has the following characteristics:

Screen diagonal: 7"

Resolution: 1024x600 pixels

Port: HDMI / VGA

Matrix type: IPS

Viewing angle: 170 deg.

Sensor type: capacitive with 5 touch points (depending on the operating system)

Number of control points: up to 5 points

On-screen menu (OSD Menu, On-Screen Display Menu) to control brightness and contrast modes

Sensor port: USB

Audio output: 3.5mm Jack

Protective insert made of polycarbonate

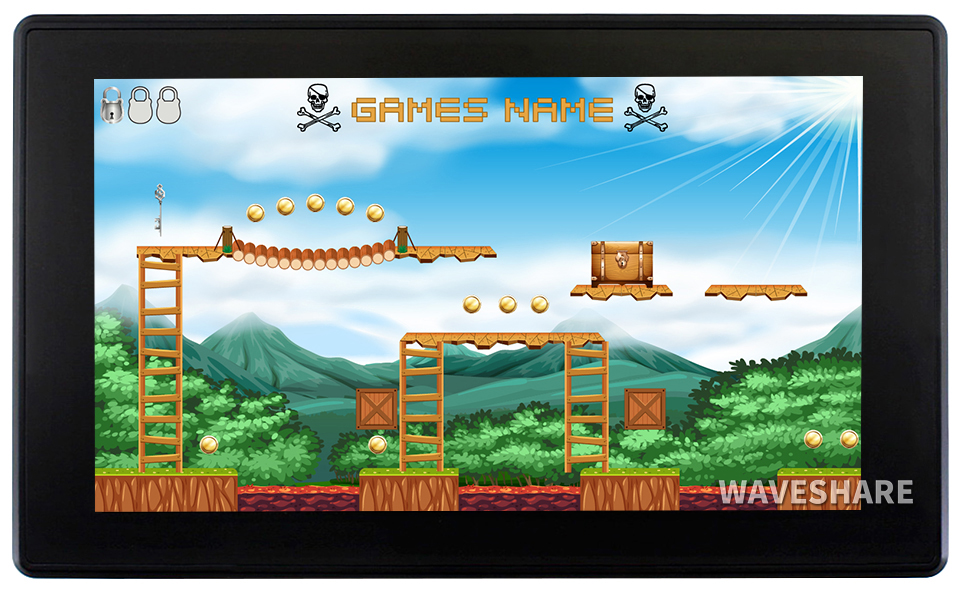

Supports operation with Xbox360 / PS4 / Switch game consoles

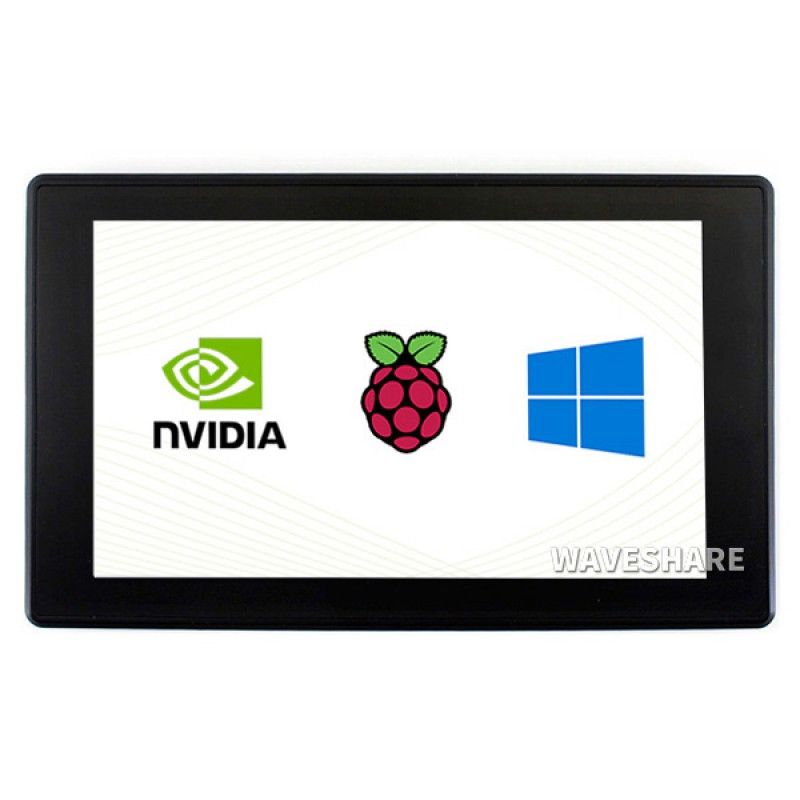

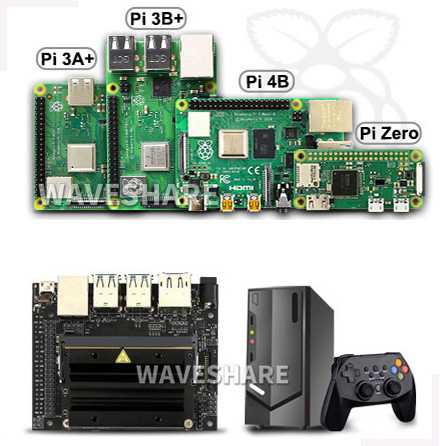

Supported devices and systems

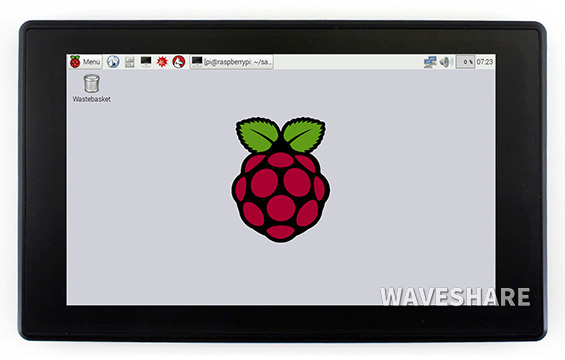

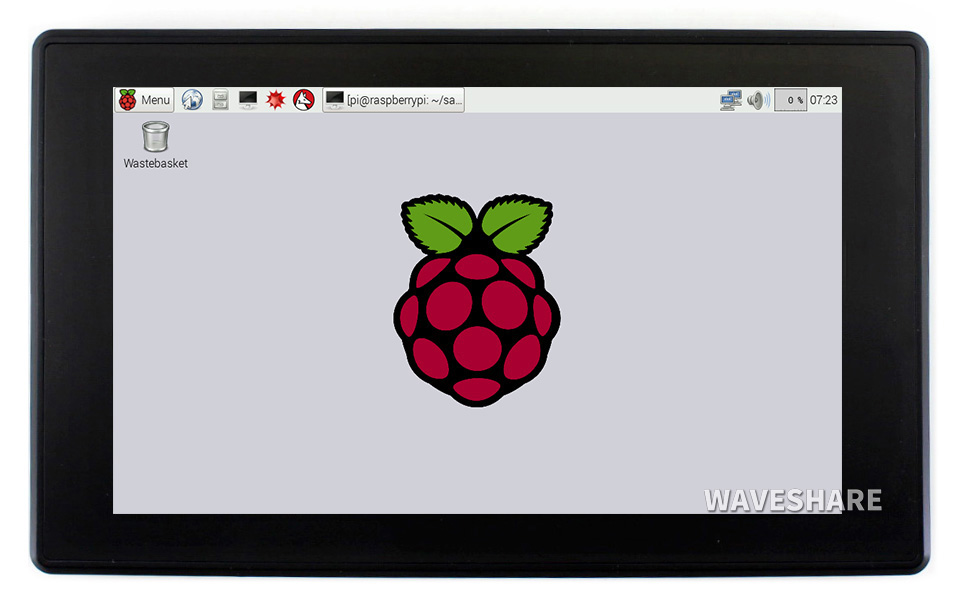

Raspberry Pi

Supports Raspbian, 5 touch points, no driver required
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver required
Supports Retropie, no drivers required

Supports ALL versions of Raspberry Pi.

Jetson NANO

Supports Ubuntu, one touch, no drivers required

PC

Supports Windows 10 / 8.1 / 8 / 7. 5 touch points, no drivers

Game consoles

Xbox360, PS4, Switch...

An example of connection:

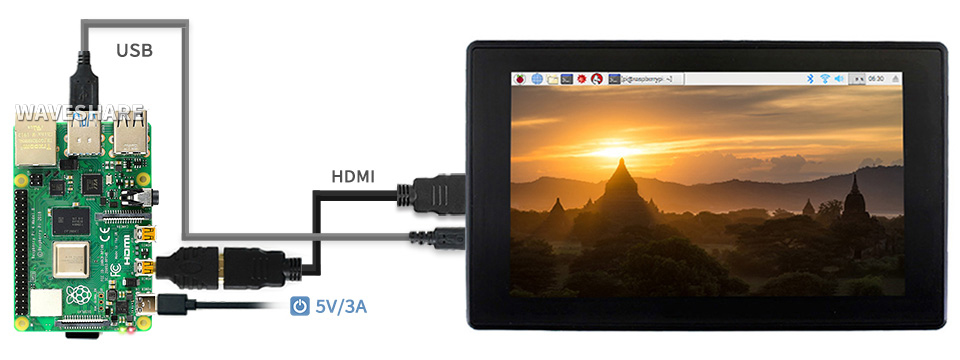

Working with a Raspberry Pi 4

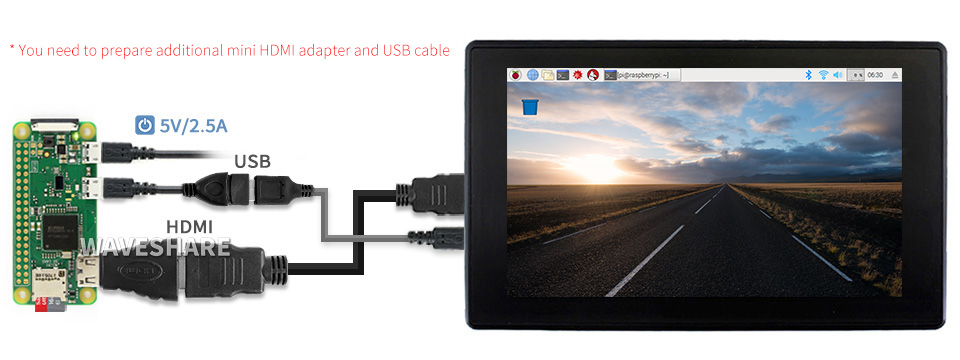

Working with Raspberry Pi Zero

Note: To connect to the Raspberry Pi Zero, you need to purchase a USB cable and a mini-HDMI adapter separately.

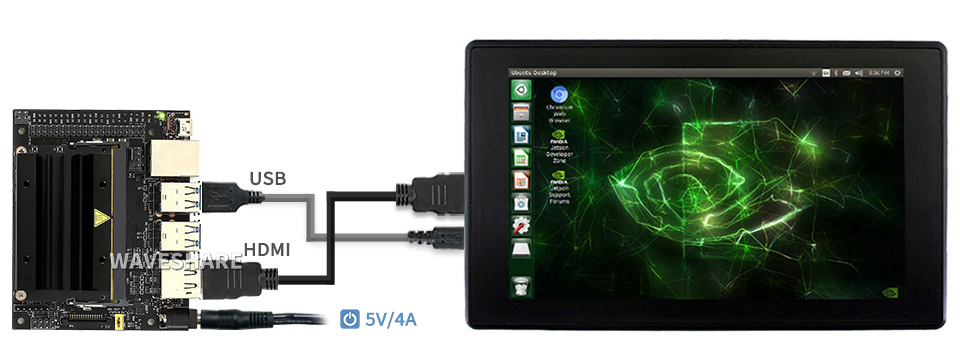

Working with NVIDIA Jetson NANO

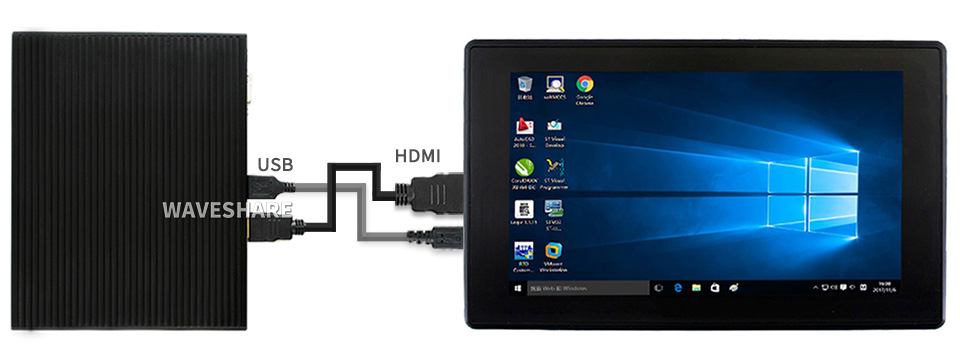

Working with Mini PCs

The display supports operation with game consoles (used for video display and audio playback functions)

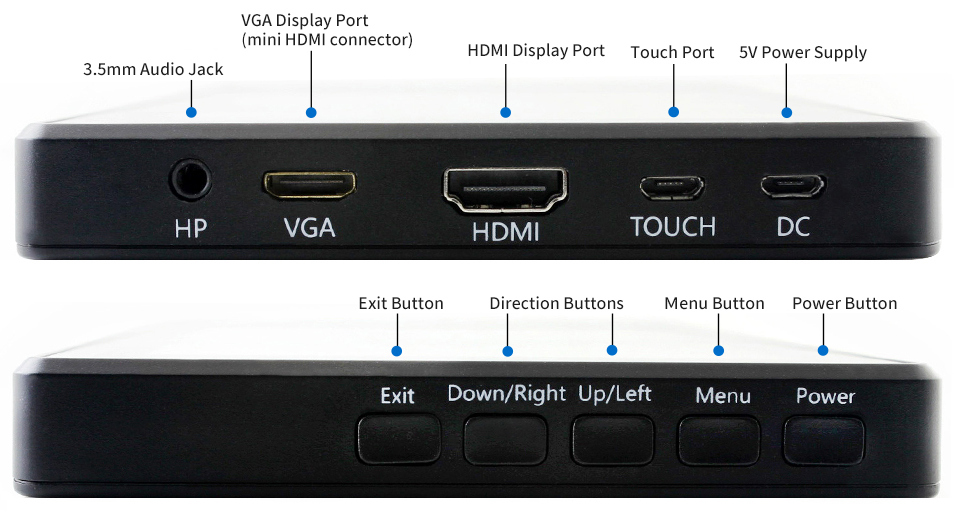

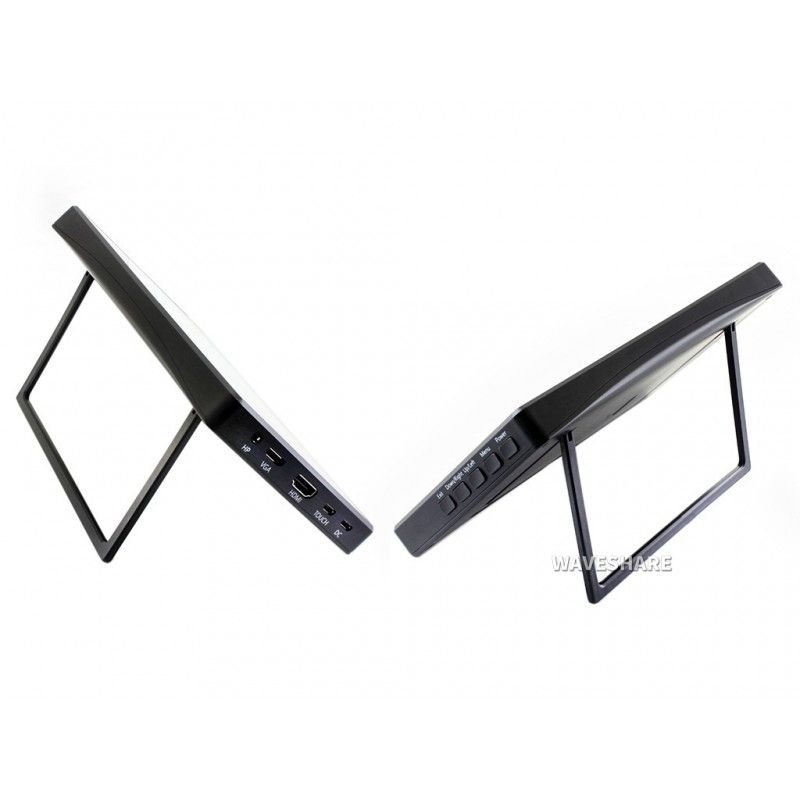

Device interfaces:

Buttons:

Exit - Exit button

Direction -- Orientation

Menu

Power

Connectors:

3.5mm Audio Jack - audio jack

VGA Display Port (mini HDMI connector) - display port

HDMI Port - HDMI port

Touch Port - sensor port

5V Power Input -- 5V power port

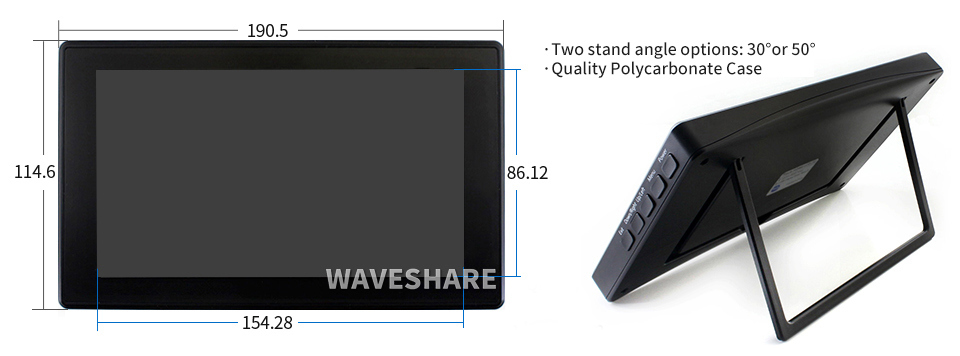

Overall dimensions (mm): 190.5 х 114.6

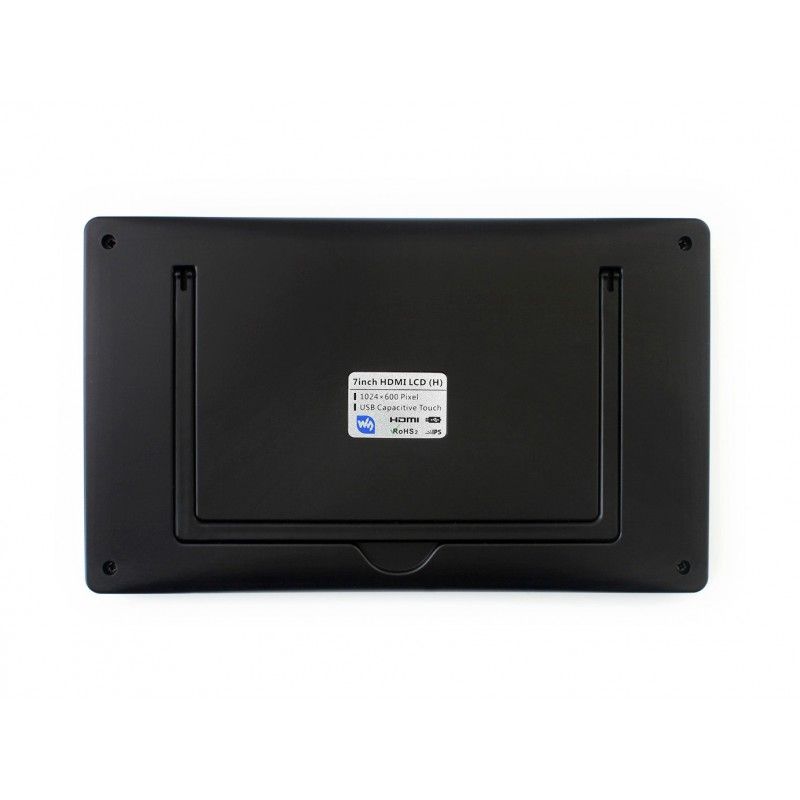

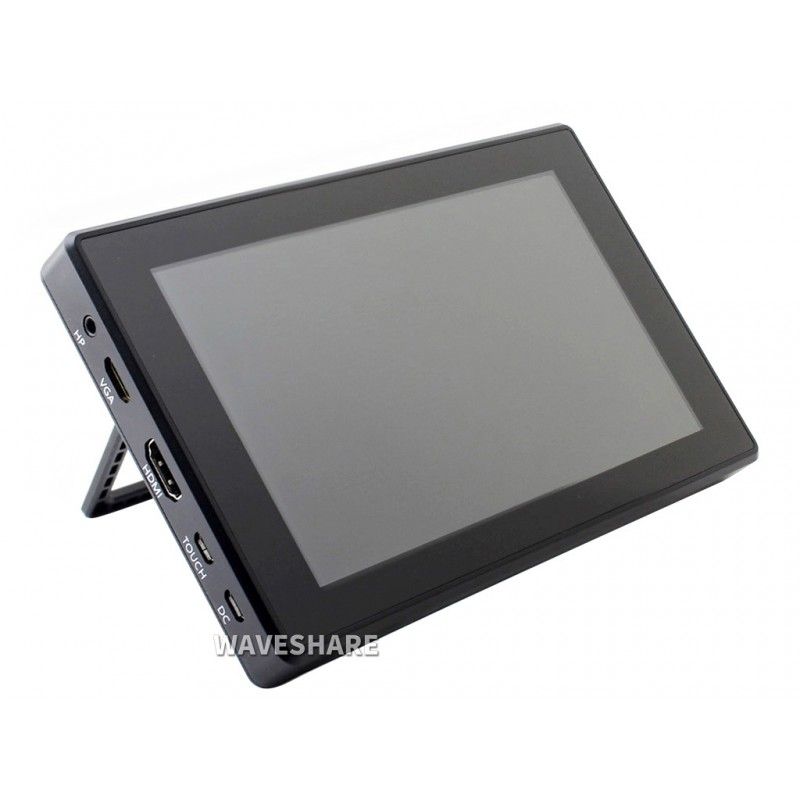

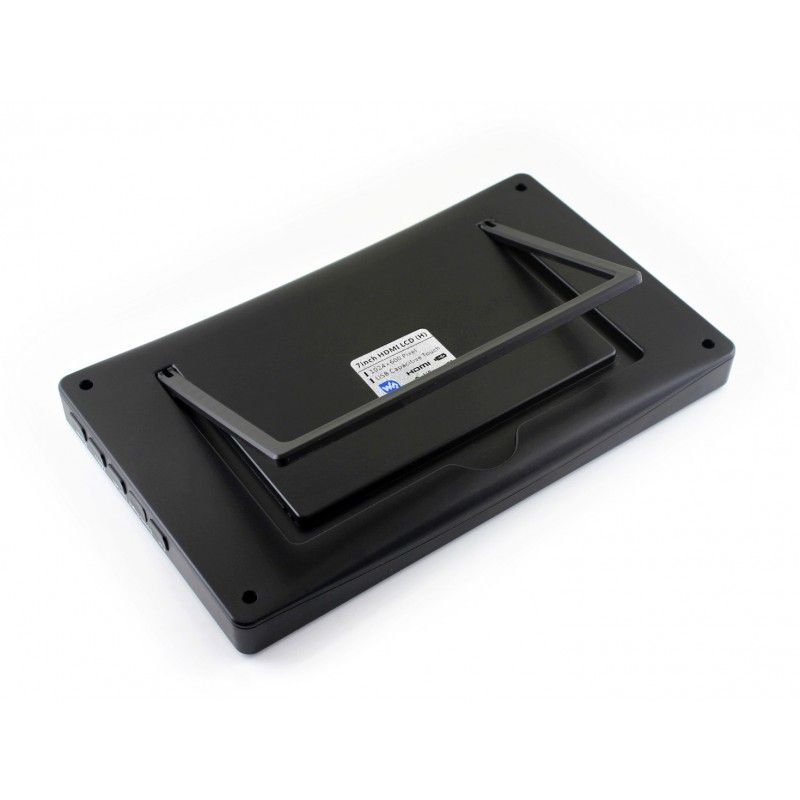

The display is equipped with a polycarbonate protective case and a stand bracket that holds the screen at an angle of 30 or 50 degrees.

Information for developers (Wiki): www.waveshare.com/wiki/7inch_HDMI_LCD_(H)_(with_case)

The package includes:

1. 7inch HDMI LCD (H) display with case x1
2. HDMI cable x1
3. HDMI to Micro HDMI adapter x1
4. USB type A plug to micro B plug cable x1
5. Quick start guide x1

1. 2.3. 4. 5.

Weight: 0.408 kg
