Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)

Brand: Waveshare Product Code: 10829
0
All about product
Description
Specification
Reviews 0
Questions0
new
Popular
Sold Out
Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)
Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)
Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)
Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)
Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)
Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)
Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)
Out Of Stock
£34.40
Compatibility:Raspberry Pi, Jetson Nano, Banana Pi, BeagleBone, Asus
Connectivity:HDMI
Country of origin:Made in China
Display type:TFT/IPS
Resolution:800 x 480
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Display 7inch LCD 800x480 HDMI Capacitive Touch Screen (10829)
£34.40
Description

The7inch LCD 800x480 HDMI Capacitive Touch Screen (10829 ) has the following characteristics:

  • Screen diagonal: 7"
  • Resolution: 800x480 pixels
  • Port: HDMI
  • Sensor type: capacitive
  • Number of control points: 5 points
  • Sensor port: USB

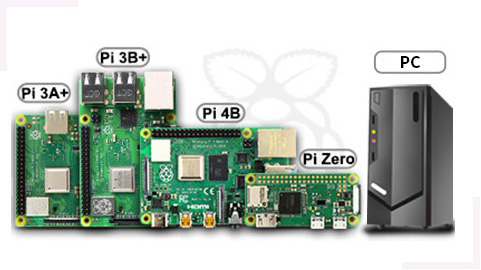

Supported devices and systems

Raspberry Pi

Support Raspbian, 5-point touch, no driver
Support Ubuntu/Kali/WIN10 IoT, one touch, no driver
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi


PC
Supports Windows 10 / 8.1 / 8/7, 5-point touch, no drivers

An example of connection:

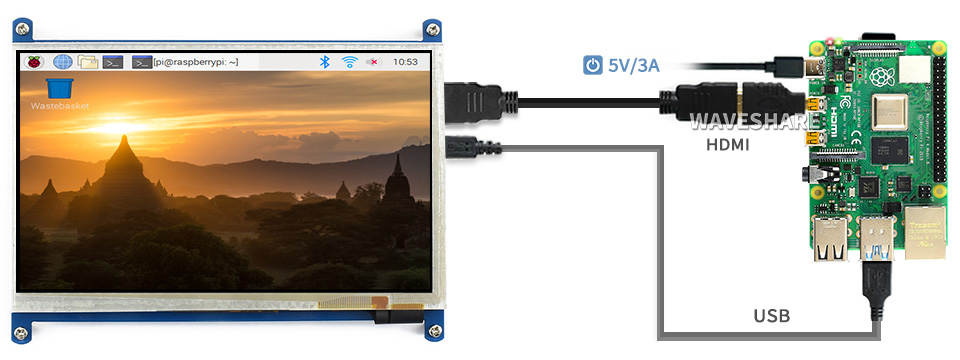

Working with a Raspberry Pi 4

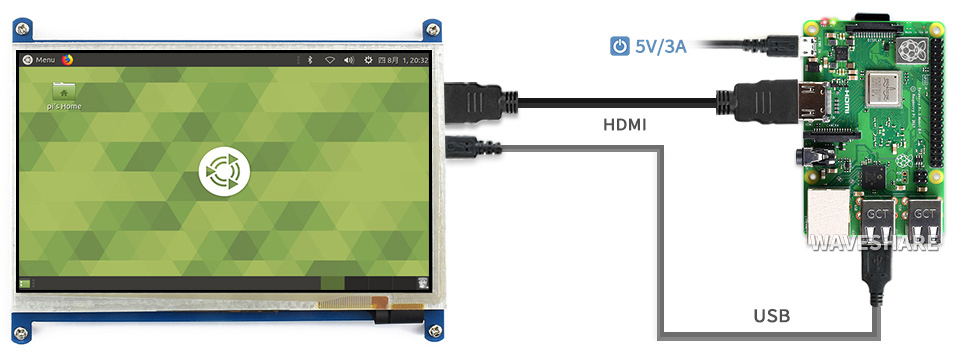

Working with Raspberry Pi 3B+

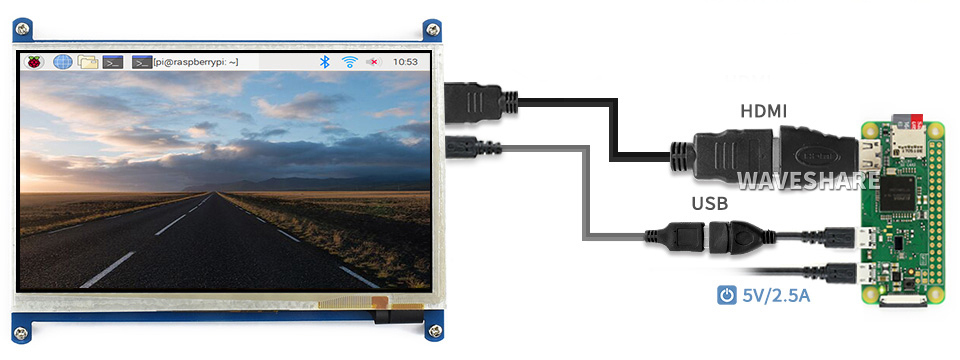

Working with Raspberry Pi Zero W

Attention: Use an HDMI to Micro HDMI adapter with the HDMI cable.

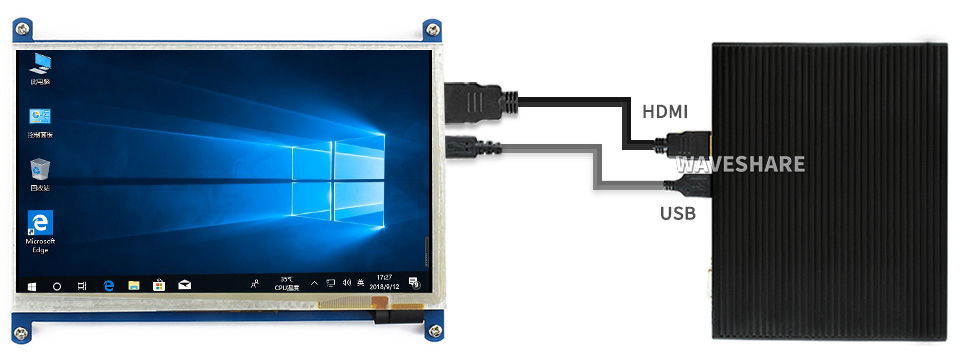

Working with a mini PC

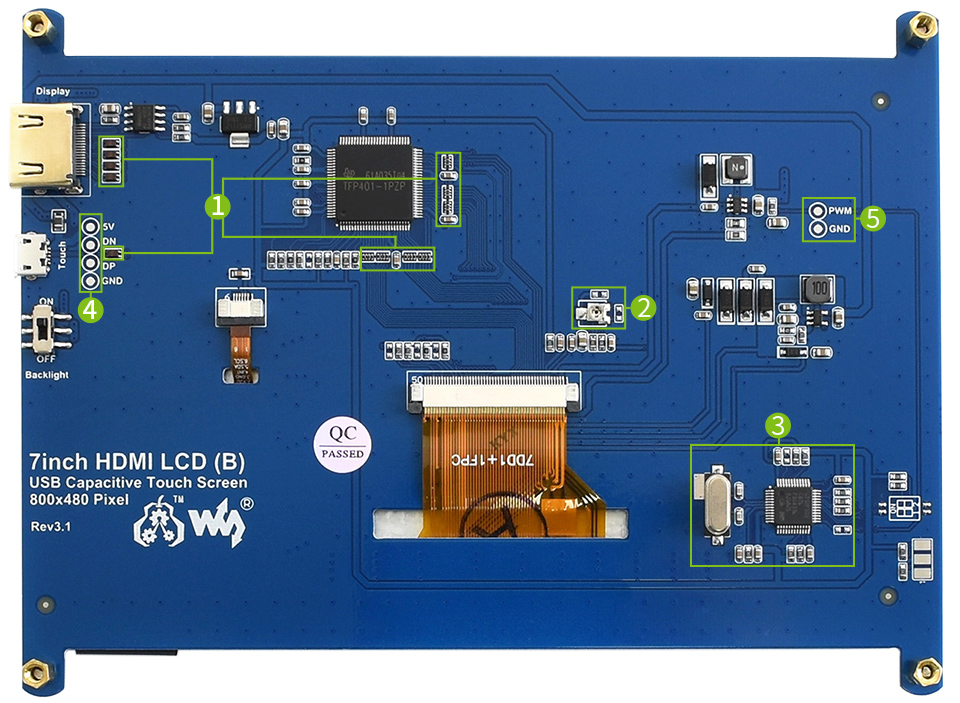

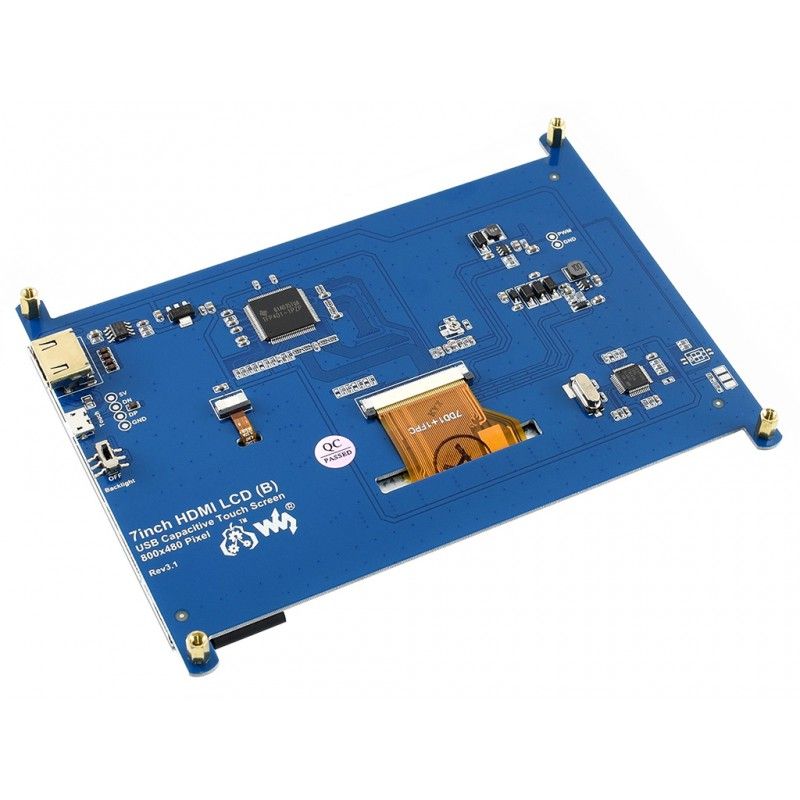

Construction elements:

  1. EMI and electrostatic discharge protection according to CE certificate
  2. VCOM voltage adjustment to optimize the display effect
  3. USB protocol translator that converts the touch signal into a standard multi-point touch protocol to achieve smooth multi-point touch control
  4. USB and power input soldering pads, USB interface breakout, easy to connect external power supply
  5. Backlight control solder pads for PWM signal input to control the backlight brightness, increasing the life of the display

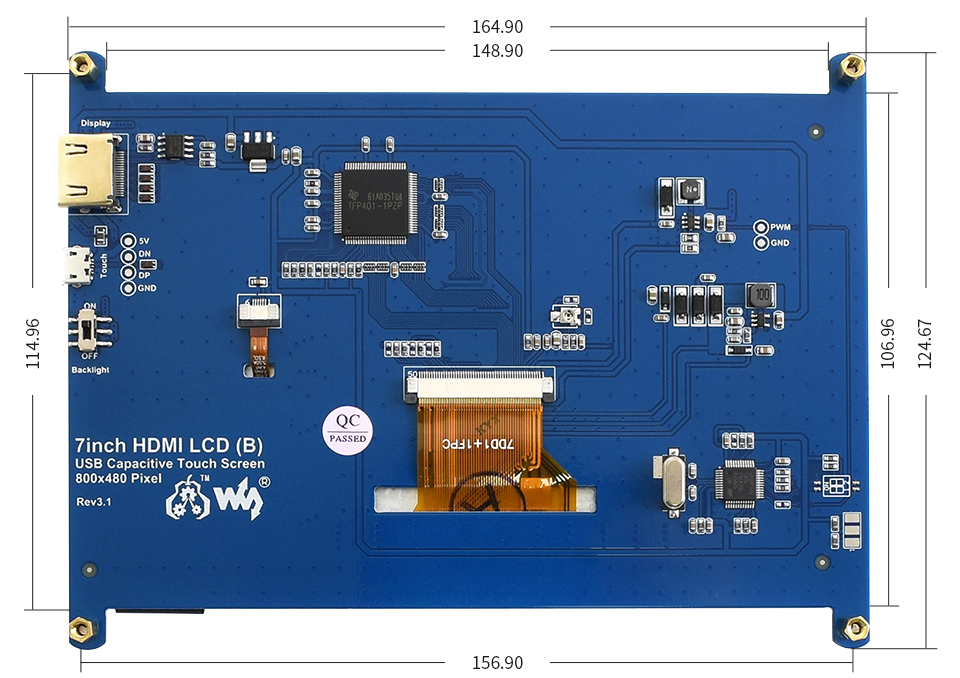

Overall dimensions: 164.90mm x 124.67mm

Information for developers: demo codes, schematics, data sheets, etc.

www.waveshare.com/wiki/7inch_HDMI_LCD_(B)

The package includes:

  1. 7inch HDMI LCD (B) - 1 pc.
  2. HDMI cable - 1 pc.
  3. HDMI to Micro HDMI adapter - 1 pc.
  4. USB type A plug to micro B cable - 1 pc.
  5. Mounting kit - 1 pc.
  6. Instruction manual - 1 pc.

1. 2. 3. 4. 5. 6.

Weight: 0.318 kg

Specifications
Main characteristics
Compatibility
Raspberry Pi, Jetson Nano, Banana Pi, BeagleBone, Asus
Connectivity
HDMI
Country of origin
Made in China
Display type
TFT/IPS
Resolution
800 x 480
Size in inches
7.0 inch
Touch Screen
Capacitive
