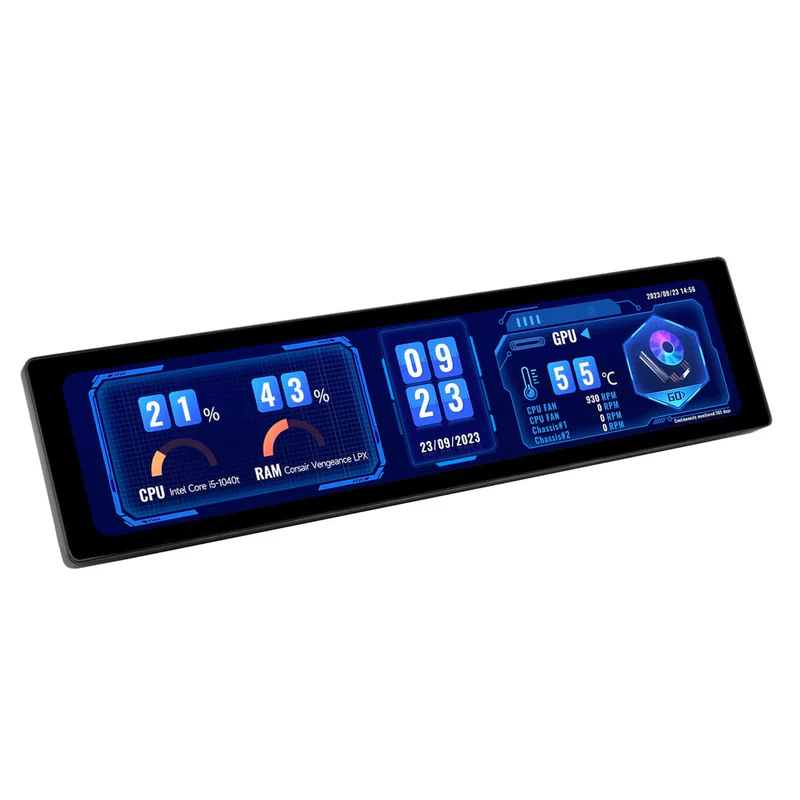

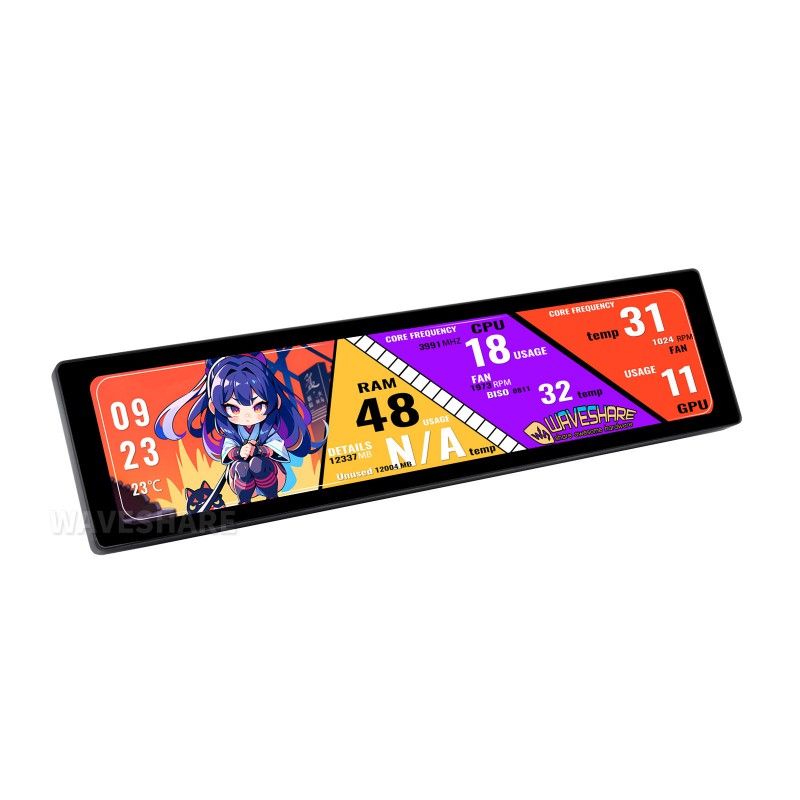

Monitor 11.9inch IPS Display, 320x1480, Toughened Glass Panel, HDMI, Touch (25623)

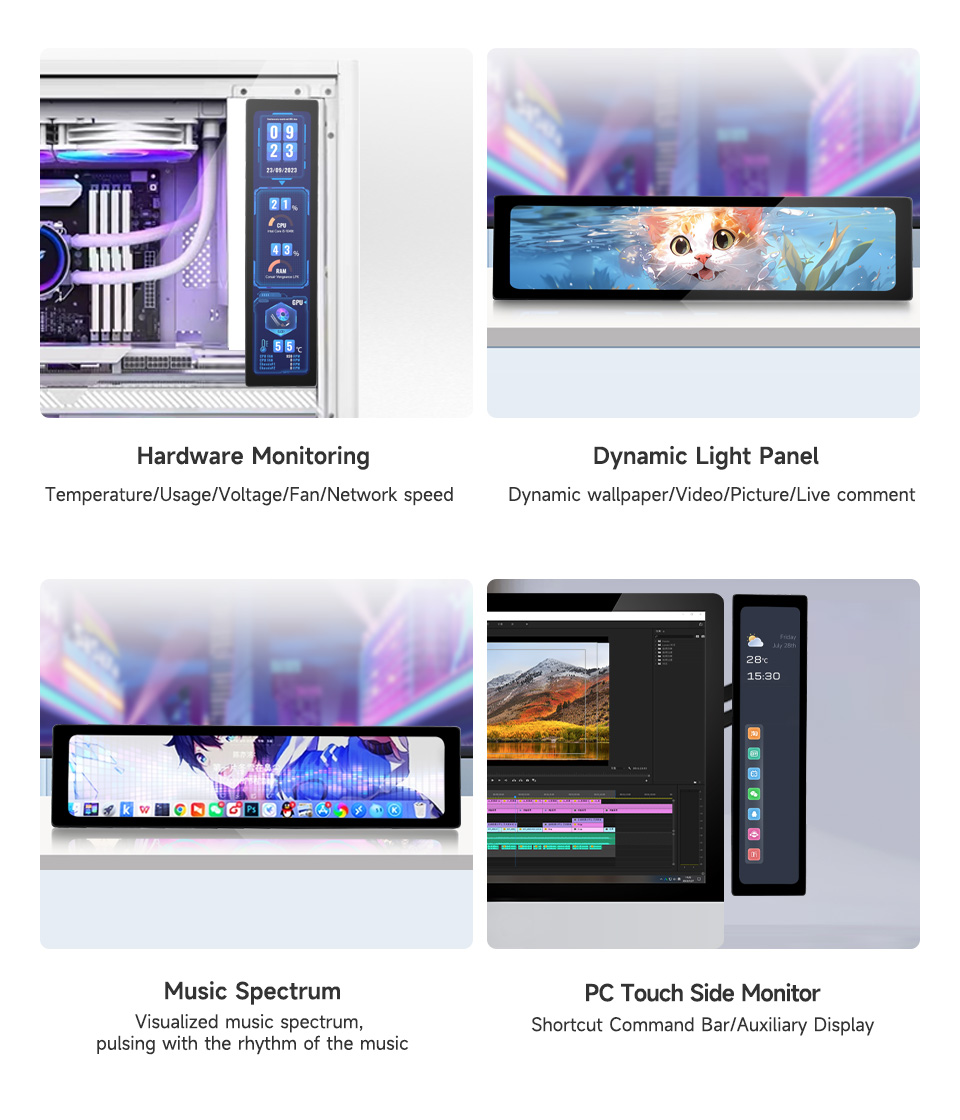

The11.9inch IPS Display, 320×1480, Toughened Glass Panel, HDMI, Touch (25623 ) is an 11.9-inch high-quality IPS display with touch screen functionality, so it can be used for a variety of purposes, including monitoring, entertainment, and more.

The display has a resolution of 320×1480 pixels and provides crisp and vivid images and videos, and it has a tempered glass screen that makes it resistant to scratches and damage. This is especially useful in situations where the display is used in areas with a high risk of damage.

It is equipped with an HDMI interface that allows you to easily connect it to various devices, including computers, media players, and other electronic devices.

It supports landscape and portrait modes, which can be switched in the system for different usage scenarios (the default display orientation is vertical, with a resolution of 320×1480 (H×W). To activate the horizontal display, you need to change the software configuration settings.

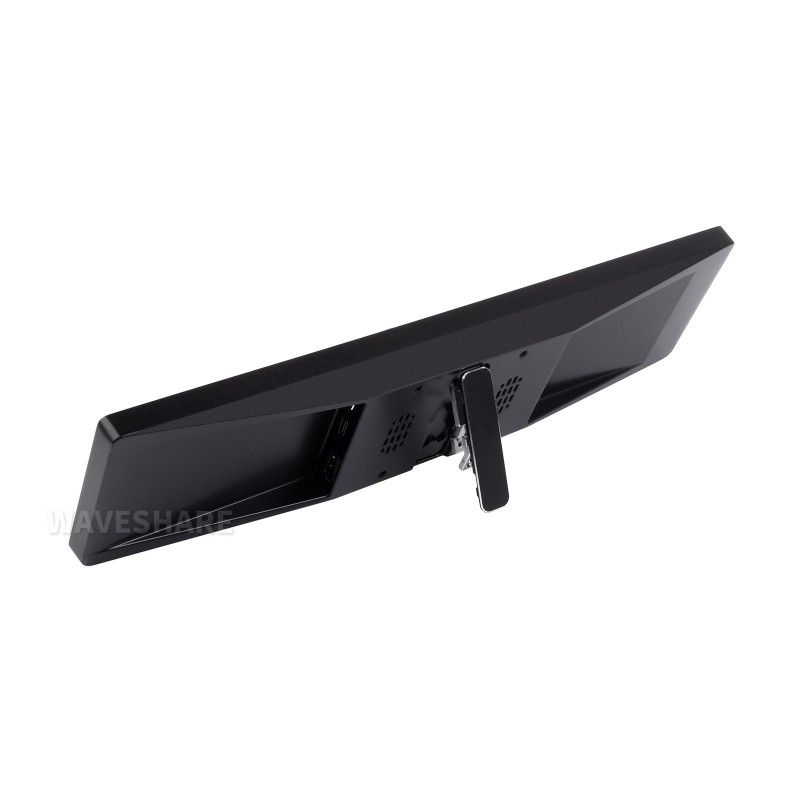

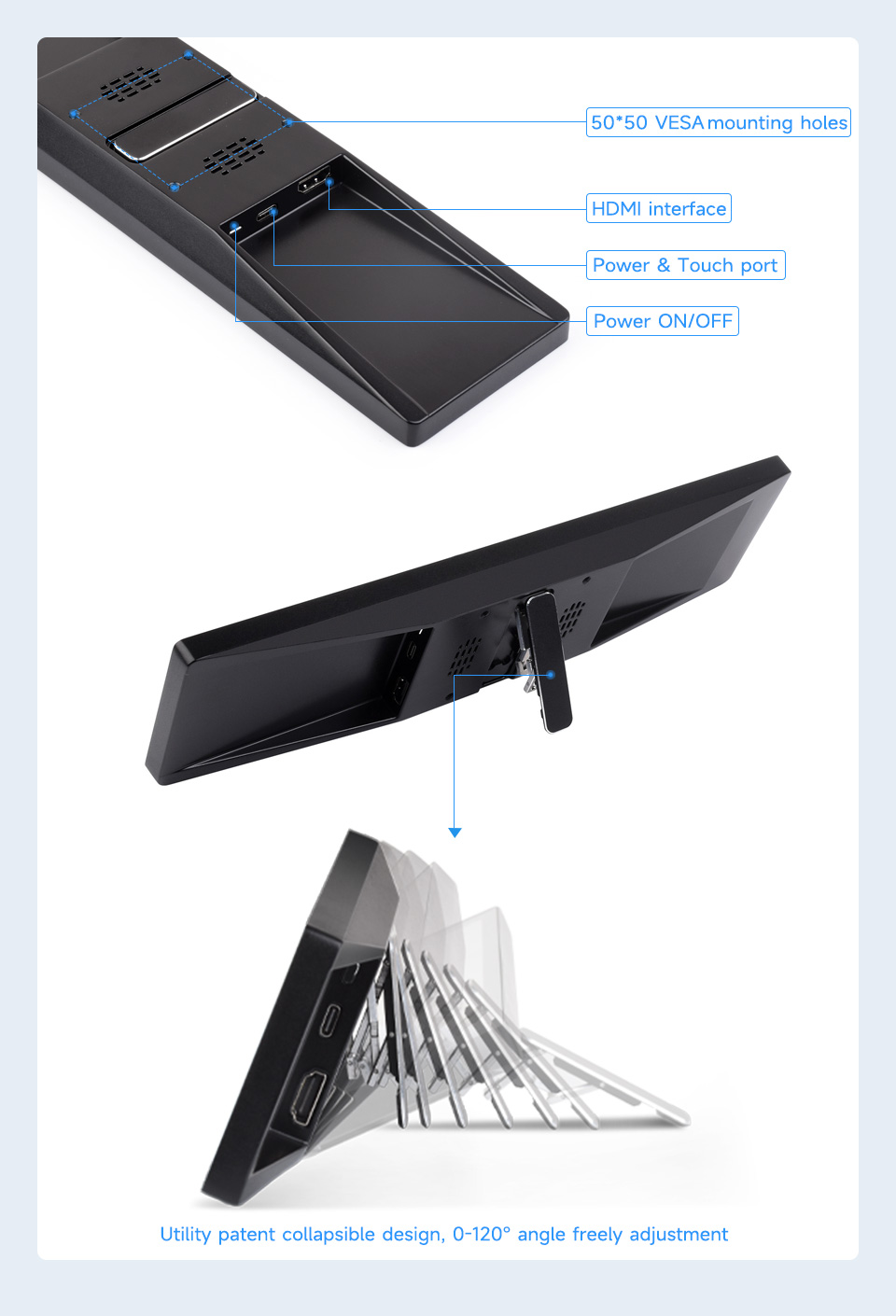

The durable aluminum alloy housing is equipped with an adjustable stand (tilt angle from 0 to 120 degrees).

Key Features:

• Screen diagonal: 11,9 "
• Resolution: 320x1480 pixels
• Port: HDMI
• Display: IPS
• Viewing angle: 170 deg.
• Sensor type: capacitive with 5 touch points (depending on the operating system)
• Number of control points: up to 5 points
• Sensor/power supply port: USB-C
• Touch panel with optical bonding

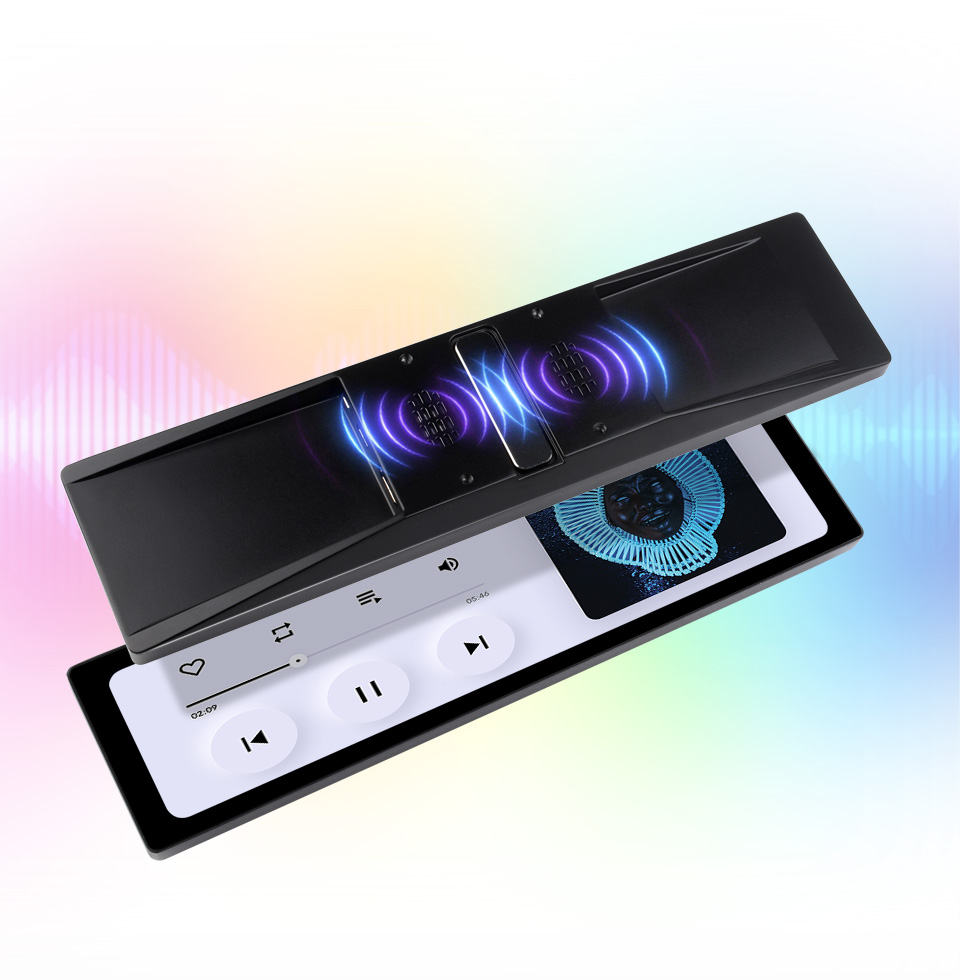

• Built-in Hi-Fi sound speakers
• Protective housing made of aluminum alloy

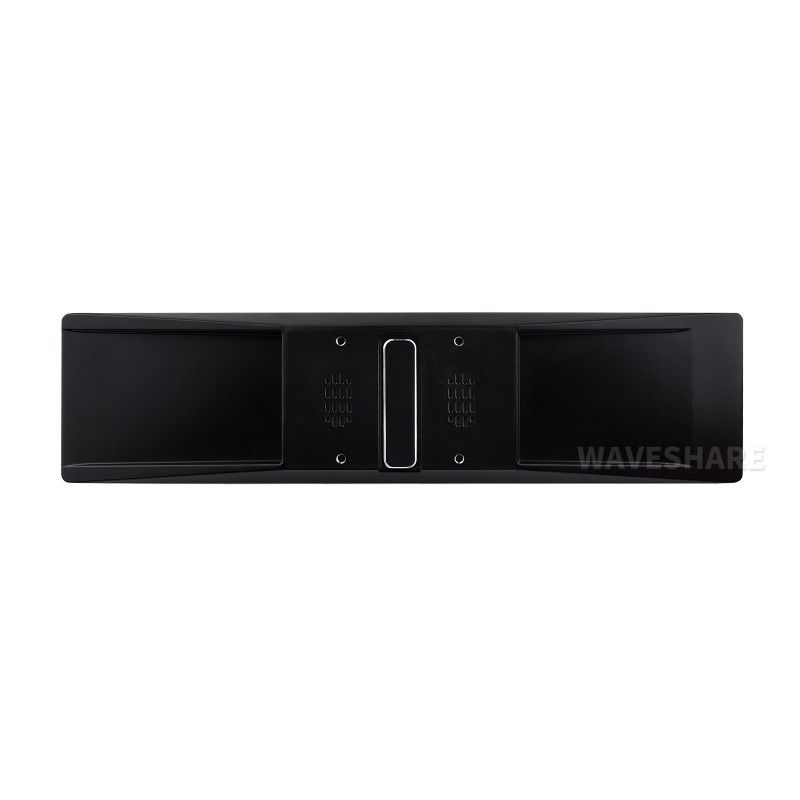

• VESA Wall Mount mounting system 50mm x 50mm
• OSD Menu - built-in menu and brightness and contrast control

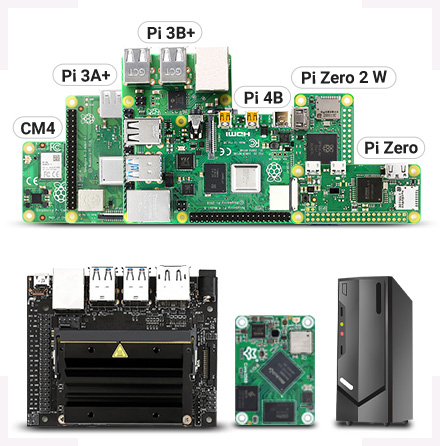

Support for devices and systems:

Raspberry Pi
Supports Raspberry Pi OS, 5-point touch screen, no drivers
Supports Ubuntu / Kali / WIN10 IoT, one-touch, no drivers required
Supports Retropie, no drivers required
Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, no drivers required
Core3566
Supports Debian / Linux, 5-point touch screen, no drivers
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch screen, no drivers

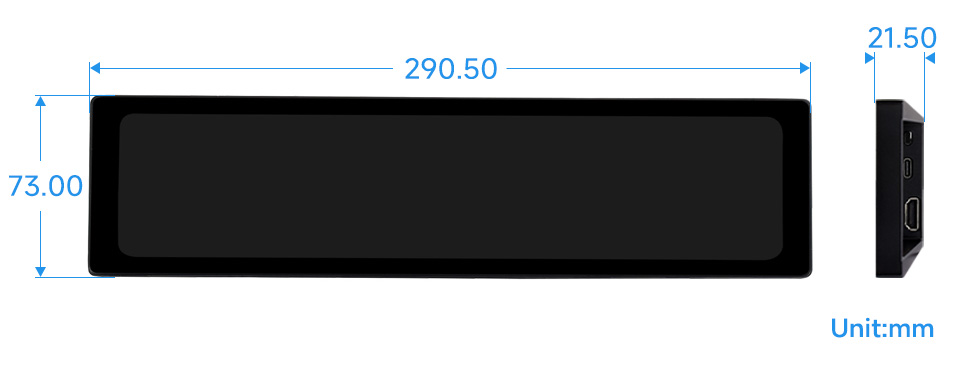

Overall dimensions: 290.5 x 73 x 21.5 mm

Wiki: www.waveshare.com/wiki/11.9inch_Touch_Monitor

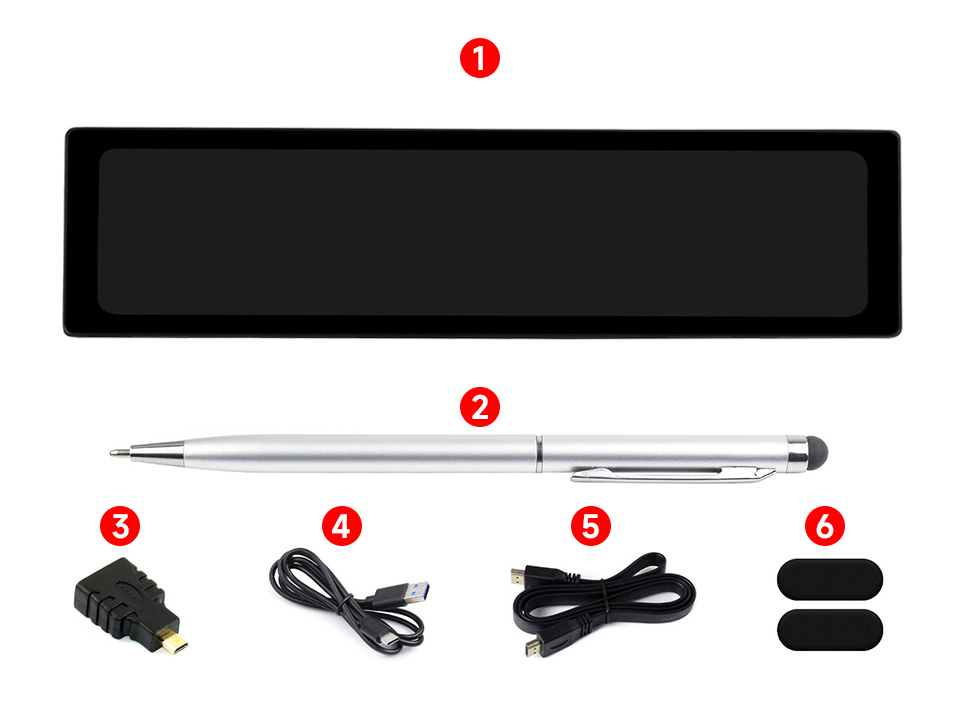

Package contents:

1. 11.9inch Side Monitor × 1
2. Capacitive touch pen × 1
3. HDMI to Micro HDMI adapter × 1
4. USB Type-A to Type-C cable 1 m × 1
5. Flat HDMI cable 1 m × 1
6. Non-slip rubber feet (2 pcs.) ×1

Weight: 0.712 kg
