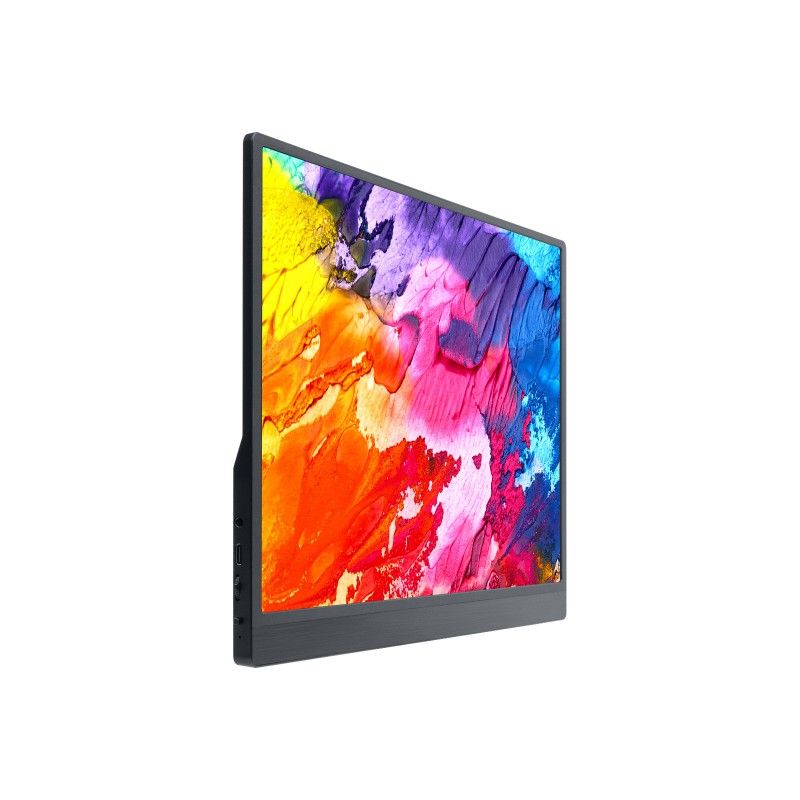

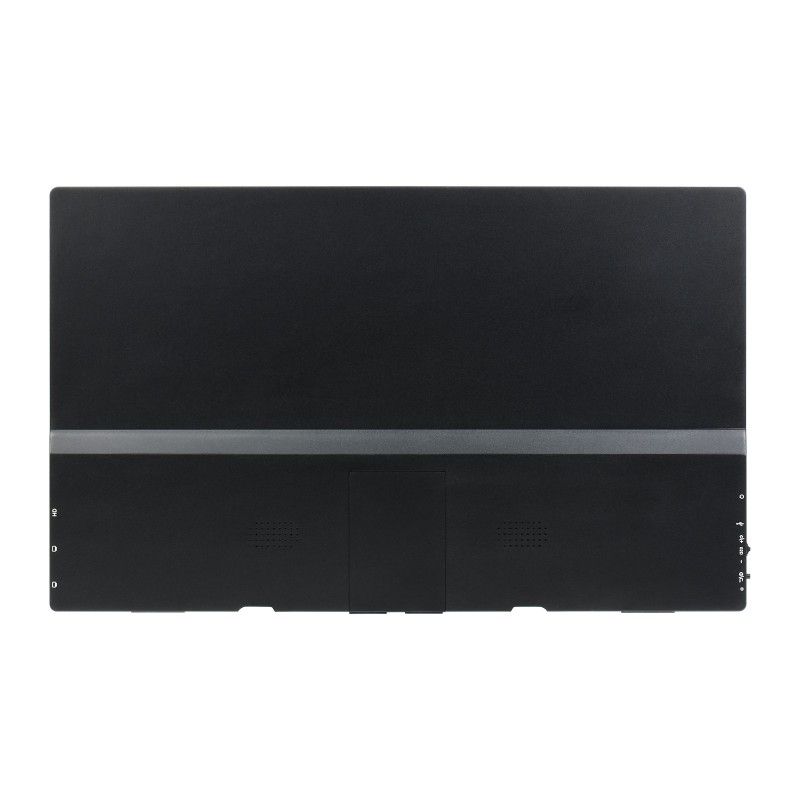

Monitor 15.6inch IPS 1920x1080 mini HDMI/Type-C No Touch (23059)

Monitor 15.6inch IPS 1920x1080 mini HDMI/Type-C No Touch (23059) is a 15.6-inch monitor without a touch panel but with a stand, featuring a slim and lightweight design, IPS screen, 1920×1080 Full HD resolution, 100%SRGB High Color Gamut technology with HDR support. A large screen, the ability to connect directly via a full-featured Type-C interface, support for audio and video transmission, Plug And Play, will make the development process more interesting, allow you to instantly zoom in on your smartphone screen and think more clearly while doing your work.

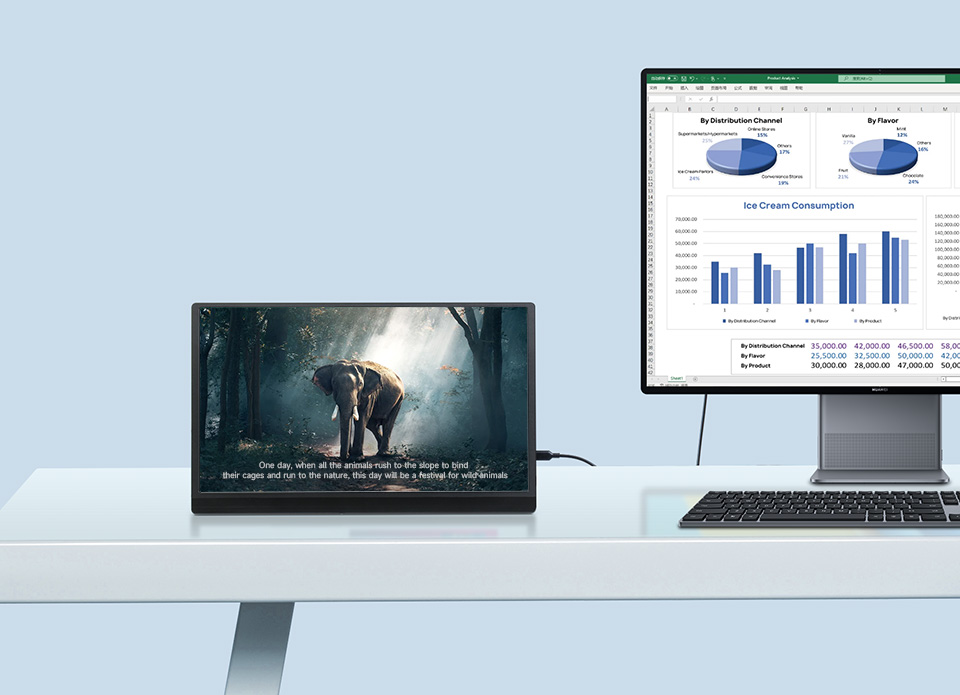

There is a dual screen function for the computer, which expands the capabilities and convenience of users (for example, one screen for work and one screen for entertainment, not interfering with each other)

Key Features:

• Size: 15.6″
• Resolution: 1920×1080
• Display Port 1: mini HDMI
• Display Port 2: Type-C
• Display panel: IPS
• Viewing angle: 170°
• Display supports extended dynamic range
• Brightness/contrast is adjustable from the on-screen menu
• USB OTG Type-C
• Aluminum alloy body made of aluminum alloy
• CNC Sound Hi-Fi speaker
• 3.5 mm audio output
• Connector for Xbox360/PS4/Switch game consoles
• Wired projection from a smartphone

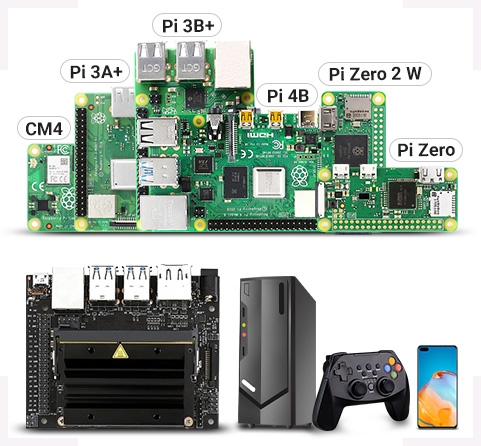

Supported systems and devices:

Raspberry Pi

Supports Raspberry Pi OS, no drivers required
Supports Ubuntu / Kali / WIN10 IoT, no drivers required
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, no drivers required

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, no drivers required

Game consoles

Xbox360, PS4, Switch...

Smartphones

Huawei, Samsung...(wired projection)

Examples of use:

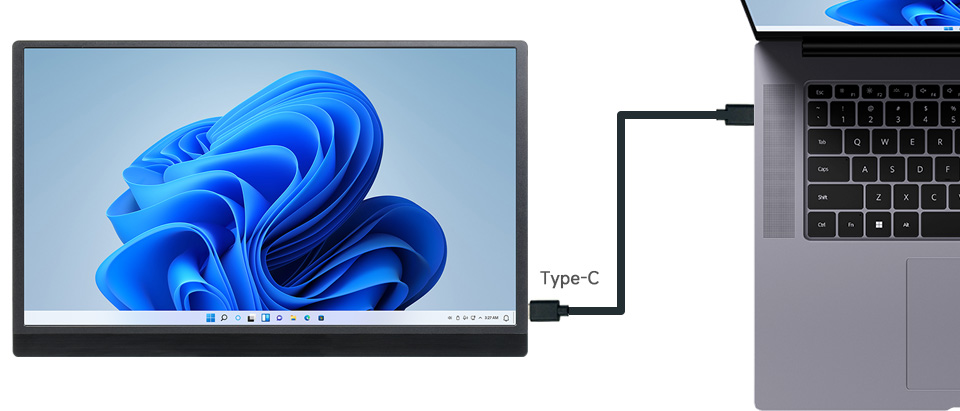

Working with a computer with a full-featured Type-C connector

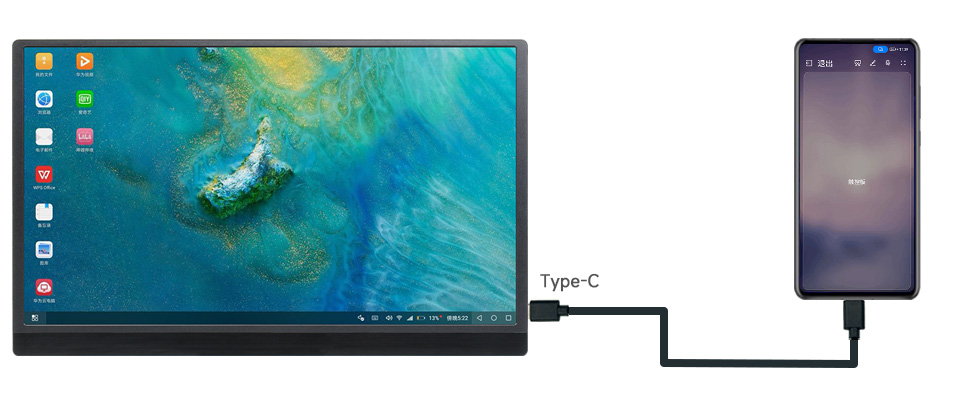

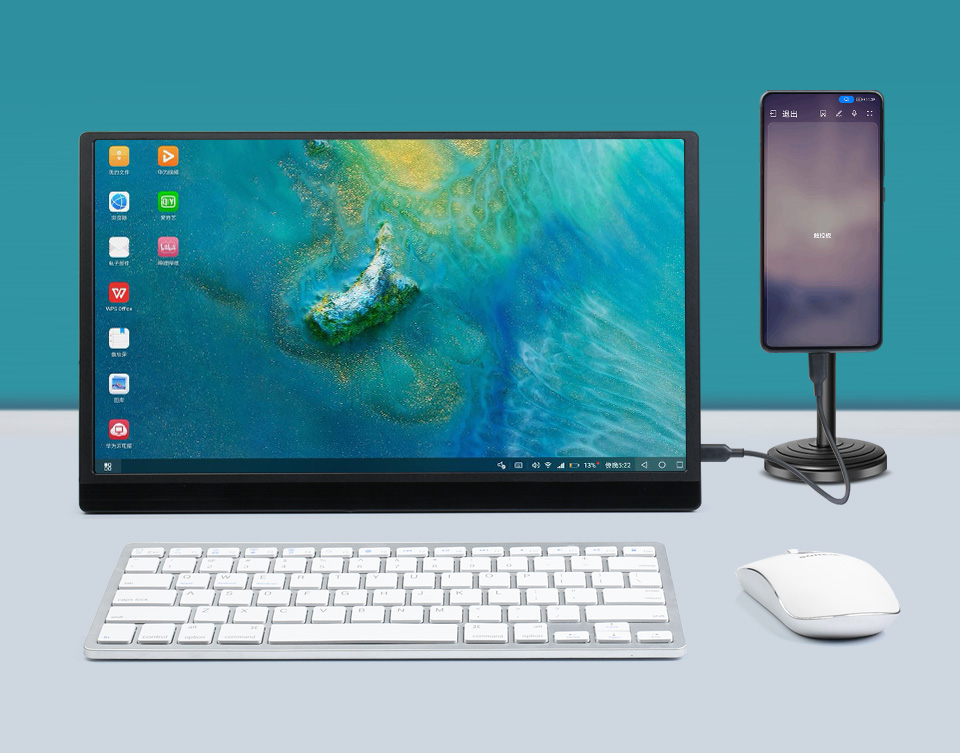

Working with a smartphone with a full-featured Type-C connector

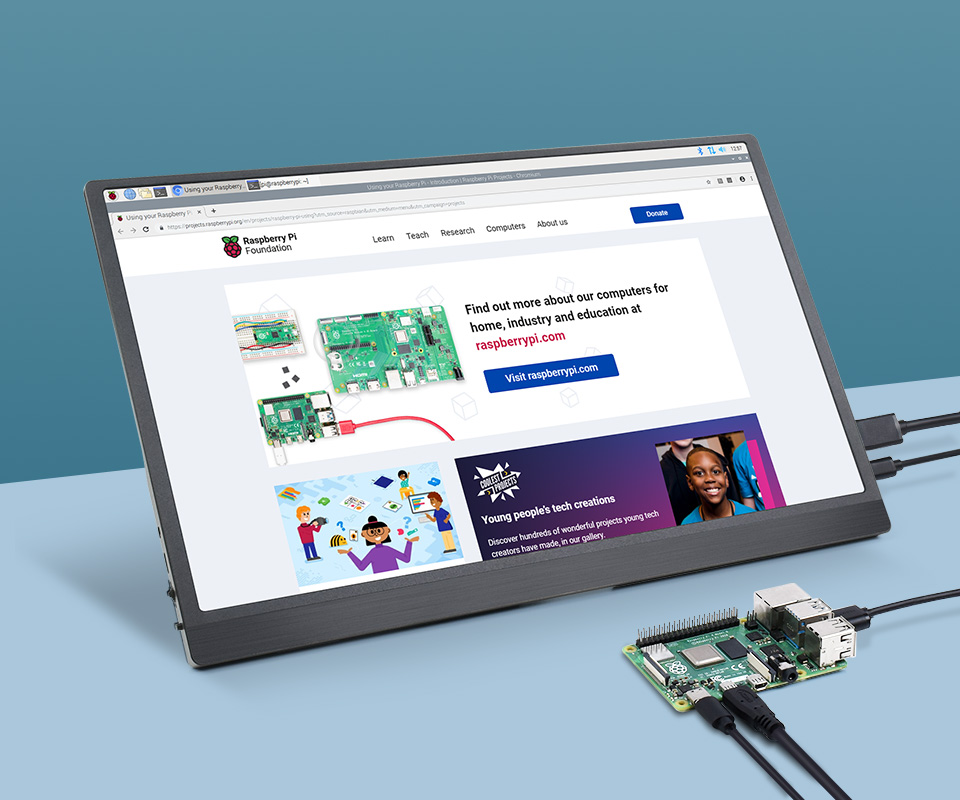

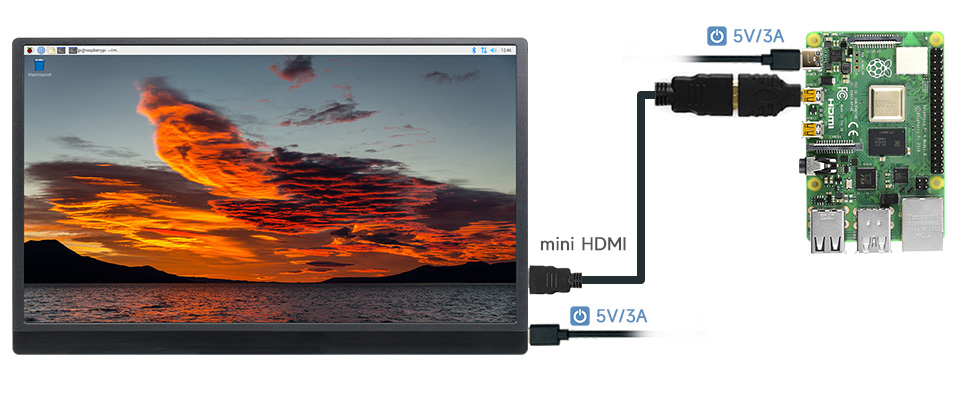

Working with Raspberry Pi 4

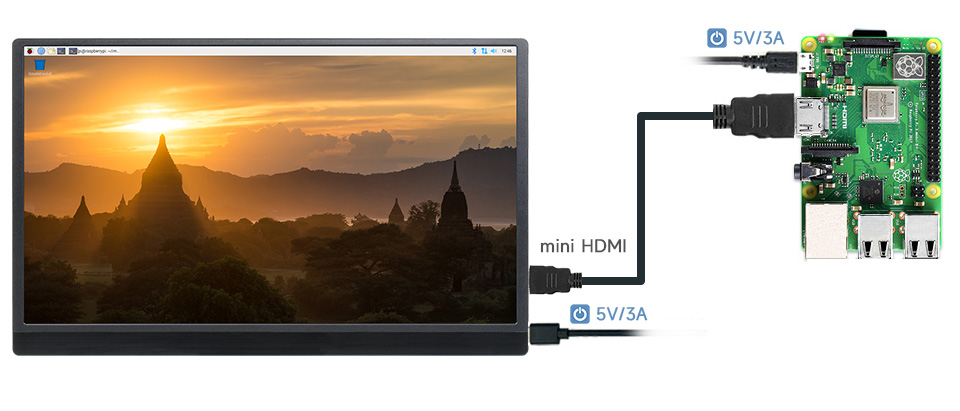

Working with Raspberry Pi 3B+

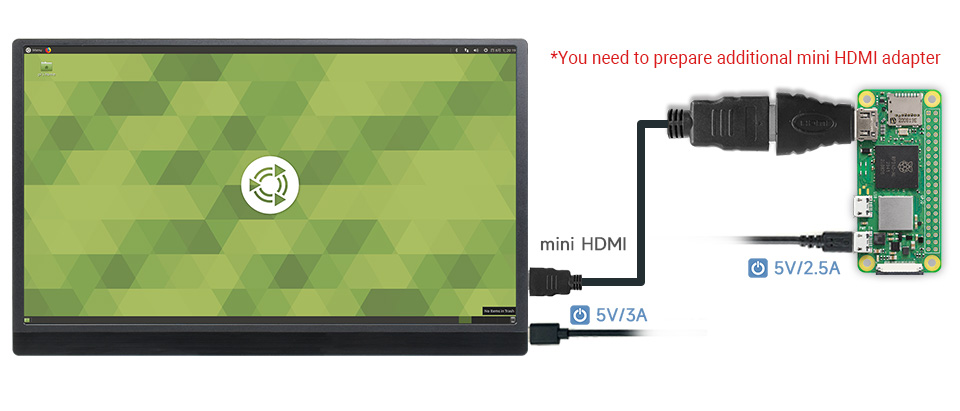

Working with Raspberry Pi Zero 2W

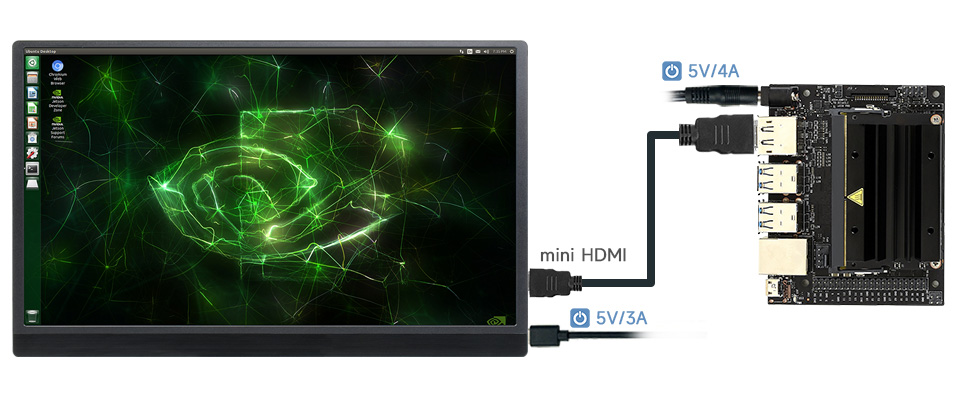

Working with Jetson Nano

IPS panel improves display and color quality
Wide 170° viewing angle, whether viewing vertically or horizontally

Professional-grade color gamut. 100% SRGB covers more red, green and blue colors

Aluminum alloy body with a fashionable look. The case is lightweight at 1.18 kg and thin at 5.5 mm, so it can be carried with one hand.

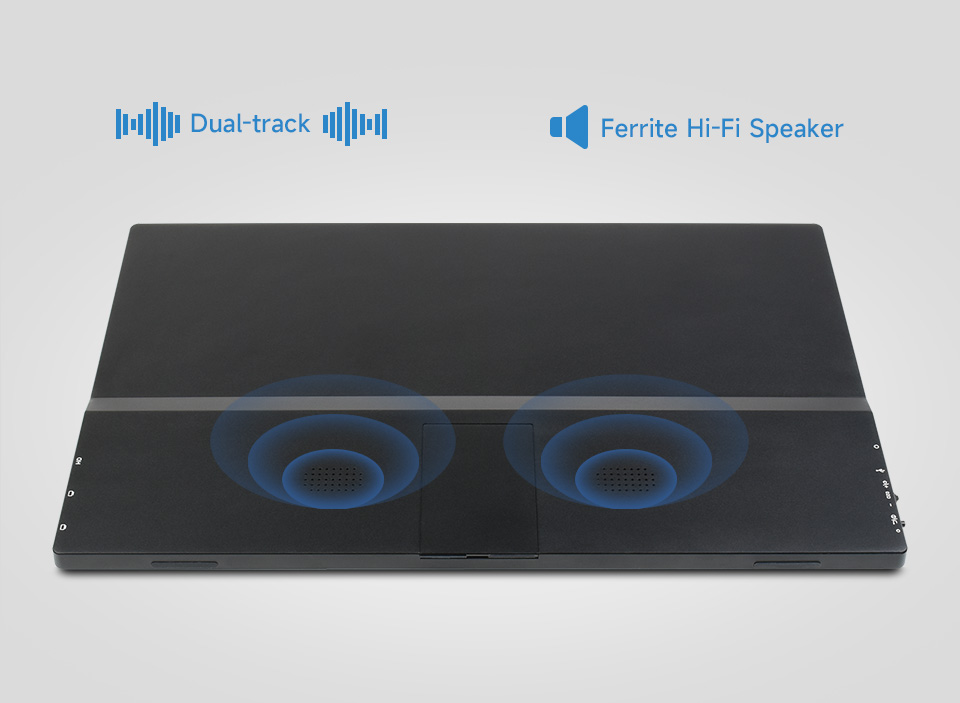

Audio system: Hi-Fi ferrite speaker delivers higher volume, wider sound range, and better sound quality

This display is a good partner for Xbox360/PS4/SWITCH game consoles, etc. Play video games with a wider and clearer vision thanks to HDR.

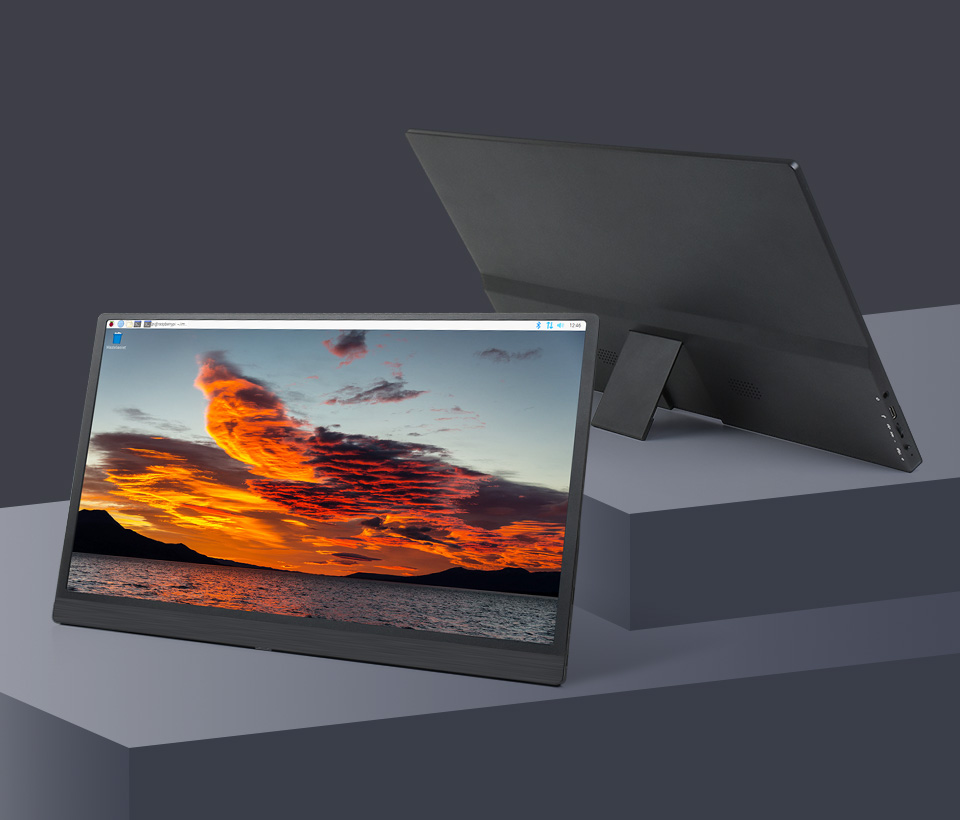

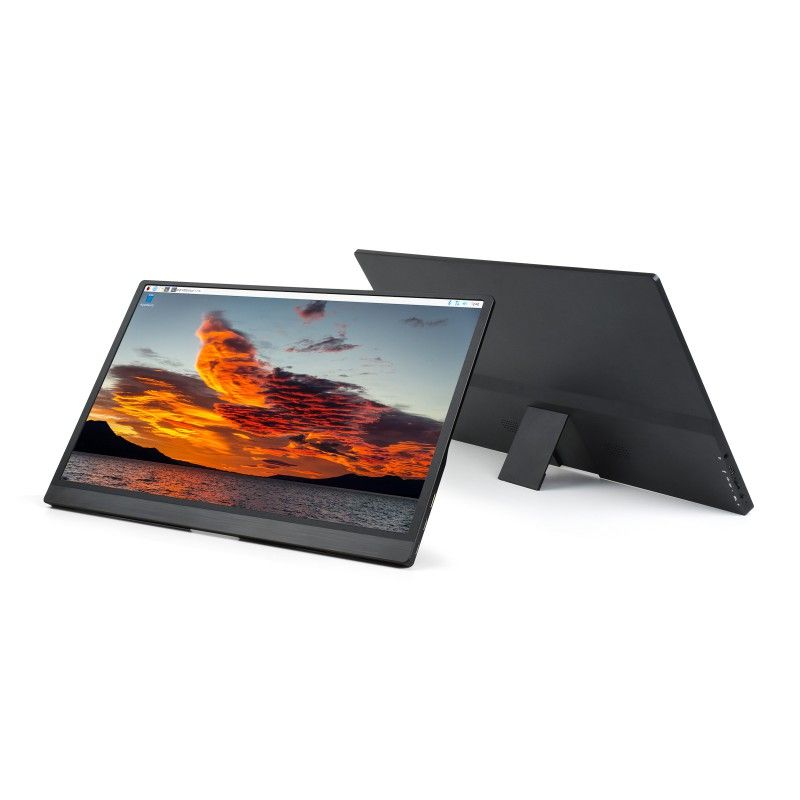

Comes with a foldable metal stand. The metal stand is sturdy and durable, with non-slip rubber pad at the bottom of the screen, stable to use

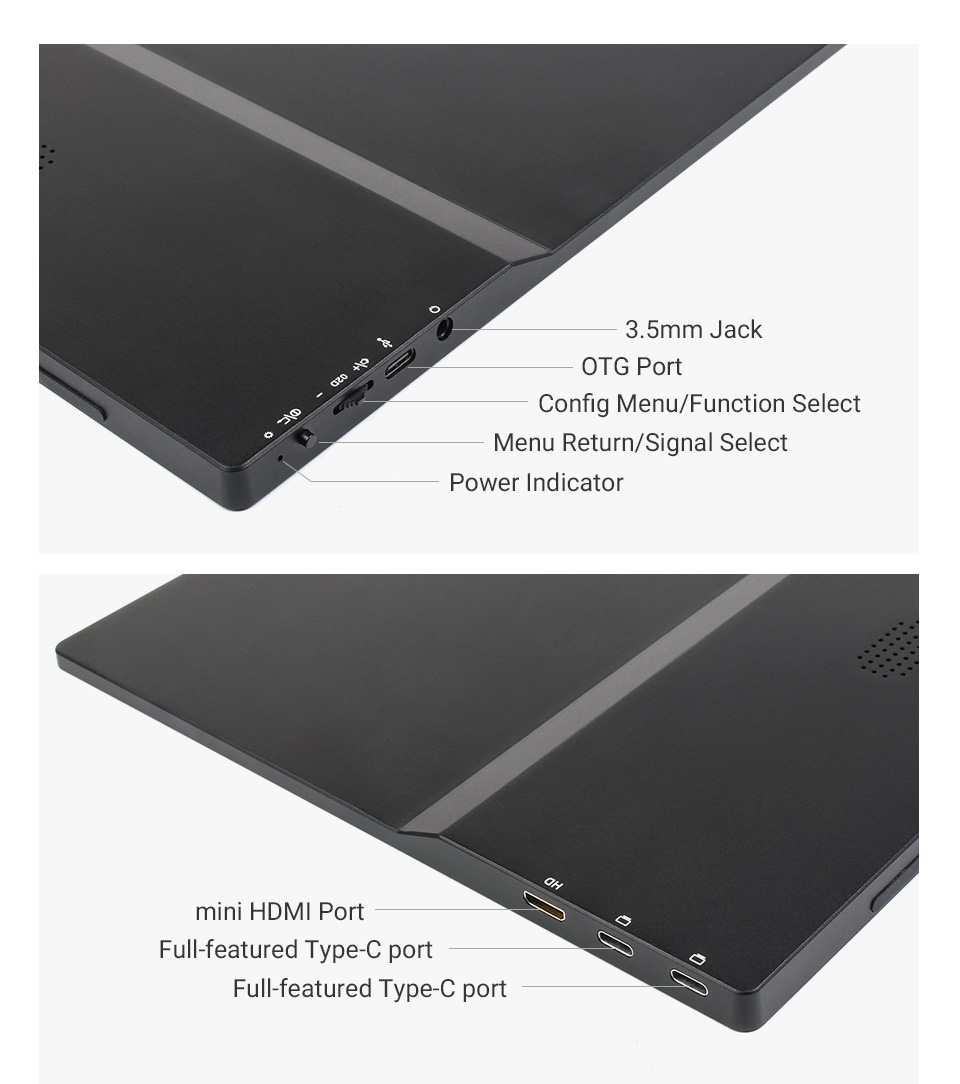

Interfaces:

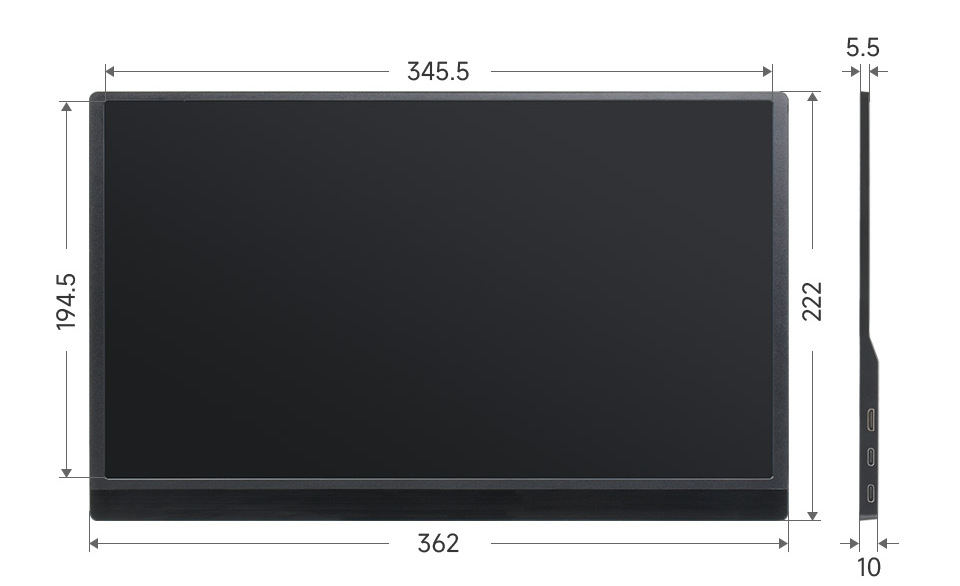

Overall Dimensions: 245mm x 163mm

Information for developers (Wiki): www.waveshare.com/wiki/15.6inch_FHD_Monitor_(B)

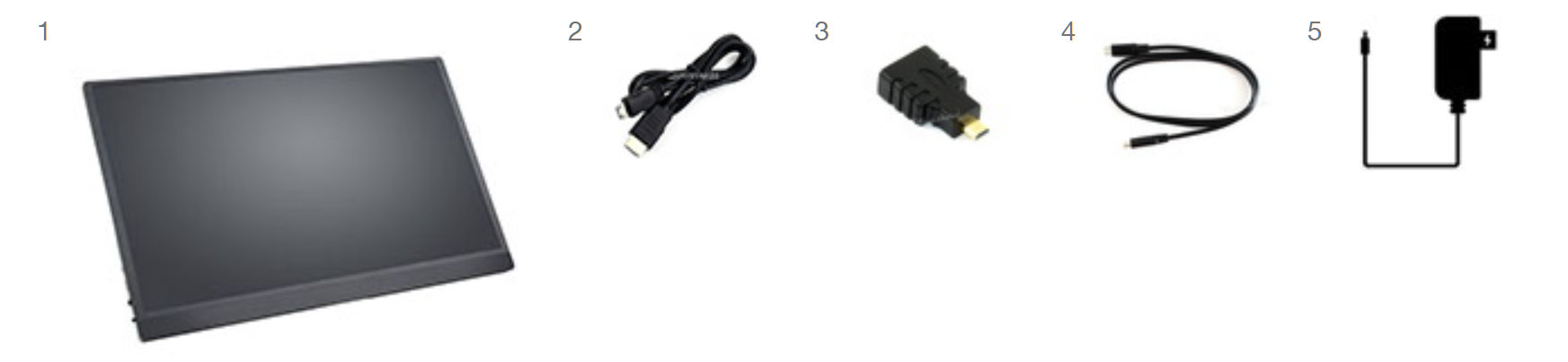

Package contents:

1. 15.6inch FHD display(B) x 1
2. Mini HDMI to HDMI cable x1
3. HDMI to Micro HDMI adapter x1
4. USB-C to USB-C cable x1
5. 5V 3A type-c power adapter x1

Weight: 1.144 kg
