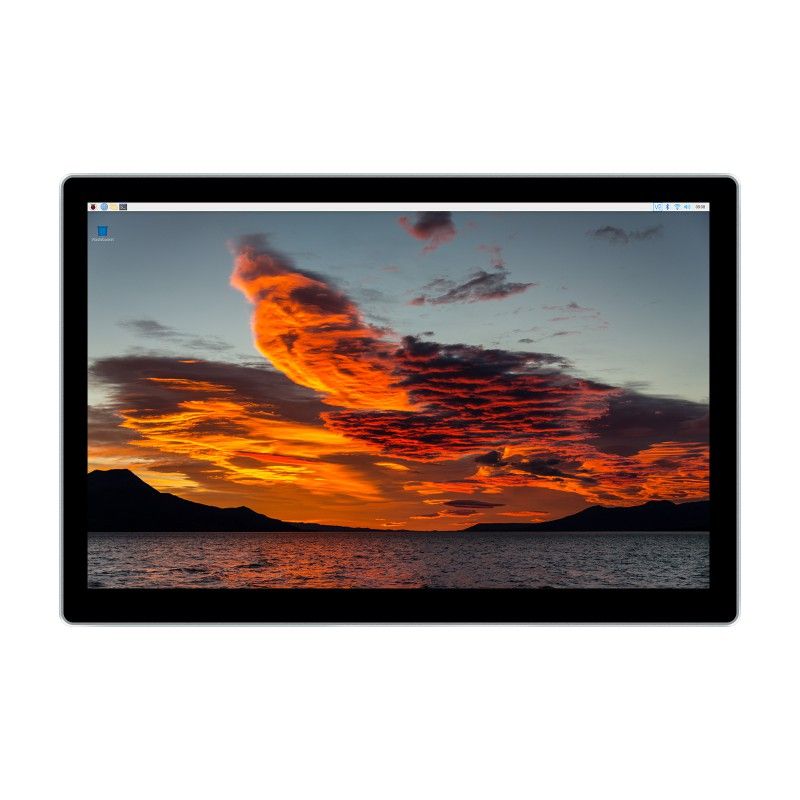

Monitor 10.5inch AMOLED 2560x1600 HDMI Capacitive Touch Screen (21702)

The 10.5inch AMOLED 2560x1600 HDMI Capacitive Touch Screen Monitor (21702 ) is a 10.5-inch capacitive AMOLEDtouchscreen display (with HDMI port) in a case that features a 2560×1600 2K resolution, a tempered glass optical panel, and is equipped with multiple interfaces.

Key features:

• Screen diagonal: 10.5 "
• Resolution: 2560 × 1600 2K
• Port: HDMI
• Display: AMOLED
• Viewing angle: 160 deg.
• Sensor type: capacitive with 10 touch points (depending on the operating system)
• Number of control points: up to 10 points
• Sensor port: USB-C
• Audio output: 3.5mm Jack
• Built-in Hi-Fi sound speakers
• Protective insert made of polycarbonate
• Has a built-in VESA Wallmount 75x75mm wall mount

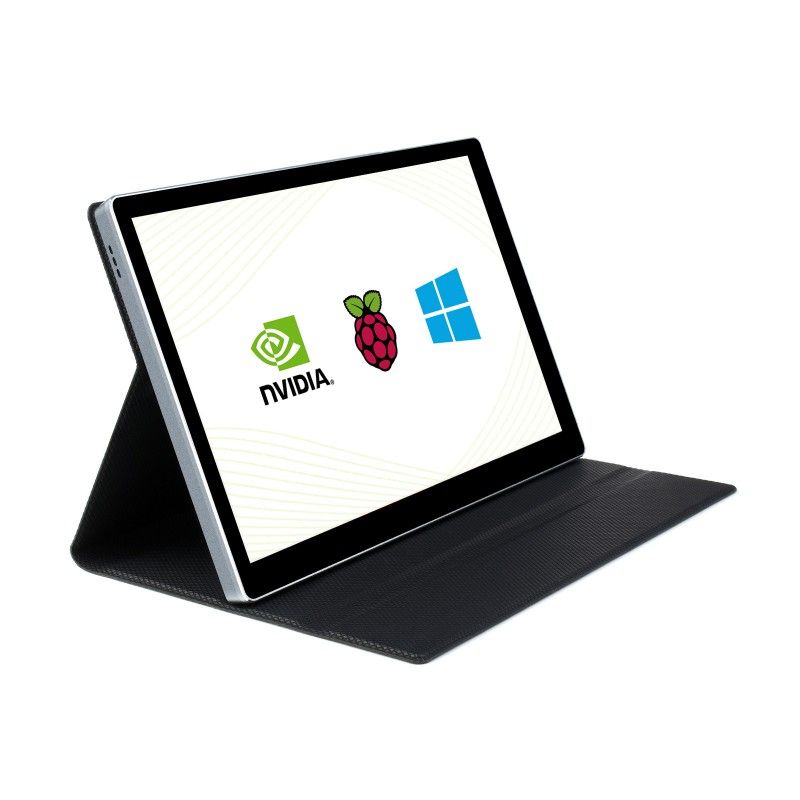

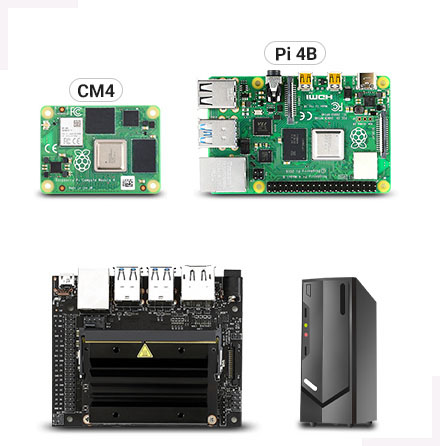

Supported devices and systems

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch screen, no drivers
Supports Ubuntu/Kali, single point touch, no drivers required
Supports Raspberry Pi 4B/CM4 or more powerful future versions (sufficient GPU performance is required to drive this 2K display)

Jetson NANO
Supports Ubuntu, one touch, no drivers required

PC
Support Windows 11 / 10 / 8.1 / 8 / 7. 10 touch points, no drivers required

An example of connection:

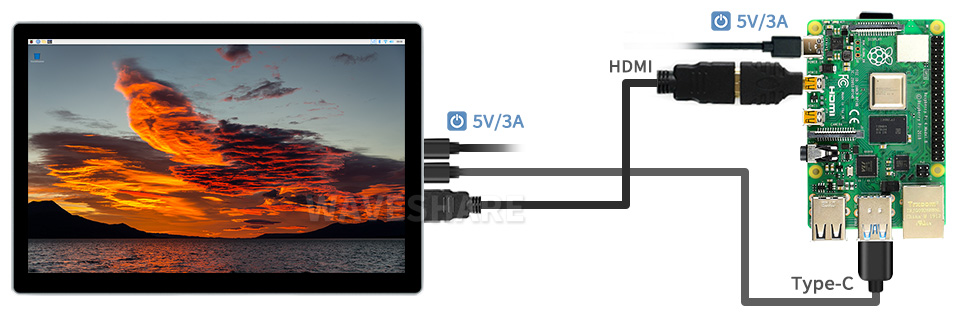

Working with Raspberry Pi 4

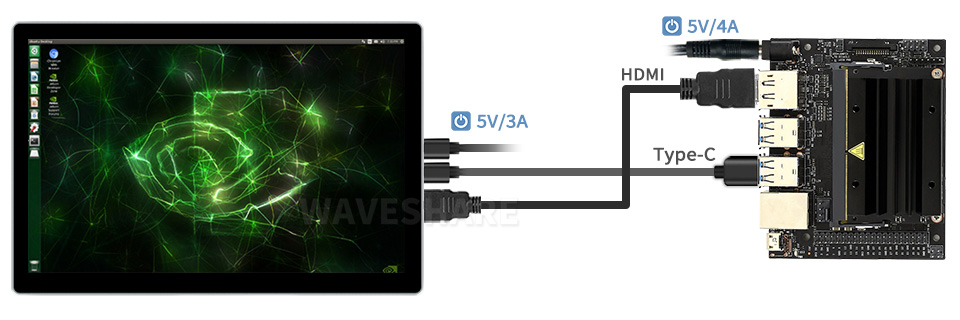

Working with NVIDIA Jetson NANO

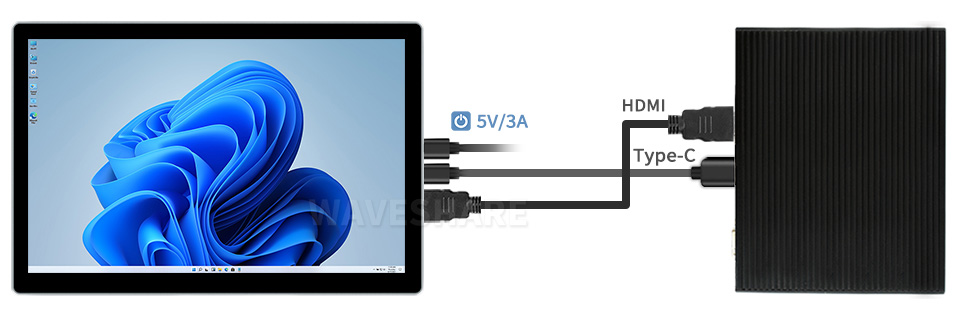

Working with Mini PC

Active light-emitting AMOLED screen
Next-generation display technology, 4.09 million active light-emitting pixels

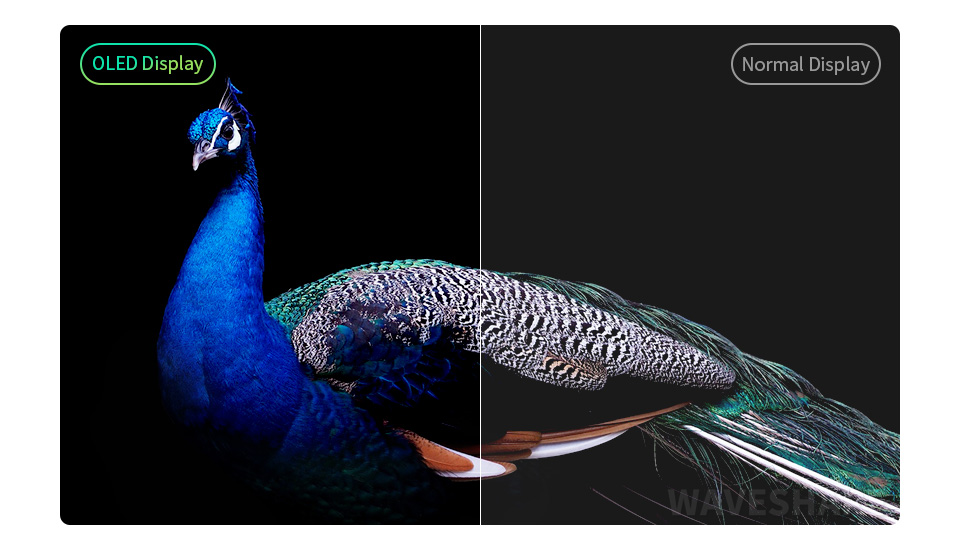

Compared to these traditional LCDs, the AMOLED screen has the ability to control light precisely, displaying more delicate colors, more image detail, and a brighter video image.

Compared to conventional LCDs, AMOLED has ultra-high contrast radiation, which means a hundred times the light/dark efficiency. Even when displaying gradations and details such as deep starry skies.

A conventional LCD requires a backlight and a color film to work, meaning it presents colors by controlling the white light from the backlight layer to pass through the color film, and there is usually a so-called light leakage problem.

Unlike LCD, AMOLED has active emission technology, each pixel on AMOLED glows on its own like a firefly or turns off completely, creating brighter highlights or true black shadows while maintaining rich details.

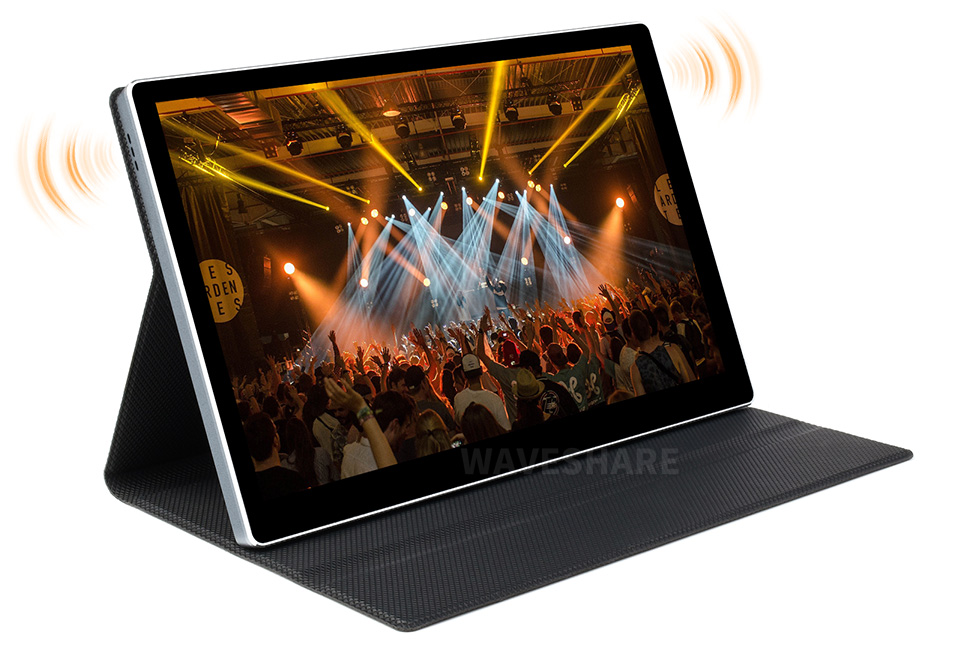

The display is equipped with built-in Hi-Fi speakers and supports Dual Track

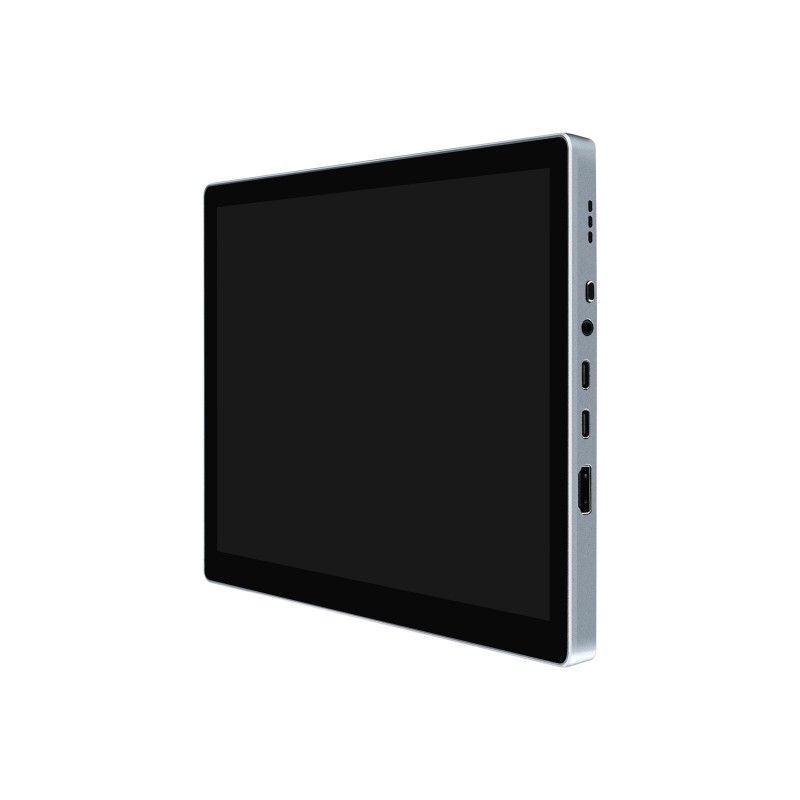

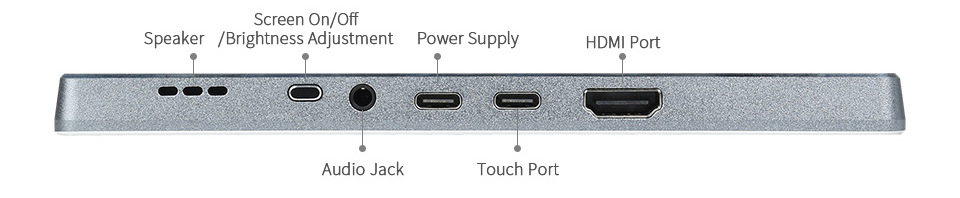

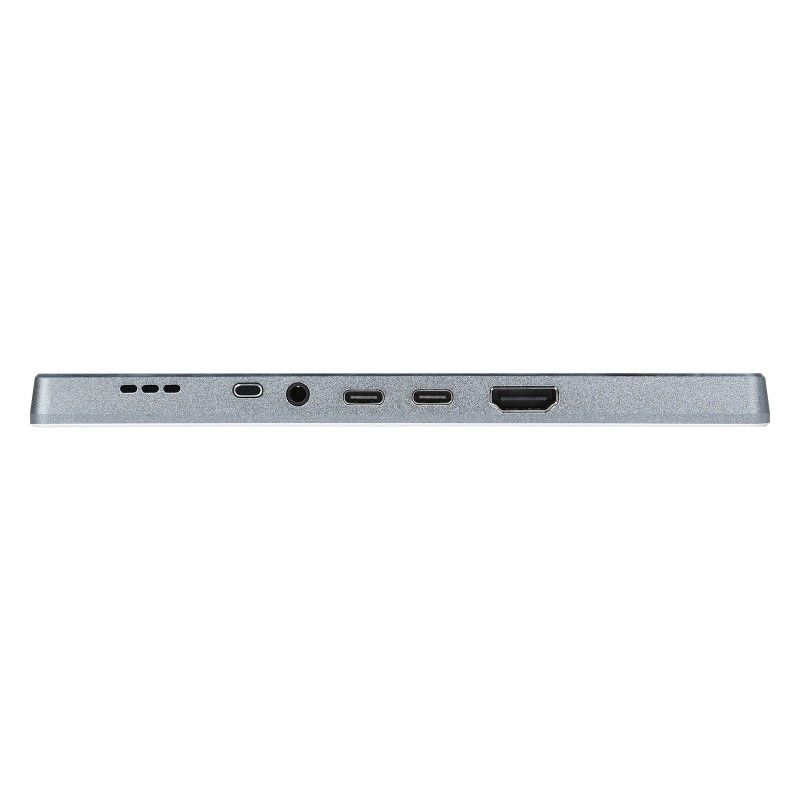

Device interfaces:

Button: display on/off/brightness

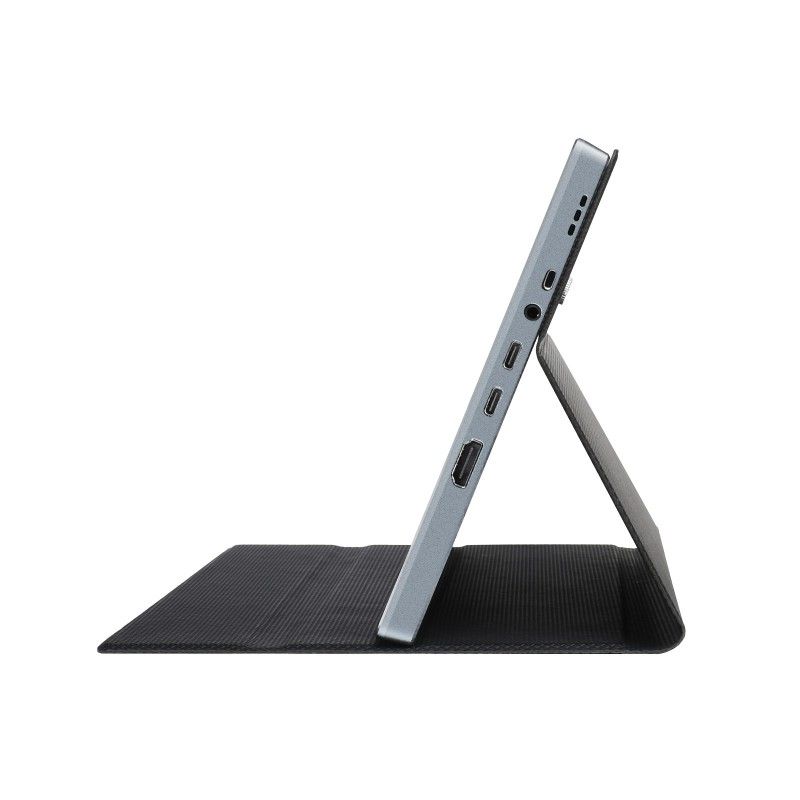

Connectors:

3.5mm Audio Jack - audio jack

HDMI Port - HDMI port

Touch Port - sensor port

Power Supply - power supply port

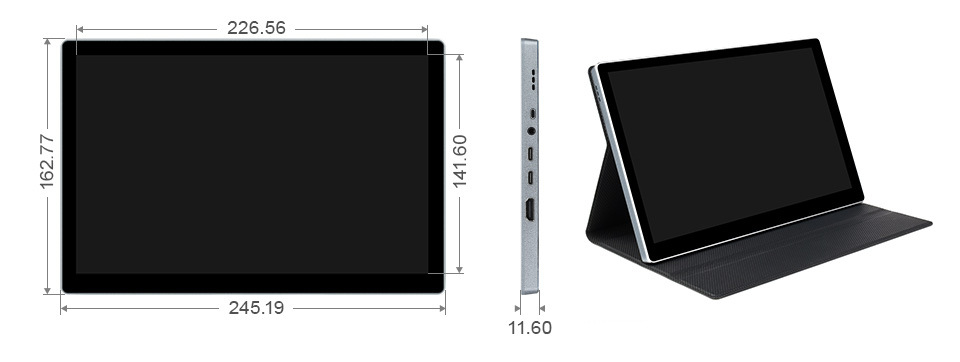

Overall dimensions: 245.2 x 162.8 x 11.6 mm

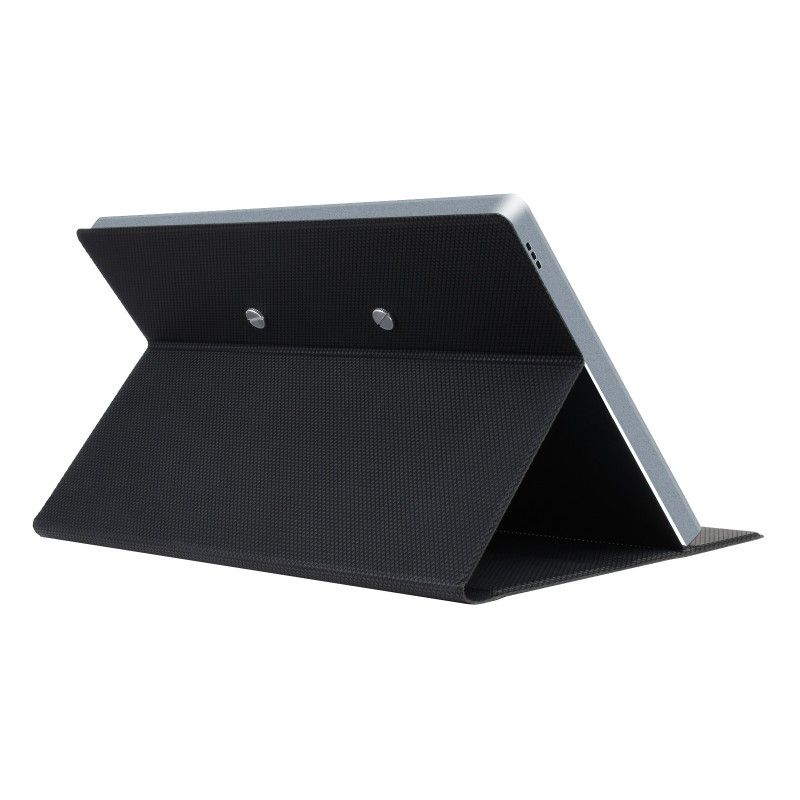

The display is equipped with 4 M4 holes for wall mounting and has a hinged stand arm that opens at an angle in two positions.

Information for developers (Wiki): www.waveshare.com/wiki/10.5inch_HDMI_AMOLED

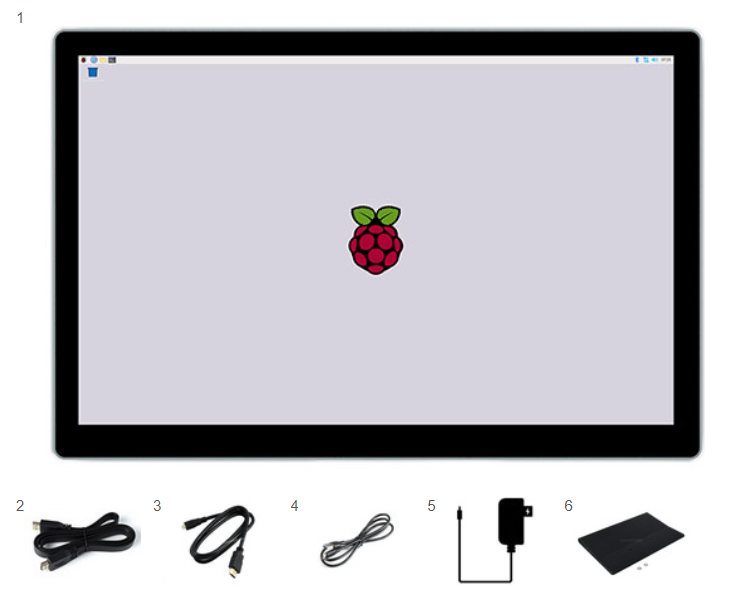

The package includes:

1. 10.5-inch HDMI AMOLED x1
2. HDMI flat cable 1 m x 1
3. HDMI - micro HDMI cable 1 m x 1 m
4. USB-A to USB-C cable 1 m x 1 m
5. 5 V 3 A USB-C power adapter x1

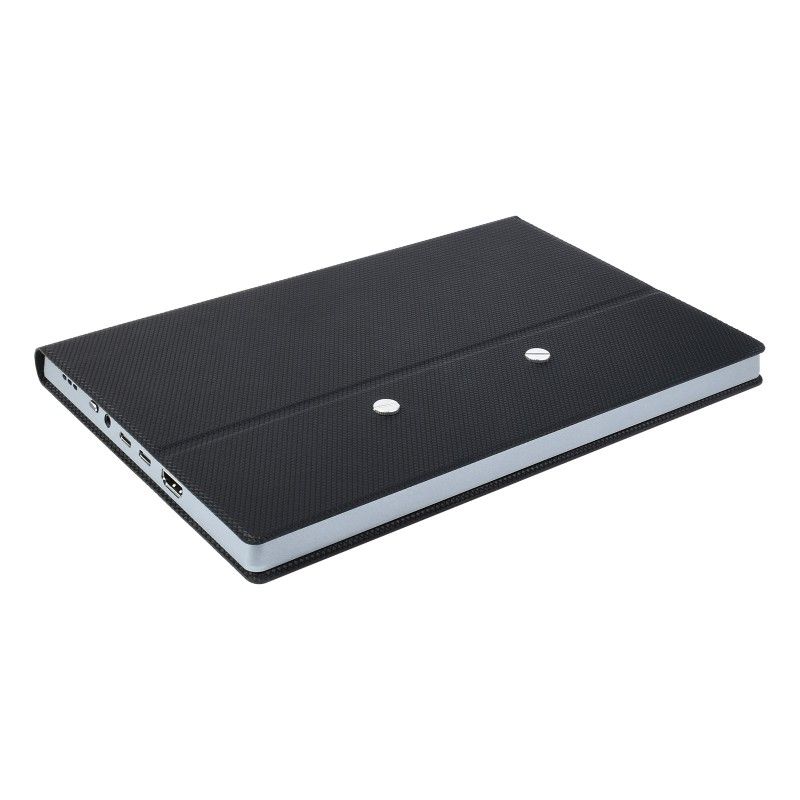

6. Special protective case (optional gift) x1

Weight: 1.183 kg
