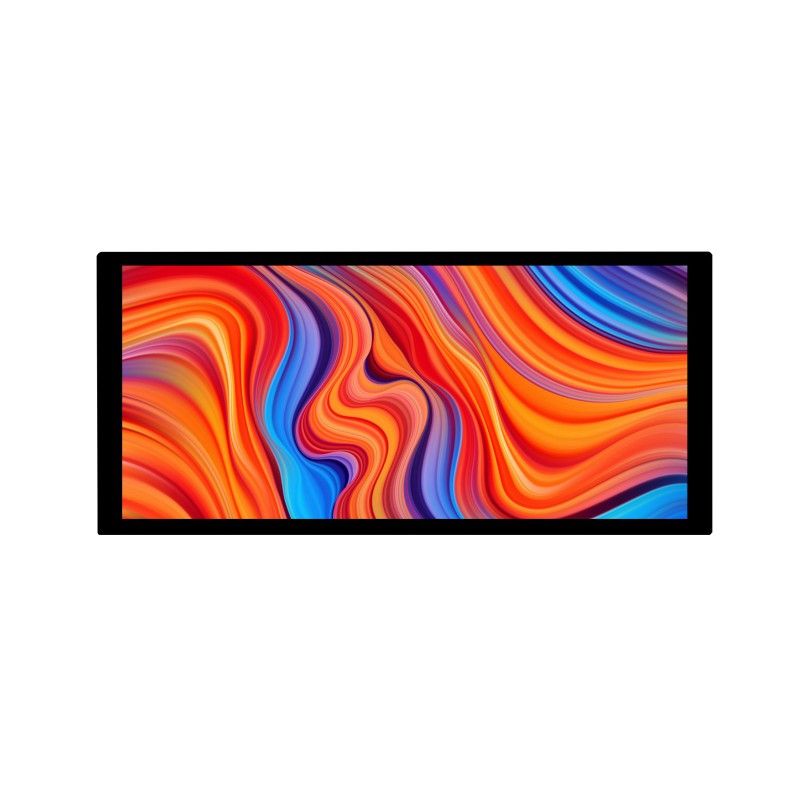

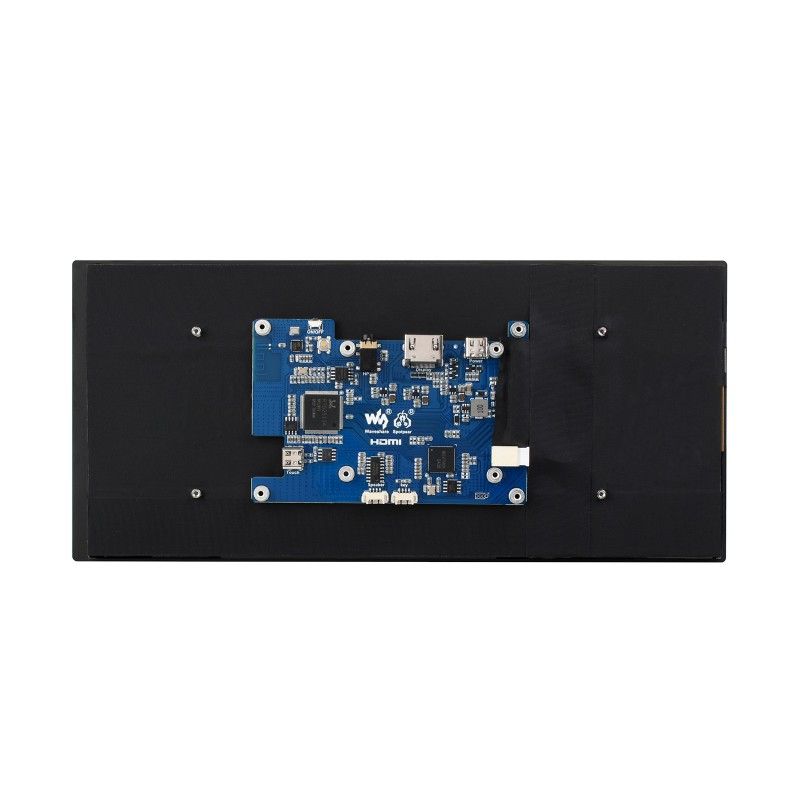

Display 10.4inch QLED 1600x720 HDMI Capacitive Touch (24646)

The10.4inch QLED 1600x720 HDMI Capacitive Touch Display (24646 ) is a 10.4-inch display using QLED Quantum Dot Display technology. It has a capacitive touch screen, high brightness and a resolution of 1600×720 pixels. The display also features optical bonding with a reinforced panel glass to reduce glare and improve image clarity.

This display has an HDMI interface that allows you to connect it to various devices. Due to its characteristics, it can be used in a variety of applications such as media players, game consoles, computers, and other applications that require high image quality and responsiveness.

This display can be an ideal choice for those looking for a high quality display with great resolution and brightness, as well as a capacitive touchscreen and optical bonding to enhance the image quality.

Key Features:

• Screen diagonal: 10,4 "
• Resolution: 1600x720 pixels
• Display port: HDMI
• Display panel: QLED Quantum Dot
• Viewing angle: 178 deg.
• Sensor type: capacitive
• Number of control points: 10 points
• Sensor port: USB Type-C
• Audio output: 3.5mm jack and 4PIN connector
• Front panel: tempered glass with optical bonding
• Screen brightness and contrast can be adjusted using the built-in menu
• Brightness: DCC/CI control, 600cd/m2

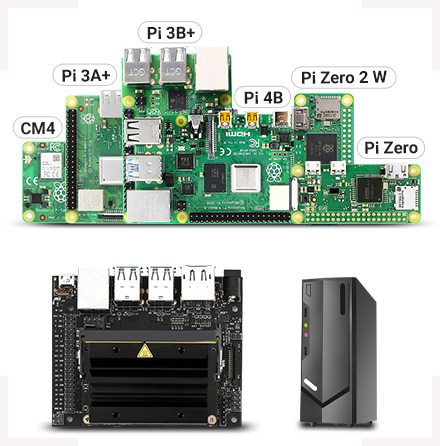

Supported devices and systems

Raspberry Pi
Support Raspberry Pi OS, 10-point control, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, one touch, no drivers required

PC

Support Windows 11 / 10 / 8.1 / 8 / 7, 10-point control, no driver

Connection example:

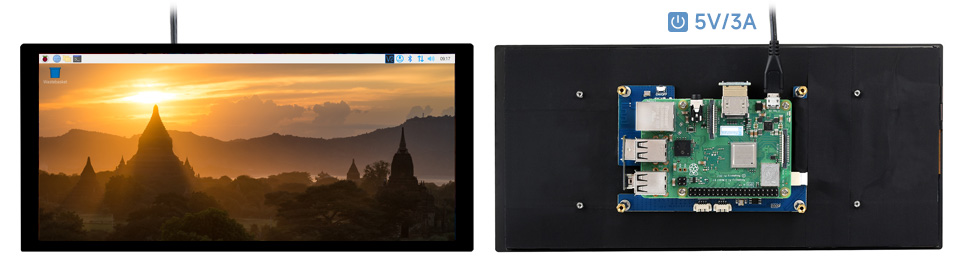

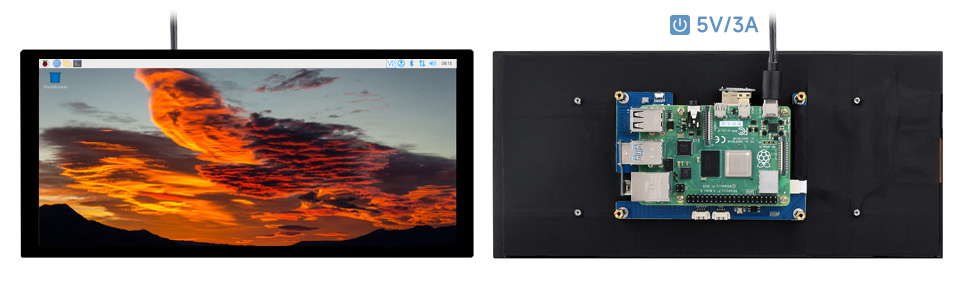

Working with Raspberry Pi 4B

Working with Raspberry Pi 3B+

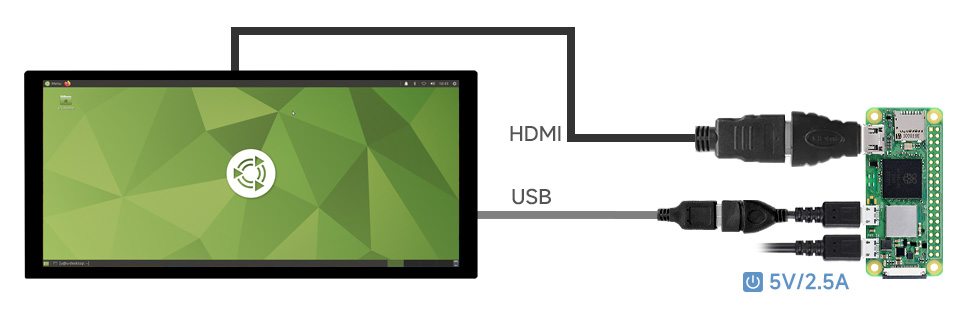

Working with Raspberry Pi Zero 2 W (requires an additional mini HDMI adapter and USB cable)

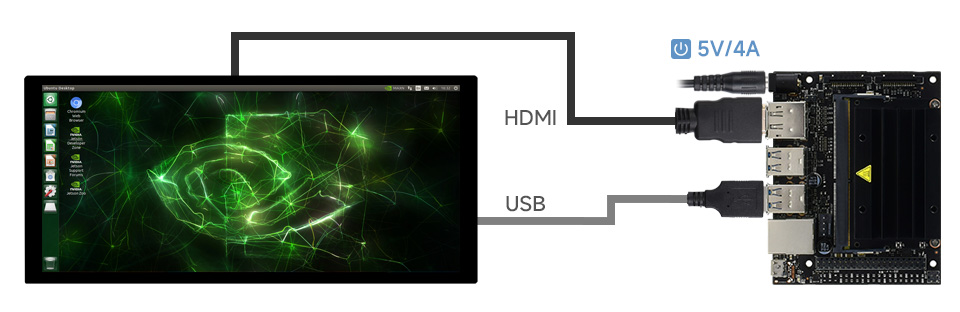

Working with Jetson Nano

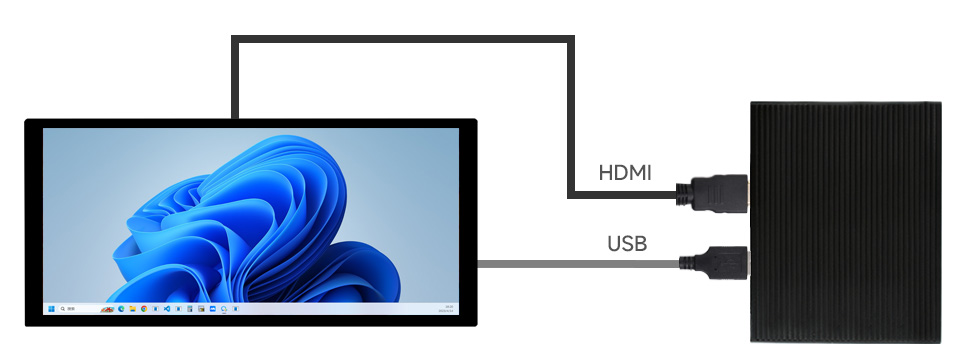

Work with PC

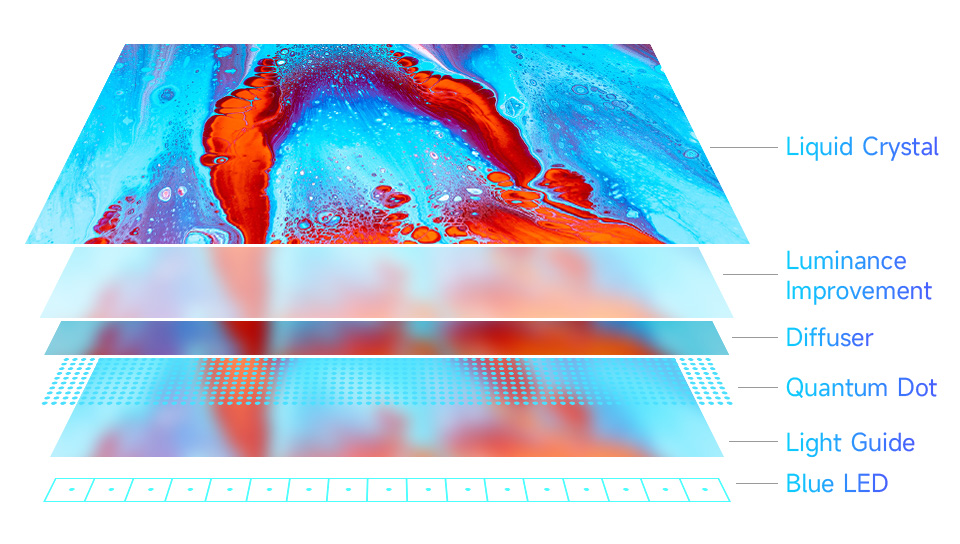

Uses QLED Quantum Dot technology: the color gamut of this QLED display reaches: SRGB 94%, NTSC 94%.

QLED color gamut is increased by 58.3%, making the color clearer and brighter

Longer service life

Due to its inorganic properties, QLED color lifetime can be up to 60,000 hours without color degradation

Capacitive 10-point touch device with characteristics:

• up to 10 touch points depending on the operating system
• tempered glass panel with a hardness of up to 6H
• Optical bonding, good reflectivity and dust protection

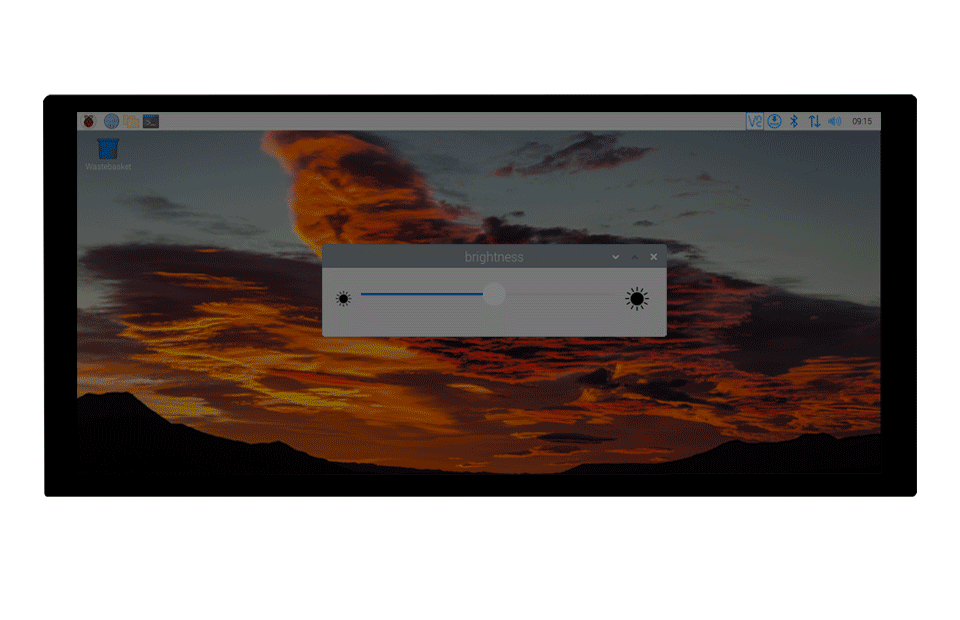

Supports DDC/CI brightness adjustment

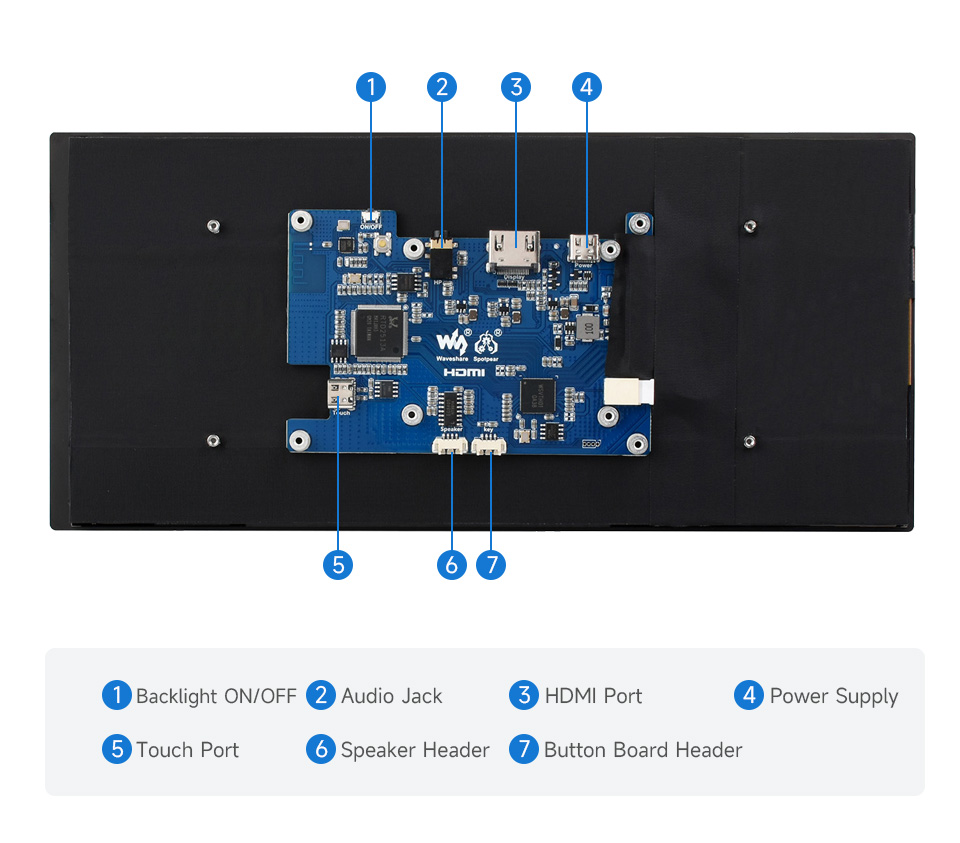

Interfaces:

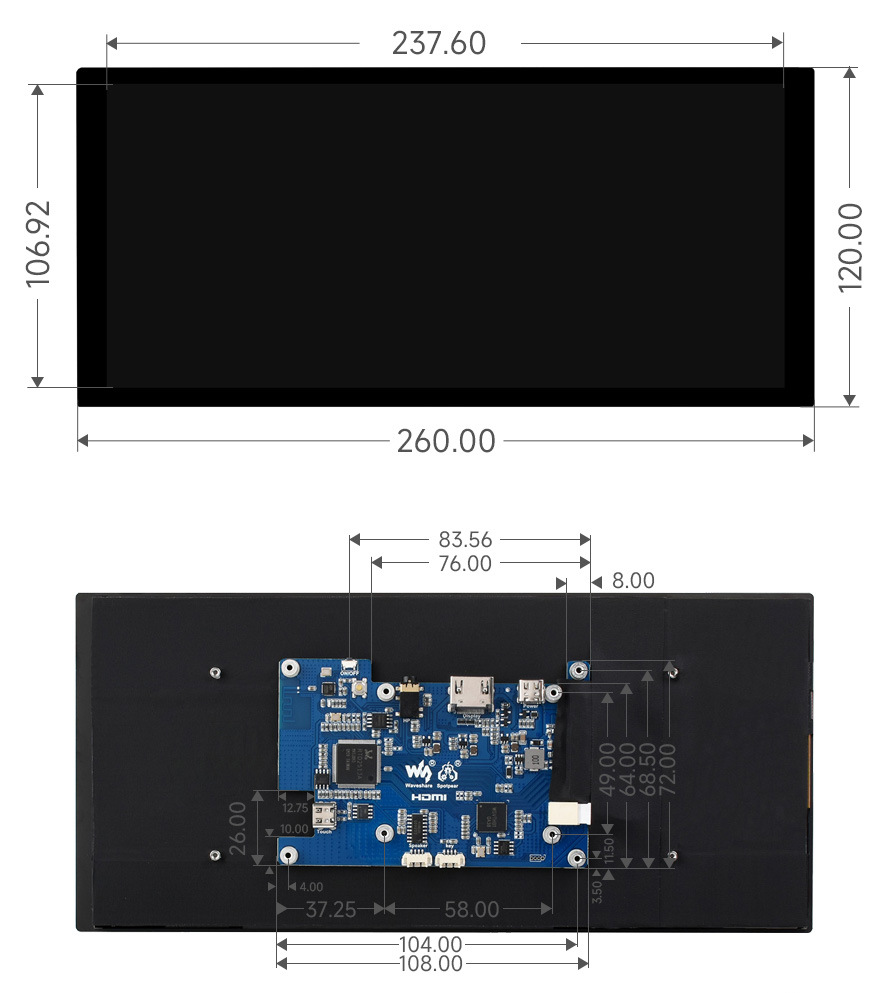

Overall dimensions: 260mm x 120mm

Wiki: www.waveshare.com/wiki/10.4HP-CAPQLED

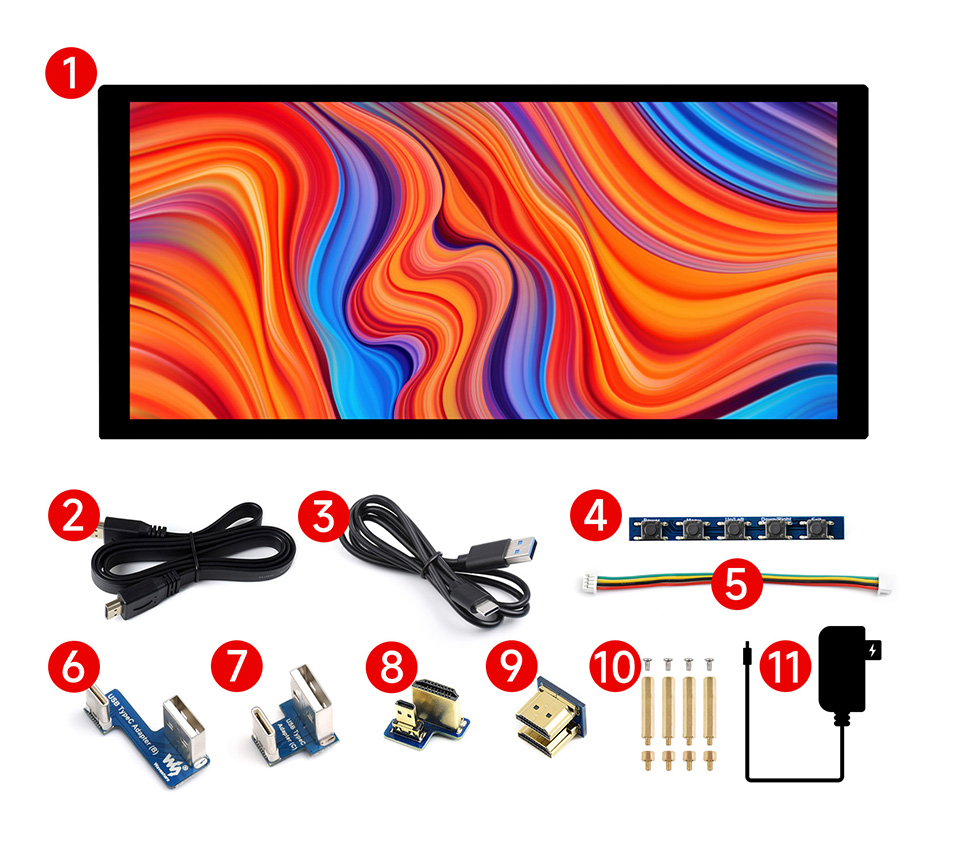

Package contents:

1. 10.4HP-CAPQLED ×1
2. Flat HDMI cable 1 m × 1
3. USB-A to USB-C cable 1 m × 1
4. Button board ×1
5. Button board cable × 1
6. USB to Type-C (B) adapter ×1
7. USB to Type-C adapter (C) ×1
8. HDMI to Micro HDMI adapter × 1
9. HDMI adapter ×1
10. Package of screws × 1 pc
11. 5V 3A Type C power supply ×1

Weight: 0.769 kg
